USER MANUAL MM400 OMEGA

Extractor de Jugos de Boca Ancha para Prensado en Frío EXTRACTOR DE JUGOS DE TRITURACIÓN A BAJA VELOCIDADCongratulations! CONGRATULATIONS on the purchase of your new Omega product. At Omega, we strive to develop technologically advanced machines that help deliver nutrition and avor of the highest kind and closest to nature’s purest form. We are driven by you, our brand supporters. Your enthusiasm helps us continue to reinvent and renew our line of juicers, high speed blenders and beverage equipment. Our team at Omega thanks you for supporting us for over 50 years! PRODUCT REGISTRATION, VISIT: www.omegajuicers.com/omega-warranty-registration RECIPES, VISIT: www.omegajuicers.com/recipes CUSTOMER SERVICE, VISIT: www.omegajuicers.com After using your Omega, we kindly ask you to rate the machine on www.OmegaJuicers.com FOLLOW OMEGA JUICERS ON SOCIAL:TABLE OF CONTENTS

08 Operating Instructions 09 Cleaning

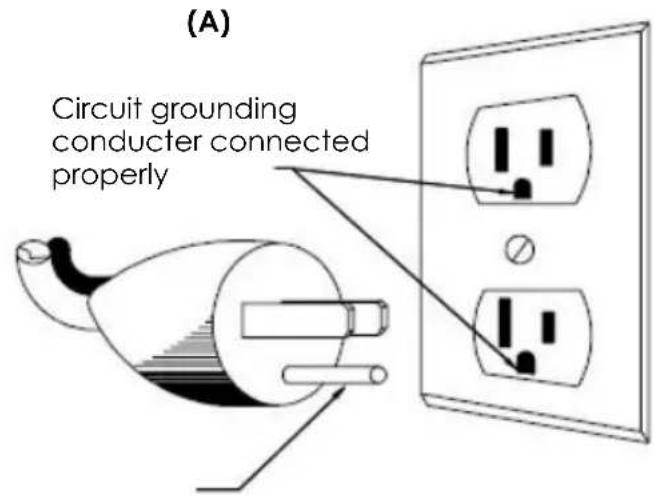

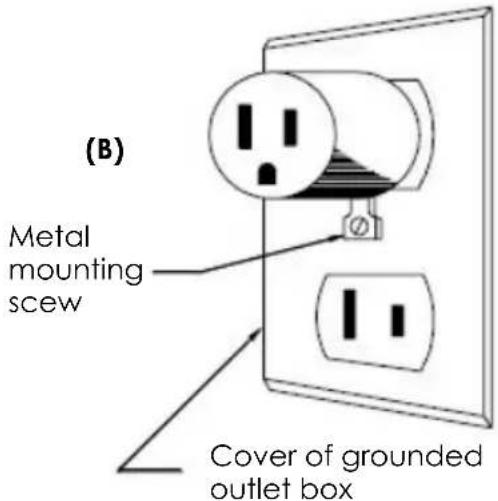

This appliance must be grounded while in use to protect the operator from electrical shock. The appliance is equipped with a 3-conductor cord and a 3-prong grounding-type plug to t the proper grounding-type receptacle. The appliance has a plug that looks like sketch A in Figure 73.1. An adaptor, sketch B, should be used for connecting sketch A plugs to two- prong receptacles. The grounding tab which extends from the adaptor must be connected to a permanent ground such as a properly grounded outlet box as shown in sketch C using a metal screw. FIGURE 73.1 Grounding Methods (C) ADAPTER (A) Circuit grounding conducter connected properly (B) Metal mounting scew Cover of grounded outlet box Grounding means AA2203 When using electrical appliances, basic safety precautions should always be followed including the following.

1. READ ALL INSTRUCTIONS BEFORE USING.

2. To protect against electrical shock, DO NOT immerse cord, plug, or main body (motor)

in water or other liquid.

The appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they DO NOT play with the appliance.

4. Be sure appliance is off and unplugged when not in use or prior to assembly/

disassembly or cleaning.

5. Avoid contact with moving parts. Unplug from outlet when not in use, before

putting on or taking off parts, and before cleaning.

6. Do not operate the appliance if the cord or any parts are damaged.

Contact us at www.OmegaJuicers.com.

7. The use of attachments not recommended or sold by manufacturer may cause re,

electric shock or injury.

8. DO NOT let cord hang over edge of table or counter or touch heated surfaces.

9. Always make sure juicer cover is clamped securely in place before motor is turned on.

DO NOT unfasten clamps while juicer is in operation.

10. Be sure to turn switch to OFF position after each use of your juicer. Make sure the motor

stops completely before disassembling.

11. DO NOT put your ngers or other objects into the juicer while it is in operation. If food

becomes lodged in opening, use food pusher or another piece of fruit or vegetable to push down the lodged food. When this method is not possible, turn off the machine, remove the plug from wall outlet and disassemble juicer to remove the remaining food.

12. DO NOT use outdoors.

13. DO NOT place on or near a hot gas or electric burner or in a heated oven.

14. DO NOT use appliance for anything other than its intended use.

15. Blades are sharp. Keep hands and utensils away from moving blades to reduce

the risk for injury or damage to the machine.

16. DO NOT juice without having the pulp bin in place.

Keep the appliance clean. Refer to the Care & Cleaning instructions in this manual.

18. DO NOT plug in until familiar with all the instructions and operating procedures.

19. DO NOT unplug from electrical outlet by pulling on the cord. To unplug, grasp the

plug, not the cord, and pull.

20. Turn off all controls before unplugging from or plugging into an electrical outlet.

21. This appliance can not grind meat.

22. Check hopper for presence of foreign objects before using.

23. Moving parts – Keep ngers out of discharge openings.

24. Sharp blade – Always use food pusher.

25. Rated operating time – Less than 20 minutes.

SAVE THESE INSTRUCTIONS

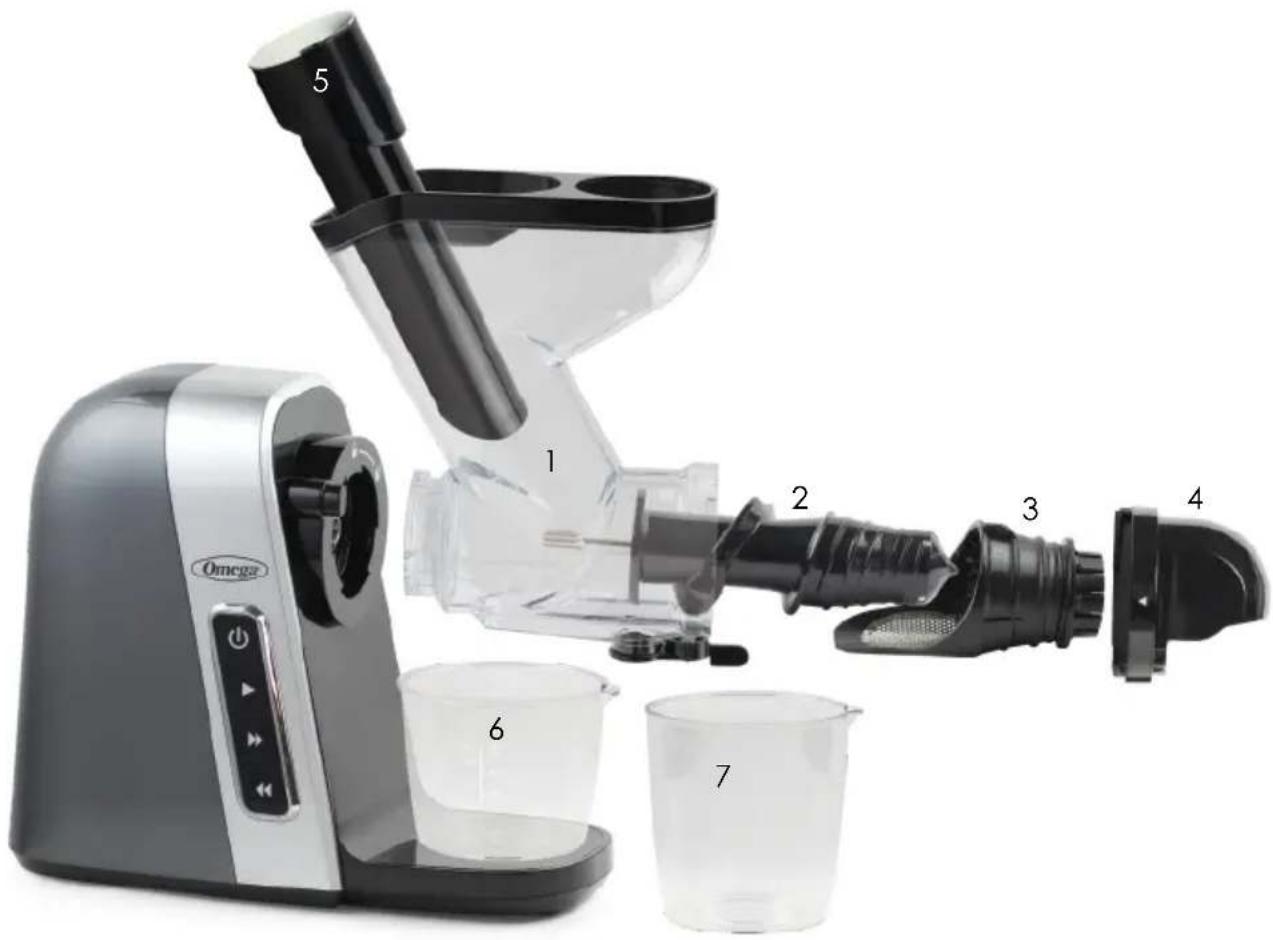

Before the first use of product, please completely clean the components contacting ingredients. (See Maintenance)

2. THEN ROTATE COUNTERCLOCKWISE, AND WHEN YOU

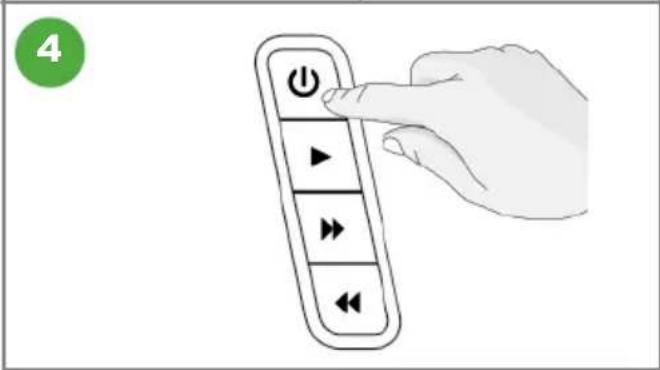

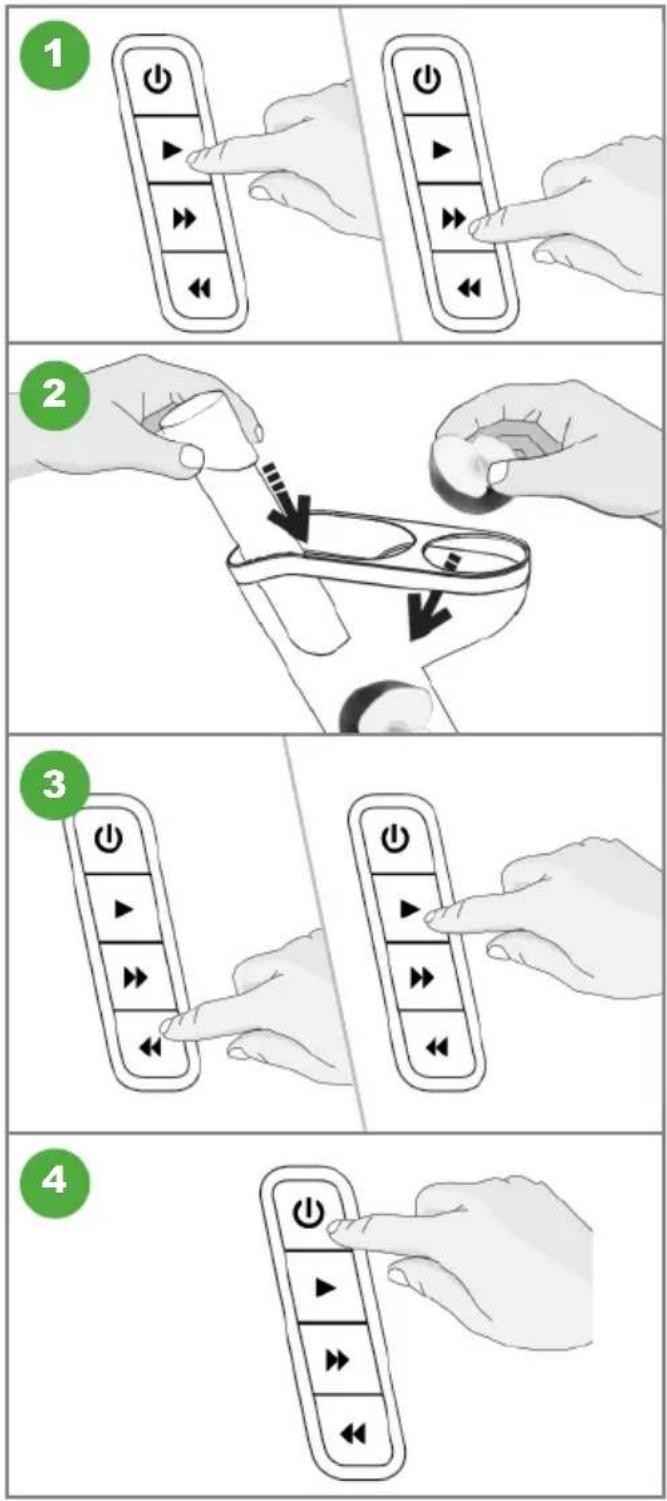

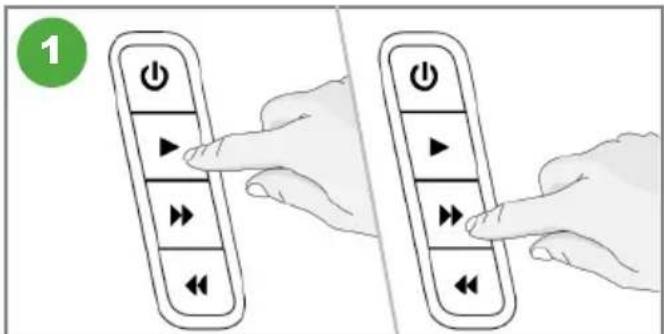

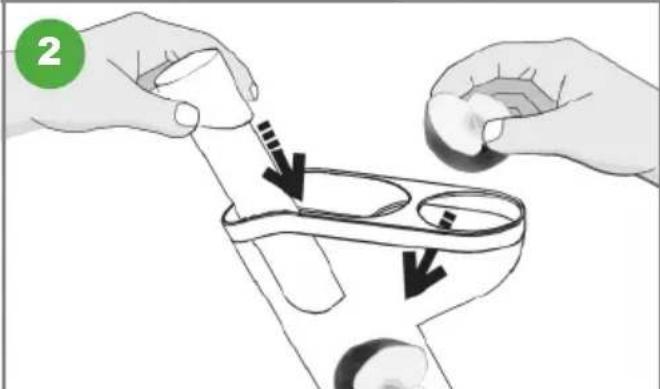

OPERATING INSTRUCTIONS After the juice extraction is complete, push the “ “ON/OFF button. Gradually put the ingredients into the chute and press down with the pusher. Press “ “ button on the control panel of the Omega

for softer fruits and vegetables.

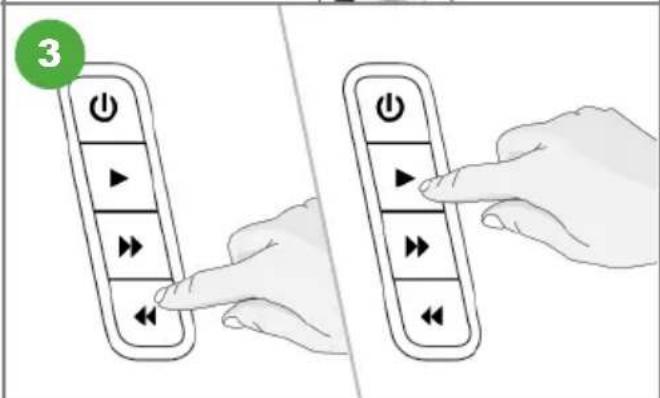

Press “ “ button for harder fruits and vegetables. If the drum is clogged or the machine stops operating, press the “ “reverse button 2 to 3 times and press the “ “SLOW or “ “FAST button again to resume normal operation.

DO NOT place ngers or any objects into the chute other than the pusher. Be sure the appliance is off and unplugged when not in use or prior to assembly/disassembly or cleaning. After continuous use for 20 minutes, it will automatically shut off. If there is a power overload it will also automatically shut off.9 CLEANING DAILY CLEANING

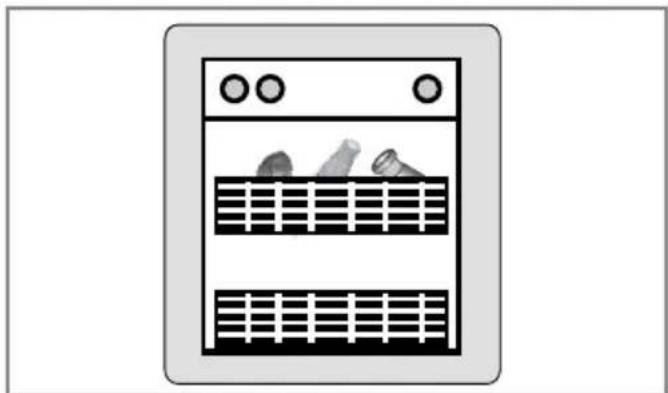

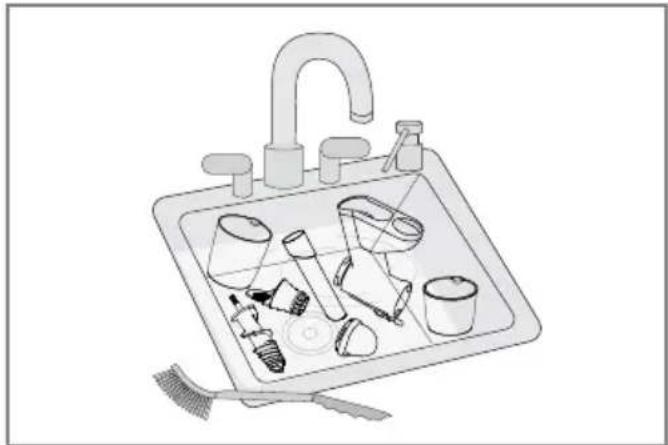

EASY CLEANING SYSTEM

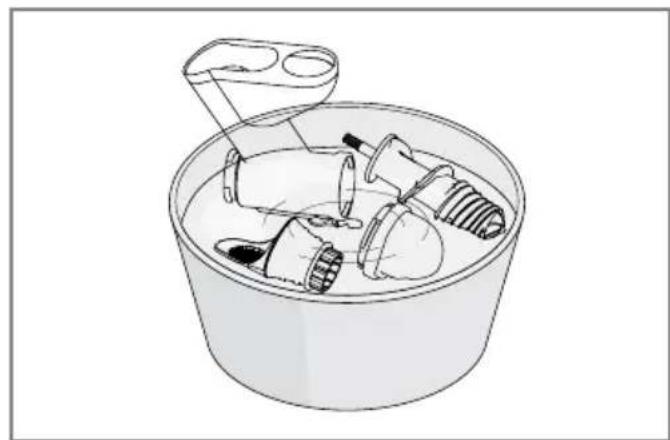

It is important to always scrub all sides and surfaces of your juicing parts with warm water, liquid dish soap and a scrubbing brush after each use to remove minerals and debris. When juicing is done, removable parts (except for the drum) may be washed in the top rack of the dishwasher. DEEP CLEANING A deep cleaning should be done approximately once per month, or as needed depending on frequency of use. To do a deep clean you will need a one gallon bowl lled with warm water and approximately one cup of liquid dishwasher soap which specically states that it removes mineral buildup. Let the parts soak for half an hour then thoroughly rinse and completely dry. Make sure water doesn’t extend past 140 F˚.10

CAUTION Hazards or unsafe practices could result in minor personal injury or appliance damage. This sign indicates contents that may cause risk of a re or an electrical shock. Specic warnings are written in the sign. This sign indicates prohibited acts. Specic prohibitions are written around or in the sign. This sign indicates contents of regulating or directing actions. Specic prohibitions are written around or in the sign. DO NOT PLUG IN OR UNPLUG WITH WET HANDS. It may cause an electric shock or an injury. DO NOT USE WITH OTHER THAN RATED VOLTAGE. It may cause an electric shock, a re or abnormal performance. If the voltage is different, it may shorten the life of the motor or cause a failure. PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET. It may cause electric shock or a re. IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD. If the power cord is damaged, it may cause electric shock or a re. NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR BY YOURSELF. DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS OR HOLES IN THE BASE. It may cause a re, an electric shock or a failure. For any technical support, contact the authorized local Customer Care Center. All users of this appliance must read and understand these safety precautions before operating. SIGN SAMPLES PRECAUTIONS11

PRECAUTIONS FOR SAFE USE

DO NOT OPERATE WITHOUT LOCKING THE HOPPER PROPERLY. It may cause an injury or a failure. NEVER PUT A FINGER, A FORK OR A SPOON ETC. INTO JUICE OUTLET. It may cause an injury or a failure. IF SCREW ROTATION IS STOPPED IN NORMAL OPERATION, PRESS [REVERSE/ ] BUTTON AND HOLD FOR 2-3 SECONDS AND THEN AFTER REVERSE OPERATION IS COMPLETELY STOPPED, PRESS [ or ]BUTTON AGAIN. If such a stop event continues during the operation, the parts may be damaged and performance may be deteriorated due to overheating in a motor. When the problem continues, immediately stop the appliance and contact the local Customer Care Center. WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED OR THE PLUG-IN PART BECOMES LOOSE, DO NOT OPERATE IT. It may cause an electric shock, a re or an injury. FOR SAFETY, MUST DO GROUND CONNECTION DO NOT DO THE GROUNDING ON GAS PIPE, PLASTIC WATER PIPE, TELEPHONE WIRE, ETC. It could cause an electric shock, a re, or a malfunction and an explosion. Be sure to use the socket with ground connection. NEVER DISASSEMBLE BOWL SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS ETC. INTO FEEDING TUBE OR JUICE OUTLET. It may cause an injury, an accident or a failure. THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. Children should be supervised to ensure that they do not play with the appliance. WHEN DETECTING A GAS LEAK, DO NOT INSERT THE POWER CORD INTO ITS SLOT. OPEN THE WINDOW TO VENTILATE FULLY AND IMMEDIATELY. It may cause an injury or a failure. DO NOT MOISTEN THE BASE OR SPLASH WATER ON THE BASE. Be careful not to let any liquids or other substances get into the switch on the appliance. DO NOT OPERATE THE SWITCH WITH WET HANDS. It may cause electric shock or a re.12

PRECAUTIONS FOR SAFE USE

DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE BASE, DISASSEMBLE THE BOWL SET OR PARTS AND TRY TO LOCK THEM. It may cause an injury or a failure. Any act of event needed, switch off rst and unplug the power cord. WHEN USING THE APPLIANCE, BE CAREFUL FOR A NECKTIE, LONG NECKLACE, SCARF ETC. NOT TO BE ENTANGLED INTO FEEDING TUBE. It may cause an injury, a failure or a breakage. PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE. It may cause an injury or a failure. DO NOT OPERATE THE APPLIANCE FOR MORE THAN 20 MINUTES AT A TIME. It may cause a motor failure due to overheating. Cool it down sufciently for 5 minutes and operate it again. WHEN PLACING INGREDIENTS INTO THE FEEDING TUBE, ONLY USE THE PUSHER PROVIDED. It may cause an injury or a failure. DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE OR DROP IT. It may cause an electric shock, a re or damage IF THE APPLIANCE GIVES OFF AN UNPLEASANT SMELL OR EXCESSIVE HEATING, SMOKE, STOP USING IMMEDIATELY AND CONTACT THE LOCAL CUSTOMER CARE CENTER. When using a new appliance, it gives off a smell and the smell disappears naturally over time. ALWAYS UNPLUG THE APPLIANCE AFTER USE. WHEN UNPLUGGING THE POWER CORD, MAKE SURE TO HOLD THE POWER CORD. If holding the wire to unplug, it may cause an electric shock or a re. THE APPLIANCE WEIGHS ABOUT 10.6 LB (4.8 KG). WHEN MOVING THE APPLIANCE, ENSURE TO MOVE IT HOLDING GRIPS TIGHTLY AT THE BASE BOTTOM WITH BOTH HANDS. If attempting to hold bowl or the edge of the base, the base may fall causing an injury or a failure. 20minute13

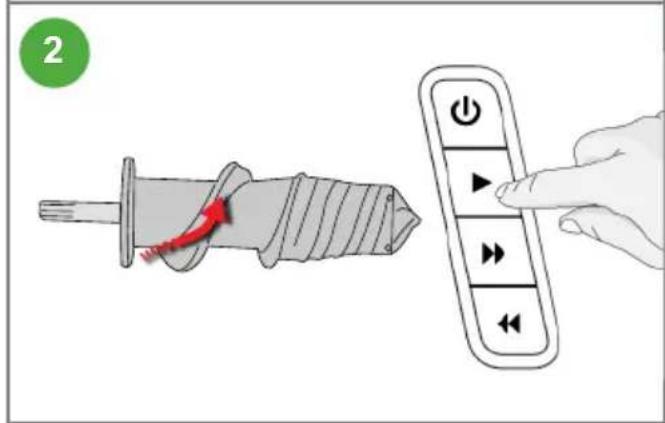

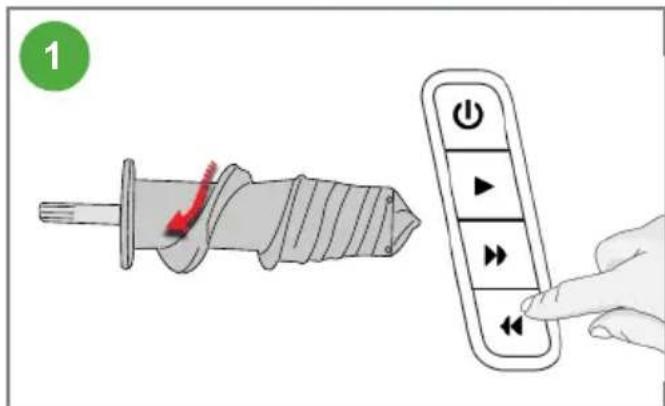

IF THE AUGER STOPS WORKING

Press the slow ” “ or fast ” “ button” to start. When using slow or fast the auger should rotate. Wait 2 to 3 seconds. Then press the reverse button “ “. Repeat this 2 to 3 times. Make sure the auger stops completely after releasing the button. Note: Even after following the directions above, if the juicer still doesn’t work, please unplug the power cord, disassemble the chamber set and clean it. Then try again. Press the reverse button “ “ for 3 to 5 seconds, then release. When the reverse button is released, the auger will stop rotating. Repeat this 2 to 3 times. The reverse button pushes the ingredients upward releasing the food clog.14

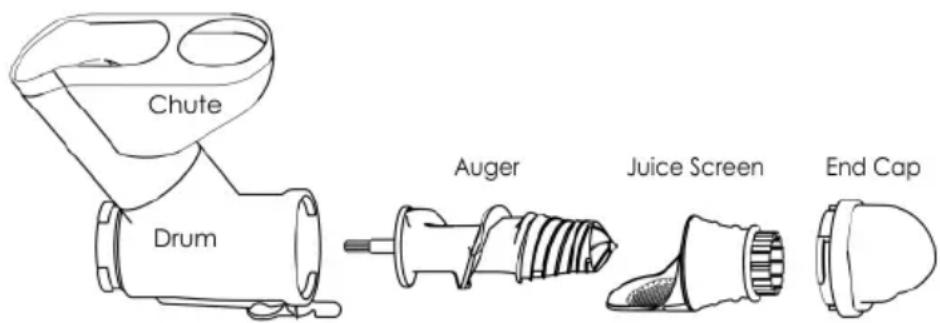

Fresh, crisp thoroughly washed produce is best for juicing. The Omega® Cold Press 365® Wide Mouth Juicer can extract juice from un-peeled fruits and vegetables, but your taste may prefer peeled produce.

Cut fruits and vegetables into tall, thin pieces to t in the chute.

Turn [ON] machine and let it run without interruption until all juice has been extracted.

• Alternate soft and rm items. It is best to start with the softer items and nish with rmer items.

If the pulp starts to clog the drum, turn [OFF] machine and empty/wash the drum set. Reassemble and resume normal operation.

After placing the last piece of fruit or vegetable into the chute, keep the machine running for a few seconds to ensure all juice is extracted.

After every use thoroughly clean all parts that come into contact with food or juice with warm water and dishwashing liquid using a cleaning brush.

• Use caution when juicing the following ingredients: - Fruits with hard seeds such as plums, peaches, apricots or similar should be pitted before extraction. - Stalk vegetables with strong ber should be cut into tall thin pieces to t into the hopper. - When juicing celery keep the juice ap open and do not use more than l lb. of fresh celery stalks at one time. - Because celery contains a lot of minerals and ber, the pulp may become lodged in the auger and lter basket after a lot of celery is juiced. - Only use fresh fruits and vegetables. End CapJuice ScreenAuger Drum Chute15 TROUBLESHOOTING Please troubleshoot using the details below before contacting Omega Customer Service for repair or service. When contacting Omega for after-sales service, please have the manufacturer’s serial number or bar code available. The Appliance Does Not Work

• Make sure the power cord is plugged in correctly.

• Make sure the drum is assembled correctly. If the drum is not locked into place, the appliance will not operate.

• Make sure the appliance is assembled according to the instructions in this manual. Refer to the instructions.

• If the appliance still does not work, please contact Omega Customer Service for additional support. The drum Does Not Open

• If there is a lot of pulp inside the drum, press [On] to release the excess pulp.

• Check the appliance for any foreign substance or solid objects including seeds.

• Press [Rev] button to push up stuck ingredients.

• Do not attempt to open by force. If the drum still does not open, please contact Omega Customer Service for additional support. The Appliance Stops During Normal Operation

• Check for large pieces of food stuck in the appliance.

• Refer to the section “If the Auger Stops Working” and follow the guideline for the [Rev] button.

• If the appliance still does not work, please contact Omega Customer Service for additional support. Fine Lines or Scratch Marks around the Auger

• This is normal. Do not be concerned. These are molding marks resulting from the normal manufacturing process. Juice Leaks Over the Base

• Check for an excessive amount of ingredients in the hopper and/or chute.

• If you try to juice a large amount of food compared to the pulp chute, the packing will be slightly pushed away. Juice may leak out of the gap.

• Do not force too much food into the juicer. Push food gradually for extraction.

• Check to make sure the juice ap is closed. Juicer Shakes when In-Use

• This is normal as the auger rotates. It is not a malfunction. Hard ingredients such as carrots, potato, radish, beets, etc. may cause shaking more so than soft ingredients.

• Depending on the rmness of the ingredient, there may be a more pronounced shaking of the motor.

• Slight shaking may be caused by the motor.16

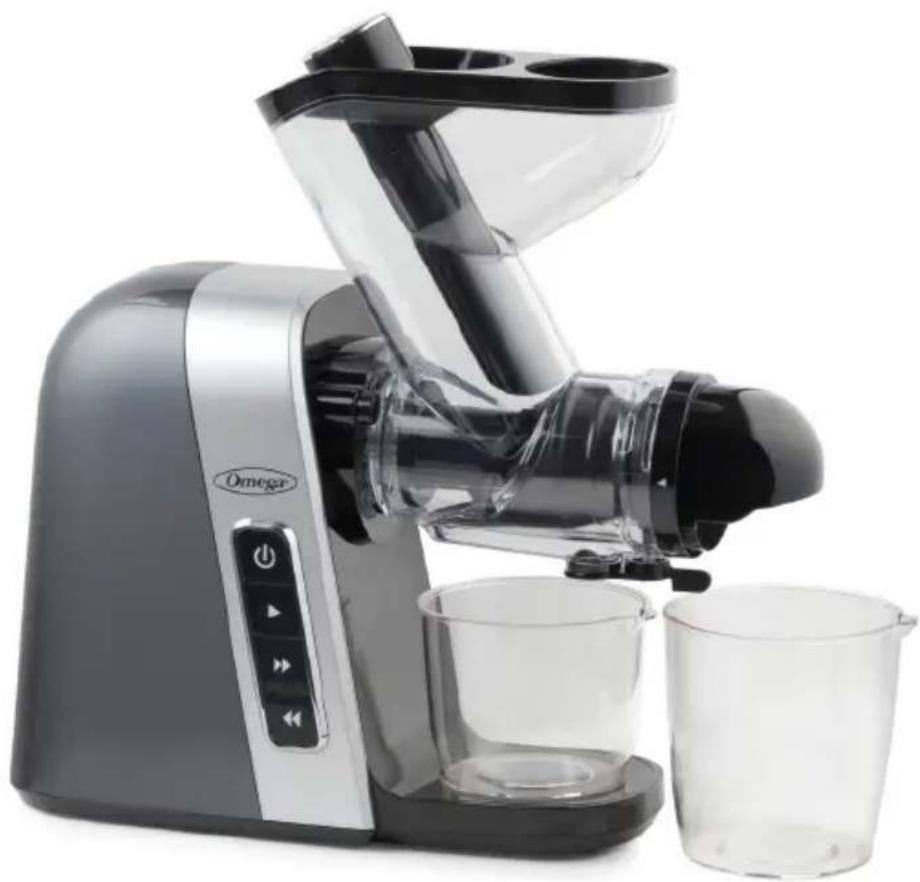

Cold Press Wide Mouth Juicer Model Name MM400 Rated Voltage 120 V Rated Frequency 50/60 Hz Rated Power Consumption 200 W RPM 80~100 RPM Cord Length 47 inches (1.2 m) Product Weight 13.8 lb (6.3 kg) Shipping Weight 15.2 lb (6.9 kg) Outward Dimension 16.8” Width (426 mm) 6.3” Depth (161 mm) 16.5” Height (420 mm) Rated Operating Time Less than 20 minutes PRODUCT SPECIFICATIONS17

1 cucumber 1 green apple (core removed) 1 lemon (yellow rind removed) PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: Wash all produce. Add all ingredients into your Omega

and juice. Pour into your glass and enjoy! Cucumbers contain a lot of magnesium, a mineral which has shown to help with both sleep quality and duration. Enjoy this delicious juice no less than an hour before bed and get ready make some zzz’s. RECIPES

2 medium apples (core removed) 2 Carrots 2 Beets 2 lemons (yellow rind removed) PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: Wash all produce Add all ingredients into your Omega

and juice. Pour into your glass and enjoy! Turn Up the Beet Cucumber Slumber

Start your day with this rainbow of phytonutrients and you’re sure to continue making healthy food choices throughout the day.18 RECIPES 2 grapefruits (peeled) 1 red bell pepper 2 pears 6 carrots PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: Morning Glory Citrus Wash all produce well. Juice all produce in your Omega

and enjoy! Serving Size: 16 - 18 oz. Bursting with Vitamin C and beta-carotene, as well as Vitamins A & K and even copper.

2 apples 3 kiwis PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: Wash the apples, then remove the core and cut into quarters. Peel the kiwis and chop into small pieces. Juice ingredients in your Omega

Stir before drinking. Apple & Kiwi Juice

1 medium apple, cored and cubed 2 medium soft pears, cored and cubed ½ cup fresh cherries (pits removed or frozen and thawed) PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: In your Omega

juice apple, pears, and cherries. Before serving, garnish with fresh cherries, if desired. Total Health Booster

1 cucumber 2 collard green leaves 1 handful of cauliower orets ½ lemon (yellow rind removed) PREP 5 minutesJUICE 5 minutes What You’ll Need: How To Prepare: Wash all produce. Add all ingredients into your Omega

VOUS AU : www.omegajuicers.com/omega-warranty-registration

VOUS AU : www.omegajuicers.com/recipes

www.OmegaJuicers.com.

Fresh, crisp thoroughly washed produce is best for juicing. The Omega

Wide Mouth Juicer can extract juice from un-peeled fruits and vegetables, but your taste may prefer peeled produce.

Cut fruits and vegetables into tall, thin pieces to t in the chute.

Turn [ON] machine and let it run without interruption until all juice has been extracted.

• Alternate soft and rm items. It is best to start with the softer items and nish with rmer items.

If the pulp starts to clog the drum, turn [OFF] machine and empty/wash the drum set. Reassemble and resume normal operation.

After placing the last piece of fruit or vegetable into the chute, keep the machine running for a few seconds to ensure all juice is extracted.

After every use thoroughly clean all parts that come into contact with food or juice with warm water and dishwashing liquid using a cleaning brush.
