EUJ-606 - Juicer OMEGA - Free user manual and instructions

Product Type	Masticating Juicer
Brand	Omega
Model	EUJ-606 (Sana Juicer by Omega)
Dimensions (L x W x H)	484 mm x 183 mm x 320 mm
Voltage	230V / 50Hz
Power	200W
Motor Type	Single-phase induction
Auger Speed (RPM)	63 - 75 RPM (low speed)
Fuse	250V 5A 50T
Certification	CE
Functions	Fruit juice, vegetable juice, grass juice, processing/chopping, pasta making, homogenizing, grinding
Included Accessories	15 parts: juicing strainer, processing strainer, 2 containers, food pusher, 3 noodle nozzles (round, bread, flat), hopper + drum, cleaning brush, drum cap, auger, adjustable pressure cap
Warranty	15-year warranty on all parts and labor
Max Continuous Operation	30 minutes
Auger Material	Hygienic U.S. FDA-approved Ultem
Pressure Adjustment	Adjustable pressure cap from 1 (soft fruits) to 5 (hard vegetables)
Cleaning	Wash auger and parts in warm soapy water; do not use dishwasher; do not immerse motor
Safety Features	Locking clip, reverse button for clearing clogs, automatic shut-off when overloaded (suggested)
Reverse Function	Yes, press reverse button 2-3 times to clear clogs

Frequently Asked Questions - EUJ-606 OMEGA

How do I assemble the juicer for fruit/vegetable juicing?

First, connect the drum to the main body by turning the locking clip clockwise. Place the auger into the drum, then insert the juicing strainer. Attach the drum cap and turn counter-clockwise until it clicks. Finally, attach the adjustable pressure cap and set to desired pressure (5 for hard vegetables, 1-2 for soft fruits).

Can I make pasta with this juicer?

Yes, the EUJ-606 includes a pasta maker function. Replace the juicing strainer with the processing strainer and choose a nozzle (round, flat, or bread noodle). Push pasta dough through the hopper using the food pusher, then cut to desired length with scissors.

How do I clean the juicer after use?

Disassemble all parts. Wash the auger, strainers, and other accessories in warm soapy water. Rinse well. Do not place any parts in the dishwasher. Do not immerse the main body; wipe it with a damp cloth. Use the included cleaning brush for thorough cleaning.

What is the warranty period for the Omega EUJ-606?

The Omega EUJ-606 comes with a 15-year warranty covering all parts and labor. This demonstrates the manufacturer's confidence in its durability.

Can I juice citrus fruits like oranges?

Yes, the EUJ-606 is designed to juice all types of fruits, including citrus. For soft fruits like oranges, set the adjustable pressure cap to 1 or 2 to avoid excess foam and maximize yield.

What should I do if the juicer clogs or stops during operation?

Press the reverse button 2 to 3 times to clear the clog. Then press the ON button to resume normal operation. Do not force the machine; if it persists, disassemble and clean the drum set.

Can I juice wheatgrass or other grasses?

Absolutely. The EUJ-606 is a grass juice extractor. Juice wheatgrass, aloe leaves, and pine tree leaves for full nutritional benefits. Use the juicing strainer as usual.

How long can I run the juicer continuously?

Do not run the juicer for more than 30 minutes at one time. Allow it to cool down before another use to prevent overheating.

What parts are included with the juicer?

The package includes 15 items: 1 user manual, 1 processing strainer, 2 containers, 1 food pusher, 3 noodle nozzles (round, bread, flat), 1 hopper + drum, 1 cleaning brush, 1 drum cap, 1 auger, 1 adjustable pressure cap with tube ring, and 1 juicing strainer.

Is the auger made of safe materials?

Yes, the auger is made from U.S. FDA-approved Ultem, a hygienic, high-performance plastic that ensures no chemical leaching, preserving the natural taste and nutrition of your juice.

USER MANUAL EUJ-606 OMEGA

A Legendary

Name in

Fresh Juice

Extraction.

Line drawing of a manual electric shaver with handle and blade (no text or symbols)

INSTRUCTION MANUAL FOR THE MASTICATING JUICER

EUJ606

Important Safeguards

1. Read all instructions.
2. To protect against risk of electrical shock, do not put the main body (motor) in water or any other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use, before assembling or taking off parts and before cleaning.
   Avoid contact with moving parts.
5. Do not operate appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
   The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
   Do not let cord hang over edge of table or counter.
6. Always make sure juicer locking clip is locked while juicer is in operation.
7. Be sure to turn switch to OFF position after each use of your juicer. Make sure the motor stops completely before disassembling.
   Do not put your fingers or other objects into the juicer while it is in operation. If food becomes lodged in the opening, use food plunger or another piece of fruit or vegetable to push it down. When this method is not possible, turn the motor off and disassemble juicer to remove the remaining food.
   Read all the instructions and operating procedures before plugging in and using appliance.
   Do not unplug from electrical outlet by pulling on the cord. To unplug, grasp the plug, not the 13. cord, and pull.
   Turn off all controls before unplugging from or plugging into an electrical outlet.
   14.

021

SANA Juicer by Omega (EUJ606)

This heavy-duty juicer features a patented, stone mill-like auger, made of hygienic U.S. FDA-approved Ultem.

The Sana Juicer by Omega (EUJ606) working at low speed of 63-75 RPMs ensures full taste and the highest nutritional value.

The Sana Juicer by Omega (EUJ606) is easy to assemble and disassemble for quick cleaning.

The Sana Juicer by Omega (EUJ606) assures you many years of trouble-free, dependable service.

15-year warranty on all parts and labor.

Multi-Purpose Juicer/Food Processor

1. Fruit Juice Extractor

The Sana juicer efficiently juices soft and hard fruits, even citrus fruits, one of the hardest fruits to juice.

2. Vegetable Juice Extractor

The Sana efficiently juices all kinds of vegetables, including celery, carrots, peppers, radishes, and cabbage without destroying the natural flavor and nutrition. Fresh taste and full nutrition is guaranteed with this unique extraction process.

3. Grass Juice Extractor

Wheat grasses, aloe leaves and pine tree leaves are just some of the other natural products you can juice with the Sana juicer. Enjoy the best that nature offers in raw foods of all kinds. Juice them for full nutritional benefits.

4. Processing /Chopper Functions

The Sana also chops and processes, garlic, scallions, red pepper, ginger, radish and many other foods, including herbs and seasonings, providing natural flavor and nutrition. Soft foods for babies and geriatric patients are quick and easy to prepare with the processing strainer.

5. Pasta Maker

Make fresh noodles in just minutes with the pasta nozzles. See page 14 for more information.

6. Homogenizer

Make fresh frozen desserts, natural baby food, and nut butters.

7. Grinder

Grind coffee beans and flour.

Parts for juicing

Parts for Processing

Juice fruits and vegetables

Juice grasses

Mince herbs & seasonings

Make noodles and bread sticks

Make baby food and sorbets

Specifications

Model Name	Sana Juicer by OMEGA EUJ606
Dimensions	Length: 484 mmWidth: 183 mmHeight: 320 mm
Voltage	230V/50Hz (200W power)
Motor	Single-phase induction
Auger RPM	63-75
Fuse	250V 5A 50T
Certified	CE

Parts and Accessories Included with Your Juicer

1 User Manual	1 Processing Strainer
2 Container	1 Food Pusher
2 Round Noodle Nozzle	1 Hopper + Drum
1 Bread Noodle Nozzle	1 Cleaning Brush
1 Flat Noodle Nozzle	1 Drum Cap
1 Auger	1 Adjustable pressure cap consisting of juicing nozzle with a tube ring.
1 Juicing Strainer

Total of 15 parts including this manual

1. Thoroughly wash unpeeled fruit and vegetables before juicing.
2. Cut fruit or vegetables into small pieces (about 2 inches) so juice may be extracted more thoroughly.
3. Turn on the machine. Let it run without interruption until all the juice has been extracted.
4. If the juicer starts to vibrate slightly during operation, turn off the machine. Empty the drum set. Re-assemble and resume normal operation.
5. After placing the last pieces of fruits or vegetables into the hopper, keep the machine running for a few seconds to ensure the machine has extracted the last drops of juice.
6. Turn off machine.
7. Clean drum set after each use.
8. Do NOT run the machine for more than 30 minutes at a time.

Cleaning Instructions

Wash the auger and parts in warm, soapy water in your kitchen sink and rinse well.

Do not place parts or accessories in your dishwasher.

Do not immerse unit in water. Clean with a damp cloth.

Making Juice

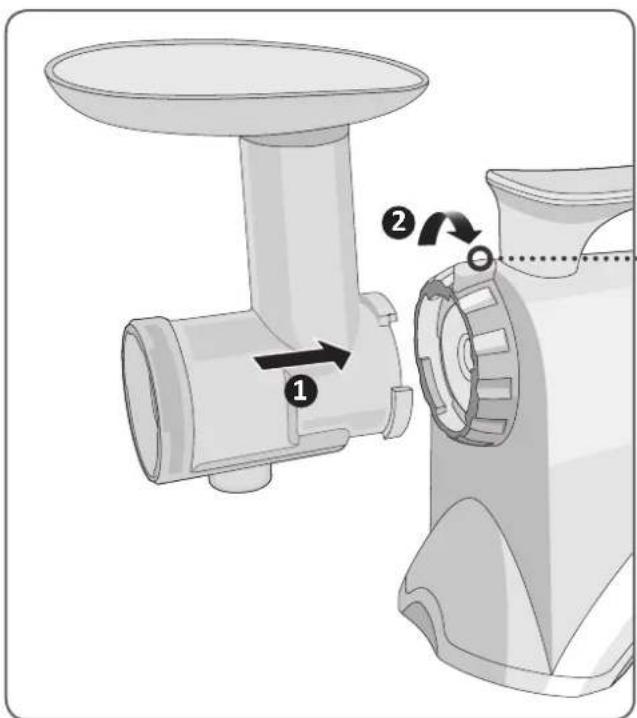

Assembly 1

Connect drum with main body by turning locking clip clockwise (about 60°).

Place hopper onto guide.

Exploded view diagram of a mechanical component showing sequential assembly from raw material to final spiral (no text or symbols)

Assembly 2

For juicing function:

Place the auger into the drum.

Insert the juicing strainer into the drum.

Place the drum cap onto the drum end and turn it counter clockwise until it clicks firmly into place.

Attach adjustable pressure cap to the drum cap end.

Turn to "5" on the adjustable pressure cap for maximum pressure. This is best for carrot, beetroot and the leafygreens.

Turn to "1" or "2" for soft fruits like orange, strawberry etc.

Technical illustration of a sewing machine showing the blade, handle, and base components (no text or symbols)

Assembly Instructions

Food Processor Function

For processing function,

Place the auger into the drum.

Insert the processing strainer into the drum.

Place the drum cap onto the drum end and turn it counter-clock-wise until it clicks firmly into place.

If interested in making pasta, u-dong or noodles, please refer to the "Making Pasta" section.

Exploded view diagram of a mechanical component showing progressive assembly from raw gear to final spiral drill (no text or labels)

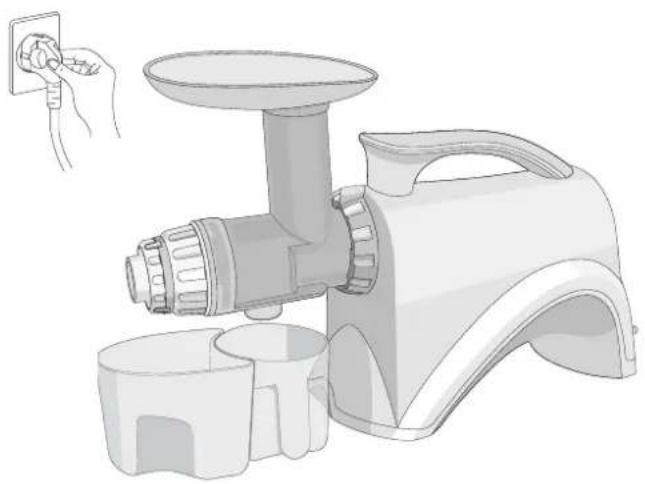

Assembly 3

When juicing, place juice bowl and pulp bowl under drum set. When processing, you won't need the juice bowl. Plug power cord into wall outlet.

Illustration of a hand inserting a plug into a cleaning brush, showing the brush tip and base (no text or symbols present)

Pure geometric diagram showing a rectangle with center mark and perpendicular lines (no text or symbols)

Technical illustration of a kitchen feedstock showing the blade and side view (no text or symbols)

Assembly 4

Press the ON button. Place a few pieces of cut fruit or vegetables, one at a time into the guide. Use the food pusher to press the fruit or vegetables gently down the guide. Leave the machine on as you feed in the fruits/vegetables.

Illustration of a hand-coated manual shaver with a side panel and cup base (no text or symbols)

Assembly Instructions

Assembly 5

DO NOT place any metal objects into the hopper. If the drum set is clogged or the machine stops operating, press the reverse button 2 to 3 times which will clear the clogging. Press the on button again to resume normal operation.

Illustration of a hand washing the hair into a manual electric shaver, with no text or symbols present.

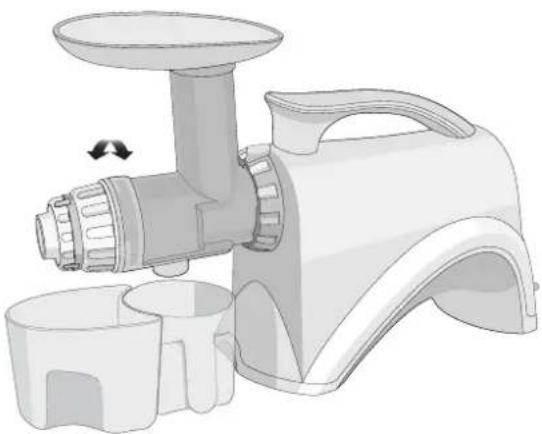

Assembly 6

Switch the juicer OFF before changing accessories or touching any moving parts.

Remove the drum set from the main body by turning the locking clip counter-clock wise. Pull the auger forward to disassemble it from the drum set. After juicing, wash all parts in warm soapy water. Do NOT place any of the juicer accessories in the dishwasher.

Illustration of a white manual hand mixer with handle, spout, and side cups (no text or symbols)

Assembly 7

Do NOT run juicer for more than 30 minutes continuously at any one time.

Making Pasta, U-dong, Noodle, Breadstick

Assembly 1

Open drum cap

Replace juicing strainer with processing strainer.

Place the desired nozzle into the front end of the processing

strainer. Turn drum cap counter-clock-wise until it clips firmly into place.

Exploded view diagram of a sewing machine showing key components and assembly steps (no text or labels)

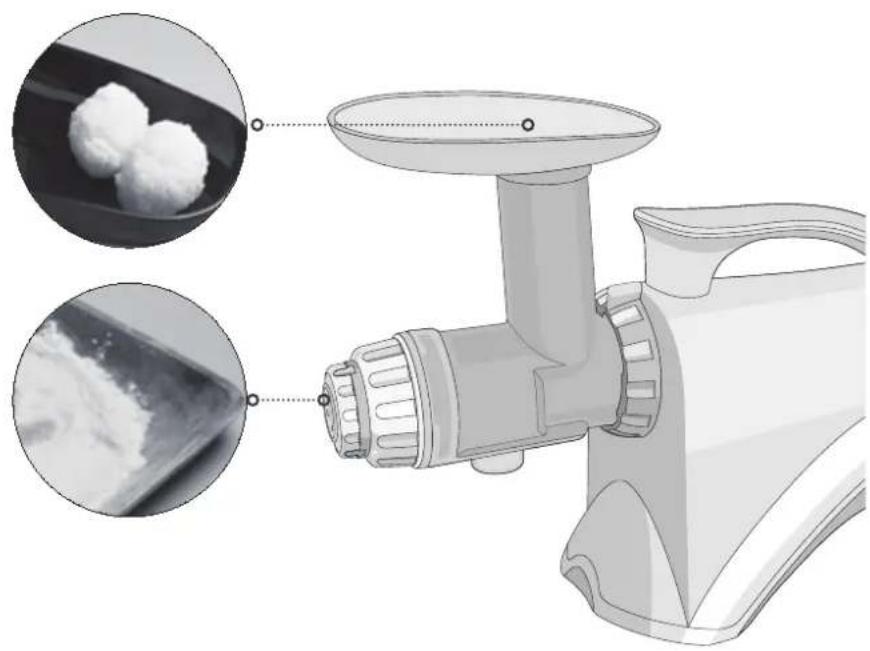

Assembly 2

Sprinkle a small amount of wheat flour on the holding dish placed under the spout.

Press ON button.

Push pasta dough through the food guide without stopping.

Illustration of a food grater with close-up insets showing raw material and processing steps (no text or symbols)

Assembly 3

Use scissors to cut the pasta to desired lengths.

Cook according to recipe used.

Assembly 4

Disassemble unit and rinse all parts and accessories first in cold water. Then wash in warm soapy water in your sink – NOT in your dishwasher.

Choosing the Right Strainer

Material	Strainer
Apples, Oranges, Pears, Grapes, Strawberries, Kiwi fruit, Tomatoes, Avocados, Aloe, plant, pine tree leaves, kale, Radishes, Beet tops,(fruit)spinach, carrots, yams, wheat grass.	Juicing strainer
Red/ green pepper, garlic, ginger, herbs, soaked rice and beans.	Processing strainer
Pasta, U-dong, Noodle Breadstick, Ice cream, Nut butter	Processing strainer

Sana JUICER® BY Omega
