00384 - Iron EasyMaxx - Free user manual and instructions
Find the device manual for free 00384 EasyMaxx in PDF.
| Product type | Hot air iron on hanger |
| Brand | EasyMaxx |
| Model | 00384 |
| Power supply | 220-240 V ~ 50 Hz |
| Power | 1800 W |
| Protection class | II |
| Timer | 5 to 30 minutes (in 5-minute increments) |
| Adjustable height | Yes, via telescopic rod with clip |
| Nylon balloon | Yes, with zippers to adjust size |
| Accessories included | Nylon balloon, 5 weighted clips, drip protector |
| Intended use | Drying and ironing water-washed textiles (except wool and delicate fabrics) |
| Indoor use | Yes, exclusively |
| Hot surfaces | Caution: surfaces may become very hot during use |
| Safety | Automatic shut-off at end of time, overheating protection, safety switch in case of fall |
| Cleaning | Wipe with a slightly damp cloth and mild detergent; dry completely before storage |
| After-sales service | DS Produkte GmbH, Am Heisterbusch 1, 19258 Gallin, Germany, Tel.: +49 38851 314650 |
| Article reference | 00384 |
| Model number | EL17001-00100 |
Frequently Asked Questions - 00384 EasyMaxx
User questions about 00384 EasyMaxx
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Iron in PDF format for free! Find your manual 00384 - EasyMaxx and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 00384 by EasyMaxx.
USER MANUAL 00384 EasyMaxx
DE
Gebrauchsanleitung
ab Seite 3
EN
Instruction manual
starting on page 11
FR
Mode d'emploi
www.service-shopping.de
DE 4
Back view of a white traditional-style garment with a button and sleeve (no text or symbols visible)natural_image
3D rendered image of a long-sleeve traditional-style jacket with buttoned collar and side trim (no text or symbols)Safety Instructions 12

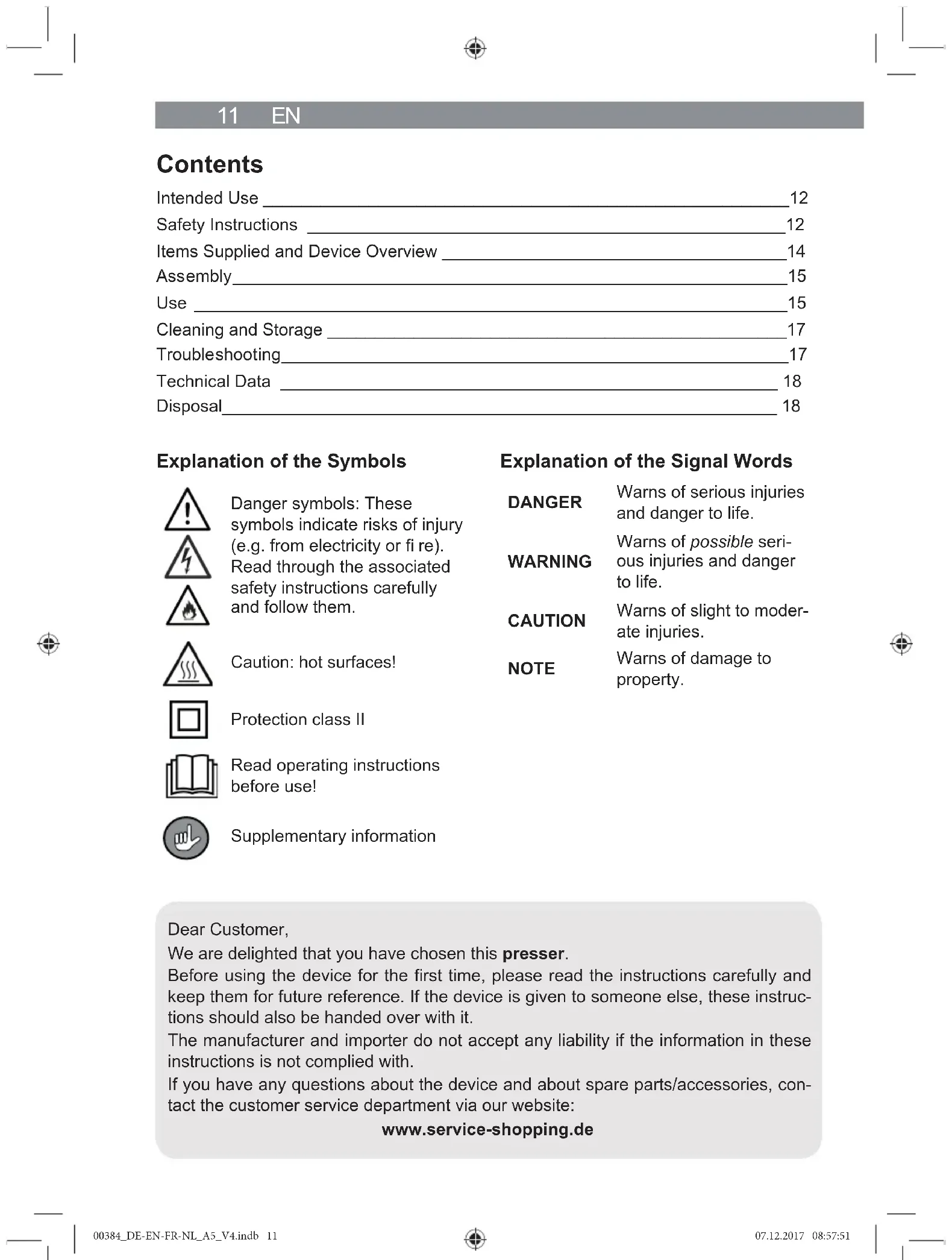

Items Supplied and Device Overview 14
Assembly 15
Use 15
Cleaning and Storage 17
Troubleshooting 17
Technical Data 18
Disposal 18
Explanation of the Symbols
Danger symbols: These symbols indicate risks of injury (e.g. from electricity or fire). Read through the associated safety instructions carefully and follow them.
Caution: hot surfaces!
Protection class II
Read operating instructions before use!
Supplementary information
Explanation of the Signal Words
DANGER
Warns of serious injuries and danger to life.
WARNING
Warns of possible serious injuries and danger to life.
CAUTION
Warns of slight to moderate injuries.
NOTE
Warns of damage to property.
Dear Customer,
We are delighted that you have chosen this presser.
Before using the device for the first time, please read the instructions carefully and keep them for future reference. If the device is given to someone else, these instructions should also be handed over with it.
The manufacturer and importer do not accept any liability if the information in these instructions is not complied with.
If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website:
www.service-shopping.de
EN 12
Intended Use
- This device is intended to be used to dry and press textiles, for example blouses and shirts. Delicate textiles such as wool or similar fabrics must not be pressed on the presser. Always follow the care labels for the textiles!
WARNING: This device is intended only for drying textiles washed in water.
- The device is for indoor use only.
- The device is for household use only and is not intended for commercial applications.
- The device should only be used as described in these instructions. Any other use is deemed to be improper.
- The following are excluded from the warranty: all defects caused by improper handling, damage or unauthorised attempts at repair. This also applies to normal wear and tear.
Safety Instructions
The device is equipped with safety features. Nevertheless, the device may still present dangers if it is not used in the intended way and / or is utilised in some other way. Comply with the following safety instructions and the procedures that are specified in these operating instructions.
This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental abilities or lack of experience and / or knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
■ Children must not play with the device.
- Cleaning and user maintenance may not be carried out by children without supervision.
CAUTION: hot surfaces! The motor unit / telescopic rod will become hot during use. You should therefore not touch it during or shortly after use.
- The device must always be switched off and disconnected from the mains power when it is not being used and before assembling, disassembling or cleaning the device.
- Do not make any modifications to the device. If the mains cable of this device is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.
13 EN
- Allow the device to cool down completely before it is cleaned and stored away.
DANGER – Danger of Electric Shock from Water
■ Use the device only in closed rooms.
- Do not use the device in rooms with high humidity.
- Never immerse the device, mains cable or mains plug in water or other liquids and ensure that they cannot fall into water or become wet.
- Should the device fall into water, switch off the power supply immediately. Do not attempt to pull it out of the water while it is still connected to the mains power!
- Never touch the device, mains cable or mains plug with wet hands when these components are connected to the mains power.
It is only allowed to use the device when the drip protection is attached! - Steam may rise up during operation. For this reason, do not place the device under other electronic devices.
WARNING – Danger of Electric Shock from Damage and Inappropriate Use
- Only connect the device to a socket with safety contacts that is properly installed and matches the technical data of the device. The socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
■ Always switch off the device first before the mains plug is pulled out of the plug socket. - Do not use the device in conjunction with extension cables.
CAUTION – Danger of Injury
- Danger of tripping! Make sure that the connected mains cable does not present a trip hazard. The mains cable must not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.
■ The device must not be moved during use.
WARNING – Danger of Fire
- Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
- Do not operate the device in the vicinity of combustible material.
Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).
In the event of a fire: Do not extinguish with water! Smother the flames with a fireproof blanket or a suitable fi re extinguisher.
EN 14
NOTE – Risk of Damage to Material and Property
■ Never cover up the ventilation slots and do not insert any objects into them.
Lay the mains cable in such a way that it does not become squashed or bent and does not come into contact with hot surfaces (also applies to the hot surfaces of the device!).
- Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation, when there is a power cut or before a thunderstorm.
■ Never pull or carry the device by the mains cable. When you pull it out of the plug socket, always pull on the mains plug and never the mains cable!
■ Protect the device from other heat sources, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.
■ Use only original spare parts from the manufacturer.
Items Supplied and Device Overview
NOTE!
■ WARNING – Danger of Suffocation! Keep children and animals away from the packaging material.
■ Never remove the rating plate and any possible warnings!
Unpack the items supplied and check them for completeness (see the "Items Supplied and Device Overview" chapter) and possible transport damage. If the device, the mains plug or the mains cable does have damage, do not use the device(!), but contact our customer service department.


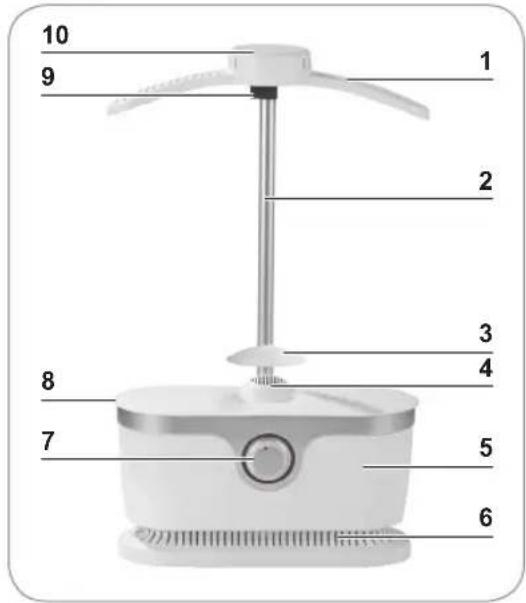

10 9 1 2 3 4 8 7 5 61 Hanger
2 Telescopic rod
3 Drip protection (premounted on the telescopic rod)
4 Fan
5 Motor unit
6 Ventilation slots
7 Timer (5–30 minutes)
8 Mounting fl ange
9 Clip (for adjusting the height)
10 Collar section
Not shown:
- Nylon balloon
- 5 x clamps with integrated weight
- Mains cable with mains plug
15 EN
Assembly
- Plug the telescopic rod (2) into the recess on the top of the motor unit (5).
- Place the hanger (1) onto the telescopic rod (2). When you do this, make sure that the slight bend in the hanger (1) points forwards. The drip protection (3) must be located directly above the fan (4). It prevents any water that may drip down from being able to get into the fan (4).
-
Attach the nylon balloon:
-
Pull it over the hanger (1). When you do this, make sure that the side with the hole line points forwards.
– Pull the small elastic cord at the top over the collar section (10) on the hanger (1).
– Pull the large elastic cord at the bottom over the mounting flange (8).
The device is disassembled in the reverse order.
Use
NOTE!
■ Always place the device with clear space above it and on all sides on a dry, flat, solid and heat-resistant surface.
It is essential that you follow the care labels for the textiles to be dried!
The nylon balloon should sit immediately below the mounting flange (8) so that it can fully inflate.
EN 16
- the collar is fitted over the collar section (10) on the hanger (1),
-any button strip is over the hole line on the nylon balloon,
– the arms of the nylon balloon fit properly in the sleeves of the garment and are not twisted or scrunched up,
-all buttons on the garment (including on the sleeves) are done up.
-
Spread the clamps along the bottom of the garment (at the front and back in each case on the outsides and in the middle on the button strip at the front) so that it is weighed down and will not go out of shape when the nylon balloon is inflated.
-
Insert the mains plug into an easily accessible socket.
- Turn the timer (7) clockwise and set it to the length of time you want. Each LED light represents 5 minutes.
- Once the nylon balloon has inflated, straighten out the garment and smooth it down again.
- When the set time elapses, the device switches off automatically. The drying / pressing process can be interrupted at any time by turning the timer (7) to the starting position.
- Remove the garment from the nylon balloon and hanger (1).
- Pull the mains plug out of the plug socket and allow the device to cool down completely.
Tips
- The device is intended primarily for machine-spun laundry! If hand-washed or non-machine-spun laundry is to be pressed, first allow it to dry out a little first.
- The drying /pressing process takes around 10 minutes for a spun-dried shirt. However, the length of time can vary depending on the material and thickness of the material. We recommend that you start with a shorter time and extend it if necessary.
- The nylon balloon can be enlarged or reduced in size with the aid of the zip fasteners. For smaller sizes, the zip fasteners should be closed. For larger sizes, the zip fasteners should be opened on both sides.
- Wide-apart buttons may result in the button strip crimping slightly during pressing. Here it is advisable to smooth down the button strip again by hand immediately after the pressing process.
17 EN
Cleaning and Storage
NOTE!
Before commencing the cleaning, note the safety instructions in the “Safety Instructions” chapter!
■ Never immerse the device, the mains cable or the mains plug in water or other liquids!
- Do not use any corrosive or abrasive cleaning agents or cleaning pads to clean the device. These can damage the surface.
- Clean the device and the nylon balloon if necessary with a slightly damp cloth and a little mild detergent if required. Then wipe down fully with a dry cloth.
- Allow all parts to dry completely before you put them away.
- Store the device in a clean, dry place that is protected from sunlight and is not accessible to children and animals.
Troubleshooting
If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact the customer service department.
Do not attempt to repair a defective electrical device yourself!
| Problem Possible cause / solution | |
| The device does not work. The LEDs do not light up. | • Is the mains plug inserted in the plug socket correctly? Correct the fi t of the mains plug.• Is the plug socket defective? Try another plug socket.• Check the fuse of the mains connection.• Is the device switched on? Set the timer (7) to a time. |
| Unusual noises | • Are the ventilation slots (6) covered up or blocked? Free up the ventilation slots (6). |
| The device switches off suddenly. | • Are the ventilation slots (6) covered up or blocked? Free up the ventilation slots (6).• The device has an automatic safety switch-off function. It switches off automatically if it overheats. Allow the device to cool down and switch it on again.• Has the device fallen over? The device has a protective switch that is activated if the device falls over. Set the device up again and switch it back on.• Has the set time elapsed? Set the timer (7) to the time you want again. |
| Odour produced | • You might notice a slight odour caused by production residues the fi rst time you use the device. However, this is harmless and will cease as you use the device. |
EN 18
Technical Data
Article number: 00384
Model number: EL17001-00100
Voltage supply: 220 – 240 V \~ 50 Hz
Power: 1800
Protection class: II
W
Customer Service / Importer:
DS Produkte GmbH
Am Heisterbusch 1
19258 Gallin
Germany
Tel.: +49 38851 314650
(Calls to German landlines are
subject to charges. The cost varies depending on the service provider.)
Disposal
The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and take it to a recycling centre.
Dispose of the device in an environmentally friendly manner. It should not be disposed of in the normal domestic waste. Dispose of the device at a recycling centre for used electrical and electronic devices. More information is available from your local authorities.
All rights reserved.
