USER MANUAL 49961PS PROCTOR SILEX

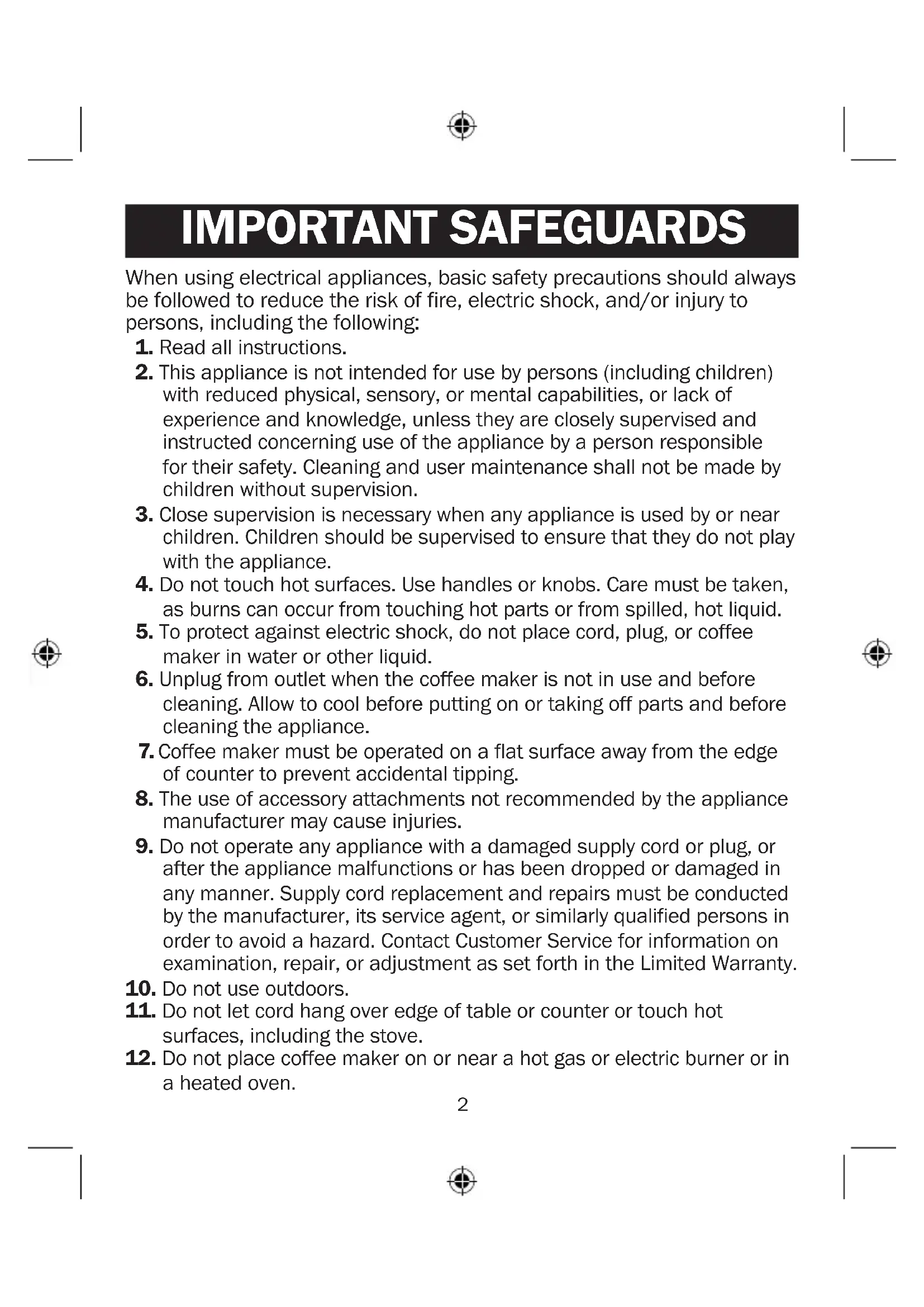

1. Read all instructions.

2. This appliance is not intended for use by persons (including children)

with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Cleaning and user maintenance shall not be made by children without supervision.

3. Close supervision is necessary when any appliance is used by or near

children. Children should be supervised to ensure that they do not play with the appliance.

4. Do not touch hot surfaces. Use handles or knobs. Care must be taken,

as burns can occur from touching hot parts or from spilled, hot liquid.

5. To protect against electric shock, do not place cord, plug, or coffee

maker in water or other liquid.

6. Unplug from outlet when the coffee maker is not in use and before

cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.

7. Coffee maker must be operated on a flat surface away from the edge

of counter to prevent accidental tipping.

8. The use of accessory attachments not recommended by the appliance

manufacturer may cause injuries.

9. Do not operate any appliance with a damaged supply cord or plug, or

after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.

10. Do not use outdoors.

11. Do not let cord hang over edge of table or counter or touch hot

surfaces, including the stove.

12. Do not place coffee maker on or near a hot gas or electric burner or in

a heated oven. IMPORTANT SAFEGUARDS3

13. To disconnect coffee maker, turn controls to OFF ( ) and then remove

plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

14. WARNING! To reduce the risk of fire or electric shock, do not remove

the bottom cover of the coffee maker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.

15. Do not use appliance for other than intended use.

16. CAUTION! Cut Hazard: Removable single-serve pack holder contains a

sharp blade. Use caution when handling.

17. CAUTION! Cut Hazard: Piercing nozzle is sharp. Use caution when

18. WARNING! To avoid hot water spraying from the piercing needle, do

not lift the lid during the brew process.

19. Do not place coffee maker in a cabinet when in use.

This appliance is intended for household use only. w WARNING Electrical Shock Hazard: This product is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance. SAVE THESE INSTRUCTIONS! Other Consumer Safety Information4 To order parts: proctorsilex.com

5. Removable Holder for

Ground Coffee* (fits into brew basket for brewing)

7. Brew Basket Handle and

Parts and Features5 How to Brew a Single-Serve Pack w CAUTION Cut Hazard. Removable single-serve pack holder has a sharp blade. Use caution when handling. NOTE:

• It can take up to 2 minutes before brewed coffee starts dispensing into your cup. Total brew time average is 4 minutes. For best results, allow the coffee maker to cool for at least 2 minutes between brewing cycles. w WARNING Burn Hazard. To avoid contact with hot coffee or water:

• Do not fill water above MAX fill line (10 ounces [296 ml]).

• Fill reservoir with cup of water into which the coffee will be brewed.

• Fully insert cup under brew basket.

1. Plug in unit and slide out the brew basket.

2. Place a pack into the single-serve pack holder.

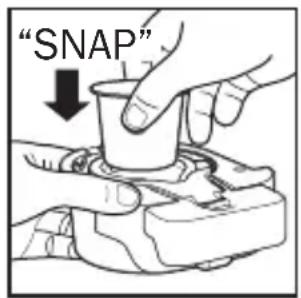

3. Press down on the edge of the pack until

the pack snaps into place and hole is punched in the bottom. Do not remove foil.

4. Slide brew basket back into unit.

• K-Cup is a registered trademark of Keurig, Inc. Use of the K-Cup trademark does not imply any affiliation with or endorsement by Keurig, Inc. “SNAP”6

5. Press down on brew basket handle to lock

and puncture the foil lid on the pack.

6. Fill reservoir with the cup into which the

coffee will be brewed.

indicator light will light up to show the coffee maker is on.

9. When done brewing, unplug the unit.

10. Pull up on brew basket handle to unlock

and remove. How to Brew a Single-Serve Pack (cont.) NOTES:

• Coffee maker will shut off automatically and light will go off when brew cycle is completed.

• Allow 2 minutes to cool in between brews.

• Brew basket and single-serve pack holder should be rinsed after every use.

• Add only water to reservoir.7 How to Brew Ground Coffee NOTE:

• It can take up to 2 minutes before brewed coffee starts dispensing into your cup. Total brew time average is 4 minutes. For best results, allow the coffee maker to cool for at least 2 minutes between brewing cycles. w WARNING Burn Hazard. To avoid contact with hot coffee or water:

• Do not fill water above MAX fill line (10 ounces [296 ml]).

• Fill reservoir with the cup of water into which the coffee will be brewed.

• Fully insert cup under brew basket.

• Remove single-serve pack holder before adding coffee grounds to brew basket.

1. Plug in unit and slide out the brew basket.

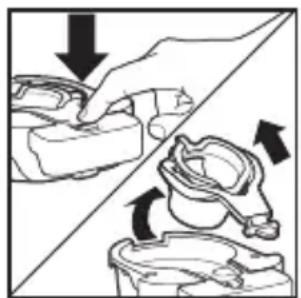

2. To remove single-serve pack holder, press

down on the single-serve pack holder tab; then lift out. w CAUTION Cut Hazard. Removable single-serve pack holder has a sharp blade. Use caution when handling.

3. Place removable holder in brew basket and

add ground coffee. (3 tablespoons [44 ml] is the MAX amount of any type of grounds.) w WARNING Burn Hazard. To avoid overflow, keep ground coffee below MAX fill line.8 How to Brew Ground Coffee (cont.) NOTES:

• Coffee maker will shut off automatically and light will go off when brew cycle is completed.

• If finer ground coffee is used, coffee will continue to drip after the light has gone off.

• Allow 2 minutes to cool in between brews.

• Brew basket and removable holder for ground coffee should be rinsed after every use.

4. Slide brew basket back into unit and push

down on brew basket handle to lock.

5. Fill reservoir with the cup into which the

coffee will be brewed.

6. Close the water reservoir lid.

7. Press the BREW button. The power

indicator light will light up to show the coffee maker is on.

8. When done brewing, unplug the unit.

9. Pull up on brew basket handle to unlock

and remove.9 w WARNING Shock Hazard. Do not immerse cord, plug, or coffee maker in any liquid. NOTE: All coffee makers should be cleaned at least once a month (once a week for areas with hard water).

vinegar and 1/2 cup (118 ml) of cold water into reservoir.

3. Place a cup underneath to catch the water/

4. Press the BREW button once. After 30

seconds, unplug unit and allow vinegar to clean. After 30 minutes, plug in unit and allow it to finish the brew cycle. When brew cycle is finished, wait for unit to cool. Empty cup and rinse. Repeat steps 1–4 with 1 cup (237 ml) of cold tap water instead of 1/2 cup (118 ml) of vinegar and 1/2 cup (118 ml) of water.

6. Wipe exterior of unit with a damp, soapy

7. The removable single-serve pack holder,

brew basket, and removable holder for ground coffee are all dishwasher-safe. NOTE: DO NOT use the “SANI” setting when washing in the dishwasher. “SANI” cycle temperatures could damage your product. Care and Cleaning10

• Coffee maker needs cleaning.

• Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind.

• Poor coffee quality and freshness.

• Poor water quality (use filtered or bottled water). Water on counter under unit.

• Overfilled water reservoir. Also check cup used to fill reservoir. Some mugs/cups do not pour cleanly and can dribble water down the side of the cup and onto counter. Coffee maker will not brew.

• Make sure you have allowed for the 2 minutes of cool-down time.

• Check for water in water reservoir. If there is no water in the reservoir and the brew button is pushed, the unit will not brew. Coffee overflows from brew basket.

• Use removable holder for ground coffee.

• Use a lesser amount of ground coffee.

• When using whole bean coffee, a standard automatic drip coffee grind will yield best results. Be careful not to overgrind, since very finely ground coffee can cause overflow in this unit. Coffee overflows from mug.

• To prevent coffee overflowing from a mug, use the same mug to brew into that was used to fill the water reservoir. Do not add more than 10 ounces (296 ml) of water. Troubleshooting Tips11

PROBLEM PROBABLE CAUSE/SOLUTION

Water remaining in reservoir.

• Added too much water. Remove single-serve pack and replace brew basket. Repeat brewing cycle. Noise or steam at the end of brew cycle.

• Reduce amount of water in reservoir.

• Brew a different type of single-serve pack. Coffee not dispensing.

• Piercing nozzle is clogged with coffee grounds. Turn unit off; unplug. Allow unit to cool completely. To remove any built-up coffee grounds, insert end of bent paper clip into eye of piercing nozzle. Water reservoir fills too slowly.

• Unit hasn’t cooled down. Allow 2 minutes between brewing cycles.

• Try filling water reservoir before pushing down brew basket handle to pierce single-serve pack. Start brewing cycle. Failed foil seal. • There is variability in the single-serve pack manufacturing process which causes some types of single-serve packs to be weaker at the seams. Let cool 2 minutes between brewing, use less water, or try a different brand. Troubleshooting Tips (cont.)12 LIMITED WARRANTY This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/customer- service in the U.S. or hamiltonbeach.ca/customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.13 Pour utiliser un appareil électroménager, vous devez toujours prendre des mesures élémentaires de sécurité pour réduire le risque d’incendie, d’électrocution et/ou de blessure corporelle, en particulier les mesures suivantes :
