Brand	Proctor Silex
Model	Single Serve Plus 49969
Product Type	Single-serve pod and ground coffee machine
Reservoir Capacity	14 oz (414 ml)
Power	120 V, 60 Hz
Main Functions	Brewing for one-cup pod and ground coffee, auto shut-off, brewing indicator light, BREW button
Safety	Automatic shut-off after cycle, hot surfaces indicated, polarized plug, cut protection (blade in pod holder)
Maintenance	Monthly vinegar cleaning (or weekly for hard water), dishwasher-safe parts (except SANI cycle), cleaning the puncture needle with a paper clip
Spare Parts	Removable one-cup pod holder, filter basket, removable ground coffee filter, removable cup rest
Warranty	1 year limited (defects in materials and workmanship)
Customer Service (Canada)	1-800-267-2826
Customer Service (USA)	1-800-851-8900
Customer Service (Mexico)	01 800 71 16 100
Pod Compatibility	K-Cup (trademark of Keurig)
Operating Temperature	Brew cycle about 4 minutes, 2 minute cool-down between cycles

Frequently Asked Questions - Single Serve Plus 49969 PROCTOR SILEX

What to do if coffee tastes bad?

Clean the coffee maker at least once a month (or every week in hard water areas). Use quality coffee and filtered water. Check that the grind is suitable (ground coffee for automatic coffee makers).

Why is there water on the counter under the machine?

The reservoir contains too much water. Use the same cup to fill and receive coffee, and do not exceed the MAX line (14 oz / 414 ml).

The machine does not brew, what to check?

Make sure the 2-minute cool-down time is respected between cycles. If the BREW button was pressed without water, wait for the light to turn off before adding water.

Coffee overflows from the filter basket, how to fix?

Use the removable ground coffee filter and reduce the amount of ground coffee (max 3 tbsp / 44 ml). Avoid too fine a grind.

Coffee overflows from the cup, why?

Use the same cup to fill the reservoir and receive coffee. Do not pour more than 14 oz (414 ml) of water into the reservoir.

What to do if noise or steam at end of cycle?

Reduce the amount of water in the reservoir or try a different brand of one-cup pod.

Coffee does not flow into the cup, what to do?

Turn off and unplug the appliance. Let cool, then insert a bent paper clip into the puncture needle opening to dislodge coffee grounds buildup.

The reservoir fills slowly, why?

The appliance is not cool enough. Wait 2 minutes before the next cycle. Fill the reservoir with water before lowering the filter basket handle.

The aluminum seal of the pod breaks often, what to do?

Let cool 2 minutes between brewing cycles, use less water, or try a different pod brand.

The brew cycle is too short, how to lengthen it?

This may be due to the pod. Try a different pod brand for a longer cycle.

USER MANUAL Single Serve Plus 49969 PROCTOR SILEX

Black Proctor Sillar coffee maker with white mug and black casing (no visible text or symbols)

840267401

READ BEFORE USE

LIRE AVANT UTILISATION

LEA ANTES DE USAR

English.... 2

USA: 1-800-851-8900

www.proctorsilex.com

Français.... 14

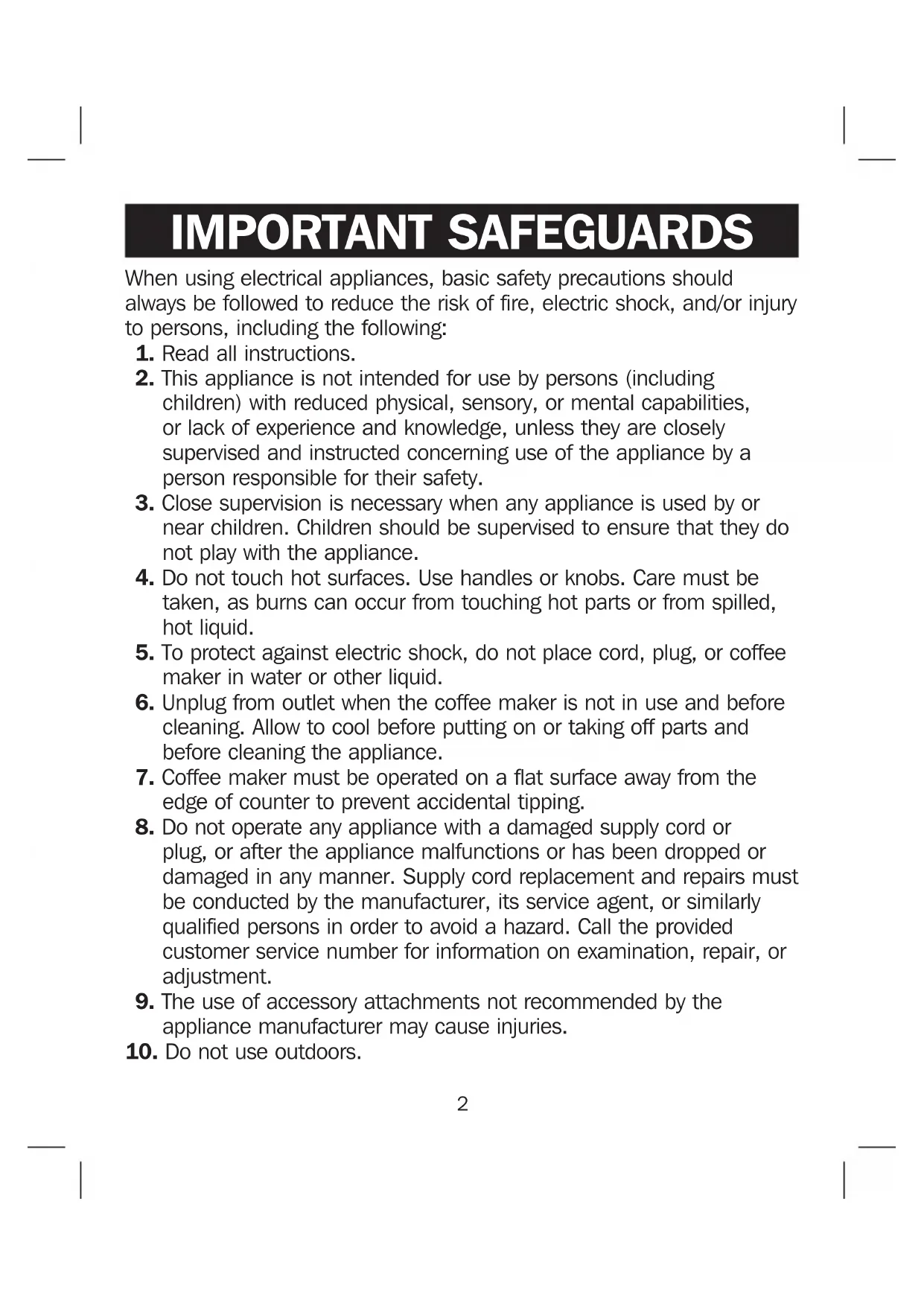

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled, hot liquid.
5. To protect against electric shock, do not place cord, plug, or coffee maker in water or other liquid.
6. Unplug from outlet when the coffee maker is not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
7. Coffee maker must be operated on a flat surface away from the edge of counter to prevent accidental tipping.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
9. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

10. Do not use outdoors.

11. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.

12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Do not use appliance for other than intended use.
14. WARNING! To reduce the risk of fire or electric shock, do not remove the bottom cover of the coffee maker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.
15. CAUTION! Cut Hazard: Removable single-serve pack holder contains a sharp blade. Use caution when handling.
16. CAUTION! Cut Hazard: Piercing nozzle is sharp. Use caution when cleaning.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

Parts and Features

*To order parts:

US: 1.800.851.8900

www.proctorsilex.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

1. Reservoir
2. Lid
3. Piercing Nozzle
4. Cup Rest
5. Brew Light
6. BREW Button
7. Cord Storage

8. Removable Cup Rest*

9. Brew Basket Handle and Lock

10. Brew Basket*
11. Removable Holder for Ground Coffee* (fits into brew basket for brewing)
12. Removable Single-Serve Pack Holder* (punches hole on bottom of pack)

How to Brew a Single-Serve Pack

CAUTION Cut Hazard.

Removable single-serve pack holder has a sharp blade. Use caution when handling.

NOTE:

- It can take up to 2 minutes before brewed coffee starts dispensing into your cup. Total brew time average is 4 minutes. For best results, allow the coffee maker to cool for at least 2 minutes between brewing cycles.

WARNING Burn Hazard.

To avoid contact with hot coffee or water:

• Do not fill water above MAX fill line (14 ounces [414 ml]).
• Fill reservoir with cup of water into which the coffee will be brewed.
• Fully insert cup under brew basket.

• For best results, use K-Cup®* packs.

• Plug into outlet and slide out the brew basket.

• Place a pack into the single-serve pack holder.
• Press down on the edge of the pack until the pack snaps into place and hole is punched in the bottom. Do not remove foil.
• Slide brew basket back into unit.

* K-Cup is a registered trademark of Keurig, Inc. Use of the K-Cup trademark does not imply any affiliation with or endorsement by Keurig, Inc.

How to Brew a Single-Serve Pack (cont.)

1. Press down on brew basket handle to lock and puncture the foil lid on the pack.

2. Fill reservoir with cup of water into which the coffee will be brewed.

3. Close the water reservoir lid.

4. Adjust cup rest.

5. Fully insert cup under brew basket.

6. Press down the BREW Button. The power indicator light will light up to show the coffee maker is on. Once the BREW button has been depressed, the unit will brew for one cycle. If the BREW button has been pressed with no water in the reservoir, wait until the brew light turns off before adding water to the reservoir. If the brew cycle needs to be stopped during brewing, unplug the unit. Brew light will stay on until cycle is complete even if unplugged.

7. Coffee maker will shut off automatically and light will go off when brew cycle is completed. Unplug the unit.

8. Pull up on brew basket handle to unlock and remove.

Line drawing of a hand pressing down on a mechanical device with a downward arrow (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

NOTES:

• Allow 2 minutes to cool in between brews.
• Brew basket and single-serve pack holder should be rinsed after every use.
• Add only water to reservoir.

How to Brew Ground Coffee

NOTE:

- It can take up to 2 minutes before brewed coffee starts dispensing into your cup. Total brew time average is 4 minutes. For best results, allow the coffee maker to cool for at least 2 minutes between brewing cycles.

WARNING Burn Hazard.

To avoid contact with hot coffee or water:

• Do not fill water above MAX fill line (14 ounces [414 ml]).
• Fill reservoir with the cup of water into which the coffee will be brewed.
• Fully insert cup under brew basket.
• Remove single-serve pack holder before adding coffee grounds to brew basket.

• To avoid overflow, keep ground coffee below MAX fill line.

• Plug into outlet and slide out the brew basket.

• To remove single-serve pack holder, press down on the single-serve pack holder tab; then lift out.

CAUTION Cut Hazard.

Removable single-serve pack holder has a sharp blade. Use caution when handling.

1. Place removable holder in brew basket and add ground coffee. (3 tablespoons [44 ml] is the MAX amount of any type of grounds.)
2. Slide brew basket back into unit and push down on brew basket handle to lock.

Diagram showing a hand pressing down on a mechanical component, with arrows indicating motion or assembly (no text or symbols present)

Line drawing of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

How to Brew Ground Coffee (cont.)

1. Fill reservoir with cup of water into which the coffee will be brewed.

2. Close the water reservoir lid.

3. Adjust cup rest.

4. Fully insert cup under brew basket.

5. Press down the BREW Button. The power indicator light will light up to show the coffee maker is on. Once the BREW button has been depressed, the unit will brew for one cycle. If the BREW button has been pressed with no water in the reservoir, wait until the brew light turns off before adding water to the reservoir. If the brew cycle needs to be stopped during brewing, unplug the unit. Brew light will stay on until cycle is complete even if unplugged.

6. Coffee maker will shut off automatically and light will go off when brew cycle is completed. Unplug the unit.

7. Pull up on brew basket handle to unlock and remove.

Illustration of a hand pressing down on a small object with an upward arrow (no text or symbols)

NOTES:

• If finer ground coffee is used, coffee will continue to drip after the light has gone off.
• Allow 2 minutes to cool in between brews.
• Brew basket and removable holder for ground coffee should be rinsed after every use.

Care and Cleaning

WARNING Electrical Shock Hazard.

Do not immerse cord, plug, or coffee maker in any liquid.

NOTE: All coffee makers should be cleaned at least once a month (once a week for areas with hard water).

1. Plug into outlet.
2. Pour 1/2 cup (118 ml) of plain white vinegar and 1/2 cup (118 ml) of cold water into reservoir.

3. Place a cup underneath to catch the water/vinegar solution.

4. Press the BREW button once. After 30 seconds, unplug unit and allow vinegar to clean. After 30 minutes, plug in unit and allow it to finish the brew cycle. When brew cycle is finished, wait for unit to cool. Empty cup and rinse. Repeat steps 1–4 with 1 cup (237 ml) of cold tap water.

5. Unplug unit.

6. Routine Cleaning of the Needle: The needle is located in the lid of the coffee maker. Bend a small paper clip as shown; insert the tip of the paper clip through the hole/eye of the needle (Figure A) and up into the needle (Figure B) to ensure grounds have been removed. Brew 2 or 3 times with cold water to make sure grounds have been removed from the piercing needle.

Line drawing of a white wine jar and a refrigerator with two compartments (no text or symbols)

Diagram of a mechanical component with a hand and arrow indicating a turning point (no text or symbols present)

Diagram of a mechanical or electrical component with concentric circular structure and directional arrow (no text or symbols)

Care and Cleaning (cont.)

1. Wipe exterior of unit with a damp, soapy cloth.
2. The removable single-serve pack holder, brew basket, and removable holder for ground coffee are all dishwasher-safe. NOTE: DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

CAUTION Cut Hazard.

Removable single-serve pack holder has a sharp blade. Use caution when handling.

1. Push cord into the back of the coffee maker for easy storage.

Line drawing of a hand inserting a small object into a device (no text or symbols)

Simple line drawing of a lever mechanism with an arrow indicating motion (no text or symbols)

Troubleshooting Tips

PROBLEM PROBABLE CAUSE/SOLUTION

Coffee tastes bad.	· Coffee maker needs cleaning.· Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind.· Poor coffee quality and freshness.· Poor water quality (use filtered or bottled water).
Water on counter under unit.	· Overfilled water reservoir. Also check cup used to fill reservoir. Some mugs/cups do not pour cleanly and can dribble water down the side of the cup and onto counter.
Coffee maker will not brew.	· Make sure you have allowed for the 2 minutes of cool-down time.· If the BREW button has been pressed with no water in the reservoir, wait until the brew light turns off before adding water to the reservoir.
Coffee overflows from brew basket.	· Use removable holder for ground coffee.· Use a lesser amount of ground coffee.· When using whole bean coffee, a standard automatic drip coffee grind will yield best results. Be careful not to overgrind, since very finely ground coffee can cause overflow in this unit.
Coffee overflows from mug.	· To prevent coffee overflowing from a mug, use the same mug to brew into that was used to fill the water reservoir. Do not add more than 14 ounces (414 ml) of water.

Troubleshooting Tips (cont.)

PROBLEM PROBABLE CAUSE/SOLUTION

Water remaining in reservoir.	Added too much water. Remove single-serve pack and replace brew basket. Repeat brewing cycle.
Noise or steam at the end of brew cycle.	Reduce amount of water in reservoir.Brew a different type of single-serve pack.
Coffee not dispensing.	Piercing nozzle is clogged with coffee grounds. Turn unit off; unplug. Allow unit to cool completely. To remove any built-up coffee grounds, insert end of bent paper clip into eye of piercing nozzle.
Water reservoir fills too slowly.	Unit hasn't cooled down. Allow 2 minutes between brewing cycles.Try filling water reservoir before pushing down brew basket handle to pierce single-serve pack. Start brewing cycle.
Failed foil seal.	There is variability in the single-serve pack manufacturing process which causes some types of single-serve packs to be weaker at the seams. Let cool 2 minutes between brewing, use less water, or try a different brand.
Short brew cycle.	Single-serve pack is difficult to brew due to the coffee and its processing.Try a different brand of single-serve pack.

LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Illustration of a hand pressing down on a mechanical device with a downward arrow (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

REMARQUES :

Diagram showing a hand holding a container being lifted by a mechanical device, with arrows indicating motion (no text or symbols present)

Comment infuser le café moulu (suite)

Illustration of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

REMARQUES :

Line drawing of a white wine dispenser with a bottle and two containers (no text or symbols)

Mechanical diagram showing a hand turning a circular component with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with a hand pointing to a circular feature, labeled 'B' (no text or symbols on the diagram itself)

Line drawing of a hand inserting a device into a container (no text or symbols)

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

Dépannage

PROBLÈME CAUSE PROBABLE/SOLUTION

Line drawing of a hand pressing down on a mechanical device with a downward arrow (no text or symbols)

Line drawing of a hand pressing down on a device with an upward arrow (no text or symbols)

NOTAS:

Diagram showing a hand holding a small object and a mechanical component with arrows indicating rotation (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with a downward arrow (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

NOTAS:

Line drawing of a white wine jar connected to a multi-tiered storage unit (no text or symbols)

Mechanical diagram showing a hand turning a circular component with an arrow indicating rotation (no text or symbols present)

Diagram of a mechanical component with a hand holding a tool, showing internal structure and no visible text or symbols.

Line drawing of a hand inserting a small object into a device (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Mixcoac MEXICO 03910 D.F.

Tel: [phone]

Fax: [phone]

Jalisco
