48578 - Coffee machine PROCTOR SILEX - Free user manual and instructions

Product type	Drip coffee maker
Brand	Proctor Silex
Model	48578
Capacity	12 cups (60 oz / 1.8 L)
Power supply	120 V, 60 Hz, 900 W
Dimensions (approx.)	25 x 18 x 32 cm
Weight (approx.)	2.5 kg
Materials	Plastic, glass, stainless steel (warming plate)
Main features	Auto brew, pause and serve, flavor selector, 2-hour auto shutoff
Programming	Digital clock with timer for delayed brew
Flavor selector	Allows adjusting coffee strength (regular to mild)
Pause and serve	Removing the carafe pauses brewing for up to 20 seconds
Filter	Filter basket with optional permanent filter
Carafe	Glass with handle and lid, dishwasher-safe
Cleaning and maintenance	Monthly cleaning with white vinegar; dishwasher-safe parts
Safety	Polarized plug, automatic shutoff, hot surfaces labeled
Warranty	1 year limited (parts and labor)
Included accessories	Carafe, filter basket, permanent filter (depending on model)
Repairability	Do not disassemble; contact customer service

Frequently Asked Questions - 48578 PROCTOR SILEX

Why is my filter basket overflowing?

Possible causes: too much ground coffee, grind too fine, mineral buildup. Use 1 level tablespoon per cup and a medium grind setting. Clean regularly with vinegar.

Coffee is leaking into the base of the machine, what to do?

The carafe was removed for more than 20 seconds during brewing. Replace it quickly to avoid filter basket overflow.

Coffee tastes bad, how to fix it?

Clean the machine, adjust grind (medium), use balanced proportions (15 ml coffee per cup) and filtered water. Check coffee freshness.

Why are there grounds in my cup?

Use a quality paper filter instead of the permanent filter. The permanent filter may let fine particles through.

The coffee maker won't turn on or brew.

Ensure the carafe is properly placed, the water reservoir is filled, and the appliance is plugged in. If faulty, reset the clock after a power outage.

Brewing time is unusually long.

Mineral deposits may be clogging the pump. Perform a vinegar cleaning (see manual). If the problem persists, contact customer service.

How to clean the coffee maker with vinegar?

Pour 0.5 L of white vinegar into the reservoir, run for 20 seconds, let sit for 30 minutes, then finish the cycle. Rinse with 2-3 cycles of fresh water.

How to program auto brew?

Set the clock using H and M buttons. Press PROG, set desired time with H and M, release, then press AUTO. The green light confirms activation.

Can I safely remove the carafe during brewing?

Yes, thanks to the Pause & Serve function. Do not exceed 20 seconds, otherwise the filter basket may overflow. Replace the carafe promptly.

What does the warranty cover?

The 1-year limited warranty covers defects in materials and workmanship. It excludes glass, filters, normal wear, and accidental damage. Contact 1.800.851.8900 (US) or 1.800.267.2826 (Canada).

USER MANUAL 48578 PROCTOR SILEX

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled, hot liquid.
3. To protect against electric shock, do not place cord, plug, or coffeemaker in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when either the coffeemaker or clock is not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
6. Coffeemaker must be operated on a flat surface away from the edge of counter to prevent accidental tipping.
7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
11. The carafe is designed for use with this coffeemaker. It must never be used on a range top or in a microwave oven.
12. Do not set a hot carafe on a wet or cold surface.
13. Do not use a cracked carafe or one with loose or weakened handle.

14. Do not clean carafe with cleansers, steel wool pads, or other abrasive materials.

15. Be certain carafe lid is securely in place during brew cycle and when pouring coffee, do not use force when placing lid on carafe.

16. Do not place coffeemaker on or near a hot gas or electric burner or in a heated oven.
17. To disconnect coffeemaker, turn controls to OFF (①) and then remove plug from wall outlet.
18. WARNING: To reduce the risk of fire or electric shock, do not remove the bottom cover. No user-serviceable parts are inside. Repair should be done by authorized service personnel only.
19. Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another highwattage appliance on the same circuit with this appliance.

Parts and Features

1. Lid
2. Brew Basket
3. Permanent Filter (optional accessory on select models)
4. Brew Basket Well

5. Carafe

6. Control Panel and Digital Clock

7. Keep-Hot Plate
8. Water Window

9. Water Reservoir

10. Brew Strength Selector

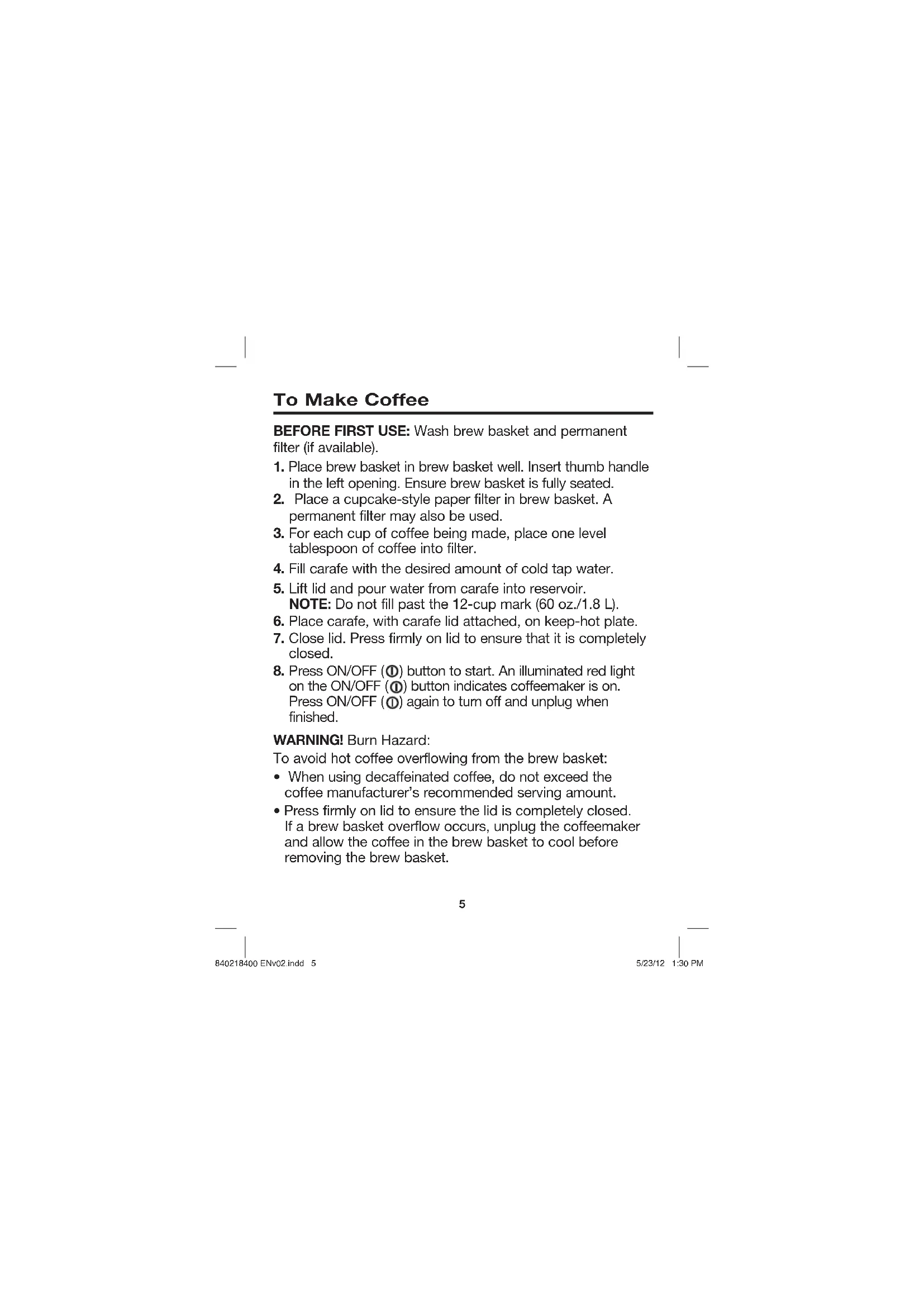

To Make Coffee

BEFORE FIRST USE: Wash brew basket and permanent filter (if available).

1. Place brew basket in brew basket well. Insert thumb handle in the left opening. Ensure brew basket is fully seated.
2. Place a cupcake-style paper filter in brew basket. A permanent filter may also be used.
3. For each cup of coffee being made, place one level tablespoon of coffee into filter.
4. Fill carafe with the desired amount of cold tap water.
5. Lift lid and pour water from carafe into reservoir. NOTE: Do not fill past the 12-cup mark (60 oz./1.8 L).
6. Place carafe, with carafe lid attached, on keep-hot plate.
7. Close lid. Press firmly on lid to ensure that it is completely closed.
8. Press ON/OFF (①) button to start. An illuminated red light on the ON/OFF (②) button indicates coffeemaker is on. Press ON/OFF (③) again to turn off and unplug when finished.

WARNING! Burn Hazard:

To avoid hot coffee overflowing from the brew basket:

• When using decaffeinated coffee, do not exceed the coffee manufacturer's recommended serving amount.
• Press firmly on lid to ensure the lid is completely closed. If a brew basket overflow occurs, unplug the coffeemaker and allow the coffee in the brew basket to cool before removing the brew basket.

Features

Pause 'N Serve

This feature allows you to pour a cup of coffee before the entire brew cycle has completed. By removing the carafe, the flow of coffee will temporarily stop. The flow of coffee will resume when the carafe is returned to the keep-hot plate. Do not remove carafe for more than 20 seconds or brew basket may overflow.

WARNING! Burn Hazard.

Return carafe to keep-hot plate within 20 seconds. Hot water continues to flow into the brew basket when this feature is used. Overflowing coffee and hot water are a burn hazard.

Brew Strength Selector

This feature allows you to control the strength/flavor of the coffee. To select from mild to strong flavor, rotate the Brew Strength Selector Knob, located on top of the coffeemaker, to desired strength. NOTE: The setting for "regular" strength coffee is the full-strength setting (knob all the way to the left). For reduced-strength coffee, turn the knob all the way to the right before brewing.

Automatic Shutoff

The Automatic Shutoff feature shuts off the keep-hot plate 2 hours after brew cycle begins. Always turn coffeemaker OFF and unplug when finished.

Programming

To Set Clock:

1. Plug in coffeemaker. Numbers on clock will flash until you set time of day.
2. To set time of day, press H (hour) button to set current hour. AM or PM will be displayed.
3. Press M (minute) button until you reach the current time.

To Set and Use Automatic Brew:

1. Make sure clock is set for correct time of day.
2. Fill coffeemaker with desired amount of water and coffee. Place carafe with lid on keep-hot plate. Close lid.
3. While holding PROG (program) button, press H and M buttons until desired brewing time is reached.
4. Once desired brewing time has been reached, release PROG button and current time is displayed.
5. Press AUTO button to set coffeemaker to come on automatically at the desired time.
6. An illuminated green light on the AUTO button indicates that the brew cycle will begin at the set time.
7. Press AUTO button again to cancel automatic brew.

Tips for Best-Tasting Coffee

• All coffees are made from either arabica beans or robusta beans, or some combination of both. Arabica beans are slightly more expensive, but tend to produce better-tasting coffee.
• Ground coffee will become stale much faster than whole beans. If buying preground coffee, choose a package with the latest expiration date or a smaller quantity.
• If grinding whole beans, set your coffee grinder on a fine/medium grind. This will yield the best-tasting grounds. Try to use freshly ground coffee within about a week of grinding.
• Using a water filter, filtered water, or bottled water will yield better-tasting coffee than tap water.
• Use approximately 1 tablespoon of grounds for each cup of coffee being made. To avoid overflow, use slightly less grounds (3/4 tablespoon [11 ml]) when brewing decaf or flavored coffees. Also, be aware that using coffee that is ground too finely may also cause the filter basket to overflow.
• Make sure your coffeemaker is clean. See "Cleaning With Vinegar" section.

Cleaning With Vinegar

All coffeemakers should be cleaned at least once a month (once a week for areas with hard water).

1. Place empty carafe on keep-hot plate. Close lid.
2. Pour 1 pint (2 cups/500 ml) vinegar into water reservoir.
3. Press ON (①).
4. Turn OFF (①) after 20 seconds and wait 30 minutes.
5. Press ON (①). The unit will automatically turn off when brew cycle is completed. When cool, empty reservoir and rinse.
6. Run 2-3 more brew cycles with CLEAN WATER only. Allow to cool between cycles.
7. Wash carafe and brew basket by hand in hot, soapy water. Rinse well and dry.

To Clean Carafe and Brew Basket:

Wash carafe by hand in hot, soapy water or in top rack of dishwasher. To remove carafe lid, push hinge part of lid to one side and then gently but firmly twist lid. The pin will release from hinge. To replace lid, put one side of lid hinge on one of pins and then snap onto other pin.

To remove brew basket, open lid and lift straight up. Brew basket and permanent filter may be washed by hand or in top rack of dishwasher.

Carafe Safety Precautions

This symbol alerts you to the potential danger for personal injury if you fail to read and follow these safety precautions.

This symbol reminds you that glass is fragile and can break which could result in personal injury.

• Do not use a cracked carafe or a carafe having a loose or weakened handle.
• This carafe is designed to be used only on the keep-hot plate of your coffeemaker. Do not use on a gas or electric rangetop, or in a microwave or conventional oven.
• To avoid breakage, handle carafe with care. Avoid impact. Glass will break as a result of impact. Use care when filling with water to avoid hitting faucet.
• Do not place hot carafe on cool or wet surface. Allow to cool before washing or adding liquids.
• Do not set empty carafe on a hot heating surface.
• Do not clean with steel wool pads, abrasive cleanser, or any other materials that may scratch.
• Do not place hands inside carafe. When handling, be careful if wearing any hand jewelry, especially diamond rings. Jewelry can scratch the glass, which increases possibility of breakage.
• Do not bump, scratch, or boil dry.
• Discard carafe if it is cracked, scratched, or heated while empty for an extended period of time.
• To avoid accidents, do not pour in the direction of people.
• If stirring in the carafe, use only wooden, plastic, or rubber utensils. Do not use metal utensils.
• Follow the above safety precautions carefully to avoid serious burn injuries which may result if breakage occurs while carafe holds heated liquids.

Troubleshooting

PROBLEM	PROBABLE CAUSE
Filter basket overflows or coffee brews slowly.	• Excessive amounts of coffee. • Coffee ground too finely. Set coffee grinder to automatic drip grind. • Coffeemaker needs cleaning. If using a paper filter: • Coffee grounds between paper filter and filter basket. • Paper filter not open and in proper position. • Rinse filter basket before inserting paper filter so the edges will remain pressed against the sides of the basket. • Poor-quality paper filter.
Coffee leaks onto base.	• Carafe removed from keep-hot plate for more than 20 seconds during the brewing cycle. Refer to “Pause ’N Serve” in the “Features” section.
Coffee tastes bad.	• Coffeemaker needs cleaning. • Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind. • Coffee-to-water ratio unbalanced. Adjust for personal preference. • Poor coffee quality and freshness. • Poor water quality (use filtered or bottled water).

Troubleshooting (cont.)

PROBLEM	PROBABLE CAUSE
Coffee sediment in cup.	·Use a high-quality, basket-style paper filter instead of optional permanent coffee filter.
Coffee not brewing or unit will not turn on.	·Carafe not positioned on keep-hot plate. ·Water reservoir is empty. ·Unit is unplugged. ·Power outage. ·Power surge. Unplug; then plug the unit back in. ·Clock requires reset after power outage.
Longer than normal brew time.	·Mineral deposits can build up in the pump of your coffeemaker. Periodic cleaning of the inside of the unit is recommended. More frequent cleaning may be necessary, depending on the hardness of your water. See “Cleaning With Vinegar” section. NOTE: Do not disassemble the unit.

Notes

LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit proctorsilex.com in the U.S. or proctorsilex.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
