49919 - Coffee machine PROCTOR SILEX - Free user manual and instructions

Product Type	Single-serve coffee maker compatible with K-Cup® pods and ground coffee
Brand	Proctor Silex
Model	49919
Water reservoir capacity	1183 mL (40 oz)
Coffee volume per cup	284 mL (10 oz)
Power	120 V ~ 60 Hz
Dimensions (approx.)	30 cm x 20 cm x 35 cm
Weight (approx.)	2.5 kg
Main functions	Auto brew, auto shut-off, adjustable drip tray
Supported coffee types	K-Cup® pods and ground coffee
Maintenance and cleaning	Descaling with white vinegar, dishwasher-safe removable parts (except sanitizing cycle)
Safety	Polarized plug, auto shut-off, hot surfaces, piercing needle
Replacement parts	Pod holder, ground coffee basket, funnel, drip tray available at proctorsilex.ca/parts
Repairability	3-year limited warranty, repair by manufacturer or authorized agent
General information	Household use only, do not immerse

Frequently Asked Questions - 49919 PROCTOR SILEX

How to use a K-Cup® pod?

Place a pod in the removable holder, close the lid, place a 284-341 mL cup on the tray, then press the BREW button. The cycle takes about 3 minutes.

How to use ground coffee?

Remove the ground coffee basket, add up to 20 g (4 tbsp) of ground coffee, close the lid, place the basket in the funnel, then press BREW.

Why does my coffee taste bad?

The coffee maker may need descaling. Use fresh coffee and a suitable grind (drip coffee maker). Filtered water also improves taste.

How to clean the coffee maker?

Mix 237 mL of white vinegar and 237 mL of water, run a cycle, let it sit for 30 minutes, then rinse with 4 cycles of clear water. Removable parts are dishwasher safe.

What to do if the coffee maker does not turn on?

Make sure the coffee maker has cooled for at least 2 minutes between cycles. Ensure the reservoir has water. If the light does not come on, unplug and plug back in.

Why does coffee overflow the cup?

This coffee maker brews 284 mL (10 oz). Use a cup of at least 284 mL. If the cycle is interrupted and restarted, it will brew another 284 mL, which may cause overflow.

How to clean the piercing needle?

Unplug and let it cool. Gently insert the tip of a bent paper clip into the needle and move it up and down to remove residue.

Can I use an extension cord?

Yes, an approved extension cord may be used if the cord is too short. Its electrical ratings must be equal to or greater than the appliance's.

What is the warranty period?

The limited warranty is 3 years from the date of purchase for defects in materials and workmanship. Keep your receipt.

Where can I buy replacement parts?

Visit proctorsilex.ca/parts to order the pod holder, ground coffee basket, funnel, drip tray, and other parts.

USER MANUAL 49919 PROCTOR SILEX

Line drawing of a Proctor/silex water dispenser device with no text or symbols on the device itself

Multi-Serve Coffee Maker

Cafetière

polyvalente

Cafetera

multifunción

READ BEFORE USE

LIRE AVANT UTILISATION

LEA ANTES DE USAR

proctorsilex.com

For recipes, tips and product information.

proctorsilex.ca

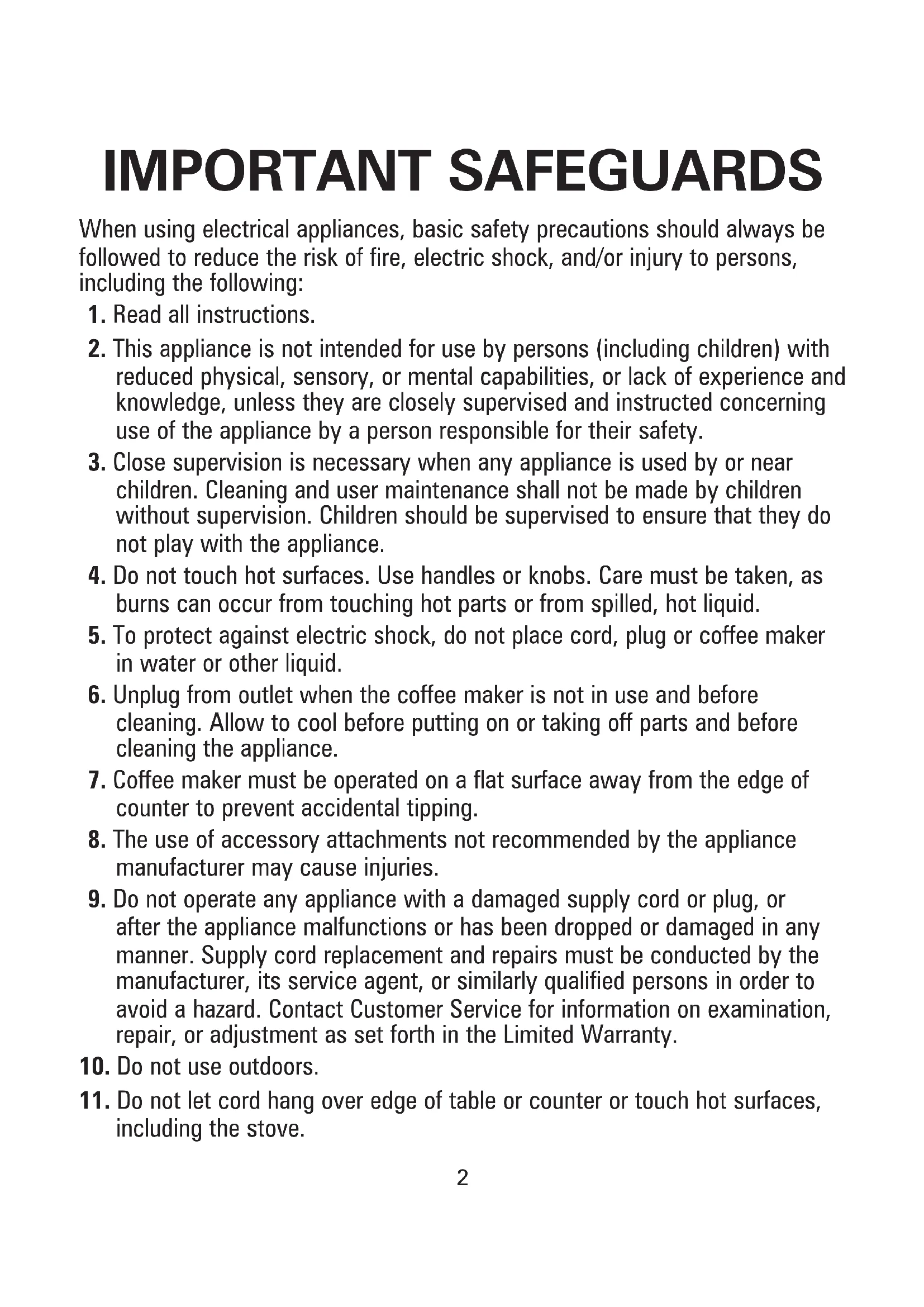

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled, hot liquid.
5. To protect against electric shock, do not place cord, plug or coffee maker in water or other liquid.
6. Unplug from outlet when the coffee maker is not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
7. Coffee maker must be operated on a flat surface away from the edge of counter to prevent accidental tipping.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.
10. Do not use outdoors.

11. Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.

12. Do not place coffee maker on or near a hot gas or electric burner or in a heated oven.

13. To disconnect coffee maker, remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
14. Scalding may occur if the lid is removed during the heating cycle.
15. Do not place coffee maker in a cabinet when in use.
16. WARNING! To avoid hot water spraying from the piercing needle, do not lift the lid during the brew process.
17. CAUTION! Cut Hazard: Removable single-serve pod holder contains a sharp needle. Use caution when handling.
18. CAUTION! Cut Hazard: Piercing needle is sharp. Use caution when cleaning.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock

Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

Parts and Features

To order parts, visit: proctorsilex.com/parts

1. Lid Release Button
2. BREW Button with Light
3. Removable Single-Serve Pod Holder (punches hole on bottom of pod)

4. Removable Grounds Basket with Lid (fits into Funnel for brewing)

5. Removable Funnel (holds Grounds Basket or K-Cup® Pack)

6. Lid
7. Piercing Needle
8. Water Reservoir (MAX 40 oz. [1183 mL])
9. Removable and Adjustable Cup Holder with Drip Tray

How to Brew a Single-Serve Pod

WARNING Burn Hazard.

To avoid contact with hot coffee or water:

• Do not fill water above MAX fill line (40 ounces [1183 mL]).
• Fully insert a 10 to 12 ounce cup (284 to 341 mL) under funnel.

CAUTION Cut Hazard.

Removable single-serve pod holder has a sharp blade. Use caution when handling.

NOTES:

• This Coffee Maker brews 10 ounces (284 mL) coffee for each cup.

• It can take up to 2 minutes before brewed coffee starts dispensing into your cup. Total brew time average is 3 minutes. For best results, allow Coffee Maker to cool for at least 2 minutes between brewing cycles.

• Plug in Coffee Maker and ensure Removable Funnel is in place.

• Press Lid Release Button and fill Water Reservoir to MAX Fill Line with 40 ounces (1183 mL) cold water.
• Place a Pod into Single-Serve Pod Holder. Close Lid.
• Fully insert a 10 to 12 ounce (284 to 341 mL) cup or mug on Drip Tray. To adjust Drip Tray: Slide into openings for position you

want and push down to lock into place.

1. Press BREW Button. The Button will light up to show Coffee Maker is on.

2. Coffee Maker will shut off automatically and Light will go off when brew cycle is completed.

3. When done brewing, unplug Coffee Maker.

NOTES:

• Allow 2 minutes to cool in between brews.
• Removable Funnel and Removable Single-Serve Pod Holder should be rinsed after every use.
• Add only water to Water Reservoir. No need to refill if the Water Reservoir still has water in it.

How to Brew Ground Coffee

NOTES:

• This Coffee Maker brews 10 ounces (284 mL) coffee for each cup.
• It can take up to 2 minutes before brewed coffee starts dispensing into your cup. Total brew time average is 3 minutes. For best results, allow Coffee Maker to cool for at least 2 minutes between brewing cycles.

WARNING Burn Hazard.

To avoid contact with hot coffee or water:

• Do not fill water above MAX fill line (40 ounces [1183 mL]).
• Fully insert a 10 to 12 ounce cup under grounds basket.
• Remove grounds basket before adding coffee grounds to grounds basket.

• To avoid overflow, keep ground coffee below MAX fill line.

• Plug in Coffee Maker.

• Press Lid Release Button and fill Water Reservoir to MAX fill line with 40 ounces (1183 mL) cold water.

• Place Removable Grounds Basket on flat surface. Lift Lid and add ground coffee (MAX fill line is 4 tablespoons [20 g]) to Basket. Close lid on Removable Grounds Basket.

• Place Removable Grounds Basket into Funnel in Coffee Maker. Close Lid.

• Fully insert a 10 to 12 ounce (284 to 341 mL) cup or mug on Drip Tray. To adjust Drip Tray: Slide into openings for position you want and push down to lock into place.

• Press BREW Button. The Button will Light up to show Coffee Maker is on.
• Coffee Maker will shut off automatically and Light will go off when brew cycle is completed.
• When done brewing, unplug.

NOTES:

• If finer ground coffee is used, coffee may continue to drip after Light has gone off.
• Allow 2 minutes to cool in between brews.
• Removable Funnel and Grounds Basket should be rinsed after every use.
• Add only water to Water Reservoir. No need to refill if the Water Reservoir still has water in it.

Care and Cleaning

WARNING Electrical Shock Hazard.

Do not immerse cord, plug, or coffee maker in any liquid.

NOTE: All coffee makers should be cleaned at least once a month (once a week for areas with hard water).

1. Plug in Coffee Maker. Open Lid.

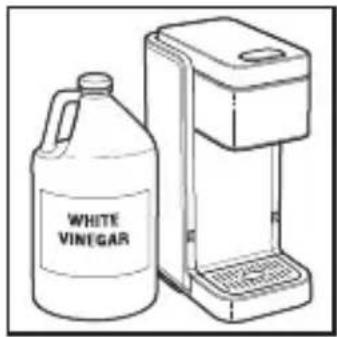

2. Pour 1 cup (237 mL) of plain white vinegar and 1 cup (237 mL) of cold water into Water Reservoir. Close Lid.

1. Place a 10 to 12 ounce (284 to 341 mL ) cup underneath to catch water/vinegar solution.

2. Press BREW Button once. After 30 seconds, unplug unit and allow vinegar to clean. After 30 minutes, plug in unit and allow it to finish brew cycle. When brew cycle is finished, wait for unit to cool. Empty cup and rinse. Run 4 cycles with cold tap water only. Empty cup after each cycle.

3. Unplug Coffee Maker.

4. Wipe exterior of unit with a damp, soapy cloth.

5. Removable Single-Serve Pod Holder, Funnel, and Grounds

Line drawing of a hand using a handheld device to press or install a device (no text or symbols visible)

Basket are all dishwasher-safe. NOTE: DO NOT use "SANITIZE" setting when washing in dishwasher. "SANITIZE" cycle temperatures could damage your product.

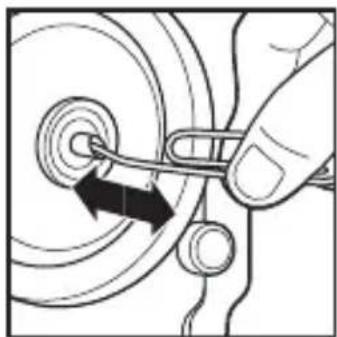

Clogged Needle

1. Unplug and allow to cool.

2. Bend a small paper clip. Insert tip of paper clip into Needle and move up and

down needle

to ensure grounds have been removed.

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Troubleshooting

Coffee tastes bad.

• Coffee Maker needs cleaning.
- Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind.
- Poor coffee quality and freshness.
- Poor water quality (use filtered or bottled water).

Water on counter under unit.

• Overfilled Water Reservoir.

Coffee Maker Light will not turn on and will not brew.

• Make sure you have allowed for 2 minutes of cool-down time.
- Check for water in Water Reservoir. If there is no water in Reservoir and BREW Button is pushed, Coffee Maker will not brew.

Coffee overflows from Funnel.

• Use a lesser amount of ground coffee.
• When using whole bean coffee, a standard automatic drip coffee grind will yield best results. Be careful not to overgrind, since very finely ground coffee can cause overflow in this Coffee Maker.

Coffee overflows from mug.

- This Coffee Maker brews 10 ounces (284 mL) of coffee. To prevent coffee overflowing,

ensure that your cup or mug will hold 10 to 12 (284 to 341 mL) ounces.

- Brewing cycle has been interrupted. When Coffee Maker is stopped, it will start over and brew 10 ounces (284 mL).

Coffee not dispensing.

- Piercing Needle is clogged with coffee grounds. Turn Coffee Maker off; unplug. Allow Coffee Maker to cool completely. To remove any built-up coffee grounds, insert end of bent paper clip into Needle and move up and down needle to ensure grounds have been removed.

Failed foil seal on Single-Serve Pod.

- There is variability in the single-serve pod manufacturing process which causes some types of single-serve pods to be weaker at the seams. Let cool 2 minutes between brewing, or try a different brand.

Water bubble in Water Reservoir.

- If making a second cup of coffee immediately after the first, you may notice a gurgle of water and steam when Lid is opened. It is recommended to wait 2 minutes between brews for Coffee Maker to cool down.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase. During this period, your exclusive remedy is replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with our returning a product or component under this warranty to you. If the product or component is unavailable, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price.

Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit proctorsilex.com/customer-service in the U.S. or proctorsilex.ca/customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Illustration of a white wine jar and a modern water dispenser (no text or symbols)
