USER MANUAL 5DS69770 BLAUPUNKT

Illustration of a hand holding a smartphone with a finger pointing at it, enclosed in a circular frame (no text or symbols)

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate

earthing.

- Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

- Regulations concerning the discharge of air have to be fulfilled.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

- If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.

- Connect the plug to a socket complying with current regulations, located in an

accessible place.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the appliance. - The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for

the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked □ames under the hood when it is in operation.
• Adjust the ☐ame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into ames.

3. CARE AND CLEANING

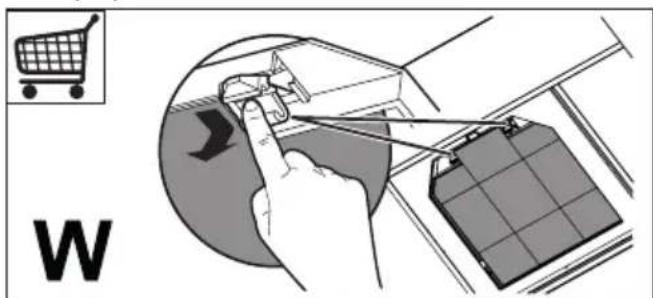

- The Activated charcoal □ter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

W

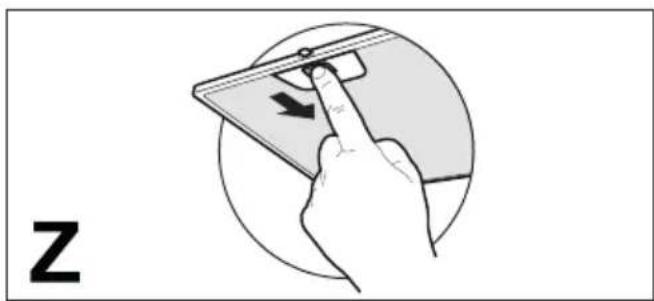

- The Grease Itters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand interacting with a smartphone screen, showing a finger pressing the screen (no text or symbols)

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

① A B P

Button	Function Display/Led
A Press and hold for approximately 1 second to turn the hood on/off at speed 1.		The display indicates 1.
B	Press the “-” symbol and swipe your finger towards the “+” symbol: swipe once = speed 1 swipe twice = speed 2 swipe three times = speed 3 swipe four times = Intensive speed.Intensive speed is timed to run for 6 minutes. At the end of this time the system will return to the speed set previously.Repeat the operation in the opposite direction to decrease the speed (from the “+” symbol to the “-” symbol).	The display indicates the selected speed.The display shows an animation when Intensive speed is selected.
C	Press briefly to activate/deactivate Delay mode, causing automatic shutdown of the Motor and the Lighting system after 30 minutes. This mode cannot be activated if Intensive or 24h modes are active.Press the same button to deactivate the function or press and hold button A for approximately 1 second to turn the motor off.	Led A remains fixed and led C lights up. The display shows an animation.
D	Press briefly to activate/deactivate 24h mode.This mode turns the motor on at speed 1 for 10 minutes every hour. This mode cannot be activated if Intensive or Delay modes are active.Press the same button to deactivate the function or press and hold button A for approximately 1 second to turn the motor off.	Function activated: the display shows an animation and led D flashes every 0.5 seconds.
E Press briefly to turn the lighting system on and off at maximum intensity.		Led E lights up.
		Press and hold the button for approximately 1 second, with all the loads turned off (Motor and Lights), to reset the alarm when the filter alarm is triggered.
		The display indicates F 3 times, showing that the filter reset has been completed.Metal grease filters: the alarm is triggered after the Hood has been in operation for 100 working hours. With the motor turned off: the display indicates F + 1 alternately several times.Activated charcoal filters: the alarm is triggered after the Hood has been in operation for 200 working hours. With the motor turned off: the display indicates F + 2 alternately several times.If both the alarms are active, the display will indicate F + 1 and F + 2 alternately several times.
F Press briefly to turn the lighting system on and off at medium intensity.		Led F lights up.
		Press and hold the button for approximately 1 second, with all the loads turned off (Motor and Lights), to enable/disable the charcoal filters alarm.
G	With the motor turned off: press briefly, to activate/deactivate the button pad lock to allow cleaning of the hood.	Led G remains fixed while the other leds flash.

5. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").
