Product type	Lawn mower
Brand	Texas
Model	Razor 4010
Engine	TG150, 79.8 cc / 1.2 kW
Cutting width	40 cm
Height adjustment	3 positions, 35-70 mm
Wheels	6" / 6"
Grass catcher	40 L
Weight	18 kg
Sound pressure level (LpA)	83.1 dB(A)
Sound power level (LwA)	96 dB(A)
Vibration level (Ah)	7.163 m/s²
Article number	90066510
Fuel type	Unleaded petrol 95
Engine oil type	SAE-30, capacity 0.45 L
Blade brake	Yes, stops engine and blade in 3 seconds
Cutting heights	3 settings
Warranty	2 years

Frequently Asked Questions - Razor 4010 Texas

How to start the Razor 4010 lawn mower?

To start, press the primer several times (1 to 3 times when cold), hold down the engine brake handle, then pull the recoil starter firmly until you feel resistance, then pull quickly. Gently release the starter.

What type of fuel to use?

Use only unleaded petrol 95. Never fill the tank more than 2.5 cm below the opening. Let the engine cool down before refueling.

What engine oil to use and how much?

Use SAE-30 oil. The total crankcase capacity is 0.45 liters. Check the level with the dipstick between the Min and Max marks.

How to adjust the cutting height?

The mower has 3 cutting heights from 35 to 70 mm. Adjust using the lever provided (not detailed in the manual, but present on the machine).

How to clean the air filter?

Remove the filter cover. Clean the paper filter with a soft brush. Wash the foam pad in soapy water, wring out, dry, then soak it with a few drops of SAE-30 oil. Reassemble everything.

How to drain the engine oil?

Use an oil extraction kit (ref. 40-11336). Run the engine for 5 minutes to heat it up, then suction the oil through the filler opening. Fill with 0.45 L of new SAE-30 oil.

How to sharpen or replace the blade?

Remove the blade by loosening the bolt (use a piece of wood to block the blade). Sharpen or replace. Tighten the bolt to 50 Nm. An unbalanced blade can damage the engine. Call a professional if necessary.

What are the main safety instructions?

Read the manual. Never put hands or feet under the machine. Use non-slip sole boots. Do not mow barefoot. Keep children and pets away. Do not use the mower in enclosed spaces due to carbon monoxide.

What to do if the engine does not start?

Check that the brake handle is engaged, that the machine is not on tall grass, that the tank has fresh fuel (less than 3 months old). If no spark, check the spark plug (gap 0.7-0.8 mm) and the air filter.

How to store the mower for winter?

Empty the tank and run the engine until the fuel runs out. Remove the spark plug, pour a tablespoon of oil into the cylinder, pull the starter, reinstall the spark plug without the cap. Change the oil. Clean the mower and lightly oil the metal parts.

USER MANUAL Razor 4010 Texas

Black and white photo of a Texas Equipment lawn mower with visible blades and mounting bracket (no text or symbols on the device itself)

1
2

3	A	B
4
5
6	Brake lever cable adjustment
7
8
9
10

DK
Læs betjenings-vejledningen grundigt før maskinen benyttes	Benyt høreværn og sikkerheds-briller	Advarsel:Sikkerheds-information omkringsituationer der kanende i personskade	Advarsel:Pas på flyvende objector	Brug ikke på skråninger over 22°	Rør ikke roterende dele
GB
Please read the user manual carefully before operating the machine.	Always wear eye and ear protection.	Warning:Safety information about hazards that can result in personal injury	Warning:Pay attention to thrown objects	Do not use on hills above 22°	Do not touch rotating parts
D
Bitte lesen Sie das Benutzerhandbuch aufmerksam durch, bevor Sie den Maschinen in Betrieb nehmen.	Tragen Sie immer Auge und Ohr Schutz.	Warnung:Sicheheits-informationen über Situationen die Personschaden verursachen können	Warnung:Achten Sie auf rotierende Messer!	Nicht auf Steigungen über 22 Grad verwenden!	Sich bewegende Teile nicht berühren
RO
Cititi cu atentie manualul de instructiuni inainte de utilizarea echipamentului.	Intotdeauna purtati ochelari si casti de protectie.	Avertisment:Informatii de siguranta despre pericolele care pot cauza ranirea grava	Avertisment:Aveti grija la obiectele aruncate.	Nu utilizati echipamentul pe dealuri cu un grad de inclinatie mai mare de 22"	Nu atingeti piesele rotative

DK
Fjern tændrørshætten fra tændrører før service eller reparation	Stop maskinen før oprydning	Hold afstand til personer, børn og dyr	Advarsel: Klingen er skarp, rør ikke ved knivbladet	Indsæt ikke hænder eller fødder under klipperskjoldet	Advarsel: Brug kun korrekt værktøj og reservedele
	GB
Remove the spark plug cap from the spark plug before service or repair	Stop the engine before cleaning of work area	Keep distance to other people, children and animals	Warning: The blade is sharp, do not touch the knife	Do not place hands or feet under cutting deck	Warning: Always use correct tools and original spare parts
	D
Vor Service oder Reparatur: Zündkerzenstecker abziehen!	Motor abschalten vor der Reinigung des Messers	Halten Sie Abstand zu anderen Personen, Kindem und Tieren!	Warnung: Messer ist scharf! Nicht berühren!	Fuße und Hände nicht unter dem Mäher halten!	Warnung: nur Originalteile und bedarfsgerechtes Werkzeug nutzen!
RO
Indepartati fisa bujiei de la bujie inainte de service sau reparare	Opriti motorul inainte de curatarea zonei de lucru	Pastrati distanta fata de alte persoane, copii si animale	Avertisment: Lama este ascutita, nu atingeti cutitul	Nu puneti mainile sau picioarele sub puntea de taiere	Avertisment: Intotdeauna utilizati uneltele corecte si piesele de schimb originale

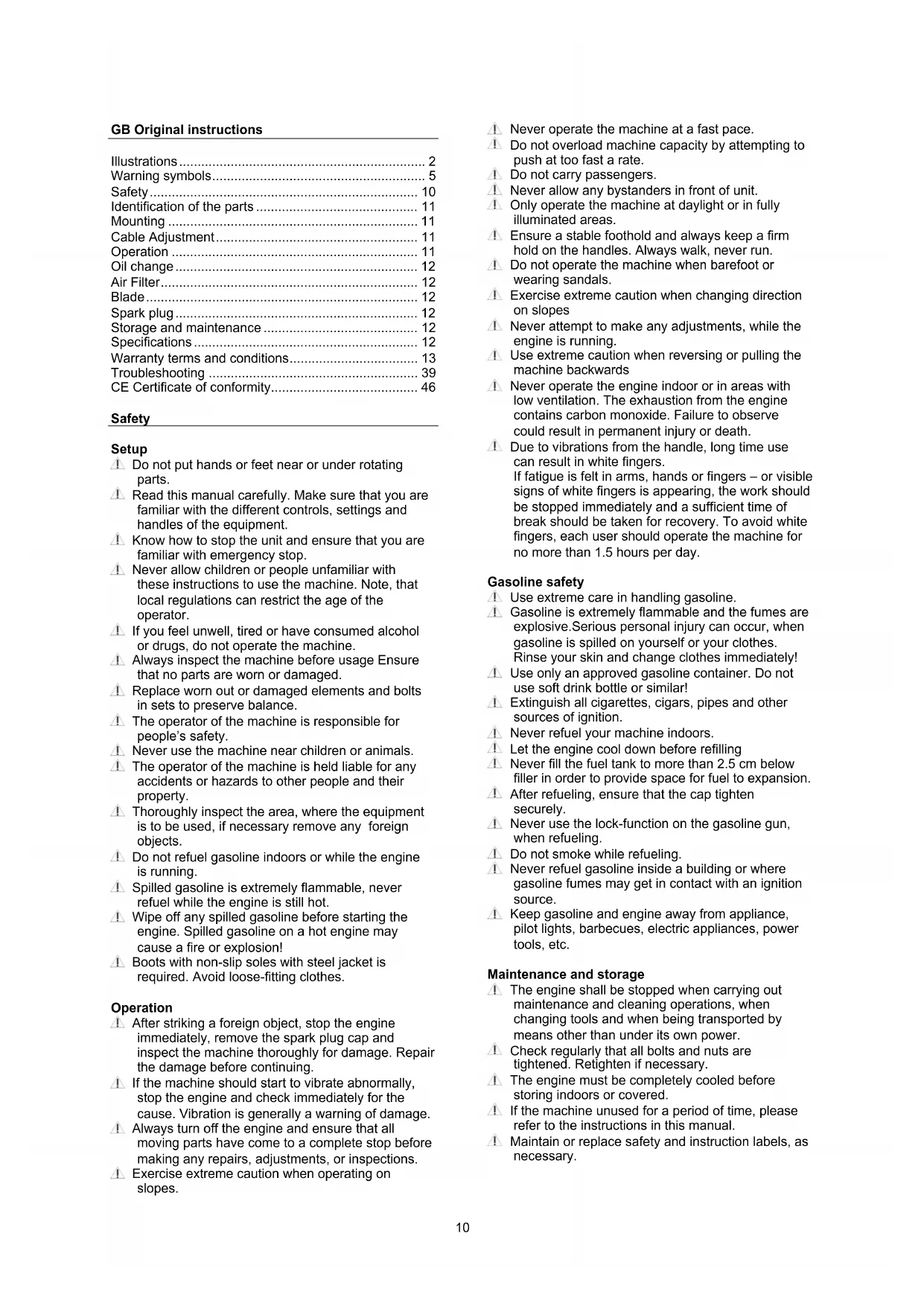

GB Original instructions

Illustrations....2

Warning symbols.... 5

Safety....10

Identification of the parts 11

Mounting 11

Cable Adjustment.... 11

Operation 11

Oil change 12

Air Filter.... 12

Blade 12

Spark plug 12

Storage and maintenance 12

Specifications 12

Warranty terms and conditions.... 13

Troubleshooting 39

CE Certificate of conformity.... 46

Safety

Setup

Do not put hands or feet near or under rotating parts.

1. Read this manual carefully. Make sure that you are familiar with the different controls, settings and handles of the equipment.

⚠ Know how to stop the unit and ensure that you are familiar with emergency stop.

1. Never allow children or people unfamiliar with these instructions to use the machine. Note, that local regulations can restrict the age of the operator.

If you feel unwell, tired or have consumed alcohol or drugs, do not operate the machine.

Always inspect the machine before usage Ensure that no parts are worn or damaged.

⚠️ Replace worn out or damaged elements and bolts in sets to preserve balance.

The operator of the machine is responsible for people's safety.

⚠️ Never use the machine near children or animals.

The operator of the machine is held liable for any accidents or hazards to other people and their property.

1. Thoroughly inspect the area, where the equipment is to be used, if necessary remove any foreign objects.

Do not refuel gasoline indoors or while the engine is running.

Spilled gasoline is extremely flammable, never refuel while the engine is still hot.

⚠ Wipe off any spilled gasoline before starting the engine. Spilled gasoline on a hot engine may cause a fire or explosion!

⚠ Boots with non-slip soles with steel jacket is required. Avoid loose-fitting clothes.

Operation

1. After striking a foreign object, stop the engine immediately, remove the spark plug cap and inspect the machine thoroughly for damage. Repair the damage before continuing.

2. If the machine should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of damage.

Always turn off the engine and ensure that all moving parts have come to a complete stop before making any repairs, adjustments, or inspections.

Exercise extreme caution when operating on slopes.

△! Never operate the machine at a fast pace.

Do not overload machine capacity by attempting to push at too fast a rate.

Do not carry passengers.

⚠️ Never allow any bystanders in front of unit.

Only operate the machine at daylight or in fully illuminated areas.

⚠ Ensure a stable foothold and always keep a firm hold on the handles. Always walk, never run.

Do not operate the machine when barefoot or wearing sandals.

Exercise extreme caution when changing direction on slopes

Never attempt to make any adjustments, while the engine is running.

Use extreme caution when reversing or pulling the machine backwards

1. Never operate the engine indoor or in areas with low ventilation. The exhaustion from the engine contains carbon monoxide. Failure to observe could result in permanent injury or death.

Due to vibrations from the handle, long time use can result in white fingers. If fatigue is felt in arms, hands or fingers – or visible signs of white fingers is appearing, the work should be stopped immediately and a sufficient time of break should be taken for recovery. To avoid white fingers, each user should operate the machine for no more than 1.5 hours per day.

Gasoline safety

Use extreme care in handling gasoline.
Gasoline is extremely flammable and the fumes are explosive. Serious personal injury can occur, when gasoline is spilled on yourself or your clothes. Rinse your skin and change clothes immediately!
Use only an approved gasoline container. Do not use soft drink bottle or similar!
Extinguish all cigarettes, cigars, pipes and other sources of ignition.
⚠️ Never refuel your machine indoors.
Let the engine cool down before refilling

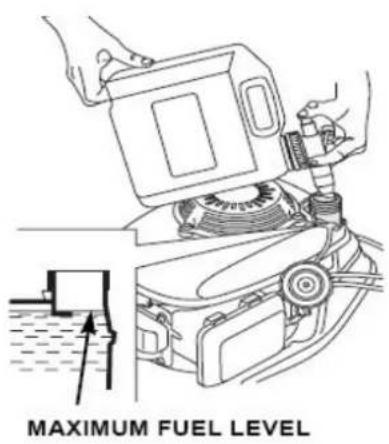

4 Never fill the fuel tank to more than 2.5 cm below filler in order to provide space for fuel to expansion.
After refueling, ensure that the cap tighten securely.
Never use the lock-function on the gasoline gun, when refueling.
Do not smoke while refueling.
1. Never refuel gasoline inside a building or where gasoline fumes may get in contact with an ignition source.
Keep gasoline and engine away from appliance, pilot lights, barbecues, electric appliances, power tools, etc.

Maintenance and storage

The engine shall be stopped when carrying out maintenance and cleaning operations, when changing tools and when being transported by means other than under its own power.
Check regularly that all bolts and nuts are tightened. Retighten if necessary.
The engine must be completely cooled before storing indoors or covered.
If the machine unused for a period of time, please refer to the instructions in this manual.
Maintain or replace safety and instruction labels, as necessary.

Only use original spare parts or accessories. If not original parts or accessories is used, the liability is no longer applied.

Miscellaneous

The motor is not pre-filled with oil.
Always before start check the engine oil level.
Factory-fitted control devices, such as the handle-mounted clutch cable, must not be removed or exposed.
Only drain the fuel tank outdoors. Gasoline is extremely flammable and the fumes are explosive.
⚠ Ensure that the machine is properly secured when transported on a flatbed etc.

The lawnmower is manufactured according to the latest safety requirements. These include a blade brake that stops the motor and blade in 3 seconds when the blade brake. Every precaution is only effective when it is followed exactly. Use the following description when you mount your lawnmower.

Identification of the parts

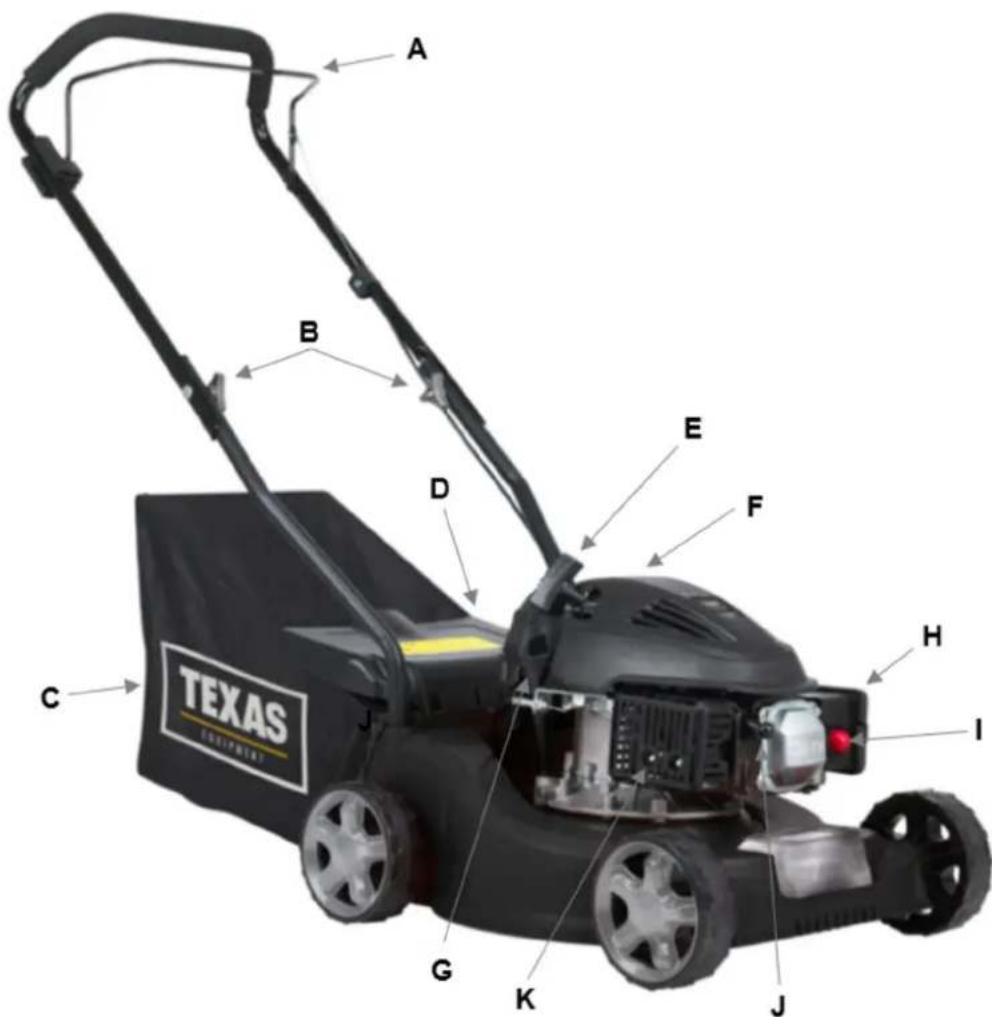

See Illustration 1

A. Handlebar for engine brake
B. Wing nut
C. Grass collector
D. Rear discharge guard
E. Recoil starter
F. Gasoline filling cap
G. Oil filling cap
H. Air Filter
I. Primer
J. Spark plug
K. Exhaust

Mounting

Unpacking:

Remove the mower from the box by pulling the machine out form the side.

Warning: Ensure that cable is not pinched.

Handlebar: Illustration 2

1. Insert the 2 lower handlebars into the cutting deck. Fasten with screws.
2. Attach the upper handlebar on the lower. Fasten with wing nuts from the inside of the handlebar.
3. Customize cable and secure with cable clamp.

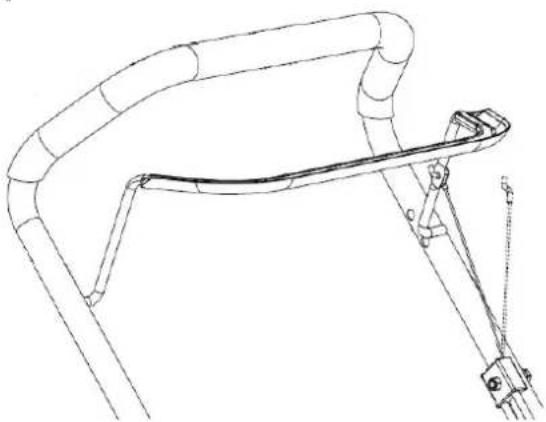

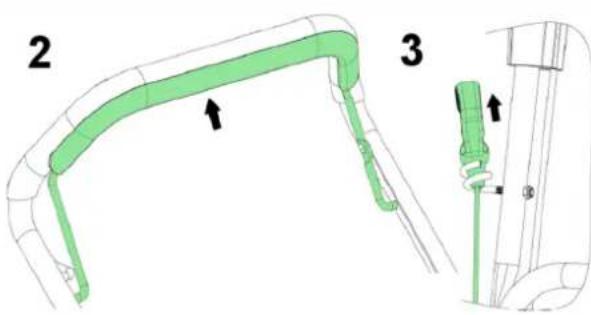

Mounting the engine brake cable: Illustration 3A

1. Gently push the top handlebar forward
2. Insert the engine brake cable from the outside, into the hole in the bracket on handlebar and lock.

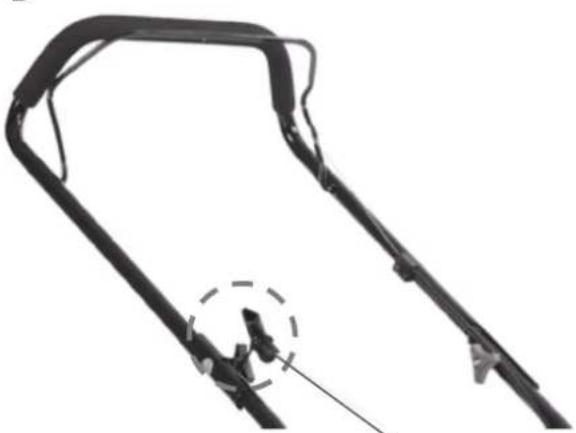

Mounting the recoil-starter: Illustration 3B

1. Pull the engine brake handlebar and hold, in order to release the starter cord on the engine.
2. Pull gently the starter cord from the engine (Engine brake handlebar MUST be hold)
3. Attach the starter grip on the rack of handlebar.
4. Release the engine brake handlebar and the starter grip.

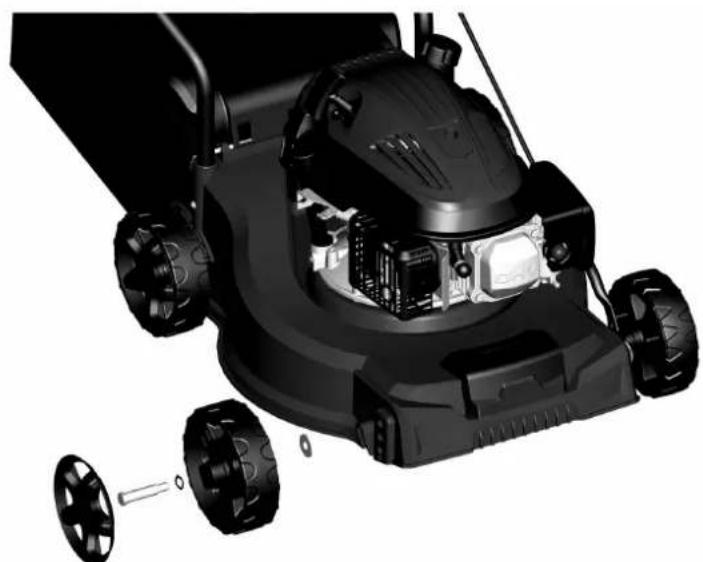

Mounting the wheelsl. Illustration 4

Mount the wheels as shown.

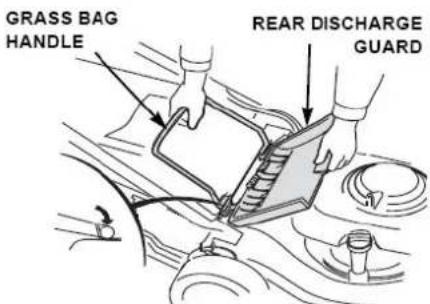

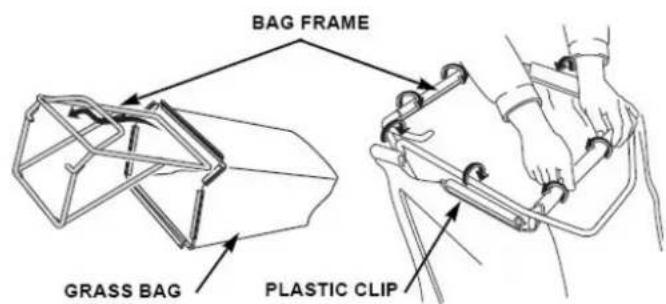

Mounting the grass collector: Illustration M6 Click the frame to the grass collector.

Attach the grass collector under the rear discharge guard.

Cable Adjustment

Before the machine is being used, the cable adjustment should always be checked.

The cables can be checked by activating the handles fully and check if the cable is tight. If not, it must be tightened. If the handle cannot easily be fully activated, the cable should be loosened.

After first season, it must be expected that the cables need to be adjusted for optimal activation, as cables can stretch when used.

The following cables may be necessary to readjust:

Cable for engine brake

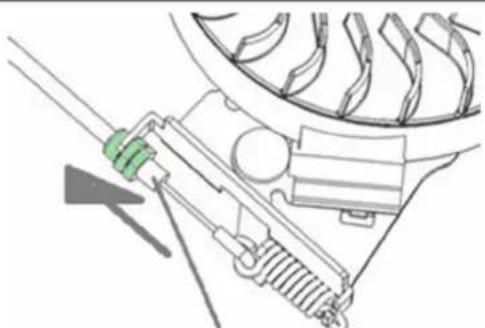

Adjusting the engine brake cable: Illustration 6 If you experience slack in engine brake cable, this can be solved simply by tighten or loosen the bolt on the engine block.

Operation

Always check and refill oil before the start! Add about 0.45 l. engine oil.

Illustration 7

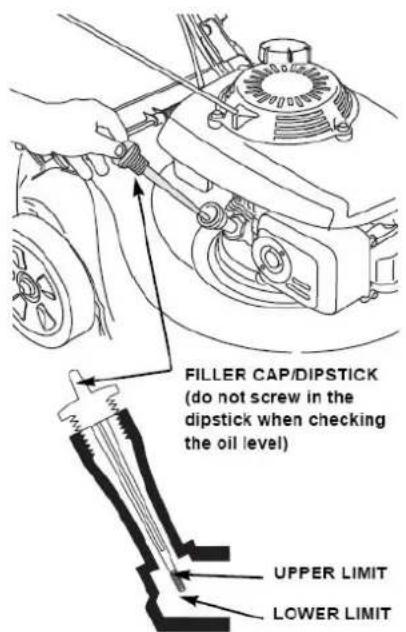

The oil level should always be between min. and max on the dipstick. Fill with SAE-30 oil. There should be total 0.45 litre oil in the engine. Use only unleaded 95 octane fuel to the engine. Never overfill the tank.

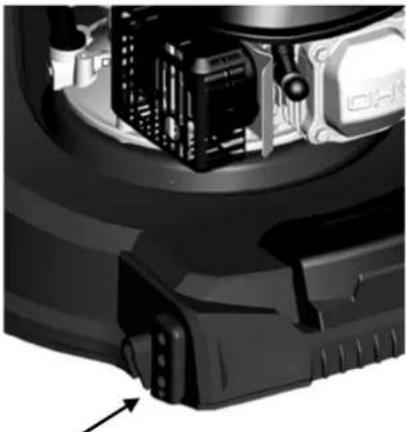

Cutting height adjustment: Illustration 8

The mower has 3 different heights. The cutting height ranges from 35 mm to 70 mm. Fit the wheel bolt into one of the 3 holes. Choose the same hole position for all 4 wheels.

Start: Never start the mower directly on long grass.

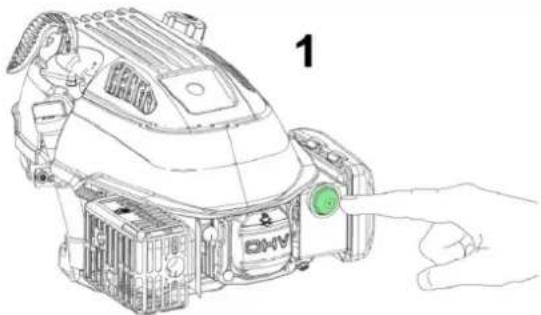

Recoil with primer: Illustration 9

1. Push the primer several times, first time push 1-3 times, if necessary, supplement with up to 3-5 times.
   Note: It is not possible to drown engine
2. Hold the handlebar for the engine brake; this will release the engine brake.
3. Pull the recoil starter gently until you feel resistance in the rope, then pull quickly and energetic. Do not at any time let go of the recoil starter but slide it gently into starting position.

Note: As long as operating the mower, the bar forengine brake must be engaged.

Stop:

Release the engine brake and self-propelled bar to turn off the mower and the engine

Note: The blades will still rotate at up to 3 seconds after stopping.

Oil change

Oil should be changed for the first time after 5 hours, then at least 1 time per year.

You will need an oil extractor kit. Art. no. 40-11336 Oil and oil extractor kit is not included

Use an extractor kit and do as follows:

1. Turn on the engine and let it run for 5 min or until the engine is hot. A hot engine liquefies the oil which makes it easier to drain.
2. Suck the oil up through the oil filler hole using the syringe that came with the oil extractor kit. Use the hose to reach the sump.
3. Transfer the used oil into a empty container.
4. Fill the engine with SAE-30 oil (0.45 litre).
5. Check the oil level using the dipstick. (Min / Max)

Remember to dispose the used oil so that it does no harm to nature. Use your local recycling station.

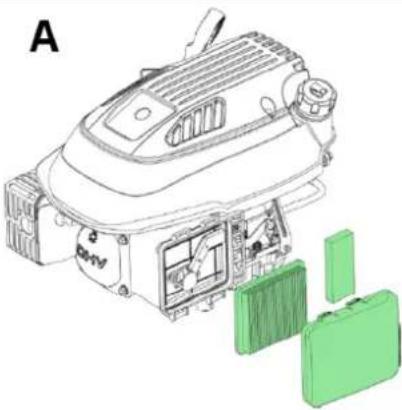

Air Filter

The air filter should be inspected and cleaned regularly. If the filter has not been cleaned for a long time, the engine's power will drop.

1. Clean around the air filter before removing the cap.
2. Push the two flaps down and gently pull the cover
3. Carefully remove the paper filter and inspect it. Brush it with a soft brush. If it is very dirty, replace it. Be careful that no dirt gets into the inlet.
4. Wash the black foam element in the right side in warm water and soap.
5. Press the water out of the foam element and let it dry. Put a few drops of SAE-30 oil on the filter to moisten it lightly. Carefully squeeze any surplus oil out of the foam element and reattach.
6. Please note that all parts are assembled correctly and properly closed, as shown in the picture.

Blade

Inspection of the blade

• Tilt the mower with the front upwards.
• Inspect blade for damage, cracks or excessive rust or corrosion.
• Check that the blade bolt is tightened.

Note: A dull blade can be sharpened! But a blade that is worn, bent, cracked or otherwise damaged must be replaced.

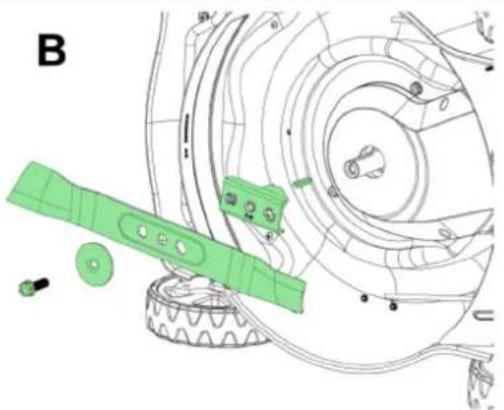

Removing the blade: Illustration 10B

If you remove the blade to sharpen or replace it, you must use a torque wrench and some heavy gloves to protect your hands.

1. Loosen the blade bolt. Use a piece of wood to prevent the blade from turning around.
2. Remove the bolt, washer, blade and blade holder in that order
3. Sharpen or replace the blade.
4. Insert the blade holder, blade, washer and bolt in that order.
5. Tighten the blade bolt with 50 Nm. Use a piece of wood to prevent the blade from turning around.

Warning: A blade must be sharpened so it is in 100 % balance, otherwise it may cause vibrations that could damage the engine. Damage to engine due to faulty sharpening is not covered by warranty. We therefore recommend letting a service center sharpen the blade.

Spark plug

1. Remove the spark plug.
2. Brush off dirt from the spark plug.
3. Use a spark plug wrench to loosen the spark plug.
4. Check the insulation is intact.
5. Clean the spark plug with a wire brush.
6. Measure the electrode, taking care not to damage the electrode.
7. The distance should be: 0.7 to 0.8 mm
8. If the spark plug is undamaged refit or replace. Art. no. 40-11294
9. Reattach the spark plug.

Storage and maintenance

Maintain your lawnmower: Check all bolts, screws, nuts and deck. Dismount the blade and the belt plastic cover for regular cleaning. Always make sure that the blade is sharp. It's a good idea to take your lawn mower to an annual service check with your authorized service dealer. See your nearest service center at www.texas.dk.

Storage: After use the lawnmower kept in a dry and clean room. Clean the machine after every use. Grass and dirt must be removed from the underside of the deck. By tipping the mower (for cleaning) is recommended to tilt the front up (max. 45 degrees). If you tilt it sideways, the carburetor and air filter always face upwards, since oil may run out and destroy the engine. Be aware that removing the spark plug before the mower maintenance.

Winter storage: Empty the fuel tank and let the engine run until the gasoline in the carburetor is used up. Spark plug removed. Remove the spark plug and add a teaspoon of oil (engine oil) in the hole. Pull the starter to distribute oil. Mount the spark plug, but not the spark plug cap. Change oil as described in the section above. Spray silicone lubrication into the cables and move them.

Finally, clean the mower thoroughly. Dip a cloth in oil and luricate metal parts to prevent rust.

Specifications

Model Razor 4010
Engine TG150
Power 79,8 cc / 1.2 kW
Cutting width 40 cm
Height adjustment 3 pos.	35-70 mm
Wheel size 6" / 6"
Grass collector	40 l.
Weight	18 kg
Vibration level Ah	7.163 ^2 m/s
Sound pressure level LpA	83.1 dB(A)
Sound effect level LwA	96 dB(A)
Art. no. 90066510

The warranty period is 2 years for private end users in EU countries.

Products sold for commercial use, only have a warranty period of 1 year.

The warranty covers material and/or fabrication faults.

Restrictions and requirements

Normal wear and replacement of wearing parts are NOT covered by the warranty.

Wearing parts, which are NOT covered for more than 12 months:

• Blades
• Cables
• Fuses
• Switches
• Membranes/gaskets
• Spark plugs
  • Engine liquids (oil, gasoline)
• Starter cords
• Filters
• Battery: If the battery is not stored correct (frost-free and recharged every 3 months), the durability is only guaranteed for 6 months.

If you start the engine without adding oil, it will be damaged and cannot be repaired and therefore not covered by the warranty.

The warranty does NOT cover damages/faults caused by:

• Lack of service and maintenance
  • Structural changes
• Exposure to unusual external conditions
• Damages to the bodywork, deck, handles, panels etc.
• If the machine has been improperly used or overloaded
• Wrong use of oil, gasoline or other liquid types, which are not recommended in this user manual
• Bad or dirty gasoline, which results in contamination of the fuel system
• Use of unoriginal spare parts.
• Other conditions where Texas cannot be held responsible.

Whether a case is a warranty claim or not is determined in each case by an authorized service center.

Your receipt is your warranty note, why it should always be kept safe.

REMEMBER: The purchase of spare parts as well as any request for warranty repair, art. number (e.g. 900665XX), year and serial number should always be informed. It can be found on the CE-label located on the rearpart of the cutting deck behind the engine!

* We reserve the right to change the conditions and accept no liability for any misprints

Difficult to start
Problem	Cause	Solution
Generally difficult to start	Wrong starting procedure	Follow the starting instructions in the manual precisely.
The start cable is very tight (will not start)	The brake handle is not being activatedThe machine is placed in high grass	Activate the brake handle and pull the start cord.Move the machine away from the high grass and repeat the start procedure.Set the height adjustment in the highest position, so that the blade is lifted free of the grass.
The machine will not start when the start cord is pulled	The brake handle is not being activatedThe brake cable is incorrectly adjustedThe machine is standing in high grassEngine is not primed before startingNo more gasoline in fuel tankThe gasoline is more than 3 months old	Activate the engine brake handle.Adjust the engine brake cable, following the instructions in the manual.Move the machine away from the high grass to start it.Tip the machine when starting.Set the height adjustment in the highest position, so that the blade can run freely.Push the primer 1-3 times before starting.Check and fill fuel tank with gasoline.Empty the fuel tank and carburetto r from old gasoline, and fill with new gasoline.
No ignition spark (cannot start)	The spark plug cap is looseThe spark plug is damp or dirtyIncorrect gap between the spark plug and the electrodeThe air filter is dirty or defective	Check that the cap is firmly attached to the spark plug.Check that there is no dirt on the spark plug, following the instructions in the manual.Check and adjust the spark plug gap, following the instructions in the manual.Aalternatively, replace the spark plug.Check the air filter for dirt and clean it, following the instructions in the manual.
The mower starts, but runs unevenly
Problem	Cause	Solution
The engine runs irregularly and/or its performance becomes poor as you are working	The spark plug cap is looseThe spark plug is dirtyIncorrect gap between the spark plug and the electrodeThe air filter is dirty or defectiveEvaporation of fuel in the carburettorDirt in the carburettor	Check that the cap is firmly attached to the spark plug.Check that the spark plug is clean and not damaged, following the instructions in the manual.Check and adjust the spark plug gap, following the instructions in the manual.Check the air filter for dirt and clean it, following the instructions in the manual.Wait a few minutes, and then try to start again.Clean the carburetto r.
The engine will not stop
Problem	Cause	Solution
The machine does not stop after 5 seconds	The engine brake cable runs too tightly	Check and adjust the engine brake cable, following the instructions in the manual.

If your problem is not described above, please contact an approved service centre or Texas A/S.

Fehlerbehebung

2006/42/EC - 2014/30/EU - 2000/14/EC amended by 2005/88/EC

Overensstemmelsesvurdering procedure i henhold til bilag I • Conformity assessment procedure according to Annex I • Konformitätsbewertungsverfahren nach Anhang I • Procédure d'évaluation de la conformité conformément à l'annexe I • Procedura oceny zgodności zgodnie z załącznikiem I • Procedura de evaluare a conformitàții în conformitate cu anexa I • Conformiteits assessment-procedure conform Annex I

2006/42/EC

Materiellet er udført i overensstemmelse med følgende standarder • Conforms with the following standards • In Übereinstimmung mit den folgende Standards • Conformément aux normes suivantes • Jest zgodna z następującymi normami • Echipament se face în conformitate cu următoarele standarde • Conforms with the following standards

EN ISO 14982: 2009

EN ISO 5395-1: 2013

EN ISO 5395-2: 2013

Serial numbers: 2101100001 - 2312109999

Texas Andreas Petersen A/S

Knullen 22 • DK-5260 Odense S

Responsible for documentation

Johnny Lolk

19.10.2020

Henry Tahn

Johnny Lolk

Managing Director

TEXAS

EQUIPMENT
