HOCE4T618EBK - Refrigerator HOOVER - Free user manual and instructions

Product type	Combined refrigerator-freezer
Brand	Hoover
Model	HOCE4T618EBK
Minimum required width	920 mm
Minimum required depth	1137 mm
Power supply	220-240 V ~ 50 Hz
Refrigerator capacity	Not specified (estimated: approx. 200-300 L)
Freezer capacity	Not specified (estimated: approx. 80-150 L)
Climate class	Not specified (typical SN-T)
Energy class	Not specified (estimated: A+ to D)
Adjustable refrigerator temperature	2 °C to 8 °C (in 1 °C increments via app)
Adjustable freezer temperature	-18 °C to -25 °C (super freeze)
Special functions	Super cool, Super freeze, Eco mode, Holiday mode, Fine adjustment, Automatic defrost
Connectivity	Wi-Fi (hOn app)
Door reversibility	Yes (tools needed: screwdriver)
Interior lighting	LED
Removable shelves	Yes
Vegetable drawer with humidity control	Yes (slider)
Leveling feet	Yes
Maintenance and cleaning	Automatic defrost; clean interior with a soft cloth and soapy water
Safety	Compliant with directive 2014/53/EU (radio equipment)
Spare parts and reparability	Contact Hoover after-sales service
Error code (fan)	Flashing LED at 6° indicates fan error

Frequently Asked Questions - HOCE4T618EBK HOOVER

How to set the refrigerator temperature?

Open the refrigerator door and press the SET button. Each press increases the temperature and a LED lights up. The default temperature is 4 °C. You can also adjust it via the hOn app with 1 °C increments between 2 °C and 8 °C.

How to activate the Super cool function?

Press the SET button repeatedly until the Super cool LED lights up. You can also activate it from the app. The function deactivates automatically after 30 hours.

How to use the Super freeze function?

The Super freeze function can only be activated via the hOn app. It sets the temperature to -25 °C. Activate it 24 hours before placing large amounts of fresh food. It stops automatically after 50 hours.

How to activate Holiday mode?

Holiday mode is only selected in the hOn app. It reduces energy consumption: the LEDs turn off and the refrigerator operates in low consumption, while the freezer remains active. To exit, deactivate it in the app.

How to connect the refrigerator to Wi-Fi?

Download the hOn app, create an account, then follow the pairing instructions. To activate Wi-Fi on the device, press and hold the SET button for 2 seconds until the Wi-Fi icon blinks. The device stays in configuration mode for 30 minutes.

How to reverse the door opening direction?

Use a screwdriver to remove the top hinge, middle hinge, and bottom hinge, then reposition them on the other side. Follow the detailed steps in the manual. The parts are reversible.

What to do if the refrigerator shows an error code?

If the LED corresponding to 6 °C is flashing, it indicates a fan error. Contact Hoover technical support to resolve the issue.

How to adjust the humidity in the vegetable drawer?

Near the vegetable drawer there is a slider: move it left to increase humidity, right to decrease it.

How to defrost?

Defrosting of the refrigerator and freezer compartments is automatic. No manual action is needed.

How to reset to factory settings?

With the display on, hold the TEMP button, then press the On/Off button 5 times within 5 seconds. The temperature returns to 4 °C (fridge) and -18 °C (freezer).

USER MANUAL HOCE4T618EBK HOOVER

EN 1, BG 9, CS 18, DA 26, DE 34, EL 42, ES 51, FI 59, FR 67, HR 75, HU 83, IT 91, NL 99, NO 107, PL 115, PT 123, RO 131, RU 139, SK 148, SL 156, SR 164, SV 172, UK 180, TR 188

Summary

PRODUCT DESCRIPTION 2 Space requirements 2 USE 3 Use 3 Customized temperature 3 Fine Tuning 4 Super Cool function 4 Super Freeze function 4 Eco mode 5 Holiday function 5 Defrosting 5 Demo mode 5 Error codes 5 APP CONNECTION (Content only) 6 IN APP PAIRING PROCEDURE 6 Step 1 6 Step 2 6 Step 3 6 WiFi Use 7 DOOR REVERSIBILITY 8

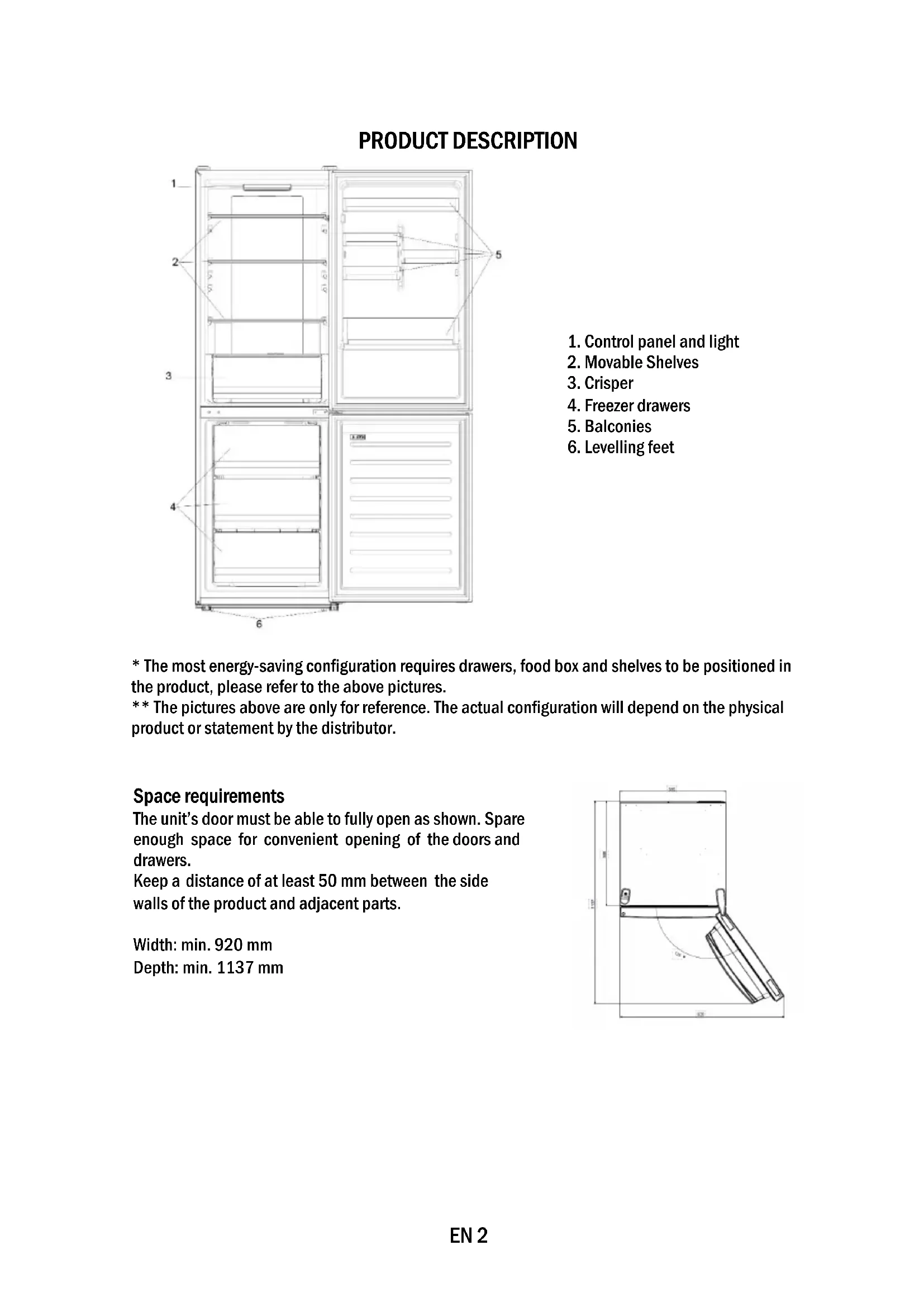

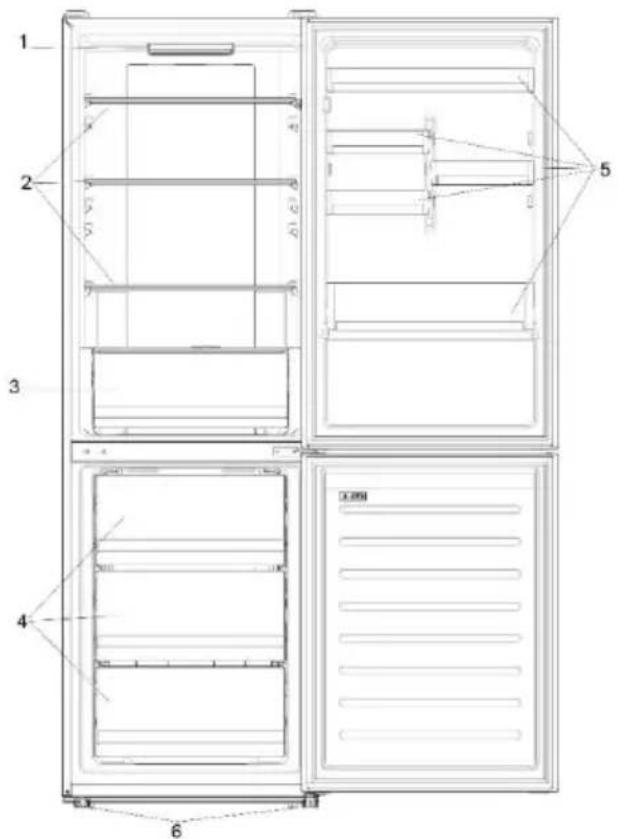

PRODUCT DESCRIPTION

1. Control panel and light
2. Movable Shelves
3. Crisper
4. Freezer drawers
5. Balconies
6. Levelling feet
7. The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures. ** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

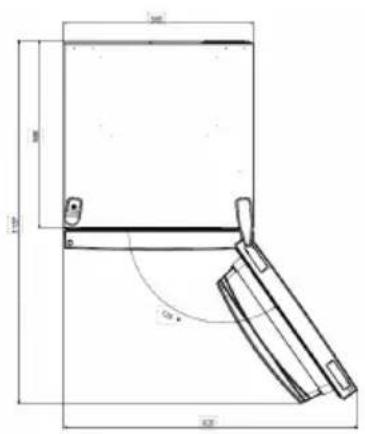

Space requirements

The unit's door must be able to fully open as shown. Spare enough space for convenient opening of the doors and drawers.

Keep a distance of at least 50 mm between the side walls of the product and adjacent parts.

Width: min. 920 mm

Depth: min. 1137 mm

USE

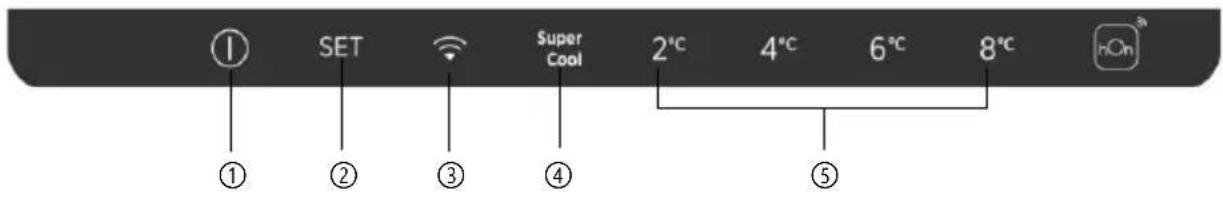

① ON/OFF key, used to switch on/off the appliance. ② SET key, used to select the fridge temperature or the special functions like. ③ WiFi Icon, shows if the appliance is connected to the app. Super Cool Icon, shows if the function is activated. ⑤ Temperature levels, show which is the selected temperature.

Use

• Plug on the appliance. The appliance will turn on automatically. The temperature will automatically set at 4°C in the fridge and -18°C in the freezer.
• To change the temperature, with the fridge door open, press the SET key. When the setting increases, the corresponding LED light will turn on. An acoustic signal is made every time the SET key is pressed and the temperature is changed. In case of power loss, the last cooling level set will be restored.
• To restore the default setting, at the screen lit, keep pressed the TEMP button, and then press ON/OFF button 5 times in 5 seconds.
• Under the normal operating condition (in spring and autumn), it is recommended to set the temperature at 4°C. In summer when the ambient temperature is high, it is recommended to set temperature at 6~8°C, so as to guarantee the fridge and freezer temperatures and reduce the refrigerator continuous running time; and in winter when the ambient temperature is low, it is recommended to set temperature at 2~4°C to avoid frequent start/stop of the refrigerator.

Customized temperature

From the app, it is possible to customize the temperature of the fridge compartment. The temperature can be set with 1°C sensitivity and it is possible to select a temperature from 2°C to 8°C in the fridge. An acoustic signal is made every time the temperature is changed. When the temperature is selected by the app, there is no indication on the control panel, all the temperature LED lights are turned off, while only the WiFi icon is turned on.

Fine Tuning

The fine tuning selection SET gives to possibility to set the temperatures by sublevels; each temperature level has three sublevels.

How to use the fine tuning function:

• Press the SET key for 8 seconds to enter fine tuning selection mode. When the appliance enters the mode, an acoustic signal is made and the LED of the currently selected cooling level blinks.
• By short pressing the SET key within 5 seconds, the fine tuning setting increases and, at each pressing, an acoustic signal is made.
• During fine tuning, the LED of the selected cooling level is fixed, while the LED of the selected sublevel blinks.
• If no key is pressed for 5 seconds, the system automatically exits from fine tuning selection mode. The fine tuning setting is saved and the LED of the selected fridge temperature is fixed. If the fine tuning is activated again, the setting will start from the previously stored level.

Super Cool function

It is suggested to switch on the Super Cool function if a large quantity of food should be stored (for example after the purchase). The Super-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. When the function is activated, the temperature of the fridge is automatically set at 2°C .

How to use the Super Cool function:

• The function can be activated by pressing many times the SET key until the Super Cool LED is turned ON or by selecting it from the app. If the function is activated, the corresponding icon on the control panel will be turned on.
• To exit the Super Cool function, press the SET key again. The Super Cool function automatically ends after 30 hours running.
• When the Super Cool ends, the corresponding icon of the control panel turns off and the previously set cooling level is restored.

Super Freeze function

The super freezing function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If a large amount of food has to be freeze, it is recommended to set the Super Freeze function on 24h before the usage. When the function is activated, the temperature is automatically set at -25°C .

How to use the Super Freeze function:

• The function can be launched only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel.
• To exit the Super Freeze function, turn it off from the app.
• The Super Freeze function automatically ends when the function has lasted for more than 50 hours.

Eco mode

The Eco mode can be activated to optimize the performance of the appliance, while obtaining the best food storage. When the function is activated, the temperature is automatically set at 5°C in the fridge, and at -18°C in the freezer.

How to use the Eco mode:

• The function can be activated only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel.
• To exit the Eco mode, turn it off from the app; the previously selected temperature will be restored. The Eco mode automatically ends when another function is chosen from the control panel.

Holiday function

The Holiday function can be used to reduce the energy consumption of the appliance, when it is not used regularly. When the function is on, the LED lights will be off (even if the door is open) and the fridge will work on low power consumption mode, whereas the freezer will keep working normally. How to use the Holiday function:

The function can be activated only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel. - To exit the Holiday function, turn it off from the app; the previously selected temperature will be restored. - The Holiday function automatically ends when another function is chosen from the control panel.

Defrosting

The defrosting of the refrigerator and freezer compartment are done automatically: no manual operation is needed.

Slider

Near the vegetable basket there is a slider that allows you to adjust the humidity inside it: moving it to the right decreases the humidity, moving it to the left increases the humidity.

Demo mode

Keep the refrigerated door open, press and hold the on / off key, and click the set key five times. The refrigerator will enter the Demo mode. To exit the mode, keep pressed the door switch and press again the mode key for 5s.

Error codes

If the -6°C LED light is flashing, it means there has been a fan error. Please contact technical assistance to help solve the problem.

APP CONNECTION (Content only)

IN APP PAIRING PROCEDURE

Step 1

Download the hOn app from the stores.

GET IT ON

Google Play

Download on the

App Store

EXPLORE IT ON

AppGallery

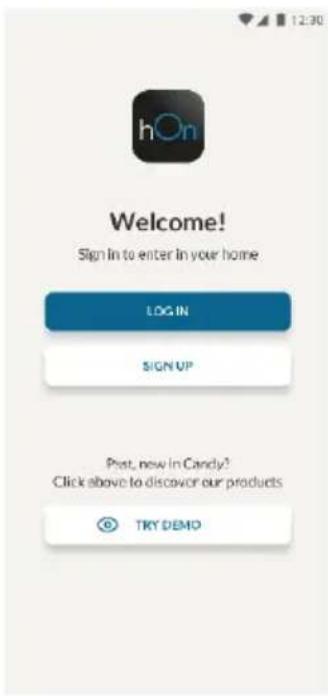

Step 2

• Create your account on the hOn App or log in if you already have an account.

Step 3

• Follow pairing instructions in the hOn App

WiFi Use

To activate the Wi-Fi, long press the set key for 2 seconds, the Wi-Fi icon will turn on and an acoustic signal is made.

If the Wi-Fi has not been configured yet, when the refrigerator turns on, it will automatically enter the configuration mode and keep this status for 30 minutes. To use the configuration mode:

• Press the set key for 2s but less than 8s, the refrigerator enters the Wi-Fi configuration mode and an acoustic signal is made. The Wi-Fi icon starts blinking.
• Follow in app instructions to configure the Wi-Fi (see above).
• Once the Wi-Fi is configured and the connection established, the Wi-Fi icon is on and fixed. After 30 minutes without performing any operation, the Wi-Fi will automatically exit the configuration mode.
• If the Wi-Fi has already been configured, it will automatically reconnect according to the configuration information.

Radio-module - Technical data

Frequency rate (OFR)	2400 MHz-2843.5 MHz
Channel frequencies	2412...2472 MHz(step size 5 MHz)
Maximum power(EIRP)	100 mW

Radio equipment type is in compliance with Directive 2014/53/EU.

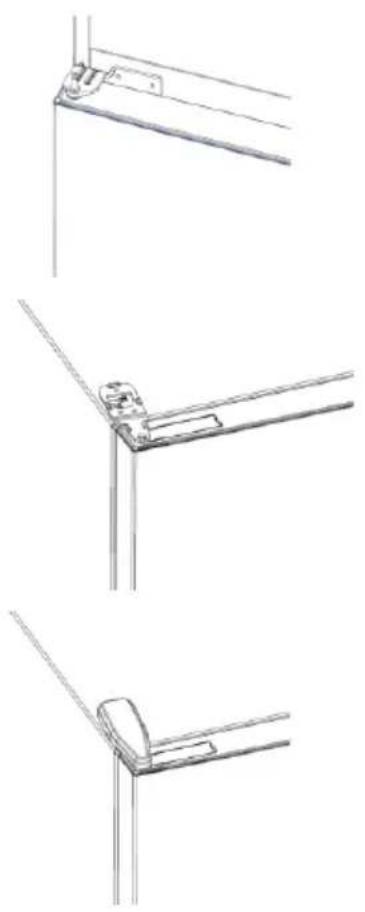

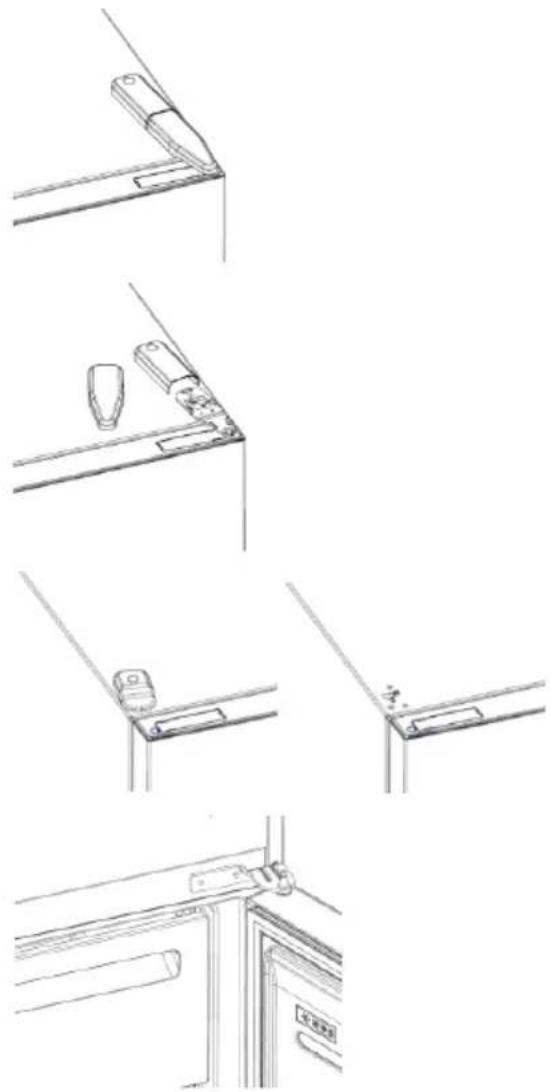

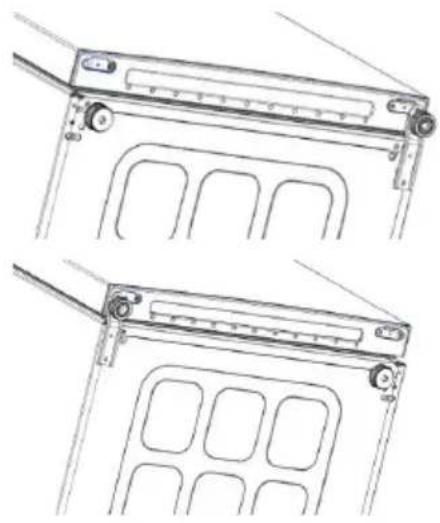

DOOR REVERSIBILITY

Tools needed: screwdriver

1. Remove the top hinge cover
2. Unscrew the top hinge
3. Remove the top hinge cover (left)
4. Remove middle hinge

1. Remove lower hinge
2. Mount hinge foot
3. Mount middle hinge
4. Mount the upper hinge plate
5. Mount the upper hinge cover

TABLE OF CONTENTS 10 Installation requirements 10 Intended use 11 Use 11 Personalized temperature. 11 Final adjustment. 12 Function "Super Cool" 12 Function "Super Freeze" 12 Eco mode 13 Function "Holiday" 13 Defrosting. 13 Demonstration mode. 13 Hinges for doors 14 Door reversal (for models with door)..15 PROCEDURE FOR REVERSING THE DOOR......15 Step 1 15 Step 2 15 Step 3. 15 Using Wi-Fi 16 TURNING ON AND OFF. 17

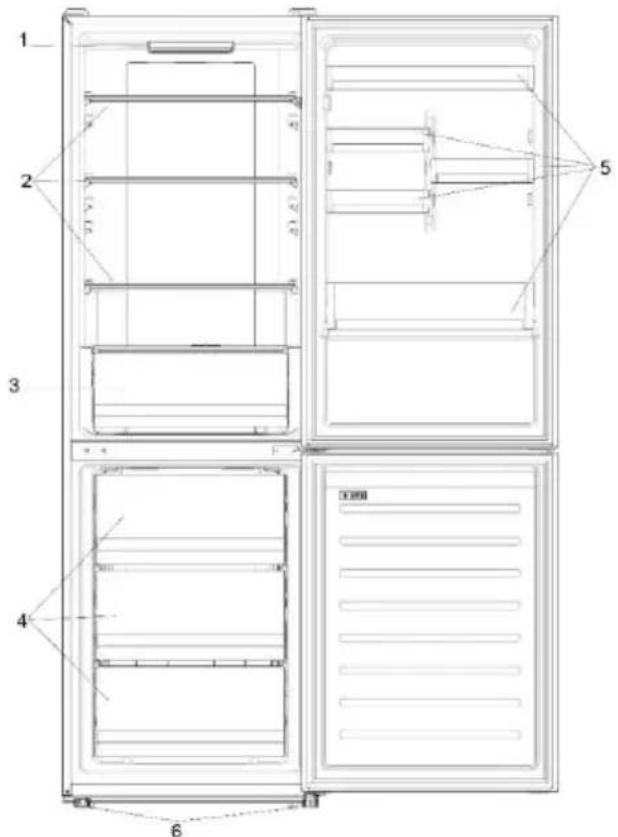

Product description

1. Control panel and lighting 2. Adjustable shelves
2. Humidity control for freshness
3. Freezer compartment
4. Shelves
5. Leveling the feet
6. The manufacturer's configuration may differ from the one shown in the project, model, or the top images. ** The images above are for reference only. The actual configuration depends on the physical product or the distributor's declaration.

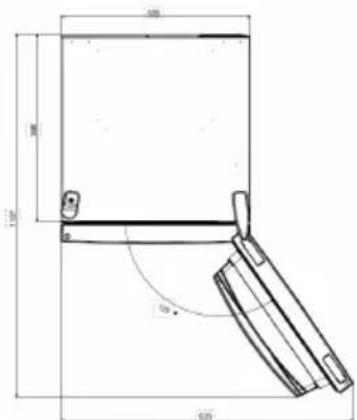

The appliance doors must be able to open fully, as shown. Leave sufficient space for easy opening of the doors and drawers. Maintain a distance of at least 50 mm between the side walls of the product and the adjacent parts.

Width: min. 920 mm

Depth: min. 1137 mm

USE

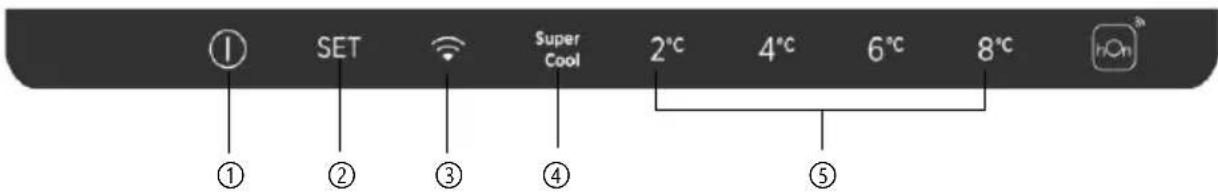

① The "ON/OFF" button is used to turn the appliance on/off. ② The "SET" button is used to select the refrigerator temperature or special functions. ③ The Wi-Fi icon indicates that the appliance is connected to the network. ④ The "Super Cool" icon indicates that the function is activated. ⑤ The temperature display shows the selected temperature.

Use

Plug in the appliance. The appliance will turn on automatically. - The refrigerator temperature is automatically set to 4°C, and the freezer to -18°C. To change the temperature, while the door is open, press the "SET" button. When the setting increases, the corresponding LED light turns on. Each press of the "SET" button emits a sound signal and the temperature changes. In case of a power failure, the last setting of the cooling level will be restored. To restore the settings after a power failure, with the screen lit, press the "TEMP" button and then press the "ON/OFF" button 5 times within 5 seconds. - For normal operation (in spring and autumn), it is recommended to set the temperature to 4°C. In summer, when the ambient temperature is high, it is recommended to set the temperature to 6-8°C to ensure the refrigerator and freezer temperatures and extend the compressor's working time. In winter, when the ambient temperature is low, it is recommended to set the temperature to 2-4°C to avoid frequent switching on/off of the refrigerator.

Personalized temperature

From the application, it is possible to personalize the temperature of the refrigerator compartment. The temperature can be adjusted in steps of 1°C and it is possible to select a temperature from 2°C to 8°C in the refrigerator. Each time the temperature is changed, a sound signal is emitted. When the temperature is selected from the application, the manual control panel is disabled, all LED temperature lights are turned off, and only the Wi-Fi icon is on.

Fine adjustment

Press and hold the SET button for 8 seconds to enter the fine adjustment mode. When you enter the mode, a sound signal will be emitted and the LED light of the currently selected cooling level will flash. With a short press of the SET button within the 5-second adjustment window, the setting increases, and with each press a sound signal is emitted. - During the fine adjustment, the LED light of the selected cooling level is flashing, and the LED light of the selected freezer level is on. If none of the buttons are pressed for a continuous 3 seconds, the system automatically exits the fine adjustment mode. The fine adjustment is saved and the LED light of the selected refrigerator temperature is flashing. - If the fine adjustment is activated again, the adjustment will overwrite the previously saved level.

Press and hold the SET button for 8 seconds to enter the fine adjustment mode. When you enter the mode, a sound signal will be emitted and the LED light of the currently selected cooling level will flash. With a short press of the SET button within the 5-second adjustment window, the setting increases, and with each press a sound signal is emitted. - During the fine adjustment, the LED light of the selected cooling level is flashing, and the LED light of the selected freezer level is on. If none of the buttons are pressed for a continuous 3 seconds, the system automatically exits the fine adjustment mode. The fine adjustment is saved and the LED light of the selected refrigerator temperature is flashing. - If the fine adjustment is activated again, the adjustment will overwrite the previously saved level.

Function "Super Cool"

It is recommended to enable the "Super Cool" function if you need to store a large quantity of food (for example after shopping). The "Super Cool" function accelerates the cooling of fresh food and prevents already stored products from warming up. When the function is activated, the refrigerator temperature is automatically set to 2 °C. How to use the "Super Cool" function:

• The function can be activated by pressing the SET button multiple times until the LED light of "Super Cool" turns on, or by selecting it from the app. If the function is activated, the corresponding icon on the control panel will be turned on. To exit the "Super Cool" function, press the SET button again.
• The "Super Cool" function automatically ends after 30 hours of operation. When "Super Cool" ends, the corresponding icon on the control panel turns off and the previously set cooling level is restored.

Download on the App Store

EXPLORE IT ON AppGallery

Holiday mode

How to use the Holiday function:

- The function can be activated by selecting it in the app. If the function is activated, it will be displayed in the app; on the control panel there is no corresponding indicator. - To turn off the Holiday function, turn it off in the app; the previously set temperature will be restored. - The Holiday function automatically turns off if another function is selected on the control panel.

Defrosting of the freezer and refrigerator compartments is carried out automatically; manual control is not required.
