Product Type	Cardioid condenser instrument microphone (wired model ATM350UcH)
Polar Pattern	Cardioid
Frequency Response	40 - 20,000 Hz
Sensitivity	-49 dB (3.5 mV) (0 dB = 1 V/Pa, 1 kHz)
Impedance	200 ohms
Maximum Sound Pressure Level	159 dB SPL (1 kHz, 1% THD)
Dynamic Range	130 dB (1 kHz at max SPL)
Signal-to-Noise Ratio	65 dB (1 kHz at 1 Pa, A-weighted)
Power Requirement	Phantom 11 V to 52 V DC, 3.5 mA
Low-Cut Filter	80 Hz, 12 dB/octave (on AT8543 module)
Microphone Weight	14.5 g
Power Module Weight	90 g
Microphone Dimensions	Length 37.8 mm, diameter 12.2 mm
Power Module Dimensions	Length 92 mm, diameter 18.9 mm
Output Connector	Integral 3-pin XLRM (on module)
Cable	Length 4 m, diameter 3.2 mm, 2-conductor shielded, with HIROSE HR10 connector
Included Accessories	AT8543 power module, AT8490 gooseneck (standard), AT8491U universal clip, AT8468 violin mount, hard case
Interchangeable Capsules (optional)	UE-O (omnidirectional), UE-H (hypercardioid)
Main Features	Attaches to brass, reeds, pianos, snares, toms, violins, guitars, accordions; flexible gooseneck; switchable low-cut filter; precise positioning and shock resistance
Maintenance and Cleaning	Avoid prolonged exposure to sunlight (temp. >43°C) and high humidity. Clean with a dry cloth. Do not disassemble.
Safety	Do not subject to violent shock, do not handle with wet hands, store away from dust and heat.
Spare Parts and Repairability	Interchangeable capsules available (options). For repair, contact an authorized Audio-Technica service center.

Frequently Asked Questions - ATM350UcH AUDIO TECHNICA

How to connect the ATM350UcH microphone?

Connect the 4-pin connector of the miniature cable to the supplied AT8543 power module. Make sure it is locked. The power module connects via a 3-pin XLR cable to your console or audio interface, which must provide phantom power from 11 V to 52 V.

What instruments can be equipped with the ATM350UcH microphone?

The microphone is designed for a wide variety of instruments: brass, woodwinds, pianos, snares, toms, violins, guitars, and accordions. Specific mounts (included or optional) allow optimal installation on each instrument.

How to use the 80 Hz low-cut filter?

On the AT8543 power module, slide the switch to the slanted line to activate the low-cut filter. This attenuates low frequencies (80 Hz, 12 dB/octave), reducing unwanted ambient noise like air conditioning systems.

Does the microphone work without phantom power?

No, the microphone requires phantom power from 11 V to 52 V (DC) to operate. Connect it to a console, audio interface, or preamp that provides this power via the XLR cable.

How to mount the microphone on a violin?

Use the included AT8468 violin mount. Place the microphone in the elastic mount. Unfasten the Velcro straps, pass them behind the strings (between the tailpiece and bridge), and close them. Orient the capsule toward the bridge.

Can I replace the microphone capsule?

Yes, interchangeable capsules are available as options: UE-O (omnidirectional) and UE-H (hypercardioid). They allow you to change the polar pattern according to your needs.

What accessories are included in the box?

The ATM350UcH kit includes: the microphone with 4 m cable, the AT8543 power module, the AT8490 gooseneck, the AT8491U universal clip, the AT8468 violin mount, and a hard case.

How to clean the microphone?

Clean the exterior with a soft, dry cloth. Avoid solvents or abrasive products. Do not expose the microphone to excessive heat (above 43°C) or prolonged humidity.

Is the microphone shock-resistant?

The mount and gooseneck are designed to provide some shock resistance and protect the capsule. However, avoid violent impacts that could damage the microphone or affect its performance.

Can I use this microphone with a wireless system?

This model (ATM350UcH) is wired. Audio-Technica offers wireless versions: ATM350acW (with 4-pin connector for standard bodypack transmitter) and ATM350acH (for cH-type transmitter). These models do not require a power module.

USER MANUAL ATM350UcH AUDIO TECHNICA

Cardioid Condenser Instrument Microphone

マウントにグースネックを固定する

1.

1.

2.

AT8491G

ギターマウント

1.

2.

2.

凡例

音圧スケールは 1 目盛 5dB

周波数特性

40–20,000 Hz

レスポンス (dB)

凡例

	0°, 50 cm
	ローカット

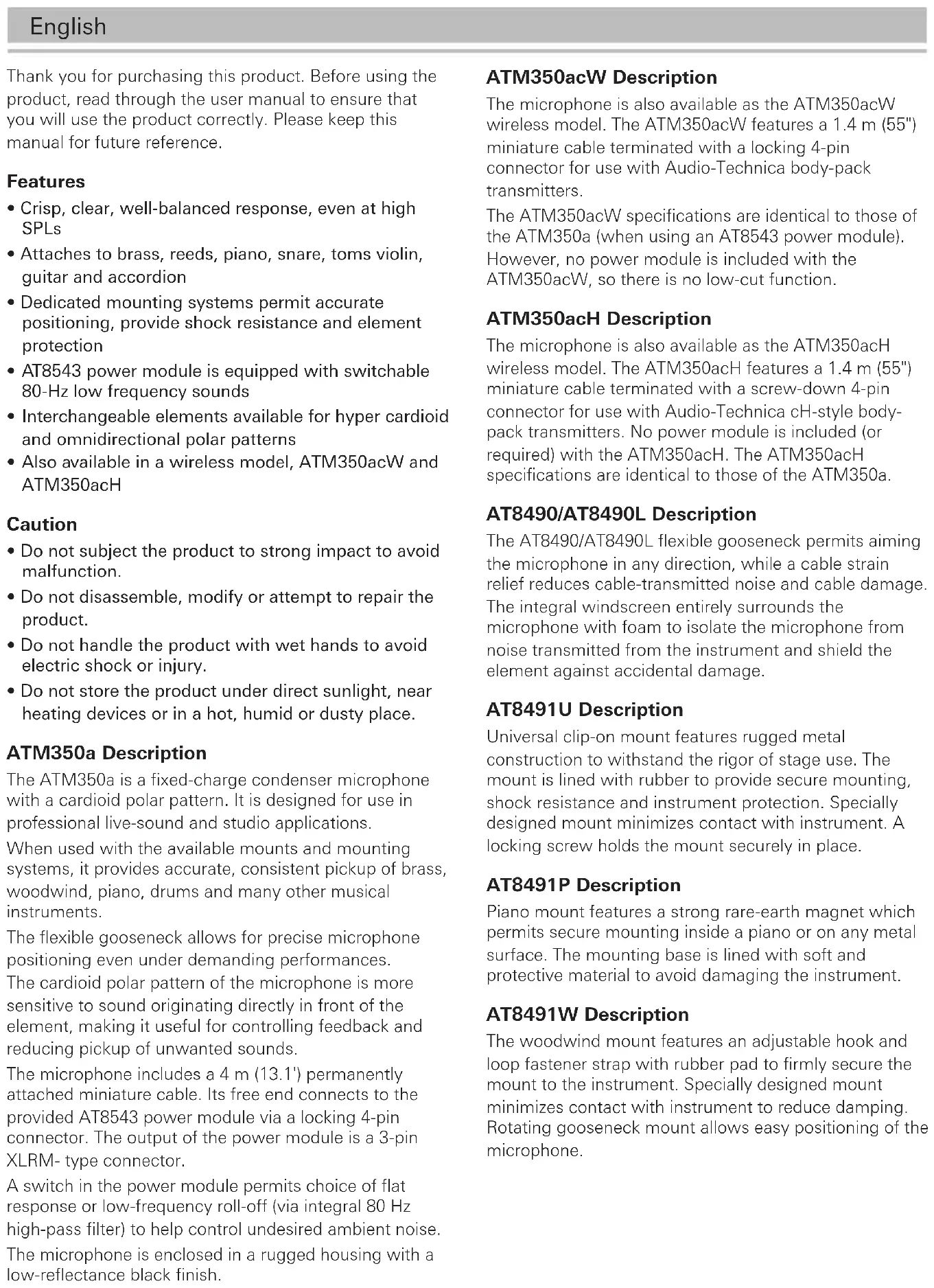

Thank you for purchasing this product. Before using the product, read through the user manual to ensure that you will use the product correctly. Please keep this manual for future reference.

Features

• Crisp, clear, well-balanced response, even at high SPLs
• Attaches to brass, reeds, piano, snare, toms violin, guitar and accordion
  • Dedicated mounting systems permit accurate positioning, provide shock resistance and element protection
• AT8543 power module is equipped with switchable 80-Hz low frequency sounds
• Interchangeable elements available for hyper cardioid and omnidirectional polar patterns
• Also available in a wireless model, ATM350acW and ATM350acH

Caution

• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty place.

ATM350a Description

The ATM350a is a fixed-charge condenser microphone with a cardioid polar pattern. It is designed for use in professional live-sound and studio applications.

When used with the available mounts and mounting systems, it provides accurate, consistent pickup of brass, woodwind, piano, drums and many other musical instruments.

The flexible gooseneck allows for precise microphone positioning even under demanding performances.

The cardioid polar pattern of the microphone is more sensitive to sound originating directly in front of the element, making it useful for controlling feedback and reducing pickup of unwanted sounds.

The microphone includes a 4 m (13.1') permanently attached miniature cable. Its free end connects to the provided AT8543 power module via a locking 4-pin connector. The output of the power module is a 3-pin XLRM-type connector.

A switch in the power module permits choice of flat response or low-frequency roll-off (via integral 80 Hz high-pass filter) to help control undesired ambient noise.

The microphone is enclosed in a rugged housing with a low-reflectance black finish.

ATM350acW Description

The microphone is also available as the ATM350acW wireless model. The ATM350acW features a 1.4 m (55") miniature cable terminated with a locking 4-pin connector for use with Audio-Technica body-pack transmitters.

The ATM350acW specifications are identical to those of the ATM350a (when using an AT8543 power module). However, no power module is included with the ATM350acW, so there is no low-cut function.

ATM350acH Description

The microphone is also available as the ATM350acH wireless model. The ATM350acH features a 1.4 m (55") miniature cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack transmitters. No power module is included (or required) with the ATM350acH. The ATM350acH specifications are identical to those of the ATM350a.

AT8490/AT8490L Description

The AT8490/AT8490L flexible gooseneck permits aiming the microphone in any direction, while a cable strain relief reduces cable-transmitted noise and cable damage. The integral windscreen entirely surrounds the microphone with foam to isolate the microphone from noise transmitted from the instrument and shield the element against accidental damage.

AT8491U Description

Universal clip-on mount features rugged metal construction to withstand the rigor of stage use. The mount is lined with rubber to provide secure mounting, shock resistance and instrument protection. Specially designed mount minimizes contact with instrument. A locking screw holds the mount securely in place.

AT8491P Description

Piano mount features a strong rare-earth magnet which permits secure mounting inside a piano or on any metal surface. The mounting base is lined with soft and protective material to avoid damaging the instrument.

AT8491W Description

The woodwind mount features an adjustable hook and loop fastener strap with rubber pad to firmly secure the mount to the instrument. Specially designed mount minimizes contact with instrument to reduce damping. Rotating gooseneck mount allows easy positioning of the microphone.

AT8491D Description

The drum mount features a patented design which uses the drum lug to securely mount the microphone while still allowing the drum to be tuned. The gooseneck can be positioned vertically or horizontally for optimal placement and a low profile appearance.

AT8468 Description

The violin mount fastens beneath the strings between the bridge and the tailpiece to provide outstanding pickup of violin and other stringed instruments.

AT8491G Description

The guitar mount features a rugged, thumbscrew-adjustable clamp with pads that attaches to guitars and other stringed instruments while leaving fewer marks. You can adjust the clamp length between 90 mm (3.5") and 135 mm (5.3").

AT8491S Description

The surface mount is designed for accordions and other challenging applications. The notched mount can be attached permanently using the accordion's grille screw and the included adhesive silicon pad, or it can be attached temporarily using the included fastener tape pads. A transparent protective film is also included to prevent damage to the instrument's finish.

AT8475 Description

The surface mounting kit for AT8491S includes two adhesive silicon pads, two mount fastener tape pads, two surface fastener pads, and two transparent protective films.

Operation and Maintenance

The ATM350a requires 11V to 52V phantom power for operation.

Output is low impedance (Lo-Z) balanced. The signal appears across Pins 2 and 3; Pin 1 is ground (shield). Output phase is "Pin 2 hot" — positive acoustic pressure produces positive voltage at Pin 2.

To avoid phase cancellation and poor sound, all mic cables must be wired consistently: Pin 1 to Pin 1, etc.

The 80-Hz low-cut filter switch on the AT8543 power module makes it easy to switch from flat frequency response to low-frequency roll-off. This minimizes pickup of undesired low-frequency noise, such as from air conditioning systems. To engage the high-pass filter, slide the switch toward the "bent" line.

Avoid leaving the microphone in the open sun or in areas where temperatures exceed 110° F ( 43° C) for extended periods. Extremely high humidity should also be avoided.

User Manual / Accessories

Packages

ATM350U :

ATM350a, AT8490, AT8491U, AT8543, AT8468, hard shell carry case

ATM350UL :

ATM350a, AT8490L, AT8491U, AT8543, AT8468, hard shell carry case

ATM350PL :

ATM350a, AT8490L, AT8491P, AT8543, AT8468, hard shell carry case

ATM350W :

ATM350a, AT8490, AT8491W, AT8543, AT8468, hard shell carry case

ATM350D :

ATM350a, AT8490, AT8491D, AT8543, AT8468, hard shell carry case

ATM350GL :

ATM350a, AT8490L, AT8491G, AT8543, AT8468, hard shell carry case

ATM350S, ATM350SL :

ATM350a, AT8490 (ATM350SL: AT8490L), AT8491S, AT8475, AT8543, AT8468, hard shell carry case

ATM350UcW :

ATM350acW, AT8490, AT8491U, AT8468, hard shell carry case

ATM350UcH :

ATM350acH, AT8490, AT8491U, AT8468, hard shell carry case

DISCLAIMER

This product is designed to be used as a removable microphone mount on various musical instruments. When used properly, this product will not harm the finish or otherwise damage instruments. As a precaution, however, this product should not be left on an instrument indefinitely, and, ideally, should be removed after each use. Audio-Technica shall not be responsible or liable for any damages caused to a musical instrument as a result of using this product.

Mounting the microphone

AT8490/AT8490L

Gooseneck (standard/long)

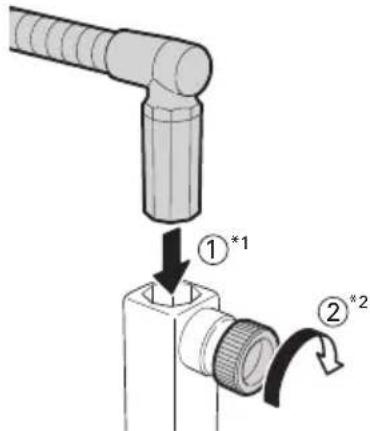

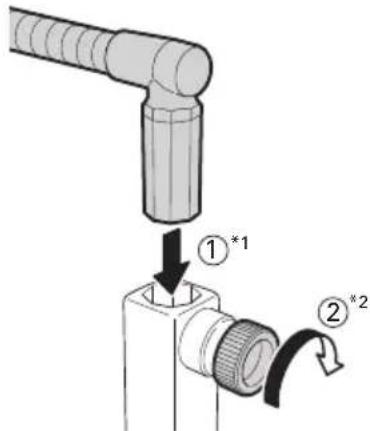

Fixing the gooseneck on the mounts

• The gooseneck can be fixed at every 90° angle.
  *1 Insert the gooseneck until it reaches the bottom of the hole on the mount. Firmly tighten the screw on the mount to secure it.
  *2 Do not force the screw if there are any foreign objects in the way. Do not use any tools to tighten the screw. Doing so could strip the threads or damage the screw.

Setting the mounts on instruments

AT8491U

Universal clip-on mount

- To prevent damage to the instrument, take care not to tighten the screw excessively.

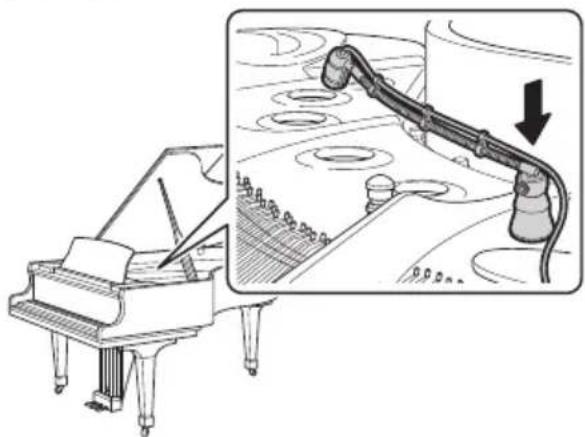

AT8491P

Piano mount

- The mount should be fixed on a metal surface. Keep mobile phones, analog clocks and magnetic cards etc. away from the magnet in the bottom of the mount to prevent content from being damaged or erased.

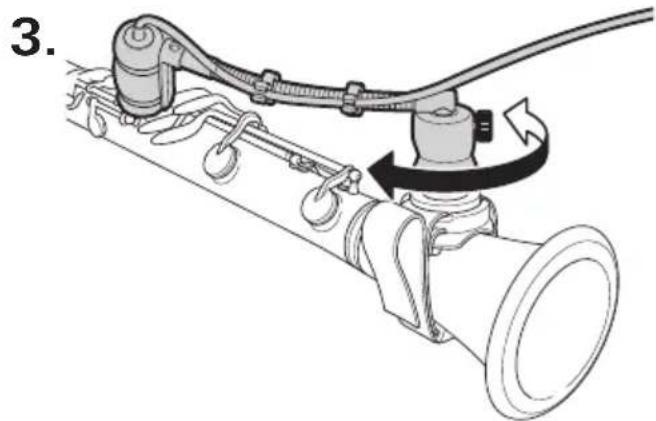

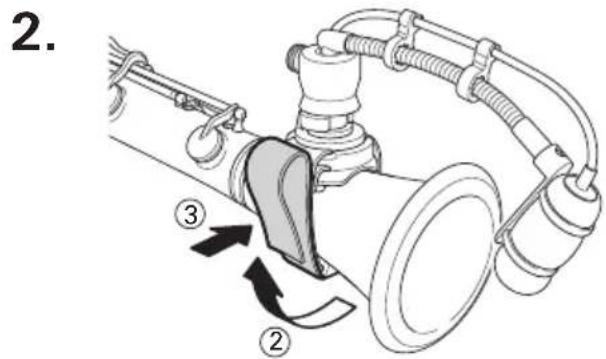

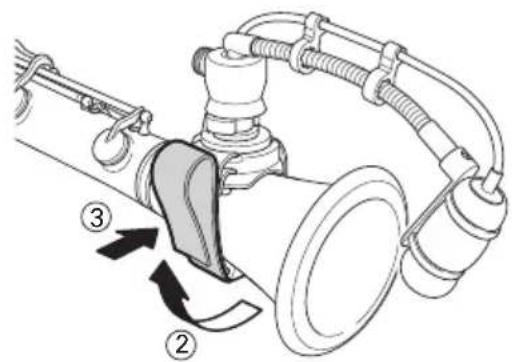

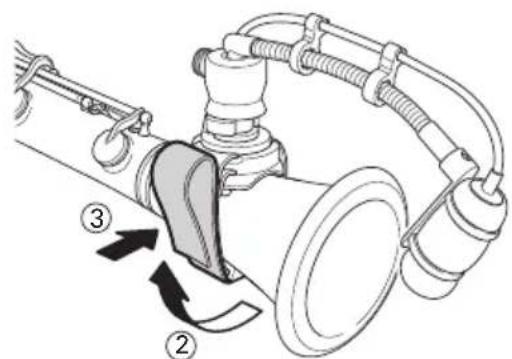

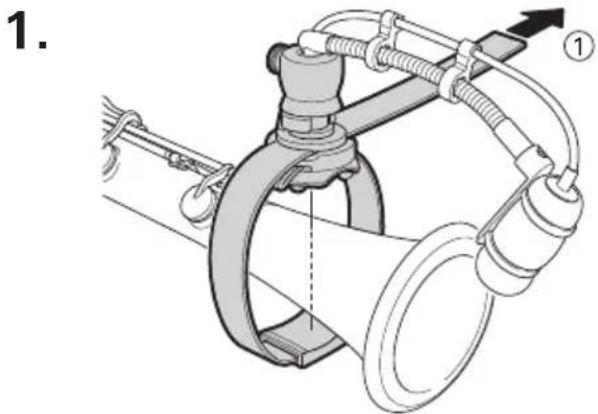

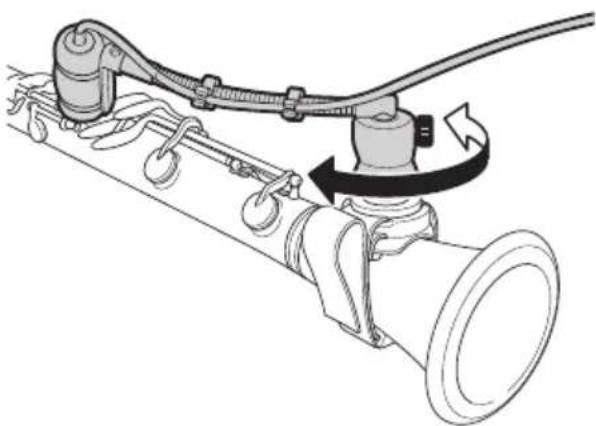

AT8491W

Woodwind mount

• Adjust the position of the microphone by rotating the top of the mount.

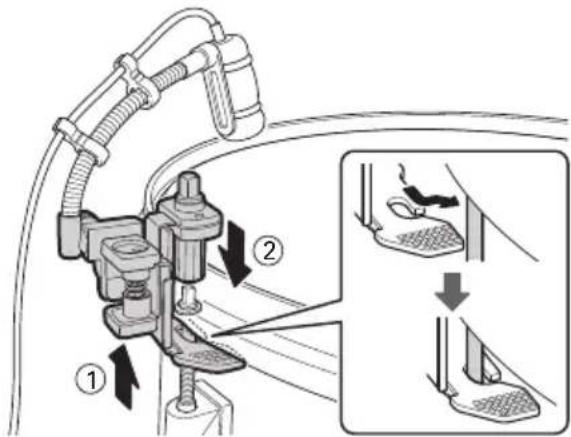

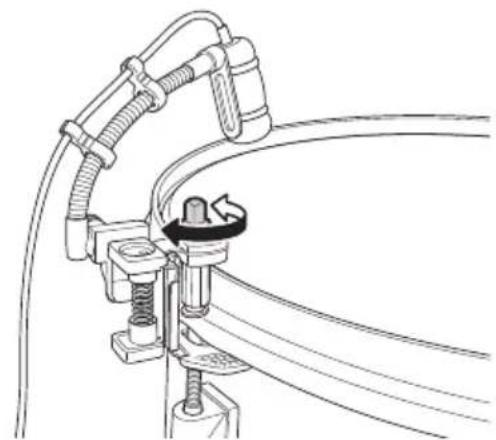

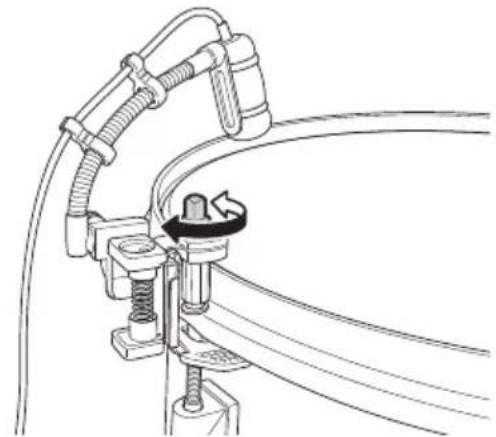

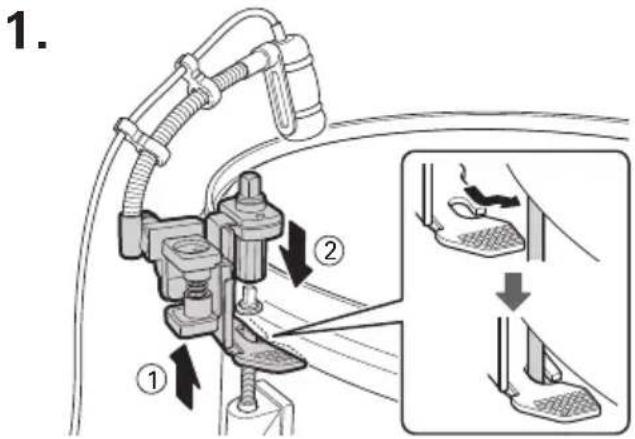

AT8491D

Drum mount

• The top bolt rotates freely to allow tuning when the microphone is mounted.

AT8468

Violin mount

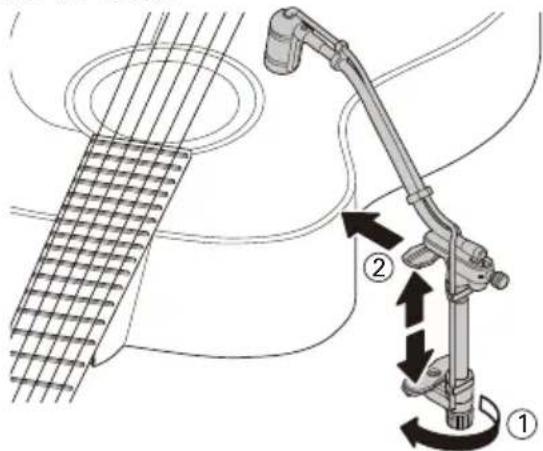

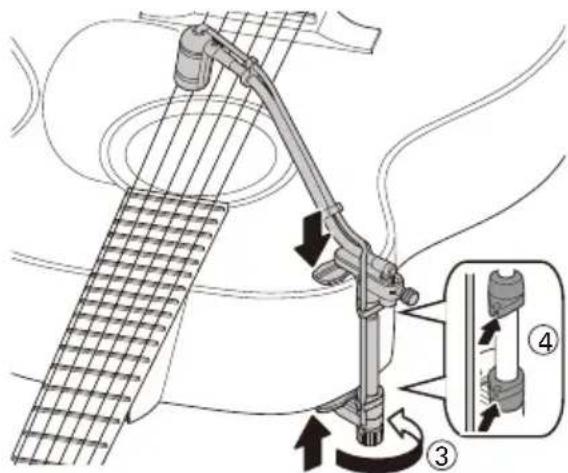

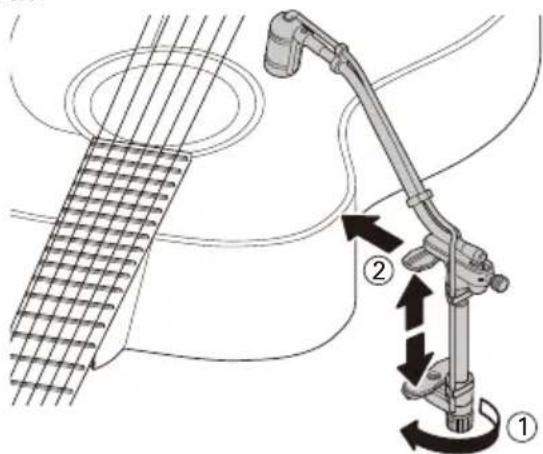

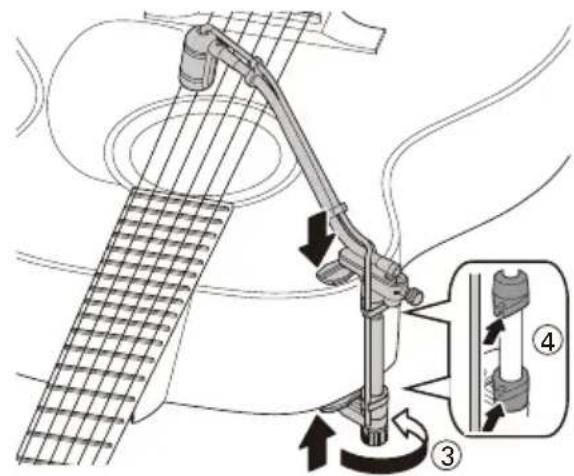

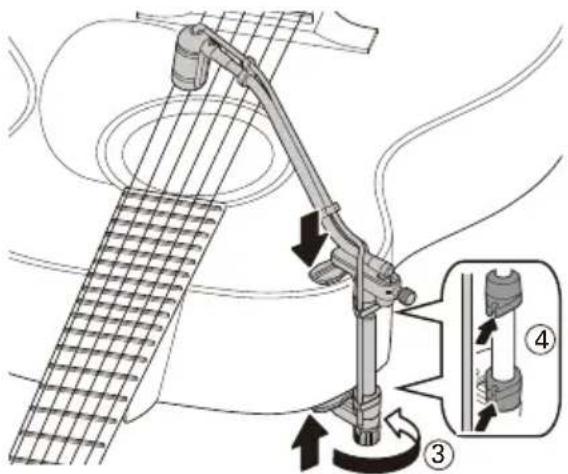

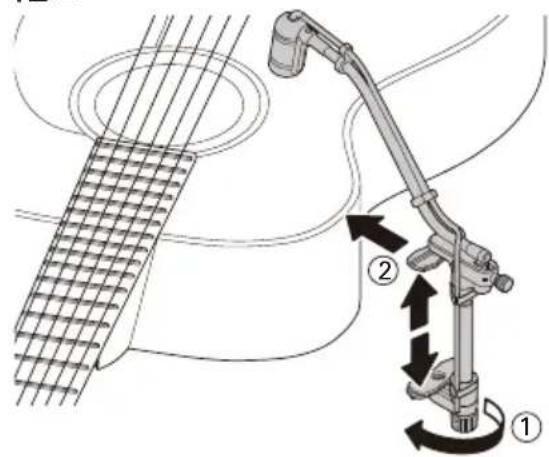

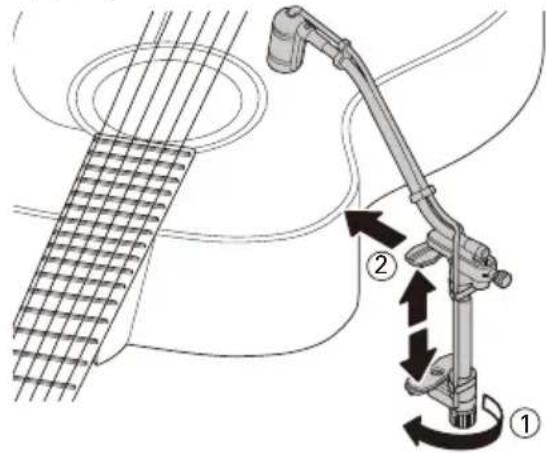

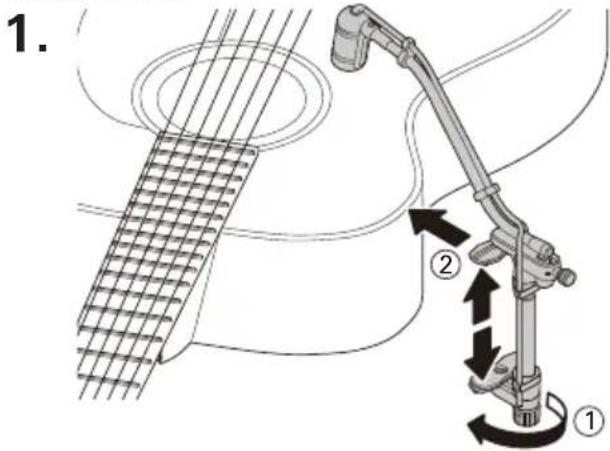

AT8491G

Guitar mount

• Rotate the screw and adjust the length, and then tighten the screw to secure in place.
• To prevent damage to the instrument, take care not to tighten the screw excessively.

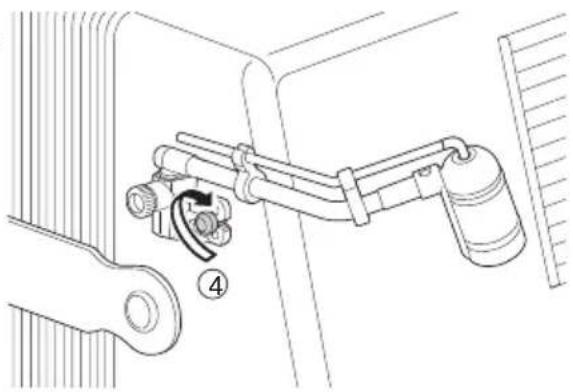

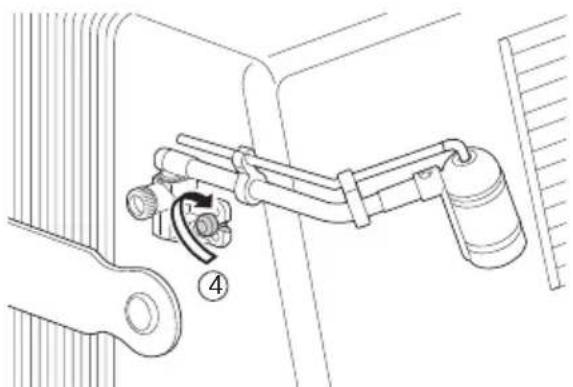

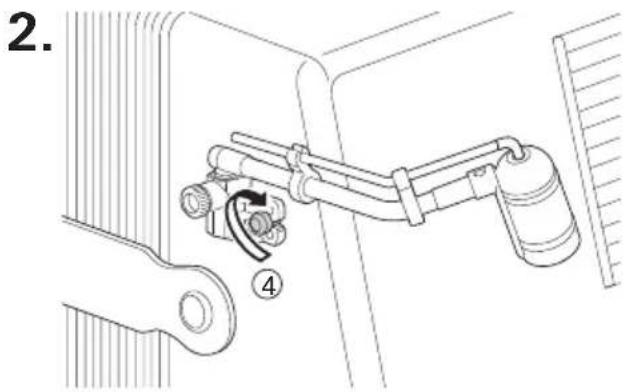

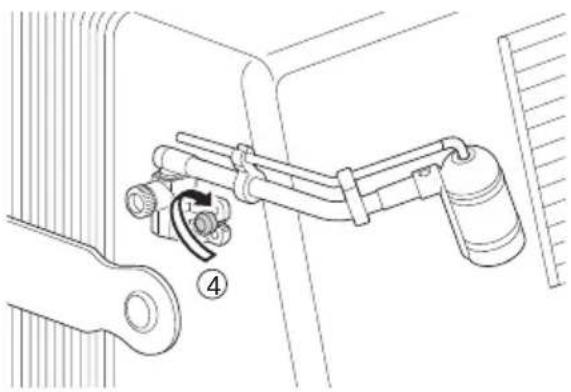

AT8491S

Surface mount

- When using the grill fastening screw on the accordion. Depending on the shape of the screw, it may not be possible to install in this way.

- Affix the adhesive silicon pad to the back side of the mount. Loosen the grill fastening screw on the accordion, insert the mount, and then tighten the grill fastening screw to secure in place.

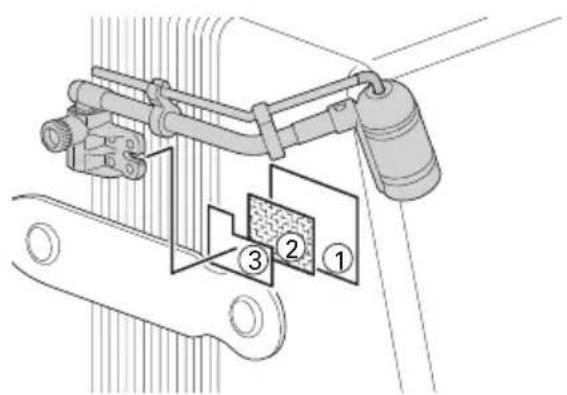

AT8491S

Surface mount

- When using surface fasteners

• Affix the transparent protective film (①) to the body of the instrument, and affix a surface fastener tape pad (②) on top of that. Also affix a mount fastener tape pad (③) to the back side of the mount, and then affix it to the surface fastener on the body of the instrument to secure in place.
• Affix the transparent protective film on a clean, flat surface so that air bubbles do not form.
• You cannot affix the transparent protective film on unfinished wooden parts.
• To stabilize the adhesive strength of the adhesive sides of the surface and mount fasteners (②, ③), let them sit for about a day after affixing them before using the mount.

Specifications

Element Fixed-charge back plate, permanently polarized condenser
Polar pattern Cardioid
Frequency response 40 - 20,000 Hz
Low frequency roll-off 80 Hz, 12 dB/octave
Open circuit sensitivity -49 dB (3.5mV) (0dB=1V/Pa, 1 kHz)
Impedance 200 ohms
Maximum input sound level 159 dB SPL (1 kHz THD 1%)
Dynamic range 130 dB (1 kHz at Max SPL)
Signal-to-noise ratio 65 dB (1 kHz at 1Pa, A-weighted)
Phantom power requirements 11 - 52 V DC, 3.5 mA
Switch* Flat, roll-off
Weight Microphone: 14.5 g (0.5 oz), Power module: 90 g (3.2 oz)
Dimensions	Microphone: 37.8 mm (1.49") long, 12.2 mm (0.48") diameterPower module: 92 mm (3.62") long, 18.9 mm (0.74") diameter
Output connector Power module: Integral 3-pin XLRM-type
Cable(s)	4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
Optional interchangeable elements UE-O omnidirectional, UE-H hypercardioid
Accessories	AT8543 power module, microphone instrument mount, AT8468 violin mount, hard shell carry case

• Characteristic weighting measured when connected to an AT8543 power module.
• 1 Pascal = 10 dynes/cm ² = 10 microbars = 94 dB SPL
• For product improvement, the product is subject to modification without notice.
  * Mounted on an AT8543 power module.

Polar pattern

LEGEND

SCALE IS 5 DECIBELS PER DIVISION

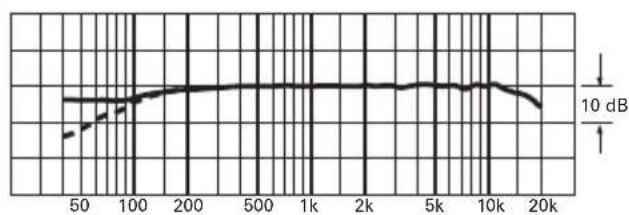

Frequency response

40–20,000 Hz

Frequency in Hertz
Response in dB

LEGEND

	0°, 50 cm
	Roll-off

• Characteristic weighting measured when connected to an AT8543 power module.

Français

AT8491G

LÉGENDE

ÉCHELLE DE 5 DÉCIBELS PAR DIVISION

AT8491G

Gitarrenhalterung

1.

2.

2.

LEGENDE

SKALA VON 5 DEZIBEL PRO DIVISION

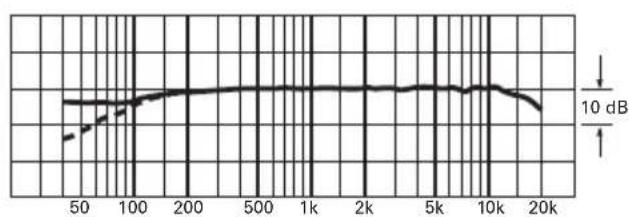

Frequenzgang

40–20,000 Hz

Frequenz in Hertz
Frequenzgang in dB

LEGENDE

	0°, 50 cm
	Low-Cut

AT8491G

LEGENDA

SCALA DI 5 DECIBEL PER DIVISIONE

AT8491G

LEYENDA

AT8491G

Suporte de violão

1.

2.

2.

LEGENDA

1.

1.

2.

AT8491G

2.

2.

在支架上固定鹅颈曲管

· 支架应固定在金属表面上。

1.

1.

2.

AT8491G

吉他支架

1.

2.

2.

图例

比例是每分隔线5分贝

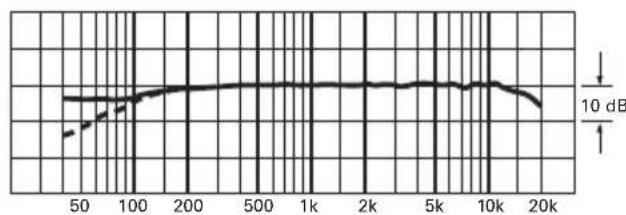

频率响应

40–20,000 Hz

响应单位是 dB
频率单位是赫兹

图例

	0°,50cm
	滚降

將鵝頸管固定在支架上

· 支架應固定在金屬表面上。

1.

1.

· 旋轉支架頂部即可調整麥克風位置。

AT8491D

鼓支架

1.

2.

AT8491G

吉他支架

1.

2.

2.

圖例

比例尺為每刻度5分貝

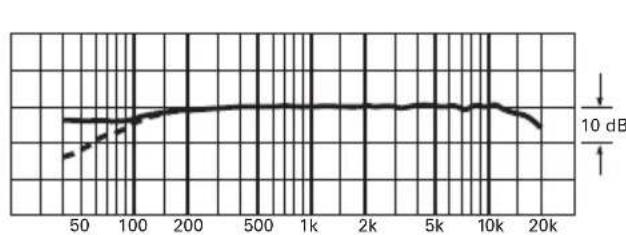

頻率響應

40-20,000 Hz

마운트에 구즈넥 고정

2.

3.

2.

AT8491G

기타 마운트

1.

2.

2.

구역당 5데시벨

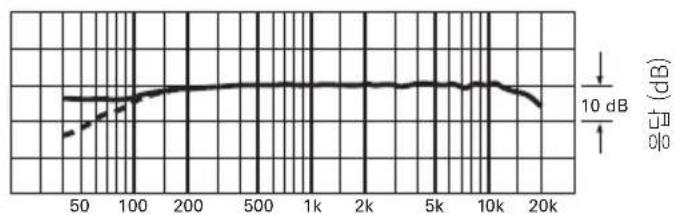

주파수 응답

40-20,000 Hz

주파수(헤르츠)

범례

	0°,50cm
	물오프

(This warranty is valid only for products purchased and used in Japan.)

Warranty (Please be sure to read the notes below.) For USA Only

End-User LIMITED WARRANTY information for the USA is available at www.audio-technica.com/usawarranties. You may also contact Audio-Technica U.S., Inc. to request a written copy of the Limited Warranty at 1-330-686-2600 or via mail at 1221 Commerce Drive, Stow, OH 44224.
