Product Type	Uninterruptible Power Supply (UPS)
Brand	EnerGenie
Model	EGUPSPS300002
Capacity (VA)	300 VA
Rated Power (W)	180 W
Input Voltage	220-240 V AC
Output Voltage	220-240 V AC (regulated)
Frequency	50/60 Hz (auto-detection)
Battery Type	Sealed lead-acid, maintenance-free
Number of Batteries	1
Typical Backup Time (at full load)	Approximately 5-10 minutes
Recharge Time	4 to 6 hours
Surge Protection	Yes (built-in surge arrester)
Telephone/DSL Line Protection	Yes (RJ11)
Number of Outlets	2 to 4 outlets (depending on version)
Dimensions (L x W x H)	280 x 140 x 86 mm (approximate)
Weight	3.5 kg (approximate)
Warranty	2 years (see terms)
Noise Level	< 40 dB (fan)
Maintenance and Cleaning	Dust with a dry cloth; do not use liquid.
Safety	Automatic shutdown in case of overload or short circuit.
Spare Parts and Repairability	Battery replaceable by a professional.
Recycling	Do not dispose of with household waste; take to a recycling center.

Frequently Asked Questions - EGUPSPS300002 EnerGenie

How do I connect my computer to the EnerGenie EGUPSPS300002 UPS?

Plug the UPS into a wall outlet, then connect your devices to the UPS's power outlets. Turn on the UPS and check that the LED is on. Do not plug a laser printer or high-current device into the battery backup outlet.

What should I do if the UPS emits a continuous beep?

This usually indicates a discharged battery or a fault. Check the indicator: if flashing, battery low; if steady, overload. Reduce the load or replace the battery.

What is the UPS backup time at full load?

With a maximum load of 180 W, the backup time is about 5 to 10 minutes. For lighter loads, it can reach 20 to 30 minutes.

Can I replace the battery myself?

It is recommended to have the battery replaced by a certified professional. Opening the UPS may expose dangerous voltages. The battery is a sealed lead-acid 12V type.

How do I maintain my UPS?

Place the UPS in a dry and ventilated area. Dust the ventilation grilles regularly. Check every three months that the battery is charging properly.

What to do in case of a prolonged power outage?

The UPS will provide temporary power. Save your work and turn off your devices before the battery is fully discharged. The UPS will shut down automatically if the battery is too low.

Does the UPS protect against surges?

Yes, the UPS includes a surge protector that protects against voltage spikes. Additionally, it regulates voltage to maintain a stable output.

Can I plug a power strip into the UPS?

It is not recommended to plug a power strip into the UPS as it may cause an overload. Connect essential devices directly to the UPS outlets.

How do I know if the battery needs replacement?

If the UPS beeps frequently even when plugged in, or if the backup time decreases significantly, the battery is likely worn out. Consult a professional.

What does the red indicator on the UPS mean?

The red indicator indicates a fault: either an overload, a defective battery, or an internal failure. Check the load and battery. If it persists, contact customer service.

USER MANUAL EGUPSPS300002 EnerGenie

PURE SINE WAVE UPS, LCD DISPLAY, USB

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

PYKOBODCTBO NOJIb3OBATEJIA

KEPIBHNIUTBO KOPNCTYBAU

PURE SINE WAVE UPS, LCD DISPLAY, USB SINUS SIGNALFORM UPS NOODSTROOMVOORZIENING, ZUIVERE SINUSGOLF

PURE SINE WAVE UPS, LCD DISPLAY, USB NCTOCHNK BECNEPEBOHORO NITAHNA, CINHYCONDAJIbHbI CNHGAL

ДЖЕРЮ БEЗПЕБИHО Г XИВЛЕHЯ, CINHYCOДАЛьнI CINГАЛ

Features EG-UPS-PS2000-01 (EG-UPS-PS3000-01)

• Uninterruptable power supply with pure sine wave output
  USB interface
  Automatic AC voltage regulation (AVR)
• Intelligent overload- and short-circuit protection

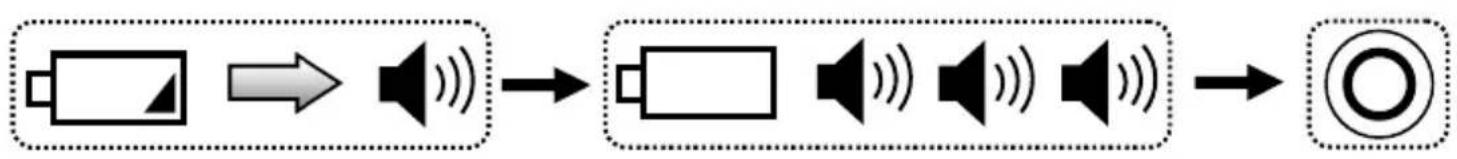

  Audible and visual alarms

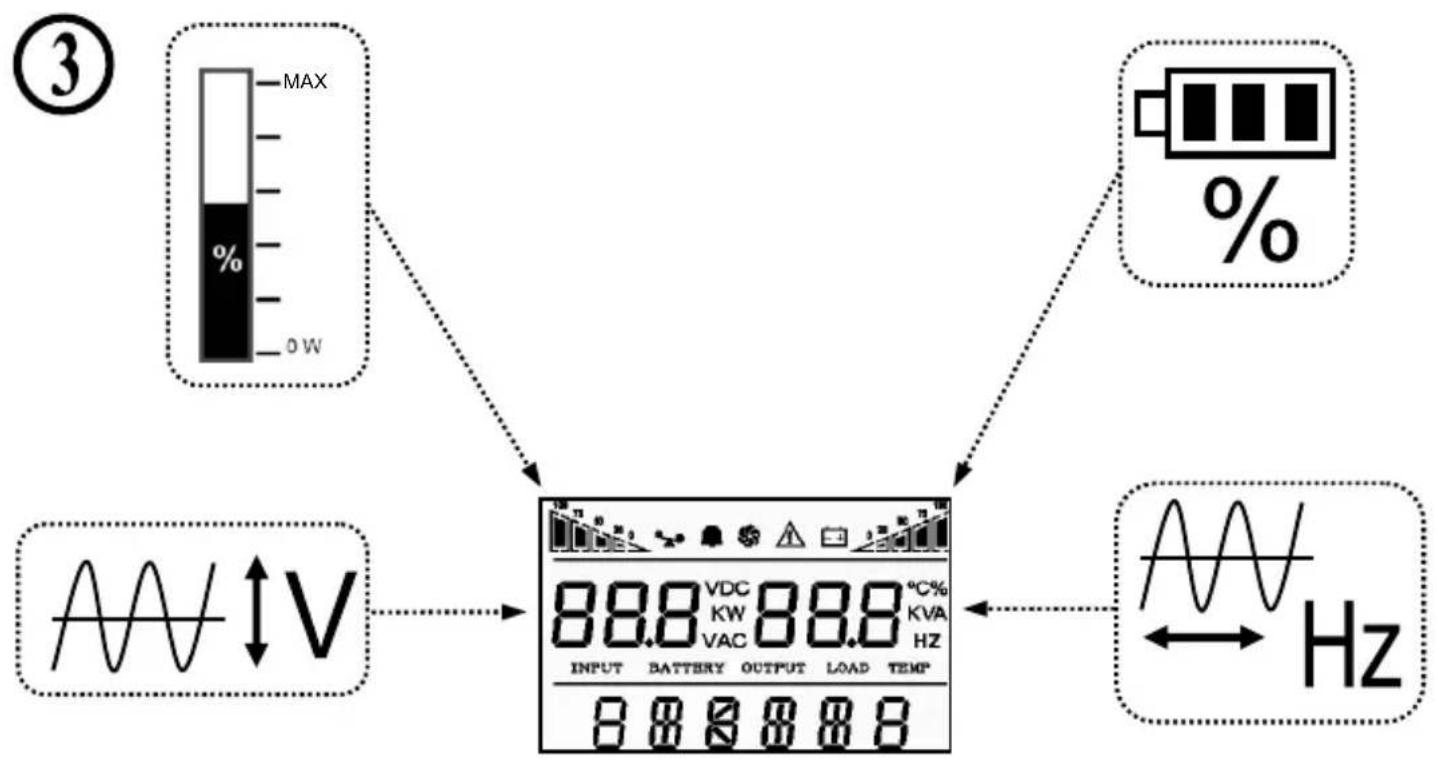

  LCD display and LED status indication
• Internal battery with overcharge and over-discharge protection

Specifications EG-UPS-PS2000-01 (EG-UPS-PS3000-01)

Type: line interactive
Waveform: sine, 5% distortion at linear load, PF > 0.8 (on battery)
- Input: AC 220V±25%, 50Hz/60Hz ±10%
- Output: AC 220V±12%, 50Hz/60Hz ±1% (AC 220V±5% at inverter mode)
- Switching time: u to 10 ms
- Backup time: 10...30 mins (depends on the load)
- Battery: 151 × 65 × 94 mm ,sealed lead-acid 12 V/9Ah ,F2 terminals x 3 pcs (4 pcs for EG-UPS-PS3000-01)
Charge time: up to 12 hours

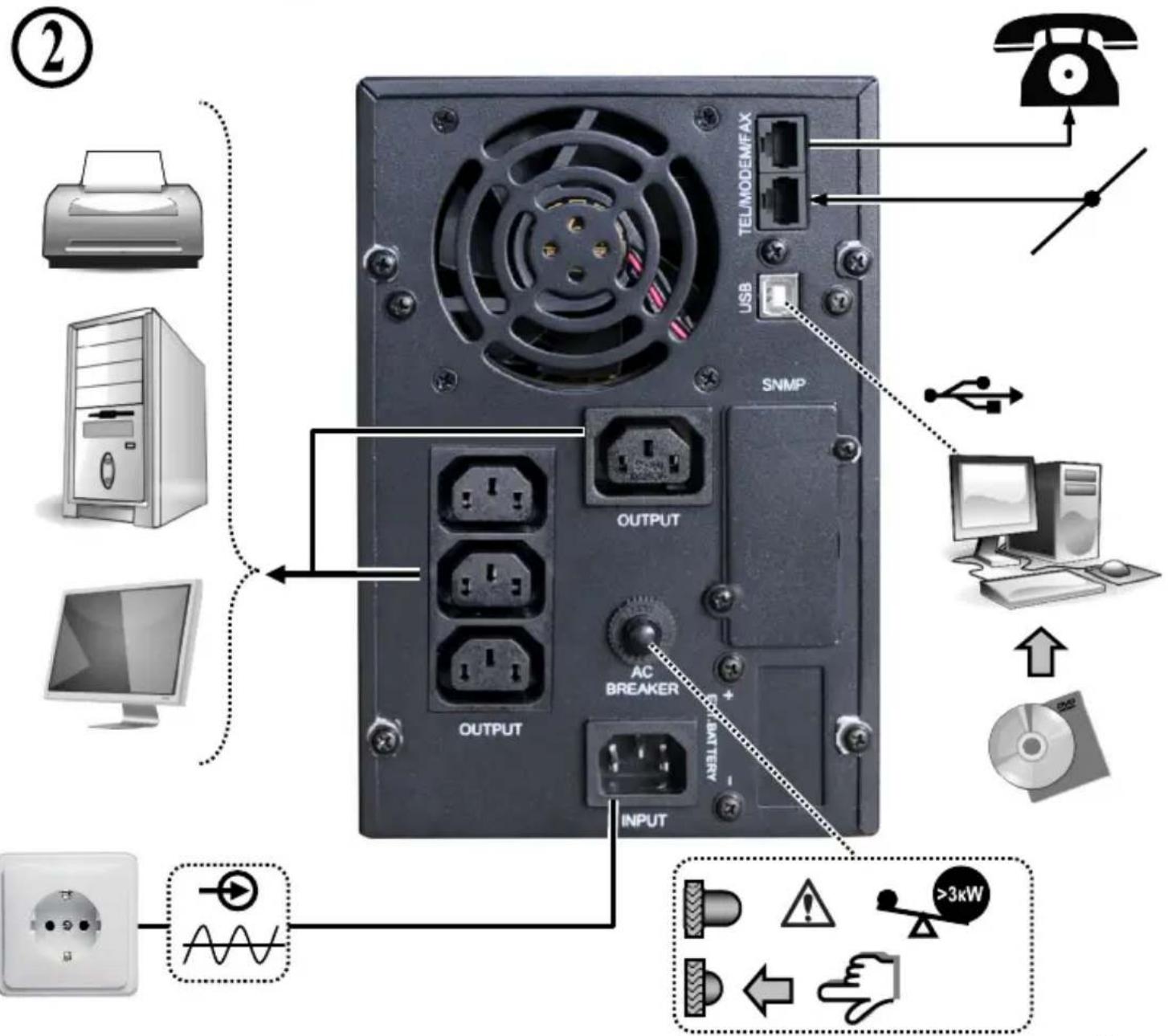

- Sockets: C14 input, 4 outputs x C13; USB-BF connector
- Operating conditions: 0^ 40^ , at humidity 10 90% . RH non condensing
Power: 2000VA (1600 W) (3000VA (2400 W) for EG-UPS-PS3000-01)
- Charging current: up to 1.2 A (up to 1.7 A for EG-UPS-PS3000-01)
- Noise: < 50 dB at 1 m distance
- Dimensions: 412 × 215 × 144 mm( 467 × 336 × 190 mmfor EG-UPS. - PS3000-01)
Product weight: 18.5kg (28.1 kg for EG-UPS-PS3000-01)

All brands and logos are registered trademarks of their respective owners

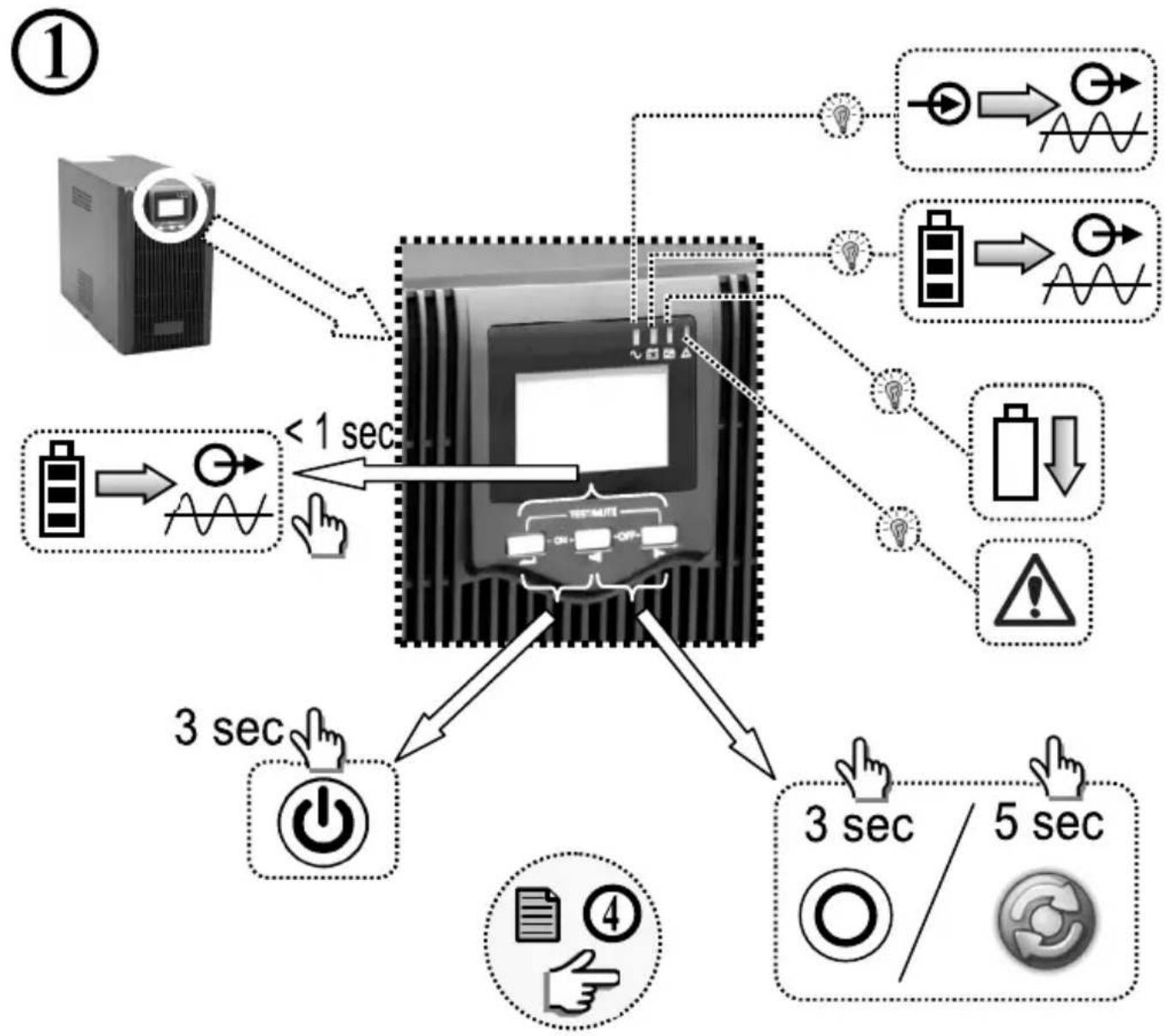

Key combination	Function introduction
← + ←	Press the two keys for 3 seconds to start up.
▲ + ▲	Press the two keys for 3 seconds to shut down. Press the setting interface for 5 seconds to restore factory settings and exit the setting interface.
← + ▲	Press “ ” momentarily to enable inverter mute. In the utility power mode, press “ ” momentarily to enable the battery discharge testing for 15 seconds.
	Press the key for 5 seconds to enter the setting interface. Press the key momentarily in the setting interface to turn the page. Press the key for 3 seconds to exit the setting interface without saving data. Select the item to be set in the setting interface. After selecting the required setting, page down to “save and exit” page. Choose “Yes”, press “ ” momentarily to save the date and exit the setting mode. In non-setting mode, momentarily press the key twice, and the LCD display content rotates. In setting mode, when it goes to SAVE page, press “ ”or “ ” momentarily, choose “Yes”, press “ ”to complete the setting and exit the mode.
	In non-setting mode, press the key momentarily to turn the page (page up). In setting mode, the parameter decreasing iterates.
	In non-setting mode, press the key momentarily to turn the page (page down). In setting mode, the parameter decreasing iterates. In non-setting mode, press the key for 2 seconds to enter the state of automatic page up/down and re-press the key for 2 seconds to exit the state of automatic page up/down.

All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
