EG-UPSRACK-12 RACK UPS, 2000 VA EG-UPSRACK-13 RACK UPS, 3000 VA

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Collection of national flags including the European Union, Germany, Switzerland, Austria, Netherlands, France, Russia, and Ukraine

Features EG-UPSRACK-12 (EG-UPSRACK-13)

• Automatic output voltage regulation (AVR)
- Rack 3.4U metal case
• USB control interface
- LCD display
- Short circuit protection
- Compatible with power generators of any brand
- Surge, spike and lightning protection
• Audible and visual alarms
• Overcharge and overdischarge protection

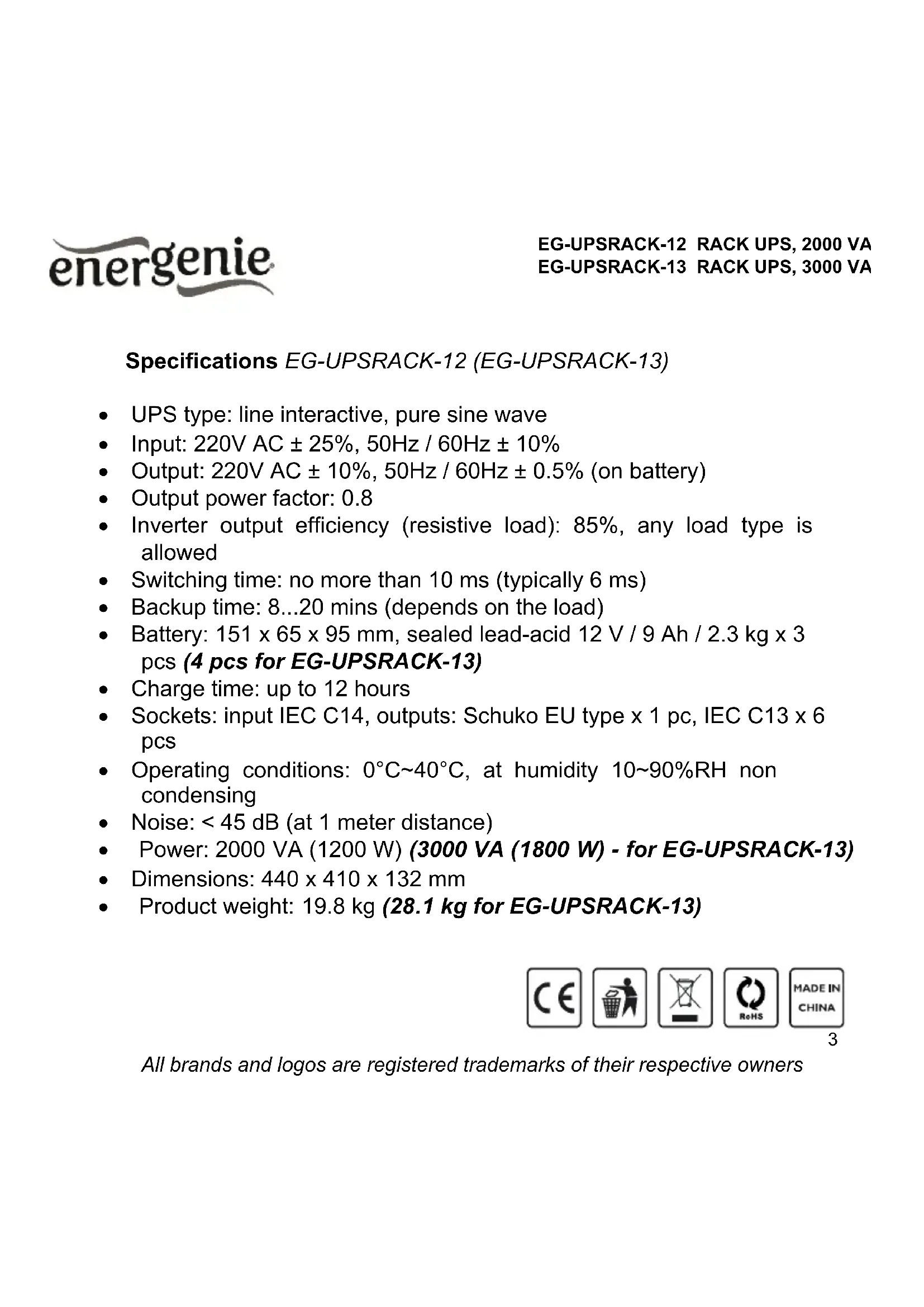

Specifications EG-UPSRACK-12 (EG-UPSRACK-13)

• UPS type: line interactive, pure sine wave
  • Input: 220V AC ± 25%, 50Hz / 60Hz ± 10%
  • Output: 220V AC ± 10%, 50Hz / 60Hz ± 0.5% (on battery)
  • Output power factor: 0.8
• Inverter output efficiency (resistive load): 85%, any load type is allowed
• Switching time: no more than 10 ms (typically 6 ms)
• Backup time: 8...20 mins (depends on the load)
• Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.3 kg x 3 pcs (4 pcs for EG-UPSRACK-13)
  • Charge time: up to 12 hours
• Sockets: input IEC C14, outputs: Schuko EU type x 1 pc, IEC C13 x 6 pcs
• Operating conditions: 0°C\~40°C, at humidity 10\~90%RH non condensing
  • Noise: < 45 dB (at 1 meter distance)
  • Power: 2000 VA (1200 W) (3000 VA (1800 W) - for EG-UPSRACK-13)
  • Dimensions: 440 x 410 x 132 mm
  • Product weight: 19.8 kg (28.1 kg for EG-UPSRACK-13)

CE ReHS MADE IN CHINA

energenie

EG-UPSRACK-12 RACK UPS, 2000 VA

EG-UPSRACK-13 RACK UPS, 3000 VA

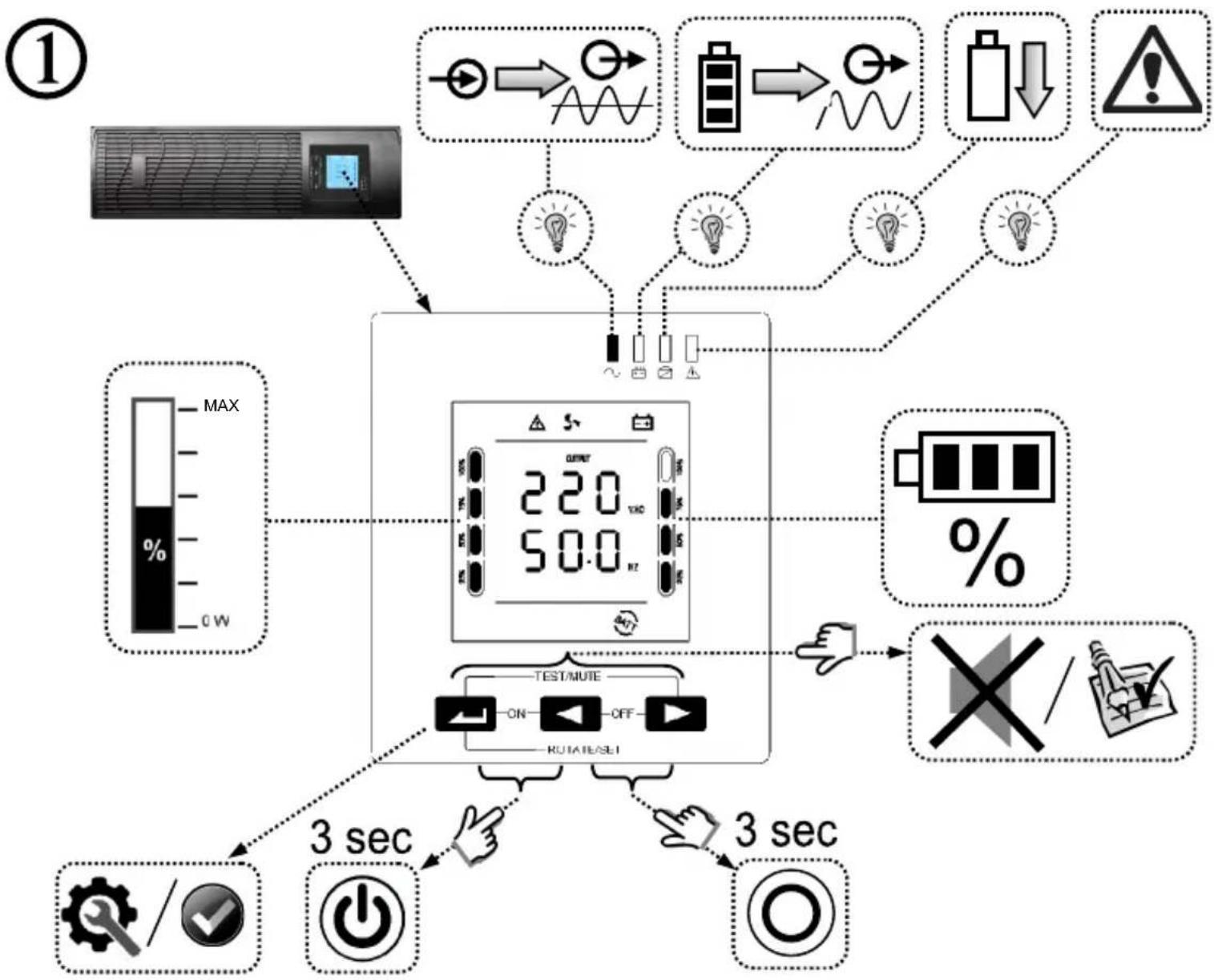


All brands and logos are registered trademarks of their respective owners

energenie

EG-UPSRACK-12 RACK UPS, 2000 VA

EG-UPSRACK-13 RACK UPS, 3000 VA

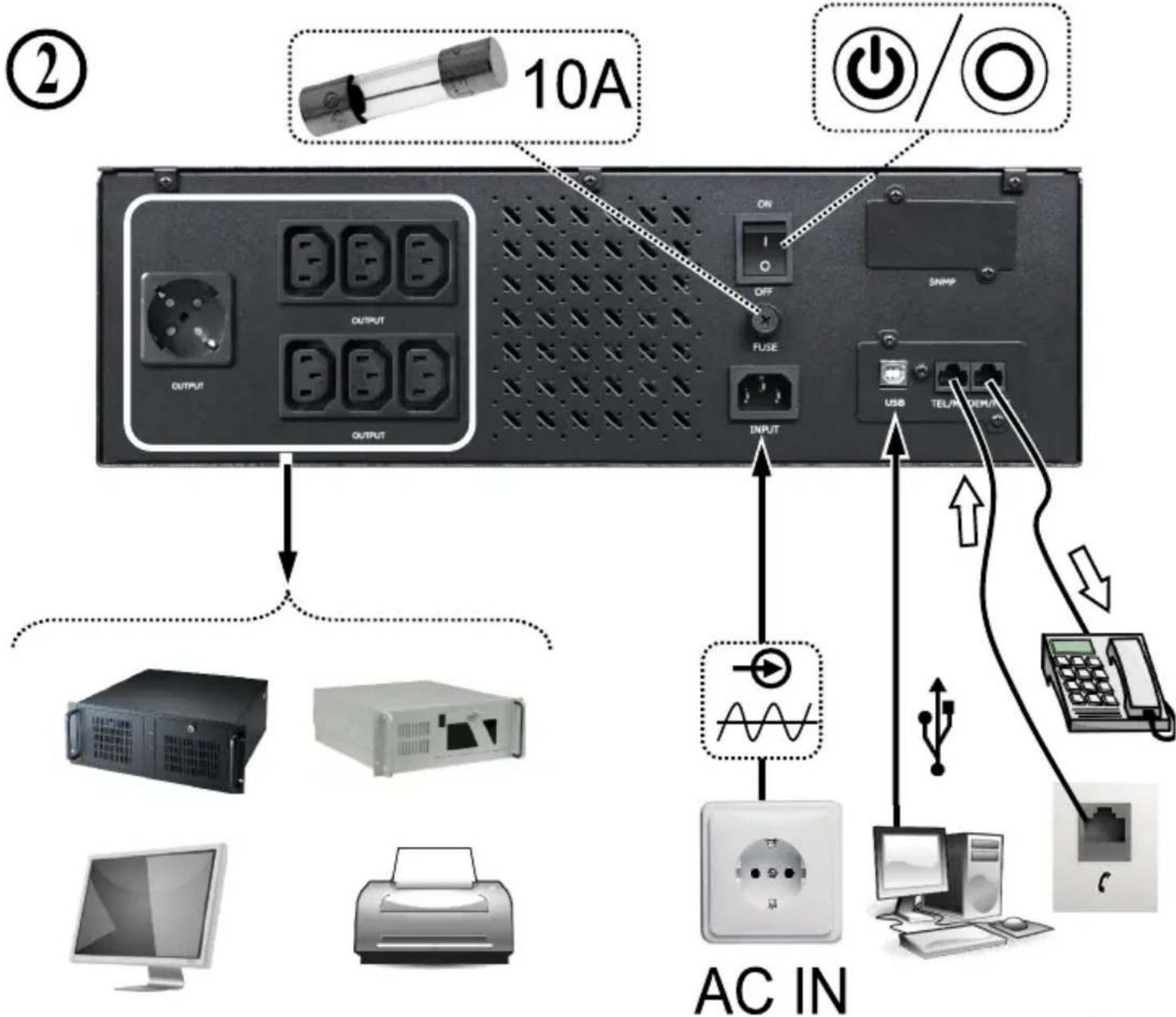


All brands and logos are registered trademarks of their respective owners

energenie

EG-UPSRACK-12 RACK UPS, 2000 VA

EG-UPSRACK-13 RACK UPS, 3000 VA

③

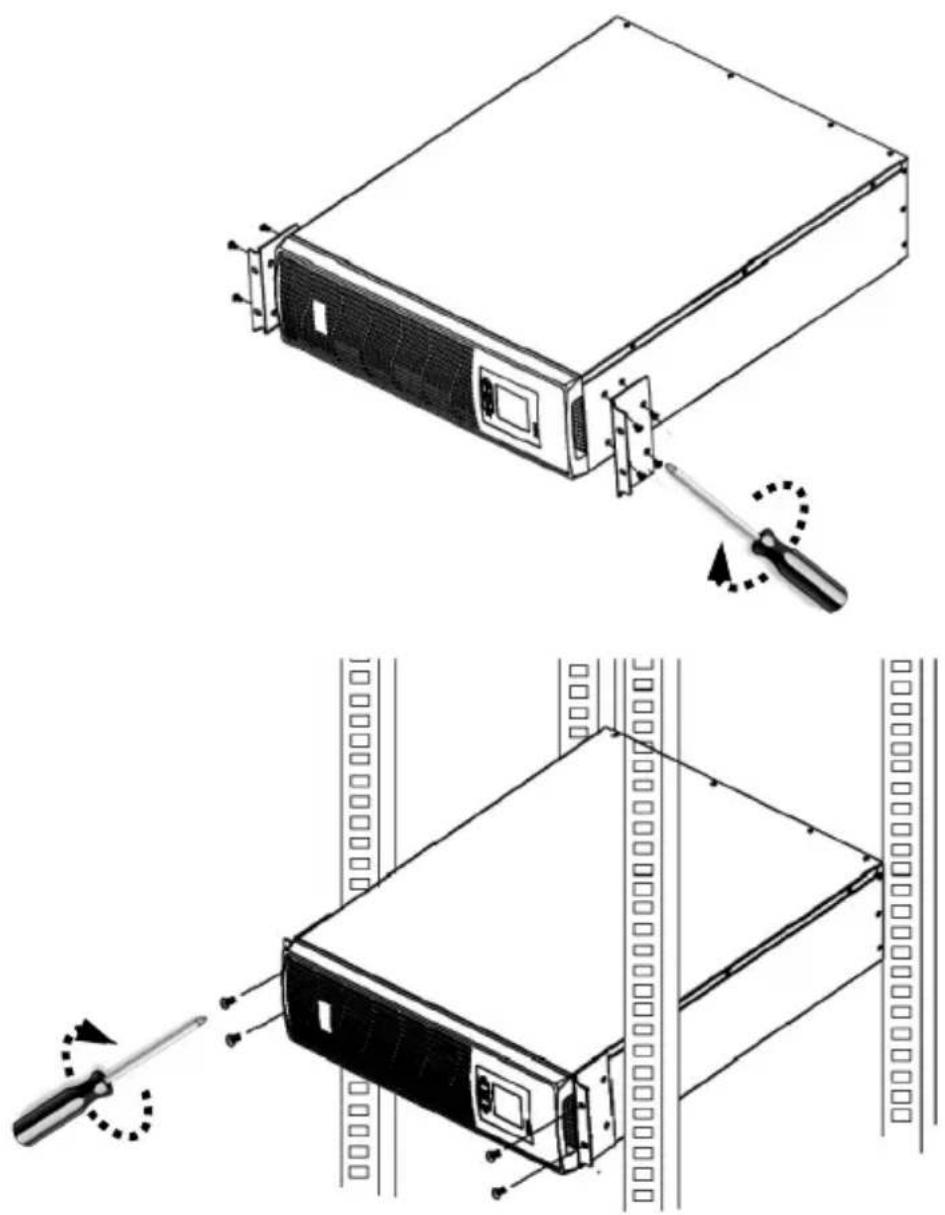

Technical line drawings of a server rack with screwdriver, showing mounting and disassembly steps (no text or symbols)

All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

Safety warning symbol showing a sun and a person with fever, crossed by a diagonal line indicating no heat.

Simple line drawing of a hand using a tool to adjust or repair a screwdriver (no text or symbols present)

Simple line drawing of a hand holding a cup with a diagonal line crossing through it, no text or symbols present.

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
