UPSRACK1200 - Uninterruptible power supply EnerGenie - Free user manual and instructions

Product Type	Rack-mountable Uninterruptible Power Supply (UPS)
Brand	EnerGenie
Model	UPSRACK1200
Apparent Power (VA)	1200 VA
Active Power (W)	1080 W
Input Voltage	230 V AC
Output Voltage	230 V AC regulated
Waveform Type	Pure Sine Wave
Number of Output Sockets	8 IEC C13 sockets
Typical Backup Time (half load)	Approximately 10 minutes
Battery	Sealed lead-acid, maintenance-free
Battery Replacement	By user (accessible module)
Charging Time	4 to 6 hours
Dimensions (W x D x H)	483 x 450 x 89 mm (2U)
Weight	22 kg
Rack Form Factor	2U, 19-inch rack mount
Communication Interfaces	USB port, RS-232 serial port
Network/Phone Protection	Yes (RJ45/RJ11 input/output)
Surge Protection	Built-in surge protector
Management Software	Compatible with major UPS software (PowerChute, etc.)
Warranty	2 years (subject to conditions, battery excluded)
Operating Temperature	0 to 40 °C
Operating Humidity	20 to 80% non-condensing

Frequently Asked Questions - UPSRACK1200 EnerGenie

How to install the UPS RACK1200 in a rack?

The UPS is designed for 19-inch rack mounting. Use the provided mounting brackets and securely screw the device to the rack rails. Ensure the rack is well ventilated and the weight is supported.

What is the battery runtime of the UPSRACK1200?

The runtime depends on the connected load. At half load (540 W), it is approximately 10 minutes. At full load (1080 W), it will be reduced to about 3-4 minutes. Refer to the runtime table in the full manual.

How to replace the battery?

Unplug the UPS and remove the front panel. Disconnect the battery cables respecting polarity (red +, black -). Remove the old battery and insert the new one. Reconnect the cables and replace the front panel. The battery is a consumable not covered by warranty.

Can I connect a laser printer to the UPS?

No, laser printers draw high peak power and can damage the UPS. Only connect critical IT equipment (servers, NAS, workstations).

How to test the UPS?

Press the test button (usually the light icon) for 3 seconds. The UPS will switch to battery to verify proper operation. Release to return to mains power.

What to do if the UPS beeps continuously?

A continuous beep indicates a discharged or defective battery. Check that the UPS is plugged into mains and let it charge for 6 hours. If the beeping persists, replace the battery.

Does the UPS protect against power surges?

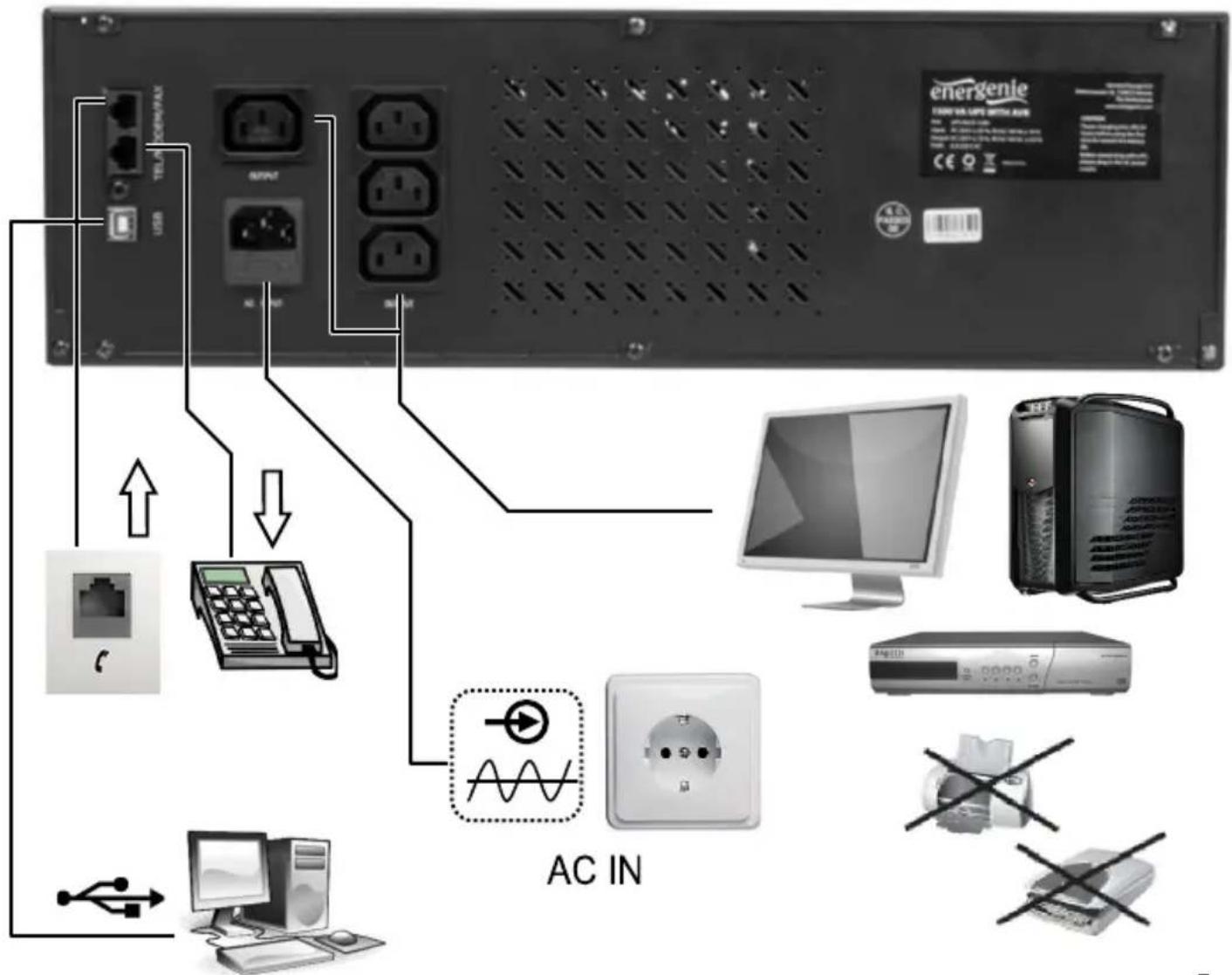

Yes, it has a built-in surge protector and network protection (RJ45/RJ11) for telephone or Ethernet lines. It does not replace a lightning arrester for direct lightning strikes.

How to configure automatic server shutdown?

Connect the UPS to the server via USB or serial and install compatible management software (e.g., PowerChute, NUT). Configure the automatic shutdown settings for prolonged outages.

What is the output voltage of the UPS?

The output voltage is 230 V AC with pure sine wave regulation, ensuring stable power for sensitive equipment.

How to clean the UPS?

Unplug the UPS and use a soft, dry cloth to dust the casing. Do not use liquid or abrasive products. Ensure the ventilation openings are not obstructed.

USER MANUAL UPSRACK1200 EnerGenie

Automatic output voltage regulation (AVR)
Rack 3.4U metal case
USB control interface

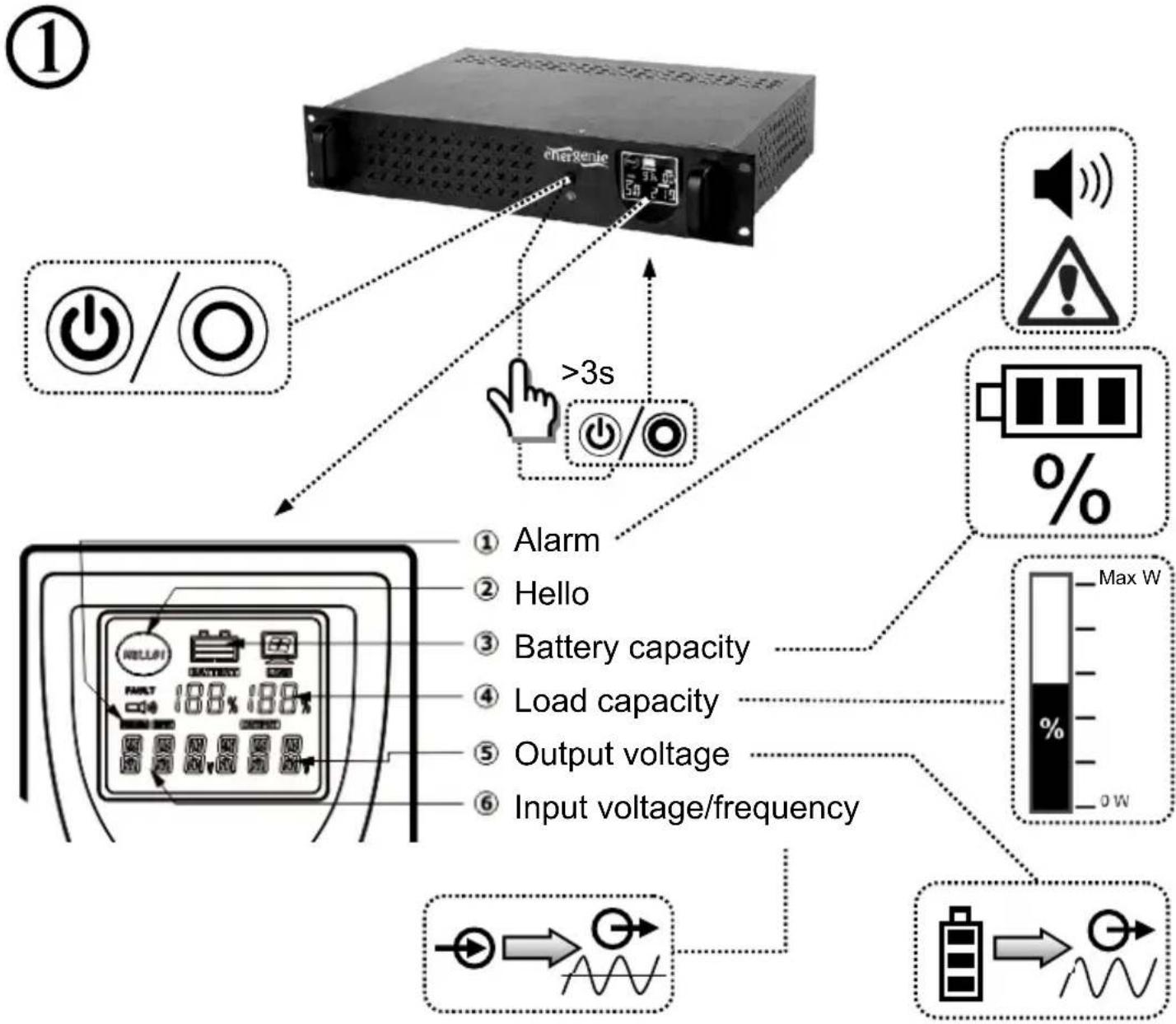

LCD display
Short circuit protection
- Compatible with power generators of any brand
- Surge, spike and lightning protection
Audible and visual alarms
Overcharge and overdischarge protection

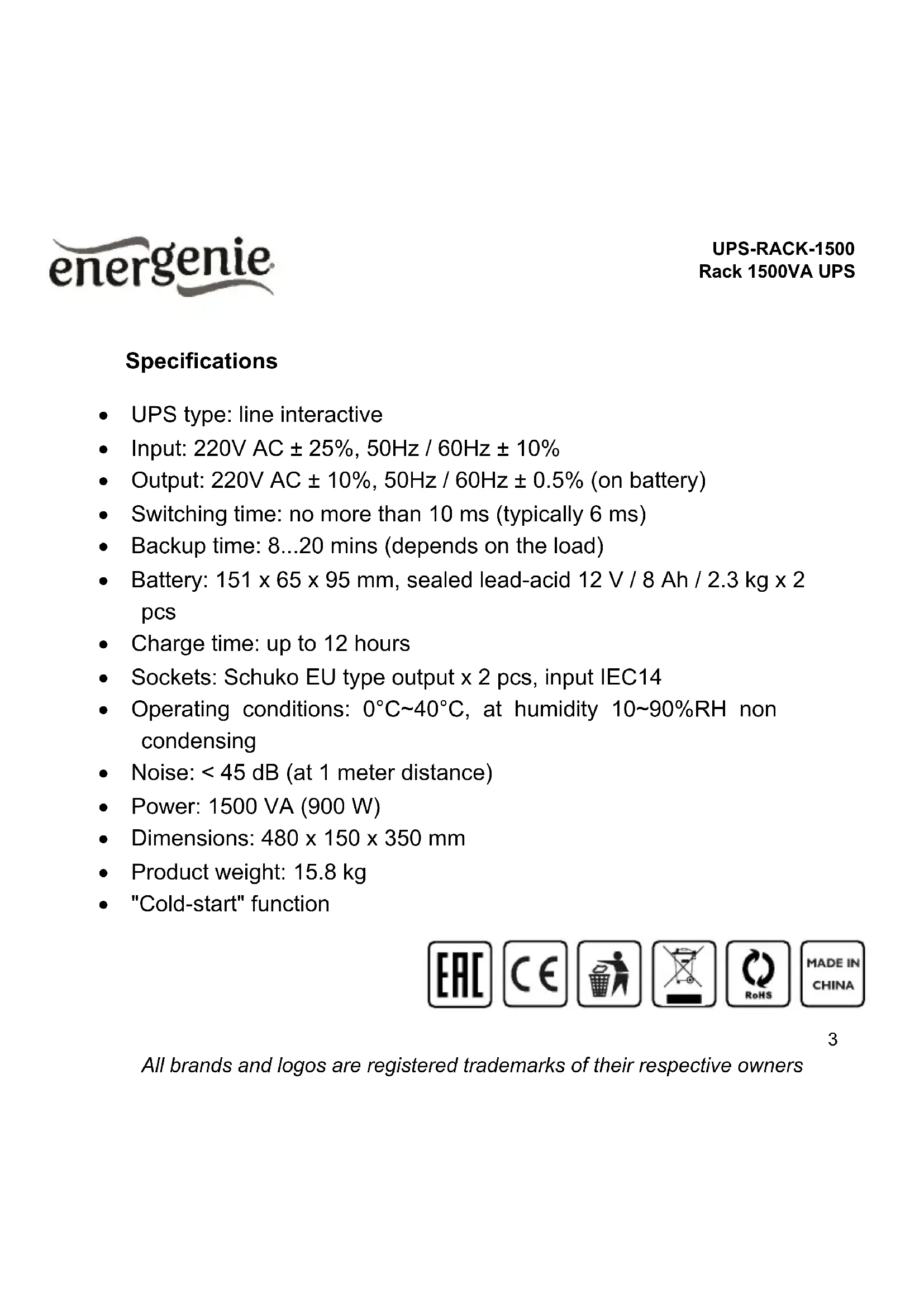

Specifications

UPS type: line interactive
Input: 220 VAC ± 25% ,50 Hz/60 Hz ± 10%
Output: 220V AC ± 10%, 50Hz / 60Hz ± 0.5% (on battery)
- Switching time: no more than 10 ms (typically 6 ms)
- Backup time: 8...20 mins (depends on the load)
- Battery: 151 × 65 × 95 mm ,sealed lead-acid 12 V/8Ah/2.3 kg × 2 pcs
Charge time: up to 12 hours
- Sockets: Schuko EU type output x 2 pcs, input IEC14
- Operating conditions: 0^ 40^ , at humidity 10 90% RH non condensing
- Noise: < 45 dB (at 1 meter distance)
Power: 1500 VA (900 W)
- Dimensions: 480 × 150 × 350 ~mm
Product weight: 15.8kg
- "Cold-start" function

All brands and logos are registered trademarks of their respective owners

All brands and logos are registered trademarks of their respective owners

2

All brands and logos are registered trademarks of their respective owners

(ENG) Declaration of conformity This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu	(NL/BE) Verklaring van overeenstemming Dit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot LVD(2006/95/EC), EMC(2004/108/EC). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op unsere website: www.gembird.eu
(FR/BE) Déclaration de conformité Le produit est contrôle et rempli les exigences des directives nationales et de la directive LVD(2006/95/EC), EMC(2004/108/EC). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu	(DE) Konformitätserklärung Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie LVD(2006/95/EC), EMC(2004/108/EC) überein. Die Konformitätserklärung kann auf unserer Webseite www.gembird.eu heruntergeladen werden.
Deklaracja zgodność Ten produkt zostawPTRzetestowy i jest zgodny z zasadniczymi wymaganiani mi przypisów ustawowych państwoczłonkowskich dotycznych LVD(2006/95/EC), EMC(2004/108/EC). Deklaracja CE znejduje są pod adresemwww.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

All brands and logos are registered trademarks of their respective owners

YMOBNI TAPAHINTINHOO OBCNYTOBYBAHH

1. rapaHTIHe obcnyroByaHHaHaTbca npToTROM TepMHy rapaTII, npn HaBHOCTI rapaHTiHOro TaHOy, 3anOBHeHOro HAnExHM YINOM, Ta BINObOy B NOBH KOMJIeKtaII.
   2.「rapaHTiHe 06cnyroByBaHH He nItpmyeTbC B pa3i npuyenHn npabn eknnyatau, 36epiranHn a6o nepeBe3eHHBnpo6y, 303a3naeHi BInCTpykui no eknnyatauBnpo6y.
   3.「apaHTiHHe o6cIyroBvBaHHcKacOBYeTbCay y BnnaJkax: - HABHOCTi MExaHiuHnx noUkoJxHb a6o cniDIB CTopoHHbOro BtpuyAHH;
2. NOUKOJXHNNBKNIHKAHCTNXIHNM NIXOM a6o HeuacHM BUNaKOM, BKNIOUaOHy 6NcKaBky, NoTpannHaHm y BnpiC TOpOHHX INpeDMETIB, pIDIN, KOMAX, TOIO
3. noxkoJxHnBnKlnKaH3aTocyBaHHm a6o niknOeHHM HeCTaHapTHnx a6o HecnpabHnx nepupepiHHnx npucTpOIB, akcecyapib;
4. RapaHTria He nouHPOeTbCra Ha BnTpAHi MaTePiAn Ta DoaTkOBI akcecyap;
   3 rapaHTiHmM yMOBaMn 3roJeH.

Pianncnokynu:

TAPAHNTIHHI TAIOH No

Tobap/Moienb

CepiHn Homep

TepmiH rapahii

Даразпожу

PpOdaBae(bHa3Ba,TeJefoH)

Tneata nipnnc npoadua

3 rapaHTiHnx NITaHb 3BepTaITeCb Do cepBICHx ueHTpiB Gembird. Ipo aApceu Ta KOHTaKTH Bu MoKeTe Di3HaTncb Ha caTi www.gembird.ua afo no TeNefoHy 044-4510213.
