Product type	Uninterruptible Power Supply (UPS)
Brand	EnerGenie
Model	EGUPSPS200002
Dimensions (approx.)	350 x 140 x 200 mm
Weight (approx.)	6.5 kg
Battery type	Sealed lead-acid battery, 12 V / 7 Ah
Typical battery runtime	Approximately 10-15 minutes at full load
Input voltage	230 V AC, 50 Hz
Output voltage	230 V AC, 50 Hz (regulated)
Rated power	1000 VA / 600 W
Main features	Surge protection, voltage regulation, automatic low battery shutdown, telephone/network line protection
Output outlets	4 Schuko outlets
Protection	Overload, short-circuit and deep discharge protection
Maintenance and cleaning	Wipe with a dry, soft cloth. Do not use abrasive products. Periodically check the indicators.
Safety	Do not open the casing, risk of electric shock. Do not expose to moisture. Keep out of reach of children.
Spare parts and repairability	Replaceable battery (reference: EGUPSPS200002-BAT). Consult a professional for replacement.
General information	24-month warranty. Do not dispose of with household waste. Recycle at a waste disposal site.

Frequently Asked Questions - EGUPSPS200002 EnerGenie

How long can the UPS power my devices during a power outage?

The runtime depends on the load. At full load (600 W), expect approximately 10 to 15 minutes. With less powerful devices, the runtime increases.

What does the flashing red light mean?

A flashing red light indicates an anomaly: low battery, overload, or internal fault. Refer to the manual for details.

Can I replace the battery myself?

Yes, the battery is replaceable. Use an identical battery (12 V / 7 Ah) and follow safety instructions. Unplug the UPS before any intervention.

The UPS emits a beep, is that normal?

An intermittent beep during battery operation is normal. However, a continuous beep indicates a discharged battery or a fault.

Which devices can I plug into this UPS?

This UPS is designed for computers, monitors, routers, and other sensitive equipment. Do not plug in high-power devices like heaters or vacuum cleaners.

How to test the proper functioning of the UPS?

Plug in a device, then unplug the UPS from the mains outlet. The UPS should power the device without interruption. The test can be done for a few seconds.

Does the UPS protect against power surges?

Yes, it includes a surge arrester and a surge filter to protect your equipment from voltage spikes.

What to do if the UPS does not turn on?

Check that the power cord is properly connected and that the wall outlet works. If the problem persists, the battery may be defective.

Can I use the UPS with a generator?

It is not recommended to use the UPS with a generator because the voltage may be unstable. Prefer a stable mains outlet.

How to recycle the UPS at the end of its life?

Do not throw the UPS in household trash. Take it to a collection point for electronic waste or a recycling center.

USER MANUAL EGUPSPS200002 EnerGenie

Exterior view of a black industrial power supply unit with ventilation grilles and a digital display (no visible text or symbols)

EG-UPS-PS2000-01

EG-UPS-PS3000-01

PURE SINE WAVE UPS, LCD DISPLAY, USB

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Image displaying a grid of national flags, including the European Union, Germany, Switzerland, Austria, Netherlands, Belgium, France, Russia, and Ukraine.

Features EG-UPS-PS2000-01 (EG-UPS-PS3000-01)

• Uninterruptable power supply with pure sine wave output
• USB interface
  • Automatic AC voltage regulation (AVR)
• Intelligent overload- and short-circuit protection
  • Audible and visual alarms
  • LCD display and LED status indication
• Internal battery with overcharge and over-discharge protection

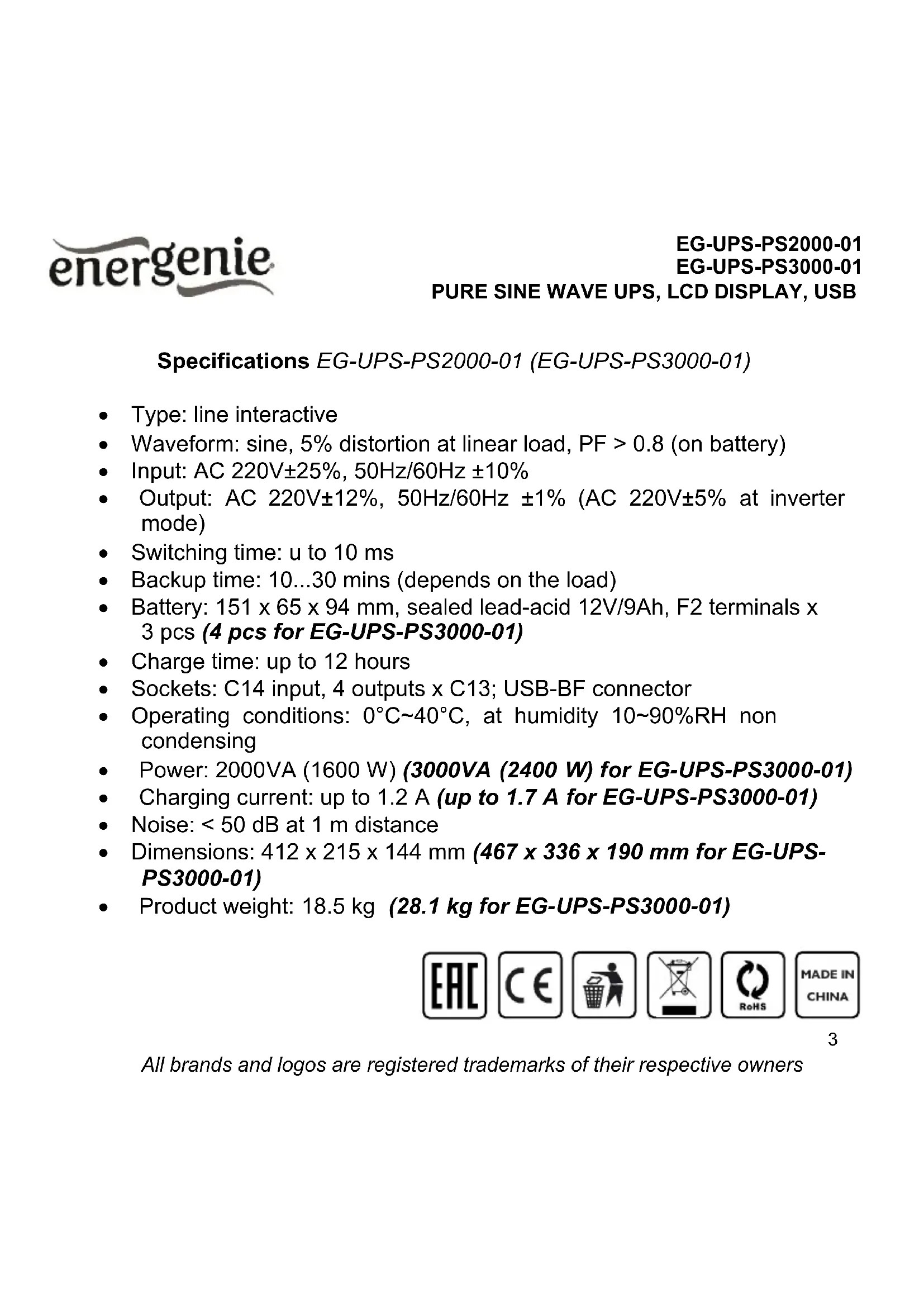

Specifications EG-UPS-PS2000-01 (EG-UPS-PS3000-01)

• Type: line interactive
  • Waveform: sine, 5% distortion at linear load, PF > 0.8 (on battery)
  • Input: AC 220V±25%, 50Hz/60Hz ±10%
• Output: AC 220V±12%, 50Hz/60Hz ±1% (AC 220V±5% at inverter mode)
• Switching time: u to 10 ms
  • Backup time: 10...30 mins (depends on the load)
• Battery: 151 x 65 x 94 mm, sealed lead-acid 12V/9Ah, F2 terminals x 3 pcs (4 pcs for EG-UPS-PS3000-01)
  • Charge time: up to 12 hours
• Sockets: C14 input, 4 outputs x C13; USB-BF connector
• Operating conditions: 0°C\~40°C, at humidity 10\~90%RH non condensing
  • Power: 2000VA (1600 W) (3000VA (2400 W) for EG-UPS-PS3000-01)
  • Charging current: up to 1.2 A (up to 1.7 A for EG-UPS-PS3000-01)
  • Noise: < 50 dB at 1 m distance
• Dimensions: 412 x 215 x 144 mm (467 x 336 x 190 mm for EG-UPS-PS3000-01)
  • Product weight: 18.5 kg (28.1 kg for EG-UPS-PS3000-01)

energenie

EG-UPS-PS2000-01

EG-UPS-PS3000-01

PURE SINE WAVE UPS, LCD DISPLAY, USB

All brands and logos are registered trademarks of their respective owners

energenie

EG-UPS-PS2000-01

EG-UPS-PS3000-01

PURE SINE WAVE UPS, LCD DISPLAY, USB

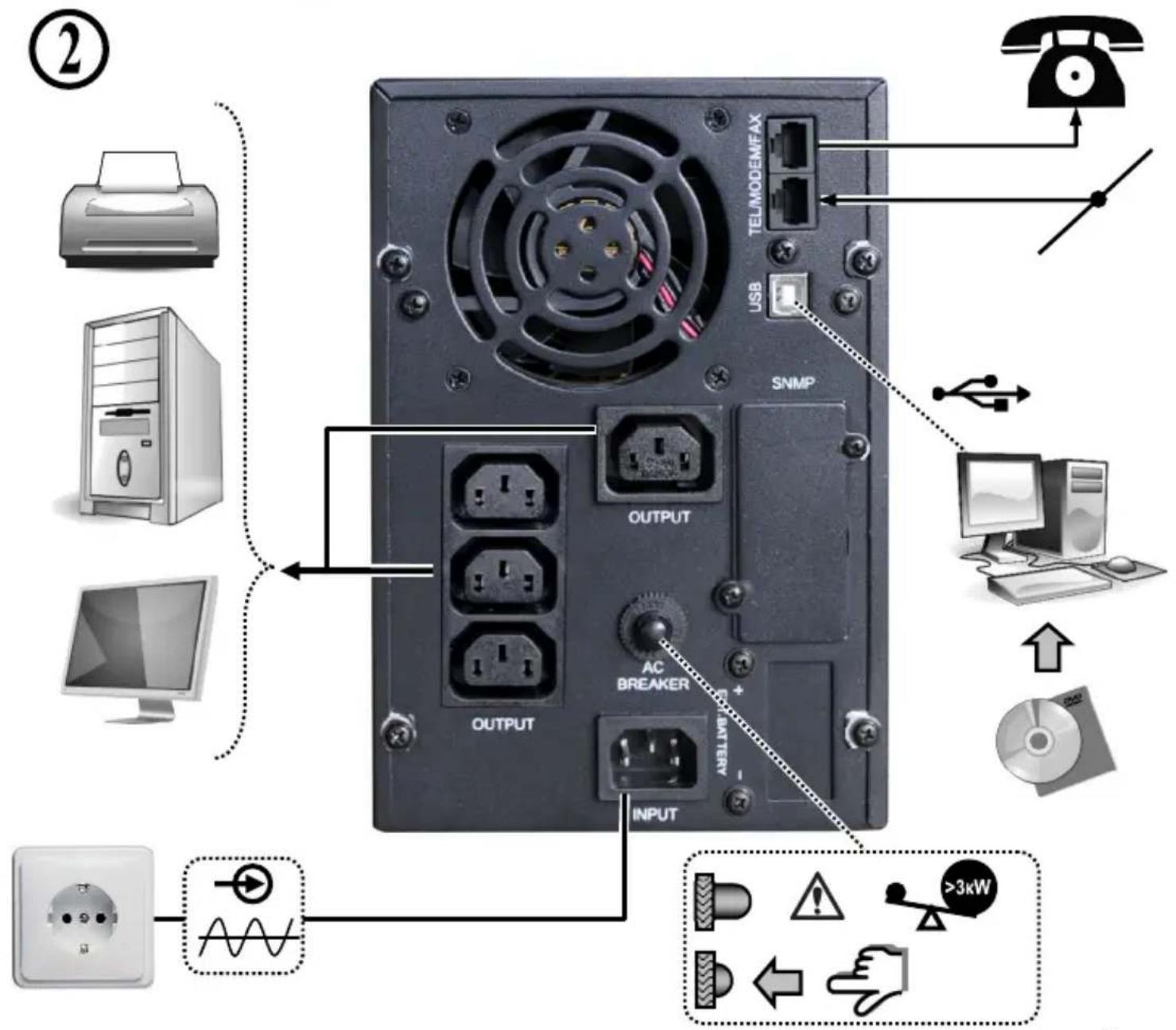

Diagram of a computer power adapter with labeled ports and connections, including output, battery, and signal icons.

All brands and logos are registered trademarks of their respective owners

energenie

EG-UPS-PS2000-01

EG-UPS-PS3000-01

PURE SINE WAVE UPS, LCD DISPLAY, USB

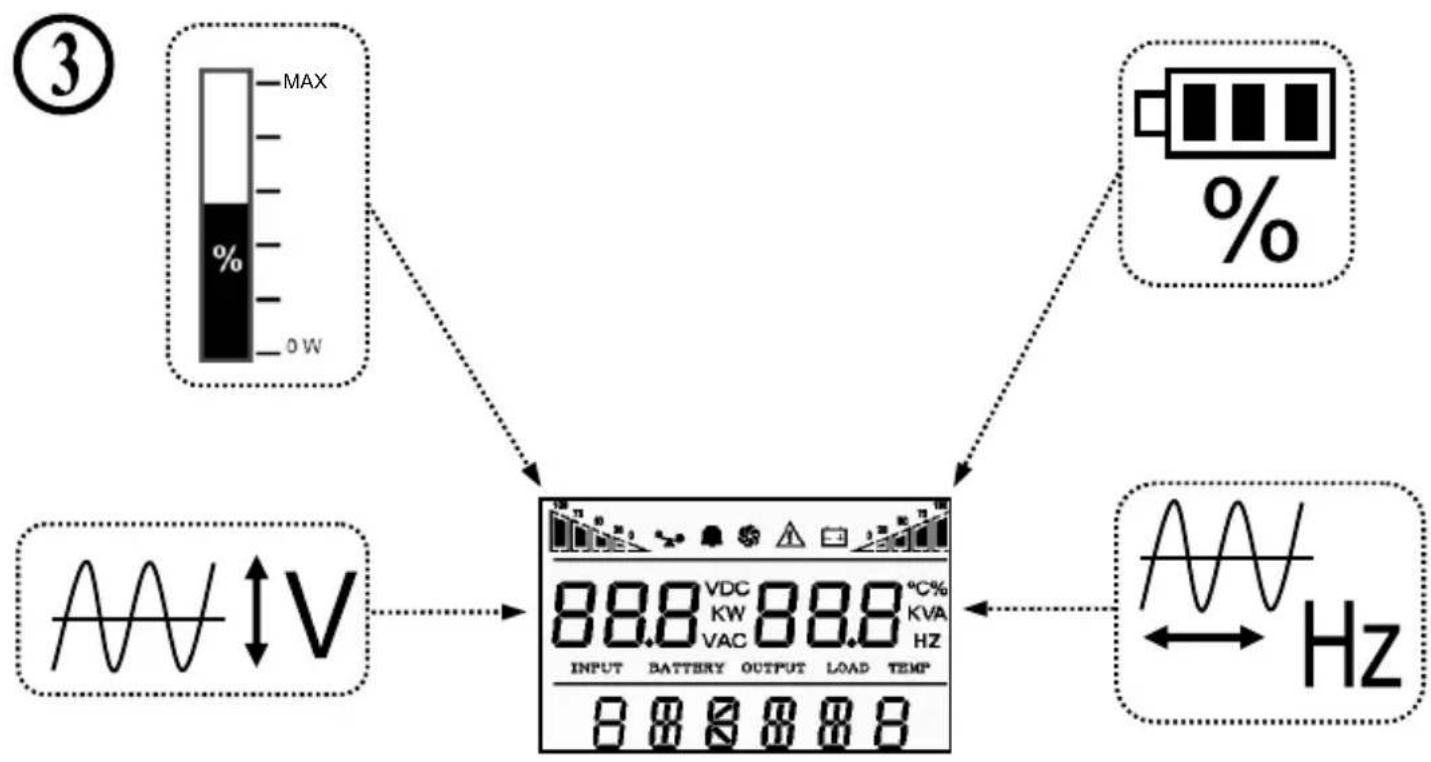

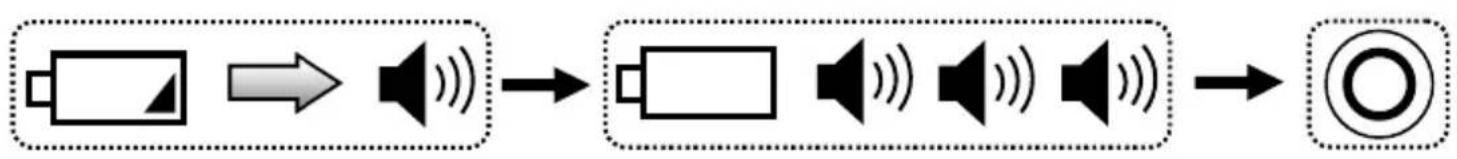


Key combination	Function introduction
	Press the two keys for 3 seconds to start up.
	Press the two keys for 3 seconds to shut down.Press the setting interface for 5 seconds to restore factory settings and exit the setting interface.
	Press “ ” momentarily to enable inverter mute.In the utility power mode, press “ ” momentarily to enable the battery discharge testing for 15 seconds.
	Press the key for 5 seconds to enter the setting interface.Press the key momentarily in the setting interface to turn the page.Press the key for 3 seconds to exit the setting interface without saving data.Select the item to be set in the setting interface. After selecting the required setting, page down to “save and exit” page. Choose “Yes”, press “ ” momentarily to save the date and exit the setting mode.In non-setting mode, momentarily press the key twice, and the LCD display content rotates.In setting mode, when it goes to SAVE page, press “ ” or “ ” momentarily, choose “Yes”, press “ ” to complete the setting and exit the mode.
	In non-setting mode, press the key momentarily to turn the page (page up).In setting mode, the parameter decreasing iterates.
	In non-setting mode, press the key momentarily to turn the page (page down).In setting mode, the parameter decreasing iterates.In non-setting mode, press the key for 2 seconds to enter the state of automatic page up/down and re-press the key for 2 seconds to exit the state of automatic page up/down.

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
