Product Type	Uninterruptible Power Supply (UPS)
Brand	EnerGenie
Model	EGUPSPS100001
Rated Power	600 VA / 360 W
Topology	Standby (offline)
Number of Output Outlets	2 outlets (with surge protection)
Battery Type	Sealed lead-acid, maintenance-free
Typical Backup Time	Approximately 10 minutes at full load, 20 minutes at half load
Recharge Time	4 to 6 hours
Surge Protection	Yes, with built-in surge arrester
Voltage Regulation	Automatic (AVR)
Dimensions (W x D x H)	280 x 140 x 360 mm
Weight	5.2 kg
Color	Black
Input Power	220-240 V AC, 50/60 Hz
Main Functions	Protection against power outages, surges, undervoltage, and micro-cuts
LED Indicators	Power on, low battery, overload, fault
Audible Alarm	Yes, for low battery and overload
Maintenance and Cleaning	Clean with a dry, soft cloth. Do not use liquids. Check the battery periodically.
Safety	Do not open the casing. Avoid moisture and extreme temperatures. Disconnect before maintenance.
Spare Parts and Repairability	Battery replaceable by a professional. Contact customer service for other parts.
General Information	2-year warranty. Follow recycling instructions at end of life.

Frequently Asked Questions - EGUPSPS100001 EnerGenie

How do I connect my equipment to the EnerGenie UPS?

Plug your UPS into a wall outlet, then connect your devices (computer, monitor, etc.) to the output outlets of the UPS. Turn on the UPS with the switch before turning on your equipment.

What should I do if the UPS emits a continuous beep?

A continuous beep may indicate a low battery or overload. Check the load of connected devices and let the UPS recharge. If the problem persists, contact support.

What is the battery lifespan?

The lead-acid battery has a lifespan of approximately 3 to 5 years depending on usage and ambient temperature. It is recommended to replace the battery every 3 to 4 years to ensure optimal backup time.

Can I replace the battery myself?

It is recommended to have the battery replaced by a qualified professional to avoid electrical hazards. Contact EnerGenie customer service for instructions.

Does the UPS protect against surges?

Yes, the EnerGenie UPS features built-in surge protection and automatic voltage regulation (AVR) to protect your devices from power spikes.

How long can I use my devices on battery?

The backup time depends on the connected load. For example, a desktop computer consuming 150W can run for approximately 15 minutes. With a lower load (100W), the backup time can reach 30 minutes.

How do I maintain my UPS?

Place the UPS in a dry, well-ventilated area away from direct sunlight. Test the battery every 3 months by unplugging the mains power. Clean the device with a dry cloth.

What does the red indicator mean?

A steady red light may indicate an overload or internal fault. Unplug some devices to reduce the load. If the light blinks, it indicates a low battery.

Can I connect a laser printer to the UPS?

It is not recommended to plug a laser printer into a UPS because power consumption spikes during printing may cause an overload. Plug it directly into a protected wall outlet.

How do I know if the UPS is working properly?

Perform a test by unplugging the mains power: the UPS should take over without interruption. The indicators should light up normally. If alert beeps sound without cause, contact support.

USER MANUAL EGUPSPS100001 EnerGenie

Exterior view of a black industrial power supply unit with ventilation grilles and a digital display (no visible text or symbols)

EG-UPS-PS2000-01

EG-UPS-PS3000-01

PURE SINE WAVE UPS, LCD DISPLAY, USB

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Features EG-UPS-PS2000-01 (EG-UPS-PS3000-01)

• Uninterruptable power supply with pure sine wave output
• USB interface
  • Automatic AC voltage regulation (AVR)
• Intelligent overload- and short-circuit protection
  • Audible and visual alarms
  • LCD display and LED status indication
• Internal battery with overcharge and over-discharge protection

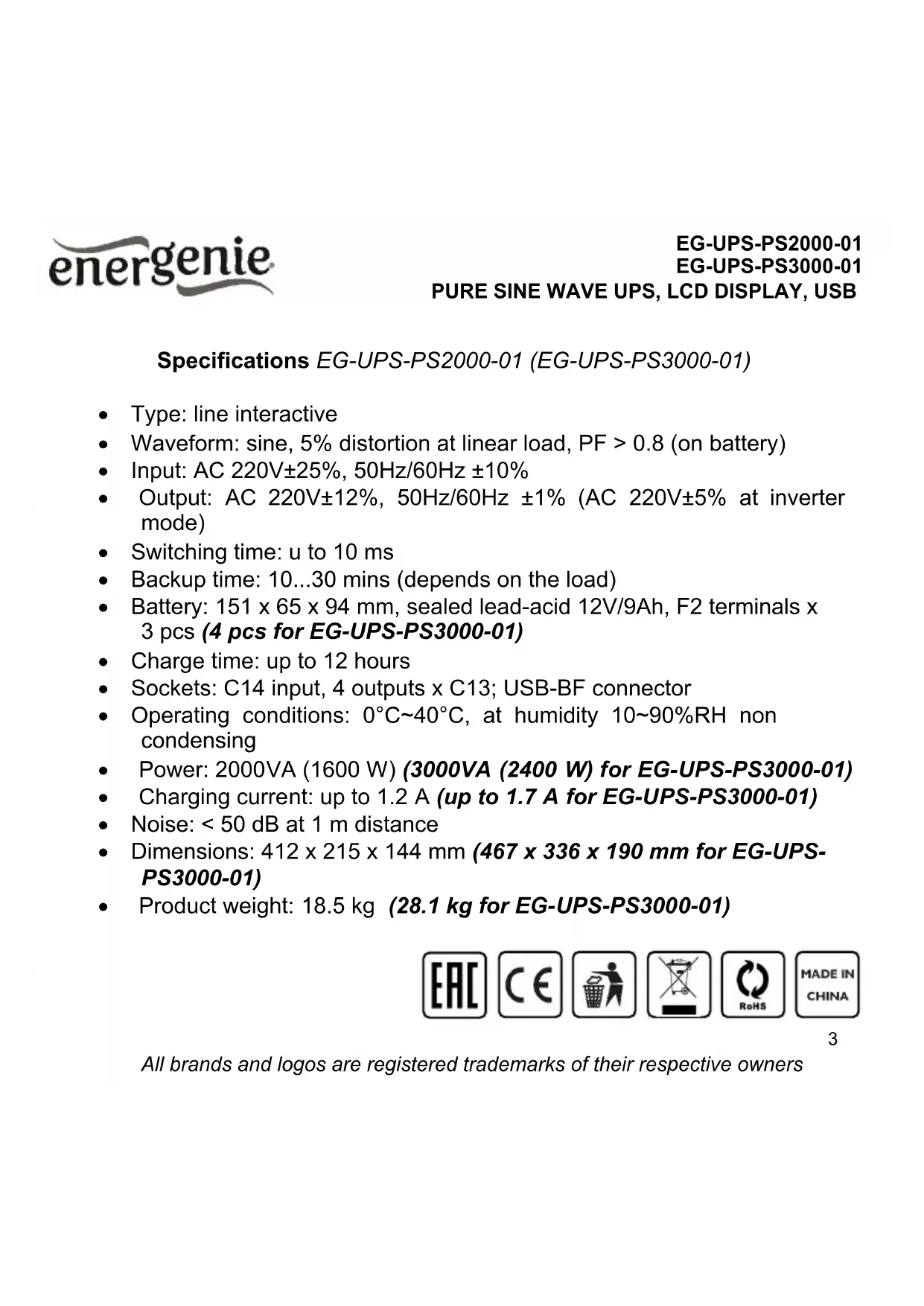

Specifications EG-UPS-PS2000-01 (EG-UPS-PS3000-01)

• Type: line interactive
  • Waveform: sine, 5% distortion at linear load, PF > 0.8 (on battery)
  • Input: AC 220V±25%, 50Hz/60Hz ±10%
• Output: AC 220V±12%, 50Hz/60Hz ±1% (AC 220V±5% at inverter mode)
• Switching time: u to 10 ms
  • Backup time: 10...30 mins (depends on the load)
• Battery: 151 x 65 x 94 mm, sealed lead-acid 12V/9Ah, F2 terminals x 3 pcs (4 pcs for EG-UPS-PS3000-01)
  • Charge time: up to 12 hours

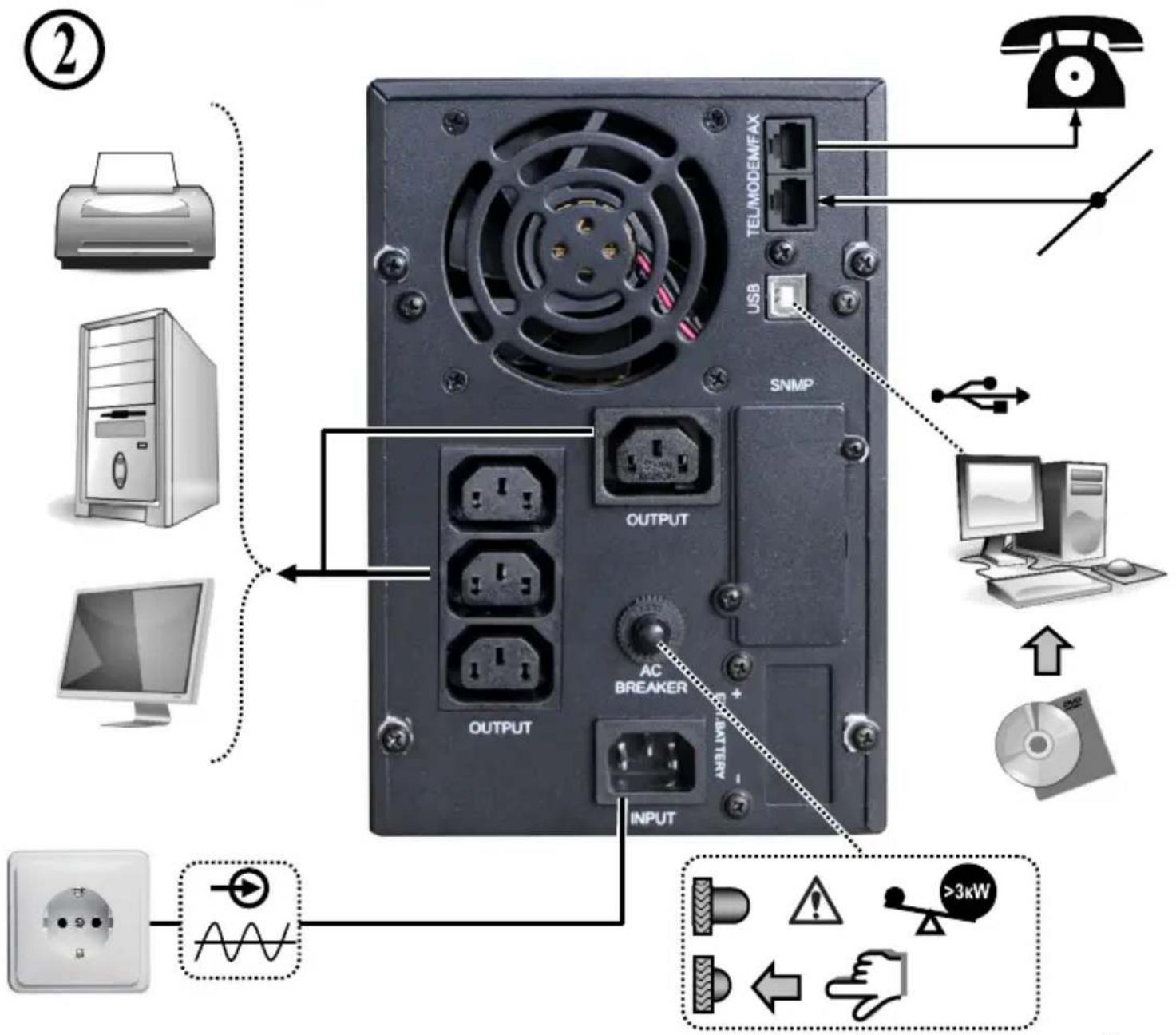

• Sockets: C14 input, 4 outputs x C13; USB-BF connector
• Operating conditions: 0°C\~40°C, at humidity 10\~90%RH non condensing
  • Power: 2000VA (1600 W) (3000VA (2400 W) for EG-UPS-PS3000-01)
  • Charging current: up to 1.2 A (up to 1.7 A for EG-UPS-PS3000-01)
  • Noise: < 50 dB at 1 m distance
• Dimensions: 412 x 215 x 144 mm (467 x 336 x 190 mm for EG-UPS-PS3000-01)
  • Product weight: 18.5 kg (28.1 kg for EG-UPS-PS3000-01)

energenie

EG-UPS-PS2000-01

EG-UPS-PS3000-01

PURE SINE WAVE UPS, LCD DISPLAY, USB

All brands and logos are registered trademarks of their respective owners

energenie

EG-UPS-PS2000-01

EG-UPS-PS3000-01

PURE SINE WAVE UPS, LCD DISPLAY, USB

All brands and logos are registered trademarks of their respective owners

energenie

EG-UPS-PS2000-01

EG-UPS-PS3000-01

PURE SINE WAVE UPS, LCD DISPLAY, USB

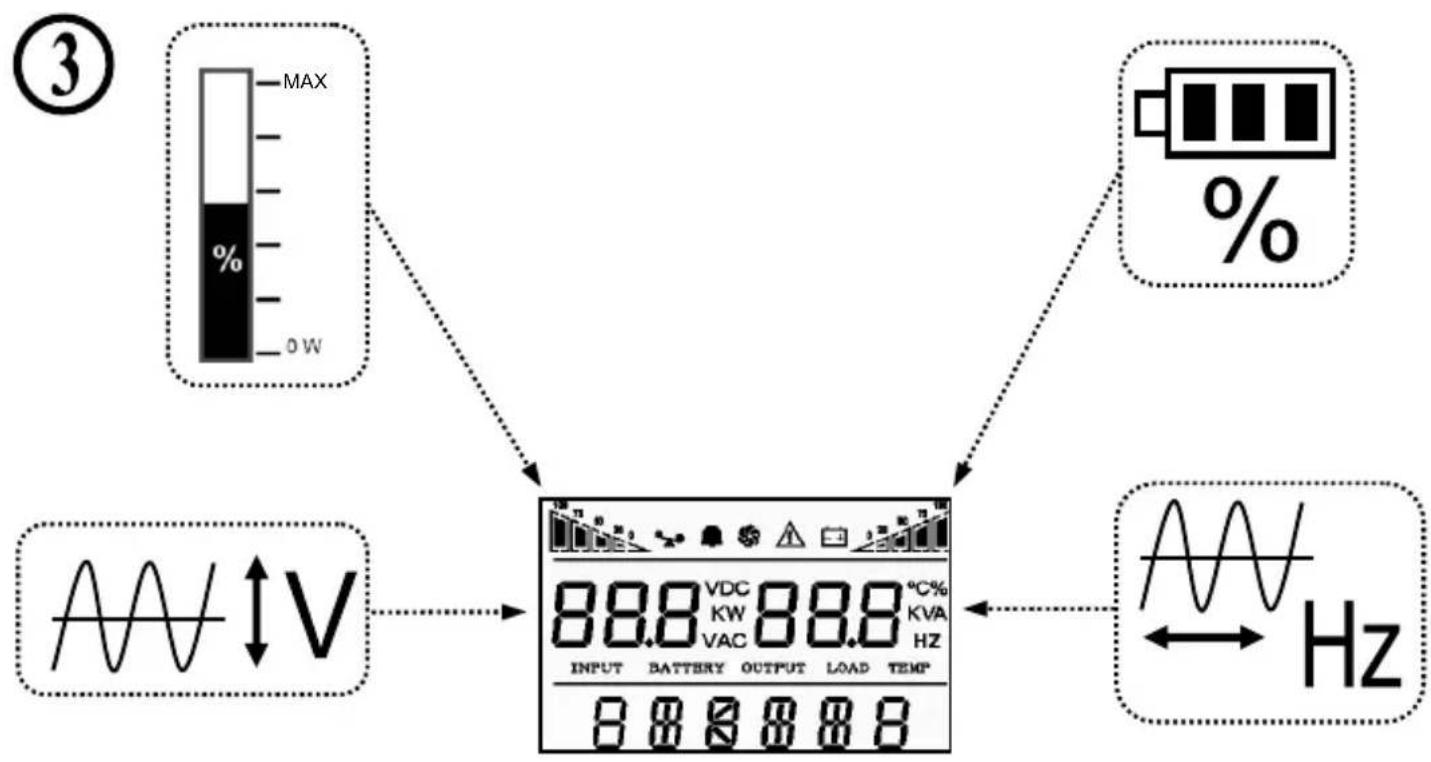

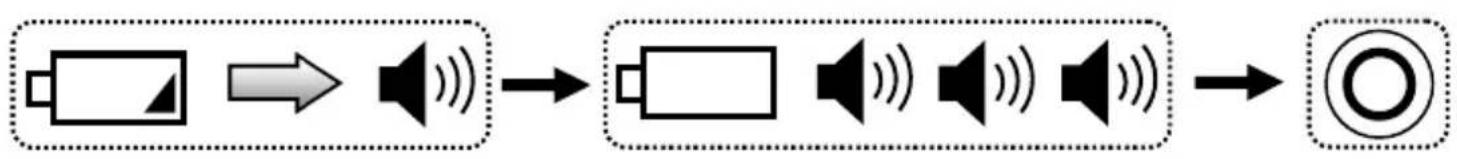


Key combination	Function introduction
	Press the two keys for 3 seconds to start up.
	Press the two keys for 3 seconds to shut down.Press the setting interface for 5 seconds to restore factory settings and exit the setting interface.
	Press “ ” momentarily to enable inverter mute.In the utility power mode, press “ ” momentarily to enable the battery discharge testing for 15 seconds.
	Press the key for 5 seconds to enter the setting interface.Press the key momentarily in the setting interface to turn the page.Press the key for 3 seconds to exit the setting interface without saving data.Select the item to be set in the setting interface. After selecting the required setting, page down to “save and exit” page. Choose “Yes”, press “ ” momentarily to save the date and exit the setting mode.In non-setting mode, momentarily press the key twice, and the LCD display content rotates.In setting mode, when it goes to SAVE page, press “ ” or “ ” momentarily, choose “Yes”, press “ ” to complete the setting and exit the mode.
	In non-setting mode, press the key momentarily to turn the page (page up).In setting mode, the parameter decreasing iterates.
	In non-setting mode, press the key momentarily to turn the page (page down).In setting mode, the parameter decreasing iterates.In non-setting mode, press the key for 2 seconds to enter the state of automatic page up/down and re-press the key for 2 seconds to exit the state of automatic page up/down.

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
