Product Type	Rack-mountable Uninterruptible Power Supply (UPS)
Brand	EnerGenie
Model	UPSRACK2000
Apparent Power	2000 VA
Active Power	1600 W
Wave Type	Pure Sine Wave
Typical Backup Time (Half Load)	Approximately 10 minutes
Dimensions (W x D x H)	482 x 400 x 88 mm (2U rack)
Weight	Approximately 18 kg
Battery Type	Sealed lead-acid, maintenance-free
Input Voltage	200-240 V AC
Output Voltage	220-240 V AC
Output Outlets	8 IEC C13 outlets + 1 C19 outlet
Communication Interfaces	USB, RS-232, slots for SNMP card
Surge Protection	Built-in (with varistor)
Telephone/RJ45 Network Protection	Yes (2-pair input/output)
Cold Start Function	Yes
LCD Display	Yes (displays voltage, load, alarms)
Cooling	Variable speed fan
Operating Temperature	0°C to 40°C
Relative Humidity	20% to 90% non-condensing
Noise Level	< 45 dB (depending on load)
Maintenance and Cleaning	External dusting with a dry soft cloth. Do not use solvents.
Safety	CE compliant, mandatory grounding.
Spare Parts and Repairability	User-replaceable battery (standard type). Other parts: authorized service center.

Frequently Asked Questions - UPSRACK2000 EnerGenie

How to install the UPSRACK2000 in a rack?

Attach the provided mounting brackets to the sides of the UPS, then slide the unit into the rack ensuring it is well supported. Screw the front brackets to secure the device.

What is the backup time of the UPSRACK2000 at full load?

At full load (2000 VA / 1600 W), the backup time is approximately 3 to 5 minutes. At half load, it can reach 10 to 15 minutes.

Can I replace the battery myself?

Yes, the battery is accessible through the front panel. Use an identical replacement battery (sealed lead-acid type). Disconnect the UPS from mains before any intervention.

What to do if the UPS emits a continuous beep?

A continuous beep generally indicates a faulty battery or an overload. Check the connected load and the battery status. If the battery is worn out, replace it.

Does the UPSRACK2000 protect against network surges?

Yes, it is equipped with surge protection with built-in varistor. It also protects telephone/RJ45 lines.

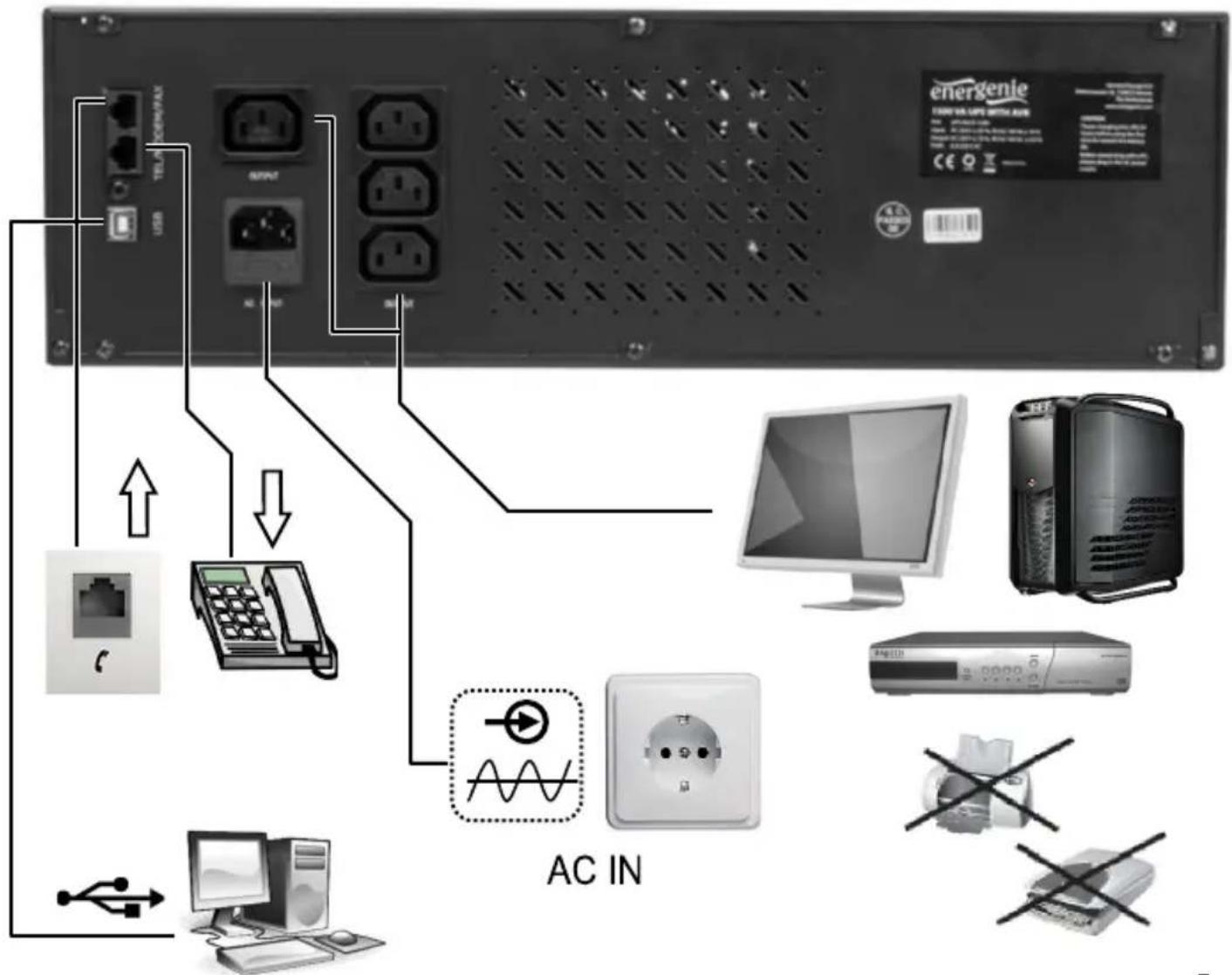

How to connect the UPS to a computer for management?

Use the provided USB or RS-232 cable to connect the UPS to your PC. Install the management software (downloadable from the EnerGenie website) to monitor and configure the device.

What is the typical battery lifespan?

Lead-acid batteries typically last 3 to 5 years under normal use. The lifespan depends on ambient temperature and the number of cycles.

Can I use the UPS as a voltage regulator continuously?

Yes, the UPSRACK2000 acts as an automatic voltage regulator (AVR) even in mains mode, smoothing voltage fluctuations without switching to battery.

What to do if the UPS does not turn on?

Check that the power cable is properly connected to a functional mains outlet. If the UPS remains off, the battery may be discharged; connect it to mains for at least 6 hours to recharge.

How to clean the UPSRACK2000?

Unplug the device and use a slightly damp soft cloth to wipe the casing. Do not use abrasive products or solvents. Ensure ventilation openings are clear.

USER MANUAL UPSRACK2000 EnerGenie

Automatic output voltage regulation (AVR)
- Rack 3.4U metal case
USB control interface

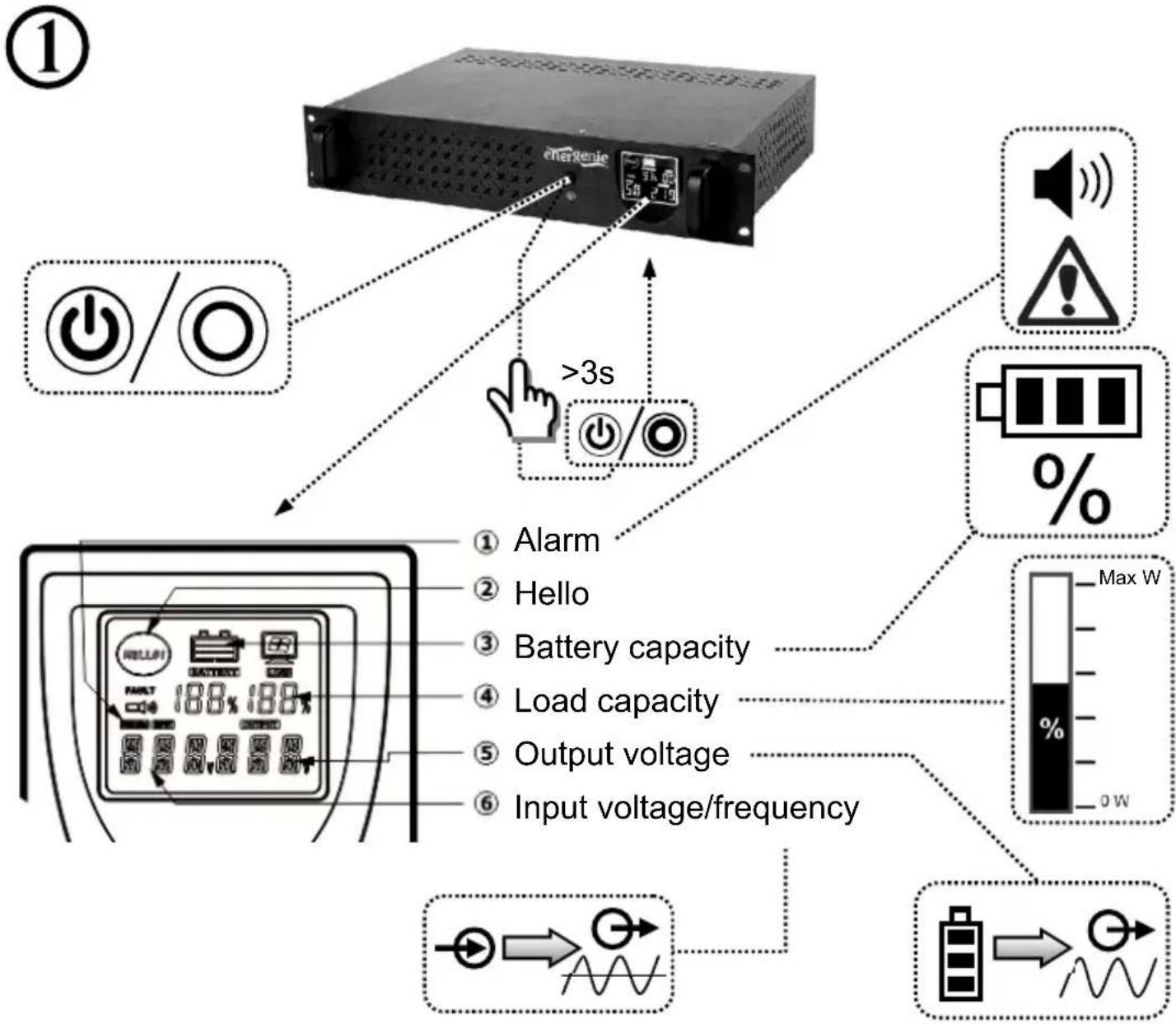

LCD display
Short circuit protection
- Compatible with power generators of any brand
- Surge, spike and lightning protection
Audible and visual alarms
Overcharge and overdischarge protection

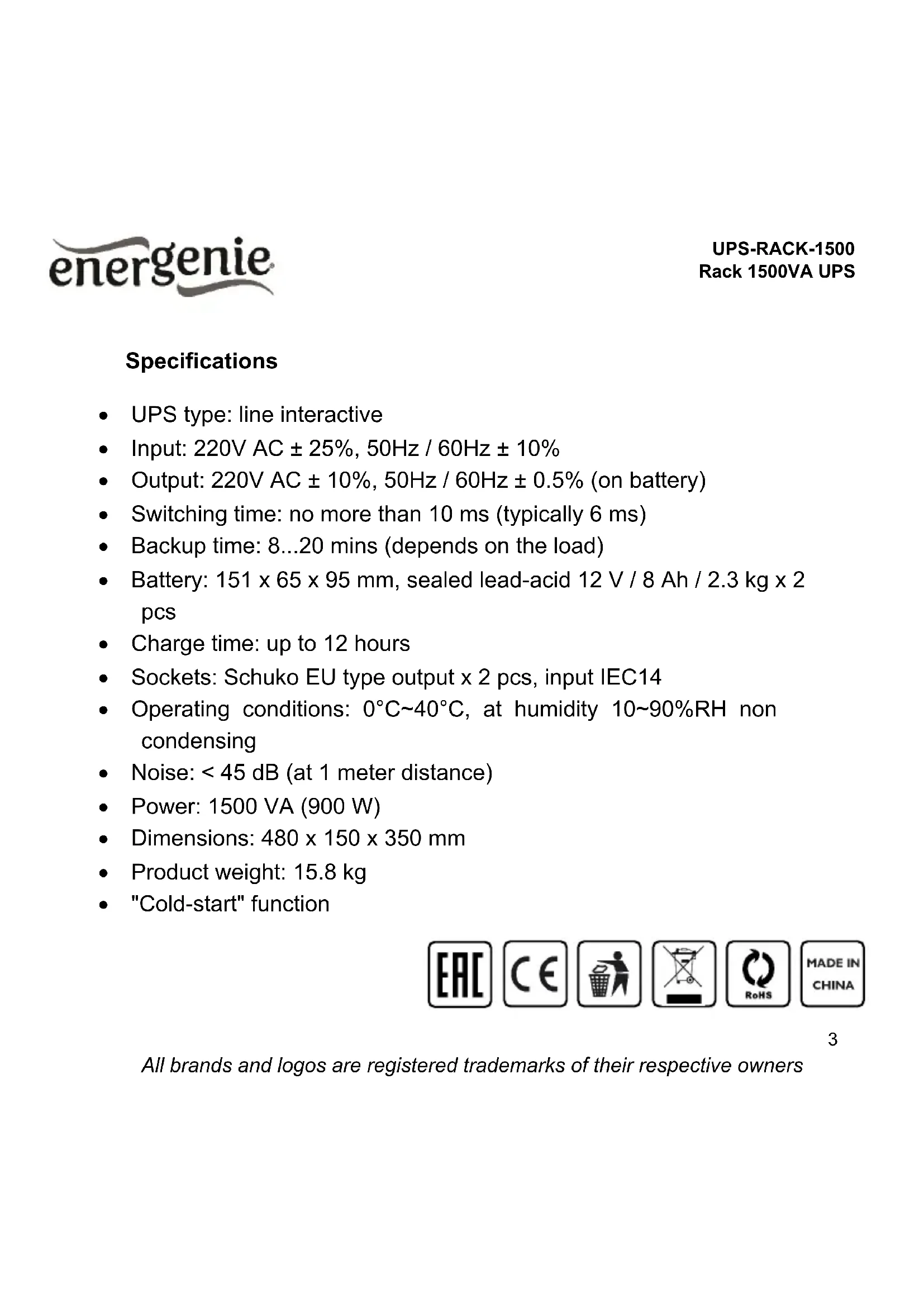

Specifications

UPS type: line interactive
Input: 220 VAC ± 25% ,50 Hz/60 Hz ± 10%
Output: 220V AC ± 10%, 50Hz / 60Hz ± 0.5% (on battery)
- Switching time: no more than 10 ms (typically 6 ms)
- Backup time: 8...20 mins (depends on the load)
- Battery: 151 × 65 × 95 mm ,sealed lead-acid 12 V/8Ah/2.3 kg × 2 pcs
Charge time: up to 12 hours
- Sockets: Schuko EU type output x 2 pcs, input IEC14
- Operating conditions: 0^ 40^ , at humidity 10 90% RH non condensing
- Noise: < 45 dB (at 1 meter distance)
Power: 1500 VA (900 W)
- Dimensions: 480 × 150 × 350 ~mm
Product weight: 15.8kg
- "Cold-start" function

All brands and logos are registered trademarks of their respective owners

All brands and logos are registered trademarks of their respective owners

2

All brands and logos are registered trademarks of their respective owners

(ENG) Declaration of conformity This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu	(NL/BE) Verklaring van overeenstemming Dit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot LVD(2006/95/EC), EMC(2004/108/EC). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op unsere website: www.gembird.eu
(FR/BE) Déclaration de conformité Le produit est contrôle et rempli les exigences des directives nationales et de la directive LVD(2006/95/EC), EMC(2004/108/EC). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu	(DE) Konformitätserklärung Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie LVD(2006/95/EC), EMC(2004/108/EC) überein. Die Konformitätserklärung kann auf unserer Webseite www.gembird.eu heruntergeladen werden.
Deklaracja zgodność Ten produkt zostawPTRzetestowy i jest zgodny z zasadniczymi wymaganiani mi przypisów ustawowych państwoczłonkowskich dotycznych LVD(2006/95/EC), EMC(2004/108/EC). Deklaracja CE znejduje są pod adresemwww.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

All brands and logos are registered trademarks of their respective owners
