USER MANUAL LB934 SABO

= 98,0 dB(A) Vibration

= 98,0 dB(A) Vibration

PROBLÈME CAUSE POSSIBLE SOLUTION

= 98.0 dB(A) Vibration

8. Battery release button

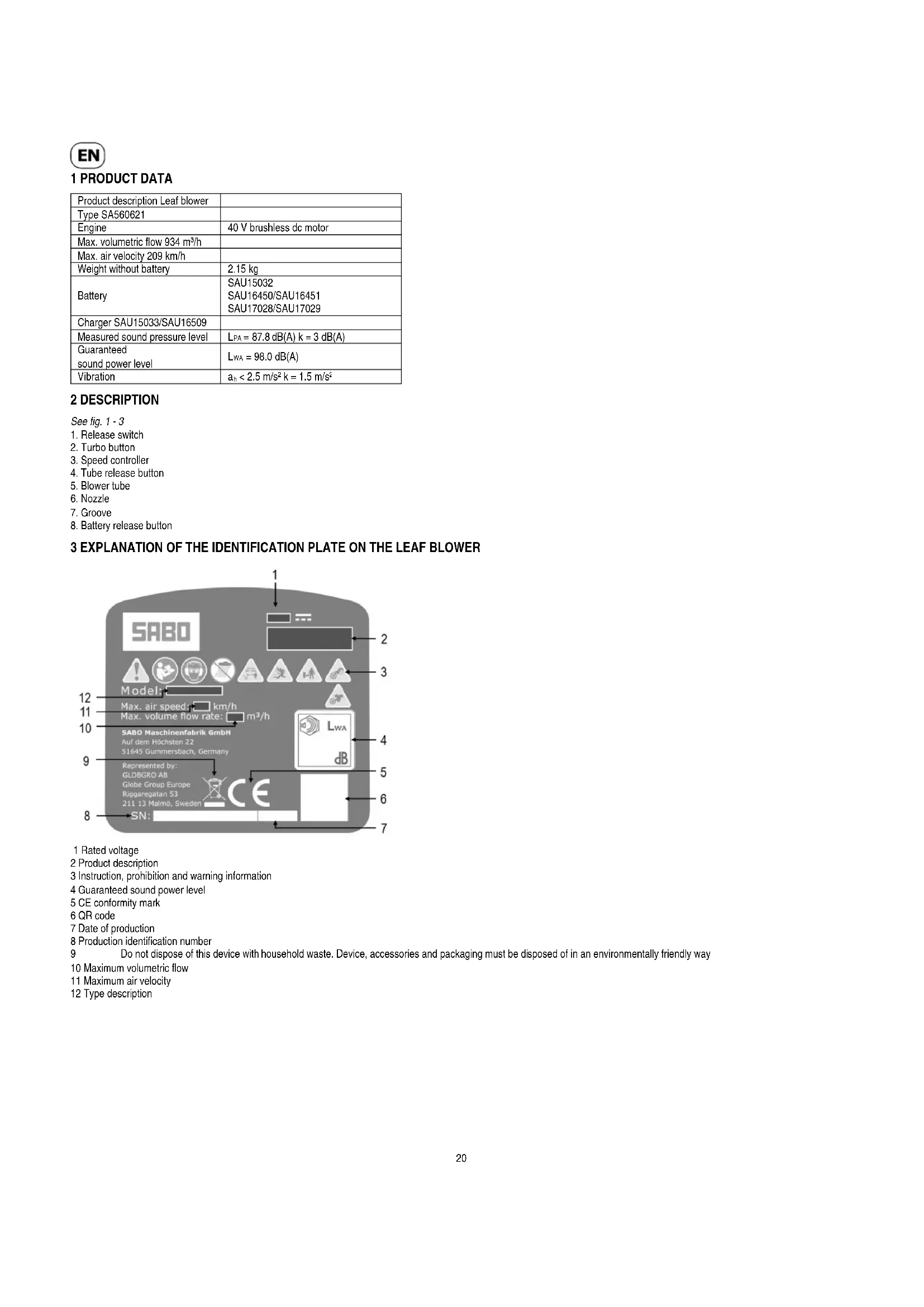

3 EXPLANATION OF THE IDENTIFICATION PLATE ON THE LEAF BLOWER 1 Rated voltage 2 Product description 3 Instruction, prohibition and warning information 4 Guaranteed sound power level 5 CE conformity mark 6 QR code 7 Date of production 8 Production identification number 9 Do not dispose of this device with household waste. Device, accessories and packaging must be disposed of in an environmentally friendly way 10 Maximum volumetric flow 11 Maximum air velocity 12 Type description21

4 EXPLANATION OF THE SYMBOLS

The following symbols are found on the device. Familiarise yourself with these symbols and note their meaning. A correct understanding of these symbols will allow you to use your device safely and appropriately. SYMBOL DESCRIPTION/EXPLANATION Important safety measures. This is about your safety. Read the operating instructions and observe the warnings and safety requirements. Wear eye and ear protection. Objects can collide and cause injuries or damage. Keep others at a safe distance. Keep persons, especially children and animals, at least 15 m from the work area. Do not use this device in the rain and do not leave outside in the rain. If long hair is not kept away from the air inlet, injuries may occur. If loose clothing is not prevented from being drawn into the air inlet, injuries may occur. The following signal words and meanings indicate the degree of risk associated with this product.

Describes an immediate dangerous situation that, if it is not prevented, can lead to death or serious injuries.

Describes a possible dangerous situation that, if it is not prevented, can lead to death or serious injuries. ATTENTION! Describes a possible dangerous situation that, if it is not prevented, can lead to minor and moderate injuries. ATTENTION! (without safety symbol) Describes a situation which can lead to material damage. NOTE Describes information that will help you better understand the operation of the device. 5 INTENDED USE

• The appliance may only be used for the following purposes: o Cleaning hard surfaces, such as entrances and paths. o Clearing leaves and pine needles from terraces and entrances. Any use going beyond this is not considered proper use; the manufacturer is not liable for any damage resulting from such use, the risk is borne by the user alone. Proper use also includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.

• Special care is required during use in public areas, parks, sports facilities, on roads and in agricultural and forestry operations.

• The leaf blower must not be used, in particular, to clean objects that are not on the ground, e.g. hedges, walls, etc.!!!

• Please note that this device is not designed for commercial, trade or industrial use. We accept no warranty claims if the appliance is used in commercial, trade or industrial companies or equivalent activities.

• The use of any additional equipment and attachments not approved by the manufacturer is prohibited. If such additional equipment and attachments are used, the CE conformity and guarantee shall be null and void. Unauthorised modifications to this leaf blower exclude the manufacturer from liability for any damage resulting from these modifications

• There is a residual risk despite the intended use and particular care of the user. Use the device with care at all times. Possible dangers are: o Cuttings, earth and smaller stones thrown by the blower o Inhalation of swirling dirt particles, as well as spores and other pathogens, if a face mask is not worn. o Damage to hearing if you do not wear ear protection o Injuries to eyes if safety goggles are not worn22 Safety datasheet Your leaf blower has been developed and produced according to the quality standards with the highest levels of reliability, user-convenience and user safety. It maintained carefully, the device will work reliably and fault-free for many years. This device may be used by children aged 8 and above and by persons with impaired physical, sensory or mental aptitude or lack of experience and knowledge if they are supervised or have received instructions about the safe use of the device and the related dangers. Children must not play with the device. Cleaning and proper maintenance may not be performed by unsupervised children.

6 GENERAL SAFETY REGULATIONS

WARNING When using battery-powered devices, the fundamental safety provisions must be complied with in order to lower the risk of fire, injury and leaks of liquid. KEEP THESE INSTRUCTIONS SAFE. READ THEM REGULARLY AND EXPLAIN THEM TO ANYONE WHO MAY WANT TO USE THIS DEVICE. IF YOU LEND THIS DEIVCE, PLEASE ALSO PASS ONTHESE INSTRUCTIONS. The term "power tool" used in the safety information refers to mains-powered electric tools (with mains cable) and to battery-powered tools (without mains cable). Workplace safety

• Keep your work area clean and well lit. Messy or unlit work areas can lead to accidents.

• Do not use the power tool in an explosive environment with flammable liquids, gases or dust. Power tools generate sparks, which can ignite the dust or vapours.

• Keep children and other persons at a distance when using the power tool. If distracted, you may lose control of the device.

• Do not use the device in bad weather if there is a danger that lightning could strike. Electrical safety

• Avoid physical contact with earthed surfaces such as pipes, heaters, ovens and fridges. There is an increased risk of electric shock if your body is earthed.

• Keep power tools out of the rain and moisture. Water penetrating a power tool increases the risk of an electric shock. Personal safety

• Be alert. Be mindful of what you are doing and take care when working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention during use of the power tool can lead to serious injuries.

• Wear personal protective equipment and always safety goggles. Wearing personal protective equipment such as dust masks, non-slip safety gloves, a helmet or ear protectors reduces the risk of injuries depending on the type and use of power tool.

• Avoid accidental start up. Ensure that the power tool is switched off before inserting the battery, lifting or carrying it. Touching the switch with your fingers while carrying the power tool or inserting the battery while the power tool is on can lead to accidents.

• Remove adjustment tools or screw keys before switching on the power tool. A tool or key inside a rotating part of the device can lead to injuries.

• Avoid unergonomic postures. Make sure you have a firm footing and keep your balance at all times. This allows you to control the power tool better in unexpected situations.

• Wear appropriate clothing. Do not wear loose-fitting clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose-fitting clothing, jewellery and long hair can get caught in moving parts. Careful handling and use of power tools

• Do not overload the tool. Use the right power tool for your task. You can work better and more safely within the specified performance range with the right power tool.

• Do not use a power tool with a defective switch. A power tool which can no longer be switched on or off is dangerous and must be repaired.

• Remove the battery before adjusting settings, replacing accessories or after use. The safety provisions prevent the power tool from starting accidentally.

• Store all unused power tools out of the reach of children. Do not let persons use the device who are unfamiliar with it or who have not read these instructions. Power tools are dangerous if they are used by inexperienced persons.

• Carefully maintain your device. Check that the moving parts work correctly. Make sure that no part of the device is damaged. Check the assembly and all other elements that could affect the operation of the device. If parts are damaged, you must have your device repaired before use. Many accidents are caused by poorly maintained power tools.

• Use power tools, accessories, tool bits, etc. according to their instructions. Consider the working conditions and work to be performed. The use of power tools for purposes other than the intended uses can lead to dangerous situations. Specific safety provisions for battery-powered devices

• Before inserting the battery, make sure that the switch is either at "Off" or is locked. Inserting a battery into a switched-on device can lead to accidents.

• Charge your device's battery only with the charger specified by the manufacturer. An unsuitable charger can cause a fire if it is used with a battery type other than that specified by the manufacturer.

• For each battery-powered tool there is a specific battery type that must be used. The use of a different battery can cause a fire.

• Keep an unused battery away from metal objects such as paperclips, coins, keys, screws, nails and all other objects that could come into contact with battery contacts. A short circuit of the battery can cause burns or fires.

• Avoid all contact with battery fluid due to misuse. If battery fluid escapes, the affected area must be rinsed with fresh water. See a doctor if battery fluid comes into contact with the eyes. Leaked battery fluid can cause irritations or burns.

All safety information regarding the handling, storage, safekeeping, transport, disposal of the lithium-ion battery and first-aid measures and measures for combating fires is contained in the "Product safety datasheet" at www.sabo-online.com under Instructions. Information hotline for lithium ion batteries [phone] Repair Have your power tool repaired only by a qualified expert and only with original spare parts. This ensures that the power tool remains safe.

• When working with this device, do not touch the fan.

• Make sure that the device's handles are always clean and dry. 7 INSTRUCTION

• Read the instructions carefully. Familiarise yourself with the operating elements and correct device operation.

• Never let children, persons with restricted physical, sensory or mental capacity or without experience or knowledge, or persons unfamiliar with these instructions, to use the product. Local provisions may limit the age of the user.

• Never use the device if persons, particularly children, or animals are nearby.

• The operator or user is responsible for accidents with or dangers to other persons or their property. PREPARATION

• When using the device, always sturdy shoes and long trousers.

• Never work with the machine in bare feet or open sandals. Avoid wearing loose clothing or clothing with cords or belts.

• Do not wear loose clothing or jewellery, which could be sucked into the air inlet. Keep long hair away from the air inlets.

• Wear ear protection and safety goggles. Wear these the entire time you are using the machine.

• To prevent dust irritations, the use of a face mask is recommended.

• Use the machine only on a solid, flat base. Avoid abnormal postures.

• Do not use this machine on a paved surface or on gravel, where material can be disturbed and lead to injuries.

• Before use, always perform a visual inspection in order to ensure that all closures are secure, the housing is not damaged and all safety equipment is fitted. Replace worn or damaged parts. Replace damaged or illegible labels. OPERATION

• Working technique o Slightly angle the nozzle down and proceed slowly o Swing the appliance right and left in order to blow away the swept leaves.

• Only use the machine in daylight or good artificial light.

• Beware of slopes and steps on a solid base.

• Keep all air inlets free of dirt.

• Never blow leaves towards people.

• Before starting the machine, make sure the nozzle is empty.

• Keep your face and body away from the nozzle opening.

• Do not place your hands or other parts of your body or clothing in the nozzles, the ejector shaft or close to moving parts.

• Check the device before use to ensure that there are not foreign objects or dirt in the machine.

• Do not use expose the machine to rain when in use. Do not use the device in bad weather if there is a danger that lightning could strike.

• Do not place your hands, other parts of your body or clothing in or in front of the nozzles or close to moving parts.

• Never use the machine with defective protective equipment, shields or fitted safety equipment.

• In order to prevent damage to the motor or a resulting fire, keep the motor free of foreign objects or other deposits.

• Always keep away from the outlet area when using this machine.

• Do not over-estimate yourself. Always make sure you have a firm stance. This allows better control in unexpected situations.

• Stop the machine and remove the battery. Ensure that all moving parts have come to a complete stop: o if the machine is left unsupervised. o before removing the blockages o before you inspect or clean the machine or carry out work on it. o to inspect the device after strong contact with an object o if the machine starts to vibrate strangely (immediate inspection necessary).

• Take care to ensure that the device is in a safe working condition, that all screws, nuts and bolts are tight.

• Replace worn or damaged parts.

• Only use original spare parts and accessories.

• Store the device in a dry location and out of the reach of children.

• Do not touch dangerous, moving parts before the machine has stopped and the dangerous, moving parts have come to a complete stop.

• Always allow the machine to cool before putting it away.

• Never try to disable the protective equipment locks.

• Store the device indoors and do not expose it to rain or water and keep out of direct sunlight. 8 ASSEMBLY UNPACKING

• Carefully remove the product and accessories from the box.

• Carefully inspect the product and make sure that no damage has occurred during the transport.

• Do not immediately dispose of the packaging material until you have carefully inspected and successfully used the product.

• If parts are damaged or missing, please contact the retailer.24 WARNING Do not use this product if parts listed on the packing list are already fitted to your product when you unpack it. The parts on this list have not been prefitted to the product by the manufacturer and must be fitted by the customer. The use of a product, which has not been correctly fitted, can lead to serious injuries. PACKING LIST

• Operating instructions

ASSEMBLING THE BLOWER TUBE

See figure 1 and 2 WARNING When connecting parts, always remove the battery from the battery from the hand-held tool to prevent accidental switching on, which could cause injuries.

• Slide the blower tube (5) onto the leaf blower until the tube release button (4) has locked in the groove (7). NOTE You can use the nozzle (6) to increase air velocity.

• Press and hold the tube release button (4) while you remove the blower tube (5) from the leaf blower.

INSERTING THE BATTERY

See figure 3 WARNING When inserting the battery into your leaf blower, ensure that the ridges on the battery are correctly aligned with the grooves inside the device and the lock tabs are correctly locked. Incorrect insertion of the battery can damage internal components.

• Align the bars on the battery with the slots in the battery compartment.

• Push the battery into the battery compartment until the battery release button (8) locks.

• Press the battery release button (8).

• Hold the leaf blower tight and pull the battery out of the holder. 9 OPERATION WARNING Always beware of your feet, children or animals nearby when pressing the button to release the battery. Serious injuries can occur if the battery falls out. Never remove the battery if you are in a high location. WARNING Always remain alert, even after you have become familiar with your device. Note that a second of inattention can cause a serious injury. WARNING Always wear eye protection with side protection, which is labelled according to ANSI Z87.1, and ear protection. Failure to wear protection exposes you to the risk of eye injury from flying objects or other serious injuries. WARNING Do not use accessories that are not recommended by the manufacturer of this product. Using this product with attachments or accessories that are not recommended can lead to serious injuries. Before use, first inspect the entire product for damaged, missing or loose parts, such as screws, nuts, bolts, covers, etc. Tighten all the fastenings and covers and do not use the product until all the missing or damaged parts have been replaced.25 10 APPLICATION

CHARGE BEFORE INITIAL USE

WARNING Before assembling parts, adjusting settings, cleaning or when not in use, always remove the battery from the product first. Removing the battery prevents accidental switching-on, which could cause serious injuries.

START/STOP THE BLOWER

See fig. 1 and 4 WARNING Always wear safety goggles when using this device. In dusty areas, wear a face or dust mask. WARNING To avoid serious injuries or damage to the device, make sure that the blower tube is fitted before using the device.

• Ensure that the battery is inserted into the leaf blower.

• Push the release switch (1) to start the leaf blower.

• Release the release switch (1) to stop. NOTE Wait until the motor has stopped after you have released the release switch (1) or have turned down the speed controller (3). SPEED CONTROLLER See Fig. 1 and 5 This leaf blower is fitted with a speed controller (3).

• Press the release switch (1) to start the device.

• After starting the device, press the speed controller (3) down to increase the speed. You can then set the speed to the desired level.

• To reduce the speed, turn the speed controller (3) up to reduce the speed to the desired level. NOTE: If you lower the speed completely, the device is switched off and you have to repeat the first step. TURBO BUTTON See figure 1

• Press the Turbo button (2). The machine is running at maximum speed.

• Release the Turbo button (2). The machine is running at normal speed.

• Blow around the outer edges of piles of brushed leaves to prevent them being spread again. Never blow directly into the middle of a pile.

• To reduce the noise level, limit the number of appliances being used simultaneously.

• Use brushes and rakes to loosen the leaves before blowing. In dusty conditions, moisten surfaces slightly if water is available.

• Beware of children, animals, open windows or cars and blow leaves in a safe manner.

• Clear up after using blowers or other devices. Properly dispose of the leaves.

11 MAINTENANCE AND CARE

WARNING Remove the battery before adjusting, inspecting or cleaning the leaf blower in order to prevent injuries and the risk of fire and electric shock. BATTERY

• Store the battery charged.

• After the charger's LED turns green, remove the battery from the charger and disconnect the charger from the power supply.

• Charge the battery every time you observe that it is losing power. Never fully discharge the battery.

• After charging, the battery can be stored in the charger as long as the charge is not connected to the mains. WARNING Only use original spare parts when replacing parts. The use of other parts can lead to danger or damage your device. Do not use solvents to clean the plastic parts. Most plastics can be damaged by solvents available from retailers. Use a clean cloth to remove dirt, dust, oil, grease, etc.26 WARNING Never allow brake fluid, petrol, petrol-based products, invasive oils etc. to come into contact with the plastic elements. These chemical products contain substances that can damage, weaken or destroy the plastic.

12 STORING THE LEAF BLOWER

Clean your leaf blower thoroughly before putting it away. Store the leaf blower in a dry, well-ventilated location and out of the reach of children. Do not store the leaf blower close to caustic materials such as chemical garden products or salt for de-icing.

• Store and charge the battery in a location at normal ambient temperature. At temperatures below or above normal ambient temperature, the life of the battery is reduced.

• After the charger's LED turns green, remove the battery from the charger and disconnect the charger from the power supply.

• Never store the battery discharged. After using the device, wait until the battery has cooled and immediately recharge it.

• The battery's capacity declines over time. The higher the temperature, the faster the battery loses its capacity. If you do not use your device for longer periods, you should charge the battery every month or every two months. This extends the life of the battery. 13 TROUBLESHOOTING See figure 1

PROBLEM POSSIBLE CAUSES SOLUTION

The motor does not start when you press the release switch (1) on the device. There is no electrical contact between the machine and the battery.

insert the battery. The battery is empty. Charge the battery. The release switch (1) is defective. Have defective parts replaced by an authorised retailer. The device does not start The release switch (1) is defective. Have defective parts replaced by an authorised retailer.The motor is defective. The electronic circuit is defective. The device starts, but air does not flow through the tube. The blower tube or the air inlet is clogged. Check the inlet opening and the blower tube for blockages to the airflow. In this case remove the blockage. The speed controller (3) is not working. The screw is loose. Use a screwdriver to tighten the screw.

14 DISPOSING OF THE DEVICE

Do not dispose of electric devices with household waste. Dispose of these devices at recycling centres. Contact the relevant authorities or your retailer for information about this. The separate collection of used products and packaging allows materials to be recycled. The reuse of materials helps to prevent pollution and reduces the need for raw materials. Dispose of batteries at the end of their use and consider the environment. The battery contains material that is dangerous to you and the environment. Therefore, it must be disposed of separately in a facility that accepts lithium-ion batteries.

= 98,0 dB(A) Trilling

= 98,0 dB(A) Vibrazioni a

EU DECLARATION OF CONFORMITY

Manufacturer: SABO Maschinenfabrik GmbH Address: Auf dem Höchsten 22, 51645 Gummersbach, Germany Represented by: GLOBGRO AB, Globe Group Europe Riggaregatan 53, 211 13 Malmö, Sweden Name and address of the person who is authorised to compile the technical documentation: Name: Peter Söderström Address: Riggaregatan 53, 211 13 Malmö, Sweden We herewith declare that the product Category: 40V cordless leaf blower With this device, air is blown through a tube to move debris, such as leaves. Model: SA560621 Serial number: see product rating plate Year of manufacture: see product rating plate

• complies with the corresponding conditions of the Machinery Directive (2006/42/EC)

• complies with the conditions of the following other directives: EMC Directive: 2014/30/EU Directive 2000/14/EC on noise emissions as amended by 2005/88/EC RoHS Directive 2011/65/EC as amended by 2015/863/EC and we also declare that the following (parts/conditions from) European harmonised standards have been applied EN 60335-1, EN 50636-2-100 EN 62233, IEC 62321-3-1, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8

EN ISO 3744, ISO 11094

EN 55014-1, EN 55014-2 Measured sound power level: 87.8 dB(A) Guaranteed sound power level: 98.0 dB(A) Conformity assessment method following Directive 2000/14/EC Annex V. Place, date: Malmö, 01/01/2021 Signature:
