| Product Type | Cordless Leaf Blower |
| Brand | SABO |
| Model | LB660 |
| Manufacturer Reference | SA560520 |
| Power Supply | Lithium-ion battery 40 V DC |
| Compatible Battery Models | SAU16450 / SAU16451 |
| Compatible Charger Models | SAU15033 / SAU16509 |
| Maximum Air Flow | 11.05 m³/min |
| Maximum Air Speed | 177 km/h |
| Weight (without battery) | 1.9 kg |
| Sound Pressure Level (LPA) | 87.6 dB(A) (uncertainty 3 dB(A)) |
| Guaranteed Sound Power Level (LWA) | 104 dB(A) |
| Vibrations (ah) | < 2.5 m/s² (uncertainty 1.5 m/s²) |
| Speed Regulator | Yes, progressive |
| Blower Tube Length | Approx. 60 cm (not specified, estimated) |
| Recommended Safety Distance | 15 m from people and animals |
| Required Protective Equipment | Safety glasses, hearing protection, closed shoes, long pants |
| Routine Maintenance | Clean with a dry cloth, remove battery before any intervention |
| Storage | In a dry and ventilated place, out of reach of children |
| Available Spare Parts | Blower tube (ref. SAA12594) |
| Warranty | Manufacturer's warranty according to conditions (not specified) |
Frequently Asked Questions - LB660 SABO
User questions about LB660 SABO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Blower in PDF format for free! Find your manual LB660 - SABO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LB660 by SABO.
USER MANUAL LB660 SABO
Cordless Leaf Blower
OPERATOR'S MANUAL
Snoerloze blaasmachine
BEDIENINGSHANDLEIDING

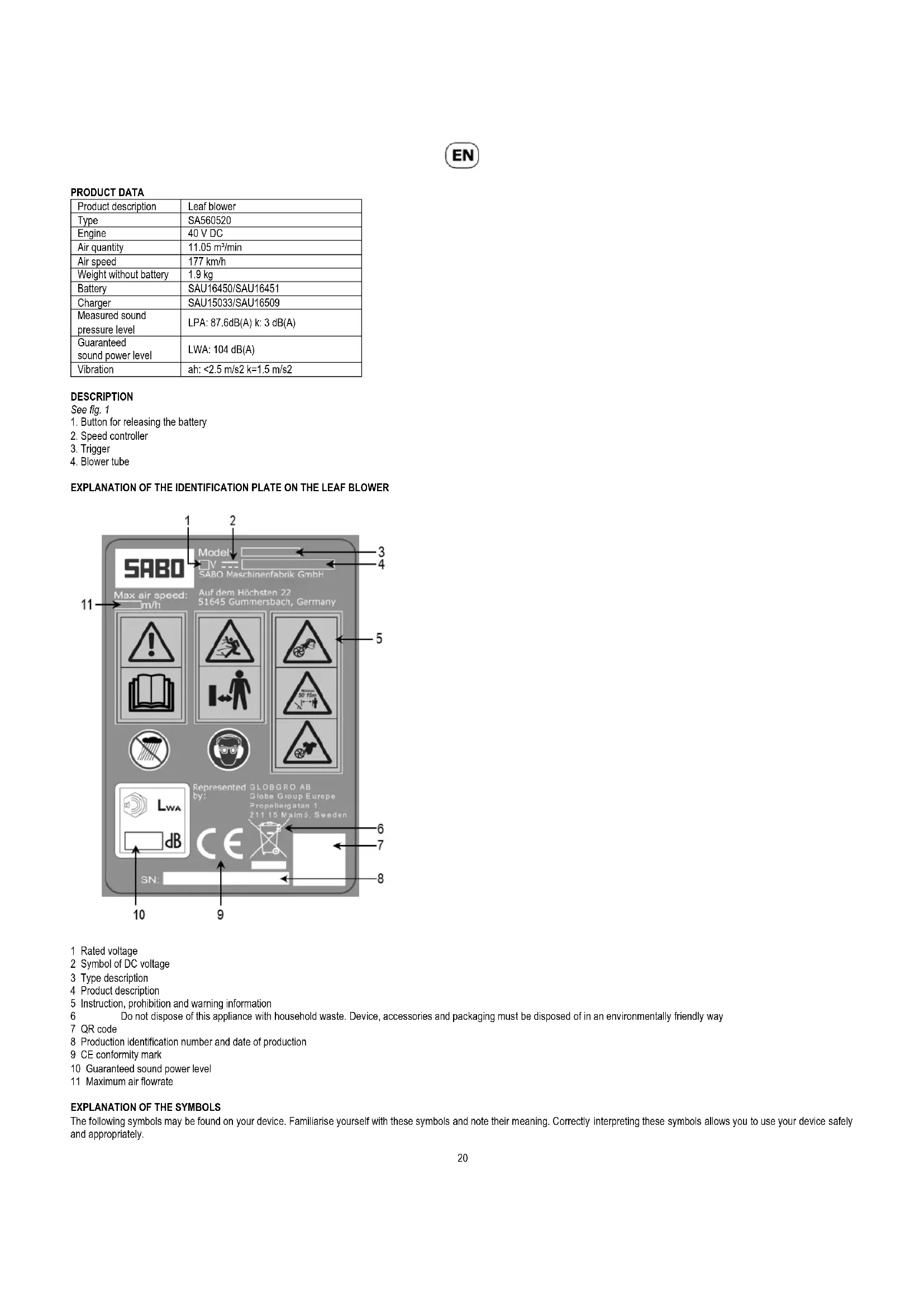

CHARACTERISQUES DU PRODUIT
- Button for releasing the battery
- Speed controller
- Trigger
- Blower tube

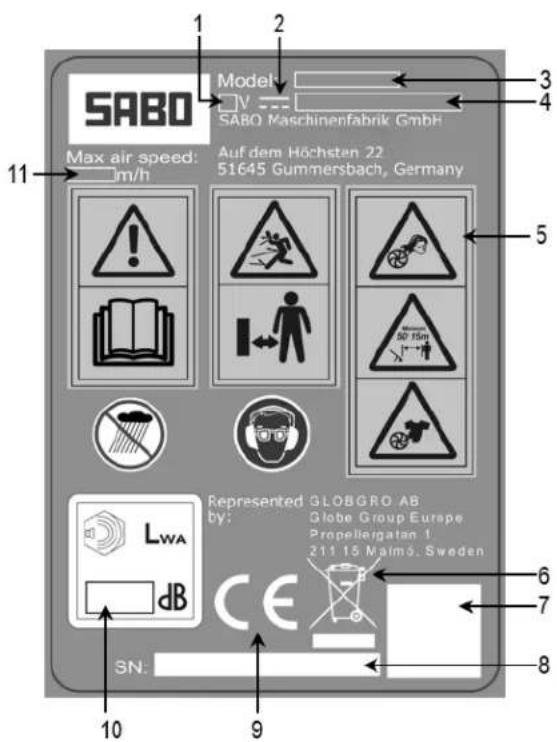

EXPLANATION OF THE IDENTIFICATION PLATE ON THE LEAF BLOWER
1 Rated voltage
2 Symbol of DC voltage
3 Type description
4 Product description
5 Instruction, prohibition and warning information
Do not dispose of this appliance with household waste. Device, accessories and packaging must be disposed of in an environmentally friendly way
7 QR code
8 Production identification number and date of production
9 CE conformity mark
10 Guaranteed sound power level
11 Maximum air flowrate
EXPLANATION OF THE SYMBOLS
The following symbols may be found on your device. Familiarise yourself with these symbols and note their meaning. Correctly interpreting these symbols allows you to use your device safely and appropriately.
| SYMBOL | DESCRIPTION/EXPLANATION |
| A | Important safety measures This is about your safety. |
| B | Read the operating instructions and note the warnings and safety requirements. |
| C | Wear eye and ear protection. |
| D | Objects can collide and cause injuries or damage. Keep away from other persons. |
| E | Keep persons, especially children and animals, at least 15 m from the work area. |
| F | Do not use this device in the rain and do not leave outside in the rain. |
| G | If long hair is not kept away from the air inlet, injuries may occur. |
| H | If loose clothing is not prevented from being drawn into the air inlet, injuries may occur. |
| The following signal words and meanings should highlight the degree of risk associated with this product. | ||
| SYMBOL | SIGNAL | MEANING |
| DANGER: | Describes an immediate dangerous situation that, if it is not prevented, can lead to death or serious injuries. | |
| WARNING: | Describes a possible dangerous situation that, if it is not prevented, can lead to death or serious injuries. | |
| ATTENTION! | Describes a possible dangerous situation that, if it is not prevented, can lead to small and medium injuries. | |
| ATTENTION! | (without safety symbol) Describes a situation, which can lead to material damage. | |
INTENDED USE
The appliance may only be used for the following purposes:
Cleaning hard surfaces, such as entrances and paths.
Clearing leaves and pine needles fro terraces and entrances.
Any use going beyond this is considered not proper; the manufacturer is not liable for any damage resulting from such use, the risk is borne by the user alone. Proper use also includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.
Special care is required during use in public areas, parks, sports facilities, on roads and in agricultural and forestry operations.
The leaf blower must not be used, in particular, to clean objects that are not on the ground, e.g. hedges, walls, etc..
Please note that this appliance has intentionally not been designed for commercial, trade or industrial use. We do not assume any guarantee if the appliance is used in commercial, trade or industrial companies or equivalent activities.
The use of any additional equipment and attachments not approved by the manufacturer is prohibited. If such additional equipment and attachments are used, the CE conformity and guarantee are considered null and void. Unauthorized modifications to this leaf blower exclude the manufacturer from liability for any damage resulting from these modifications
There is a residual risk despite the intended use and particular care of the user. Please always use the appliance with care. Possible dangers are:
- Throwing of cuttings, earth and smaller stones
Inhalation of disturbed dirt particles, as well as spores and other pathogens, if a face mask is not worn.
Damage to hearing if you do not wear ear protection
Injuries to eyes if safety goggles are not worn
Safety datasheet
Your leaf blower has been developed and produced according to the quality standards with the highest levels of reliability, user-convenience and user safety. It maintained carefully, the device will work reliably and fault-free for many years.
This device may be used by children aged 8 and above and by persons with impaired physical, sensory or mental aptitude or lack of experience and knowledge if they are supervised or have received instructions about the safe use of the device and the related dangers. Children must not play with the device. Cleaning and proper maintenance may not be performed by unsupervised children.
GENERAL SAFETY REGULATIONS
WARNING
When using battery-powered devices, the fundamental safety provisions must be complied with in order to lower the risk of fire, injury and leaks of liquid.
KEEP THESE INSTRUCTIONS SAFE. READ THEM REGULARLY AND EXPLAIN THEM TO ANYONE WHO MAY WANT TO USE THIS DEVICE. IF YOU LEND THIS DEVICE, PLEASE ALSO PASS ONTHESE INSTRUCTIONS.
The term "power tool" used in the safety information refers to mains-powered electric tools (with mains cable) and to battery-powered tools (without mains cable).
Workplace safety
- Keep your work area clean and well lit. Messy or unlit work areas can lead to accidents.
Do not use the power tool in an explosive environment with flammable liquids, gases or dust. Power tools generate sparks, which can ignite the dust or vapours. - Keep children and other persons at a distance when using the power tool. If distracted, you may lose control of the device.
- Do not use the appliance in bad weather if there is a danger that lightning could strike.
Electrical safety
- Avoid touching earthed surfaces such as pipes, heaters, ovens and fridges. There is an increased risk of electric shock if your body is earthed.
- Keep power tools out of the rain and wet. Water penetrating a power tool increases the risk of an electric shock.
Personal safety
Pay attention. Watch what you are doing and take care when working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention during use of the power tool can lead to serious injuries.
- Wear personal protective equipment and always safety goggles. Wearing personal protective equipment, such as dust masks, non-slip safety gloves, a helmet or ear protectors reduces the risk of injuries depending on the type and use of power tool.
- Avoid accidental start up. Ensure that the power tool is switched off before inserting the battery, carrying lifting or carrying it. If your finger touches the switch when carrying the power tool or if the battery is inserted when the power tool is on, it may lead to accidents.
- Remove setting tools or screw keys before switching on the power tool. A tool or key inside a rotating tool can lead to injuries.
- Avoid unergonomic postures. Make sure you are standing on safe base and keep your balance at all times. This allows you to control power tool better in unexpected situations.
Wear appropriate clothing. Do not wear loose-fitting clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose-fitting clothing, jewellery and long hair can be trapped in moving parts.
Careful handling and use of power tools
Do not overload the tool. Use the right power tool for your task. You work better and more safely in the stated performance range with the right power tool.
Do not use a power tool if its switch is defective. A power tool, which can no longer be switched on or off, is dangerous and must be repaired.
- Remove the battery before adjusting settings, replacing accessories or after use. The safety provisions prevent the power tool from starting accidentally.
Store all unused power tool out of the reach of children. Do not let persons use the device, who are unfamiliar with it or who have not read these instructions. Power tools are dangerous if they are used by inexperienced persons.
Carefully maintain your device. Check the moving parts work correctly. Ensure that no part of the device is damaged. Check the assembly and all other elements that could affect the operation of the device. If parts are damaged, you must get your device repaired before use. Many accidents are caused by poorly maintained power tools.
- User power tools, accessories, insert tools, etc. according to their instructions. Consider the working conditions and work to be performed. Using power tools for other applications other than intended can lead to dangerous situations.
Specific safety provisions for power tools
Before inserting the battery, ensure that the switch is either at "Off" or is locked. Inserting a battery into a switched-on device can lead to accidents.
Charge your device's battery only with the charger specified by the manufacturer. An unsuitable charger can cause a fire if it is used with a battery type other than that specified by the manufacturer.
A specific battery type must be used for each battery -powered tool. The use of a different battery may lead to fire.
- Keep an unused battery away from metal objects such as paperclips, coins, keys, screws, nails and all other objects that could connect the contacts. A short circuit of the battery can cause burning or fires.
- Avoid all contact with battery fluid because of misuse. If battery fluid escapes, the affected area must be rinsed with fresh water. See a doctor if battery fluid comes into contact with the eyes. Splashed battery fluid can cause irritations or burns.
All safety information regarding the handling, storage, safekeeping, transport, disposal of the lithium-ion battery and first-aid measures and measures for combating fires is contained in the "Product safety datasheet" at www.sabo-online.com under Instructions.
Information hotline for lithium ion batteries
+49 (0) 2261 704-0
Repair
Only have your power tool repaired by a qualified expert and only with original spare parts. This ensures that the power tool remains safe.
- When working with this device, do not touch the fan.
Make sure that the device's handles are always clean and dry.
INSTRUCTION
- Read the instructions carefully. Familiarise yourself with the operating elements and correct device operation.
- Never let children, persons with restricted physical, sensory or mental capacity or without experience or knowledge, or persons unfamiliar with these instructions, to use the product. Local provisions may limit the age of the user.
- Never use the device if persons, particularly children, or animals are nearby.
The operator or user is responsible for accidents with or dangers to other persons or their property.
PREPARATION
- When using the device, always sturdy shoes and long trousers.
- Never work with the machine in bare feet or open sandals. Avoid wearing loose clothing or clothing with cords or belts.
Do not wear loose clothing or jewellery, which could be sucked into the air inlet. Keep long hair away from the air inlets. - Wear ear protection and safety goggles. Wear these the entire time you are using the machine.
To prevent dust irritations, the use of a face mask is recommended.
Use the machine only on a solid, flat base. Avoid abnormal postures. - Do not use this machine on a paved surface or on gravel, where material can be disturbed and lead to injuries.
Before use, always perform a visual inspection in order to ensure that all closures are secure, the housing is not damaged and all safety equipment is fitted. Replace worn or damaged parts. Replace damaged or illegible labels.
OPERATION
- Working technique
Slightly angle the nozzle down and proceed slowly
Swing the appliance right and left in order to blow away the swept leaves.
- Only use the machine in daylight or good artificial light.
Beware of slopes and steps on a solid base. - Walk, do not run.
- Keep all air inlets free of dirt.
- Never blow leaves towards people.
Before starting the machine, make sure the nozzle is empty. - Keep your face and body away from the nozzle opening.
Do not place your hands or other parts of your body or clothing in the nozzles, the ejector shaft or close to moving parts. - Check the device before use to ensure that there are not foreign objects or dirt in the machine.
Do not use expose the machine to rain when in use. Do not use the appliance in bad weather if there is a danger that lightning could strike.
Do not place your hands, other parts of your body or clothing in or in front of the nozzles or close to moving parts. - Never use the machine with defective protective equipment, shields or fitted safety equipment.
In order to prevent damage to the motor or a resulting fire, keep the motor free of foreign objects or other deposits.
Always keep away from the outlet area when using this machine.
Do not over-estimate yourself. Always make sure you have a firm stance. This allows better control in unexpected situations. - Stop the machine and remove the battery. Ensure that all moving parts have come to a complete stop:
if the machine is left unsupervised.
before removing the blockages
before you inspect or clean the machine or carry out work on it.
to inspect the device after strong contact with an object
if the machine starts to vibrate strangely (immediate inspection necessary).
CARE AND STORAGE
Take care to ensure that the device is in a safe working condition, that all screws, nuts and bolts are tight.
- Replace worn or damaged parts.
- Only use original spare parts and accessories.
Store the device in a dry location and out of the reach of children.
Do not touch dangerous, moving parts before the machine has stopped and the dangerous, moving parts have come to a complete stop.
Always allow the machine to cool before putting it away.
- Never try to disable the protective equipment locks.
Store the device in a building and do not expose it to rain or water and keep out of direct sunlight.
ASSEMBLY
UNPACKING
- Carefully remove the product and accessories from the box.
Inspect the product carefully and ensure that no damage has occurred during the transport.
Do not immediately dispose of the packaging material until you have carefully inspected and successfully used the product.
If parts are damaged or missing, please contact the retailer.
WARNING
Do not use this product if parts listed on the packing list are already fitted to your product when you unpack it. The parts on this list have not been prefitted to the product by the manufacturer and must be fitted by the customer. The use of a product, which has not been correctly fitted, can lead to serious injuries.
PACKING LIST
Blower
Blower tube
- Operating instructions
ASSEMBLY OF THE BLOWER TUBE See fig. 2-4
WARNING
When connecting parts, always remove the battery from the battery from the hand-held tool to prevent accidental switching on, which could cause injuries.
Align one of the grooves (6) in the tube (4) with the latches (7) on the blower housing. Slide the tube onto the housing until the latch has locked in the groove.
- Tum the tube in the direction of the arrow until both latches are locked.
DISMANTLING THE BLOWER TUBE
Proceed in the reverse order compared to "ASSEMBLING THE BLOWER TUBE".
INSERT THE BATTERY See fig. 5
- Align the bars on the battery with the slots in the battery compartment.
- Push the battery into the battery compartment until the battery release button locks.
WARNING
When inserting the battery into your leaf blower, ensure that the ridges on the battery are correctly aligned with the grooves inside the device and the locking latches are correctly locked. Incorrect insertion of the battery can damage internal components.
REMOVING THE BATTERY See fig. 5
- Press the button to release (9) the battery from the leaf blower.
Hold the leaf blower (10) tight and pull the battery out of the handle.
OPERATION
WARNING
Always beware of your feet, children or animals nearby when pressing the button to release the battery. Serious injuries can occur if the battery falls out. Never remove the battery if you are high up.
WARNING
Always remain alert, even after you have become familiar with your device. Note that a second of inattention can cause a serious injury.
WARNING
Always wear eye protection with side protection, which is labelled as corresponding to ANSI Z87.1 and ear protection. If not complied with objects could enter your eyes or you could suffer from other serious injuries.
WARNING
Do not use accessories that are not recommended by the
manufacturer of this product. Using this product with attachments or accessories that are not recommended can lead to serious injuries. Before use, first inspect the entire product for damaged, missing or loose parts, such as screws, nuts, bolts, covers, etc. Tighten all the fastenings and covers and do not use the product until all the missing or damaged parts have been replaced.
APPLICATION
CHARGE BEFORE INITIAL USE
WARNING
Before assembling parts, adjusting settings, cleaning or when not in use, always remove the battery from the product first. Removing the battery prevents accidental switching-on, which could cause serious injuries.
START/STOP THE BLOWER
See fig. 6
- Ensure that the battery is inserted into the leaf blower.
- Push the button to start the leaf blower.
- Release the button to stop.
WARNING
Always wear safety goggles when using this device. In dusty areas, wear a face or dust mask.
WARNING
To avoid serious injuries or damage to the device, ensure that the blower tube is fitted before using the device.
SPEED CONTROLLER
see fig. 6
This leaf blower is fitted with a speed controller. Please read and understand the function of the speed controller (2).
Press the switch(3) to start the device.
After starting the device, push the lever clockwise to increase the speed. You can then set the speed to the desired level.
To reduce the speed, push the lever anti-clockwise to lower the speed to the desired level.
NOTE: If you lower the speed completely, the device is switched off and you have to repeat the first step.
USING THE BLOWER
Blow around the outer edges of piles of brushed leaves to prevent them being spread again. Never blow directly into the middle of a pile.
To reduce the noise level, limit the number of appliances being used simultaneously.
Use brushes and rakes to loosen the leaves before blowing. In dusty conditions, moisten surfaces slightly if water is available.
Beware of children, animals, open windows or cars and blow leaves in a safe manner.
Clear up after using blowers or other devices. Properly dispose of the leaves.
MAINTENANCE AND CARE
WARNING
Remove the battery before adjusting, inspecting or cleaning the leaf blower in order to prevent injuries and the risk of fire and electric shock.
BATTERY
- Store the battery charged.
After the charger's LED turns green, remove the battery from the charger and disconnect the charger from the power supply.
Charge the battery every time you note that it is losing power. Never fully discharge the battery.
After charging, the battery can be stored in the charger as long as the charge is not connected to the mains.
WARNING
Only use original spare parts when replacing parts. The use of other parts can lead to danger or damage your device.
Do not use solvents to clean the plastic parts. Most plastics can be damaged by solvents available from retailers. Use a clean cloth to remove dirt, dust, oil, grease, etc.
WARNING
Never allow brake fluid, petrol, petrol-based products, invasive oils etc. to come into contact with the plastic elements. These chemical products contain substances that can damage, weaken or destroy the plastic.
WARNING
To prevent serious injuries, you must always remove the battery from the device before cleaning or any other maintenance work on the device.
STORING THE LEAF BLOWER
Clean your leaf blower thoroughly before putting it away. Store your blower in a dry, well-ventilated location and out of the reach of children. Do not store it close to caustic materials such as chemical garden products or salt for de-icing.
Store and charge the battery in a location at normal ambient temperature. At temperatures below or above normal ambient temperature, the life of the battery is reduced.
After the charger's LED turns green, remove the battery from the charger and disconnect the charger from the power supply.
- Place the battery on the device.
- Never store the battery discharged. After using the device, wait until the battery has cooled and immediately recharge it.
The battery's capacity declines over time. The higher the temperature, the faster the battery loses its capacity. If you do not use your device for longer periods, you should charge the battery every month or every two months. This extends the life of the battery.
TROUBLESHOOTING
| PROBLEM | POSSIBLE CAUSES | SOLUTION |
| Device does not start | Battery is not correctly locked in. | Ensure that the battery is locked into the leaf blower. Read the section in these instructions about inserting the battery. |
| Battery is not charged. | Charge battery according to the instructions supplied with your model. | |
| Defective switch. | Have defective parts replaced by an authorised retailer. | |
| The device starts, but air does not flow through the tube. | Blocked tube. | Check the inlet opening and the blower tube for blockages to the airflow. In this case remove the blockage. |
| Speed controller does not work. | The screw is loose. | Use a screwdriver to tighten the screw. |
DISPOSING
Do not dispose of electric devices with household waste. Dispse of these devices at recing centres. Contact the relevant authorities or your retailer for information about this. Separate collection of used products and packaging allows materials to be recycled. The reuse of materials helps to prevent pollution and reduces the need for raw materials. Disperse of batteries at the end of their use and consider the environment. The battery contains material that is dangerous to you and the environment. Therefore, it must be disposed of separately in a facility that accepts lithium-ion batteries.
SPARE PARTS LIST:
Blower tube - SAA12594
PRODUCTGEGEVENS
| Productbenaming | Bladblazer |
| Type | SA560520 |
| Motor | 40 V DC |
| Luchtdebiet | 11,05 m³/min |
| Luchtnelheid | 177 km/h |
| Gewicht zonder accu | 1.9 kg |
| Accu | SAU16450/SAU16451 |
| Lader | SAU15033/SAU16509 |
| Gemeten geluidsdrukniveau | LPA: 87.6dB(A) k: 3 dB(A) |
| Gegarandeerd geluidsdrukniveau geluidsvermogensniveau | LWA: 104 dB(A) |
| Trilling | ah: <2.5 m/s2 k=1.5 m/s2 |
BESCHRIJVING
GLOBGRO AB, Globe Group Europe
GLOBGRO AB, Globe Group Europe
EU DECLARATION OF CONFORMITY
Manufacturer
GLOBGRO AB, Globe Group Europe
Propellergatan 1,211 15 Malmö,Sweden 11421
Name and address of the person authorised to compile the technical file:
Name: Peter Soderstrom
Address: Propellergatan 1, 211 15 Malmö, Sweden 11421
Herewith we declare that the product
Category: 40V Cordless Leaf Blower
It is used to propel air out of a tube to move yard debris such as leaves.
Model: SA560520
Serial number: See product rating label
Year of Construction: See product rating label
is in conformity with the relevant provisions of the Machinery Directive (2006/42/EC)
is in conformity with the provisions of the following other EC-Directives
EMC Directive (2014/30/EU), Noise Emission Directive (2000/14/EC)
amended by 2005/88/EC)
and furthermore, we declare that the following (parts/clauses of) European
harmonised standards have been used
EN 60335-1, EN 50636-2-100, EN 62233, EN ISO 3744, EN 55014-1, EN 55014-2
Measured sound power level: 99.7 dB(A)
Guaranteed sound power level: 104.0 dB(A)
Conformity assessment method to Annex V / Directive 2000/14/EC
Place, date: Malmö, 01.01.2020
Signature:
Ralf Pankalla
Managing Director / President Europe
GLOBGRO AB, Globe Group Europe
FR
DECLARATION DE CONFORMITE UE
GLOBGRO AB, Globe Group Europe
Propellergatan 1,211 15 Malmö,Suede 11421
GLOBGRO AB, Globe Group Europe
GLOBGRO AB, Globe Group Europe
Propellergatan 1,211 15 Malmö,Zweden 11421
GLOBGRO AB, Globe Group Europe
as authorized representative of the manufacturer
GLOBGRO AB, Globe Group Europe
Propellergatan 1,211 15 Malmö, Suecia 11421
Gerente / President Europe
GLOBGRO AB, Globe Group Europe
GLOBGRO AB, Globe Group Europe
