SHC 4370 - Beard trimmer SINBO - Free user manual and instructions

Product type	Beard trimmer
Brand	Sinbo
Model	SHC 4370
Power supply	Mains adapter 220-240 V, 50/60 Hz, output 3 V, 300 mA
Battery type	1 rechargeable AA battery (800 mAh)
Charging time	Approximately 8 hours
Operating time	Approximately 45 minutes
Rated power	3 W
Number of combs	2 adjustable combs (A: 0.5-9.5 mm, B: 10-20 mm)
Adjustment range	From 0.5 mm to 20 mm in 0.5 mm increments
Usage	Cordless, rechargeable
Maintenance	Oil the blade regularly, clean after use, do not immerse in water
Safety	Do not use in the bathroom, do not touch with wet hands, do not disassemble
Charging temperature	0°C to 35°C
Included accessories	2 cutting combs, mains adapter, instruction manual

Frequently Asked Questions - SHC 4370 SINBO

How to charge the Sinbo SHC 4370 trimmer?

Set the switch to 0. Plug the coupling plug into the device, then the mains adapter into a socket. The charging indicator lights up. Charging time is approximately 8 hours.

What is the operating time of the trimmer after a full charge?

Operating time is approximately 45 minutes of continuous use.

How to adjust the cutting length?

Use the supplied adjustable combs: comb A covers 0.5 to 9.5 mm and comb B covers 10 to 20 mm. Each step is 0.5 mm. Slide the comb onto the blade and push it to remove.

Can I use the trimmer in the shower?

No, the trimmer is not waterproof. Avoid water. Do not use it in the bathroom or near a bathtub.

How to clean and maintain the trimmer?

After use, turn off the device and remove the blade. Clean it with a brush. Oil the blade regularly with a suitable oil. Do not use gasoline or alcohol.

What if the trimmer does not charge or the indicator does not light up?

If the battery is completely discharged, the indicator may take a few minutes to light up. If the problem persists, check the adapter and socket. Do not charge for more than 20 hours.

What oil to use for the blade?

Use a special trimmer oil or a light non-corrosive oil. Avoid gasoline, alcohol or any thick oil.

Is the trimmer suitable for children?

Yes, but under adult supervision. The device can be used by children over 8 years old if supervised.

Can I use the trimmer while charging?

No, the switch must be at 0 during charging. Use is only possible in cordless mode after charging.

How to replace the rechargeable battery?

The battery is built-in. To replace it, contact an authorized service center. Do not disassemble the device yourself.

USER MANUAL SHC 4370 SINBO

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

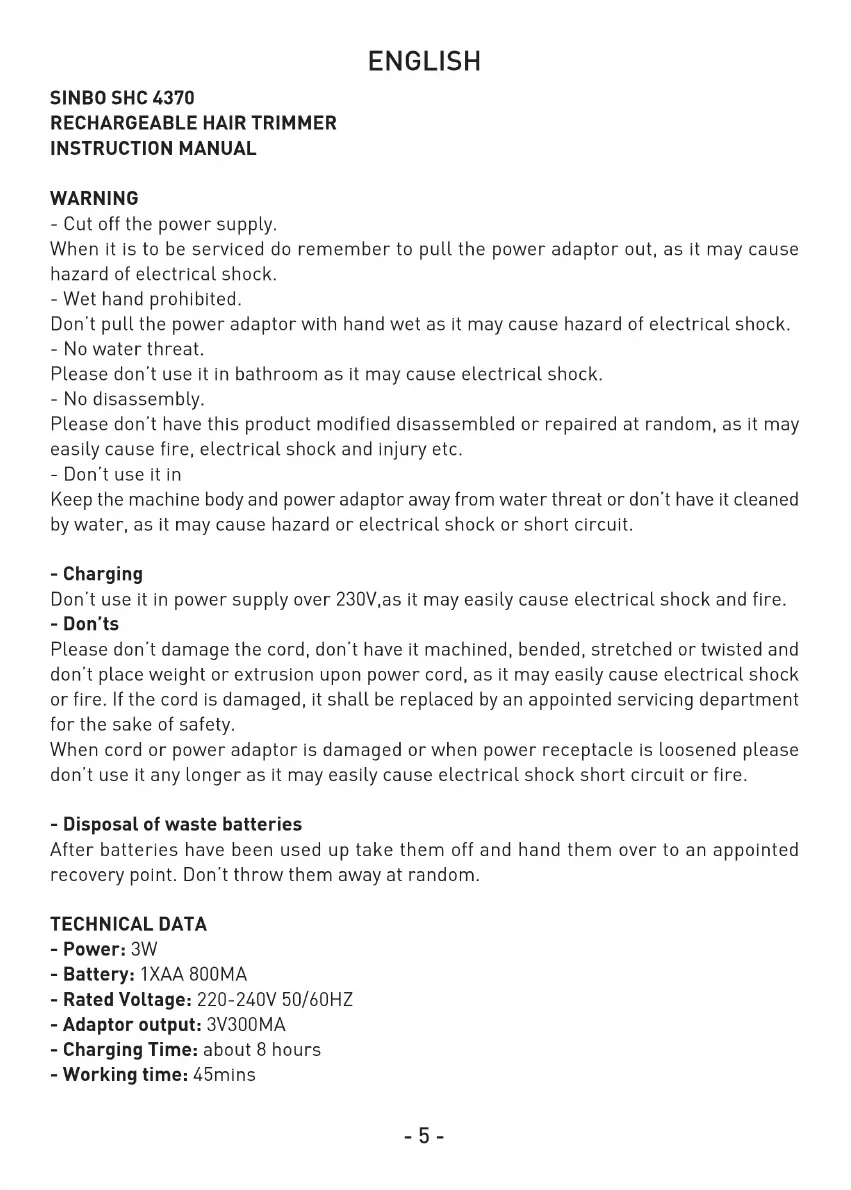

UYARI

• Cut off the power supply.
  When it is to be serviced do remember to pull the power adaptor out, as it may cause hazard of electrical shock.
• Wet hand prohibited.
  Don't pull the power adaptor with hand wet as it may cause hazard of electrical shock.
• No water threat.
  Please don't use it in bathroom as it may cause electrical shock.
• No disassembly.
  Please don't have this product modified disassembled or repaired at random, as it may easily cause fire, electrical shock and injury etc.
• Don't use it in
  Keep the machine body and power adaptor away from water threat or don't have it cleaned by water, as it may cause hazard or electrical shock or short circuit.

- Charging

Don't use it in power supply over 230V, as it may easily cause electrical shock and fire.

- Don'ts

Please don't damage the cord, don't have it machined, bended, stretched or twisted and don't place weight or extrusion upon power cord, as it may easily cause electrical shock or fire. If the cord is damaged, it shall be replaced by an appointed servicing department for the sake of safety.

When cord or power adaptor is damaged or when power receptacle is loosened please don't use it any longer as it may easily cause electrical shock short circuit or fire.

- Disposal of waste batteries

After batteries have been used up take them off and hand them over to an appointed recovery point. Don't throw them away at random.

TECHNICAL DATA

• Power: 3W
• Battery: 1XAA 800MA
• Rated Voltage: 220-240V 50/60HZ
• Adaptor output: 3V300MA
• Charging Time: about 8 hours
• Working time: 45mins

ATTENTION REMARKS

• To use it for the first time or when it has never been used for over half a year after purchase. Please have it charged for 3 hours to activate the competence of batteries. If it is charged when the secondary battery is completely discharged charging light may not light on immediately, and will go to normal after several minutes.
• In order to better use hair clipper please drip oil onto blade. When the charge and use the appliance the body will be heated is normal.

Attention: PLEASE DO NOT USE GASOLINE, ALCOHOL AND OTHER OIL.

• Keep away from water. Do not use near bathing pool, bathtub or other liquid container with water.
• Charge the hair clipper at the temperature of 0^ C\~ 35^ C. The parts of packing (plastic bag, cardboard box, etc.). Must be kept out of reach of children. As they are possible sources of danger.

BEFORE OPERATION

About length fixing accessories

1pcs cutting length comb. Hair length control, adjustable for cutting length from 3-15mm. There are 2 piece combs, adjustable range for

A# is 0.5-9.5MM

B# is 10-20MM.

The minimum adjustable range is 0.5MM for each level.

1. To decide the length of cutting.
2. To select the suitable accessory for the length required. To keep it in alignment with the blade.
3. Take off length fixing accessory. Push a side of the accessory by thumb to take it off.

Charging instructions

1. Place the switch to [0]. It is not allowed to charge when the switch is at [1].
2. Inset the coupler plug into the machine body.
3. Inset the power adaptor into the receptacle (the charging light will be turned on).

HOW TO USE

To use it for the first time or when it has never been used for over half a year after purchase, please have it charged for 3 hours to activate the competence of batteries. If it is charged when the secondary battery is completely discharged, charging light may not light on immediately, and will go to normal after several minutes.

When charging is finished:

1. Pull the power adaptor out of the receptacle.
2. Pull the coupler plug out of the machine body.
3. Try to avoid continuous charging of long time (>20 hours)
4. As it may shorten the service life of batteries.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Warning: Keep the appliance and hand dry.

AFTER USE

Turn off power supply and have the blade cared.

To avoid blade rushing out, hold it with the other hand.
