SHC 4354S - Beard trimmer SINBO - Free user manual and instructions

Product Type	Rechargeable beard trimmer
Brand	Sinbo
Model	SHC 4354S
Power supply	AC mains adapter 100-240V, 50/60Hz, output 3V DC 600mA
Battery life	45 minutes after full charge
Charging time	8 hours
Cutting lengths	3 mm to 30 mm adjustable by wheel (18 positions: 3/4.5/6/7.5/9/10.5/12/13.5/15/18/19.5/21/22.5/24/25.5/27/28.5/30 mm)
Usage	Corded or cordless
Blade	Stainless steel, removable for cleaning
Included accessories	Cutting guide, oil bottle, cleaning brush
Cleaning	Blade washable with water, body cleaned with damp cloth and mild soap
Protection rating	Do not use in bath or shower, keep dry
Safety	On/off switch, auto shut-off not specified
Weight	Approx. 200 g
Dimensions (approx.)	18 x 4 x 4 cm
Color	Black (estimated)
Warranty	Refer to distributor

Frequently Asked Questions - SHC 4354S SINBO

How to charge the Sinbo SHC 4354S trimmer?

Plug the adapter into the battery port at the bottom of the device, then connect the adapter to a mains socket. The red light turns on during charging. The first charge must last 8 hours. Subsequent charges are also 8 hours.

Can the trimmer be used cordless?

Yes, after a full charge, you can use it cordlessly for about 45 minutes.

How to adjust the cutting length?

Use the adjustment wheel on the cutting guide. Slide up for a longer cut (up to 30 mm) and down for a shorter cut (down to 3 mm). There are 18 positions in total.

How to clean the blade?

Remove the blade by sliding it off, then use the provided brush to remove hairs. Apply 2-3 drops of oil between the fixed and moving blades. You can rinse the blade with water, but never immerse the device in water.

What to do if the trimmer does not work?

Check that the battery is charged and the switch is in position '1'. If the problem persists, make sure the blade is correctly installed (you should hear a 'KA' click). If nothing works, contact after-sales service.

Can I use the trimmer in the shower?

No, the device is not waterproof. It should not be used in a bath or shower. Keep it dry.

How to know when the battery is low?

The device has no specific low battery indicator. The red light turns off when charging is complete. If the device runs less than 45 minutes, it is time to recharge.

Can the trimmer be used by children?

This device is not intended for use by children without supervision. Children should not play with the device.

How to change the battery?

The battery is built-in and not user-replaceable. For any issues, contact a professional or after-sales service.

What to do if the blade is dull?

The blades are removable and can be replaced. It is recommended to oil them regularly to extend their life. If they remain dull, contact after-sales service for a replacement.

USER MANUAL SHC 4354S SINBO

Simple line drawing of a bottle with a black dot at the bottom (no text or symbols)

Line drawing of a mechanical tool or connector with a numbered circle and bar, no text or symbols present.

Pure diagram of a mechanical or electrical component with parallel lines and a suspended black dot (no text or symbols)

Diagram of a plug with a bulb and plug, no text or symbols present

Technical diagram of a hairbrush with numbered parts labeled 1 to 4

GİRİŞ

Değerli Müşterimiz,

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

This device can only be used by children older than 8 years old or physically disabled or hearing-impaired or people with lessen mental faculties or the inexperienced or ignorant people after providing sufficient information for secure utilization and by informing about the possible hazards or under supervision. Children should not play with this device. The cleaning and maintenance activities carried by children should be under supervision.

Line drawing of a hairbrush with an arrow indicating compression direction (no text or symbols)

Line drawing of a hairbrush with directional arrows indicating motion (no text or symbols)

Line drawing of a hairbrush with a button and handle (no text or symbols)

Bıcakların bakımı

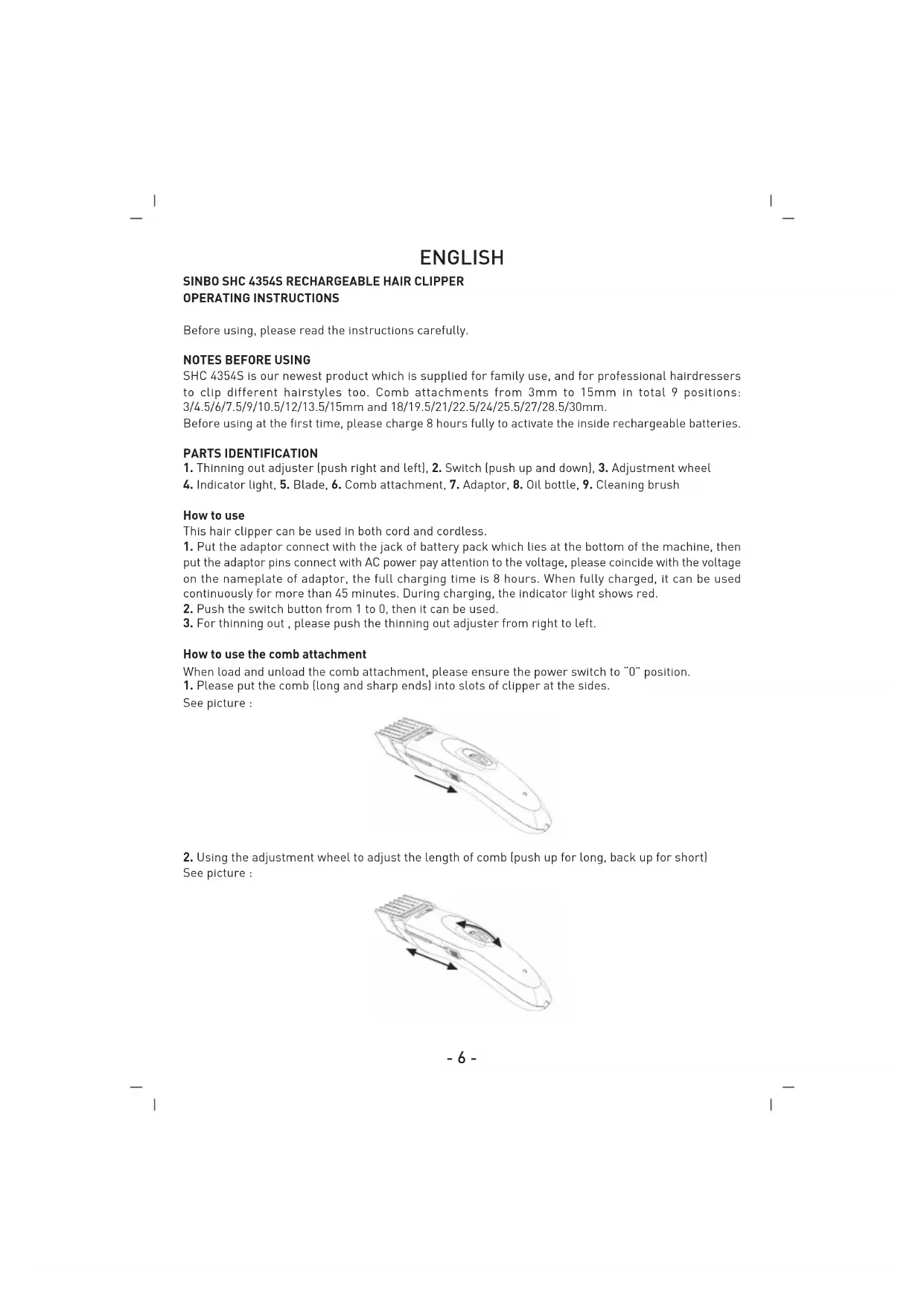

Before using, please read the instructions carefully.

NOTES BEFORE USING

SHC 4354S is our newest product which is supplied for family use, and for professional hairdressers to clip different hairstyles too. Comb attachments from 3mm to 15mm in total 9 positions: 3/4.5/6/7.5/9/10.5/12/13.5/15mm and 18/19.5/21/22.5/24/25.5/27/28.5/30mm.

Before using at the first time, please charge 8 hours fully to activate the inside rechargeable batteries.

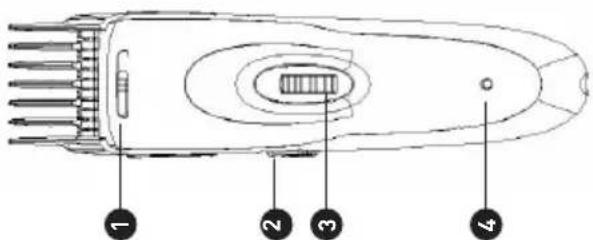

PARTS IDENTIFICATION

1. Thinning out adjuster (push right and left), 2. Switch (push up and down), 3. Adjustment wheel
2. Indicator light, 5. Blade, 6. Comb attachment, 7. Adaptor, 8. Oil bottle, 9. Cleaning brush

How to use

This hair clipper can be used in both cord and cordless.

1. Put the adaptor connect with the jack of battery pack which lies at the bottom of the machine, then put the adaptor pins connect with AC power pay attention to the voltage, please coincide with the voltage on the nameplate of adaptor, the full charging time is 8 hours. When fully charged, it can be used continuously for more than 45 minutes. During charging, the indicator light shows red.
2. Push the switch button from 1 to 0, then it can be used.
3. For thinning out, please push the thinning out adjuster from right to left.

How to use the comb attachment

When load and unload the comb attachment, please ensure the power switch to "0" position. 1. Please put the comb (long and sharp ends) into slots of clipper at the sides.

See picture :

Line drawing of a hairbrush with a black arrow indicating compression (no text or symbols)

1. Using the adjustment wheel to adjust the length of comb (push up for long, back up for short) See picture :

Line drawing of a hairbrush with directional arrows indicating movement (no text or symbols)

1. While push the adjustment wheel, there are 9 positions to control the cutting length (3/4.5/6/7.5/9/40.5/12/13.5/15mm or 18/19.5/21/22.5/24/25.5/27/28.5/30mm)

Line drawing of a hairbrush with a flat blade and button (no text or symbols)

Maintenance of the blades

1. Handing the hair clipper in obverse, then push the blade out of the machine, and then use the cleaning brush to wipe off the scraps among the blade. Lubricating the space between the stationary and moving blades with 2 or 3 drops of oil.

1. Clean the blade after using every time in time. When resetting the blades, please press the full parts until hearing the "KA" sound.

When charging

Please don't charge if the temperature is lower than 0°C or higher than 40°C. Please don't charge if it is nearby the sunlight perpendicular incidence or the heat source radiates. The standard charging time is 8 hours. In order to avoid mangling the batteries, please don't extend the charging time.

Cautions

Cleaning the housing using only a cloth slightly dampened water or a mild soap solution.

Never use a caustic solution.

Never submerge the clipper in water.

Keep away from the children.

This clipper may become warm during operating and/or charging, this is normal.

When using, don't hold the power soft line, in order to prevent possible harm and so as to avoid accidents. Never tamper with moving parts.

Technical Data:

Charging Time: 8 Hours

Operation Time: 45 Minutes (When fully loaded)

Adaptor Input: AC 100-240V,50/60Hz

Adaptor Output: 3 VDC, 600mA

Please note:

Be sure to charge one time at least within one year after the shipment.

This appliance is not intended for use by persons (including children) with reduced physical, sensory of mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety; Childred should be supervised to ensure that they do not play with the appliance.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, such as the unused batteries and motors etc, recycle them responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Not to be used in bath or shower WARNING: Keep the appliance dry.

FRANÇAIS

SINBO SHC 4354S TONDEUSE À CHEVEUX RECHARGEABLE MODE D'EMPLOI

Line drawing of a hairbrush with an arrow indicating compression or shift (no text or symbols)

Line drawing of a handheld electric shaver with bidirectional arrows indicating motion (no text or symbols)

Line drawing of a hairbrush with grille and button (no text or symbols)

Entretien des Lames

Line drawing of a hairbrush with an arrow indicating compression or shift (no text or symbols)

Line drawing of a hairbrush with directional arrows indicating movement (no text or symbols)

Line drawing of a hairbrush with a button and handle (no text or symbols)

Line drawing of a hairbrush with an arrow indicating compression direction (no text or symbols)

Line drawing of a hairbrush with directional arrows indicating movement (no text or symbols)

Line drawing of a hairbrush (no text or symbols)

Pflege von Klingen

Line drawing of a hairbrush with an arrow indicating compression or adjustment (no text or symbols)

Line drawing of a hairbrush with bidirectional arrows indicating movement (no text or symbols)

Line drawing of a hairbrush with a button and handle (no text or symbols)

Line drawing of a hairbrush with a curved blade and arrow indicating direction (no text or symbols)

Line drawing of a hairbrush with bidirectional arrows indicating movement (no text or symbols)

Line drawing of a hairbrush with a button and handle (no text or symbols)

Уход за лезвиями:

Line drawing of a hairbrush with an arrow indicating direction (no text or symbols)

Line drawing of a hairbrush with bidirectional arrows indicating motion (no text or symbols)

Line drawing of a hairbrush with a button and handle (no text or symbols)

ДОГЛЯД ЗА ЛЕЗАМИ

Line drawing of a hairbrush with an arrow indicating compression (no text or symbols)

1. Koristeći točkić za podešavanje možete podesiti duljinu češlja (za dugu napred, za kraču unazad) Pogledajte sliku:

Line drawing of a hairbrush with directional arrows indicating motion (no text or symbols)

1. Prilikom pokretanja točki'ca za pode savanja, radi kontrole duljine postoje 9 pozicije (3/4.5/6/7.5/9/40.5/12/13.5/15mm or 18/19.5/21/22.5/24/25.5/27/28.5/30mm)

Line drawing of a hairbrush with a button and grille (no text or symbols)

Odr zavanje o strica

1. Aparat za šišanje držite okrenuto prema licu, zatim pokretom izvadite oštricu. Nakon ćega pomoću četke za či s'cenje mo'ci'cete lako'com o'cistiti prostore med'u o'strica. Praznine med'u stabilnih i pokretnih dijelova o strica nama'zite uljem od 2 do3 kapi.

1. Nakon savakog korištenja obavezno očistite oštricu. Prilikom ponovnog podešavanja ostrica, dijelove pritisnite sve dok ne čujeta klik "KA"

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Prilikom punjenja

U slu ^c caju da je temperatura Ispod 0°C III 40°C stupnjeva punjenje se nesmje obaviti. Takod ^r er punjenje se nesmje obavititi Ispod direktnih sun ^e cevih zraka i u blizini toplotnih izvora. Vrijeme standardnog punjenja iznosi 8 sati. Kako biste izbjegli mogu ^c nost o ^s ste ^c cenja baterije molimo Vas da ne prekora ^v cavate vrijeme za punjenje.

Upozorenje

Tijelo aparata se može cistiti samo sa mekom I vla znom krpom I sapunicom. U niukojem slu caju za odr zavanja se nesmeju koristiti nagrizaju ci rastvori. Skare se nesmeju u niukojem slu caju potapati u vodi. Aparat cuvati dalje od dohvata dijece. Ove skare, u toku rada i/ili punjenja mogu se zagrejati, to je normalna pojava.

Radi spre cavanje mogu cih o ste cenja ili ozljeda prilikom kori stenja, izbjegavate dr zati kabel napajanja. U niukojem slu caju ne dirati pokretne dijelove aparata.

Tehnički Podaci

.(30/5.28/27/5.22/21/5.19/18) 15/5

Line drawing of a hairbrush with an arrow indicating direction (no text or symbols)

Line drawing of a hairbrush with bidirectional arrows indicating motion (no text or symbols)

(3/4.5/6/7.5/9/10.5/12/13.5/15mm)

Line drawing of a hairbrush with no text or symbols
