USER MANUAL Solo IndoorCam 2K Pan & Tilt eufy

Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.

51005002646V01

cufy

SECURITY

QUICK

STARTGUIDE

Indoor Cam 2K Pan & Tilt

English

Deutsch

Espaniol

Français

Italiano

Nederlandds

日本語

Portugues

Table of Contents

What's included 01

Product overview 02

Setting up the system 03

Mounting the indoor cam 05

Powering on the indoor cam 10

HomeKit Statement 10

Notice 11

Customer service 16

WHAT'S INCLUDED

Indoor Cam 2K Pan & Tilt

Model:T8410

Mounting Plate

USB Cable

USB Adapter

Mounting Screw Pack

microSD card (optional)

QSG

PRODUCT OVERVIEW

Indoor Cam 2K Pan & Tilt

Lens
Microphone
SD card slot
4 Status LED

5 Speaker
6 Power input
SYNC button

English 0201

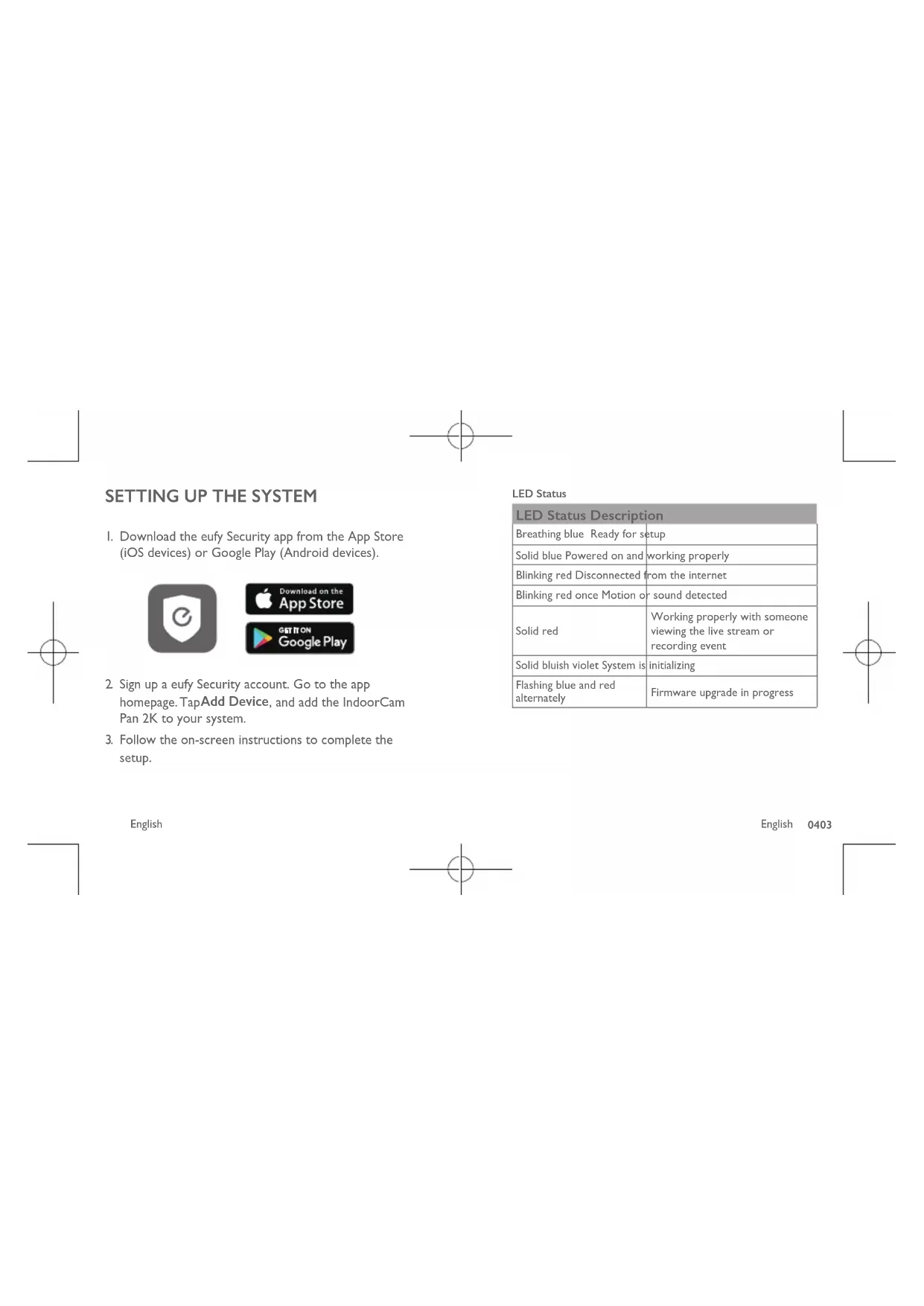

SETTING UP THE SYSTEM

I. Download the eufy Security app from the App Store (iOS devices) or Google Play (Android devices).

1. Sign up a eufy Security account. Go to the app homepage. TapAdd Device, and add the IndoorCam Pan 2K to your system.
2. Follow the on-screen instructions to complete the setup.

LED Status

LED Status Description
Breathing blue Ready for setup
Solid blue Powered on and working properly
Blinking red Disconnected from the internet
Blinking red once Motion or sound detected
Solid red	Working properly with someone viewing the live stream or recording event
Solid bluish violet System is initializing
Flashing blue and red alternately	Firmware upgrade in progress

MOUNTING THE INDOOR CAM

Select a Location for Mounting

The camera can be placed on a table, shelf, or can be mounted on a wall or ceiling. Select a location and height where you can get the desired view, and can reach a power outlet easily.

English

• Disconnect the Indoor Cam from the power outlet before mounting.
• Keep the Indoor Cam at least 0.7ft / 20cm away from walls or anything that may obstruct the view. Do this to avoid infrared reflection which can have a negative impact on the night vision performance.

English 0605

Mount the Indoor Camera

To mount the Indoor Cam on the ceiling, follow the steps below:

1. Place the positioning card against the ceiling and then mark the points at which drilling will be required.

1. Align the holes on the mounting plate with those in the ceiling. Insert the anchors into the holes; anchors are necessary for walls that are made out of hard materials such as concrete, brick, or stucco. Fix the screws with a Phillipshead screwdriver to fasten the mounting plate to the ceiling.

2 Drill holes with a 5/16" (8 mm) drill bit.

1. Align the grooves with the mounting plate and rotate the Indoor Cam clockwise until it clicks into place.

English 0807

To mount the Indoor Cam on a wall, we recommend using the mounting bracket (not provided) as the illustration below.

POWERING ON THE INDOOR CAM

Connect the Indoor Cam to a power outlet using the provided USB cable and USB adapter. After being powered on, the Indoor Cam will be connected to the system. When it is successfully connected, the status LED will turn solid blue.

Rotate the Indoor Cam to adjust the view and check it using the live stream which you can access in the eufy Security app. You are now all set to use your Indoor Cam.

Tip:

For troubleshooting, check Help on the eufy Security app.

HomeKit Statement

Controlling this HomeKit-enabled accessory automatically and away from home requires a HomePod, Apple TV, or iPad set up as a home hub. It is recommended that you update to the latest software and operating system.

English

English 1009

NOTICE

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving

English

antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/ TV technician for help.

FCC Radio Frequency Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20cm

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

The following importer is the responsible party

Company Name: POWER MOBILE LIFE, LLC

Address: 400 108th Ave NE Ste 400, Bellevue, WA 98004-5541

Telephone:[phone]

This product complies with the radio interference requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site:https://uk.eufylife.com/

English

This product can be used across EU member states.

Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher.

The adapter shall be installed near the equipment and shall be easily accessible.

Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment.

The suitable temperature for T8410 and accessories is 0^ - 40^ . When charging, please place the device in an environment that has a normal room temperature and good ventilation.

It is recommended to charge the device in an environment with a temperature that ranges from 5^ 25^

Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the device and the guarantee article.

This charger is for indoor use only.

The charger type is TEKA012-0502000EU or TEKA-UCA20EU, output voltage/current is 5Vdc/2A. The plug considered as disconnect device of adapter.

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d = 20cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm

distance between the device and human body.

Wi-Fi Operating Frequency Range:2412~2472MHz;Wi-Fi Max Output Power:14.46dBm(ERIP)

Bluetooth Operating Frequency Range:2402~2480MHz; Bluetooth Max Output Power:0.64dBm(EIRP)

Anker Technology (UK) Ltd | Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B1 2AA, United Kingdom

product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(I) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device."

This Class B digital apparatus complies with Canadian ICES-003.

12-month Limited Warranty

Call Us

United States [phone] Mon-Fri 9AM-5PM (PT)

United Kingdom [phone] Mon-Fri 6AM-11AM

(GMT)

Germany [phone] Mon-Fri 6:00-11:00

- Email Us

Customer Support: [e-mail]

@EufyOfficial

@EufyOfficial

eufyofficial

Anker Innovations Limited

Room 1318-19,Hollywood Plaza,610 Nathan

Road,Mongkok,Kowloon,Hong Kong

English

Inhaltsverzeichnis

Im lieferumfang 18

Produktübersicht 19

This product complies with the radio interference requirements of the European Community.

The suitable temperature for T8410 and accessories is 0^ - 40^

Kunden-Support: [e-mail]

Tabla de contenido

Contenido 33

This product complies with the radio interference requirements of the European Community.

Anker Technology (UK) Ltd | Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B1 2AA, Reino Unido

CE This product complies with the radio interference requirements of the European Community.

Support client: [e-mail]

Indices

CE This product complies with the radio interference requirements of the European Community.

Anker Technology (UK) Ltd | Suite B, Fairgate House, 205 Kings

Road, Tyseley,

Birmingham, BII 2AA, Regno Unito

Download on the App Store

GETON GooglePlay

United States [phone] Mon-Fri 9AM-5PM (PT)
United Kingdom [phone] Mon-Fri 6AM-11AM (GMT)
Germany [phone] Mon-Fri 6:00-11:00

Customer Support: [e-mail]

@EufyOfficial

@EufyOfficial

eufyofficial

Anker Innovations Limited

Room 1318-19,Hollywood Plaza,610 Nathan

Road,Mongkok,Kowloon,Hong Kong
