Brand	Elica
Model	Bio P 90 USB
Product type	Extractor hood
Width	90 cm (estimated based on model)
Installation	External evacuation or internal recirculation (optional activated carbon filter)
Controls	Touch panel with 6 or 7 buttons (depending on version); optional remote control
Lighting	LED, adjustable brightness and color temperature
Number of speeds	4 (low, medium, high, intensive)
Grease filter	Metal, washable (hand or dishwasher)
Activated carbon filter	For recirculation, washable and reusable, replacement every 3 years
Special functions	Automatic mode with sensor, delayed shut-off, filter saturation indicator, SNAP® connection (auxiliary unit)
Minimum distance from hob	50 cm (electric) / 65 cm (gas or mixed)
Power supply	230 V (standard), special power cable
Energy consumption	Not communicated (energy class not indicated)
External cleaning	Damp cloth with neutral detergent; do not use alcohol or abrasives
Filter maintenance	Grease filter: every month; charcoal filter: every 2 months

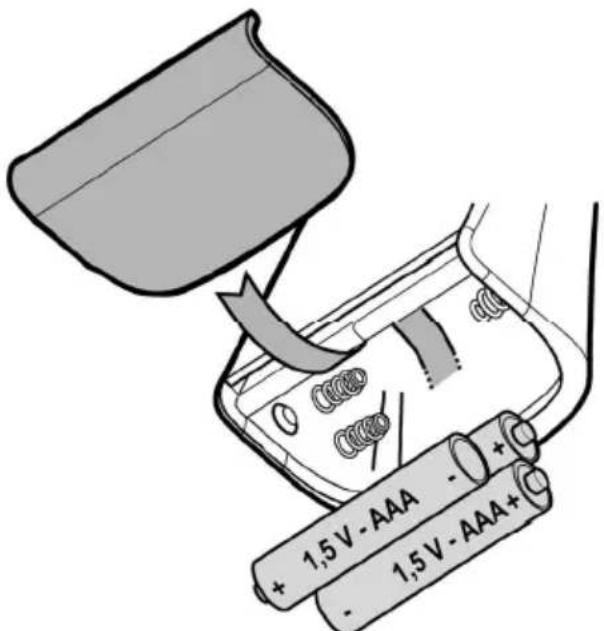

Remote control batteries	3 AAA 1.5 V batteries (not included)
Repairability	LED lamp: replacement by after-sales service only; other parts: contact technical support
Included accessories	Mounting kit, user manual; remote control optional
Weight	Not communicated
Warranty	See general terms and conditions

Frequently Asked Questions - Bio P 90 USB ELICA

What is the minimum distance between the hood and the hob?

For an electric hob, the minimum distance is 50 cm. For a gas or mixed hob, it is 65 cm. Follow the cooker manufacturer's instructions if they are higher.

How to clean the grease filter?

The metal grease filter should be cleaned once a month. It can be washed by hand with a mild detergent or in the dishwasher on a low temperature and short cycle. After washing, dry it before putting it back.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, turn the hood on and then off. Within the first minute after switching off, press and hold the button corresponding to the indicator (usually the low speed button). The light stops flashing.

How to activate the automatic mode with sensor?

Make sure the hood is off. Press the $ button (or the specific button on your panel). The hood will automatically adjust the speed according to the detected fumes. An initial calibration may be necessary (see manual).

What to do if the hood does not work after installation?

First check that the power supply is plugged in and that the circuit breaker has not tripped. Make sure the hood is properly powered on. If the problem persists, contact Elica technical support service.

How to replace the LED lamp?

The LED lamp is not user-replaceable. In case of failure, contact the authorized after-sales service for replacement.

Can I use the hood without the charcoal filter in recirculation mode?

No, in recirculation mode, the activated carbon filter is essential to neutralize odors. It must be installed and maintained properly. Without it, the air will not be filtered effectively.

How to set the delayed shut-off?

Press the delayed shut-off button (usually marked T5 on the remote control). The duration depends on the active speed: 20 min on low speed, 15 min on medium, 10 min on high. The hood will automatically turn off after this time.

Is the remote control supplied with the hood?

The remote control is an optional accessory for some models. Check with your retailer if it is included or can be purchased separately.

How to clean the remote control?

Use a damp cloth with a mild liquid detergent. Avoid any abrasive or alcohol-based products. Do not immerse the remote control in water.

USER MANUAL Bio P 90 USB ELICA

EN Instruction on mounting and use

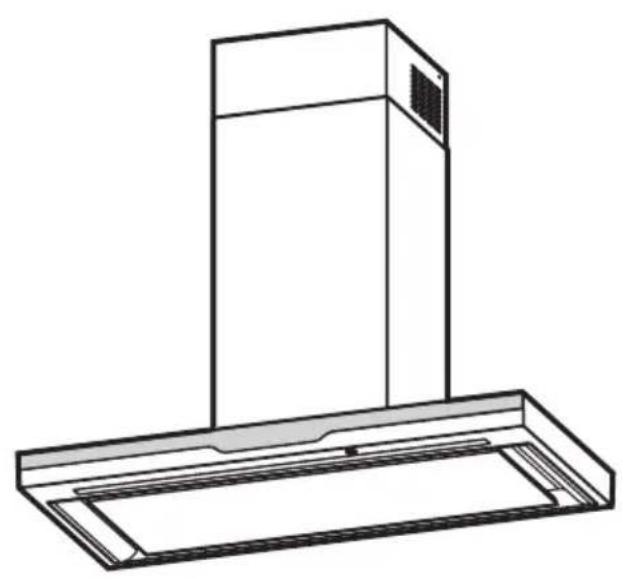

Line drawing of a double-bay air duct hood with ventilation slots and a flat base (no text or symbols)

Line drawing of a double door with a top-mounted cabinet and ventilation cover (no text or symbols)

Symbol of a person crossed out by two diagonal lines, representing restriction or exclusion (no text present)

Two identical black silhouette figures of men, no text or symbols present

Illustration of two gloves, one open and one closed, with no text or symbols present.

Diagram of a mechanical or structural assembly with directional arrows indicating movement or force (no text or symbols present)

Diagram of a staircase with an arched duct and directional arrows indicating flow or movement (no text or symbols)

Pure mechanical diagram showing a piston-cylinder assembly with directional arrows indicating force or movement (no text or symbols)

2

3

4

5

6

$$ = \begin{array}{c} x \ = \end{array} $$

4x ∅ 4x8

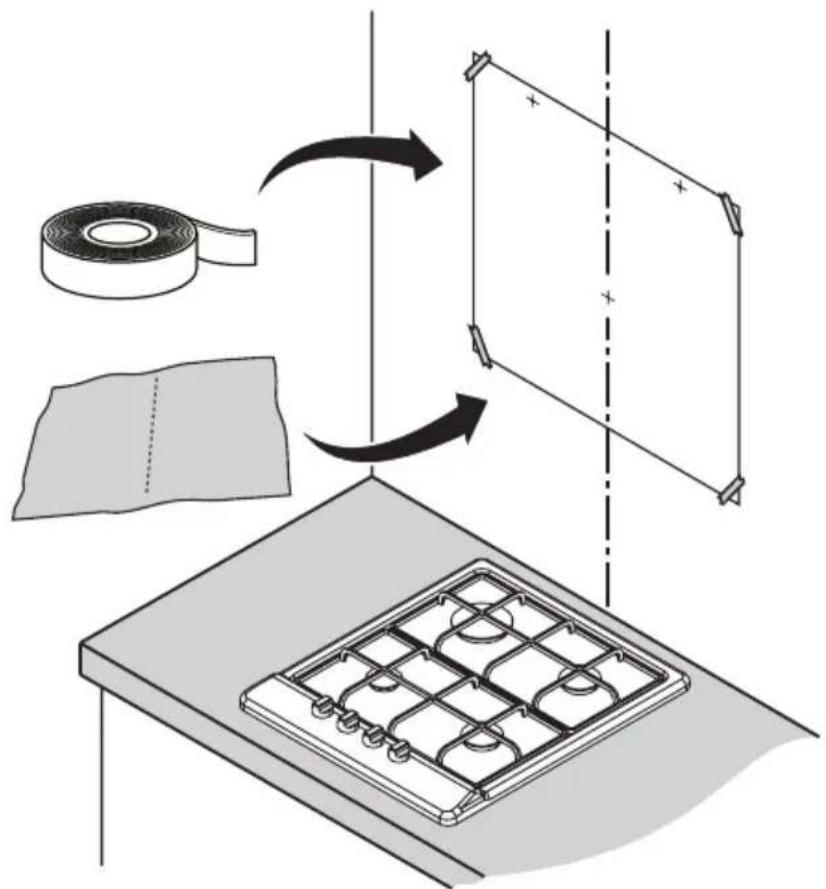

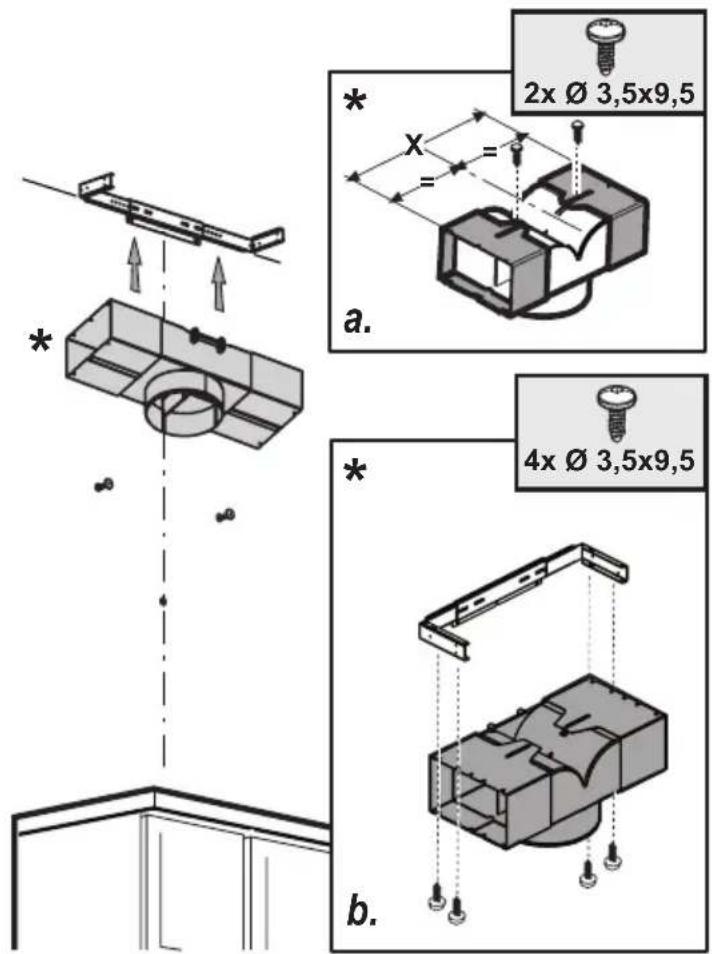

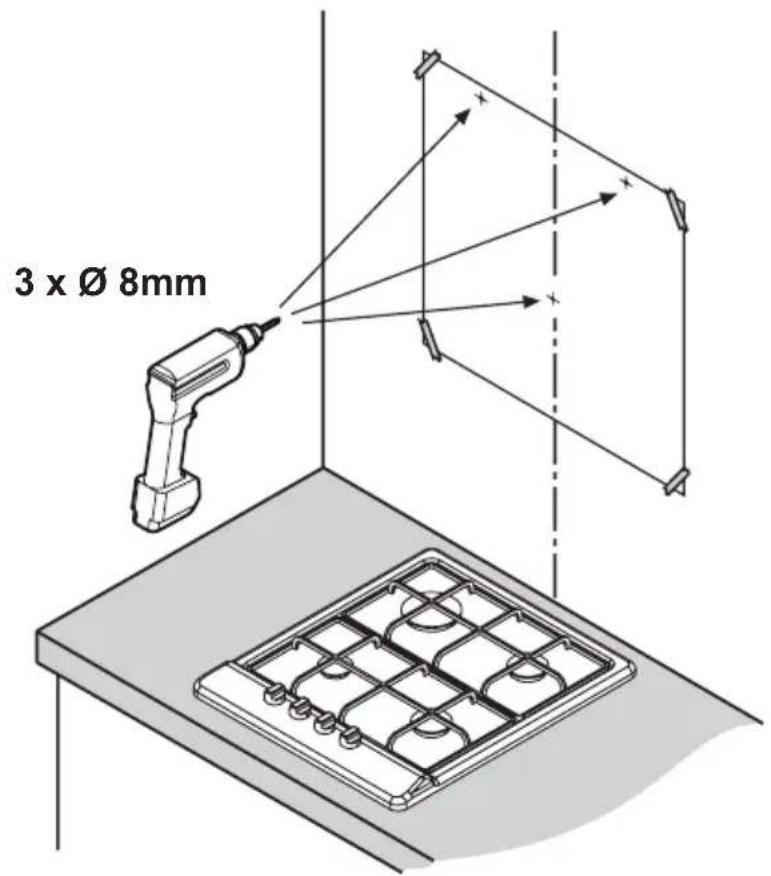

2 x ∅ 8mm

2x

7

1cm

9,5cm ∅ 16cm

∅ 16cm

5cm

9

Technical line drawing showing a structural assembly with two views: top view and side view of a mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with open and closed panels, showing internal components and mounting hardware (no text or symbols)

13

Technical line drawing of a multi-layered electronic device casing with internal compartments and mounting brackets (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

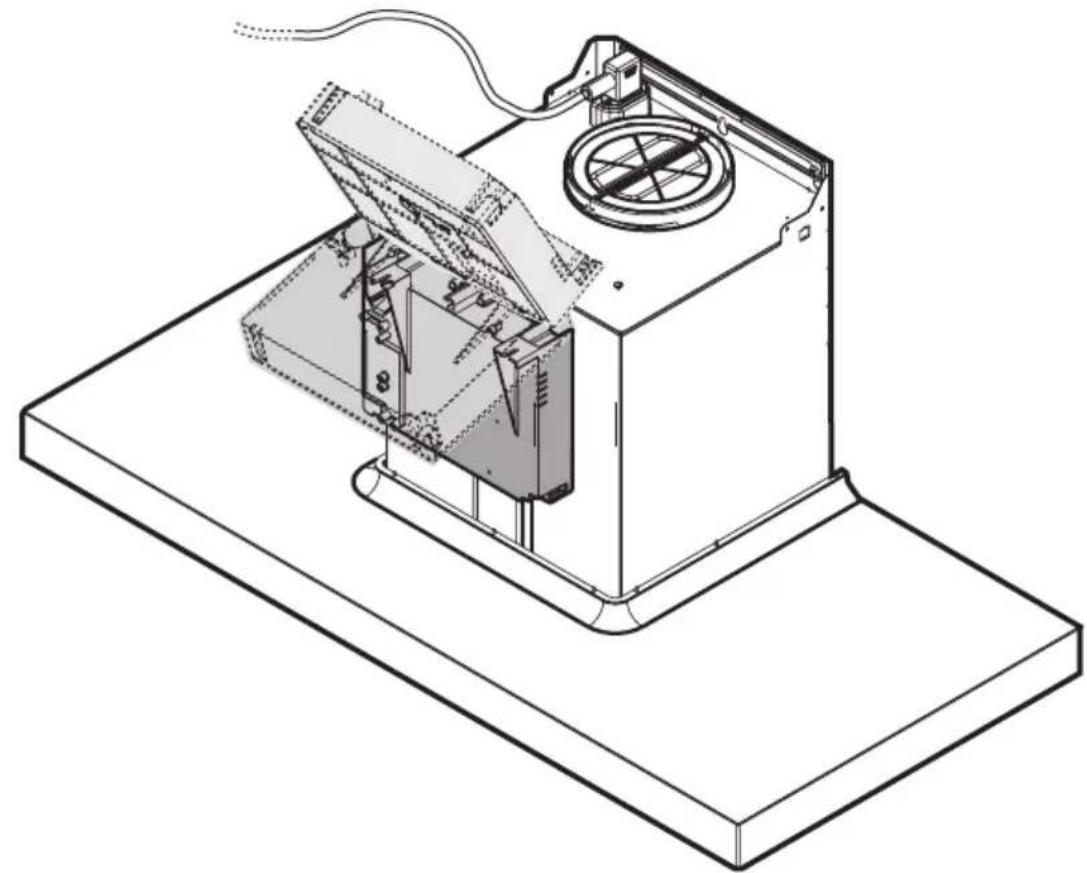

Technical line drawing of an open electronic device with internal components and wiring (no text or symbols)

19

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

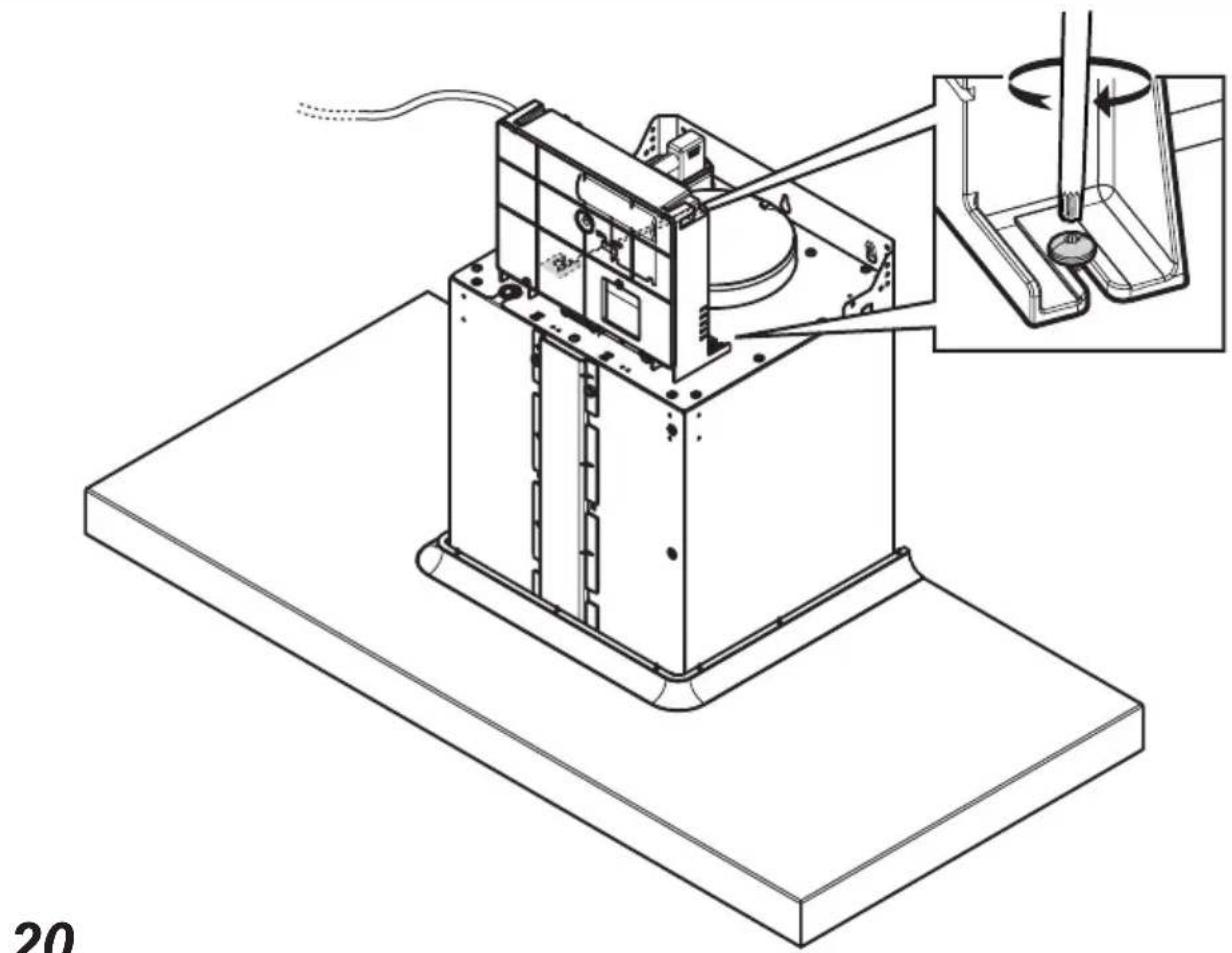

20

Technical line drawing of a mechanical device with internal components and assembly details (no text or symbols)

Isometric line drawing of a multi-tiered industrial or mechanical component with mounting base, no text or symbols present

Diagram showing four different plastic housing components with an icon of a circular refresh or renewal inside a house (no text or symbols present)

Technical diagram of a mechanical component with two views: top shows internal structure with arrows indicating motion, bottom shows cross-sectional view with arrows (no text or symbols)

Technical line drawing of two 3D rectangular electronic components with internal compartments and mounting holes (no text or symbols)

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not flambé under the range hood.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

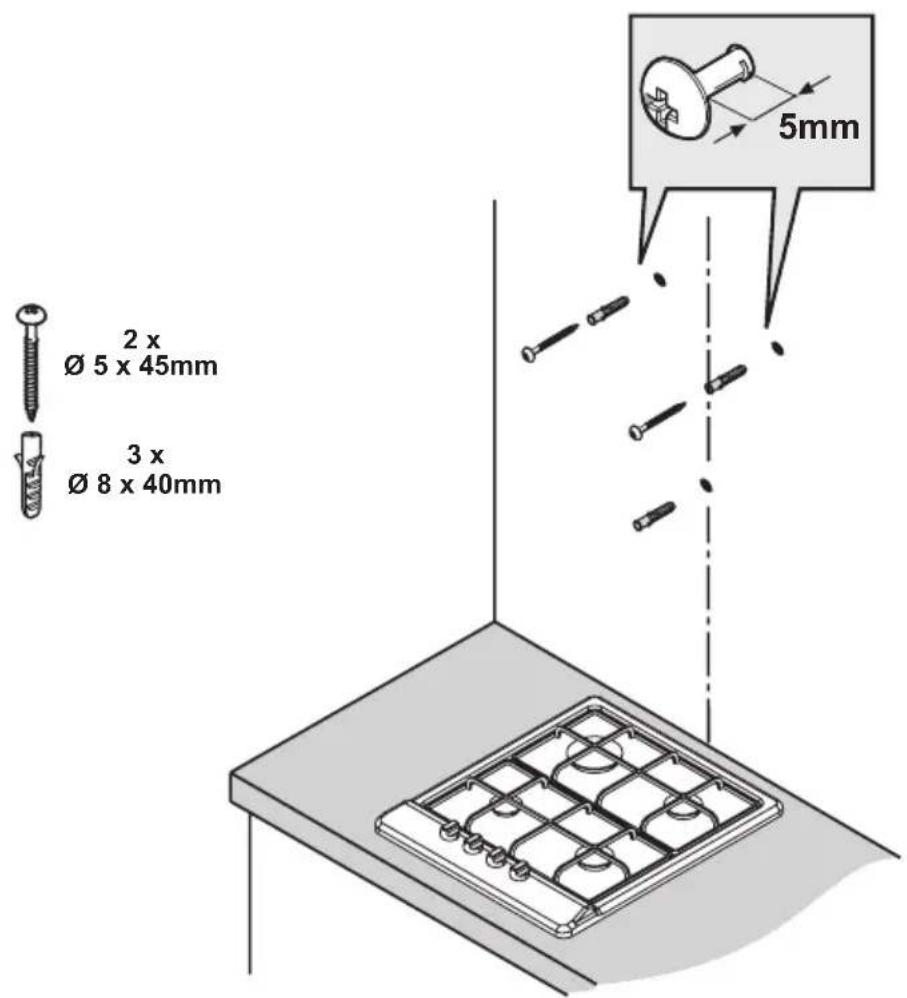

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical

hazards.

Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.

- Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

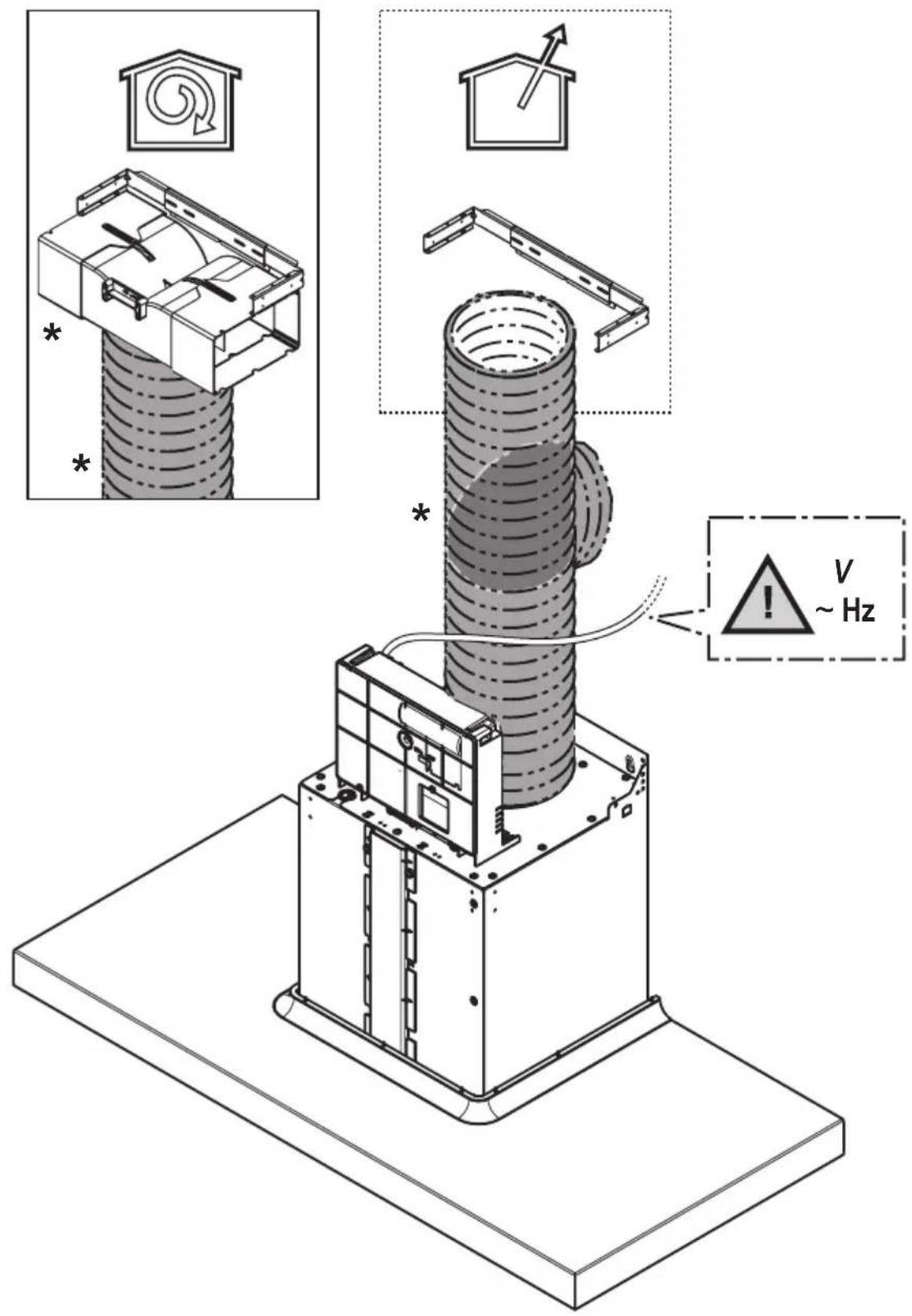

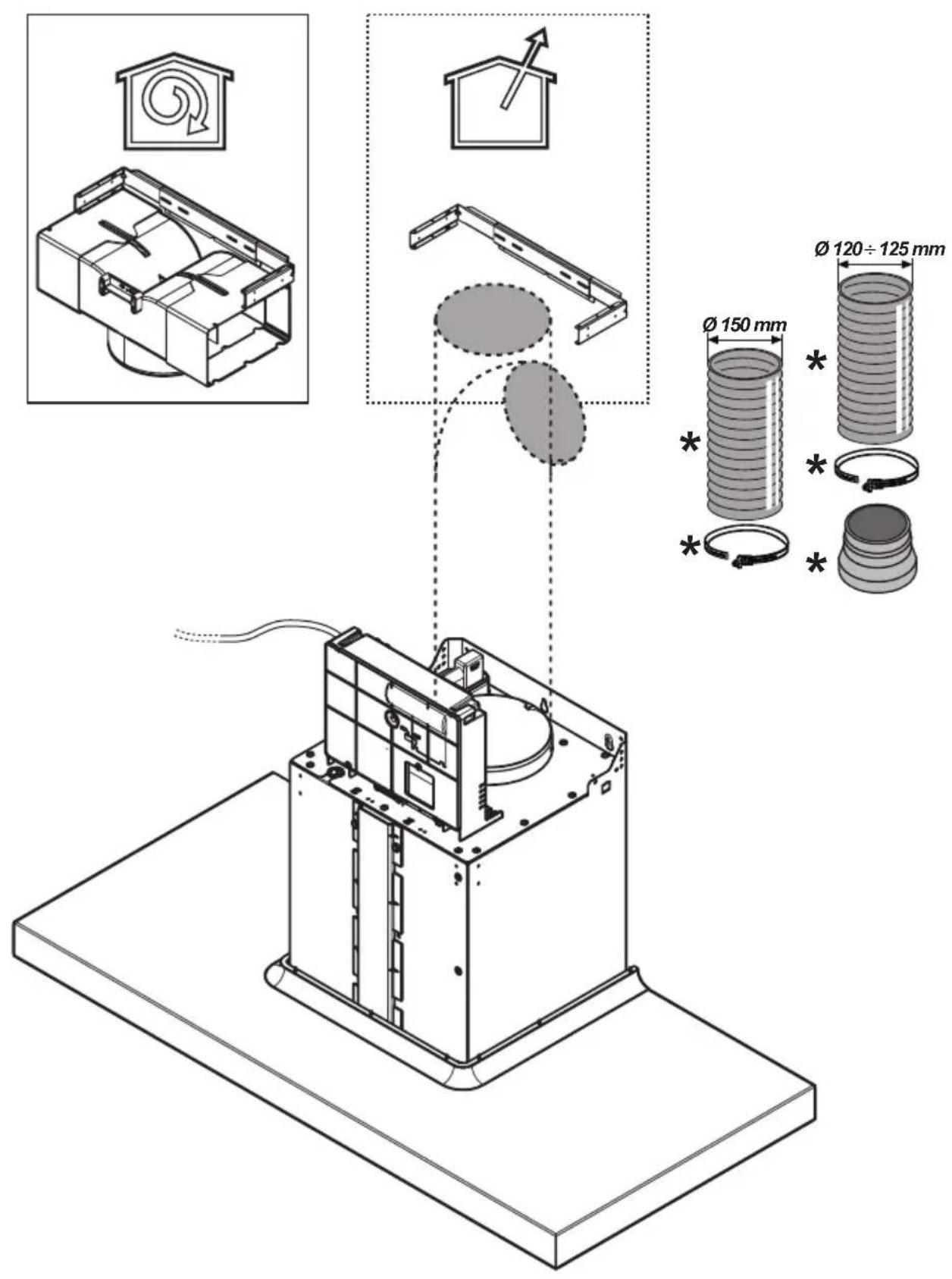

The hood is designed to be used either for exhausting or filter version.

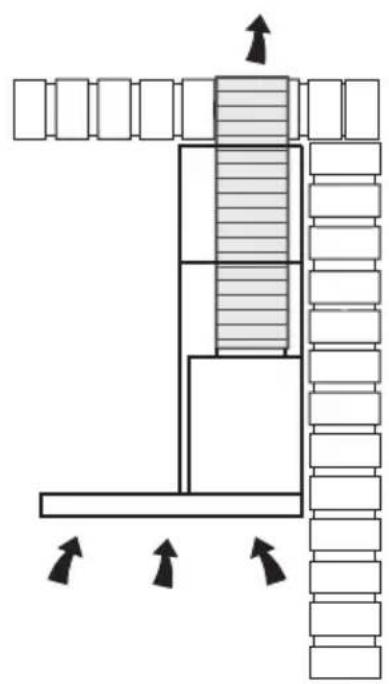

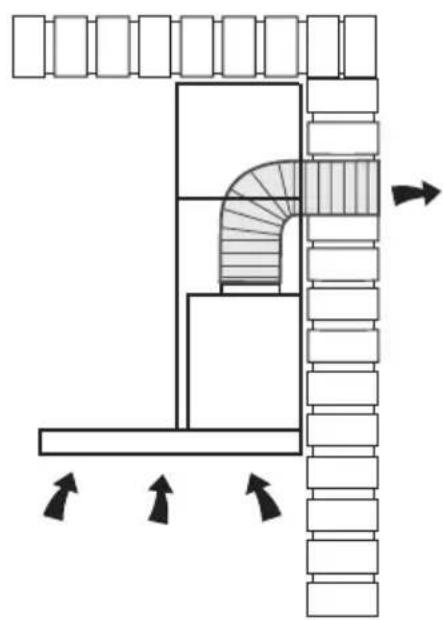

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

Attention! If the hood is supplied with active charcoal filter,

then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

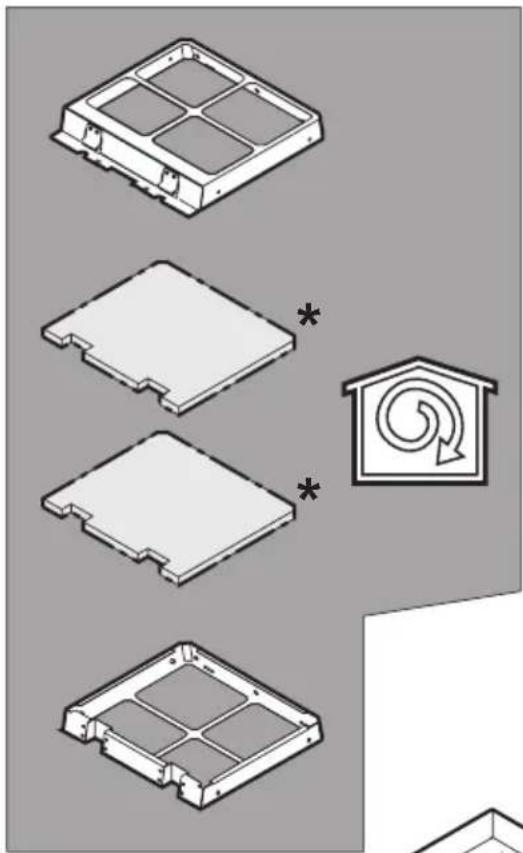

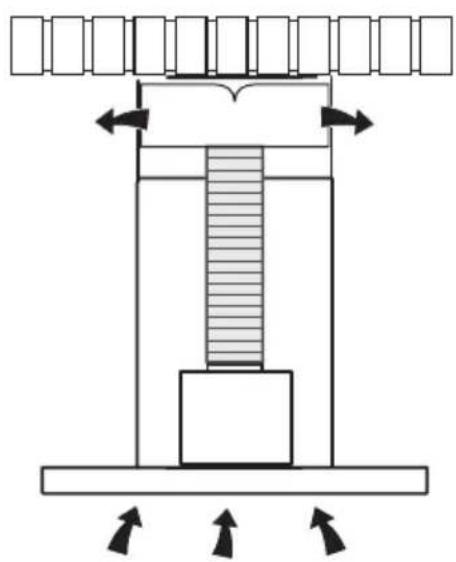

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

Installation

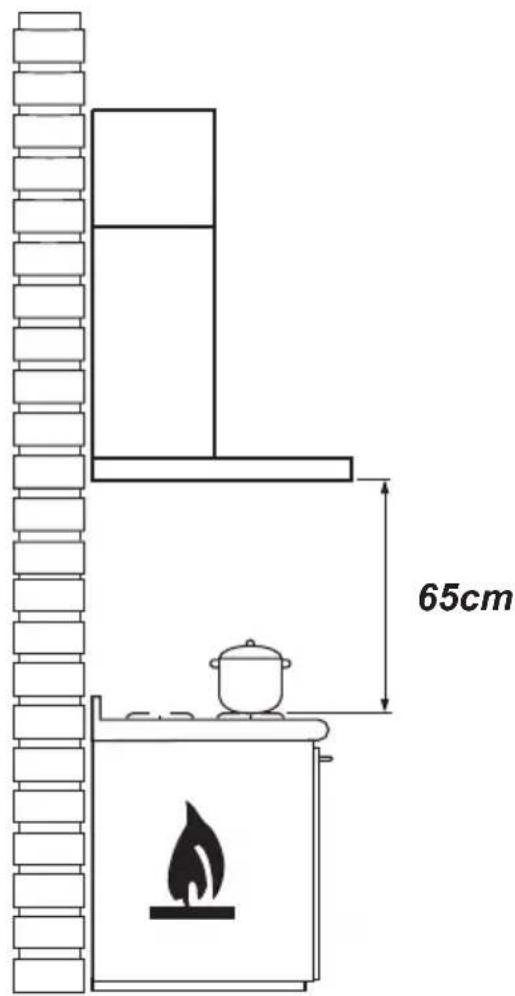

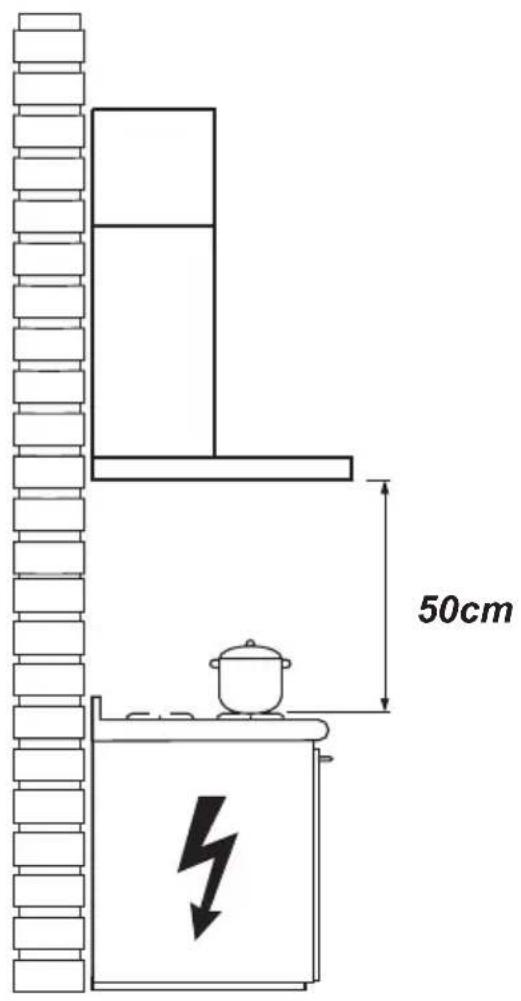

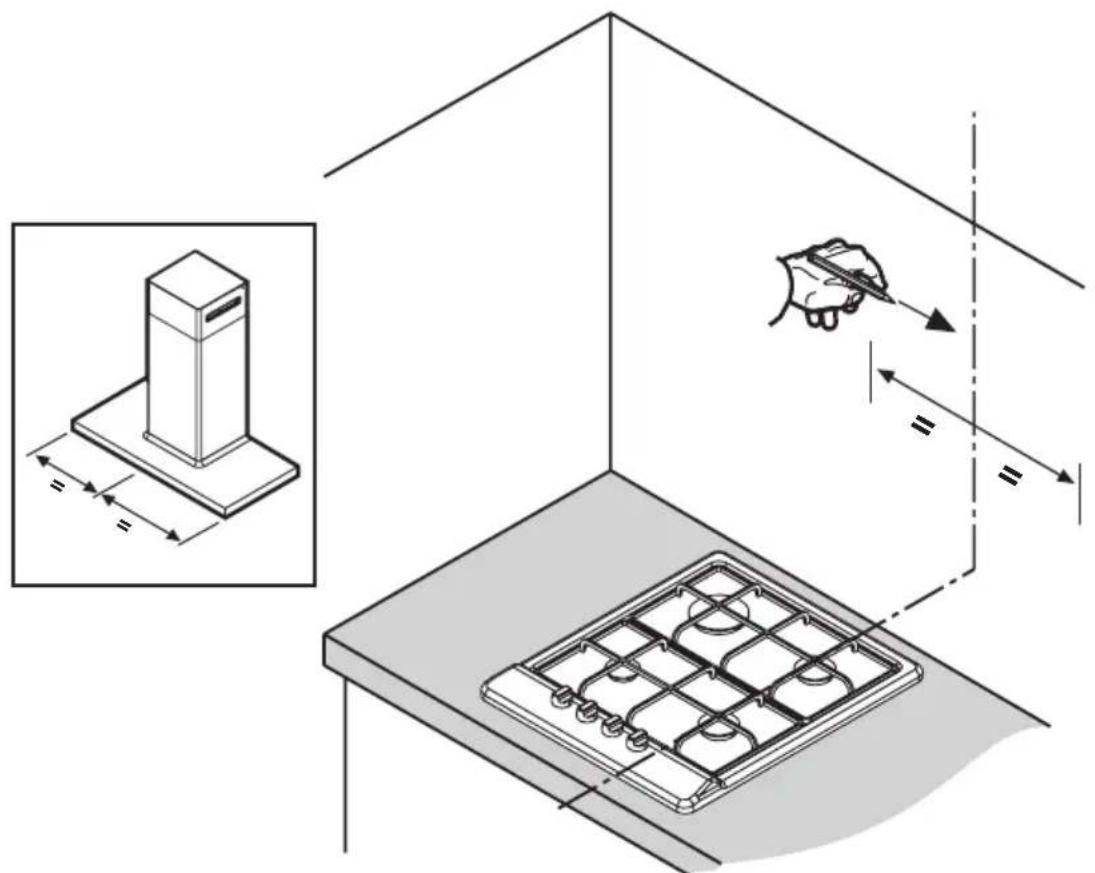

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

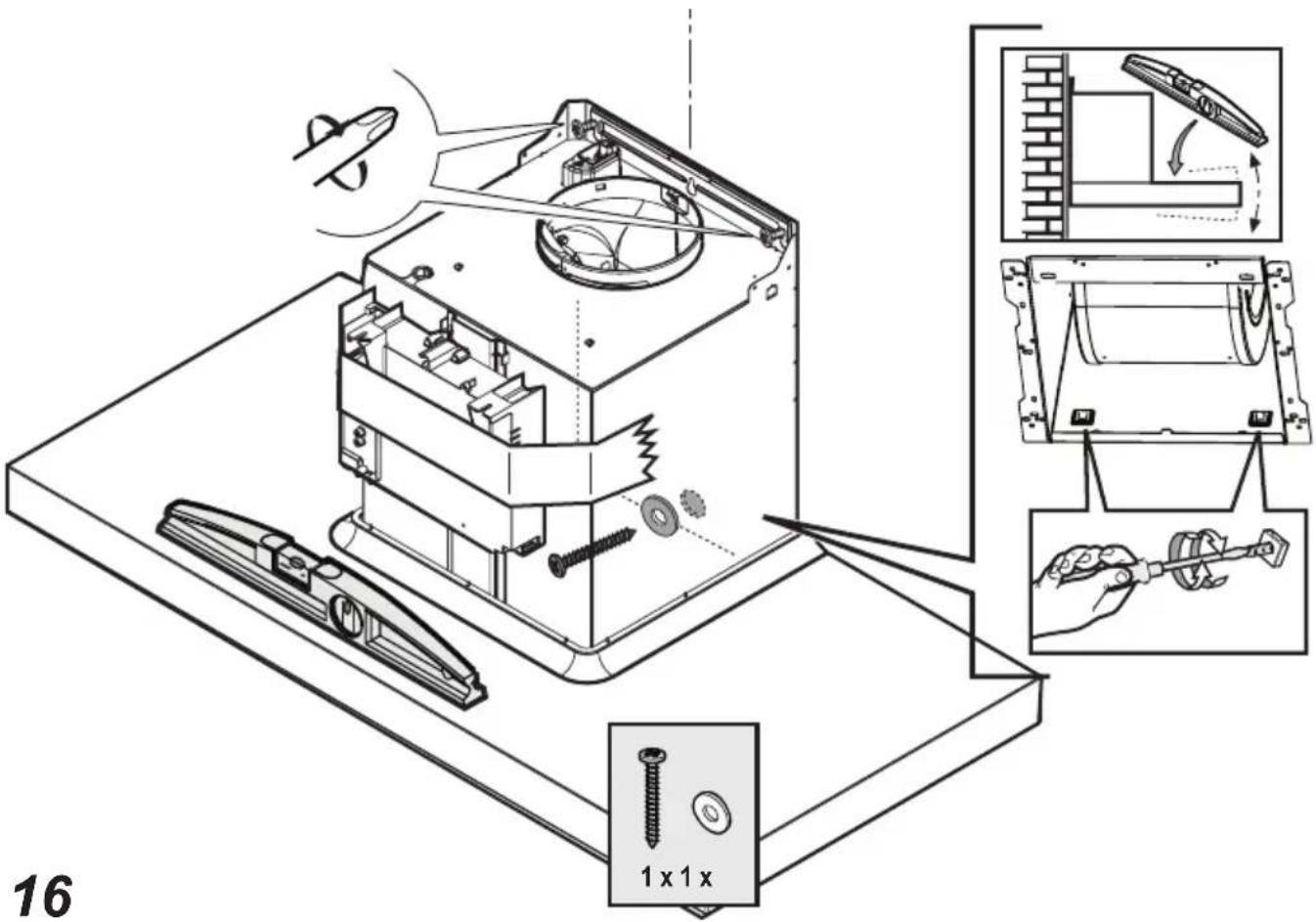

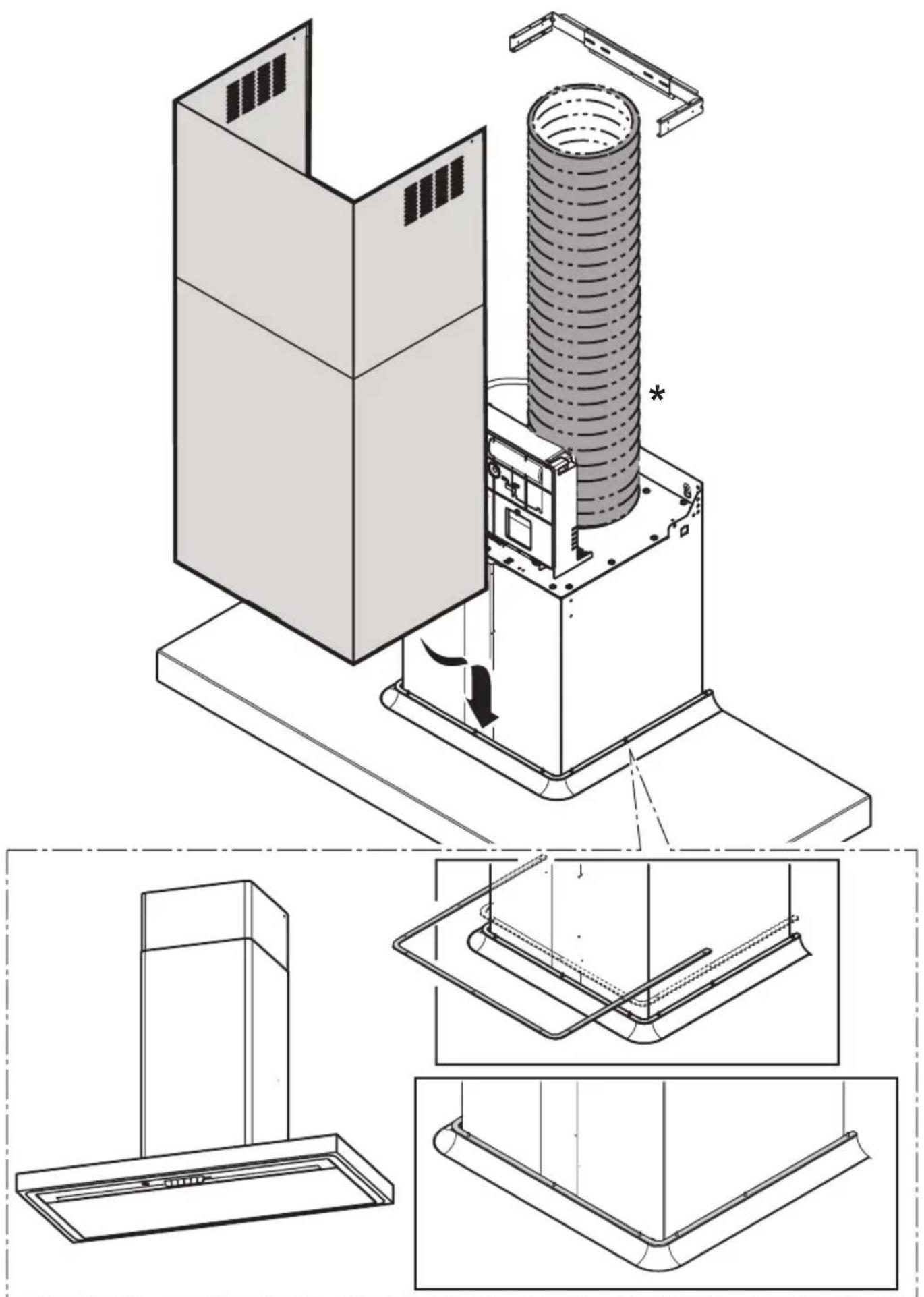

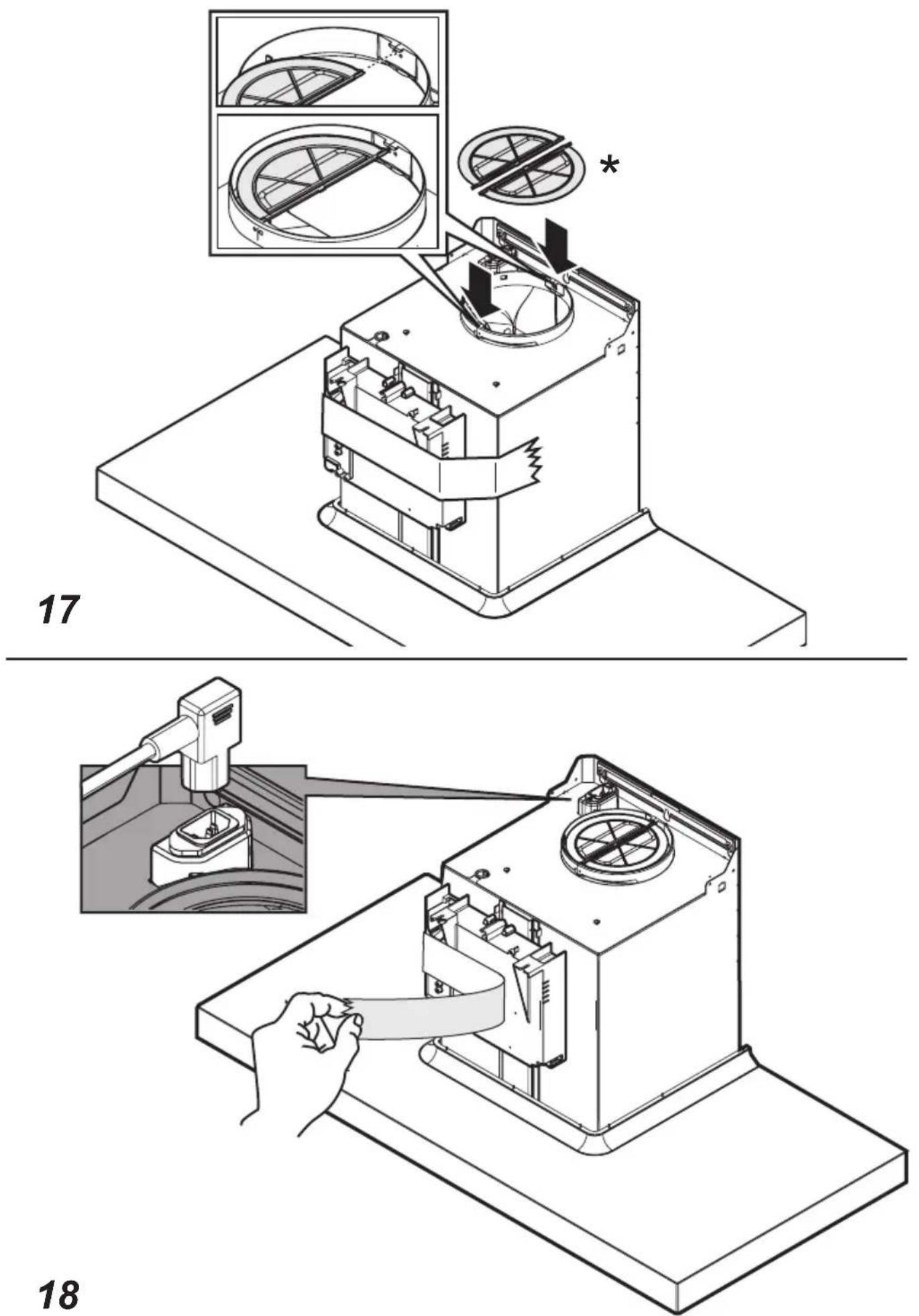

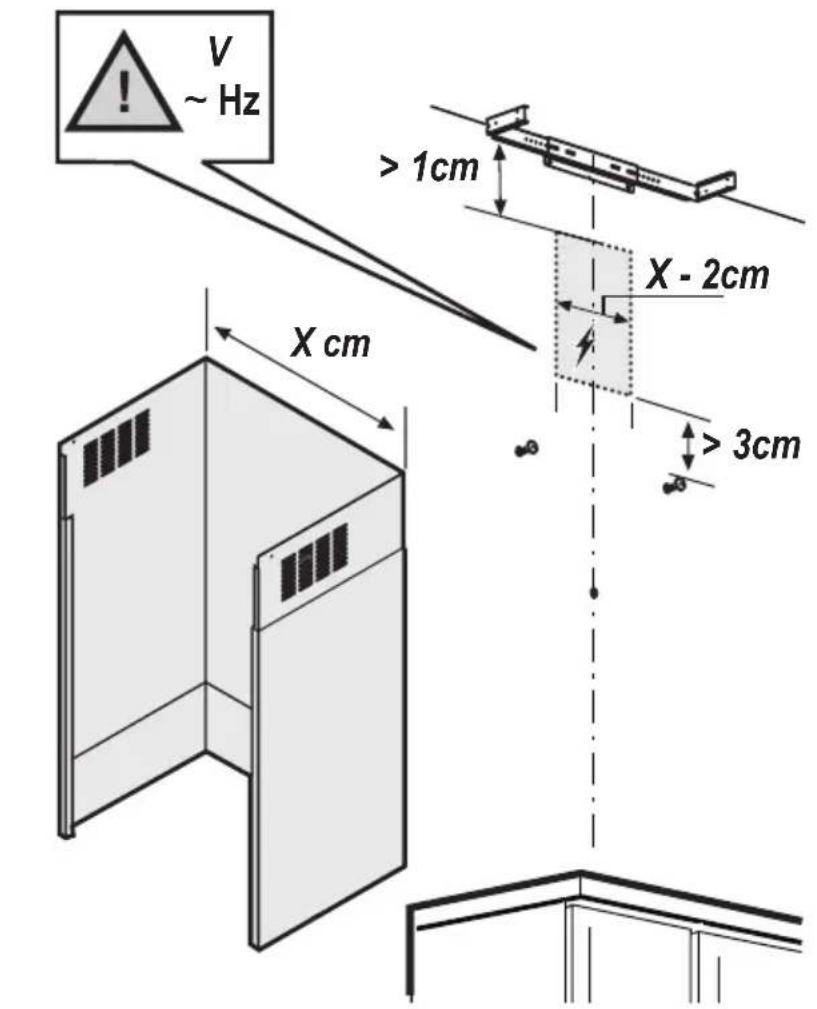

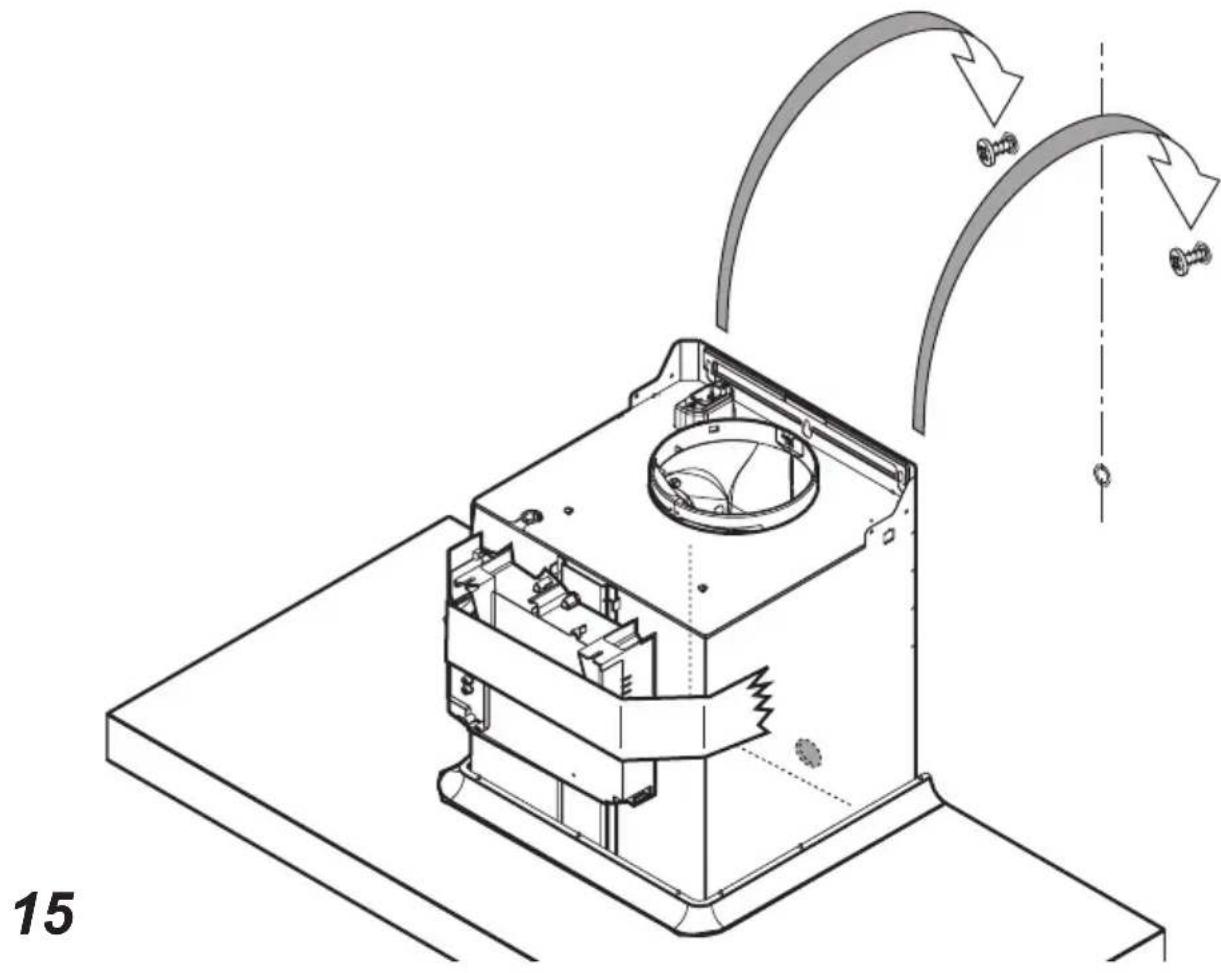

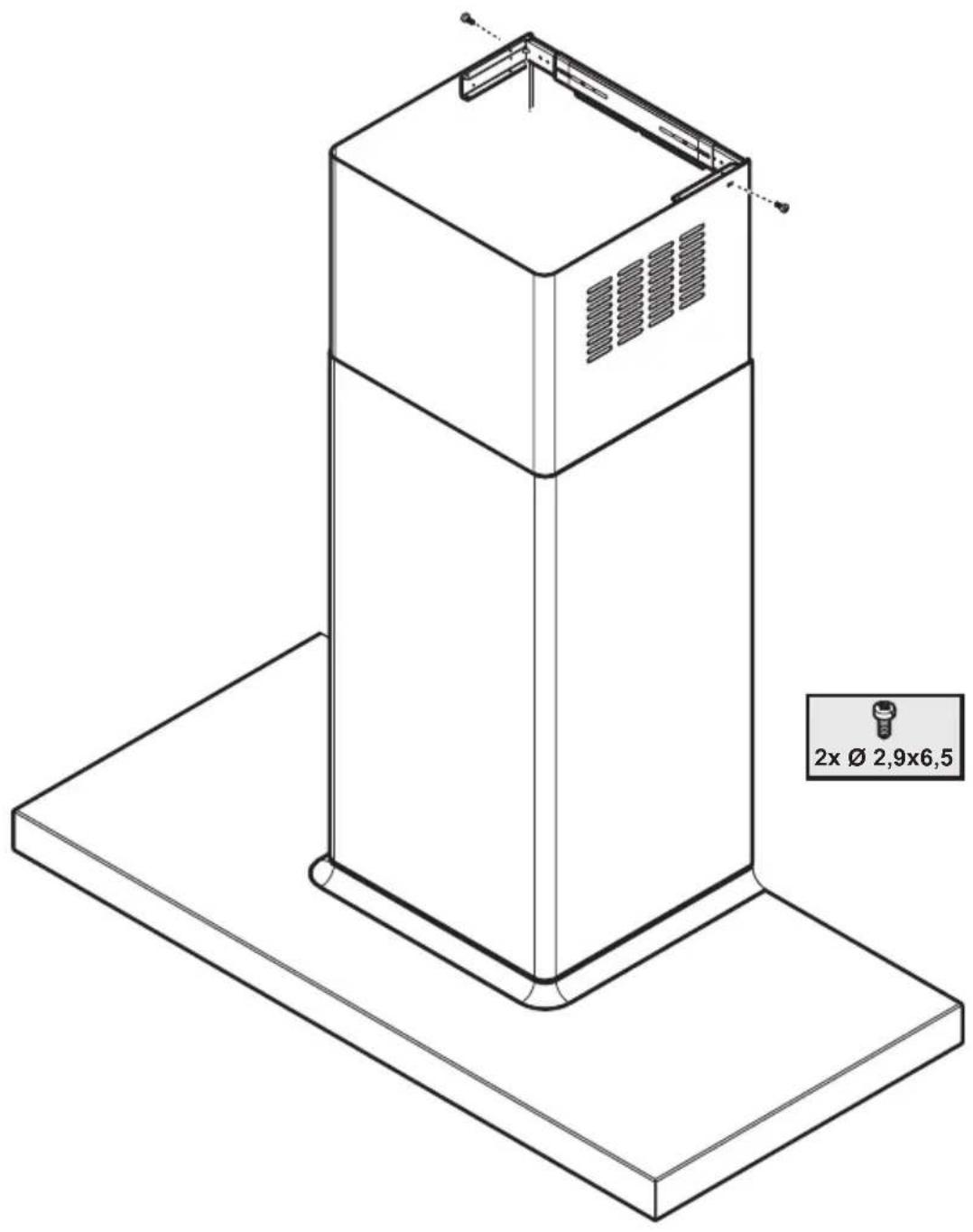

Mounting

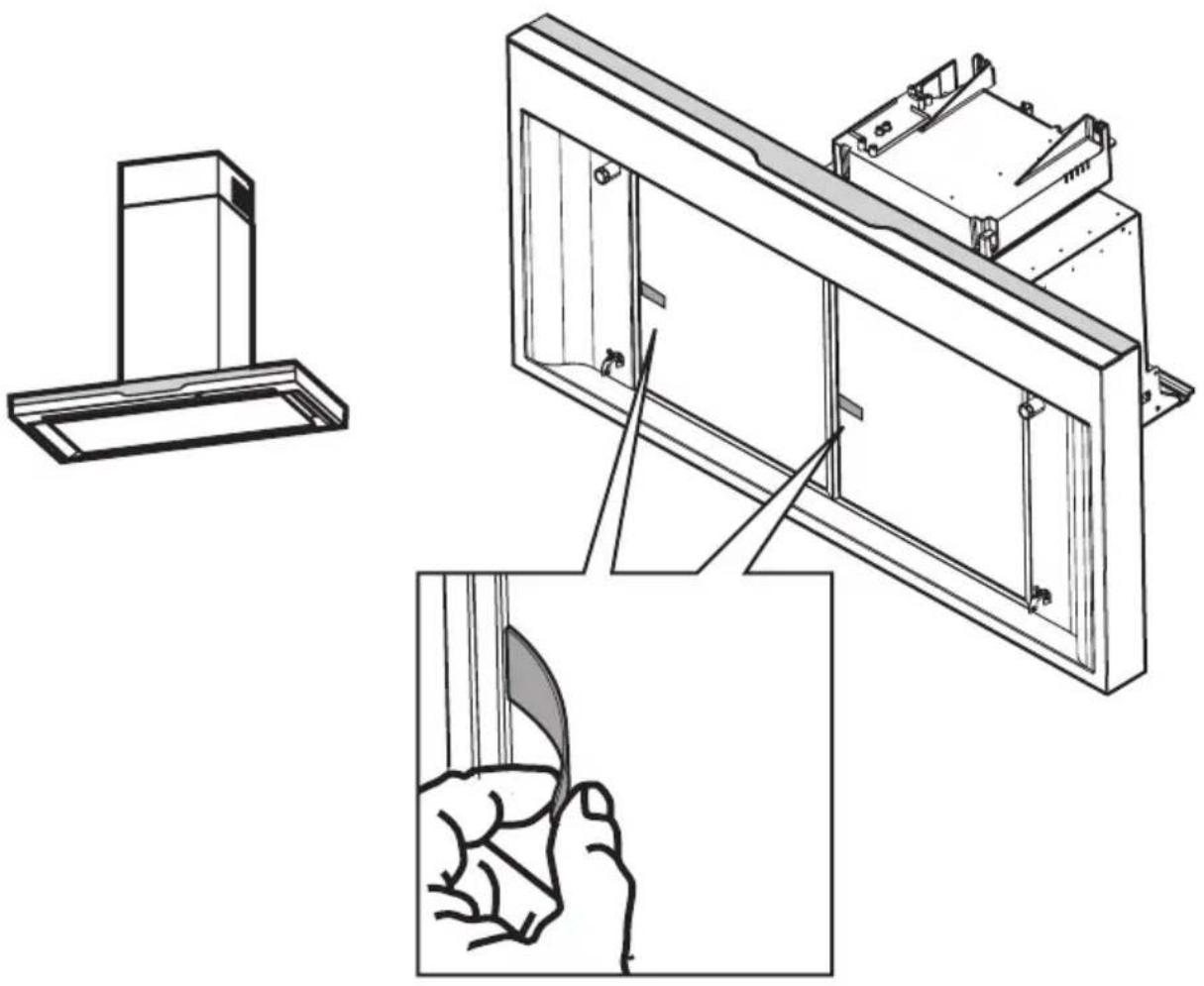

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

Very heavy product; hood handling and installation must be carried out by at least two persons.

Operation

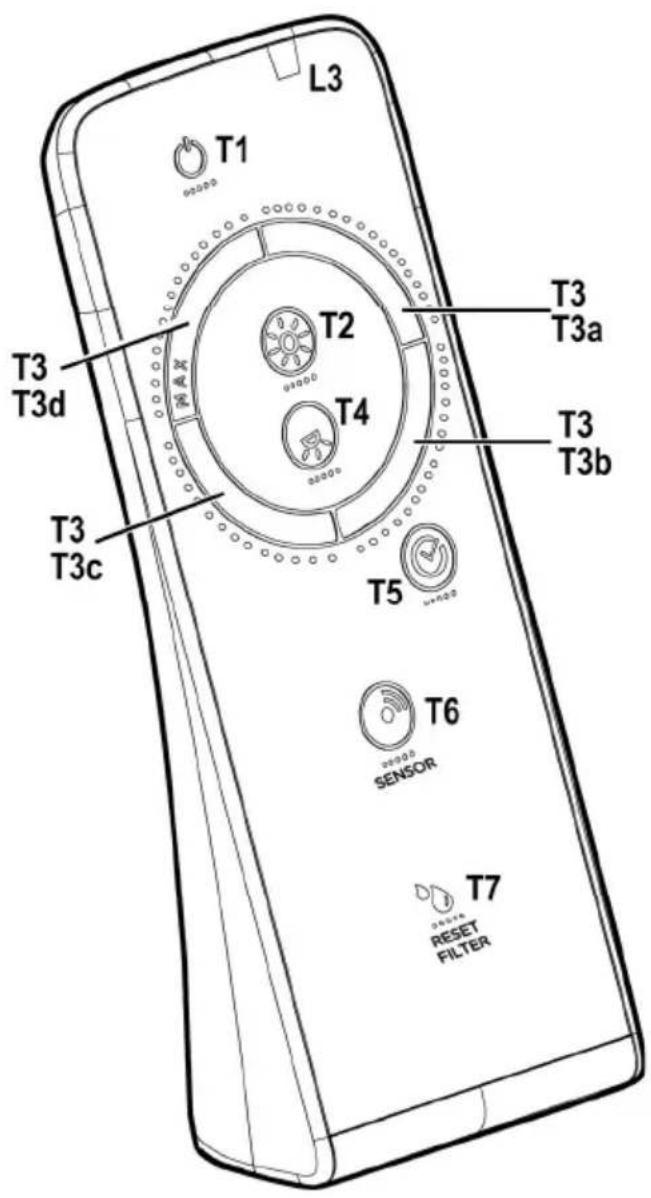

For certain models, a remote control is available as accessory kit, by which you can control the main functions of the hood. Check with your authorised dealer or technical assistance centre the compatibility/suitability of your model.

Control panel with 7 buttons

To select the functions of the hood you simply touch the controls.

Automatic operation (sensor), connection with SNAP®

Button ON/OFF lighting

Press briefly to switch on or off the lighting of the hob.

Press and hold to adjust the tonality of the light (only certain models).

Button for intensive speed (suction power) selection – it lasts 5 minutes then it returns to medium speed (suction power) or it switches off if the delayed shutdown of the hood is activated (only with remote control). The button flashes in both cases to indicate speed timing.

Button for high speed (suction power) selection.

The button flashes if the delayed shutdown of the hood is activated (only with remote control).

Button for medium speed (suction power) selection

The button flashes if the delayed shutdown of the hood is activated (only with remote control).

Button for low speed (suction power) selection – when flashing, it indicates that you must wash the grease filter.

The button flashes if the delayed shutdown of the hood is activated (only with remote control).

Button OFF motor (stand by)

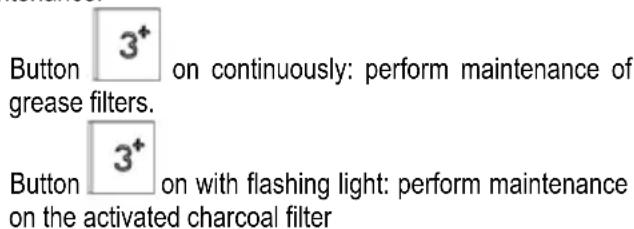

Indicators of Filter Saturation

At regular time intervals, the hood signals the need to perform filter maintenance.

Button mainte

on with steady light: perform grease filter

Button MAX flashing: perform activated charcoal filter maintenance.

Note: Filter saturation signal is visible within the first minute after switching off the hood; within this time, the reset of saturation indicators must be performed.

Reset of filter saturation indicators:

Press and hold the button

Activation of saturation indicator activated charcoal filter

Note: this operation must be performed with the hood off. This indicator is normally deactivated; press and hold the

button MAX to activate the function: the button lights up with steady light.

To deactivate the function, press and hold the button

: the button lights up flashing.

Automatic operation (sensor), connection with SNAP®

Attention! The proper operation of the hood will depend on the 'Setting of parameters for Automatic Operation' (see dedicated section)

Automatic operation (sensor)

Press the button (the central LED lights up in white).

The hood will switch on at the most suitable speed based on the cooking fumes detected by the sensor on the hood.

Automatic operation of the hood with SNAP®

Press the button .(the LEDs light up in orange) to indicate that the hood can operate automatically with the SNAP®

Note: SNAP ^® is an auxiliary suction unit that can operate together with the hood. For further information, please consult the manual supplied with SNAP ^®

Automatic operation of the hood with the Elica hob

Operation of the hood will also depend on use of the Elica hob.

Press the button .(the LEDs light up in white) to indicate that the hood can automatically operate with the Elica hob; thus, hood operation will also depend on use of the Elica hob.

Note: Automatic operation with the hob is possible only with specific cooking hobs; for further details, please contact the

authorised dealer or technical assistance centre.

Automatic operation of the hood with SNAP® and Elica hob

(the LEDs

Press the button .(the LEDs light up in orange) to indicate that the hood can operate automatically with the hob and the SNAP®

Setting of parameters for Automatic Operation

Note: All calibration, selection, setting and logical connection operations described below can be performed with the hood off (OFF).

The adjustment of parameters is regularly done automatically every time the hood is reconnected to the mains (e.g. with the first installation or after a blackout) or manually.

Manual setting

To be performed when you notice unsatisfactory functioning of the Automatic operation, and is done when normal environmental conditions persist in the kitchen.

Manual setting includes:

• Hood calibration

• Selection of hob (gas, induction, or electric)
• Logical connection between the hood and SNAP ^ (if you have SNAP ^ ).

Hood calibration

Press and hold the button 📄, all button LEDs flash to indicate initiation of calibration; the process will last for approximately 5 minutes.

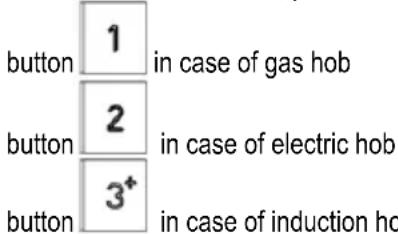

Selection of the hob (gas, induction, or electric)

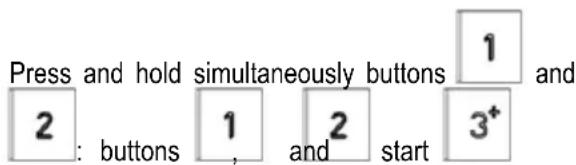

Press and hold simultaneously the buttons

and : buttons start flashing for 5 seconds.

Within this timeframe, press:

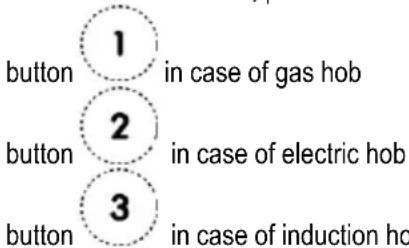

button in case of induction hob

The preselected button remains lit to indicate the selection was performed, after 10 seconds the button flashes briefly to indicate that the performed selection was recorded.

Logical connection between the hood and SNAP® (if you possess a SNAP®).

Connection between the hood and SNAP ^® is automatic. No other setting has to be performed.

Control panel with 6 buttons

Automatic operation (sensor) e connection with SNAP®

Button ON/OFF lighting

Press briefly to turn on or off the hob lighting.

Press and hold to adjust the tonality of light.

Button to select high speed (suction power):

- first touch

Button to select intensive speed (suction power):

- second touch

Intensive speed (suction power) has a duration of 5 minutes, then the hood returns to medium speed (suction power); the button flashes.

Note: pressing again the hood goes back to high speed (suction power).

Button to select medium speed (suction power):-

Button to select low speed (suction power):- when flashing, it indicates you must wash the grease filter.

Button OFF motor (stand by)

Filter Saturation Indicators

At regular intervals the hood signals the need to perform filter maintenance.

Note: The filter saturation indicator is visible within the first minute after the hood switching off; the reset of

saturation indicators must be performed within this time interval.

Reset filter saturation indicators:

Press and hold button

Activation of saturation indicator for activated charcoal filter

Note: this operation is to be performed with the hood off. This indicator is normally disabled; press and hold button

to activate the function; the button turns on with light.

To deactivate the function, press and hold button the button turns on with flashing light.

Automatic operation (sensor), connection with SNAP®

Attention! Proper functioning of the hood depends on the 'Setting of Parameters for Automatic mode' (see relevant paragraph)

Automatic operation (sensor)

Press button ☐ (the button turns on in white).

The hood turns on at the most appropriate speed according to the cooking fumes detected by the sensor on the hood.

Automatic operation of the hood with SNAP®

Press button (the button turns on in orange to indicate that the hood can operate automatically with SNAP®).

Note: SNAP ^® is a unit of auxiliary suction capable of operating together with the hood. For more information, consult the manual supplied with the SNAP ^®

Setting of parameters for Automatic Operation

Note: All calibration, selection, control and logical connection operations described below are possible with the hood off (OFF).

Parameter setting is regularly done automatically whenever the hood is reconnected to the power grid (eg: first installation or after a blackout) or manually

Manual setting

To perform when you notice an unsatisfactory functioning of automatic operation and should be performed when in the kitchen there are normal environmental conditions.

The manual adjustment includes:

• Calibration of the hood:
• Selection of the hob (gas – induction or electric).
- Logical connection between the hood and SNAP^ (if in possession of SNAP^ ).

Calibration of the hood

Press and hold button \$, the button flashes to indicate that calibration began, the calibration process will last about 5 minutes.

Selection of the hob (gas – induction or electric)

flashing for 5 seconds.

Within this time interval, press:

The selected button remains on to indicate the selected was made, after 10 seconds the button will flash briefly to indicate that the selection you made was registered.

Logical connection between the hood and SNAP ^® (if in possession of SNAP ^® ).

The connection between the hood and SNAP ^® is automatic. No setting is required.

Remote control

Warning! Some functions of this remote control may only be activated with certain hood models.

Remote control affiliation:

Keep T2 +T5 pressed within the first minute the hood is powered. Once pairing is complete it is displayed on the hood.

Description of the remote control functions

T1. OFF key
T2. ON/OFF key and dim light intensity adjustment
T3. Suction speed (power) control key:
T4. Hob light ON/OFF key
T5. Delayed hood ON/OFF key
T6. Sensor ON/OFF key.
T7. Filter saturation warning reset key.
L3. Remote control operation LED

Note: touch the keys lightly to select the available functions.

T1. OFF key
Press to switch the hood off
T2. ON/OFF key and dim light intensity adjustment
Press briefly to switch the dim light on or off Press longer to adjust intensity.
Note: The dim light is only available on some models.

T3. Suction speed (power) control key Touch the key starting from any position, turning it clockwise or anticlockwise to increase or decrease suction speed. The key is divided into several sectors. You can select the desired speed directly in the corresponding sector as follows:

T3a: Speed 1 (low suction)

T3b: Speed 2 (medium suction)

T3c: Speed 3 (high suction)

T3d: Speed 4 (intensive suction)

T4. Hob light ON/OFF key Press to switch the hob light on or off.

T5. Delayed hood ON/OFF key. Press to program the delayed switch-off of the hood based on the suction speed (power) active at that moment:

Speed 1 (low suction): 20 minutes

Speed 2 (medium suction): 15 minutes

Speed 3 (high suction): 10 minutes

T6. Sensor ON/OFF key Keep it pressed to activate/deactivate the mode with sensor which manages fume extraction in automatic mode.

Note: The sensor is only available in some models.

T7. Filter saturation warning reset key.

Maintenance of the remote control

Cleaning the remote control:

Clean the remote control with a damp cloth and a neutral solution of detergent without abrasive substances.

Changing the battery:

• Open the battery casing.
• Replace the flat batteries with 3 new 1.5 V type AAA batteries.

Respect the polarity indicated in the battery casing when inserting the new battery!

- Close the battery casing up again.

Disposal of the batteries

Ultimate disposal of the batteries should be handled according to all national laws and regulations. Do not place used batteries in your regular waste.

Ultimate disposal of the batteries must be done safely.

Contact your local waste management officials for other information regarding the environmentally sound collection, recycling, and disposal of the batteries.

Maintenance

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR

INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

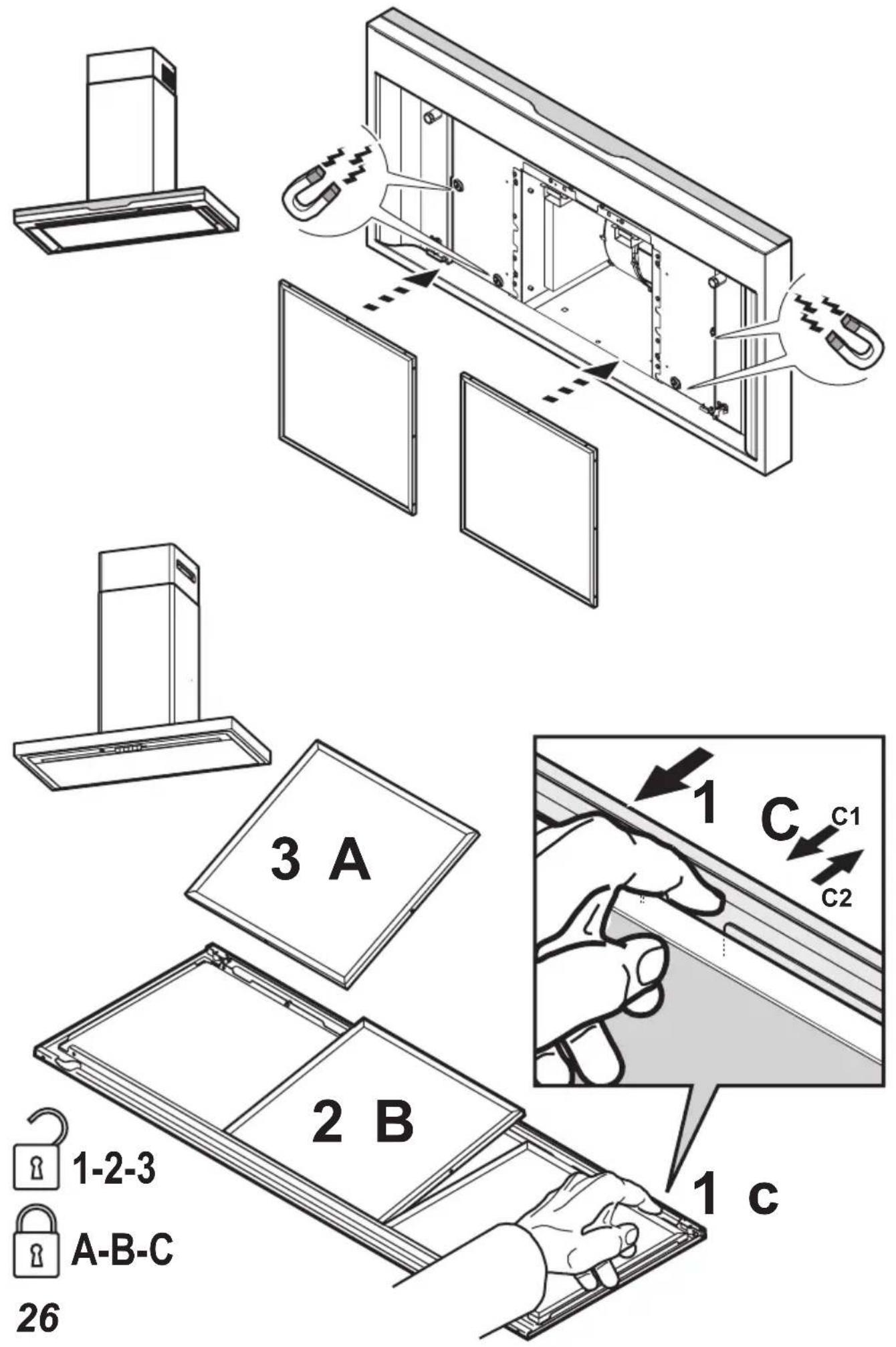

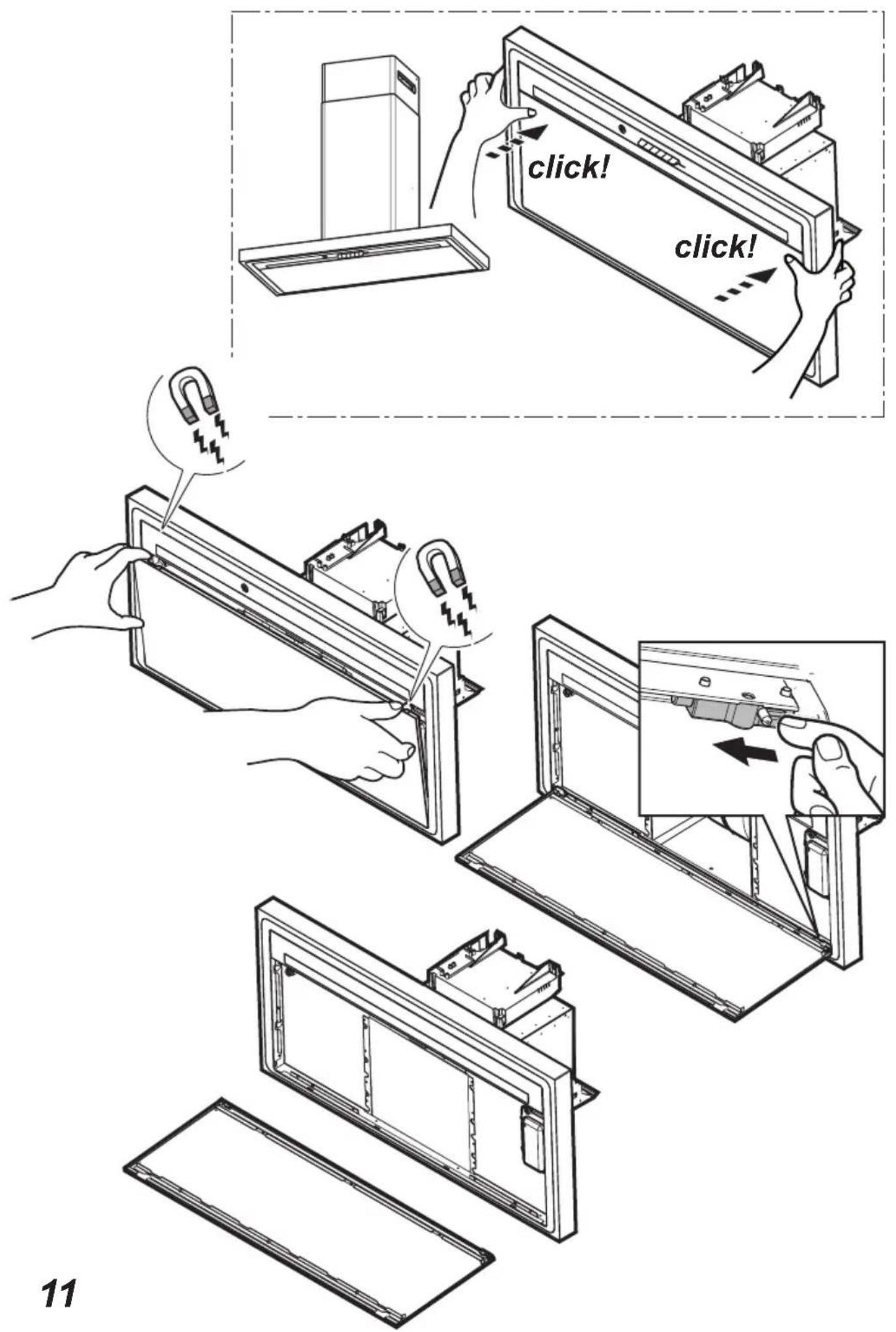

Grease filter

Fig. 11-12-24-25

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

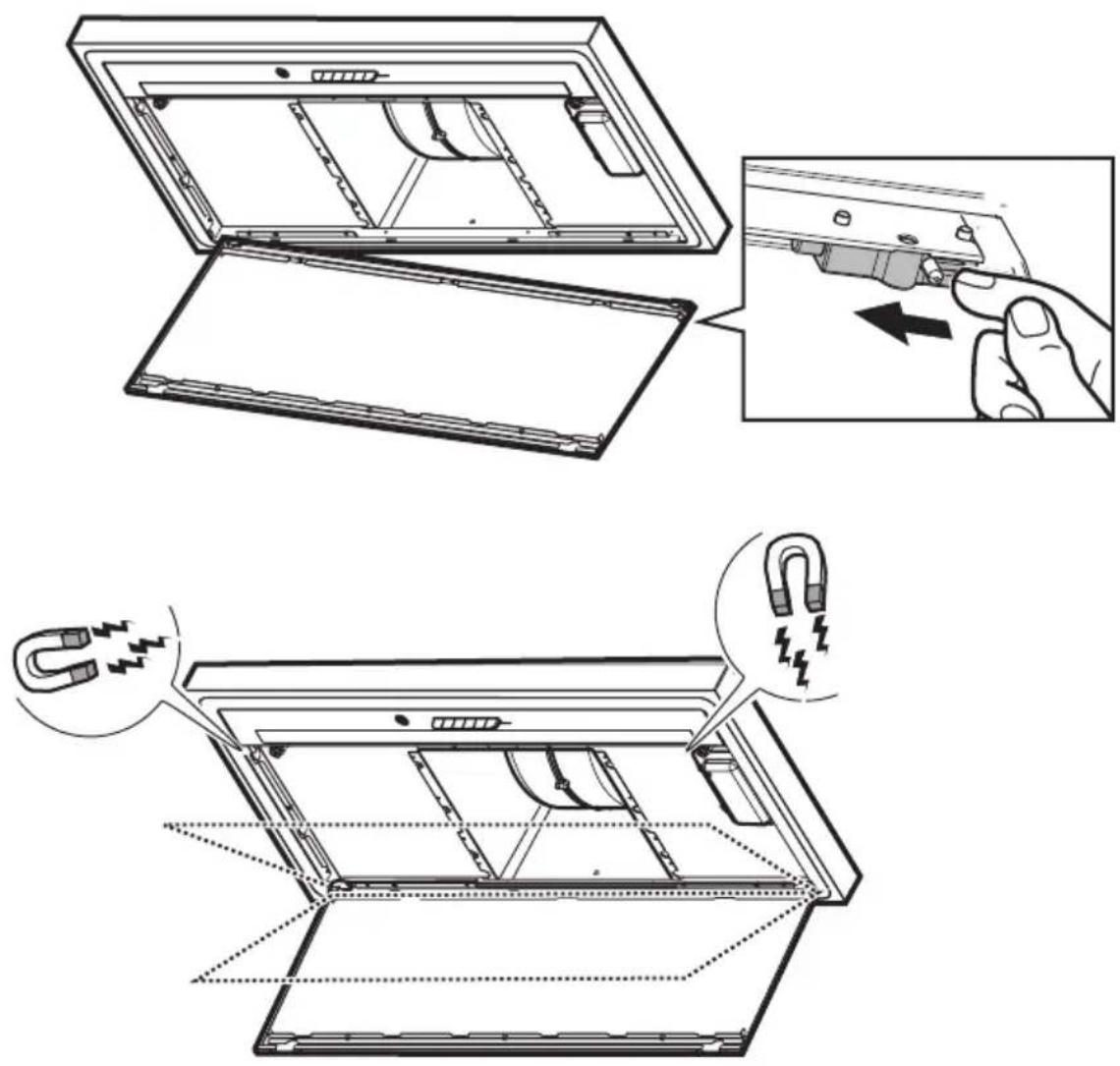

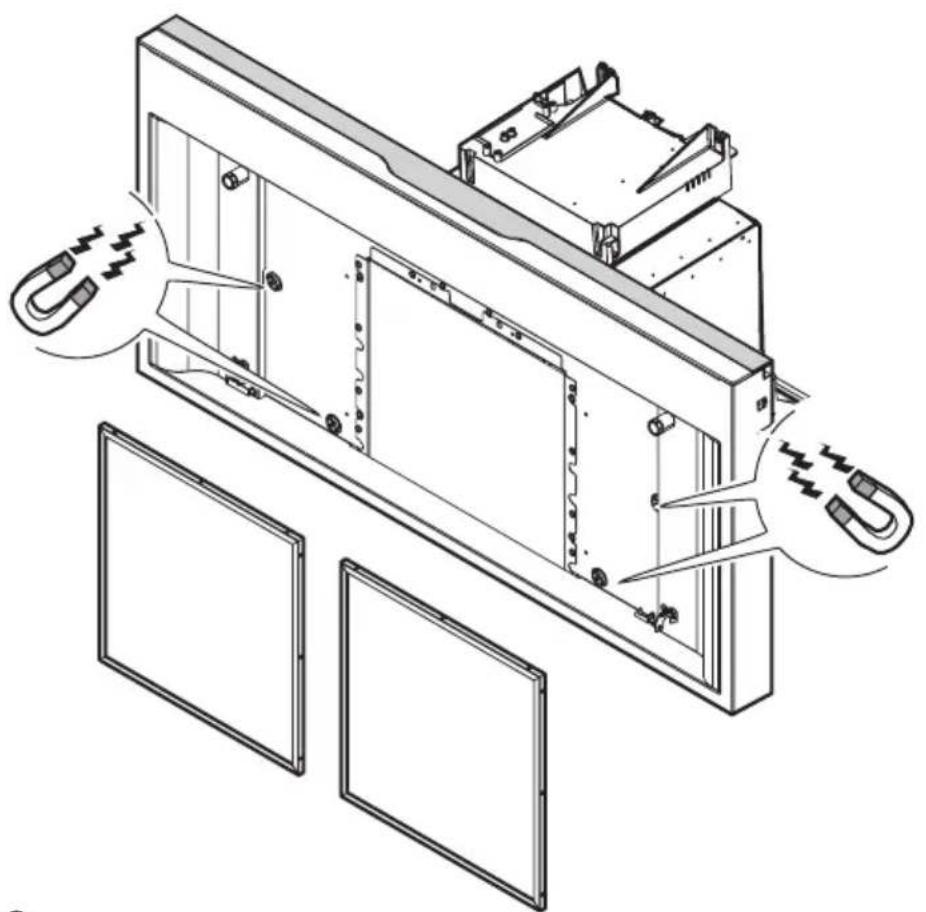

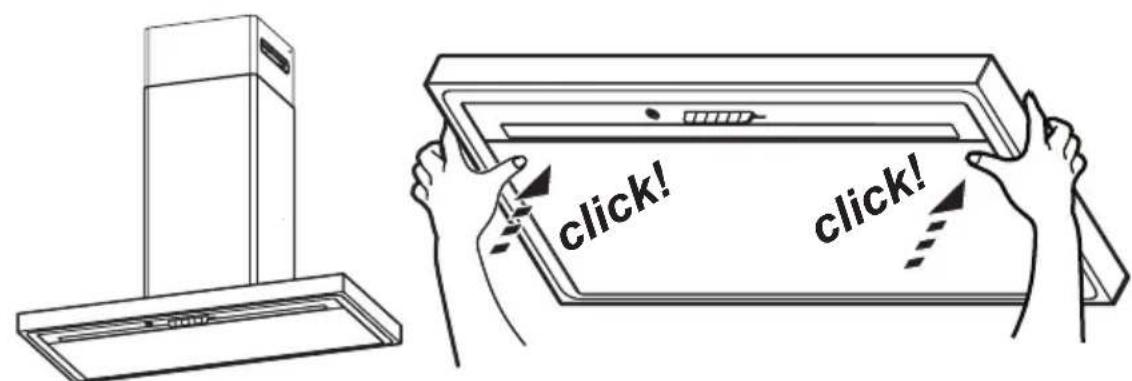

To remove the grease filter, pull the spring release handle.

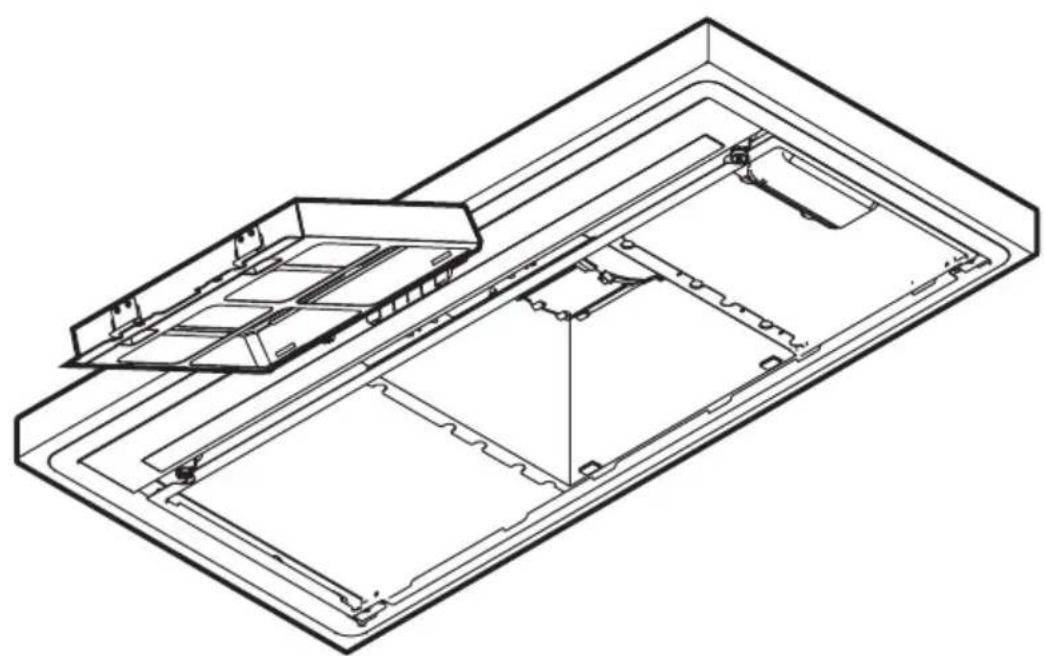

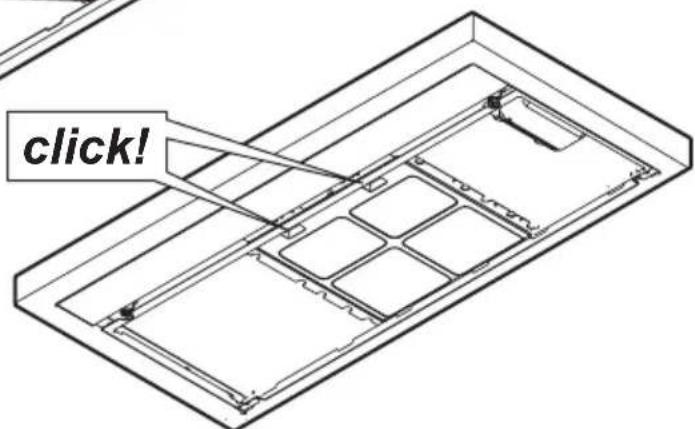

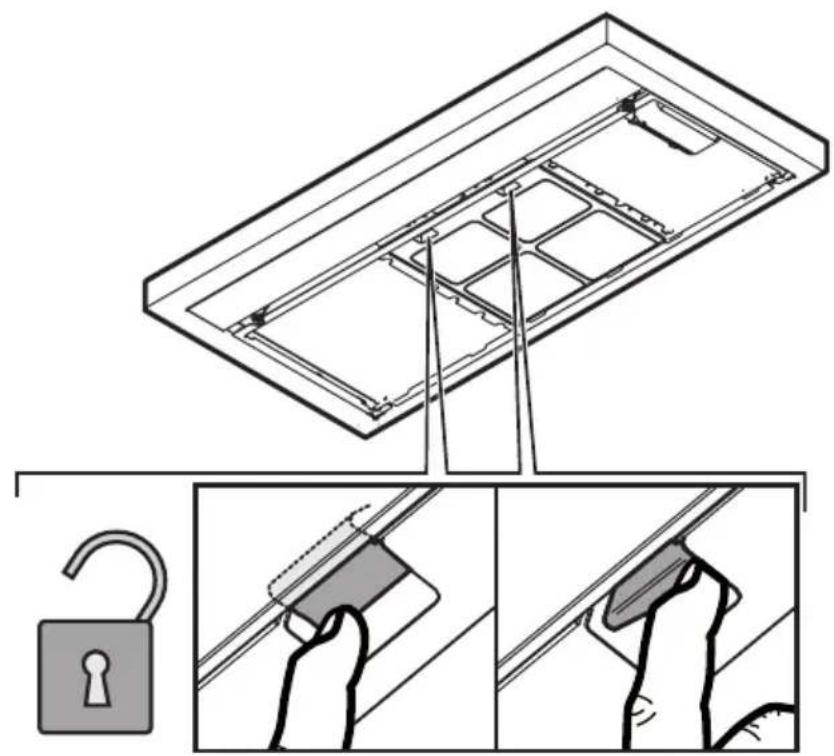

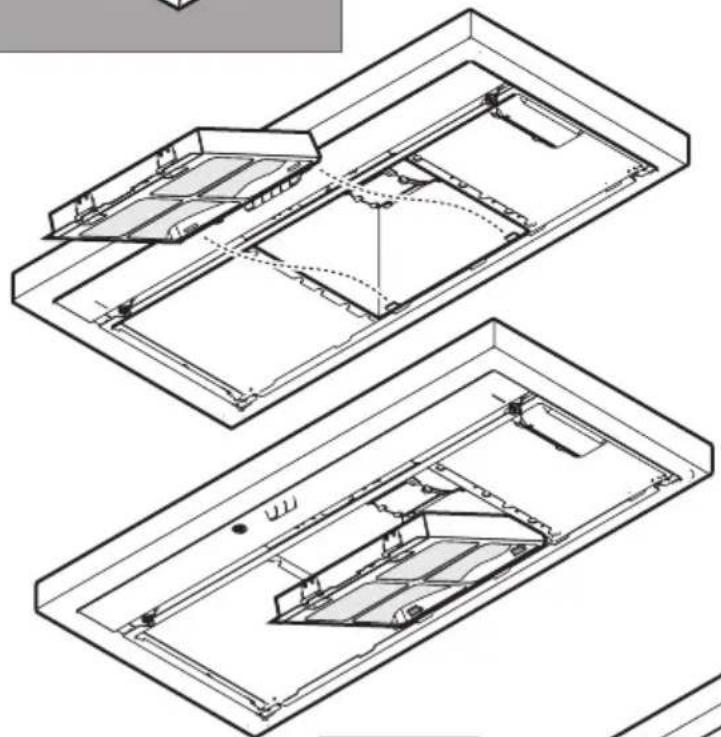

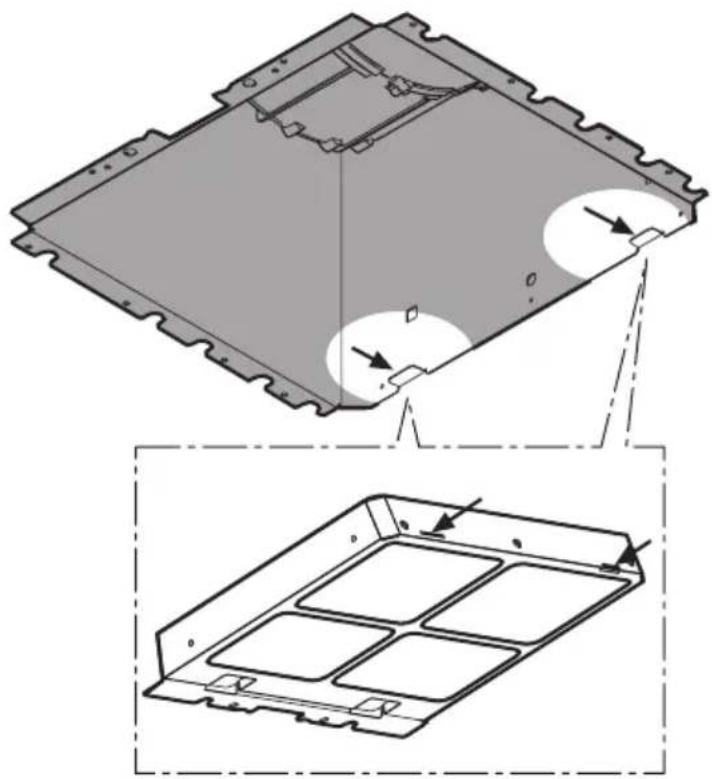

Charcoal filter (filter version only)

Fig. 23

It absorbs unpleasant odours caused by cooking.

The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.

T3d : Vitesse 4 (aspiration intensive)

contemporaneamente as teclas

1

2

as teclas

2

iniciarão a

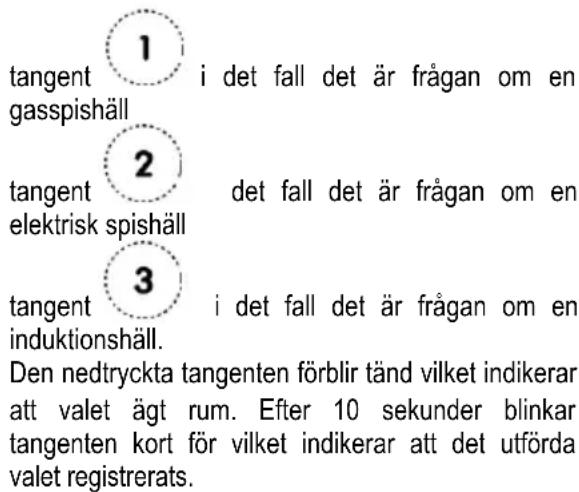

Tryck under denna period ned:

Valon ON/OFF Painike

Moottorin OFF painike (stand by)

Valon ON/OFF Painike

Moottorin OFF painike (stand by)
