USER MANUAL CC611 POLAR

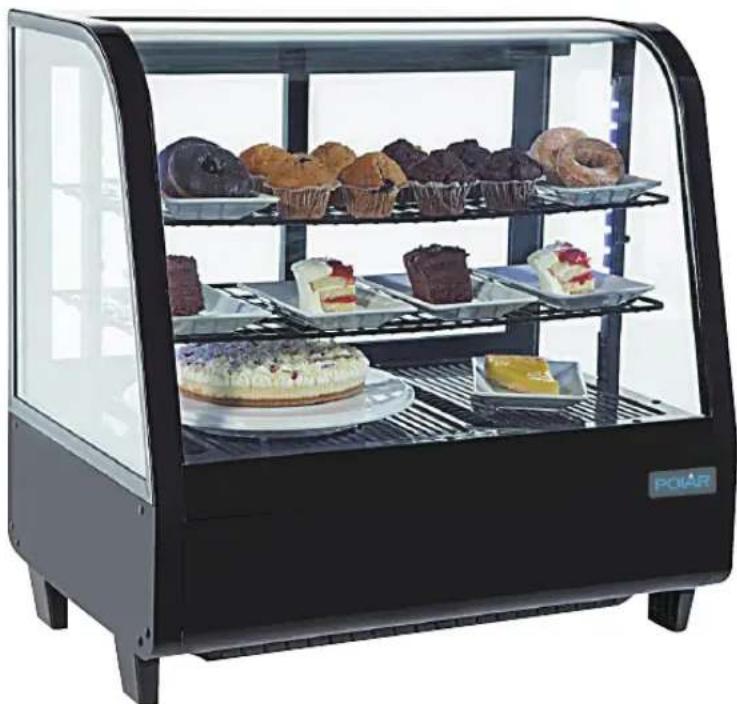

Countertop Refrigerated Merchandiser

Instruction manual

NL Gekoelde 8

toonbankdisplay

Handleiding

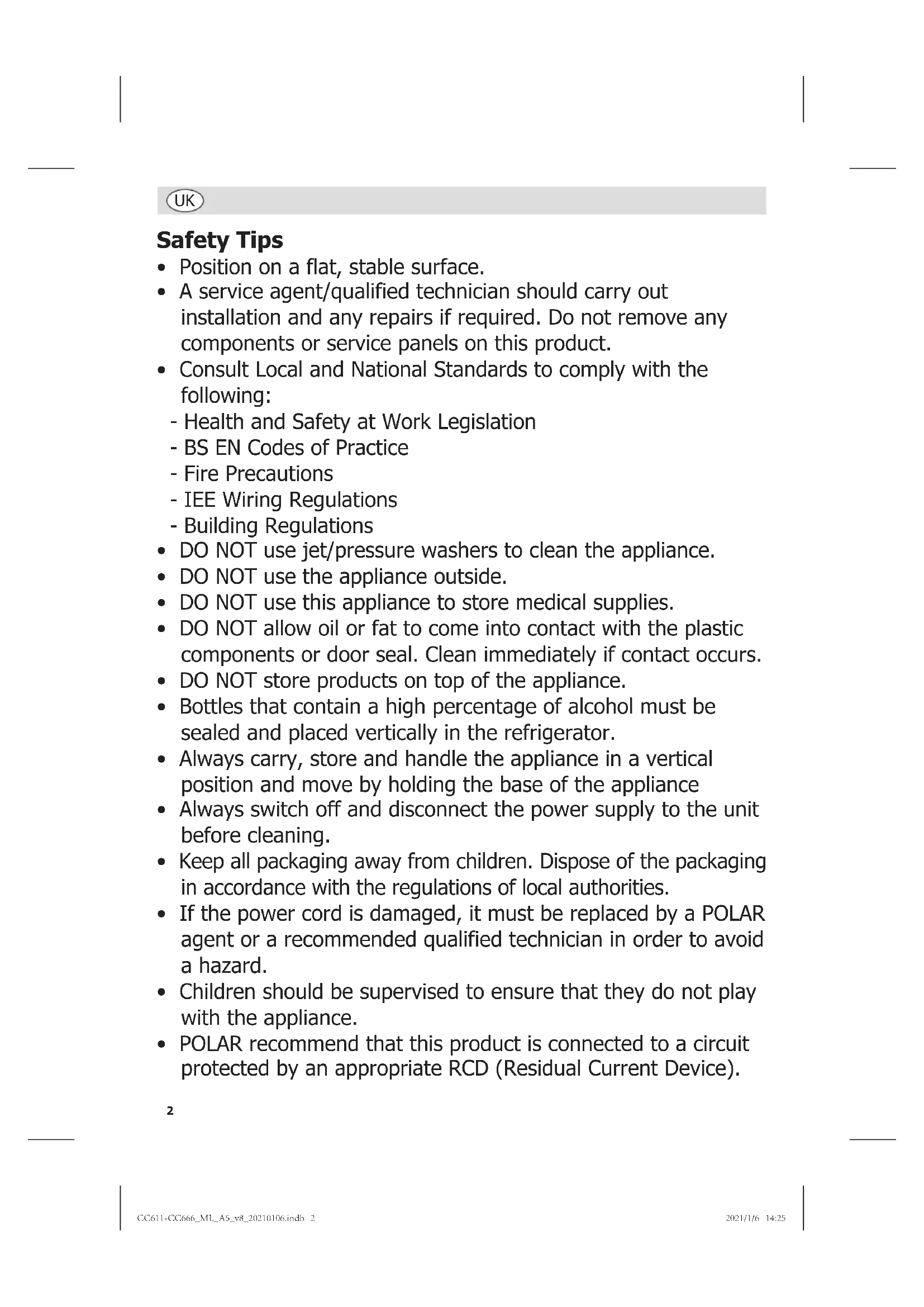

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations

• Building Regulations

• DO NOT use jet/pressure washers to clean the appliance.
  DO NOT use the appliance outside.

• DO NOT use this appliance to store medical supplies.
• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.
• DO NOT store products on top of the appliance.
• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance
• Always switch off and disconnect the power supply to the unit before cleaning.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
• Children should be supervised to ensure that they do not play with the appliance.
• POLAR recommend that this product is connected to a circuit protected by an appropriate RCD (Residual Current Device).

UK

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• POLAR recommend that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

Pack Contents

• POLAR Countertop Refrigerated Merchandiser

• Instruction manual

Shelves × 2

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

UK

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation. NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

Operation

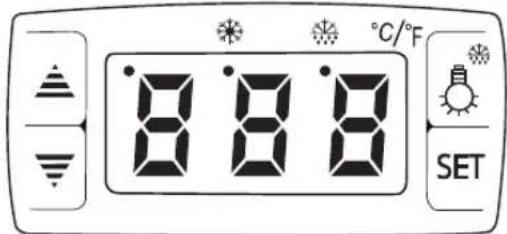

Control Panel

The control panel is located below the doors on the rear of the appliance.

Turn On

1. Close the doors of the appliance.
2. Connect the appliance to a mains power supply.
3. Press the button to turn the light On or Off as required.

Setting the Operating Temperature

1. Press the SET button. The display will flash.
2. Press the buttons to display the required temperature.
3. Press the SET button to store the temperature.

Table of Controller Parameters

The operating parameters of this appliance have been preset for optimum performance and to maximise the life of the appliance

Display Parameter Preset Value Range
E1 Lower set temperature 2°C -20°C to 2°C
E2 Upper set temperature 6°C 2°C to 45°C
E3 Temperature buffer 4°C 1°C to 10°C
E4 Temperature buffer time delay 3 minutes 0 to 10 minutes
E5 Fixed parameter 0 DO NOT CHANGE
E6 Fixed parameter 00 DO NOT CHANGE
F1	Defrost period	25 minutes
F2	Defrost interval	6 hours
F3	Defrost temperature	20°C
F4	Centigrade/Fahrenheit	0°C °C/°F

Should the parameter need adjusting:

1. Press and hold the SET button for six seconds. The "E1" parameter is displayed
2. Press the buttons until the required value is displayed
3. Press the SET button to store the new value and cycle to the next parameter

NOTE: The controller times out after 10 seconds if no buttons are pressed

Manual Defrost:

Press and hold the button for 6 seconds to begin automatic defrost. The defrost light illuminates

Storing Food

To get the best results from your POLAR appliance, follow these instructions:
- Only store foodstuffs in the appliance when it has reached the correct operating temperature.
- Do not place uncovered hot food or liquid inside the appliance.
- Wrap or cover food where possible.
- Do not obstruct the fans/vents inside the appliance.
- Avoid opening the doors for prolonged periods of time.

Cleaning, Care & Maintenance

• Switch off and disconnect from the power supply before cleaning.
• The doors can be removed for ease of cleaning.
• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Clean the door seal with warm soapy water.
  Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
• A POLAR agent or qualified technician must carry out repairs if required.

Replacing the Interior Lamp

WARNING: Allow the lamp to cool before replacing. The lamp remains hot immediately after use.

1. Turn Off and disconnect the appliance from the mains power supply.
2. Remove the lamp by twisting it from the lamp sockets.
3. Insert the new lamp and twist into place.

Cleaning the Condenser

Periodically cleaning the condenser can extend the life of the appliance. POLAR recommend that a POLAR agent or qualified technician clean the condenser.

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

Fault Probable Cause Solution
The appliance is not working	The unit is not switched on Check the Plug and lead are damaged Call POLAR agent or qualified TechnicianFuse in the plug has blown Replace the fuse
	Power supply Check power supply
	Internal wiring fault Call POLAR agent or qualified Technician
The appliance turns on, but the temperature is too high/ low	Too much ice on the condenser Defrost the applianceCondenser blocked with dust Call POLAR or qualified technicianDoors are not shut properly Check doors are shut and seals are not damaged
	Appliance is located near a heat source, in the direct sunlight or air flow to the condenser is being interrupted	Move the refrigerator to a more suitable location
	Ambient temperature is too high Increase ventilation or move appliance to a cooler position
	Unsuitable foodstuffs are being stored in the appliance	Remove any excessive hot foodstuffs or blockages to fan
	Appliance is overloaded Reduce the amount of food stored in the appliance
	Factory default parameters adjusted Call POLAR or qualified technician
The appliance is leaking water	The appliance is not properly levelled	Adjust the screw feet to level the appliance (if applicable)
The appliance is unusually loud	Loose screw/nut	Check and tighten all nuts and screws
	The appliance has not been installed in a level or stable position	Check installation position and change if necessary
The display lamp does not illuminate	Lamp needs replacing	Call POLAR or qualified technician
	Light not turned on	Ensure Light button has been pressed properly
Door does not shut	Dirt/obstacle in runners Clean runners
Error code EE4	• Restricted Airflow • Blocked Condenser	• Increase airflow • Call POLAR agent or qualified Technician

Technical Specifications

Model	Voltage	Power (W)	Current (A)	Temperature Range	Capacity (Litres)	Refrigerant	Dimensions H x W x D mm	Weight (kg)
CC611	220-240V~	160 1.4	2-12°C 100	R600a (48g) 675 x 682 x			39.1
CC666
							450

Electrical Wiring

POLAR appliances are supplied with a 3 pin BS1363 plug and lead.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR. Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

NL

Veiligheidstips

Limpieza,sciousness and mindfulness

DECLARATION OF CONFORMITY

Conformiteitsverklaring · Declaration de conformite · Konformitatserklarung · Dichiarazione di conformità

• Declaración de conformidad - Declaração de conformidade

Equipment Type • Ultrustingstype • Type d'équipment • Gerätotyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de équipamento		Model • Modèle • Modeli • Modelo • Malli
Countertop Refrigerated Merchandiser (Digital Controller) Black Countertop Refrigerated Merchandiser (Digital Controller) White Refrigerated Display Merchandiser - 120Lltr Refrigerated Display Merchandiser - 160Lltr		CC611 ( & -E -A) CC666 ( & -E -A) CD229 ( & -E -A) CD230 ( & -E -A)
Application of Territory Legislation & Council Directives(s) Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicación de directiva(s) do Conselho	Low Voltage Directive (LVD) - 2014/35/EU EN 60335-1:2012 +A11:2014 +A13:2017 EN 60335-2-89:2010 +A1:2016 +A2:2017 EN 62233:2008 Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU - recast of 2004/108/EC EN 61000-6-1: 2007 EN 61000-6-1: 2007+A1:2011 Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to Directive 2011/65/EU	Electrical Safety EN 60335-1:2012 +A11:2014 +A13:2017 EN 60335-2-89:2010 +A1:2016 +A2:2017 EN 62233:2008 Electromagnetic Compatibility EN 61000-6-1: 2007 EN 61000-6-1: 2007+A1:2011
Producer Name • Naam fabrikant • Nom du produitur • Name des Herstellers • Nome del produttore • Nombre del fabricante • Nome da fabricante		Polar

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s).

30thDecember 2020
DocuSigned by: Ashley Hooper B39382C9FD9C478	DocuSigned by: Eoghan Donnellan D352874F7FAB460	DocuSigned by: Josie Holt 3582E210C40S4DA
Ashley Hooper	Eoghan Donnellan	Josie Holt
Technical & Quality Manager	Commercial Manager/ Importer	Commercial Manager/ Responsible Supplier
Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom	42 North Point Business Park New Mallow Road Cork Ireland	15 Bagdally Road, Campbelltown NSW 2560

UK	[phone]
Eire
NL 040 – 2628080
FR 01 60	34 28 80
BE-NL 0800-29129
BE-FR 0800-29229
DE 0800 – 1860806
IT N/A
ES 901-100 133
PT [e-mail]

POLAR

http://www.polar-refrigerator.com/

CC611-CC666_ML_A5_v8_20210106
