DR02D - Dash cam Aukey - Free user manual and instructions

Product type	Dual-view dash camera (front and rear)
Brand	Aukey
Model	DR02D
Image sensor	Sony Exmor IMX323 CMOS 2.3 MP
Processor	NT96663
Display	1.5" LCD
Front wide-angle lens	170°
Rear wide-angle lens	152°
Front aperture	f/1.8
Rear aperture	f/2.0
Recording resolution	Dual camera: 1080p (30fps); Front only: 1080p (30fps), 720p (60/30fps), WVGA, VGA
Image format	JPEG
Recording modes	Driving, Motion detection, Time-lapse, Emergency
G-sensor (gravity)	Adjustable sensitivity: Low / Medium / High
Storage	Micro SD card class 10 or higher, up to 128 GB (not included)
Power supply	DC 5V 1A-2A (via USB car charger)
Front camera dimensions	77 x 51 x 37 mm
Rear camera dimensions	54 x 50 x 28 mm
Materials	ABS, PC, glass
Operating temperature	-30°C to 75°C
Maintenance and cleaning	Clean the lens with a cotton swab or non-abrasive paper; avoid liquids and extreme heat
Safety	Install away from airbags; use the provided cables; do not expose to strong magnetic fields
Spare parts and repairability	Replaceable micro SD card; optional external GPS antenna; cables included
General information	Warranty and support via Aukey (requires Amazon order number)

Frequently Asked Questions - DR02D Aukey

How to install the Aukey DR02D dash camera?

Install the front camera on the top of the front windshield and the rear camera on the top of the rear windshield. Connect the two cameras with the 6m Mini-B cable (L-shaped connector to the front). Plug the car charger into the 12V socket and connect it to the front camera with the 4m Mini-B USB cable. Route the cables discreetly and secure them with the provided clips. Test the system before final installation.

Which micro SD card to use and how to format it?

Use a micro SD class 10 card with a maximum capacity of 128 GB. Insert it into the front camera slot, then in the camera settings, select 'Format' to prepare it. Formatting erases all data. For optimal performance, format periodically after backing up important files.

How to transfer videos to a computer?

Two methods: 1) Connect the camera to the computer with a mini-B USB data cable (note: the provided cable is for power only). It will be recognized as a removable device. Files are located in \AUKEY\MOVIE or \AUKEY\PHOTO. 2) Turn off the camera, remove the micro SD card and insert it into a card reader. The folders are the same.

How to use dual camera mode?

Both cameras record simultaneously. You can choose the display by pressing the OK button: dual view, front camera only, or rear camera only. Files are saved separately for each camera, viewable in full screen during playback.

How to protect a recording from being overwritten?

Press the M (Mode) button to manually lock the current file (padlock icon). In case of impact, the G-sensor automatically triggers a protected emergency recording. Adjust the G-sensor sensitivity in the settings. Locked files are not overwritten.

How to enable motion detection?

In the menu, select the Motion detection mode. The camera records only when motion is detected by either of the two cameras. This mode requires continuous power (car on or external battery). In standby, only the interior LED indicator flashes.

How to use time-lapse recording?

Enable the Time-lapse recording option in the settings. The camera captures one frame per second and compiles them into a 30fps video. Useful for monitoring a parked vehicle over a long period.

What do the LED indicators mean?

Each camera has an external LED. Solid green: on, not recording. Flashing green: normal recording. The interior LED flashes green during recording, and the screen displays a flashing red dot. In motion detection mode, only the interior LED is on in standby. You can turn off the external LEDs in the settings (Detector LED > Off).

How to turn off the screen while continuing to record?

Briefly press the OK button in recording mode to toggle between views or turn off the screen (recording continues). You can also enable 'Screen Saver' mode in the settings to automatically turn off the screen after 1 or 3 minutes of inactivity.

How to contact Aukey customer service for a malfunction or question?

For any assistance, warranty, or support, contact Aukey by email including your Amazon order number and the model number (DR02D). Contact details are available on the Aukey website. Note that after-sales service is reserved for products purchased directly from Aukey; for other sellers, contact them.

USER MANUAL DR02D Aukey

Thank you for purchasing the AUKEY DR02 D Dual Dash Cameras. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

Dual Dash Cameras (front and rear camera)

Dual-Port USB Car Charger

4m / 13ft USB Mini-B Cable

6m / 20ft USB Mini-B Cable

Two Sticker Mounts

Six 3M Stickers

Six Cable Clips

User Manual

Warranty Card

Optional Accessory: The AUKEY External GPS Antenna provides accurate position and speed data to the DR02 D that is saved and displayed on recorded videos. This extended information may support your case in any driving disputes or incidents.

Note: Please use a Class 10 micro SD memory card (Max 128 GB) for reliable recording and performance. Format the micro SD card in the dash camera before first use.

Visit www.aukey.com/downloads to download the latest firmware.

Product Diagram

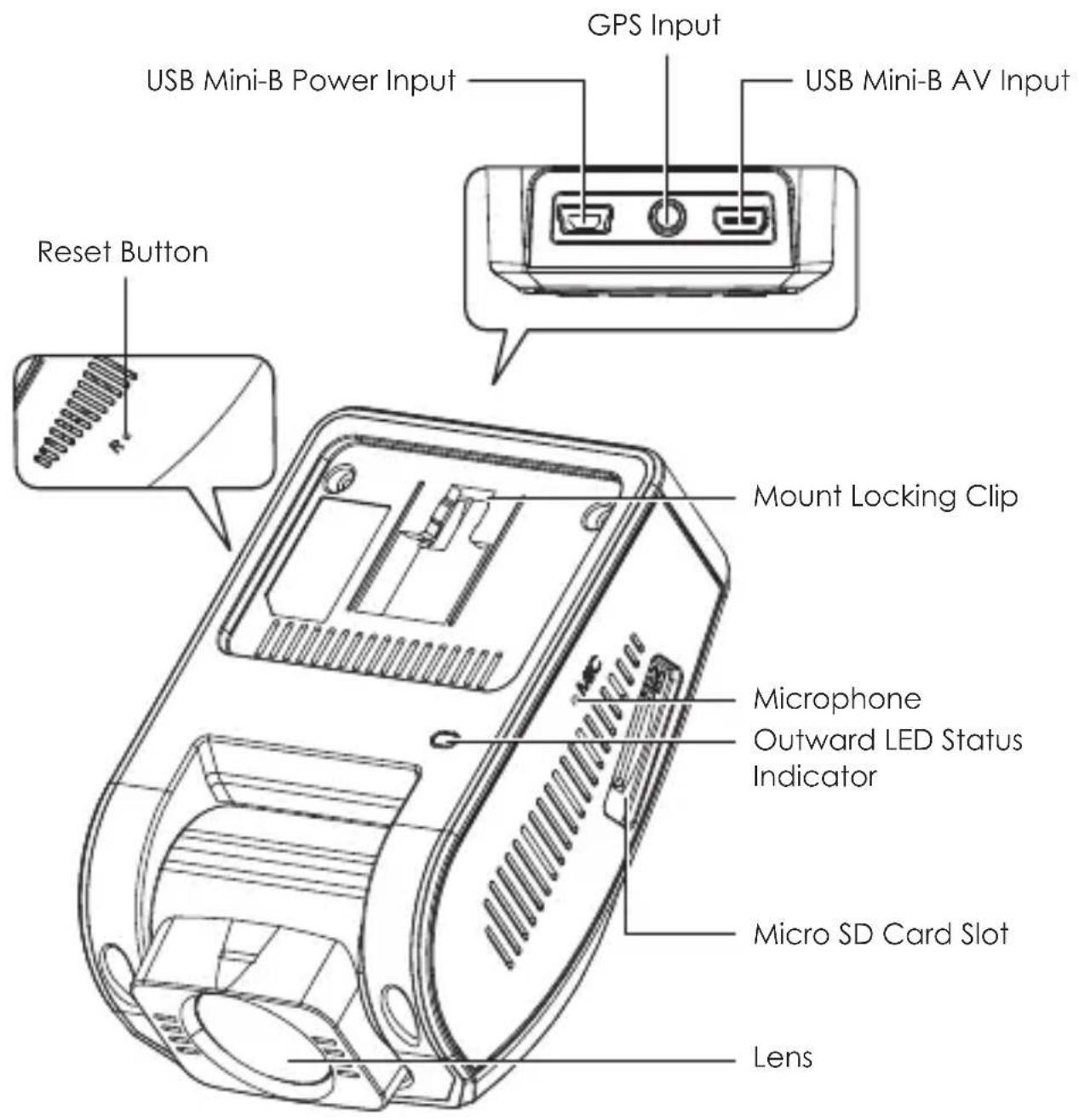

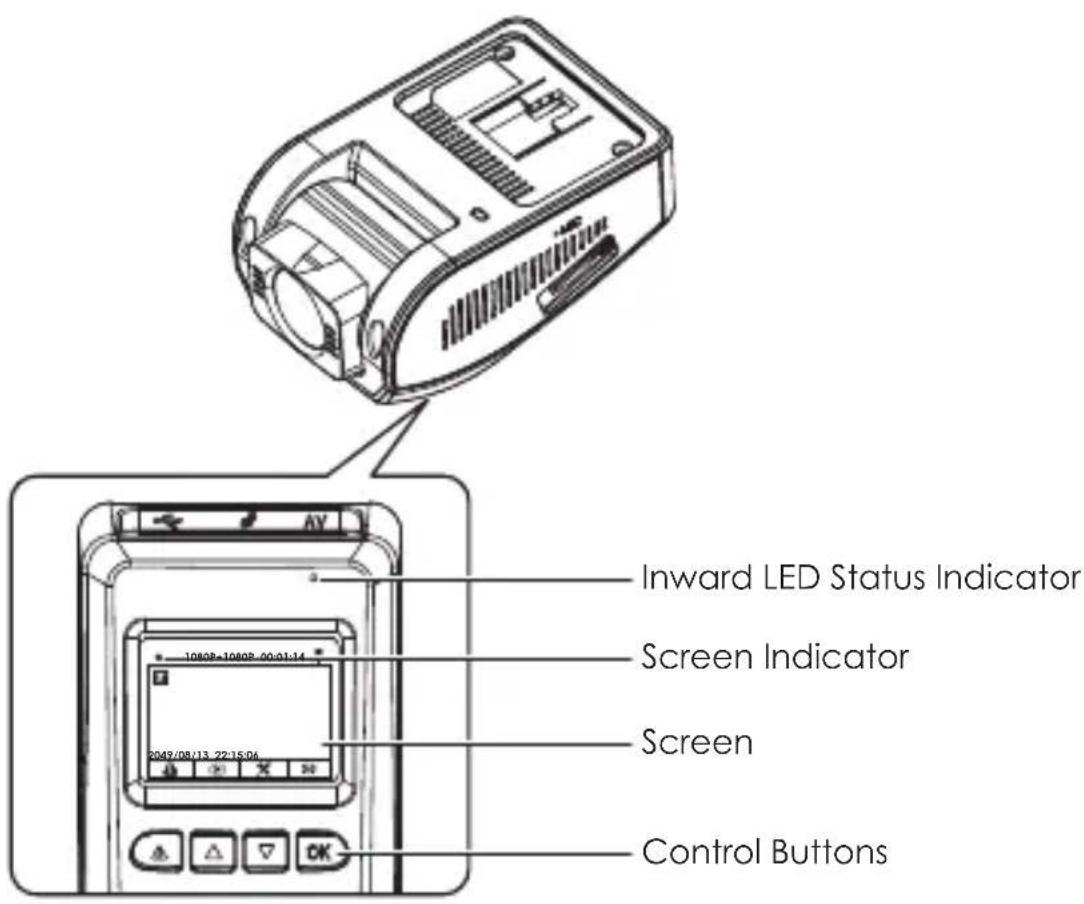

Front Camera

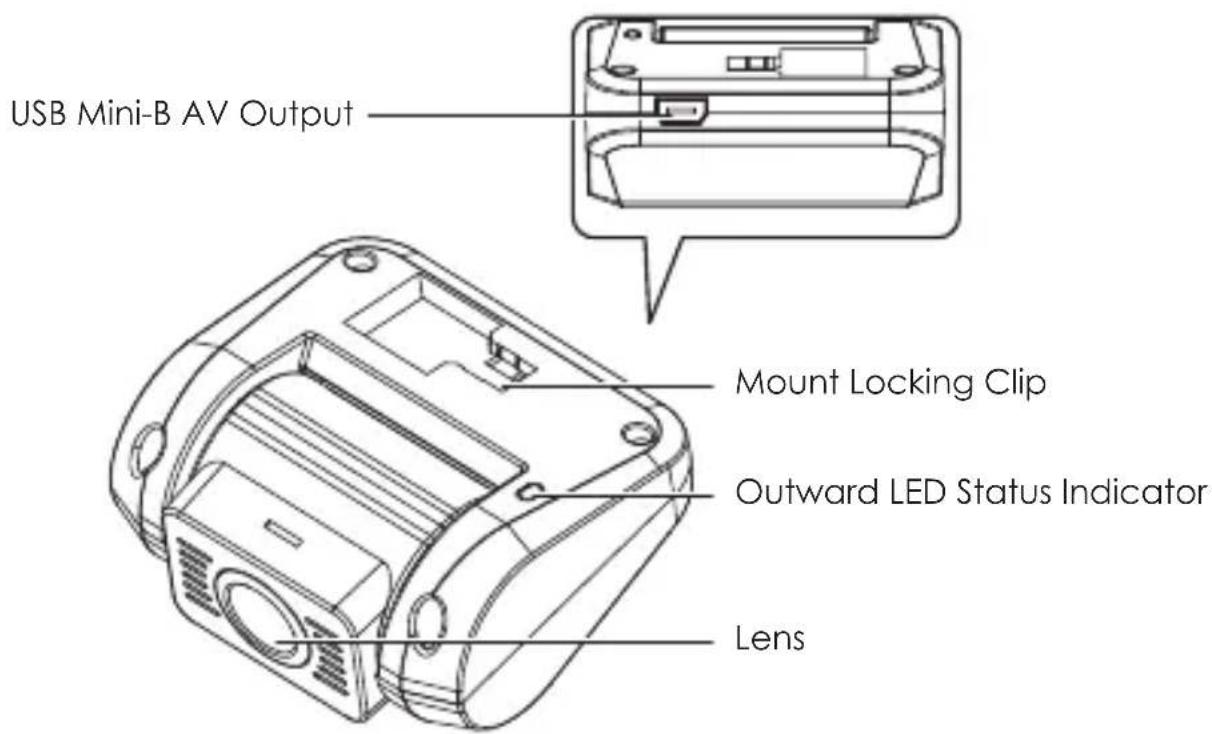

Rear Camera

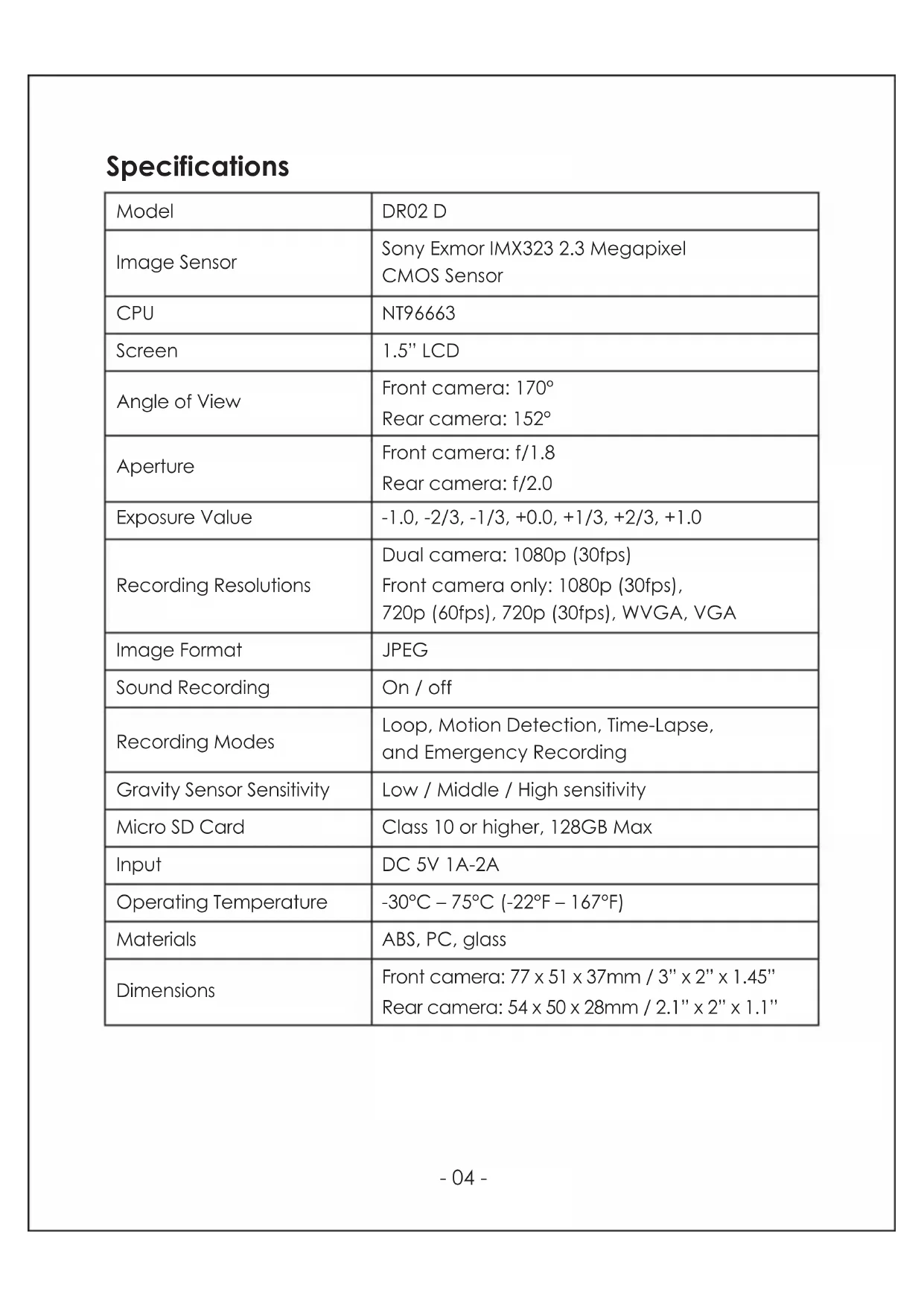

Specifications

Model	DR02 D
Image Sensor	Sony Exmor IMX323 2.3 Megapixel CMOS Sensor
CPU	NT96663
Screen	1.5" LCD
Angle of View	Front camera: 170° Rear camera: 152°
Aperture	Front camera: f/1.8 Rear camera: f/2.0
Exposure Value	-1.0, -2/3, -1/3, +0.0, +1/3, +2/3, +1.0
Recording Resolutions	Dual camera: 1080p (30fps) Front camera only: 1080p (30fps), 720p (60fps), 720p (30fps), WVGA, VGA
Image Format	JPEG
Sound Recording	On / off
Recording Modes	Loop, Motion Detection, Time-Lapse, and Emergency Recording
Gravity Sensor Sensitivity	Low / Middle / High sensitivity
Micro SD Card	Class 10 or higher, 128GB Max
Input	DC 5V 1A-2A
Operating Temperature	-30°C – 75°C (-22°F – 167°F)
Materials	ABS, PC, glass
Dimensions	Front camera: 77 x 51 x 37mm / 3'' x 2'' x 1.45'' Rear camera: 54 x 50 x 28mm / 2.1'' x 2'' x 1.1''

System LED Indicators

There are four indicators in total. Each camera unit has an LED indicator that faces outside (to let others know you have cameras active). The front camera has an LED indicator which faces inside and an on-screen indicator (both for your reference). The outward LED indicators on both cameras can be switched off if you want the dash camera system to be even less visible to people outside. Go to Setup > Detect Led > select Off > press OK.

Outward LED Status Indicators	Inward LED Status Indicator	Screen Indicator	Meaning
Solid Green	Solid Green	Off	On; not recording
Flashing Green	Flashing Green	Flashing Red	On; recording

Note: In Motion Detection mode, only the inward LED indicator will be on in standby. Once motion is detected, all indicators will operate the same as normal recording.

Control Buttons

Button	Recording Mode	Playlist & Setup Menu	Playback Mode
	Enter Emergency Recording mode	Return to previous menu	Return to playlist / Stop
	View playlist (short press) Turn on/off Audio Recording (long press)	Move up	Delete / Rewind
	Open Setup menu (short press) Take a snapshot (long press)	Move down	Lock & Unlock / Fast-forward

ok	Toggle screen view and turn off the screen	Enter / Confirm Play / Pause
Reset Button	Short press to restart the device (this won't affect saved files)

There are 3 screen view options- Dual view, front camera, and rear camera. When dash camera is powered on, press the OK button to switch views or switch off the screen (recording continues). 'Screen Saver' setting can also be used to automatically switch off the screen after 1 or 3 minutes.

Using a Micro SD Card

The camera doesn't include internal storage and requires a micro SD card (Class 10+ recommended and 128GB Max supported) to function. A 128GB micro SD card should store around 20 hours of 1080p recordings. Use a high-quality, branded card for maximum reliability. Insert a micro SD card into the front camera micro SD card slot. Later, when the camera is powered on, format it ('Format' option in Dash Camera 'Setup') to prepare the card for first use in the dash camera. Formatting will permanently erase any data on the micro SD card. For best performance, format periodically (after backing up any important files). 'Format Warning' in 'Settings' can be switched on to remind you to do this.

Installation & Powering On/Off

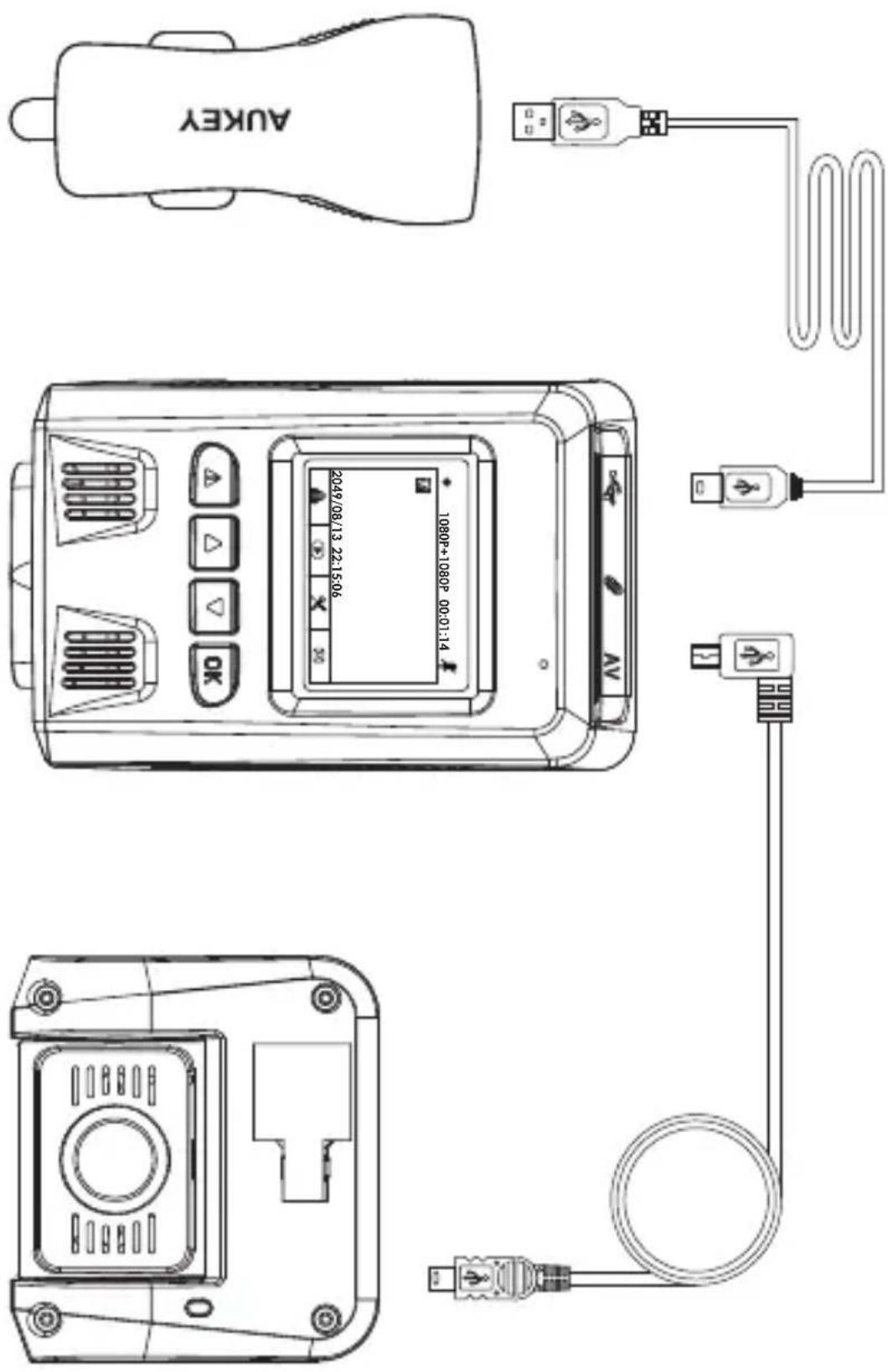

The diagram below shows the parts and exact way the cables must be connected. You may wish to connect and test the dash camera system before proper, long-term installation in your vehicle. For convenient testing in your home, a power bank or wall charger with 1A or 2A USB port can be used instead of the car charger.

Prrnne nnnnne eannnne ennnnne ennnnne ennnnne ennnnne ennnnne

eepn 102 / w9 eepn Hs n Hc

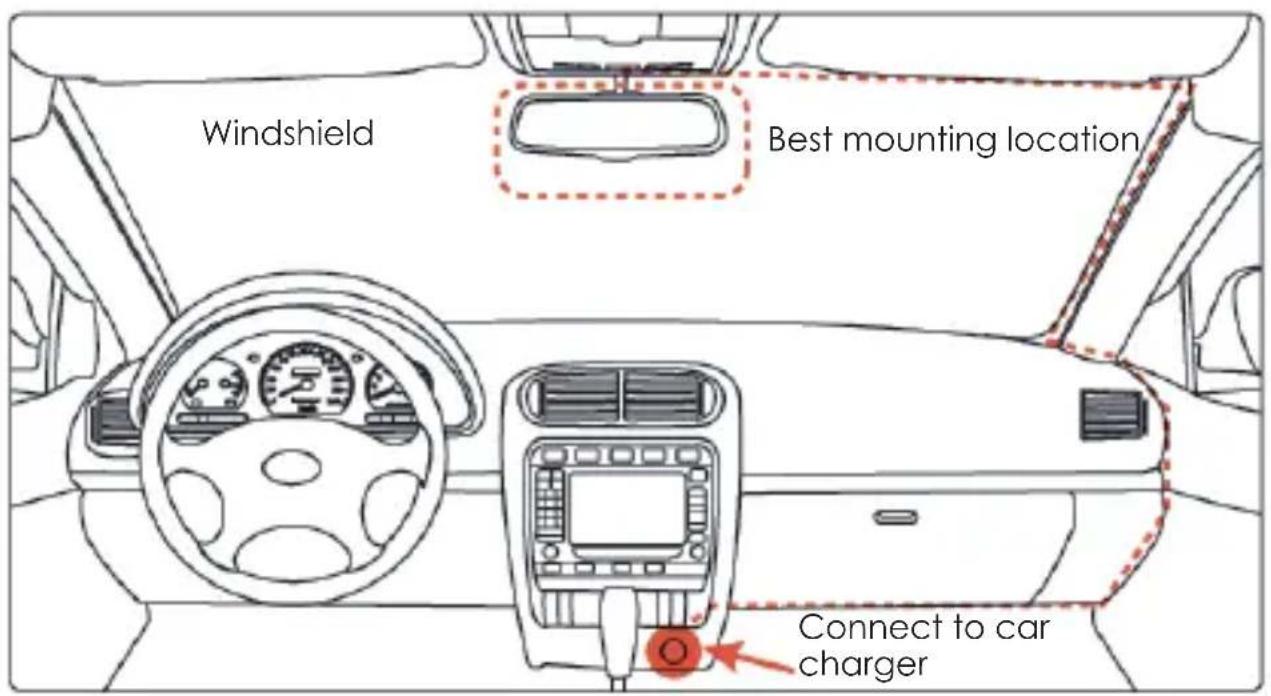

1. For optimal performance, install the AUKEY DR02 D front/rear camera in the top-center of your front/rear windshield, facing directly ahead/behind. Lens direction can be adjusted up and down
2. Use the 6m/20ft Mini-B Cable (with an L-shaped connector at one end) to connect the two cameras. The L-shaped mini-B connector plugs into the Mini-B AV Input of the front camera and the other end into the Mini-B AV Output of the rear camera
3. Connect the 4m/13ft USB Mini-B Cable (with a standard USB-A connector at one end) to one of the car charger ports and to the front camera Mini-B Power Input

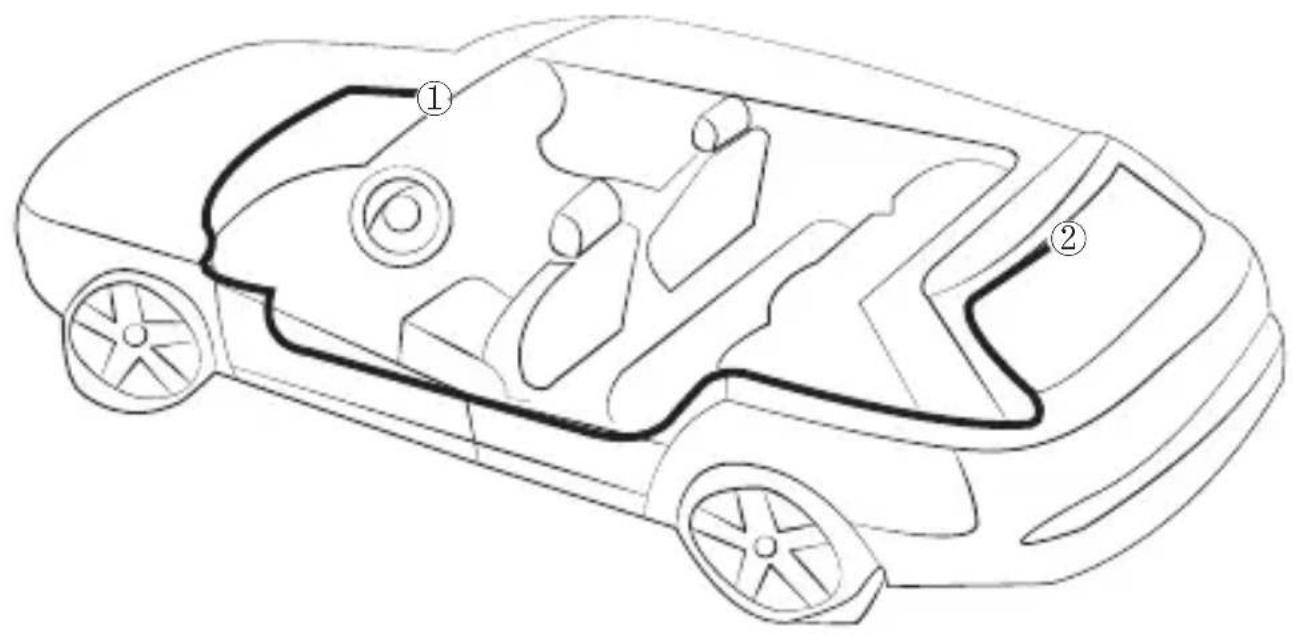

4. Cable routing should be as shown in the following two diagrams. Use the cable clips to help fix the two cables conveniently and safely. Careful placement of the cables and use of existing trim and carpeting to conceal them will give a tidier finish

Caution: AUKEY is not responsible for any damage caused to or by the air bag due to incorrect placement of the device or its cables.

1. To power on, insert the car charger into your car's 12V socket. After powering on each time you start your car, the system will start recording automatically. To power off, disconnect the car charger or connected mini-B cable

Note: Use the included cables to ensure optimum performance of AUKEY DR02 D.

Video Recording

Separate files are created for the recordings from front and rear camera, so you can view each camera's footage separately and at full size. The recordings are unaffected by choice of screen view or switching the screen off.

• Loop Recording: Recording will begin automatically after powering on with a micro SD card in the device. Each recorded file is up to ten minutes long, with old footage being replaced when micro SD card storage is full

• Motion Detection Recording: Switch on motion detection in 'Setup.' This function is designed to monitor when you've parked and left your vehicle but requires a continuous power supply. It will record video each time motion is detected by the front or rear camera

• Time-Lapse Recording: Switch on time-lapse recording in 'Setup.' This function will capture a picture per second to make a video played at 30fps

Emergency Recording

- Manual File Backup

Press to back up the current file so that it won't be overwritten. A icon will appear in the top left of the LCD screen to indicate a protected emergency recording is in progress

- Auto File Backup

Once the G-sensor is activated by a sudden impact, the device will automatically make a recording and protect it from being overwritten. Adjust G-sensor sensitivity in the 'Setup' menu

Note: Enter the playlist or setup menu (or disconnect power) to end emergency recording mode.

Snapshot

• Hold down for 3 seconds to take a snapshot while in recording mode
• The snapshot files are located in the \AUKEY\PHOTO folder on the micro SD card
• The icon will be shown after you take a snapshot. This won't interrupt the video recording

Audio Recording

Turn on/off audio recording by long-pressing when in recording mode (or by adjusting in 'Setup' menu). When audio recording is on, in-car audio will be recorded during video recording. Voicing details of possible hazards that may develop, especially when off-camera, may provide useful information. You can even use it to record car license plate numbers that may not be captured on the video.

USB File Transfer

1. Connect the Dash Camera (with card inside) to your computer using your own USB mini-B data cable (the included cable is for power only). It should be recognized as a removable device (with a USB connector image displayed on-screen)
2. Find the video recording files located in the \AUKEY\MOVIE folder (or \AUKEY\ PHOTO for snapshots)
3. Copy the files to your computer

Micro SD Card File Transfer

1. Shut down the device (by disconnecting the power cable) and eject the micro SD card
2. Insert the micro SD card into a computer micro SD card slot or reader and your computer will automatically detect the micro SD card
3. Find the video recording files located in the \AUKEY\MOVIE folder (or \AUKEY\ PHOTO for snapshots)
4. Copy the files to your computer

Viewing Photos and Videos

1. Press to enter the playlist
2. View photos or videos by choosing either 'Photo File' or 'Video File'

3. Select the file you want to view and press OK

4. For videos, press OK again to begin playback

Deleting and Locking/Unlocking Photos and Videos

• Press to delete or to lock/unlock a photo or video file after selecting it from the playlist. If a video is being played, press to stop it and then press to delete or to lock/unlock
  Once deleted, photos and videos can't be recovered
• If you lock a photo or video, it will be protected and not overwritten.

Product Care & Use

• Ensure camera and mount are firmly fixed in place before use to avoid falls
• Keep away from liquids, extreme heat, and strong magnetic fields
• Avoid touching the lens surface. It may be cleaned with a cotton swab or lens cleaning paper. If any dirt is difficult to remove, a non-abrasive glasses lens cleaner may be used. Don't use corrosive solutions
• Keep important videos and photos backed up elsewhere to protect against file corruption or loss caused by any SD card issues

Warranty & Customer Support

For questions, support, or warranty claims, please contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.
