USER MANUAL Wärmi 86014 UNOLD

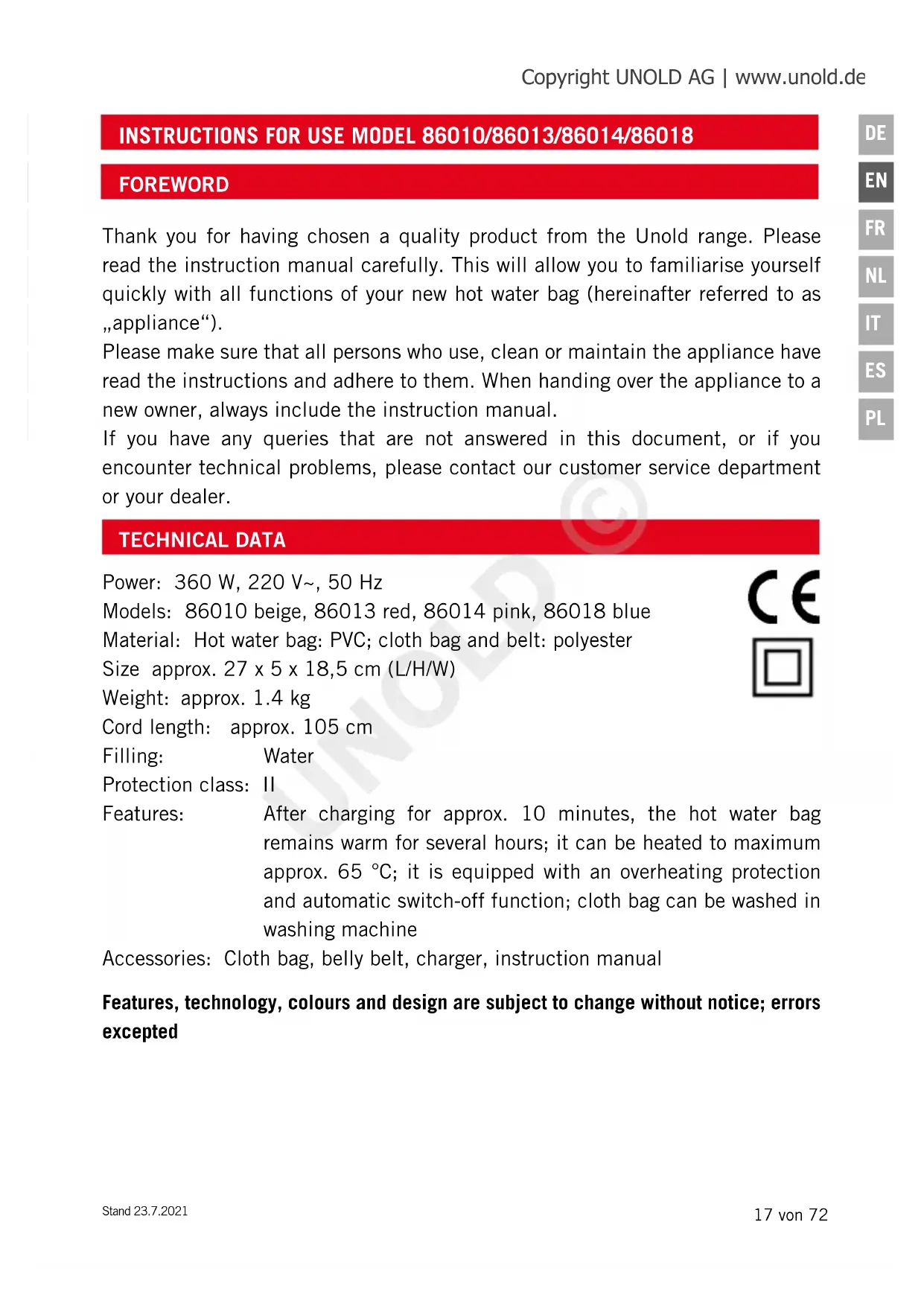

FOREWORD Thank you for having chosen a quality product from the Unold range. Please read the instruction manual carefully. This will allow you to familiarise yourself quickly with all functions of your new hot water bag (hereinafter referred to as „appliance“). Please make sure that all persons who use, clean or maintain the appliance have read the instructions and adhere to them. When handing over the appliance to a new owner, always include the instruction manual. If you have any queries that are not answered in this document, or if you encounter technical problems, please contact our customer service department or your dealer. TECHNICAL DATA Power: 360 W, 220 V~, 50 Hz Models: 86010 beige, 86013 red, 86014 pink, 86018 blue Material: Hot water bag: PVC; cloth bag and belt: polyester Size approx. 27 x 5 x 18,5 cm (L/H/W) Weight: approx. 1.4 kg Cord length: approx. 105 cm Filling:

After charging for approx. 10 minutes, the hot water bag remains warm for several hours; it can be heated to maximum approx. 65 °C; it is equipped with an overheating protection and automatic switch-off function; cloth bag can be washed in washing machine Accessories: Cloth bag, belly belt, charger, instruction manual Features, technology, colours and design are subject to change without notice; errors excepted Copyright UNOLD AG | www.unold.de UNOLD ©18 von 72 Stand 23.7.2021

Please read this instruction manual carefully and keep it for future reference. Persons in household

1. The appliance has been designed for household use and is not a

medical device. If you are unsure about the use of the appliance, consult your doctor.

2. This appliance can be used by children aged 8 years or more and

persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.

3. Children must not play with the appliance.

4. Children from the age of 8 may be permitted to clean or maintain

the appliance, provided they are supervised.

5. Keep the appliance and its power cord out of the reach of

children under the age of 8.

6. Connect the appliance to an alternating current source as

specified on the type plate.

7. CAUTION - Certain parts of the appliance might become very

hot when it is in use. There is thus a risk of injury from burns! Particular caution is required when children or vulnerable people are present when the appliance is used.

This symbol indicates potential hazards that may result in injury or damage to the appliance. This symbol indicates a potential burning hazard. Please be especially careful at all times here. This symbol warns that the appliance must not be covered with objects. This symbol indicates that the appliance must only be used indoors. Copyright UNOLD AG | www.unold.de UNOLD ©Stand 23.7.2021 19 von 72

8. Connect the appliance to an alternating current source as

specified on the type plate.

9. Do not connect the appliance to an external timer or remotely

controlled power system.

10. During charging, keep the appliance away from children and

vulnerable people. The appliance must only be used by or under the supervision of an adult.

11. Do not drink the content of the hot water bag.

12. Never use the appliance while under the influence of medication

or alcohol or if your sensory capacity is reduced.

13. The appliance has been designed for household use or use in

similar environments, such as tea kitchens in offices, shops, or other workplaces, farms, kitchenettes for guests in hotels, motels, hostels, holiday homes, etc. Instructions for the safe use of the appliance

14. Do not heat the appliance in a microwave oven or similar device.

15. Charge the appliance only with the supplied charger. Never use

a different charger or accessories from another manufacturer, as this could damage the appliance.

16. During charging, do not place the appliance directly below the

17. The hot water bag must be charged and used only indoors.

18. Before charging the appliance, check whether the voltage of the

power socket corresponds to the voltage rating of the charger.

19. Never immerse the charger, plug, power cord or hot water bag

in water or another liquid.

20. Before charging, fully unreel the power cord. Do not place the

power cord over edges of tables, etc. as there is risk that small children might pull the appliance from the table.

21. Do not wrap the power cord around the appliance.

22. To unplug the power cord from the power socket, always pull at

the plug and never at the cable.

23. Do not use the appliance while it is being charged.

24. During charging, the charging port must face up.

25. When charging is completed, disconnect the power cord from

26. During charging, the hot water bag must be in a horizontal

position, as there is otherwise risk of ignition of the cloth bag.

29. Before stowing away the hot water bag, let it cool to room

30. Never clean the appliance with water, white spirit, toluene or

other volatile solvents.

31. Keep the appliance away from pointed objects and protect it

32. For safety reasons, do not operate the appliance near wash-

hand basins, bathtubs or water taps.

33. Do not place the hot water bag on naked skin – risk of injury

34. Never use the hot water bag to keep animals or animal enclosures

35. During charging, there might be some boiling water noise and a

slight smell of plastic.

36. The appliance does not require any maintenance such as

adding/changing water.

37. Regularly check the appliance, the power cord and the plug

for wear and damage. If the power cord or other parts of the appliance are damaged, return the appliance for inspection and repair to our customer service department. Improper repair can result in serious hazards to the user and shall void all warranty.

38. If the power cord of the appliance is defective, return the

appliance to our customer service department or have it replaced by a qualified electrician. The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties. Copyright UNOLD AG | www.unold.de UNOLD ©Stand 23.7.2021 21 von 72

Caution: Always strictly adhere to all safety instructions in the document and keep this instruction manual for future reference. During operation, do not cover the appliance as this could result in overheating and fire. Do not operate the appliance near wash-hand basins, bathtubs or other vessels filled with water. Never immerse the appliance in water or another liquid. Do not use the appliance for persons who need care; new-born infants; animals; persons who are particularly sensitive to heat. The hot water bag can become very hot - risk of injury from burns! For charging, place the hot water bag in a horizontal position. The appliance must only be used indoors.

1. Remove all packaging and transport safety devices. Keep the packaging

material away from children. Choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.

2. Inspect the appliance for damage. If there is visible damage, do not operate

the appliance; instead, contact our customer service department.

3. Check whether all accessories listed in this manual have been shipped with

your appliance. When the appliance is used for the first time, and after prolonged storage, there might be some minor odour.

CHARGING AND USE OF APPLIANCE

1. Caution: Only heat the hot water bag after it has been fully cooled down.

2. Place the charger on a level, dry surface.

3. Take the hot water bag from the cloth bag.

4. Open the safety cap covering the charging port of the hot water bag.

5. Ensure that your hands are dry. They first connect the charging cable to the

charging port of the hot water bag and then connect the power plug of the charger to the power socket. Copyright UNOLD AG | www.unold.de UNOLD ©22 von 72 Stand 23.7.2021

6. Ensure that the hot water bag is in a horizontal position (see figure).

7. The indicator is lit, and the hot water bag is being charged/heated. Charging

takes about 8 to 15 minutes, depending on the hot water bag and the ambient temperature.

8. When charging is completed, the indicator is switched off. For safety

reasons, charging is automatically terminated when the hot water bag reaches a temperature of 65 °C.

9. Ensure that your hands are dry. Then disconnect the power plug from the

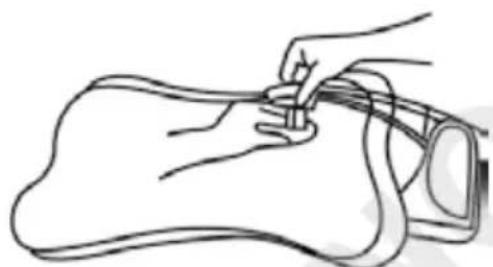

power socket. Hold the protective cover of the hot water bag with one hand and disconnect the charging cable with the other hand (see figure). To disconnect the charging cable, do not use force in order to prevent damage the appliance and the cable.

10. Place the hot water bag in the cloth bag.

11. The appliance is now ready for use. The hot water bag remains warm for a

time of 2 hours (e.g. to warn hands) and 10 hours (when placed in a bed).

12. Caution: The hot water bag can withstand weights of max. 80 kg. However,

do not expose it to heavy weights for a prolonged period of time, as this might permanently damage the bag cover.

13. First check the temperature of the hot

water bag. If it is too hot, let it cool down before use. Use of belly belt

14. Place the hot water bag in the belt and

then place the belt around your body, e.g. to heat the back. The belly belt keeps the hot water bag in place for extra comfort. Copyright UNOLD AG | www.unold.de UNOLD ©Stand 23.7.2021 23 von 72

CLEANING AND MAINTENANCE

Important: Do not use the appliance while it is being charged. During charging, there might be some boiling water noise and a slight smell of plastic. Do not sit on the hot water bag. The hot water bag can become very hot - risk of injury from burns! Before cleaning the appliance, disconnect it from the charger. Let the appliance cool down before cleaning it. Never immerse the appliance in water or another liquid.

1. Clean the surface of the hot water bag with a damp cloth and little household

2. Keep the charging port dry.

3. Never use scouring agents, steel wool, metal objects, pointed implements,

hot detergents or disinfectants.

4. Dry the appliance thoroughly before stowing it away.

5. When not in use, keep the appliance and its accessories in a dry, dust-free

place. Cleaning belly belt Caution: Before cleaning the belly belt, remove the hot water bag from the belt! Do not clean the hot water bag in the washing machine!

6. Do not wash the belly belt in the washing machine.

7. If required, wash the belt by hand in a mild soapy solution. Alternatively,

have it dry-cleaned. Do not use bleach to clean the belly belt. To dry the belly belt, place it on a surface. Do not hang it from a washing line. If required, iron it (maximum level 2, 120 °C). Before using the belly belt, make sure that it is completely dry. Cleaning cloth bag Caution: Before cleaning the cloth bag, remove the hot water bag! Do not clean the hot water bag in the washing machine! Copyright UNOLD AG | www.unold.de UNOLD ©24 von 72 Stand 23.7.2021

8. The cloth bag of the hot water bag can be washed at max. 30 °C in the

washing machine (using a mild detergent). Alternatively, have it dry-cleaned. To dry the belly belt, place it on a surface. Do not hang it from a washing line. If required, iron it (maximum level 2, 120 °C). Before using the cloth bag, make sure that it is completely dry. Caution: Never dry the cloth bag or the belly belt in a tumble dryer. Important: After prolonged use, the hot water bag might expand in volume, while its heat release capacity diminishes. Also, the charging process might be terminated for safety reasons before the correct temperature is reached. In these cases, please contact our customer service department. Problem Cause Remedy Indicator not lit Charger not connected to power socket Place the power plug in a power socket Charger not properly connected to hot water bag Connect the charger cable to the port so that it engages properly Hot water bag temperature too high Wait until the hot water bag has cooled down Hot water bag expanding, so that power supply is interrupted Excess gas must be removed; contact our customer service department Indicator is lit, but hot water bag fails to heat up Heating element defective Contact our customer service department Hot water bag leaks Bag cover damaged Hot water bag shrinks Bag cover defective or appliance has reached end of service life Copyright UNOLD AG | www.unold.de UNOLD ©Stand 23.7.2021 25 von 72

Our appliances are produced on a high quality level for a long lifetime. Regular main- tenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collec- tion point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. GUARANTEE CONDITIONS We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty. The instruction booklet is also available for download: www.unold.de Copyright UNOLD AG | www.unold.de UNOLD ©26 von 72 Stand 23.7.2021
