USER MANUAL WFQE7014EVM HISENSE

Illustration of a washing machine with warning symbol and battery (no text or labels)

Illustration of a washing machine with warning symbols and hand gestures (no text or labels)

Pure electrical circuit symbols including warning triangle, ground symbol, and plug (no text or labels)

Illustration of a washing machine with a warning symbol (no text or labels)

Illustration of hands holding a tool with a warning symbol (no text or labels)

Warning symbol with exclamation mark and safety warning icon, indicating no protection or hazard

Safety warning illustration showing a hand using a power plug to test a shock with lightning and water droplets, accompanied by an exclamation mark.

Illustration of a washing machine with a cable inserted into it (no text or symbols)

Line drawing of a washing machine with a hand spraying water (no text or symbols)

Illustration of a washing machine with sun rays and a screen, no text or symbols present

Illustration of a child next to a washing machine (no text or symbols present)

Illustration of a hand pouring liquid into a container with an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing a valve with an exclamation mark (no text or symbols on the valve itself)

Four identical gray spheres arranged in a 2x2 grid, each with a side pattern (no text or symbols)

IFU ASM 4

Illustration of a medical or laboratory device with a coiled tube and a curved tube, no text or symbols present.

Entrée Tube + Support Coude

Simple geometric pattern with diagonal lines inside a square frame (no text or symbols)

Hot Cold fu

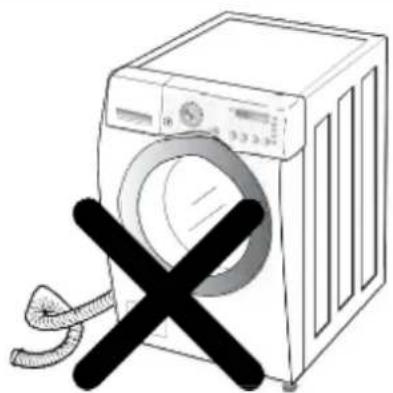

Line drawing of a washing machine with a black X symbol indicating no use or prohibition (no text or symbols present)

Make sure that the hose is not twisted

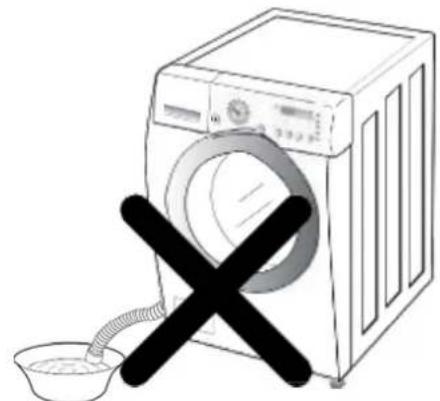

Line drawing of a washing machine with a water bottle and a cross symbol (no text or labels)

Avoid submerging the end of the hose

Illustration of an electrical outlet with a plug and socket, showing three outlets (no text or symbols)

Connect the power plug to the wall outlet

Pure electrical circuit lines without any symbols

• Avoid connecting several electric devices, as doing so may cause a fire

5.5 TEST OPÉRATION

This washing machine is equipped with automatic safety functions which detect and diagnose at an early stage and resect appropriately.

A. Program selector B. Program and function status display window C. "Tump." button

Allergy Steam: CIS Baby Steam Care CIS Dark Wash Sportswear Dawn 20°C Dawn Clean Off Spin A Eco 40-60 Cotton Synthetics Mix Wood Quick 13' Rinse+Spin

03:20 Temp. Sat Inwardside Options Delay End Start/Press C D E F G H

Hisense

D. "Spin" button
E. "Favourite" button
F. "Options" button
C. "Dally (the) British H. "Stom/Press" Junction
1. Child Lock Function
3. Mute Function

Program

Care Label

Material / Level of SoilingWashing temperature selected as per the Care Label instruction.

MaximumWash Loadkg

Detergent Compartment

Wash Program Functions

Maximum Spin speedrpm

ProachU

Main washU

SoftenerS

Baby EndO

ProachU

Extra closeU

Definite rinse times

IntensiveT

Spin

Temp

Cotton—20°C, 30°C, 40°C, 60°C, 80°C

[IMAGE]

Heavily and moderately soiled cotton, or linen.For very highly soiled items select the "Prewards" function.

6/7

*

Yes

*

*

*

*

3

*

*

*

1200

Synthetics—20°C, 30°C, 40°C,60°C

[IMAGE]

Moderately soiled synthetics, cotton blended fabrics.

6/7

*

Yes

*

*

*

*

3

*

*

*

1200

Allergy Steam (2)40°C, 60°C

[IMAGE]

It is suitable for high temperature resistant and less fading fabrics, which removes allergens such as pellots, mites and parasites through high temperature storm.

2

*

Yes

*

*

*

*

4

*

*

*

1200

Eco 40-60 (1)

—

Normally soiled cotton lumbly.

6/7

—

Yes

—

*

—

—

1

—

*

—

1200

Wool—20°C, 30°C, 40°C

[IMAGE]

Machines washable wool. (Refer to the washing label attached to the clothing).

2

—

Yes

*

*

—

*

2

—

*

*

600

Baby Steam Core (2)40°C, 60°C, 80°C

[IMAGE]

It is suitable for baby clothes and underwear, etc., which thermiles and disreflects through high temperature storm.

2

*

Yes

*

*

*

*

3

*

*

*

1200

Dark Wash—20°C, 30°C, 40°C,60°C

—

Dark textiles made of cotton and dark easy-care textile

3/3.5

*

Yes

*

*

*

*

2

*

*

*

1000

Quick 12°—20°C, 30°C, 40°C

[IMAGE]

Cotton, mixed fabrics. Items worn for a short time or newly brought.

1

—

Yes

*

*

—

*

1

—

*

*

800

Mix—20°C, 30°C, 40°C

[IMAGE]

Mixed loads of moderately soiled cotton and synthetic fabrics.

3/3.5

*

Yes

*

*

*

*

2

*

*

*

1200

Sportswear—20°C, 30°C, 40°C

[IMAGE]

Sportswear and leisure wear made from microfibre fabrics.

2

*

Yes

*

*

*

*

2

*

*

*

1000

Down—20°C, 31°C, 40°C

[IMAGE]

Machine-washable items stuffed with synthetic fibers, each as pillows, pillows and headcovers, also suitable for items stuffed with down.

2

—

Yes

*

*

—

*

2

—

*

*

600

20°C

—

This program is suitable for cotton clothes with light stine,energy saving.

9/7

*

Yes

*

*

*

*

2

*

*

—

1200

Dress Chem.90°C

—

Program to remove dirt and bacterial trauma that can be used in the machine after it has been used for a period, especially when low temperature washes are used regularly.

—

—

Yes

—

*

—

—

1

—

—

—

800

Raze&Spa

—

This program is defaulted to two rinsers and spins.

9/7

—

—

*

*

—

*

2

—

*

—

1200

Spa

—

Select the length, and speed, of the spin manually.

9/7

—

—

—

*

—

—

0

—

*

—

1200

* : Optional Functions Yes : Detergent Required — : Cannot be selected — : Temperature of unheated water
(1) Wash performance 1st performance are Feb 40-60.
(2) Allergy Steam and Baby Steam. Cure both washing are suitable to sterilize the colorfast clothes. When you see the door
glass with water mist, please don't put your hand on the door glass or open the dispenser to prevent burns.

6. OPÉRATION

6.3 COMMUN LES FONCTIONS

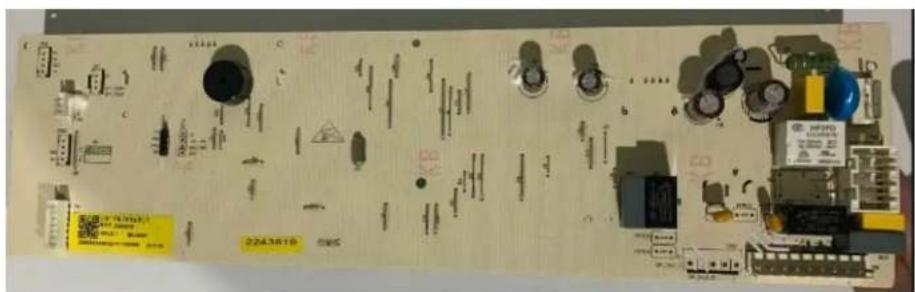

Green printed circuit board with electronic components and a digital display showing 80:80 (no readable text or symbols beyond basic markings)

Close-up of an electronic circuit board with various components and connectors (no readable text or symbols)

	WASH												RINSE											SPIN						E N D	A U T O F F	Approx Working Time (Minutes)
	PRE					MAIN							RINSE					EXTRA RINSE					SOFT
	W - S	W A S H	D R A I N	I - S	A - D	W - S	H E A T	W A S H	D R A I N	I - S	A - D	W - S	R I N S E	D R A I N	I - S	A - D	W - S	R I N S E	D R A I N	I - S	A - D	W - S	R I N S E	D R A I N	S P I N	A - D	D - T	D - u
	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30
	60	+	60	240	60	120		+	60	240	60	120	+	60	240	60	120	+	60	240	60	120	+	60	+	60	60	60		30
Allergy Steam		20						50					7					7					7		8						111
Baby Steam Care		20						65					6					6					6		8						130
Dark Wash		20						40					7					7					7		8						75
Sportswear		20						25					6					6					6		8						58
Down								32					7					7					7		6						65
20°C		20						60					11					11					11		11						110
Drum Clean								58															4		6						70
Spin																									9						10
Rinse +Spin													6					6					6		11						30
Quick 15'								6										4					4		3						15
Wool								35					4					4					4		6						55
Mix		20						85					4					4					4		8						118
Synthetics		20						90					4					4					4		7						128
Cotton		20						140					11					11					11		11						209
Eco40-60								181															5		12						208

※ Water Supply: W-S Add Drain: A-D Intermittent Spin: I-S Disentangle: D-T
DOOR Unlock D-U
Basic Cycle
Optional Cycle
Pre-Setting Time: Water Supply - 60 sec Drain - 60sec
Wash time is in minutes.
The total working time will vary with the load size, water
temperature and ambient temperature

8. MODE D' ESSAI

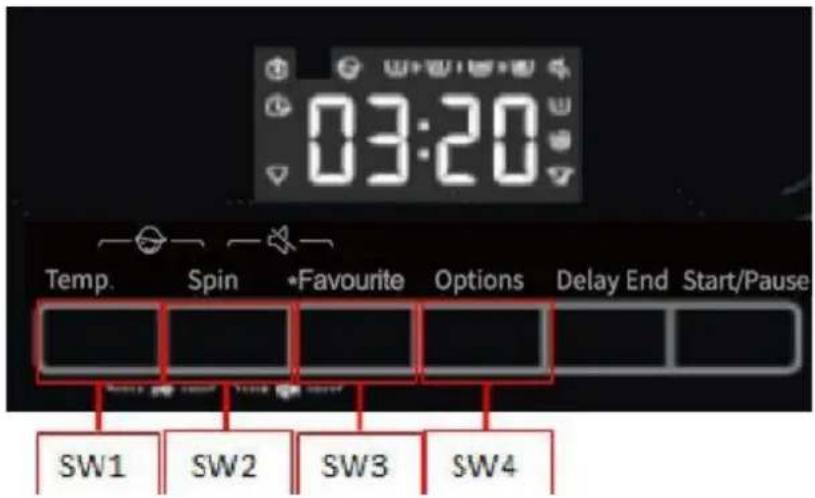

03:20 Temp. Spin *Favourite Options Delay End Start/Pause SW1 SW2 SW3 SW4

Entrer le test programme:

8.1 Test programme 1:

Presse bouton SW2

Note: This operation must be done when replacing the contrib board

Is filter inlet valve clogged with foreign material?

No

Yes

Clean or replace the filter.

Is the connector connected to inlet valve disconnected or disassembled?

Close-up of electrical connectors with wires and a small component (no visible text or symbols)

No

Yes

Reconnect or repair the connector.

Is resistance between each terminal of inlet valve 4.2-4.8kΩ? (Refer to 10-5 inlet valve)

No

Yes

Replace the inlet valve

Is the voltage of the inlet valve connector 220-240 V?(while the power is on)

Yes

Replace the inlet valve

Close-up of electronic components including a multimeter and cables with red wires, next to an open laptop (no visible text or symbols)

No

Is the connector connected to PCB disconnected or disassembled?

Yes

Reconnect or repair the connector.

Close-up of electronic equipment with black cables and connectors (no visible text or symbols)

No

No

Replace the main harness

Is Electrical connection correct? (Refer to 10-5)

Yes

Yes

Replace the FWL sensor

Is the water level frequency below 24.6kHz? (Refer to 8-2)

No

Replace the PCB


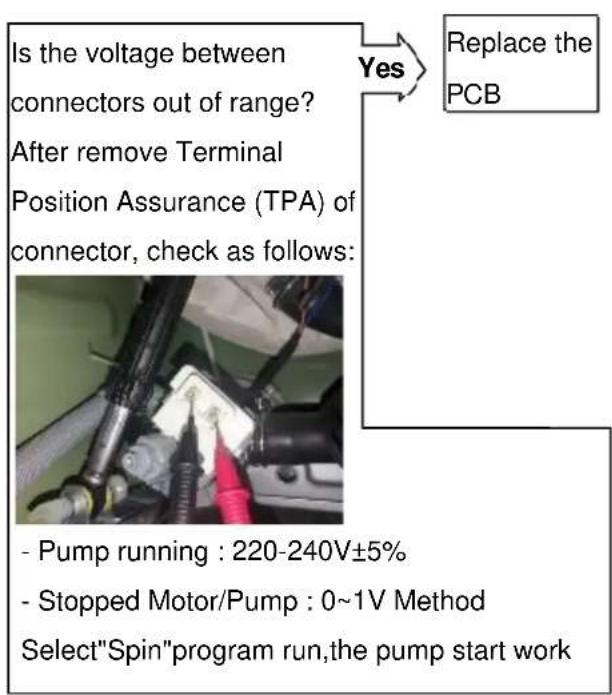

    A["Is the voltage between connectors out of range?"] --> B{After remove Terminal Position Assurance (TPA) of connector, check as follows:}
    B --> C{- Pump running : 220-240V±5%}
    B --> D{- Stopped Motor/Pump : 0~1V Method}
    B --> E["Select"Spin"program run,the pump start work"]
    F["Replace the PCB"] --> G["Yes"]

[Note] Environmental safety check list

1) The drainage hose must not stay in a lower position.
2) The drainage hose must not be bent or clogged in any way due to the surrounding physical configuration.
3) The drainage hose must not get frozen at all times.
4) The drainage pump must not have any improper substance or material inside that may cause a machine breakdown.

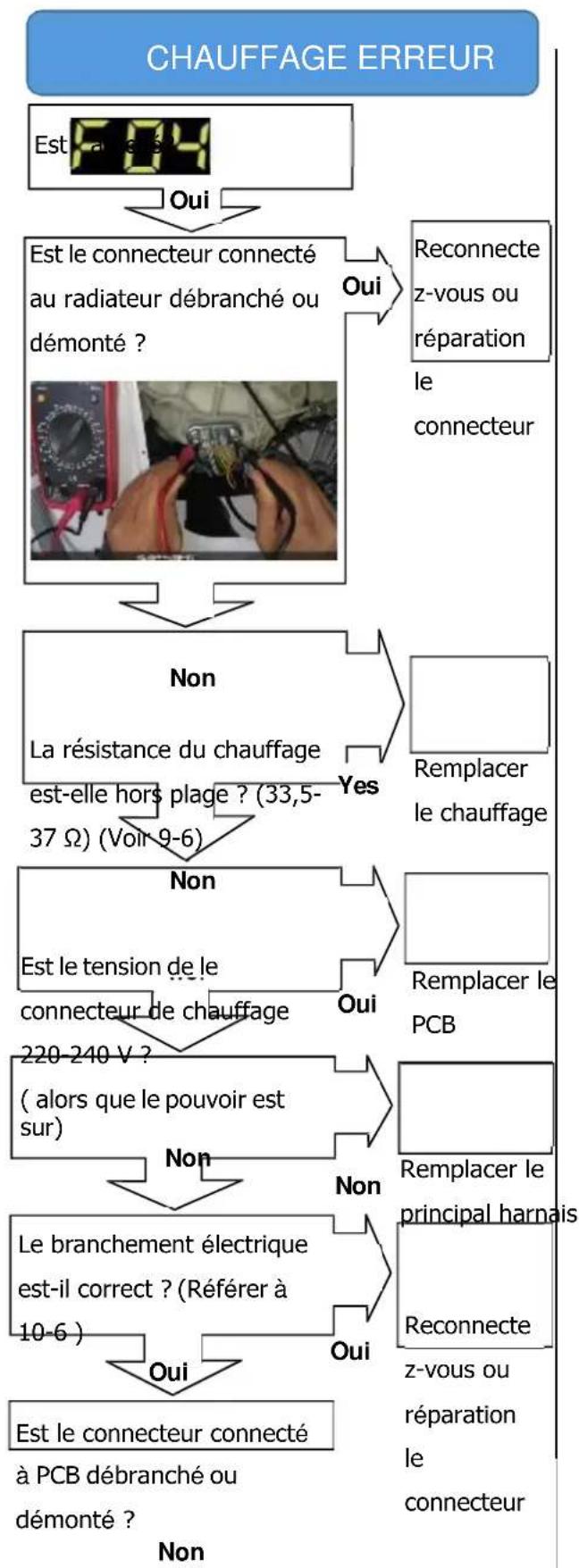

[Note] Environmental safety check list

3

1) The machine must operate with all the doors completely closed and locked.
2) The washing area must operate with a water temperature not higher than 50? and must not

During the motor operation, the uneven distribution of clothes may lead to abnormal motor operation, which belongs to normal protection

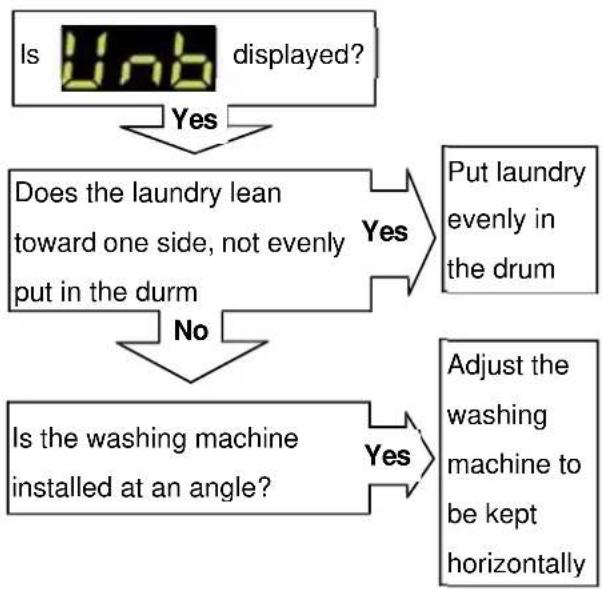

UNBALANCE ERROR

FWL SENSOR ERROR

ls

displayed?

Yes

Is the connector connected to FWL sensor disconnected or disassembled?

Yes

Close-up of a mechanical device with a black component and yellow components, no visible text or symbols

Reconnect or repair the connector

No

Is the voltage of the FWL sensor 5VDC?

Yes

Replace the FWL sensor

Close-up of electrical wiring with orange and black wires against a wooden wall (no visible text or symbols)

No

Is the air chamber and the tube clogged?

Yes

No

Replace the PCB

Fix the air chamber and remove the foreign material

9.4 INQUIÉTER TIR AUTRE

PRUDENCE :


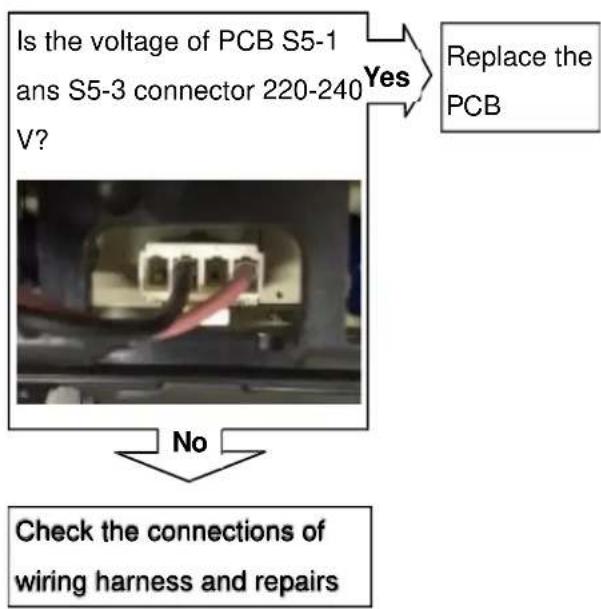

    A["Is the voltage of PCB S5-1 ans S5-3 connector 220-240 V?"] -->|Yes| B["Replace the PCB"]
    A -->|No| C["Check the connections of wiring harness and repairs"]

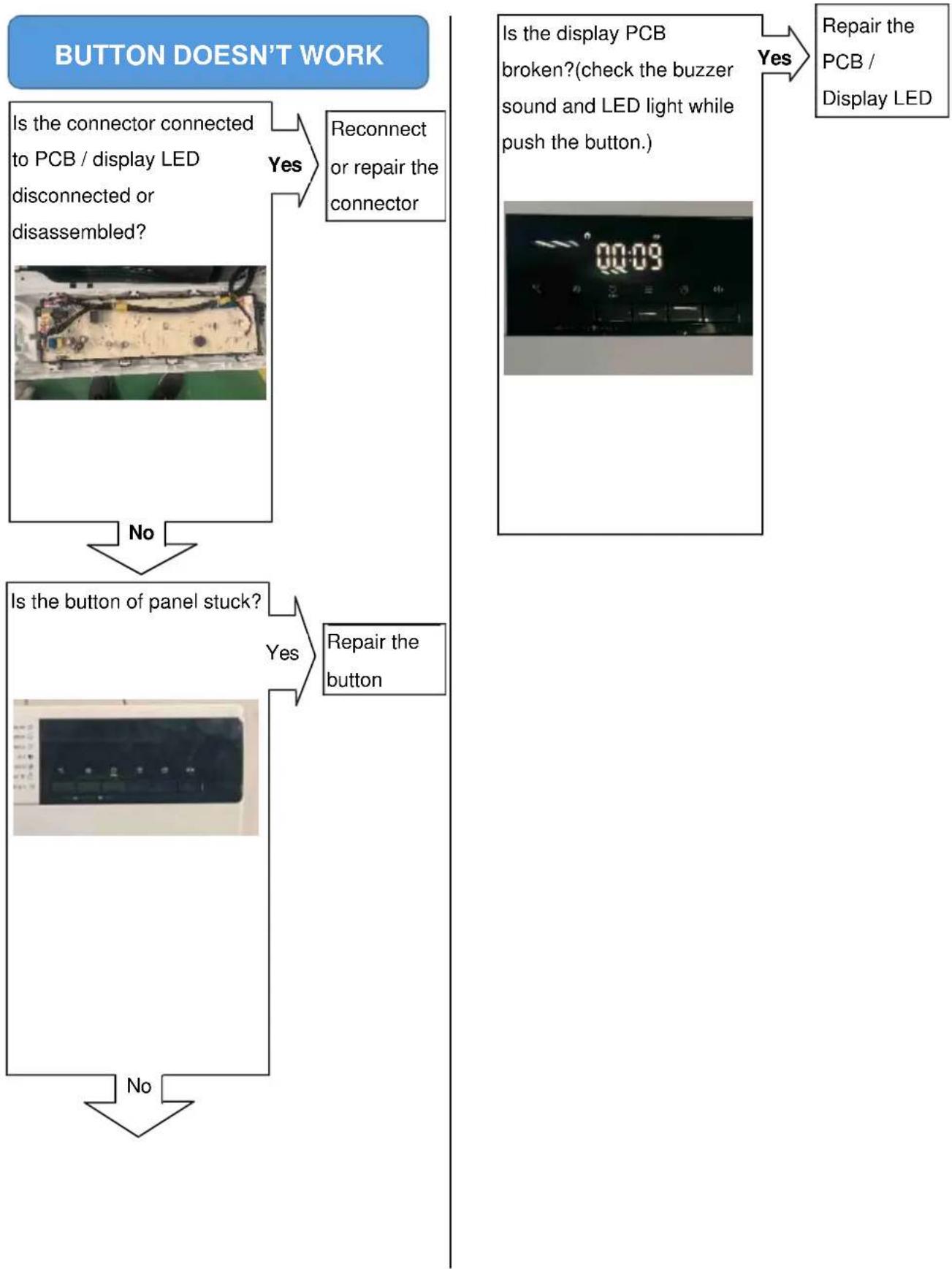

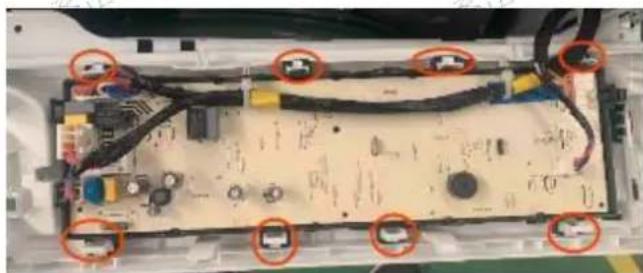

    F["Is the display PCB broken?(check the buzzer sound and LED light while push the button.)"] -->|Yes| G["Repair the PCB / Display LED"]

VIBRATION & NOISE IN SPIN

Have all the transit bolts and base packing been removed?

Technical line drawing of a mechanical housing with internal components and a cross-sectional view (no text or symbols)

Base packing

Remove the transit bolts and Base packing

Is the washer installed on a solidly constructed floor?

No

Check if the washer is perfectly level as follows:

1. Check the leveling of the washer with a level and check that the washer is stable.

Line drawing of a washing machine with front panel and side door (no text or symbols)

1. Put an rubber unbalance part (or 2 to 3 kg) inside of drum and run in high spin. When the machine is spinning in high speed, verify that it is stable.

unbalance part

□ No

If it is not stable, adjust feet accordingly. After the washer is level, tighten the lock nuts up against of the base of the washer. All lock nuts must be tightened.

Higher Tighten Adjustable feet

Close-up of an electronic device's internal components with visible traces and connectors (no text or symbols)

Top-down view of an electronic device showing internal components and wiring (no visible text or symbols)

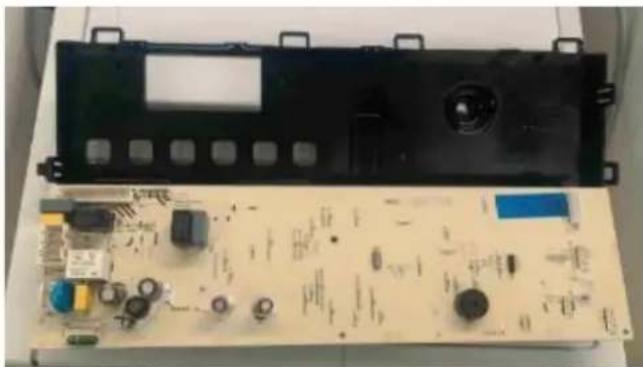

Electronic circuit board with components and a black plastic cover (no visible text or symbols)

Line drawing of a microwave oven with open lid and door panel, showing internal components and airflow direction (no text or symbols)

Technical diagram of a truck's internal structure with numbered component and labeled parts

Technical line drawing of a mechanical component with no visible text or symbols

Exploded view diagram of a mechanical assembly showing internal components like engine, spring, and valve (no text or labels)

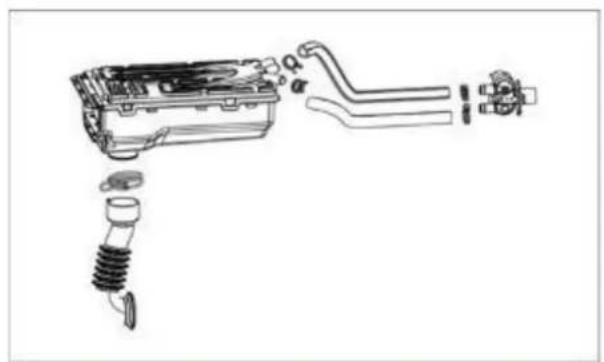

1. Disassemble the top panel
2. Pull out the drawer

3. Unscrew 3 screws as shown

4. Disconnect the double_valve connector from main harness as 3 shown

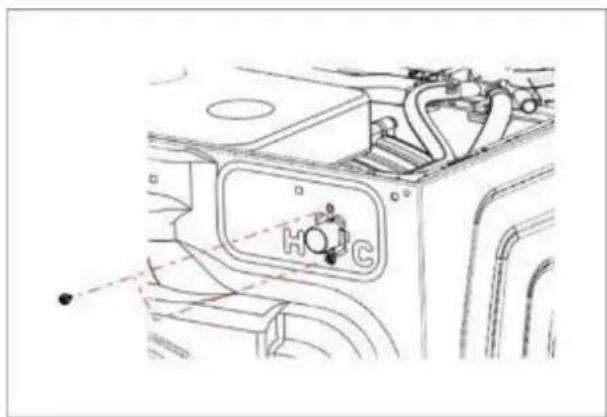

5. Unscrew 2 screws as shown

6. Disassemble the hose clamp as shown

11.3 FILTRE

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with numbered components and red alignment lines

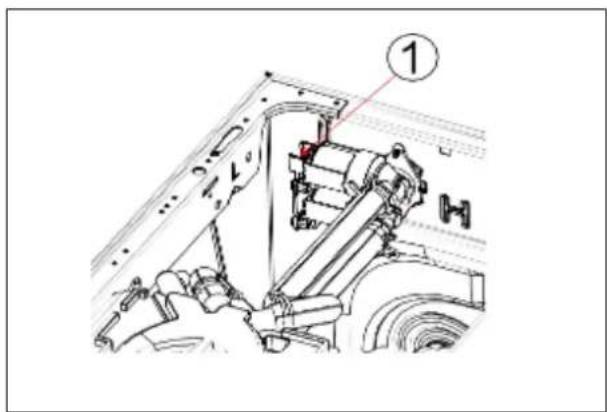

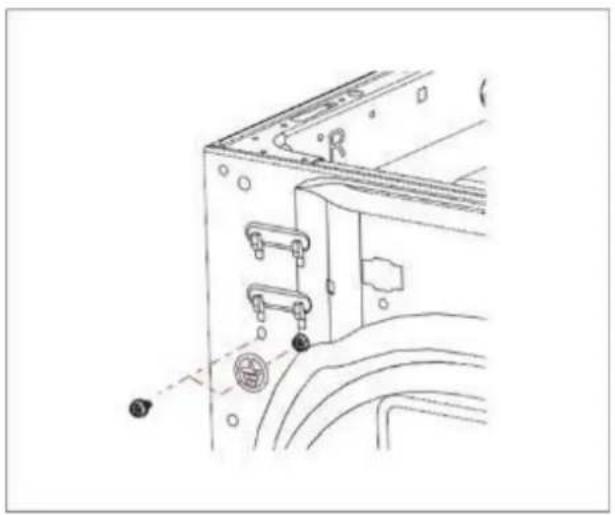

1. Unscrew 2 screws as shown

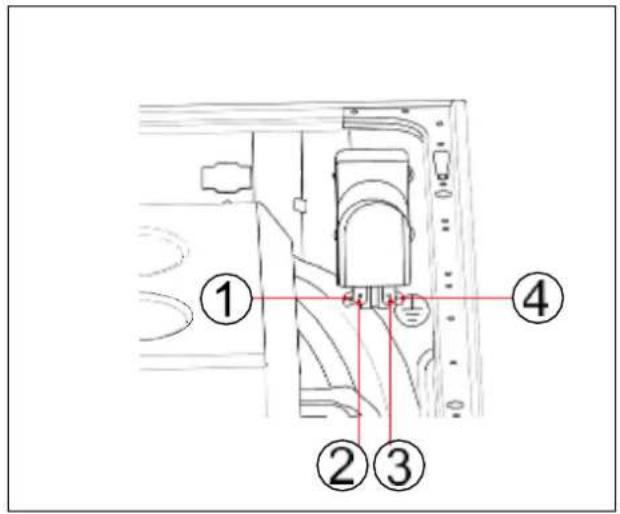

2. Disconnect the filter connector from main harness as ①②③í shown

11.4 PORTE ASM

Technical line drawing of a mechanical clamp or clamp device with two circular components and a tool (no text or symbols)

Technical line drawing of a mechanical component with two circular parts and a central bracket (no text or symbols)

Technical line drawing of a mechanical component with two circular parts and a magnified inset showing a close-up detail (no text or symbols)

Close-up of a mechanical assembly with no visible text or symbols

1. Open the door.°

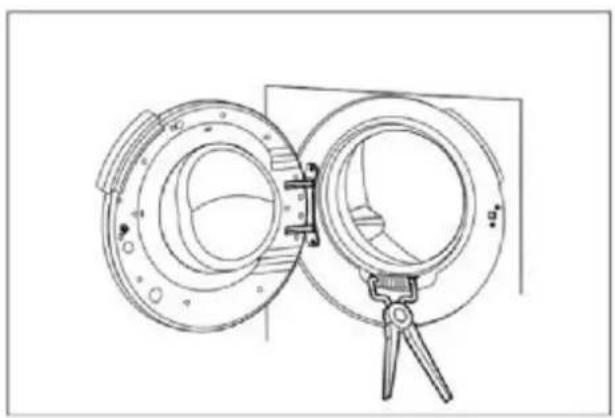

2. Disassemble retainer-bellow as shown

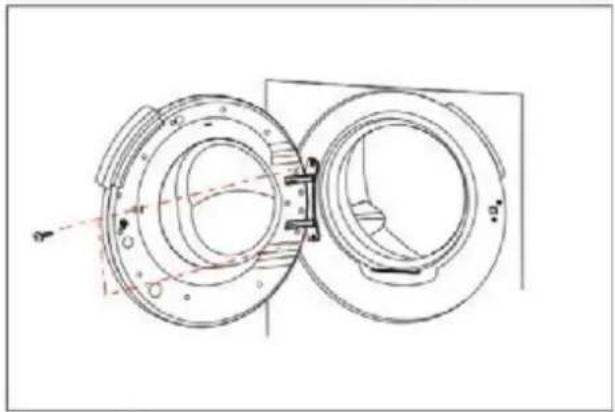

3. Unscrew 2 screws as shown, Disassemble the door ASM

4. Unscrew 1 screws as shown

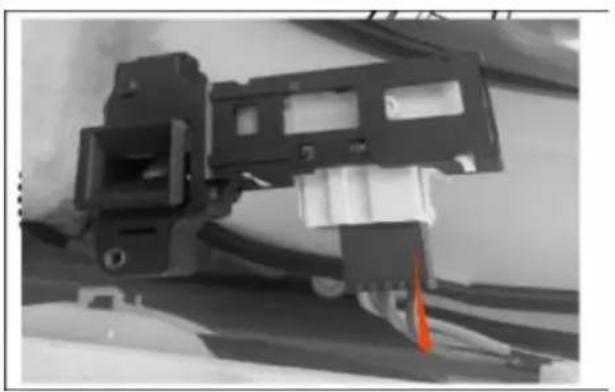

5. Disconnect the door lock connector from main harness

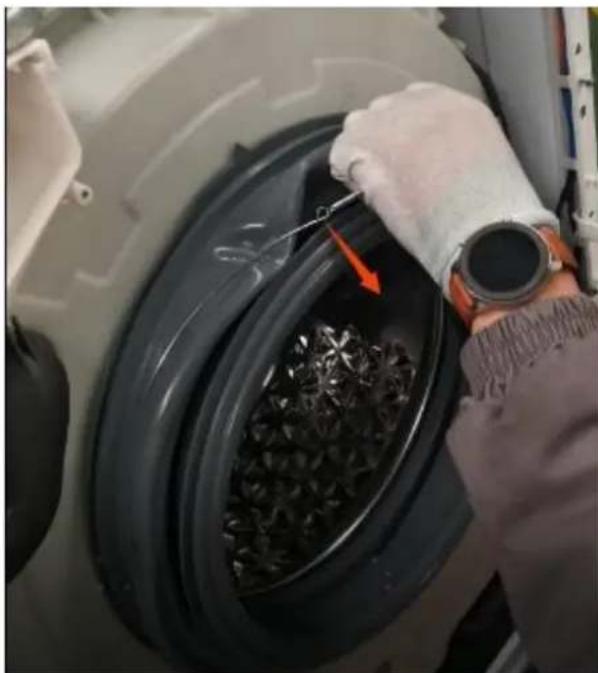

11.5 PORTE SCELLAGE REMPLACEMENT

Close-up of a gloved hand adjusting a tire component with a red arrow pointing to the tire (no visible text or symbols)

Close-up of a hand inserting a plastic bag into a washing machine casing (no visible text or symbols)

Close-up of a white washing machine with black vent, showing mechanical components and a red circular mark on the door (no visible text or symbols)

Close-up of a white mechanical component with red circular annotations and number 2, no readable text or symbols present.

Close-up of a black square wall-mounted device with a circular button and a red number 3 on the left (no text or symbols on the device itself)

Close-up of a hand using a tool to clean or store the interior of a large appliance (no visible text or symbols)

Diagram of a mechanical device with a hand operating it, showing motion direction (no text or symbols)

Close-up of a mechanical component with a central knob and four red-circled points (no visible text or symbols)

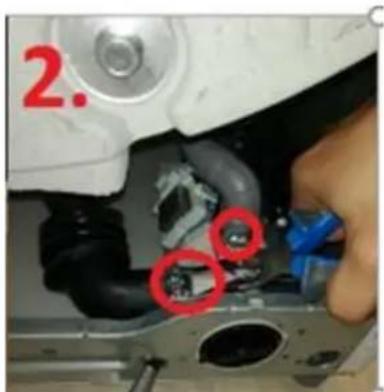

2.

Close-up of a robotic arm with visible wiring and mechanical components (no text or symbols)

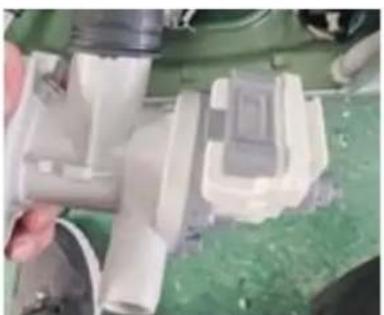

Close-up of a white plastic component being handled by hand, with green liquid on the floor (no visible text or symbols)

1. Disassemble the rear panel

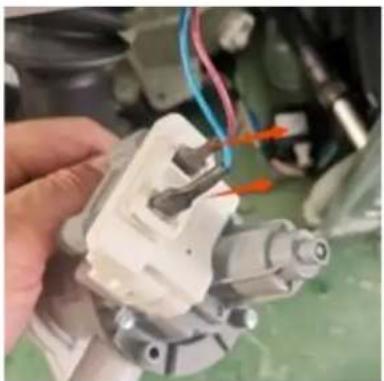

2. Disconnect the heater connector from main harness as ①②③ shown

3. Unscrew 3 crews as "A" shown

4. When foreign objects (wire, coin, etc.) is stuck between drum and tub, Remove foreign objects by inserting a long bar in the opening.

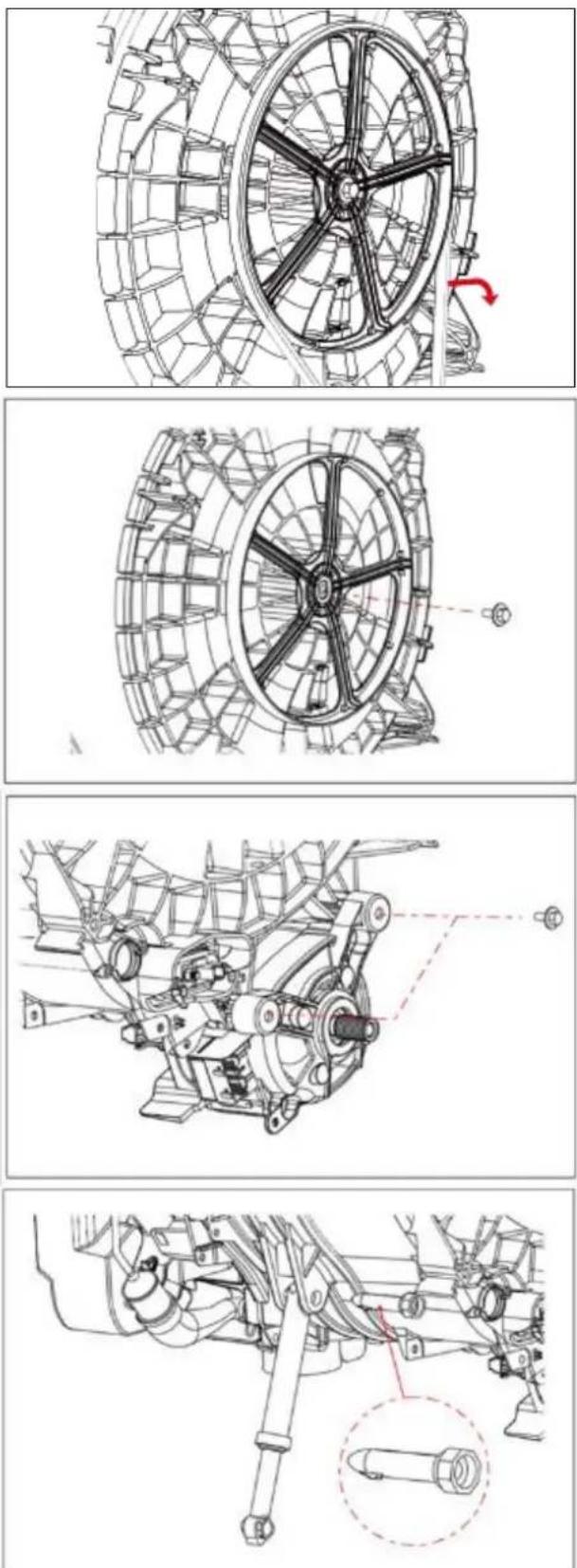

11.8 MOTEUR

1. Disassemble the belt as shown

Unscrew crew as shown, disassemble the pulley

1. Unscrew 2 crews as shown, disassemble the motor

2. Disassemble the damper pin as shown, and look out the claw structure on the pin.

12. FONCTIONNEMENT OPÉRATION

Circuit in the PCB / Wiring Diagram

Anti Mousse Système

Processus description:

Technical diagram showing cross-sectional views of a mechanical device with numbered components and labeled platform.
