Product type	Washing machine
Brand	Hisense
Model	WFNA9012
Power supply	230 V ~ 50 Hz, 10 A
Water connection	Cold water (and hot water depending on model)
Drain hose length	2,50 m
Loading type	Front-loading
Maximum spin speed	Not specified
Number of programs	Not specified
Energy class	Not specified
Washing capacity	Not specified
Dimensions (W × D × H)	Not specified
Net weight	Not specified
Noise level	Not specified
Water pressure	Not specified
Anti-overflow device	Not specified
Delayed stop function	Not specified
Delayed start function	Not specified
Child safety	Supervision recommended
Requires grounded outlet	Yes
Extension cord or power strip prohibited	Yes
Adjustable feet	Yes (4 feet)
Transport bolts to remove	Yes (4 bolts)
Supplied parts	Plastic caps, key, hoses, lower cover (depending on model)
Warranty	Warranty card provided

Frequently Asked Questions - WFNA9012 HISENSE

How to remove transport bolts?

Unscrew all transport bolts with the provided wrench, pushing them inward then pulling them toward you with the plastic and rubber parts. Then install the protective caps by snapping them in until they click. Keep the bolts for future transport.

How to adjust the feet to stabilize the machine?

Loosen the lock nut with the wrench, slightly lift the machine and turn the foot to adjust the height. Then tighten the lock nut. The machine must be on a flat, solid surface, without wooden shims.

Should the water supply hose be connected to cold or hot water?

The blue-marked hose is for cold water. Depending on the model, a red hose for hot water can be connected to the hot water tap. Do not bend the hose and check for leaks by opening the tap.

How to install the drain hose?

Unhook the hose from the clip, connect it to the siphon or hang it in a sink in a U shape. Use the U-shaped hose provided at the end. The total length must not exceed 2.50 m. Avoid kinks and secure the hose.

What electrical precautions should be taken?

Use a grounded outlet. Do not plug into a power strip or extension cord. The current must be 10 A and the voltage suitable (230 V ~ 50 Hz). Only a qualified electrician should replace the power cord.

Can I use a longer supply hose?

Yes, replace it with a pressure-resistant hose (min. 1000 kPa, certified EN 50084) of appropriate length. Do not extend with non-certified fittings.

How to install the lower cover to reduce noise?

Glue the acoustic felt onto the bottom plate, then tilt the machine at 30-40° and fix the cover by aligning the pump with the machine's pump. Tighten well. The machine can operate without this cover.

What to do in case of water leakage?

Check the connections of the supply and drain hoses. Ensure the hoses are not kinked or cracked. Replace any damaged hose. You can also install a non-return valve.

Can children use the machine?

No, do not allow children to play or approach the machine while it is operating. The door can become hot during washing. Supervise children nearby.

How to maintain the washing machine?

Clean the filters regularly (if present) and check the condition of the hoses. Leave the door slightly open after use to prevent mold. Consult the manual for automatic cleaning cycles if available.

USER MANUAL WFNA9012 HISENSE

NOISE, EXCESSIVE VIBRATIONS AND WATER LEAKAGES CAN BE CAUSED BY INCORRECT INSTALLATION.

NEVER MOVE THE APPLIANCE BY LIFTING IT BY THE WORKTOP.

• Read this "INSTALLATION GUIDE" before operating.
• Keep this "INSTALLATION GUIDE" for future reference.
• Read the general recommendations about disposing of packaging in the INSTRUCTION FOR USE.

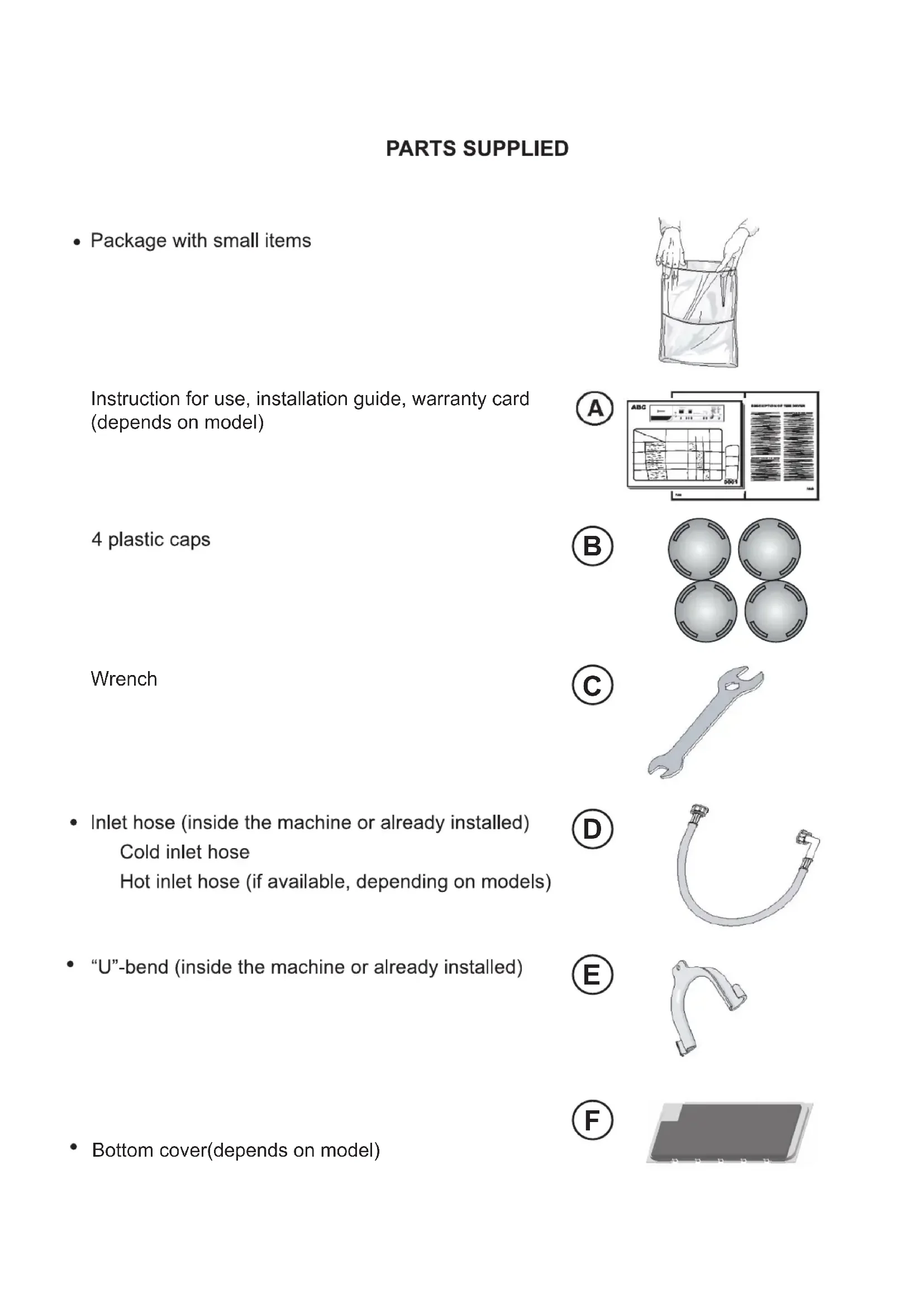

PARTS SUPPLIED

Package with small items

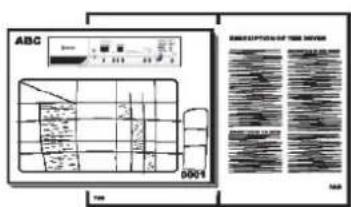

Instruction for use, installation guide, warranty card (depends on model)

A

4 plastic caps

B

Wrench

C

• Inlet hose (inside the machine or already installed)
• Cold inlet hose
• Hot inlet hose (if available, depending on models)

D

• "U"-bend (inside the machine or already installed)

E

• Bottom cover(depends on model)

F

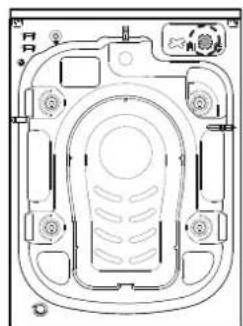

BEFORE USING THE WASHER, PLEASE REMOVE TRANSPORT BOLTS!

Important: Transport bolts which are not removed can cause damage to the appliance.

①

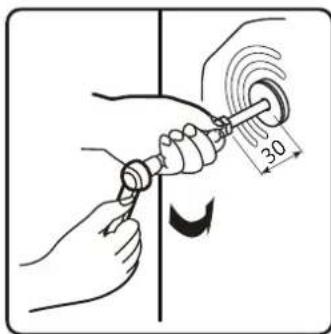

Screw off all transportation bolts for approx. 30mm with wrench following the section of arrow shown (not fully screw it off).

(2)

• Push two transportation bolts on horizontal direction inward and loose transportation bolt.

(3)

Pull out transportation bolt together with rubber part and plastic part.

(4)

To ensure safety and reduce noise, you should install the transportation bolt cover supplied with the unit (see the annex accompanying the unit). Lean and place the transportation bolt into hole and press it following the shown direction until it clicks.

Important: Keep the transport bolts and the wrench for future transporting of the appliance and in this case refit the transport bolts in reverse order.

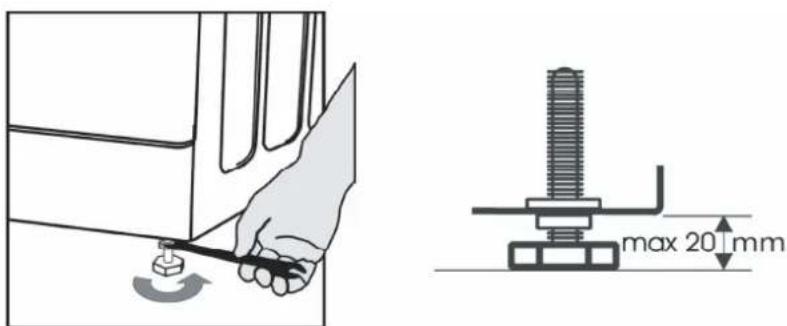

ADJUSTMENT OF THE FEET

The appliance must be installed on a solid and level floor surface (if necessary use a spirit level). If the appliance is to be installed on a wooden floor, distribute the weight by placing it on a 60 × 60cm sheet of plywood at least 3cm in thickness and secure it to the floor. If the floor is uneven, adjust the 4 leveling feet as required; do not insert pieces of wood etc. under the feet.

Slacken the locknut clockwise (see arrow) using the wrench.

Lift the machine slightly and adjust the height of the foot by revolving it.

Important: tighten the locknut by turning it anti-clockwise towards the appliance casing.

INSTALL BOTTOM COVER

To realize quieter operation, a bottom cover is supplied with the unit (only applies to some of the Hisense washers). After installing the cover at the bottom of the washer, the noise level will be greatly reduced. Please ask for advice from specialists before installing the cover, nevertheless, the machine can be used without the bottom cover.

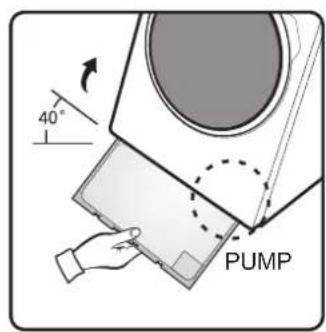

Stick acoustic wool to the side of bottom cover plate with the letter of "PUMP". Tilt the washer by 30^ - 40^ , when installing the bottom cover, please face the side with sound insulation upwards and attach 'PUMP' at the corner of the cover to the position of the pump in the washer.

CONNECT THE WATER SUPPLY INLET HOSE

If the water inlet hose is not already installed, it must be screwed to the appliance. The blue marked hose is only for cold water. Depending on the model, the hot waterhose marked with red should also be connected, for models having dual inlets. Hot (Depending on models) Cold

10

Screw by hand the inlet hose onto the tap, tightening the nut.

Attention:

no kinks in the hose!
- The appliance must not be connected to the mixing tap of an un-pressurized water heater.
- Check water-tightness of connections by turning the tap completely on.
If the hose is too short, replace it with a suitable length of pressure resistant hose (1000 kPa min, EN 50084 approved type).
- Check the inlet hose regularly for brittleness and cracks and replace if necessary.
The washing machine can be connected without a non-return valve.

FILL INSTRUCTION

For Models with Dual Inlets

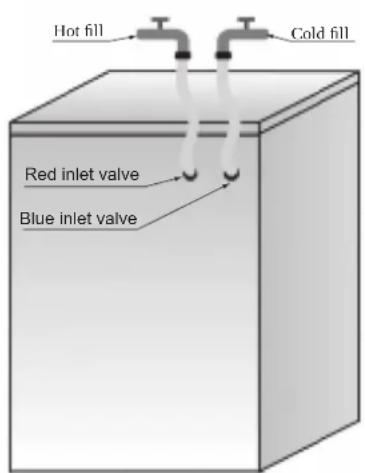

If you wish to connect hot and cold water supply (Fig.1):

1. Fix the red marked inlet hose to the hot water tap and to the inlet valve with the red filter on the rear side of machine.
2. Fix the other inlet hose to the cold water tap and to the inlet valve with the blue filter on the rear side of the machine.

Make sure:

a) The connections are tightly fixed
b) Do not invert their position (for example: cold fill into hot inlet valve and vice versa). If you wish to connect only the cold fill follow the below instructions (Fig. 2):

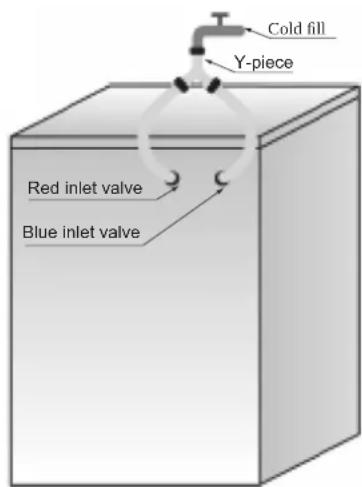

1. You need a Y-piece connector. This can be purchased from local hardware or plumbing supplier.
2. Fix the Y-piece connector to the cold fill tap.
3. Connect the two inlet valves present on the rear part of the machine to the Y-piece connector using the hoses provided.

For Models with Single Inlet

Fix the inlet hose to the cold water tap and to the inlet valve on the rear side of the machine as Fig. 3

Ensure that:

All connections are tightly fixed.

Do not allow children to operate, crawl on, be near or inside your washer.

Note that during the wash cycles, the surface temperature of the porthole door may increase.

Close supervision of children is necessary when the appliance is used near children.

Fig.1 Fig.3

Fig.2

CONNECT THE DRAIN HOSE

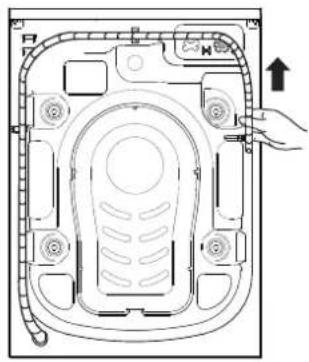

In case the drain hose is installed

as shown below:

Unhook it only from the right clip (see arrow)

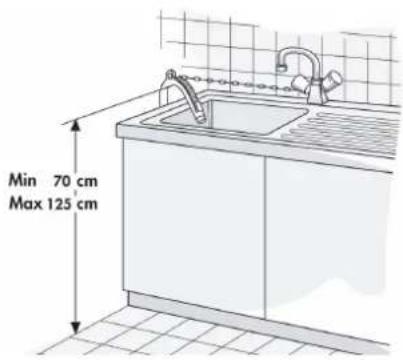

Connect the drain hose to the siphon or

hook it over the edge of a sink by means of the "U" bend.

Fit the "U" bend E, if not already installed, at the end of the drain hose.

Notes:

• Ensure that there are no kinks in the drain hose.
• Secure the hose so that it cannot fall down. After wash phase, machine will drain out hot water.
• Small hand basins are not suitable.
• To make an extension use a hose of the same type and secure the connections with clips.
  Max. Overall drain hose length: 2.50m

ELECTRICAL CONNECTION

Only use a socket with an earth connection.

Do not use extension leads or multi sockets.

Electrical supply must be adequate for the machine's 10A Current Rating.

The electrical power cable must be replaced exclusively by a licensed electrician.

Electrical connections must be made in accordance with local regulations.

Hisense
