Product Type	Cordless Stick Vacuum
Brand	eufy
Model	HomeVac S11 Lite
Intended Use	Household, indoor, hard floors and carpets
Power Supply	Built-in rechargeable lithium-ion battery
Included Charger	Specific model (EU: CZH015265050EUWH)
Operating Temperature Range	5 °C to 40 °C
Charging Temperature Range	5 °C to 40 °C
Battery Type	Rechargeable lithium-ion
Removable Parts	Battery, dust collector, motorized brush
Maintenance	Clean dust collector regularly, do not immerse
Safety	Stop before unplugging, do not use on wet surfaces, keep away from children
Compliance	CE, FCC, IC
Motorized Brush	Disconnectable, turn off before connection/disconnection
Dust Collector	Empty and cleanable, must be in place during use
Important Note	No user-serviceable parts
Environment	Do not dispose of with household waste, recycle via collection points

Frequently Asked Questions - HomeVac S11 Lite eufy

How to assemble the HomeVac S11 Lite vacuum?

Perform complete assembly before use. Consult the manual for assembling the handle and brush.

Can I use the vacuum on wet floors?

No, the vacuum is intended for household use on dry surfaces only. Do not use outdoors or on wet surfaces.

How to recharge the battery?

Use only the supplied charger (EU model: CZH015265050EUWH). Plug the charger into a wall outlet and connect it to the vacuum. Charging must be done between 5 °C and 40 °C.

What to do if the vacuum does not work?

Check that the battery is charged and correctly installed. Make sure the device is turned on. If the problem persists, contact customer service. Do not attempt to repair it yourself.

How to clean the dust collector?

Empty the collector after each use. You can wash it with water, but ensure it is completely dry before reinstalling. Do not use harsh detergents.

Can I use a non-supplied charger?

No, use exclusively the charger specified by the manufacturer. An unsuitable charger may damage the battery or cause a fire.

Can the vacuum pick up liquids?

No, never vacuum flammable or combustible liquids, nor hot or smoking objects. This could damage the device and cause hazards.

How to maintain the motorized brush?

Turn off the vacuum before connecting or disconnecting the brush. Clean the bristles regularly to remove hair and fibers. Do not immerse in water.

What to do if the battery is damaged?

Do not attempt to disassemble or repair the battery. If damaged, contact customer service. Do not expose to fire or temperatures above 130 °C.

How to dispose of the vacuum at end of life?

Remove the battery and dispose of it at an approved collection point. The device must not be thrown away with household waste. Follow local regulations.

USER MANUAL HomeVac S11 Lite eufy

For FAQs and more information, please visit: www.eufylife.com

Owner's Manual HomeVac S11 Lite

English

Table of Contents

02 Important Safety Instructions
12 Overview
14 Assembling
15 Wall Mounting
16 Recharging
18 Using
18 Maintenance
21 Specifications
22 Customer Service

Thank you for purchasing this appliance. Carefully read all instructions before using this product, and keep this manual for future reference.

English En

Important Safety Instructions

READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM CLEANER

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

Fully assemble before operating.
- Intended for household use only.
- Do not use outdoors or on wet surfaces.
- Do not leave this appliance unattended when it is plugged in. Unplug it from the outlet when you are not using it and before servicing.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual. Use only manufacturer recommended attachments.
- For the purposes of recharging the battery, only use the detachable power supply unit provided with this device.
- Do not use with a damaged cord or plug. If the appliance is not working as it should, or has been dropped, damaged, or submerged in water, contact our customer service for advice.
- Do not handle the plug or appliance with wet hands.
- Do not unplug the adapter by pulling on the cord. To unplug, grasp the plug, not the cord.
- Do not pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.
- Do not put any object into openings or vents. Do not use if any opening is blocked. Keep free of dust, lint, hair, and anything else that may reduce airflow.
- Keep hair, loose clothing, fingers, and other body parts away from openings and moving parts.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs.
- Always turn off this appliance before connecting or disconnecting the motorized floor brush.

• To prevent unintentional starting, ensure the appliance is switched off before installing the battery pack, picking up or carrying the appliance. Do not carry the appliance with your finger on the power switch, doing so may cause accidents.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
• Do not use without the dust collector and/or filters in place.
• Store this appliance indoors, in a cool and dry area.
• Make sure that the outlet voltage corresponds to the voltage rating on the charger's label.
• Recharge only with the charger (US: YLJXA-T265050; UK: YLJXA-U265050; AU: YLJXA-A265050; EU: CZH015265050EUWH) specified by the manufacturer. A charger that is suitable for one type of battery pack may cause a risk of fire when used with another battery pack.
• Do not attempt to repair or disassemble this appliance. There are no user-serviceable parts inside. Repair or service must be performed by a qualified repairman and only identical replacement parts can be used. This will ensure the safety of the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
• This appliance includes a rechargeable lithium-ion battery pack. Do not expose the battery pack or appliance to fire or excessive temperature (above 130^ ), as it may catch fire and/or explode.

English En

• Use this appliance only with specifically designated battery packs. Use of any damaged or modified battery packs may create a risk of injury and fire.
• Charging, using, and storage of the appliance should be within the ambient temperature range of 5 - 40^
• Follow all the charging instructions and do not charge the battery pack out of the temperature range specified in the instructions, otherwise, it may damage the battery and increase the risk of fire.
• Do not attempt to disassemble the battery pack.
  The battery must be removed from the device before the device is disposed of.
  This appliance must be disconnected from the mains supply when removing the battery.
• The used battery should be placed in a sealed plastic bag and disposed of safely according to local environmental regulations.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing this appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

SAVE THESE INSTRUCTIONS

Notice

This symbol on the device or its packaging indicates:

Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities. Contact your local authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and gel into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obliged to take back your old appliance for disposal at least free of charge.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio / TV technician for help.

The following importer is the responsible party (for FCC matters only), Company Name: POWER MOBILE LIFE, LLC Address: 400 108th Ave NE Ste 400, Bellevue, WA 98004-5541 Telephone: [phone]

ISED Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device

EU Declaration of Conformity

Hereby, Anker Innovations Limited declares that the product type T2503 is in compliance with Directives 2014/35/EU & 2014/30/EU.

The full text of the EU declaration of conformity is available at the following
Internet address:
https://www.eurolife.com/

GB Declaration of Conformity

Hereby, Anker Innovations Limited declares that the product type T2503 is in compliance with Electrical Equipment (Safety) Regulations 2016 & Electromagnetic Compatibility Regulations 2016 & The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 & The Ecodesign for Energy-Related Products Regulations 2010.

English

The full text of the G8 declaration of conformity is available at the following intermert address:

https://www.euylife.com/

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

AUSTRALIA & NEW ZEALAND WARRANTY

This document details the terms and conditions of the warranty provided with this product. Please disregard any other representations contained on this product's packaging or provided with this product, which constitute or appear to constitute a warranty.

Subject to the exclusions and limitations set out below, we warrant to you that if you purchase a product directly from us, or, from any of our authorized resellers, that it will not contain defects which are a result of manufacturer workmanship or materials. This warranty subsists for 15m from the date of purchase. This warranty is provided in addition to your under the Australian & New Zealand Consumer Law.

Subject to any rights you have under the Australian & New Zealand Consumer Law, we will not be liable for defects which are a result of damage or loss caused by factors beyond our control, any product which has not been maintained according to any care or maintenance instructions provided with the product, any alterations to a product which are not performed by us, or damage or defects caused to the product due to unusual or non recommended use. We will not be liable for any special, indirect, consequential or economic loss or damage or loss of profits whatsoever suffered by you or any other person resulting from any act or omission by us. Our total liability in respect of this Warranty against Defects is limited to the replacement of the goods. This Warranty against Defects is provided in addition to other rights and remedies that you may have at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

In order to claim the warranty, you must return the product to the retailer from which it was purchased or if that retailer is part of a National network, a store within that chain, along with satisfactory proof of purchase. The retailer will then return the goods to Directed Electronics Australia authorized by Anker Innovations Limited. Directed Electronics Australia will repair, replace or refurbish the product at its discretion. The retailer will contact you when the product is ready for collection. All costs involved in claiming this warranty, including the cost of the retailer sending the product to Directed Electronics Australia, will be borne by you.

This warranty is offered by Directed Electronics Australia

Customer service support number ([phone] Mon-Fri 8:30am - 5:00pm (AEST) and customer service email address [e-mail].

Français

Consignes de sécurité importantes LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER VOTRE ASPIRATEUR.

AVERTISSEMENT - POUR RÉDUIRE LE RISQUE D'INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURE :

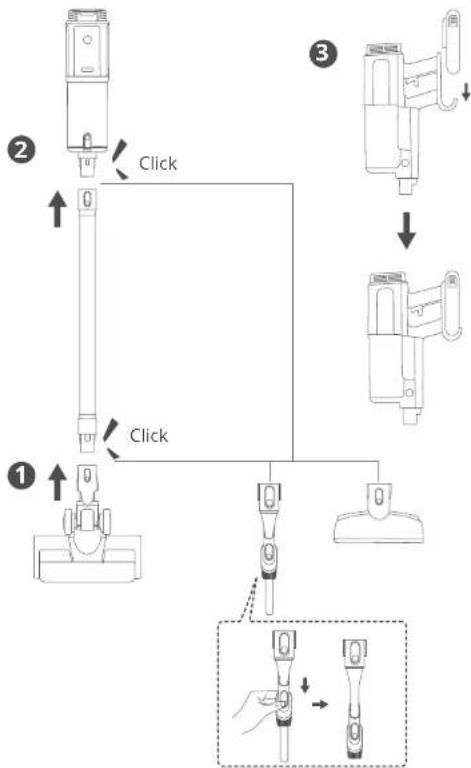

Allach your desired cleaning accessory to the metal tube as illustrated.

Wall Mounting

The Vacuum cleaner cannot stand on its own. Make sure it is mounted securely.

1

2

3

4

5

English En

Recharging

The vacuum cleaner is powered by the rechargeable lithium battery. Before first use, charge the battery for more than 5 hours.

The vacuum cleaner cannot work while charging.

The vacuum cleaner cannot be charged when the ambient temperature

above 40°C

B

Lights during charging

LED 1: flashing blue Charging, low charge

LED 1: solid blue LED 2: flashing blue Charging, medium charge

LED 1 & 2: solid blue

LED3:flashing blue

Charging, nearly full

LED1&2&3:solid blue

5.4ins then turns off after 5 minutes

Fully charged

Lights during vacuuming

LED 1 & 2 & 3: solid blue High battery level		LED 1 & 2: solid blue Medium battery level
LED 1: solid blue Low battery level		LED 1 & 2 & 3: flashing blue 8 times, then turns off Empty, needs charging

Lights when in trouble

X8	LED 1: slowly flashing red 8 times, then turns off High temperature warning
X12	LED 1: slowly flashing red 12 times, then turns off Battery fault
X8	LED 1: quickly flashing red 8 times, then turns off Motor fault

English En

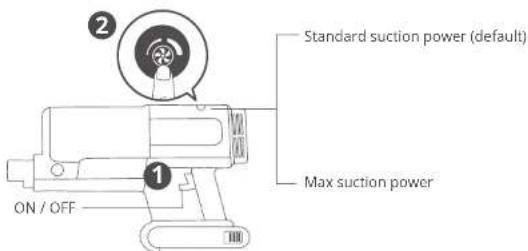

Using

Before use, make sure that
the battery is fully charged.
the cust collector and filters are cleaned, dried, and fixed in place.

Do not use the vacuum cleaner to clean up liquid spills.

Maintenance

Empty the Dust Collector

Clean the Dust Collector

1

2

3

4

5
6

English En

Clean the Filters

Wash the filters with cold water at least once every month. Ensure the filters are completely dry before reassembly.

HomeVac Part Cleaning Frequency Replacement Frequency

Dust collector After each use

Hiter

Once every week (twice a week if you have a pel)

Every 6 months or after every 50 rounds of clearing

Clean the Rolling Brush

20 21

Specifications

Model T2503

Charging insur 26.5V

0.5A

Rated Power 215W

Running Time

1. minutes (Standard Suction Power Mode);

10 minutes (Max Suction Power Mode)

Battery Cell Capacity 2200 mAh

Battery Rating DC22.2V LHon 2200mAh 49.84Wh

Charging Time 5 hours

English
