USER MANUAL DWAT800 H.KOENIG

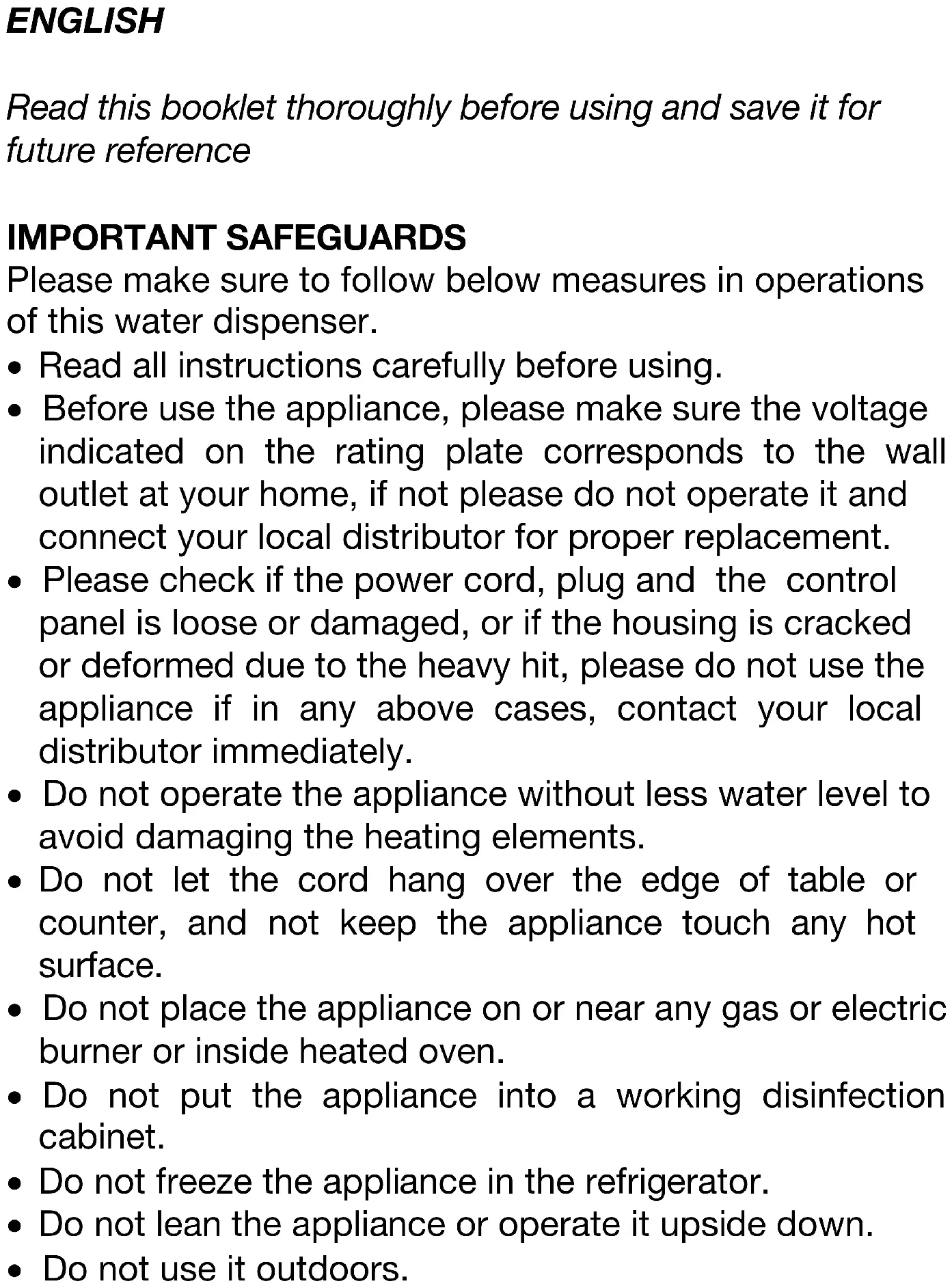

Read this booklet thoroughly before using and save it for future reference IMPORTANT SAFEGUARDS Please make sure to follow below measures in operations of this water dispenser.

• Read all instructions carefully before using.

• Before use the appliance, please make sure the voltage indicated on the rating plate corresponds to the wall outlet at your home, if not please do not operate it and connect your local distributor for proper replacement.

• Please check if the power cord, plug and the control panel is loose or damaged, or if the housing is cracked or deformed due to the heavy hit, please do not use the appliance if in any above cases, contact your local distributor immediately.

• Do not operate the appliance without less water level to avoid damaging the heating elements.

• Do not let the cord hang over the edge of table or counter, and not keep the appliance touch any hot surface.

• Do not place the appliance on or near any gas or electric burner or inside heated oven.

• Do not put the appliance into a working disinfection cabinet.

• Do not freeze the appliance in the refrigerator.

• Do not lean the appliance or operate it upside down.

• Do not use it outdoors.• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

• Make sure to operate the appliance when children is under good custody.

• This appliance is not a toy, please make sure the children do not play with it.

• Please ensure the appliance is used on a firm and flat surface out of reach of children, to avoid being overturned in a sudden and result in the scald or hitting injury.

• To protect against a fire, electric shock or other personal injury, do not immerse any part of the appliance in water or other liquid.

• Do not touch the hot surface, water spout when the appliance is operating.

• While the appliance is under working, do not touch or block the steam outlet by hand or other stuff, do not open the water tank lid in a rush, in order to avoid the scald by the hot steam or cause any other malfunctions.

• To avoid being scalded, it is prohibited to use hand or any parts of your body to feel the temperature or steam when the appliance is using

• Do not use the appliance to heat anything other than water. Do not fill above the “max” indication. Do not operate it if water is below minimum.

• Unplug the appliance before do the cleaning, and make sure it is cool down thoroughly.• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid any hazard.

• The power cord could only be replaced by the exclusive power cord if any damages.

• Do not operate the appliance when it is out of working or with malfunctions, return it to the nearest authorized service agent or manufacturer for examination, repair or replacement, do not try to disassembly it by yourself.

• This appliance is intended to be used in household and similar locations such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• Please save this instruction booklet.

• The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

• Keep the appliance and its power cord out of reach of children under 8 years of age.

• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

• Make sure that the voltage rating on thetypeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit

• Never leave the unit unattended while in operation.

• Never open the appliance from the front, always position yourself slightly to the side to avoid burning yourself with steam.

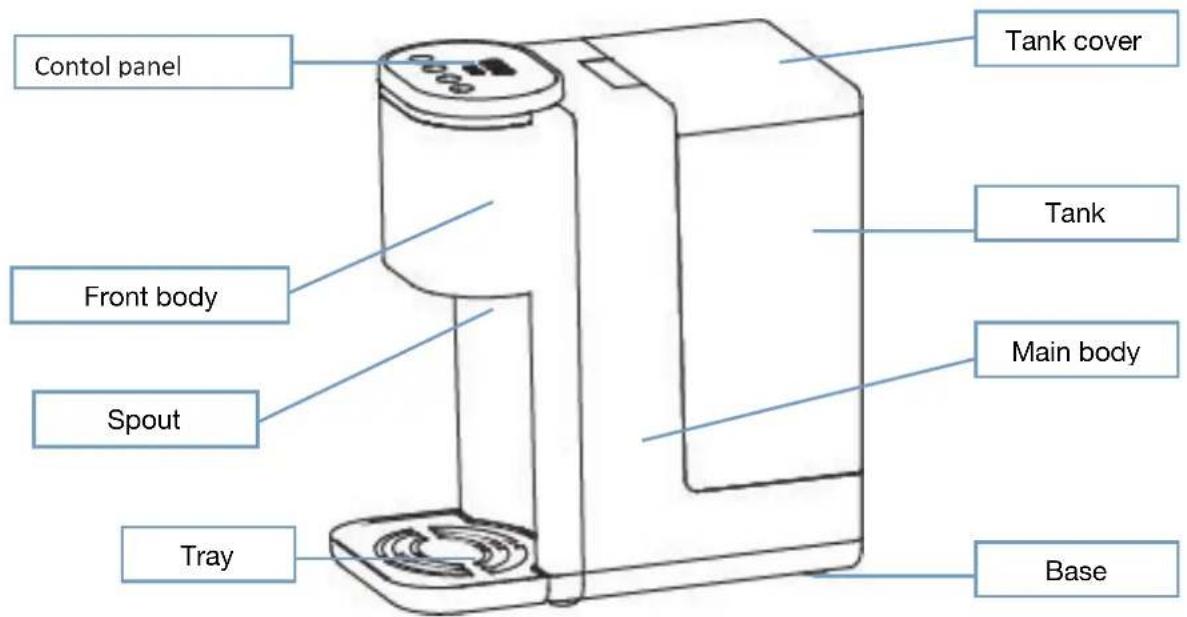

• Cleaning and maintenance should not be carried out by children unless they are at least 8 years of ageand are supervised by an adult. MAINPART NAME

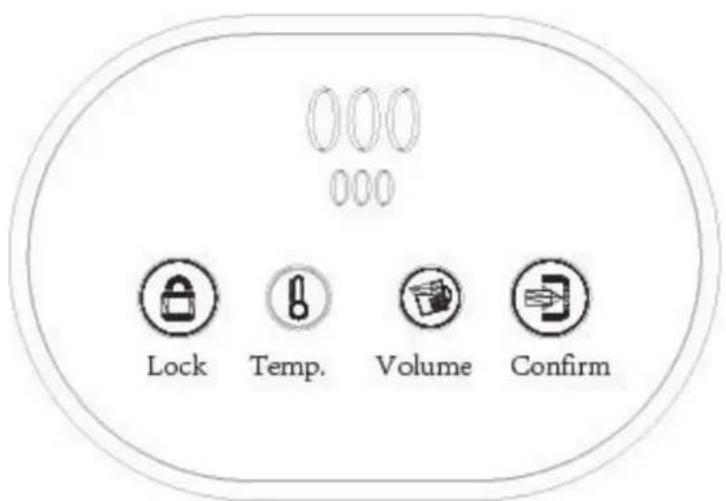

Tank cover Tank Base Contol panel Main body Front body Tray SpoutLock button: press it about 3 seconds to unlock, locked without any act within 10-15 seconds, you can lock the screen free by press CONFIRM button Temp. button: Set the desired temperature according to 45C,55C,65C,75C,85C,100C,000 (normal temperature water) Volume button: Set the water volume according to 100ml,200ml,300ml,000(flow water continuously) Confirm button: Start and stop function setting.

Before first use: If use the appliance for first time, please clean up the water tank before use. Always unplug from the plug socket and allow to cool down before cleaning,the surface of the water tank is wiped over with damp cloth and polished with a soft dry cloth, fill in the clean water to clean, plug in and let the water flowing until tank is empty and repeat the same steps for several times, then refill the proper clean water to be ready for operation. Tips: First use of the appliance: Please operate the appliance under 100C setting for one minute until the detection of boiling point is finished. The appliance is ready for use - set the Temp and Volume to desired settings.

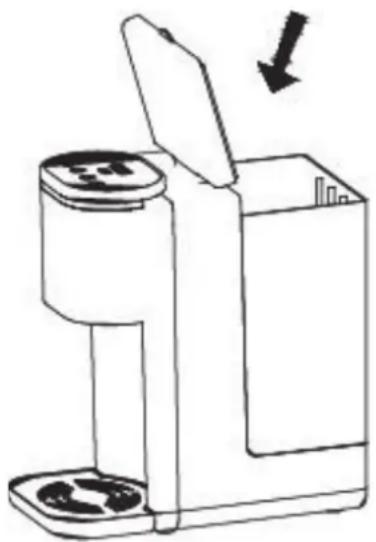

Open the lid, fill the water tank with the desired amount of water, and then close the lid. Note: the water level must be less the Max level.Tips:

• Suggest to use purge water in the appliance

2. OBTAIN DESIRED WATER

Make sure the plug is connected to the proper wall outlet, and fill in the water with desired amount. Place your cup on the removable water tray, make sure it aligns with the spout. First press the Lock button about 3-5 seconds to open by finger, Temp. and Volume setting indicator lights up, and press the Temp. button to choose your desired temperature and press the Volume button to set right water volume, Last press the Confirm button to operate the appliance, about 5-8s, the desired water will flow out continuously from water spout,when you obtain desired water, press the Confirm button, the appliance stop work at once, If you want to obtain water again, only repeat the above procedure.

• Do not touch the boiled water and steam in order to protect against the scald by the boiled water and hot steam. If the appliance stop to operate with beep sound and the PCB panel show E7 symbols, show the water is lack, need pour the cool water in the water tank immediately.

• The appliance can memorize the last operation method anytime without disconnecting the plug.

• As the appliance has memory function when connecting to plug, please use about 60 second s first in order to obtain desired temperature water, but it’s memory will be lost after unplug.

• As ambient temperature change everyday, the water volume will undulate within -15% to +15%

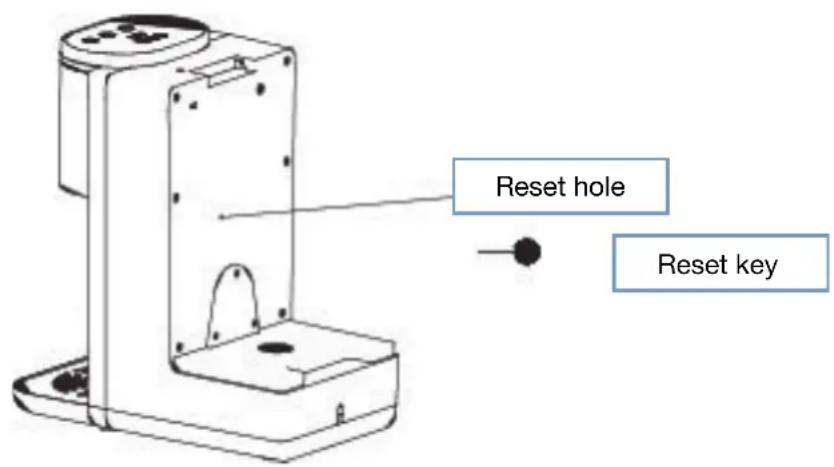

• The appliance have manual thermostat to recover the heating function for abnormal operation,if the unit is no power, stop working, not boiling the water, you can reset the thermostat by a reset key easily.

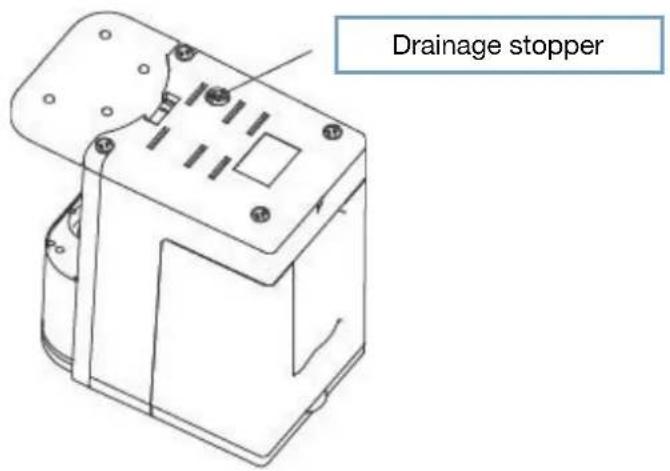

Reset key Reset hole• After cleaning the appliance, please open the drainage stopper in order to clean up waste water, pls tighten the drainage stopper after opening it.

• Note: If found water leakage from the bottom, pls tighten the drainage stopper.

• You can remove the spout so as to clean up scale deposit.

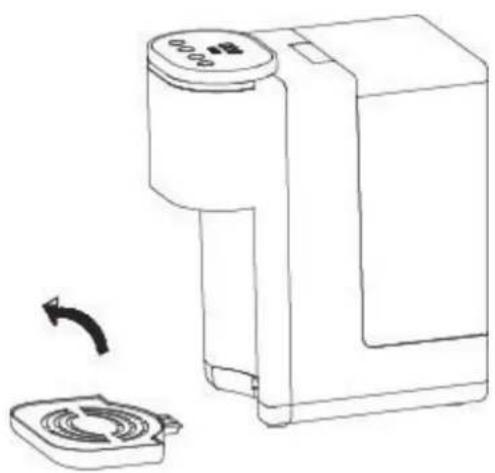

When the water tray is full, to grasp and stabilize the appliance by one hand, use another hand to lift up the water tray slightly to remove it, empty the water tray and insert it into the original place with proper force.

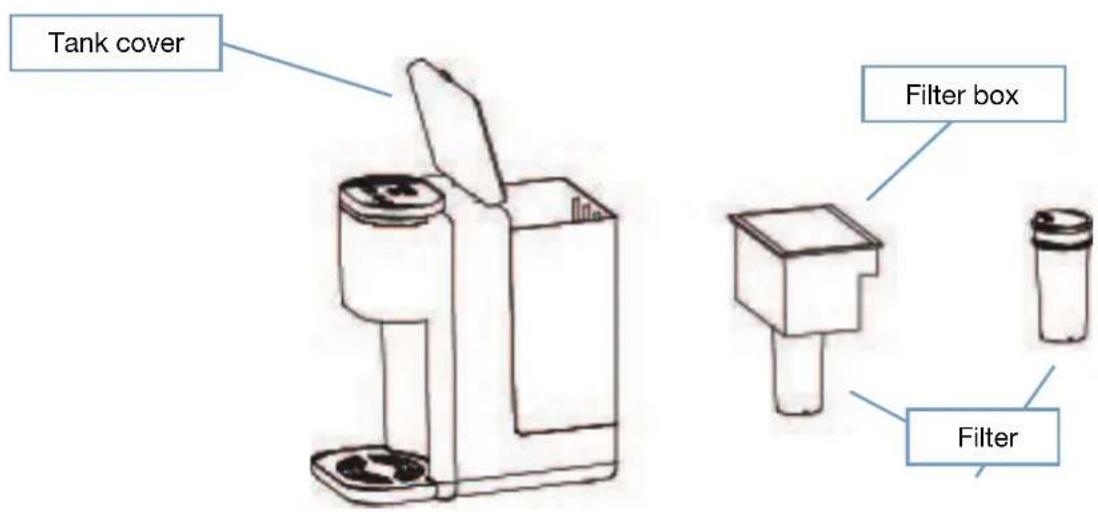

4. REPLACE THE FILTER（attachment as per requirement）

Open the tank cover, and take out the filter box with filter, go off with the old filter. Use the new filter instead of it. (See photo) Drainage stopperCLEANING AND MAINTENANCES

• Always switch off and unplug your water dispenser and allow it to cool completely before cleaning.

• Do not immerse the appliance into any liquid to avoid the damage.

• To maintain it’s performance, suggest to descale the appliance at least once every month. Please use the toxic free detergent such as citric acid, add some citric acid into water and operate always the appliance about two or three times, the scale will be get rid of completely. After the completion, please pour out all the boiled water and add pure water to operate the appliance once before you drink.

• Do not use any chemical, metal, wood or abrasive detergent to clean the appliance housing, always use a damp cloth.

• Always handle the appliance gently, do not place it near the edge of the table and the counter, to protect against the deform or function damage in case it fall down from the table accidently.

• Cleaning and maintenance should not be carried Tank cover Filter box Filterout by children unless they are at least 8 years of age and are supervised by an adult. STORAGE If do not use the appliance for long, unplug and clean it, then put back into the original packing box to avoid the electrical components are humidified or damaged. ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.
