GK643E - Microwave Oven BUFFALO - Free user manual and instructions

Product type	Microwave oven
Brand	Buffalo
Model	GK643E
External dimensions (W x H x D)	517 x 297 x 412 mm
Internal dimensions (W x H x D)	338 x 225 x 349 mm
Capacity	28 litres
Net weight	17.5 kg
Gross weight	19.0 kg
Power supply	230 V ~ 50 Hz
Microwave consumption	1600 W (7 A)
Nominal output power	1050 W (IEC-705)
Power levels	5 (High, Medium high, Medium, Medium low, Defrost)
Operating frequency	2450 MHz
Cooling system	Ventilation motor
Control type	Mechanical (rotary knobs)
Main functions	Cooking, reheating, manual defrost
Turntable	Yes, ceramic
Safety	Safety lock, automatic shut-off when empty
Maintenance	Clean with damp cloth and soapy water
Repairability	Repairs by qualified technician only

Frequently Asked Questions - GK643E BUFFALO

How to install the Buffalo GK643E microwave oven?

Place the oven on a flat surface 85 cm above the floor, with at least 10 cm clearance at the back and sides and 20 cm above. Plug into a grounded outlet. Before first use, heat a bowl of water for 10 minutes at full power.

Can I use metal containers in the oven?

No, never use metal containers, dishes with gold or silver decorations, or metal utensils. This can cause arcing and damage the oven.

How to clean the microwave oven?

Regularly clean interior and exterior surfaces, door and seals with a soft cloth and soapy water. For odors, heat a cup of lemon water for 10 minutes. Never use abrasive products or steam cleaners.

What if the door or seals are damaged?

Do not use the oven if the door or its seals are damaged. Have it repaired by a qualified technician. Using with a defective door may cause dangerous microwave leakage.

How to defrost food in this oven?

Place frozen food on the ceramic turntable. Set the power knob to 'Defrost' and turn the timer to select the desired time. Use the cooking guide for approximate times.

What should I do if sparks occur inside?

This may be due to metal utensils, aluminum foil too close to walls, or metal ties. Remove any metal objects and check that the dish is microwave-safe.

The oven is not heating, what to check?

Check that the door is properly closed, the timer is set to a non-zero time, and the power knob is correctly positioned. Also ensure the fuse or circuit breaker has not tripped.

Can I cook hard-boiled eggs in the microwave?

No, never reheat fresh or hard-boiled eggs in their shells as they may explode, even after cooking.

How to remove bad odors from the oven?

Place a cup of water with lemon juice in the oven and heat at full power for 10 minutes. This neutralizes odors. For persistent odors, repeat.

What is the power consumption of this oven?

The microwave power consumption is 1600 W (7 A) at 230 V. The nominal output power is 1050 W, with 5 adjustable power levels.

USER MANUAL GK643E BUFFALO

Diagram of a rotary dial with numbered positions and indicator lights, showing two main dials labeled 1 and 3.

Diagram of a dial indicator with numbered labels and circular dial positions

The image contains a graphical symbol (a target with a crosshair and a central dot) and no textual content.

Diagram of a dial indicator with numbered labels and circular dial positions

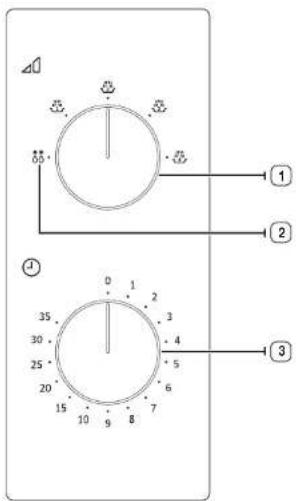

1. BOUTON COMMANDE DE LA PUISSANCE DE CUISSON
2. DECONGÉLATION
3. BOUTON MINUTERIE

Français - 12

utilisation du four

VÉRIFICATION DU BON FONCTIONNEMENT DE VOTRE FOUR

Diagram of a dial indicator with numbered labels and circular dial positions

Diagram of a rotary dial with numbered positions and control buttons, showing two variants labeled 1 and 2.

1. VERMOGENSREGELAAR
2. ONTDOOEN
3. TIMERKNOP

Nederlands - 12

gebruik van de oven

CONTROLEREN OF DE OVEN GOED WERKT

Cozinnay/Reaquccor....13

Diagram of a dial indicator with numbered labels and circular dial positions

1. SELECTOR DE CONTROLO DA POTÊNCIA DE COZEDURA
2. DESCONGELAÇÃO
3. SELECTOR DO TEMPORIZADOR

Português - 12

utilização do forno

Commercial Microwave Oven

Instruction Manual

Planet First

100%

Recycled Paper

This manual is made with 100 % recycled paper.

contents

Safety information 2

Quick look-up guide 11

Oven features 12

Oven 12

Control panel 12

Oven use 13

Checking that your oven is operating correctly....13

Cooking/Rheating....13

Power levels 13

Adjusting the cooking time 14

Stopping the cooking 14

Manual defrosting food 14

Cookware guide 14

Cooking guide 15

Troubleshooting....17

Troubleshooting....17

Technical specifications 18

safety information

USING THIS INSTRUCTION BOOKLET

You have just purchased a Buffalo microwave oven. Your Owner's Instructions contains valuable information on cooking with your microwave oven:

• Safety precautions
• Suitable accessories and cookware
• Useful cooking tips
- Cooking tips

LEGEND FOR SYMBOLS AND ICONS

WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage.

Warning; Fire hazard Warning; Hot surface
Warning: Electricity Warning; Explosive material
Do NOT attempt. Do NOT touch
Do NOT disassemble. Follow directions explicitly.
Unplug the power plug from the wall socket. Maxo sure the machine is grounded to prevent electric shock.
Call the service center for help Note
Important

English - 2

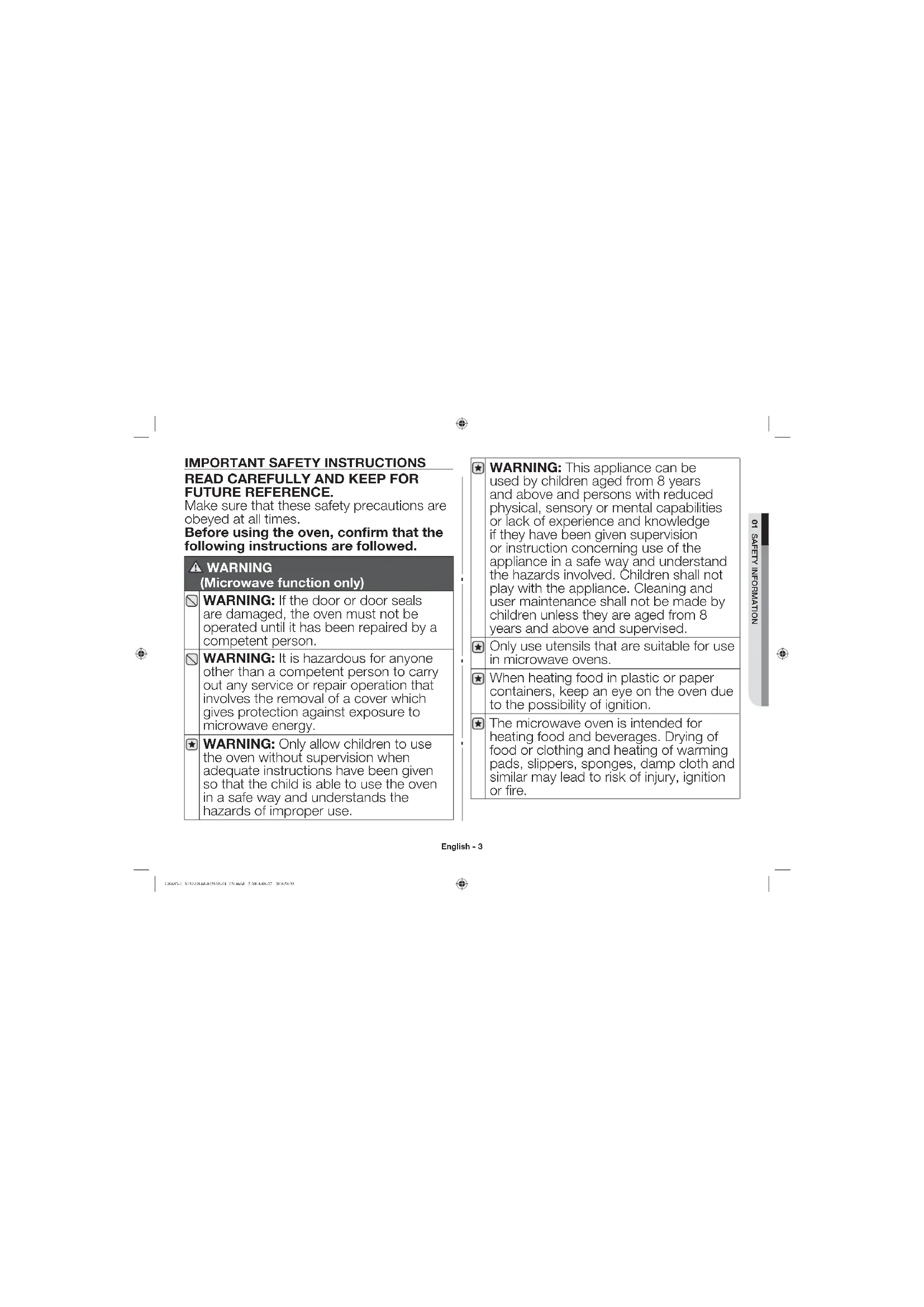

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Make sure that these safety precautions are obeyed at all times.

Before using the oven, confirm that the following instructions are followed.

WARNING

(Microwave function only)

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
Only use utensils that are suitable for use in microwave ovens.
When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

	If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
	WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
	WARNING: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
	Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
	The oven should be cleaned regularly and any food deposits removed.
	Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
	The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.

★	This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
★	Children should be supervised to ensure that they do not play with the appliance.
√	If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
☐	WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode;
☐	The appliance should not be cleaned with a water jet.
★	This oven should be positioned proper direction and height permitting easy access to cavity and control area.
★	Before using the your oven first time, oven should be operated with the water during 10 minute and then used.
★	If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.
★	The microwave oven has to be positioned so that plug is accessible.
▽	The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet.

English - 4

⚠ WARNING (Oven function only) - Optional

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
★	During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
☒	WARNING: Accessible parts may become hot during use. Young children should be kept away.
☒	A steam cleaner is not to be used.

	WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
	WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.Children less than 8 years of age shall be kept away unless continuously supervised.
	The temperature of accessible surfaces may be high when the appliance is operating.
	The door or the outer surface may get hot when the appliance is operating.
	Keep the appliance and its cord out of reach of children less than 8 years.

01 SAFETY INFORMATION

English - 5

★	This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
☐	Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
☐	Appliances are not intended to be operated by means of an external timer or separate remote-control system.

This product is a Group 2 Class A ISM equipment. The definition of group 2 which contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. For Class

A equipment is equipment suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Place the oven on a flat level surface 85 cm above the floor. The surface should be strong enough to safety bear the weight of the oven.

1. When you install your oven,
   make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the side oven and 20 cm (8 inches) of sp
2. Remove all packing materials inside the oven.
3. Install the roller ring and turntable. Check that the turntable rotates freely. (Turntable type model only)
4. This microwave oven has to be positioned so that plug is accessible.
   If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in

order to avoid a hazard.

For your personal safety, plug the cable into a proper AC earthed socket.

Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces

• Door and door seals

- Turntable and Roller rings (Turntable type model only)

- Inside and outside surfaces - Door and door seals - Turntable and Roller rings (Turntable type model only)

ALWAYS ensure that the door seals are clean and the door closes properly.

- Failure to maintain the oven in a clean condition could lead to deterioration of the

- ALWAYS ensure that the door seals are clean and the door closes properly. - Failure to maintain the oven in a clean condition could lead to deterioration of the

surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

1. Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and dry.
2. Remove any splashes or stains on the inside surfaces of oven with a soapy cloth. Rinse and dry.
3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice in the oven and heat for ten minutes at maximum power.

4. Wash the dishwasher-safe plate whenever necessary.
   DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles:

5. Accumulate

6. Prevent the door from closing correctly
   √ Clean the microwave oven cavity right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury.

When cleaning the upper part inside the cavity, it will be convenient to turn heater downward by 45^ and clean it. (Swing heater model only)

STORING AND REPAIRING YOUR MICROWAVE OVEN

A few simple precautions should be taken when storing or having your microwave oven serviced.

The oven must not be used if the door or door seals are damaged:

• Broken hinge
  • Deteriorated seals
  • Distorted or bent oven casing

Only a qualified microwave service technician should perform repair

- NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplug it from the wall socket
• Contact the nearest after-sales service centre

If you wish to store your oven away temporarily, choose a dry, dustfree place. Reason: Dust and damp may adversely affect the working parts in the oven.
The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Buffalo customer Care centre to arrange for a qualified engineer to replace the bulb.

WARNING
	Only qualified staff should be allowed to modify or repair the appliance.	√	√	√	√
	Do not heat liquids and other food in sealed containers for microwave function.	√	√	√	√
	For your safety, do not use high-pressure water cleaners or steam jet cleaners.	√	√	√	√
	Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground.	√	√	√	√

English - 8

	This appliance must be properly grounded in accordance with local and national codes.	√	√	√	√
	Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.	√	√	√	√
	Do not pull or excessively bond or place heavy objecton the power cord.	√	√	√	√
	In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug.	√	√	√	√
	Do not touch the power plug with wet hands.	√	√	√	√
	Do not turn the appliance off by unplugging the power plug while an operation is in progress.	√	√	√	√
	Do not insert fingers or foreign substances, if any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.	√	√	√	√
	Do not apply excessive pressure or impact to the appliance.	√	√	√	√
	Do not place the oven over a fragile object such as a sink or glass object.	√	√
	Do not use benzone, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance.	√	√	√	√
	Ensure that the power voltage, frequency and current are the same as those of the product specifications.	√	√		√
	Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer.	√	√	√
	Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven.	√	√	√

	Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre.	√	√	√	√
	Do not pour or directly spray water onto the oven.	√	√
	Do not place objects on the oven, inside or on the door of the oven.	√	√	√
	Do not spray volatile material such as insecticide onto the surface of the oven.	√	√
	Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vapours may contact a hot part of the oven.	√		√	√
	Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.	√	√	√	√
	WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Str curing heating, if necessary, and ALWAYS stir after heating. In the event of scalding, follow these FIRST AID instructions:Immerse the scalded area in cold water for at least 10 minutes.Cover with a clean, dry dressing.Do not apply any creams, oils or lotions.	√	√	√	√
	Do not put the tray or rack in water shortly after cooking because it may cause breakage or damage of the tray or rack.				√

01 SAFETY INFORMATION

English - 9

LS63-1_XE-DL9-D201-01_08min 5 N1-46-27 20154:33

	Do not operate the microwave oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of the hot liquid.	√			√
CAUTION
	Only use utoonsils that are suitable for use in microwave ovens; DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skowers, forks, etc.Remove wire twist ties from paper or plastic bags.Reason: Electric arcing or sparking may occur and may damage the oven.	√		√	√
	Do not use your microwave oven to dry papers or clothes.	√		√	√
	Use shorter times for smaller amounts of food to prevent overheating and burning food.	√		√	√
	Do not immerse the power cable or power plug in water and keep the power cable away from heat.	√	√
	Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explocle, even after microwave heating has ended; Also do not heat airlight or vacuum-sealed bottles, jars, containers, nuts inshells, tomatoes etc.			√	√
	Do not cover the ventilation slots with cloth or paper. They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself off automatically, and will remain off until it could sufficiently.	√		√
	Always use oven mitts when removing a dish from the oven to avoid unintentional burns.			√
	Stir liquids hallway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.			√

	Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.			√
	Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally.	√			√
	Install the oven in compliance with the clearances stated in this manual. (See installing your microwave oven.)	√		√
	Take care when connecting other electrical appliances to sockets near the oven.	√	√	√

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.(MICROWAVE FUNCTION ONLY)

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

(a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock hoves.

(c) Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.

(c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the;

(1) door (dent)

(2) door hinges (broken or loose)

(3) door seals and sealing surfaces

(d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

English - 10

Buffalo will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this stipulation covers include:

(a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control Panel. (b) A Broken or missing Tray, Guide Roller, Coupler, or Wire Rack.

• Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center.
• This microwave oven is supposed for heating food. It is intended for domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.

CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of mineral resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

quick look-up guide

If you want to cook some food.

	1. Place the food in the oven.Select the power level by rotating theCOOKING POWERCONTROL knob.
	2. Select the cooking time by rotating theTIMER knob.

If you want to defrost some food.

	1. Tum the COOKING POWER CONTROL knob to DEFROST.
	2. Turn the TIMER knob to select the appropriate time.

If you want to adjust the cooking time.

1. Leave the food in the oven.Turn the TIMER knob to desired time.

oven features

OVEN

1 2 3 4 5 6 7 8 9

1. HANDLE
2. VENTILATION HOLES
3. OVEN LAMP
4. COOKING POWER CONTROL KNOB
5. DOOR LATCHIES
6. DOOR
7. CERAMIC PLATE
8. SAFETY INTERLOCK HOLES
9. TIMER KNOB

CONTROL PANEL

Diagram of a dial indicator with numbered labels and circular dial positions

1. COCKING POWER CONTROL KNOR
2. DEFROST
3. TIMER KNOB

English - 12

oven use

CHECKING THAT YOUR OVEN IS OPERATING CORRECTLY

The following simple procedure enables you to check that your oven is working correctly at all times.

First, place a bowl of water on the ceramic plate. Then, close the door.

	1. Set the power level to maximum by turning COOKING POWER CONTROL knob.(MAXIMUM POWER: 1050 W)
	2. Set the desired heating time by rotating the TIMER DIAL.

The oven must be pugged into an appropriate wall socket. If a power level other than the maximum is used, the water takes longer to boil.

COOKING/REHEATING

The following procedure explains how to cock or reheat food.

ALWAYS check your cooking settings before leaving the oven unattended.

First, place the food in the centre of the ceramic plate. Then, close the door.

	1. Set the power level to maximum by turning COOKING POWER CONTROL knob.(MAXIMUM POWER: 1050 W)
	2. Set the time by turning TIMER knob.Result: The oven light comes on.

Never switch the microwave oven on when it is empty.

You can change the power level during cooking by turning the COOKING POWER CONTROL knob.

POWER LEVELS

You can choose among the power levels below.

Power level Percentage Output
HIGH 100 % 1050 W
MEDIUM HIGH 70 % 735 W
MEDIUM 50 % 625 W
MEDIUM LOW 50 % 315 W
DEFROST 15 % 158 W

ADJUSTING THE COOKING TIME

Adjust the remaining cooking time by rotating the TIMER knot.

STOPPING THE COOKING

You can stop cooking at any time to check the food.

	1. To stop temporarily;Open the door.Result: Cooking stops. To resume packing, close the door.
	2. To stop completely;Turn the TIMER knee to "0".

MANUAL DEFROSTING FOOD

The Detroit feature enables you to delrost meat, poultry, fish. First, place the frozen food in the centre of the ceramic plate and close the door.

	1. Turn the COOKING POWER CONTROL knob to DEFROST.
	2. Turn the TIMER knob to select the appropriate time.Result: Defrostling begins.

Use only recipients that are microwave-safe.

coo-ware guide

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used.

Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

Cookware	Microwave-safe	Comments
Aluminum foil	√ ✗	Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used.
China and earthenware	√	Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless deco-rated with a metal trim.
Disposable polyester cardboard dishes	√	Some frozen foods are packaged in these dishes.
Fast-food packaging
Polystyrene cups containers	√	Can be used to warm food. Overheating may cause the polystyrene to molt.
Paper bags or newspaper	✗	May catch fire.
Recycled paper or metal trims	✗	May cause arcing.
Glassware
Oven-to-tabeware	√	Can be used, unless decorated with a metal trim.
Fine glassware	√	Can be used to warm foods or liquids.Dolicate glass may break or crack if heated suddenly.
Glass jars	√	Must remove the lid. Suitsole for warming only.
MetalDishesFreezer bag twist tics	✗✗	May cause arcing or fire.
PaperPlates, cups, napkins and Kitchen paperRecycled paper	√✗	For short cooking times and warming. Also to absorb excess moisture.May cause arcing.
PlasticContainers	√	Particularly if heat-resistant thermoplastic.Some other plastics may warp or discolour at high temperatures. Do not use Molamine plastic.Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.Only if bolable or oven-proof. Should not be alright. Pick with a fork, if necessary.
Cling filmFreezer bags
Wax or grease-proof paper	√	Can be used to retain moisture and prevent spattering.

English - 14

√ : Recommended

√X

: Use caution

x : Unsafe

cooking guide

Food Serving	Size Power Time	(min.)
Plated Meal (Chilled)	350 g MEDIUM	612 -7
	InstructionsPlate a meal of 2-3 chilled components on a ceramic dish.Renoat covered. Stand for 3 minutes.
Chicken Curry & Rice (Chilled)	300 g MEDIUM	412 - 512
	InstructionsPlata a meal of 2 chilled components on a ceramic dish (e.g. rice and curry). Reheat covered. Stand for 3 minutes.
Pasta with Sauce (Chilled)	350 g HIGH	412
	InstructionsPut pasta (e.g. spaghetti or egg noodles) into a deep ceramic plate. Reheat covered. Stir during reheating. Stand for 3 minutes.
Filled Pasta in Sauce (Chilled)	350 g MEDIUM	412 - 512
	InstructionsPut filled pasta (e.g. raviol, tortellin); in a deep ceramic plate.Reheat covered. Stir occasionally during reheating. Stand for 3 minutes.
Lasagne (Chilled)	400 g HIGH	412 - 512
	InstructionsPut the chilled lasagne (pro-cooked product) widthways in the centre of table. Roheat covered. Stand for 3 minutes.
Bechamel Potatoes (Chilled)	400 g MEDIUM	512 - 612
	InstructionsPut bechamel potatoes (pr-cooked product) widthways in the centre of table. Roheat covered. Stand for 3 minutes.
Baked Potatoes (Ready Cooked and Chilled)	500 g (2 x 250) HIGH	5-6
	InstructionsPierce film and put potatoes on a fat ceramic plate. Stand for 2-3 minutes.

04 COOKWARE GUIDE & COOKING GUIDE

[NO TEXT]

English - 15

The image contains a graphical symbol (a target or crosshair) and no textual content. Therefore, the correct OCR output is an empty string.

Reheating Soup and Stew
Use the power levels and times in this table as a guide lines for reheating.

Food Serving Size Power Time (min.)
Soup (Chilled)	250 g HIGH 3-3%
	InstructionsPour into a deep ceramic plate, Reheat covered.Stir during reheating. Stand for 2-3 minutes.
Stew (Chilled)	250 g500 g	MEDIUM 4-41⁄2	51⁄2-6
	InstructionsPour into a deep ceramic plate or bowl, Reheat covered.Stir during reheating. Stand for 2-3 minutes.
Bean Stew(Canned)	350 g MEDIUM 31⁄2-4
	InstructionsPour into a deep ceramic plate or bowl, Reheat covered.Stir during reheating. Stand for 2-3 minutes.
Soup (Frozen)	1000 g HIGH 20-22
	InstructionsPour into a glass pyrex dish with lid, Reheat covered.Stir during reheating. Stand for 2-3 minutes.

Cooking Breakfast

Use the power levels and times in this table as a guide lines for cooking.

Food Serving Size Power Time (min.)
Bacon (Chilled)	2 slices (20 g) HIGH ca. 1%
	InstructionsPut bacon slices on kitchen paper on a fat ceramic plate.Stand for 1 minutes.
Scrambled Eggs	2 eggs MEDIUM LOW ca. 2%
	InstructionsBeat eggs, add salt and 2 toso. milk. Put in a deep ceramic plate. Stir several times during cooking. Stand for 1 minutes.
Baked Beans(Canned)	250 g MEDIUM 2% -3%
	InstructionsPut the beans in a deep ceramic plate. Reheat covered. Stir during rehearing. Stand for 1-2 minutes.

Reheating Snacks
Use the power levels and times in this table as a guide lines for reheating.

Food Serving Size Power Time (min.)
Cheesebur Ger(Chilled)	150 g (1 pc) HIGH 1-1 12
	InstructionsPut burger on kitchen paper on a ceramic plate. Stand for 2-3 minutes.
Cheesebur Ger(Frozen)	150 g (1 pc) MEDIUM LOW 3-3 12
	InstructionsPut burger on kitchen paper on a ceramic plate. Stand for 2-3 minutes.
Hot Dog (Chilled)	125 g (1 pc)	MEDIUM	1 12
	InstructionsPut hot dog on kitchen paper on a ceramic plate. Stand for 2-3 minutes.
Pizza Slice(Chilled)	100 g MEDIUM LOW 1 12 -2
	InstructionsPut the pizza slice on a kitchen paper on ceramic plate. Stand for 1-2 minutes.
Meat &Vegetable Wrap(Chilled)	200 g MEDIUM 2-2 12
	InstructionsPut the chilled wrap filled pastry roll on kitchen paper on a ceramic plate. Stand for 1-2 minutos.
Quiche/Pie(Chilled)	150 g MEDIUM 2-2 12
	InstructionsPut quiche on kitchen paper on a ceramic plate. Stand for 2-3 minutes.
Croissants	60 g (2 pcs)	MEDIUM	12 -1
	InstructionsPut the croissants on kitchen paper on a ceramic plate. Serve croissants directly after warming.

English - 16

Defrosting and Cooking Desserts
Use the power levels and times in this table as a guide lines for cooking.

Food Serving Size Power Time (min.)
Berries in Sauce	250 g MEDIUM 6-61⁄2
	InstructionsPut frozen fruits in a glass pyrex bowl with lid. Reheat covered.Stir once during standing time. Stand for 2-3 minutes.
Yeast Dumplingswith Jam Filling	300 g (2 pcs) MEDIUM 41⁄2-5
	InstructionsPut frozen yeast dumplings (pre-cooked) side by side in a glass pyrex bowl with lid. Most the top of them with cold water. Cook covered. Stand for 2-3 minutes.

Defrosting Bread and Cake

Use the power levels and times in this table as a guide lines for cooking.

Food Serving Size Power Time (min.)
Baguettes	150 g (1 pc) DEFROST ca. 1⁄2
	InstructionsPut the baguette widthways on kitchen paper in the oven. Stand for 3-5 minutes.
Bread Rolls	50 g (4 pcs) DEFROST ca. 3
	InstructionsPut the rolls side by side on kitchen paper in the oven. Stand for 3-5 minutes.
Fruit Cake	120 g (1 pc) DEFROST 3-31⁄2
	InstructionsPut the piece of cake on a ceramic plate. Stand for 5-10 minutes.
Cream Cake Roll	100 g (1 pc) DEFROST ca. 1
	InstructionsPut the piece of cake on a ceramic plate. Place plate in the centre of table. Let stand until cream is totally defrosted. Stand for 10-20 minutes.

troubleshooting

TROUBLESHOOTING

If you have any of the problems listed below try the solutions given.

This is normal.

• Condensation inside the oven.

• Air flow around the door and outer casing.

• Light reflection around the door and outer casing.

• Steam escaping from around the door or vents.

The oven does not start when you press the START/+30s button.

• Is the door completely closed?

The food is not cooked at all.

- Have you set the timer correctly and/or pressed the START/+30s button?

• Is the door closed?

- Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be triggered?

The food is either overcooked or undercooked.

• Was the appropriate cooking length set for the type of food?

• Was an appropriate power level chosen?

The light bulb is not working.

- The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Buffalo customer care, to arrange for a qualified engineer to replace the bulb.

The oven causes interference with radios or televisions.

• Slight interference may be observed on televisions or radios when the oven is operating. This is normal. To solve this problem, install the oven away from televisions, radios and aerials.
• If interference is detected by the oven's microprocessor, the display may be reset. To solve this problem, disconnect the power plug and reconnect it. Reset the time.

Sparking and cracking occur inside the oven (arcing).

• Have you used a dish with metal trimmings?
• Have you left a fork or other metal utensil inside the oven?
• Is aluminum foil too close to the inside walls?

English - 17

Smoke and bad smell when initial operating.

- It's a temporary condition by new component heating. Smoke and smell will disappear completely after 10 minutes operation. To remove smell more quickly, please operate microwave oven with putting lemon formation or lemon juice in the cabinet.

technical specifications

Buffalo strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Model GK643
Power source	230 V ~ 50 Hz
Power consumption Microwave 1600 W, 7 A
Output power	230 V: 1050 W (IEC-705) (5 power levels including defrost)
Operating frequency 2450 MHz
Cooling method Cooling fan motor
Dimensions (W x H x D)
Outside	517 x 297 x 412 mm
Oven cavity	338 x 225 x 349 mm
Volume 26 liter
Weight
Net	17.5 kg
Gross	19.0 kg

English - 18

MEMO MEMO 06 TECHNICAL SPECIFICATIONS 15467-2314-0197-CDU-100_3N116 11:30-09:27 2015/16

If you have any problems with your machine please contact Buffalo Support Center

QUESTIONS OR COMMENTS

COUNTRY CALL ADDRESS
The United Kingdom 0845 146 2887	Buffalo. Fourth Way, Avonmouth, Bristol, BS11 8TB, The United Kingdom.
Nederland 040 262 8080	-
Germany 0800 186 0806
Belgium 050 600006
France 0820 300116
Spain 901 100133

DE68-04281B-01
