USER MANUAL TBT2002S Tomado

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• Attention! Avoid touching hot surfaces.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
• Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.
• If the mains connection cable is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Never unplug it from the socket by pulling on the cable.
• Always ensure that your hands are dry before handling the plug, switch or power cord.
• You should not place too large food in the appliance, aluminium packed foods or utensils as this may cause electric shock.
• Do not try to remove a piece of bread which is caught into the toasting slots while the appliance is on.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

TOMADO

• This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised. This can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Cleaning and maintenance shall not be made by children.
  Children must not play with the appliance.
• Unplug the appliance as soon as you have finished using it and when you are cleaning it.
• Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved service centre.
• Never immerse any part of the main body, power cord and plug in water or any other liquid to protect against electrical hazards.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas, in shops, offices and other working environments;

• by clients in hotels, motels and other residential type environments;

• Bed and Breakfast type environments
  -farm houses.

• If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user.

Any damages to the product or other things are not covered by the warranty.

• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.

TOMADO

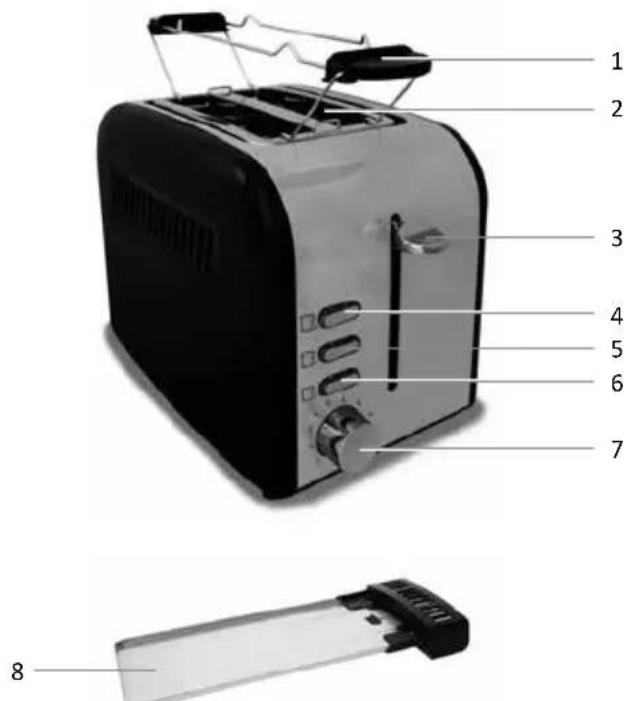

APPLIANCE DESCRIPTION

1. Warming rack
2. Bread slots
3. Bread carriage
4. DEFROST button with indicator lamp
5. WARM button with indicator lamp
6. STOP button
7. Toasting level knob
8. Removable crumb tray

BEFORE THE FIRST USE

Before you use the appliance for the first time, please do as follows: Unpack the appliance carefully and remove all the packaging material and any promotional stickers. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any visible damage, that could be caused by transportation.

Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed at the bottom of the appliance. Place the appliance on a stable and heat resistant surface.

Wipe the housing of the appliance only with a damp cloth. Note: the new appliance can give off a bit of smoke and the typically 'new' smell. It is therefore advisable to switch the appliance on several times at the highest setting without bread inside.

Use the toaster only for toasting bread. Do not prepare sandwiches in the toaster. If you do, cheese and fat can come onto the heating elements which can shorten the lifetime of the appliance.

TOASTING BREAD

The toaster is suited to toast two slices of bread at once. The bread slots are wide enough to toast halved hamburger buns. Toast one half bun per slot. Use the separate warming rack to warm larger buns above the toaster. Put the plug into the socket.

• Adjust the browning control with the control knob.
• Place one or two slices of bread into the toasting slot.
• Push the bread lift lever straight down to lower the slices. The indicator light in the CANCEL button lights up.
• Once the toasting cycle has finished, the appliance will automatically switch off and the lever will return to it's original position, lifting the toasted slices.
  Always use the STOP button if you wish to stop toasting the bread earlier, not the bread carriage lever.

The browning level is adjustable; position 1 is light and position 6 is dark.

TOMADO

The toaster can automatically compensate the heat. This means that when you directly toast another slice of bread, the toaster calculates the temperature of the device and adjusts the toasting time. This will ensure that your second slice of bread has the same browning as the first one.

With the DEFROST function you can defrost and toast bread at the same time.

• Adjust the browning control with the control knob.
• Place the frozen bread in the toasting slot and push the lever down.
• Press the DEFROST button. The indicator lights in the buttons DEFROST and CANCEL will light up.
• The bread will be defrosted and then toasted.

If you would like to reheat the bread, after it has been toasted, press the REHEAT button.

• Place the bread in the toasting slot and push the lever down.
• Press the REHEAT button. The indicator lights in the REHEAT and CANCEL button will light up.
• The bread will be reheated. It is not necessary to set the browning control.

You can stop any process, toasting, reheating and defrosting, by pressing the CANCEL button.

The appliance will automatically switch off and the lever will return to it's original position, lifting the toasted slices.

The toasting time depends on the dampness of the bread and the thickness of the slice. If you only place one slice into the toaster, it is possible that with the same setting the slice will brown more. Select a lower setting of the browning level.

If for whatever reason, a piece of bread is caught into the toasting slots, do not try to remove it immediately. Use the hi-lift function to lift the piece of bread higher to remove it easier. If this does not work, unplug the toaster and leave it to cool down first. Than try to remove the piece carefully without touching the heatingelements.

Place the separate warming rack on the toaster to warm larger buns.

• Place the bread to be warmed on the warming rack and push down the bread carriage lever.
• Press the WARM button. The indicator lamps in the WARM and STOP buttons will light.
• The bread will be warmed. The position of the toasting level knob has no effect.
• Interrupt warming by pressing the STOP button.

CLEANING & MAINTENANCE

Always unplug the appliance before cleaning. Wipe the outside of the housing with a damp cloth and dry.

Never use any abrasives! Never immerse the appliance into water or other liquids.

Remove the crumbtray at the bottom of the toaster for easy cleaning of the inside. Pull the crumbtray carefully at the handle from the side of the toaster. Remove the crumbs and clean the crumbtray with a damp cloth. Slide the crumbtray back into the toaster after cleaning. Check the correct placement of the crumbtray before re-use.

RECYCLING

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU).

Observe the applicable rules in your country for the separate collection of electric and electronic products.

By disposing of the product correctly, you prevent negative consequences for the environment and for public health.

The packaging material of this product can be recycled 100% , return packaging material separately.

TOMADO

Go to www.tomado.com/support to purchase accessories or spare parts.

WARRANTY CONDITIONS

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.tomado.com/support
