Product type	Washing machine
Brand	Tomado
Model	TWM9001W
Wash capacity	9.0 kg

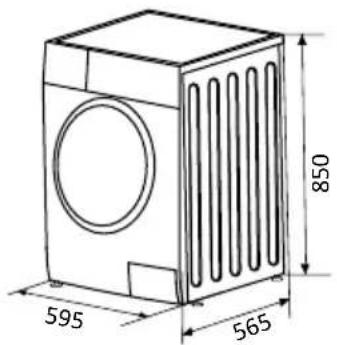

Dimensions (W × D × H)	595 × 565 × 850 mm
Net weight	71 kg
Power supply	220-240 V~, 50 Hz, 2000 W, 10 A
Water pressure	0.05 - 1.0 MPa (0.5-10 bar)
Maximum spin speed	1400 rpm
Energy efficiency class	B
Energy consumption (ECO 40-60 program)	0.570 kWh/cycle
Water consumption (ECO 40-60 program)	49 L/cycle
Spin noise	76 dB(A) - Class B
Wash programs	Cotton, Synthetic, Mix, Delicate, Sports, Allergy, Jeans, Delicate wash, 15 min quick, Intensive, ECO 40-60, Wool, Bed linen, Spin & Drain, Rinse & Spin
Additional functions	Prewash, Extra rinse, Extra wash, Hygiene Pro, Delay start, Child lock, Add laundry
Safety	Overflow protection, child lock, child safety
Regular maintenance	Cleaning pump filter, inlet filter, detergent drawer, door seal
Spare parts	Available for at least 10 years
Warranty	24 months

Frequently Asked Questions - TWM9001W Tomado

How to install the Tomado TWM9001W washing machine correctly?

Place the appliance on a solid, level and stable floor. Remove the 4 transport bolts at the back. Connect the cold water inlet hose and the drain hose. Wait 2 hours before plugging in the power supply so that the appliance reaches room temperature. Adjust the adjustable feet for leveling.

What to do before first use?

Perform a calibration: remove everything from the drum, close the door, plug in the appliance, select any program, then press simultaneously TEMP and DELAY START for 3 seconds until [t19] is displayed. Press ▶ II to start calibration. Then run a Cotton 90 °C program without laundry or detergent to clean the interior.

How to open the door in case of power failure?

If the appliance contains water, drain it first via the pump filter. Open the filter cover at the bottom, turn the emergency drain hose and remove the cap to drain the water. Then pull simultaneously on the special lever next to the filter and the door handle to open it manually.

What does the error code E10 on the display mean?

Code E10 indicates a water injection problem during the cycle. Check that the water tap is open, the supply hose is not kinked and the inlet filter is not blocked. If the problem persists, contact customer service.

How to activate the child lock?

Press simultaneously the DELAY START and FUNCTION buttons for 3 seconds until a beep sounds. The child lock indicator lights up and the display alternates between [CL] and the remaining time. To deactivate, repeat the same procedure.

How to clean the drain pump filter?

Unplug the appliance. Open the filter cap at the bottom right. Turn the emergency drain hose 90°, remove the cap and let the water drain. Then unscrew the filter by turning counterclockwise, clean it under running water, and replace it by turning clockwise. Close the cap.

Can laundry be added during a cycle?

Yes, press the START/PAUSE button for 3 seconds. Wait for the drum to stop. The door unlocks if the water level and temperature are low enough. Add or remove laundry, close the door and press START/PAUSE again to resume the cycle.

How to use the delay start function?

Select a program, then press the DELAY START button to set the delay (0 to 24 hours). Then press START/PAUSE to start the countdown. The cycle will start automatically at the end of the delay. Preferably use powder detergent.

What is the energy consumption of the ECO 40-60 program?

For the ECO 40-60 program with a 2 kg load, the energy consumption is 0.570 kWh per cycle and the water consumption is 49 litres. This program is used to assess compliance with Regulation (EU) 2019/2023.

How to transport the machine after installation?

Unplug the appliance, close the water tap and drain all water. Reinstall the 4 transport bolts at the back. Make sure the door and drawer are closed. Transport the appliance carefully, without using the door as a handle. The appliance weighs 71 kg.

USER MANUAL TWM9001W Tomado

Front view of a white disposable water washing machine with a circular vent and digital display (no visible text or symbols)

INSTALLATIELOCATIE EN OMGEVING

WATERTOEVOER EN -AFVOER

Technical diagram of a washing machine with numbered parts labeled for identification.

7

Simple line drawing of a rectangular box with internal circles and intersecting diagonal lines (no text or symbols)

HET APPARAAT UIT DE VERPAKKING HALEN

WAARSCHUWING!

Diagram showing a box being inserted into a device with an inset magnified view labeled 'A'

Close-up of a wrench and circular dial with an arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical component with an arrow pointing to a knob (no visible text or symbols)

Close-up of a dark circular object with an arrow pointing to it, against a light background (no text or symbols)

HET APPARAAT WATERPAS ZETTEN

WAARSCHUWING!

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols visible)

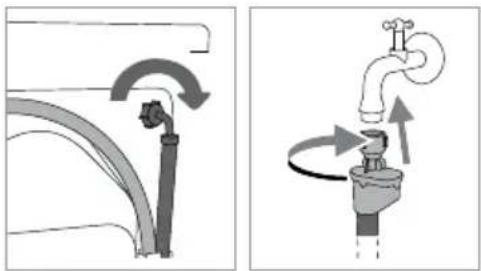

DE WATERTOEVOERSLANG AANSLUITEN

WAARSCHUWING!

Two-step diagram showing a pipe valve being inserted into a drain, with arrows indicating flow direction (no text or symbols)

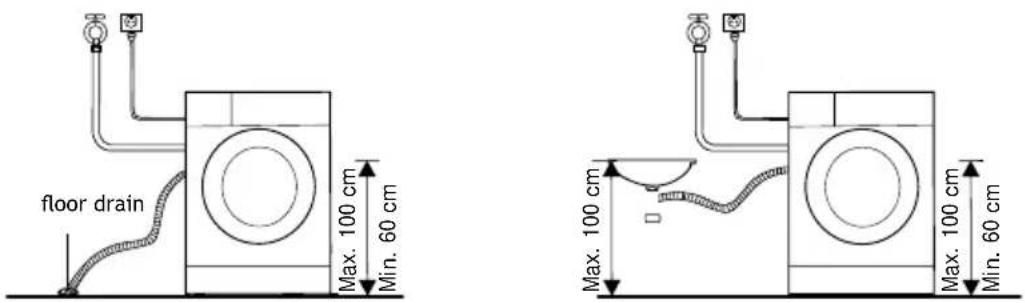

DE WATERAFVOERSLANG AANSLUITEN

WAARSCHUWING!

Diagram showing a mechanical assembly or folding process with two views of a container (no text or symbols present)

Illustration of a garment pattern with cutouts and accessories (no text or symbols)

Two handbags with circular designs, one wrapped in a ribbon and the other with a circular arrow (no text or symbols)

Simple line drawing of a bag with a grid pattern and a small object inside (no text or symbols)

Line drawing of a knitted sweater with two arms and textured back (no text or symbols)

Line drawing of a faucet with a handle and valve (no text or symbols)

Simple line drawing of a mechanical component with a central circular feature and an open ring (no text or symbols)

wasmachine inladen

Hand holding a coiled rope with an arrow indicating rotation (no text or symbols)

Hand pointing at a button with a play symbol (no text or numbers present)

Technical line drawing of a mechanical component with no visible text or symbols

PAS OP!

Line drawing of a hand washing a washing machine (no text or symbols)

DE TROMMEL REINIGEN

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

HET INLAATFILTER REINIGEN

LET OP!

Diagram of a faucet with rotating arrows indicating motion (no text or symbols)

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

TOMADO®

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Simple line drawing of a washing machine with a dial and handle (no text or symbols)

Simple line drawing of a washing machine with a bucket and a side panel (no text or symbols)

Simple line drawing of a washing machine with a dial and a hand inserting into a socket (no text or symbols)

Mechanical assembly diagram showing a bolt inserted into a housing plate with directional arrows indicating motion (no text or symbols)

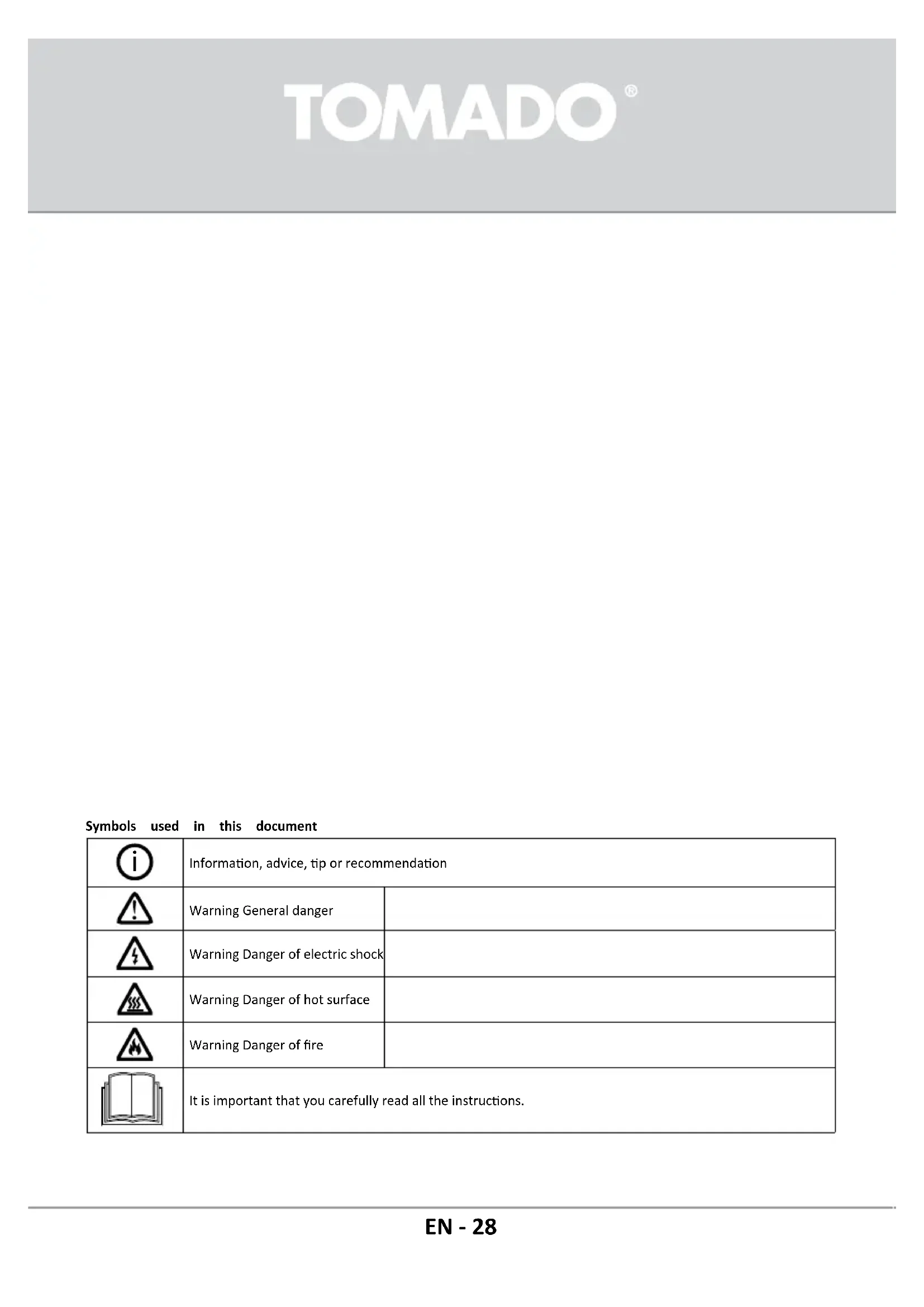

Symbols used in this document

	Information, advice, tip or recommendation
	Warning General danger
	Warning Danger of electric shock
	Warning Danger of hot surface
	Warning Danger of fire
	It is important that you carefully read all the instructions.

SAFETY INSTRUCTIONS - EN

Please read these instructions before operating the appliance and retain for future use.

Please, do not use the washing machine without r the instructions for use first.

• Check for any damage to the packaging or the appliance during transportation. Never use a damaged appliance, but contact your supplier.
• Failure to observe the instructions for use or inappropriate use of the appliance may result in damage to the laundry or the appliance, or injury to the user. Keep the instruction manual handy, near the appliance.

• Keep the appliance clear from heat sources and direct sunlight to avoid plastic and rubber parts to corrode.
• Do not install the appliance in a room where the temperature can drop below 5°C, as the parts of the appliance may be damaged in case of water freezing.

Do not install the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.

- Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Place the appliance on a level and stable solid (concrete) base.
• Adjust the appliances adjustable feet to ensure the appliance is standing level and balanced.
• Before the first use of the appliance, remove the transport bolts, as switching on a blocked appliance can result in serious damage. The manufacturer will not be responsible for any damage in cases of such damage.
• Before connecting the appliance to the power mains, wait for at least 2 hours until it reaches room temperature.
• The door cannot be opened during washing machine operation.

TOMADO®

• Before washing clothes for the first time, the appliance shall be operated once with a full programme without any clothes inside.
• After the washing cycle, close the water tap and pull out the plug from the power socket. Never pull the cord itself.
• Dispose the packing materials according to local regulations. Keep the material out of reach of children. Danger of suffocation.
• Before using the appliance, it must be calibrated. Follow the instructions in this manual.

ELECTRICAL INSTALLATION

• Connect the appliance to a grounded power socket protected by a fuse complying with the values on the rating plate.
• Pay special attention and be sure that the appliance is not placed on the power cord.

To avoid danger, a damaged power cord may only be replaced by the manufacturer, its service agent or similarly qualified persons.

If the appliance is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.

- The appliance may not be connected to the power mains using an extension cord.

Do not connect the appliance to the power mains using an external switch device such as a programme timer, or connect it to power mains that is regularly switched on and off by the power supply provider.

- Do not connect the appliance to an electrical outlet intended for an electric shaver or hair dryer.

- The mains plug must be accessible after installation.

⚠️ Never use an extension cord or a multiple plugs for making a connection.

Do not pull the plug out of the power socket if there is flammable gas around.

⚠️ Never pull out the plug with wet hands.

Always unplug the appliance when it is not being used and close the watertap.

TOMADO®

• Connection to water and power supply has to be executed by an adequately trained technician or expert.
• Any repair and maintenance pertaining to safety or performance should be done by trained experts.
• In case of a defect, only use approved spare parts by authorized manufacturers.
• In case of incorrect appliance connection, incorrect use, or servicing by an unauthorized person, Tomado will not be responsible for any damage as such damage will not be covered by warranty.

WATER INSTALLATION

• The appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• To connect the appliance to the water supply, make sure to use the supplied water supply hose and gaskets.
  The water pressure has to be between 0.05 and 1.0 MPa (0.5 - 10 bar).
• Always use the supplied new water supply hose to connect the appliance to the water supply; do not reuse an old water supply hose.
• The end of the water discharge hose should reach into a water drain line.
• Check the connections of the water supply hose, the water tap and the water discharge hose for possible problems due to changes of water pressure. If the connections loosen or leak, close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by authorized persons.

At higher washing temperatures, the door glass will heat up. Be careful to avoid burns. Keep children and animals far away from the machine while it is operating.

Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

TOMADO®

WATER OVERFLOW PROTECTION

- If the water level in the appliance rises above normal level, then the excess water level protection will be activated. It will shut off the water supply and start pumping out the water. The program is interrupted and an error is reported.

CHILD SAFETY

• Before closing the appliance door and running the programme, make sure there is nothing except laundry in the drum (e.g. if a child or animal climbed into the appliance drum).
• Keep the detergents and softeners out of reach of children.
• Do not let children aged 3 years and under come near the appliance, unless they are under constant supervision.
• This appliance may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards of inappropriate use. Children are not allowed to play with the appliance.
• The appliance may not be cleaned or maintained by children, unless this is done under supervision.
• Children should be supervised that they do not play with the appliance.
• Do not climb or sit on the appliance.
• The appliance is made in compliance with all relevant safety standards.

Do not use detergents that contain solvents as this could lead to lease of poisonous gases, damage to the appliance, and risk of re and explosion.

• Only use the appliance for washing laundry as described in the instruction manual. The machine is not intended for dry cleaning.
• Only use agents for machine washing and care of laundry. Tomado will not be responsible for any damages or discolouration of gaskets and plastic parts resulting from incorrect use of

TOMADO®

bleaching or colouring agents.

• In case of a defect, only use approved spare parts by authorized manufacturers.
• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.
• Remove all objects from pockets such as lighters and matches before use the appliance.
• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.
• In case of incorrect appliance connection, incorrect use, or servicing by an unauthorized person, the user shall bear the cost of any damage as such damage shall not be covered by warranty.
• When cleaning the appliance, only use non-corrosive descaling agents. Follow the manufacturer's instructions of the cleaning agent. Finish the descaling process with several rinse cycles in order to remove any residual acid (e.g. vinegar etc.).
• The warranty does not cover consumables, minor deviations in colour, increased noise that results from appliance age and which does not affect the functionality of the appliance, and aesthetic defects on components, which do not affect the functionality and safety of the appliance.

TRANSPORT/TRANSPORT AFTER INSTALLATION

• If you intend to move the appliance after it has been installed, then it should be blocked by inserting at least one transport bolt. Before inserting the transport bolt, disconnect the appliance from the power mains.
• Accumulated water must be drained out of the appliance.
• The appliance is heavy. Transport with care. Never hold any protruding part of the appliance when lifting. The door of the appliance cannot be used as a handle.

TOMADO®

INTENDED USE

• The appliance is intended solely for household use. If the appliance is used for professional, for-profit purpose or purpose exceeding normal use in a household, or if the appliance is used by a person who is not a consumer, the warranty period shall be equal to the shortest warranty period required by relevant legislation.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices or residential type environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed & breakfast type environments;
• areas for communal use in blocks of flats or in launderettes.

- The appliance is not intended for use by persons (including children) with physical or mental impairments, or persons with lacking experience and knowledge. These persons should be instructed about the use of the appliance by a person responsible for their safety.

OLD APPLIANCE

- Remove the door or deactivate the lock when disposing of the appliance. Children are known to have gotten themselves locked in old appliances. To forestall such a situation, break your appliance's door lock and tear off the electrical cables.

This marking indicates that this product should not be disposed with other household wastes throughout the EU.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

TOMADO®

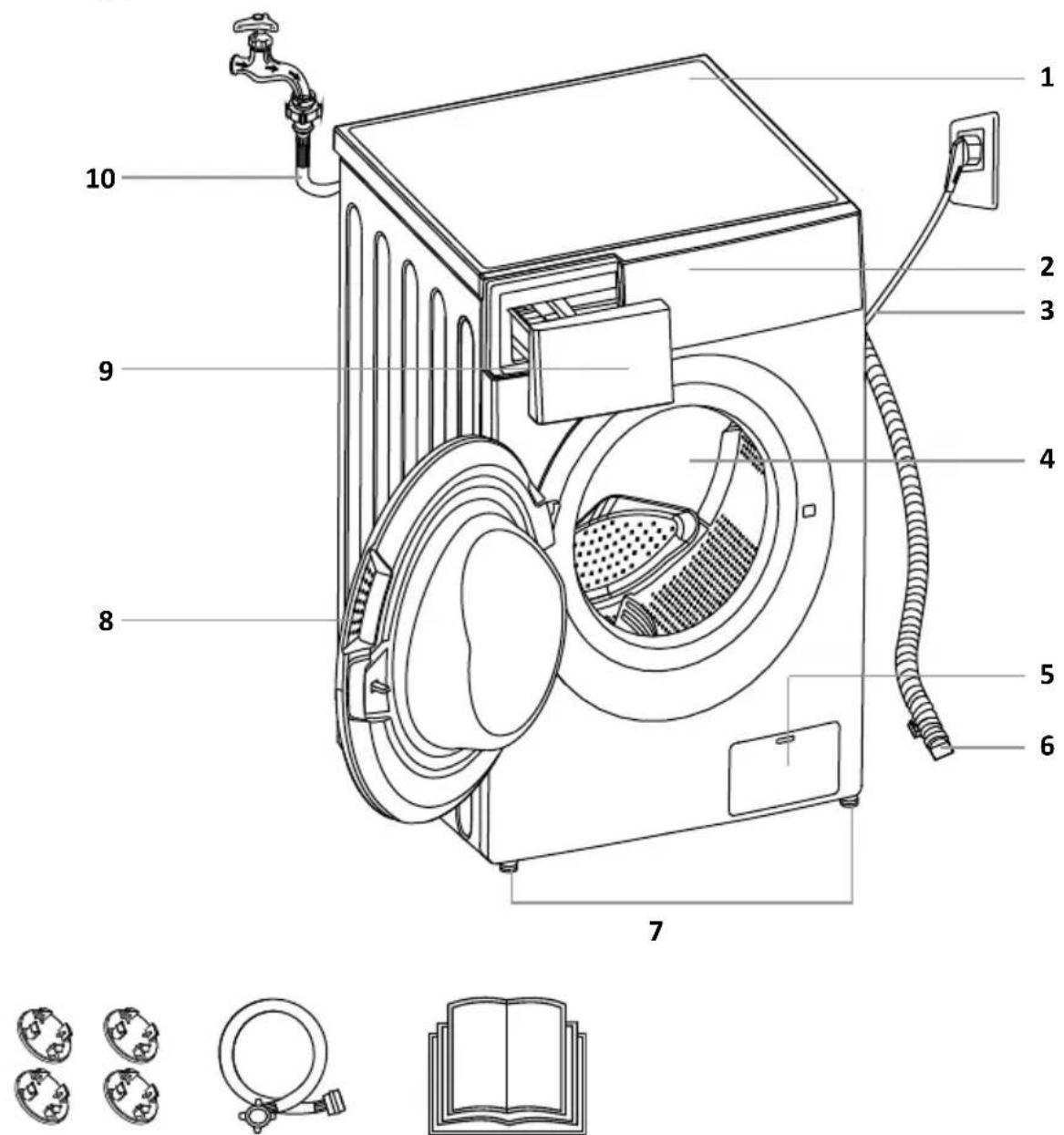

PRODUCT DESCRIPTION

1. Top cover
2. Control panel
3. Power supply cord
4. Drum
5. Pump filter
6. Water discharge hose
7. Adjustable feet
8. Door
9. Dispenser tray
10. Water supply hose

Technical diagram of a washing machine with numbered parts and corresponding illustrations below

4 x cover caps 1 x user manual1 x supply hose for cold water

TOMADO®

INSTALLATION AND CONNECTION

REQUIRED SPACE FOR INSTALLING

WARNING!

• Stability is important to prevent the product from sliding across the installation site!
  Make sure to level the appliance and install it on a stable base in longitudinal and traverse direction by rotating the adjustable feet.
• Make sure the appliance doesn't stand onto the power cord.
• Make sure to observe the minimum required clearances from the walls as indicated in the figure.

The room in which the appliance is placed must meet the following requirements:

1. Dry, level and stable solide base
2. Avoid direct sunlight
3. Sufficient ventilation
4. Room temperature is above 0^ C
5. Keep far away from heat sources such as coal, gas or wood burning appliances.

W ≥ 20 mm

Simple line drawing of a rectangular box with internal circles and intersecting diagonal lines (no text or symbols)

UNPACKING THE APPLIANCE

WARNING!

• Move the appliance with at least two people and wear protective clothing, such as sturdy gloves.
• Packaging material (e.g. films, styrofoam) can be dangerous for children.

• There is a risk of suffocation! Keep all packaging away from children.

• Remove the cardboard box and the styrofoam packing.

• Lift the washing machine and remove the base packaging. Make sure the small triangle foam [A] is removed with the bottom packaging together. If not, lay the appliance down on one side and carefully remove it manually.
• Remove the tape securing the power supply cord and water discharge hose.
• Take the water supply hose out of the drum.

Diagram showing a box being inserted into a device with an inset magnified view labeled 'A'

REMOVING THE TRANSPORT BOLTS

WARNING!

Before the first use of the appliance, the transport bolts must be removed from the back of the appliance. A blocked appliance may be damaged when it is switched on for the first time. The warranty does not apply in cases of such damage!

Close-up of a wrench and circular dial on a white surface, no visible text or symbols

Loosen the 4 transport bolts with a spanner.

Close-up of a mechanical component with a metallic knob and a curved arrow pointing to a small circular feature (no text or symbols visible)

Remove the bolts including the rubber parts and keep them for future use

Close-up of a car's nose cone with a gray arrow pointing to it, no visible text or symbols

Close the holes using the cover caps

TOMADO®

LEVELLING THE APPLIANCE

WARNING!

- The lock nuts on all four feet must be screwed tightly against the housing to ensure the appliance stands steady on its feet.

Use a level and a spanner to level the appliance.

1. Loosen the lock nut with a spanner.
2. Turn the foot until it reaches the floor.
3. Level the appliance in longitudinal and traverse direction by rotating the adjustable feet.
4. After adjusting the feet, firmly tighten the lock nuts with a spanner against the housing.

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols visible)

CONNECTING THE WATER SUPPLY HOSE

WARNING!

To prevent leakage or water damage, follow the instructions in this chapter.

- Make sure not to kink, crush or modify the water supply hose.

Tighten the water supply hose by hand, firmly enough for the hose to have od seal. After connecting the hose, the seal must be checked for any leaks.

Do not use pliers or similar tools when connecting the water supply hose as this could damage the nut thread.

1. Connect the water supply hose to the water inlet valve on the back of the appliance.
2. Connect the other end of the water supply hose with the aqua stop to a water tap with cold water.

Two-step diagram showing a valve mechanism: one with curved arrows indicating flow, the other with directional arrows and a tap (no text or symbols)

CONNECTING THE WATER DISCHARGE HOSE

WARNING!

• Make sure not to kink or protract the water discharge hose.
• Connect the water discharge hose properly, otherwise it could result in damage of water leakage.

Feed the water discharge hose into a drain pipe, wash basin or floor drain. Be careful not to feed the water discharge hose to deep in the drain. Otherwise the waste water can not flow freely. The vertical distance from the floor to the end of the discharge hose may no more be than 100 cm and no less than 60 cm.

1. Put the water discharge hose in a floor drain. 2. Connect the water discharge hose to a drain pipe.

CONNECTING THE APPLIANCE TO THE POWER MAINS

WARNING!

• Before connecting the appliance to the power mains, wait for at least 2 hours until it reaches room temperature.
• Connect the appliance to a grounded power outlet. After installation, the wall outlet must be freely accessible. The outlet must be fitted with an earth contact (in compliance with the relevant regulations).
  • Information on your appliance is indicated on the rating plate.

WARNING!

- Using an over-voltage protection to protect the appliance in case of a lighting strike, is recommended.

WARNING!

- Do not connect the appliance to the power mains using an extension cord.

• Do not connect the appliance to an electrical outlet intended for an electric shaver or hair dryer.
• Any repair and maintenance pertaining to safety or performance must be done by trained experts.
• A damaged power cord may only be replaced by a person authorized by the manufacturer.

OPERATION

- QUICK START

CAUTION!

• Before washing, please make sure the appliance is properly installed.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before the first use. To do so, please run the Cotton programme at 90°C without laundry and detergent. See the chapter WASHING.

CALIBRATING THE APPLIANCE!

It's recommended to calibrate the appliance before using it, so that it provides the best performance. The appliance is able to detect the amount of laundry that is loaded in the drum. This function will optimize the appliance's performance by minimizing energy and water consumption, saving you money and time.

Therefore it's recommended to calibrate the appliance for the best use.

1. Remove all accessories from the drum and close the door.
2. Insert the mains plug to the power outlet.
3. Press ▶II to start the appliance. The drum will spin in order to calibrate it.

4. Wait till the drum stops spinning and a [random number] is displayed.

5. Switch on the appliance to any programme and press TPM and START DELAY simultaneously for 3 seconds until [t19] is displayed.

TOMADO®

BEFORE EACH WASHING

• The ambient temperature of the appliance should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the appliance is installed under freezing conditions, it should be transferred to a normal ambient temperature environment to ensure the water supply hose and the water discharge hose can unfreeze before use.
• Before each washing, sort your laundry by reading the wash labels and the detergent use instructions. Use non-foaming or less-foaming detergent suitable for machine washing.

1 2 3

Check the care label Sort the laundry according to color and textile type

Illustration of a box with two boxes, one containing star-shaped objects and the other shaped like a bag (no text or symbols)

dry according to color and textile type

Illustration of a garment with cutouts and accessories, no text or symbols present

Turn the pockets inside out, making sure there are no items left inside

Two handbags with circular designs, one wrapped in a blanket and the other in a blanket (no text or symbols)

Tie any ribbons or belts and close buttons and zippers

Simple line drawing of a bag with a patterned interior and small objects inside (no text or symbols)

Put small items and delicate clothing into a special laundry bag

Line drawing of a knitted sweater with three arms (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

WARNING!

• Do not wash clothes that have been cleaned, washed, soaked in or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene or other flammable materials.
• Washing single items may easily create big eccentricity and cause vibrations and noise due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spinning can be done smoothly.

- WASHING

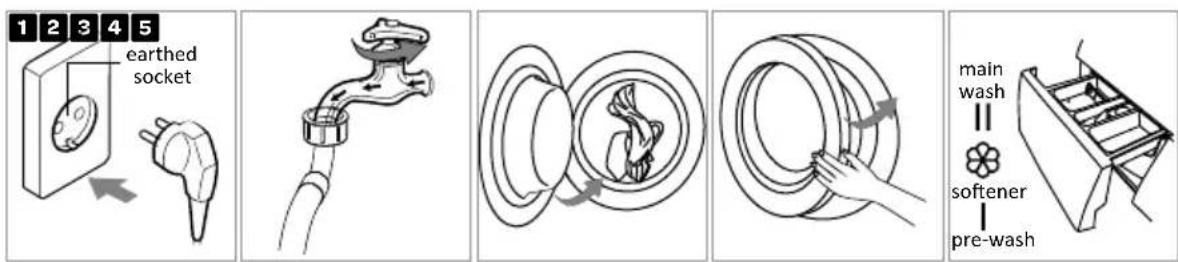

PREPARING BEFORE WASHING

Plug in Add deterge@close the doorOpen the door and load

NOTE!

• Additional detergent needs to be added in compartment I if the pre-wash function is selected.

TOMADO®

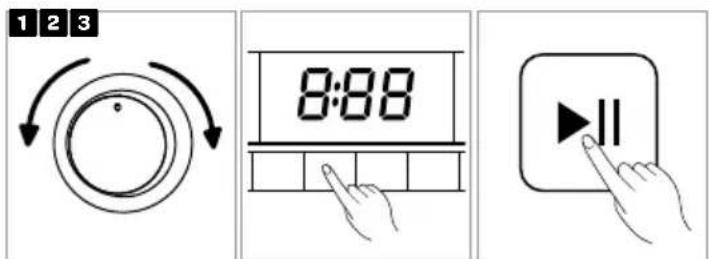

WASHING

Select a programme P Select Starting Present or additional functions
start the program

AFTER WASHING

When the program is finished and the appliance is ready, a buzzer will sound and on the display [End] appears for a few seconds before the display goes out.

DISPENSER TRAY

Pre-wash

Main wash

Softener

Technical line drawing of a mechanical component with no visible text or symbols

CAUTION!

• Additional detergent needs to be added in compartment I if the pre-wash function is selected.
- It is not necessary to add detergent for all programmes. Check the table below for more information.

Programme	I	II
Off
40° Cotton	○	●	○
40° Synthetic	○	●	○
40° Mix	○	●	○
20° Delicate		●	○
40° Sportswear	○	●	○
60° Allergy	○	●	○
60° Jeans	○	●	○

Programme	I	II
40° Fine wash	○	●	○
15 Min. Short 15°		●	○
40° Intensive		●	○
ECO 40-60		●	○
40° Wool		●	○
40° Bed linen	○	●	○
Spin only
Rinse & spin			○

● Means detergent 'obligatory' ○ Means detergent/softener optional

NOTE!

• Before adding hardened lumps of powder detergent or a thick stringy liquid detergent or additive into the dispenser tray, it can be diluted in some water before pouring it in, as this may clog the piping in the appliance and cause a water overflow.
• Choose a suitable type of detergent, fitting to the selected washing temperature and fabric, to get the maximum washing performance and a minimum of water and energy consumption.
• Add powder or liquid detergents according to the manufacturer's instructions, considering the washing temperature, washing program, how soiled the laundry is, and water hardness.

TOMADO®

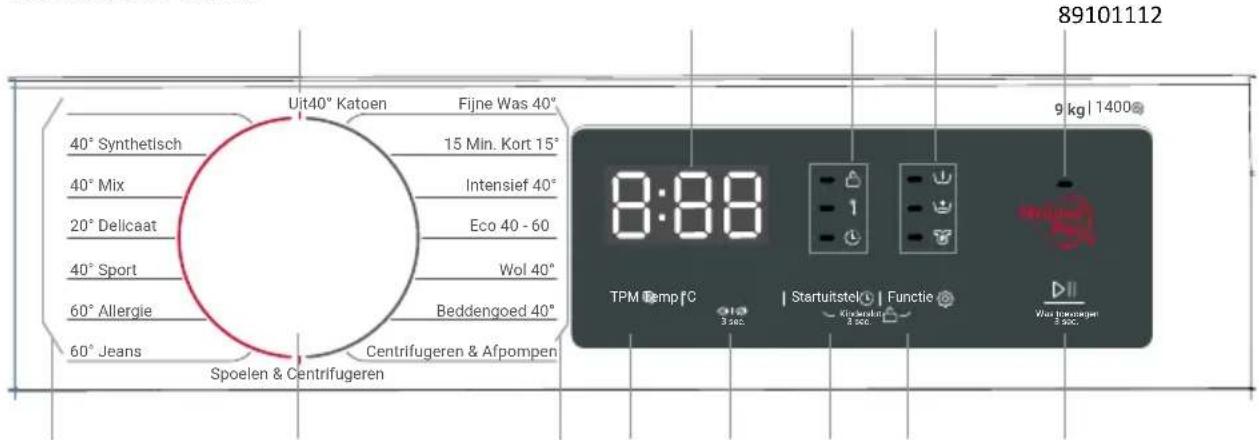

CONTROL PANEL

89101112 Uit40° Katoen Fijne Was 40° 40° Synthetisch 15 Min. Kort 15° 40° Mix Intensief 40° 20° Dellcaat Eco 40 - 60 40° Sport Wol 40° 60° Allergie Beddengoed 40° 60° Jeans Centrifugeren & Afpompen Spoelen & Centrifugeren TPM Temp/°C Startuitstel Kivienkern Functie Wol Transmogen 5 sec. 9 kg | 1400

1 12 3 45 67

Nr.	Symbol	Button or indicator	Description
1.		Programmes	Available programmes (see the programmes table for more information).
2.		Programme selector knob	Turn the programme selector knob left or right to select the desired programme.
3.		Spinning rate	When needed, the spinning rate can be adjusted by pressing the SPEED button. There are 7 settings: 0 - 400 - 600 - 800 - 1000 - 1200 - 1400 [--- - 400 - 600 - 800 - 10- - 12- - 14- ].
4.	[66YA]	Temperature	When needed, the washing temperature can be adjusted by pressing the temperature button. There are 6 settings: Cold - 20°C - 30°C - 40°C - 60°C - 90°C [--- -20°C-30°C-40°C-60°C-90°C].
5.	Startuitstel	Start delay	Use this function to start the washing cycle after a certain amount of time has elapsed.
6.	Functie	Function	Push this button to select one or more additional functions.
7.	Was toevoegen 3 sec.	Start/pause button	Press the button to start or pause the washing cycle.
		Adding wash 3 sec.	Hold the button for 3 seconds to add or remove wash. See the paragraph Adding Laundry for more information.
8.		Hygiene Pro	When this indicator is lit, the washing cycle includes Hygien Pro.
9.		Pre Wash	When this indicator light is lit, the pre wash function is added.
		Extra rinse	When this indicator light is lit, the extra rinse function is added.
	[C2BD]	Extra wash When this indicator light is lit, the extra wash function is added.
10.		Child lock	When this indicator light is lit, the child lock is activated.
	###	Door lock	When this indicator light is lit, the door of the appliance is locked and cannot be opened.
	###	Start delay	When this indicator light is lit, the start delay function is activated.
11.		Display	The display shows the settings, estimated time remaining, options and status messages for your appliance. The display will remain on during the cycle.
12.	Uit	Off	To turn the appliance off, turn the programme selector knob to the OFF position.

TOMADO®

TPM

Spinning rate

When needed, the spinning rate can be adjusted by pressing the TPM button.

There are 7 settings: 0 - 400 - 600 - 800 - 1000 - 1200 - 1400 [ --- - 400 - 600 - 800 - 10-- 12-- 14- ].

Temp °C

3 sec.

Temperature

When needed, the washing temperature can be adjusted by pressing the temperature button.

There are 6 settings: Cold - 20°C - 30°C - 40°C - 60°C - 90°C [ -- -20°C-30°C-40°C-60°C-90°C ].

Startuitstel

Start delay

Use this function to start the washing cycle after a certain amount of time has elapsed. Proceed as follows:

1. Select a programme
2. Press the START DELAY button to choose the delaying time. Set the hours by repeatedly pressing or holding the START DELAY button. It can be set from 0 up to 24 hours.
3. Press START /PAUSE button to start the delay.

NOTE!

- When using the START DELAY, preferably use a washing powder instead of a liquid detergent.

Canceling start delay

To cancel the START DELAY function, press the START DELAY button, before the washing programme is started, until the display shows 0 H.

Functie

OTHER FUNCTIONS

Child lock

This function is a safety feature and prevents children from misusing the control panel.

To activate the child lock, proceed as follows:

- Press the START DELAY and FUNCTION button simultaneously for 3 seconds until the buzzer beeps. The child lock indicator switches on, the display will alternately show [CL] and the remaining time, when the appliance is running a washing programme.

Deactivating the child lock

- Press the START DELAY and FUNCTION button simultaneously for 3 seconds until the buzzer beeps. The child lock indicator switches off.

CAUTION!

When the CHILD LOCK is activated, the display will alternately show [CL] and the remaining time, when the appliance is running a washing programme.

Pressing any button will cause the CHILD LOCK indicator to flash for 3 seconds. When the programme ends, [CL] and [END] will alternate on the display for 10 seconds, then the indicator will flash for 3 seconds.

The Child lock deactivates the function of all buttons except the on/off knob and the child lock button combination! Only the simultaneous pressing of the two buttons START DELAY and FUNCTION can deactivate the child lock.

Please deactivate the child lock before selecting a new programme!

Pre-wash

Before the main washing cycle starts, the laundry will be extra washed to increase the washing performance. Particularly suitable for heavily soiled laundry with stubborn superficial stains.

Note: Don't forget to also add detergent to compartment I.

Extra rinse

The laundry will undergo an extra rinse after selecting this function.

Extra wash

The washing time and intensity are increased for a better cleaning effect of heavily soiled laundry.

TOMADO®

Hygiene Pro

Hygiene Pro is not an additional function you can choose. It is automatically added to some programmes and the indicator will light up if one of the programmes is selected which include Hygiene Pro.

Hygiene Pro cleans your drum and the glass of the inner door with cold water at the end of the washing cycle. This self-clean function keeps your appliance and laundry clean and will be automatically activated during the washing cycle. Check the chapter SELECTING ADDITIONAL FUNCTIONS to see which programmes include the Hygiene Pro function.

Adding laundry

It is possible to add or remove laundry during a washing cycle. After a certain period of time, the appliance door can be opened if the water level and temperature are below a predefined threshold.

If the conditions below are met, then the electronic door lock is released and the appliance door can be opened:
• water temperature in the drum has to be suitable;
• water level in the drum has to be below a certain value.

CAUTION!

When the drum is still rolling and there is a large amount of water with high temperature in the drum, the state is unsafe and the door cannot be opened forcefully.

- Don't use the ADDING LAUNDRY function when the water level is over the edge of the inner drum or when the water temperature is high.

In order to add or remove laundry from the drum during a washing cycle, proceed as follows:

1. Press the START PAUSE button for 3 seconds.
2. Wait until the drums stops rotating.
3. The door will unlock.
4. Open the door and add or remove the laundry.
5. Close the door and press the START PAUSE button. The washing cycle will resume.

CAUTION!

• If a considerable amount of laundry is added during the washing cycle, the laundry could be washed less effectively, since the appliance initially sensed a lower weight of the laundry load and added a smaller amount of water. Insufficient amount of water relative to the amount of laundry could also cause damage to the laundry (rubbing of dry laundry), and the washing time can be longer.
• The washing time will resume from the point at which the washing programme was interrupted.

Temp °C Muting the buzzer

3 sec.

The sound of the buzzer can be muted. Proceed as follows to mute the buzzer:

1. Choose any programme.
2. Press the TEMPERATURE button for 3 seconds. The buzzer is mute.

Activating the buzzer

1. Choose any programme.
2. Press the TEMPERATURE button for 3 seconds. The buzzer is activated again.

CAUTION!

• After muting the buzzer function, be aware that there are no sounds activated anymore.

Display

The display shows the settings, estimated time remaining, spinning rate, temperature, start delay, options and status messages for your appliance. The display will remain on during the cycle.

Wash time Start delay End
125	2h	End
Spinning rate Temperature Error
100	30	E30

PROGRAMMES

Programme Max.	load	Programme description
40° Cotton 9,0 kg Washing programme for normally or heavily soiled laundry, white or coloured.The temperature can be set separately; therefore, observe the instructions indicated on the clothing.Spinning rate and temperature can be set to your preference.
40° Synthetic 4,5 kg Washing programme for synthetic clothes, for example: shirts, coats or blending.While washing knitted textiles, reduce the detergent quantity, as it will easily form bubbles due to its loose thread construction.Spinning rate and temperature can be set to your preference.
40° Mix 9,0 kg Washing programme for clothing made of mixed fibres or viscose and cotton.Spinning rate and temperature can be set to your preference.
20° Delicate 4,5 kg 20°C is the default temperature. Cold water is also an option. Can be used for washing silk or garments that require manual washing. Spinning rate can be set to your preference.
40° Sportswear 4,5 kg Washing programme for slightly soiled sportswear made of cotton, microfibres and synthetic fibres, at lower spinning rates.Spinning rate and temperature can be set to your preference.
60° Allergy 9,0 kg Washing programme used to wash normal to heavily soiled clothes that require special care,such as clothes for people with highly sensitive skin or skin allergies. It is recommended to turn the clothing inside out, as this will thoroughly wash out skin or other residues.Spinning rate and temperature can be set to your preference.
60° Jeans 9,0 kg Special programme for jeans.Spinning rate and temperature can be set to your preference.
40° Fine wash 2,0 kg Washing programme for delicate clothing made of mixed fibres or viscose and cotton which should be washed with care.Spinning rate and temperature can be set to your preference.
15 Min. Short 15° 2,0 kg Extra short washing programme suitable for a small amount of lightly soiled clothes.Spinning rate can not be changed.
40° Intensive 9,0 kg To increase the washing effects, the washing time will be increased.Spinning rate and temperature can be set to your preference.
ECO 40-60 2,0 kg Washing programme, which is able to clean normally soiled cotton laundry which can be washed at 40°C or 60°C, according to the care label.Spinning rate and temperature can not be changed.
40° Wool	2,0 kg Gentle washing programme for washing wool.Spinning rate and temperature can be set to your preference.
40° Bed linen 9,0 kg Washing programme specially designed for washing duvets.Spinning rate and temperature can be set to your preference.
Spin & drain	9,0 kg Extra spin cycle with selected spinning rate.Spinning rate can be set to your preference.
Rinse & spin	9,0 kg For an extra rinse cycle and spin.Spinning rate can be set to your preference .

1. The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.
2. The most efficient programmes in terms of energy consumption are generally those that perform at lowe temperatures and longer duration.
3. Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.
4. Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

CAUTION!

- If there is a power failure in the power supply while the appliance is operating, a special memory stores the selected programme. The appliance will continue the programme when the power supply is re-established.

SELECTING ADDITIONAL FUNCTIONS

An additional function can be added to the main washing programme before pressing the Start button. Select a programme and then press the function button to add one or more desired additional function(s).

Default temperature and programme	Default spinning rate in rpm	Delay	Pre-wash	Extra	rinse	Extra	Wash	Hygiene Pro.
40° Cotton 1400		●●●●●
40° Synthetic 1200		●●●●●
40° Mix 800		●●●●●
20° Delicate 1000		●●●
40° Sportswear 800		●●●●
60° Allergy 800		●●●●●
60° Jeans 1000		●●●●
40° Fine wash 800		●●●
15 Min. Short 15° 800		●
40° Intensive	800	●
ECO 40-60	1400	●
40° Wool	600	●			●
40° Bed linen 1000		●●●●
Spin only	1000	●
Rinse & spin	1000	●●●

• For the maximum spinning rate, programme time, and other details of the ECO 40-60 programme, and other details of the ECO 40-60 programme, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment.
• Adding an additional function will prolong the programme time.
• Keep pressing the function button to make the desired selection of additional functions.

Manual interruption

To stop and cancel a washing programme, press the START PAUSE button and hold it for 3 seconds. Select the programme SPIN & DRAIN and press the START PAUSE button. The appliance will run the programme and at the end of the programme, the appliance pumps the water out of the drum. When the water is pumped out, the door will be unlocked.

PAUSE button

The washing programme can always be stopped by pressing the START PAUSE button. The washing programme is temporarily paused when the time remaining until programme completion is flashing on the display unit.

If there is no water in the drum and water temperature is not too high, then the door will unlock after a certain period of time, and they can be opened. To resume the washing program, first close the door and then press the START PAUSE button.

ERRORS

In case of an error or fault, the programme will be interrupted. An acoustic signal will warn about such occurrence and the error will be flashing on the display [E:XX]. See the TROUBLESHOOTING TABLE for more information.

Power supply failure

The washing programme can always be stopped by pressing the START PAUSE button. The washing programme is temporarily paused when the time remaining until programme completion is flashing on the display unit.

If there is no water in the drum and water temperature is not too high, then the door will unlock after a certain period of time, and they can be opened. To resume the washing program, first close the door and then press the START PAUSE button.

TOMADO®

• PROGRAMME DURATION / TEMPERATURE / SPINNING RATE TABLE

Programme Max.	load	Default time	Default temp	Default RPM	Temperature options	Max. RPM
40° Cotton 9,0 kg 3:49	40°C 1400	RPM			--/20/30/40/60/90°C 1400
40° Synthetic 4,5 kg 3:28	40°C 1200	RPM			--/20/30/40/60°C 1200
40° Mix 9,0 kg 1:30	40°C 800	RPM			--/20/30/40/60/90°C 1400
20° Delicate 4,5 kg 1:11	20°C 1000	RPM			--/20°C	1200
40° Sportswear	4,5 kg 1:16	40°C 800	RPM		--/20/30/40°C 1400
60° Allergy	9,0 kg 1:52	60°C 800	RPM		--/20/30/40/60/90°C 1200
60° Jeans	9,0 kg 1:56	60°C 1000	RPM		--/20/30/40/60/90°C 1200
40° Fine wash	2,0 kg 0:45	40°C 800	RPM		--/20/30/40/60°C 1400
15 Min. Short 15° 2,0 kg 0:15		--	800 RPM		--/20/30°C	800
40° Intensive	9,0 kg 3:48	40°C 800	RPM		40/60°C	1400
ECO 40-60	2,0 kg 3:41	40°C 1400	RPM		default 40°C	1400
40° Wool	2,0 kg 1:07	40°C 600	RPM		--/20/30/40°C	800
40° Bed linen	9,0 kg 1:48	40°C 1000	RPM		--/20/30/40/60°C 1400
Spin & drain	9,0 kg 0:12		-- 1000 RPM		not applicable	1400
Rinse & spin	9,0 kg	0:30	--	1000 RPM	not applicable	1400

CAUTION!

- Depending on the chosen temperature the washing time will change, shorter or longer.

TOMADO®

MAINTENANCE

- CLEANING AND CARE

WARNING!

• Always unplug the appliance and close the water tap before cleaning and maintenance.

CLEANING THE EXTERIOR OF THE APPLIANCE

Proper maintenance on the appliance can extend its useful life. Clean the appliances exterior and control panel using a soft damp cloth and water. If necessary, a diluted non-abrasive neutral cleaning agent can be used to clean the appliance.

CAUTION!

• Do not use abrasive or caustic agents, formic acids or its diluted solvents or similar substances, like alcohol or chemical products that could damage the appliance. Please observe the recommendations and warnings provided by the cleaning agent manufacturer.
• If there is any water overflow, use a cloth to wipe it off immediately.
• Do not clean the appliance with a jet of water.
• Do not use a sharp item to clean the appliance.

Line drawing of a hand washing a washing machine (no text or symbols)

CLEANING THE DRUM

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents.

Do not use steel wool for cleaning the drum!

NOTE!

• Keep laundry not near the appliance while cleaning the drum.
• When you often wash at 40°C or lower temperatures, or when you haven't used the appliance for a longer period of time, clean the drum. Run the Cotton programme at 90°C without laundry. Preferably use a powder detergent.

CLEANING THE RUBBER DOOR GASKET AND THE GLASS

Wipe the glass and rubber door gasket after each wash to remove lint and stains and to extend its useful life. If lint builds up, it can cause leakages.

Check the rubber door gasket to remove any coins, buttons or other objects after each wash.

Clean the rubber door gasket and the glass once a month to ensure normal operation of the appliance.

Line drawing of a hand gripping a curved object (no text or symbols)

CLEANING THE INLET FILTER

NOTE!

• A diminishing water flow is a sign that the inlet filter needs to be cleaned.
• Cleaning the inlet filter every 3 months ensures normal operation of the appliance.

Cleaning the inlet filter in the water tap

1. Close the water tap and remove the water supply hose.
2. Clean the inlet filter with a brush under running water.
3. Reconnect the water supply hose to the water tap.

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

TOMADO®

Cleaning the inlet filter at the back of the appliance

1. Close the water tap.
2. Unscrew the water supply hose from the back of the appliance.
3. Pull out the filter with a long nose plier and clean the filter using a brush under running water.
4. Reinstall the filter to the water inlet and reconnect the water supply hose.
5. Open the water tap.

CLEANING THE DISPENSER TRAY

1. Open the dispenser tray and press down the release [ ☐ on the cover of the softener compartment and pull the dispenser tray out of the recess.
2. Lift the cover of the softener compartment of the dispenser tray. Wash both items, the cover and the complete dispenser tray under running water. Make sure not to forget to clean the drain hole of the softener compartment and the openings at the bottom of the dispenser tray.
3. Clean the inside of the recess with a brush.
4. Reinstall the cover of the softener compartment and push the dispenser tray back in the recess.

• Do not use abrasive or caustic agents to clean plastic parts.
• Cleaning the dispenser tray every 3 months ensures normal operation of the appliance.

1

Hand holding a small electronic device with a magnified inset showing a mechanical component (no text or symbols visible)

2

Line drawing of a hand holding a tennis racket near a table with a screwdriver (no text or symbols)

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Technical line drawing of a mechanical component with no visible text or symbols

3

Line drawing of a hand inserting a small object into a device (no text or symbols)

4

Technical line drawing of a mechanical device with internal components (no text or symbols)

CLEANING THE DRAIN PUMP FILTER

The pump filter can filter the yarns and small foreign matters from the washing. Especially after washing fleecy, woolly or very old laundry.

WARNING!

• Unplug the appliance to avoid electrical shock before cleaning.
• Be careful of hot water!
• Allow detergent solution to cool down.
• During cleaning, some water may be spilled. It is recommended to place an absorbent cloth on the floor.

Diagram of a mechanical component with a circular feature and rotation arrow (no text or symbols)

Open the pump filter cap. Turn 90°,

Simple line drawing of a washing machine with a dial and control panel (no text or symbols)

, pull out the emergy discharge hose and remove the cap.

Line drawing of a washing machine with a side panel and a bowl (no text or symbols)

When there's no more water coming out, put the emergy discharge hose back.

4 5 6

Open the pump filter by turning it counter clockwise. Clean the pump filter under running water.

Diagram showing a wall-mounted device with a dial indicator and a key inserted into a lock, illustrating electrical or security system components.

Remove any objects and impurities from the filter housing.

Mechanical diagram showing a cylindrical component mounted on a base plate with directional arrows indicating motion (no text or symbols)

Place the pump filter back and turn it clockwise to lock it. Close the pump filter cap.

TOMADO®

WARNING!

• Never remove the pump filter cap during a washing cycle. Always wait until the appliance has finished the cycle, and is empty.
• When the appliance is in use and depending on the selected programme, there can be hot water in the pump.
• When replacing the pump filter cap, ensure it is securely snapped in place.

OPENING THE DOOR MANUALLY IN CASE OF A POWER OUTAGE - IN CASE OF A PROGRAMME PAUSE

In case of a power outage during a washing cycle, the programme will resume after the power is restored in most cases. If not, you can manually open the door and remove the laundry.

WARNING!

- If there is still water in the appliance after a power outage, make sure not to open the door before you manually drain the water from the appliance via the pump filter (see the paragraph CLEANING THE DRAIN PUMP FILTER).

1. When the programme is paused or interrupted, open the pump filter cap.
2. The door of the appliance can only be opened by simultaneously pulling the special lever - next to the filter - and the door handle.
3. Open the door manually by pulling the handle towards you.

• TROUBLE SHOOTING

The appliance will automatically control the operation of particular functions during the washing cycle. If any irregularity occurs, this will be identified by reporting (E:XX) on the display. The appliance will report the error until it is switched off. Disturbances from the environment (e.g. the power grid) may result in various error reports. In such case:

• Switch off the appliance and wait for a few seconds.
• Switch the appliance on and repeat the washing programme.
• Most errors during operation can be solved by the user.
• If the error persists, call the customer care service.
  • Repairs may only be carried out by an adequately trained person.
• Repair or any warranty claim resulting from incorrect connection or use of the appliance shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.
• The warranty does not cover the errors of failures resulting from disturbances from the environment (lighting strike, power grid failures, natural disasters etc.).

TROUBLE SHOOTING TABLE

Description Possible cause What to do?
The appliance does not start The door is not closed properly.Clothes are stuck.		Close the door properly and restart.Check the laundry.
The door can’t be opened The safety protection is activated. Disconnect the power and restart.
The appliance does not fill with water.	The water tap is not open.A shut-off system in the aquastop is activated. The internal tube or the water supply hose is damaged.	Open the water tap completely.When the aquastop is acitvated, it cuts the water supply off. The control glass on the aquastop will be red. Replace the water supply hose.
Water leakage The connections are not tight enough. Check and fasten the water supply hose.
Detergent residues in the dispenser tray	The detergent is damp and/or clotted.	Clean and wipe the dispenser tray dry.
Indicator or display does not work	PC board is not connected or harness has connection problems.	Switch off the power and check if the mains plug is connected properly.

TOMADO®

Description Possible cause What to do?
Abnormal noise The transport bolts are still in place.The floor is not solid or level	Check if the transport bolts have been removed.Make sure the appliance is installed on a solid and level floor.

ERROR CODE TABLE

Description Possible cause What to do?
E10	Water injecting problem during the wash cycle	Check if the water pressure is high enough.Straighten the water supply hose.Clean the inlet filter.
E12	Water overflow Restart the appliance.
E21	Overtime water draining Check the water discharge	hose for blockage.
E30	The door is not closed properly Close the door	properly and restart.
EXX	Others Restart the appliance. If the problem persists,please contact the customer service.

• CUSTOMER SERVICE

Spare parts for your appliance are available for a minimum of 10 years.

In case of questions, please contact the customer service.

WARNING!

Risk of electric shock

• Never try to repair an appliance which is defective or presumed to be defective. You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognized!

TRANSPORT

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water tap.
• Check, if the door and the dispenser tray are closed properly.
• Remove the water supply hose and the water discharge hose from the house installations.
• Let the water drain completely from the appliance.
  • IMPORTANT: Re-install the 4 transport bolts in the back of the appliance.
• The appliance is heavy. Transport with care. Never hold any protruding part of the appliance when lifting.

The door of the appliance cannot be used as a handle.

• TECHNICAL SPECIFICATIONS

Model TWM9001W

Washing capacity

9.0 kg

Power supply

220-240V\~, 50Hz

Rated power

2000 W

MAX. current

10A

Standard water pressure

0.05 MPa - 1 MPa

Dimension (WxDxH in mm)

595 × 565 × 850

Nett weight

71 kg

850 595 565

• PRODUCT INFORMATION SHEET ACC. REGULATION (EU) 2019/2023

Supplier's name or trade mark: Tomado
Supplier's address): (Postbus 159, 6920 AD, Duiven, The Netherlands
Model identifier: TWM9001W
General product parameters:
Parameter Value Parameter Value
Rated capacity (a) (kg) 9.0 kg Dimensions in cm				Height 85
				Width 60
				Depth 57
EEIw (a) 59.9 Energy efficiency class (			a)	B
Washing efficiency index (a)	1.031		Rinse effectiveness (g/kg) (a)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.570		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of water.	49
Maximum temperature inside the treated textile (a) (°C)	Rated capacity	34	Weighted remaining moisture content (a) (%)	53,9
	Half	34
	Quarter	21
Spin speed (a) (rpm)	Rated capacity	1400	Spin-drying efficiency class (a)	B
	Half 1400
	Quarter	1400
Programme duration (a) (h:min)	Rated capacity	3 : 48	Type	free-standing
	Half	2 : 54
	Quarter	2 : 54
Airborne acoustical noise emissions in the spinning phase (a) (dB(A) re 1 pW)	76		Airborne acoustical noise emissions class (a) (spinning phase)	B
Off-mode (W)	0.50		Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (
This product has been designed to release silver ions during the washing cycle			NO
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found: https://www.tomado.com/
(4) for the eco 40-60 programme (4) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369 (4) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data

RECYCLING

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU).

Observe the rules that apply in your country for the separated collection of electric and electronic products.

Correct disposal of the product prevents negative consequences for the environment and for public health.

The packaging material of this product can be recycled 100%, return packaging material separately.

TOMADO®

Technical diagram of a washing machine with numbered parts labeled for identification.

7

W ≥ 20 mm

DAS GERÄT AUSPACKEN

WARNUNG!

Diagram showing a box being inserted into a base with an inset magnified view labeled 'A'

DIE TRANSPORTSCHRAUBEN ENTFERNEN

WARNUNG!

Close-up of a wrench and circular dial on a white surface, no visible text or symbols

Lösen Sie die 4

Close-up of a mechanical component with a metallic shaft and circular housing, showing a downward arrow (no text or symbols visible)

Close-up of a circular dark object with an arrow pointing to it, against a blurred background (no text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols visible)

Diagram showing two different plumbing or plumbing system behaviors: one with curved pipe connection and another with valve mechanism (no text or symbols)

Diagram showing a mechanical or architectural component moving through a basket (no text or symbols)

Illustration of a shirt with cutouts and accessories, no text or symbols present

Two handbags with circular designs, one wrapped around a bow and the other with a zipper (no text or symbols)

Simple line drawing of a bag with grid pattern and small animal cutouts (no text or symbols)

Line drawing of a knitted garment with three arms and textured body (no text or symbols)

Illustration of a faucet with a handle and valve (no text or symbols)

Simple line drawing of a mechanical component with a circular opening and internal gear-like structure (no text or symbols)

Hand holding a coiled rope with arrows indicating direction (no text or symbols)

Hand pointing at a button with a play symbol (no text or numbers present)

Technical line drawing of a mechanical component with no visible text or symbols

i ACHTUNG!

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

DIE TROMMEL REINIGEN

Line drawing of a hand gripping a curved object (no text or symbols)

DEN EINLASSFILTER REINIGEN

HINWEIS!

Diagram of a mechanical valve or pump assembly with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a small object with a tool, no text or symbols present

TOMADO®

Illustration of a hand holding a small object with a magnified inset showing a mechanical component (no text or symbols)

2

Line drawing of a hand holding a tennis racket near a table (no text or symbols)

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Technical line drawing of a mechanical assembly or container with internal components (no text or symbols)

3

Line drawing of a hand inserting a small object into a wall, no text or symbols present

4

Technical line drawing of a mechanical component with internal channels and a handle (no text or symbols)

DEN FILTER DER ABLAUFPUMPE REINIGEN

Diagram of a mechanical component with a circular feature and a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a door with a circular dial and a button, no text or symbols present

Simple line drawing of a washing machine with a control panel and a cup (no text or symbols)

Diagram showing a device with a clock and a battery, accompanied by a close-up of a battery and a separate switch.

Technical line drawing of a mechanical component with rotational arrows (no text or symbols)

Technical diagram of a washing machine with numbered parts labeled for identification.

Simple line drawing of a rectangular box with internal circles and intersecting diagonal lines (no text or symbols)

DÉBALLAGE DE L'APPAREIL

AVERTISSEMENT!

Diagram showing a box being inserted into a base with an inset magnified view labeled 'A'

DÉPOSE DES BOULONS DE TRANSPORT

AVERTISSEMENT!

Close-up of a mechanical switch knob with a wrench, no visible text or symbols

Close-up of a mechanical knob with a metallic dial and a textured grip (no visible text or symbols)

Close-up of a circular object with an arrow pointing to it, against a blurred background (no text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols visible)

CONNEXION DU TUYAU D'ALIMENTATION D'EAU

AVERTISSEMENT!

Two-step diagram showing a pipe valve mechanism: one with curved arrows indicating flow, the other with directional arrows indicating movement (no text or symbols)

CONNEXION DU TUYAU D'ÉVACUATION D'EAU

AVERTISSEMENT!

Diagram showing two stages of a mechanical or architectural component moving through a container (no text or symbols)

Illustration of a garment pattern with cutouts and accessories (no text or symbols)

Two handbags with circular designs, one wrapped in a ribbon and the other in a circle (no text or symbols)

Line drawing of a bag with a grid pattern and small objects inside (no text or symbols)

Line drawing of a knitted sweater with two arms and textured fabric (no text or symbols)

Line drawing of a faucet with handle and valve (no text or symbols)

Diagram of a mechanical or electrical component with circular components and a central internal structure (no text or symbols)

Hand holding a coiled rope with arrows indicating direction (no text or symbols)

Hand pointing at a button with a play symbol (no text or numbers present)

Technical line drawing of a mechanical component with no visible text or symbols

ATTENTION!

Line drawing of a hand washing a washing machine (no text or symbols)

NETTOYAGE DU TAMBOUR

Line drawing of a hand gripping a curved object (no text or symbols)

NETTOYAGE DU FILTRE D'ENTRÉE

REMARQUE!

Diagram illustrating two steps of a hairpin tool: step 1 shows the valve being switched, and step 2 shows the tool being inserted.

TOMADO®

Hand holding a small electronic device with a magnified inset showing a mechanical component (no text or symbols visible)

2

Line drawing of a hand holding a tennis racket near a table with a screwdriver (no text or symbols)

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Technical line drawing of a mechanical component with no visible text or symbols

3

Line drawing of a hand using a tool to clean or store contents inside a container (no text or symbols)

4

Technical line drawing of a mechanical device with internal components (no text or symbols)

NETTOYAGE DU FILTRE DE LA POMPE DE VIDANGE

Technical line drawing of a mechanical component with a circular feature and rotation arrow (no text or symbols)

Simple line drawing of a kitchen appliance with a bowl and a door (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Go to www.tomado.com/support to purchase accessories or spare parts.

WARRANTY CONDITIONS

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.tomado.com/support

CONDITIONS DE LA GARANTIE
