USER MANUAL TWM8001W Tomado

WATERTOEVOER EN -AFVOER

HET APPARAAT WATERPAS ZETTEN

NL - 24WAARSCHUWING!

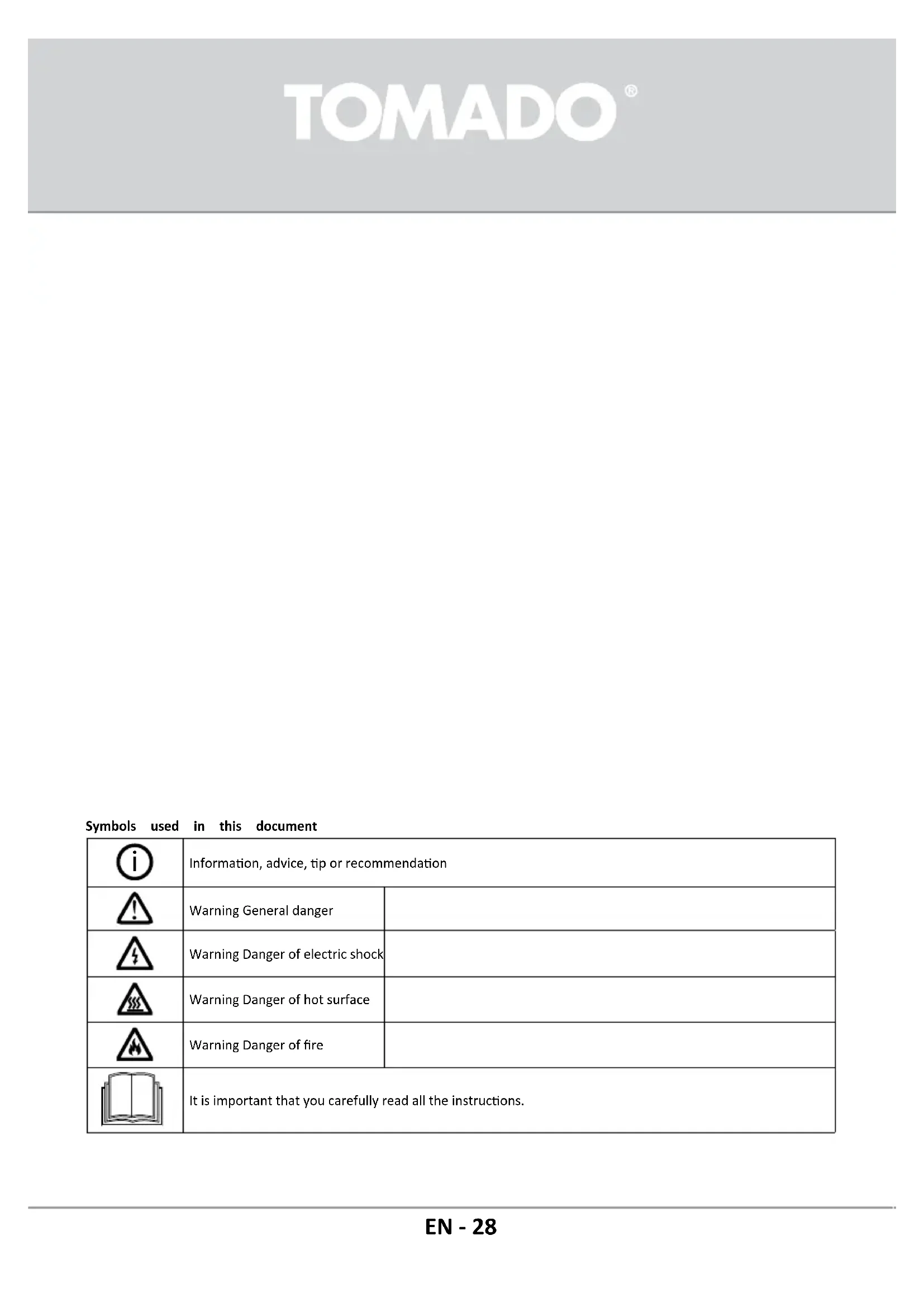

RECYCLING NL - 27EN - 28 Symbols used in this document

Informaon, advice, p or recommendaon Warning General danger Warning Danger of electric shock Warning Danger of hot surface Warning Danger of re It is important that you carefully read all the instrucons.SAFETY INSTRUCTIONS - EN Please read these instrucons before operang the appliance and retain for future use. Please, do not use the washing machine without reading the instrucons for use rst.

• Check for any damage to the packaging or the appliance during transportaon. Never use a damaged appliance, but contact your supplier.

• Failure to observe the instrucons for use or inapproriate use of the appliance may result in damage to the laundry or the appliance, or injury to the user. Keep the instrucon manual handy, near the appliance.

INSTALLATION LOCATION AND SURROUNDING

• Keep the appliance clear from heat sources and direct sunlight to avoid plasc and rubber parts to corrode.

• Do not install the appliance in a room where the temperature can drop below 5°C, as the parts of the appliance may be damaged in case of water freezing. Do not install the appliance in humid environments or rooms containing explosive or causc gas. In case of water leakage or water splashes let the appliance dry in the open air.

• Never use ammable sprays or substances in the immediate proximity of the appliance. INSTALLATION

• Place the appliance on a level and stable solid (concrete) base.

• Adjust the appliances adjustable feet to ensure the appliance is standing level and balanced.

• Before the rst use of the appliance, remove the transport bolts, as switching on a blocked appliance can result in serious damage. The manufacturer will not be responsible for any damage in cases of such damage.

• Before connecng the appliance to the power mains, wait for at least 2 hours unl it reaches room temperature.

• The door cannot be opened during washing machine operaon. EN - 29• Before washing clothes for the rst me, the appliance shall be operated once with a full programme without any clothes inside.

• Aer the washing cycle, close the water tap and pull out the plug from the power socket. Never pull the cord itself.

• Dispose the packing materials according to local regulaons. Keep the material out of reach of children. Danger of suocaon.

• Before using the appliance, it must be calibrated. Follow the instrucons in this manual. ELECTRICAL INSTALLATION

• Connect the appliance to a grounded power socket protected by a fuse complying with the values on the rang plate.

• Pay special aenon and be sure that the appliance is not placed on the power cord. To avoid danger, a damaged power cord may only be replaced by the manufacturer, its service agent or similarly qualied persons. If the appliance is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualied persons.

• The appliance may not be connected to the power mains using an extension cord. Do not connect the appliance to the power mains using an external switch device such as a programme mer, or connect it to power mains that is regularly switched on and o by the power supply provider.

• Do not connect the appliance to an electrical outlet intended for an electric shaver or hair dryer.

• The mains plug must be accessible aer installaon. Never use an extension cord or a mulple plugs for making a connecon. Do not pull the plug out of the power socket if there is ammable gas around. Never pull out the plug with wet hands. Always unplug the appliance when it is not being used and close the watertap. EN - 30• Connecon to water and power supply has to be executed by an adequately trained technician or expert.

• Any repair and maintenance pertaining to safety or performance should be done by trained experts.

• In case of a defect, only use approved spare parts by authorized manufacturers.

• In case of incorrect appliance connecon, incorrect use, or servicing by an unauthorized person, Tomado will not be responsible for any damage as such damage will not be covered by warranty. WATER INSTALLATION

• The appliance is equipped with a single inlet valve and can be connected to the cold water supply only.

• To connect the appliance to the water supply, make sure to use the supplied water supply hose and gaskets. The water pressure has to be between 0.05 and 1.0 MPa (0.5 - 10 bar).

• Always use the supplied new water supply hose to connect the appliance to the water supply; do not reuse an old water supply hose.

• The end of the water discharge hose should reach into a water drain line.

• Check the connecons of the water supply hose, the water tap and the water discharge hose for possible problems due to changes of water pressure. If the connecons loosen or leak, close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by authorized persons. At higher washing temperatures, the door glass will heat up. Be careful to avoid burns. Keep children and animals far away from the machine while it is operang. Do not remove the drain pump lter while there is sll water in the appliance. Big quanes of water can leak out, and there is a risk of scalding due to hot water.

EN - 31WATER OVERFLOW PROTECTION

• If the water level in the appliance rises above normal level, then the excess water level protecon will be acvated. It will shut o the water supply and start pumping out the water. The program is interrupted and an error is reported. CHILD SAFETY

• Before closing the appliance door and running the programme, make sure there is nothing except laundry in the drum (e.g. if a child or animal climbed into the appliance drum).

• Keep the detergents and soeners out of reach of children.

• Do not let children aged 3 years and under come near the appliance, unless they are under constant supervision.

• This appliance may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilies or lack of experience and knowledge if they have been given supervision or instrucon concerning use of the appliance in a safe way and if they understand the hazards of inappropriate use. Children are not allowed to play with the appliance.

• The appliance may not be cleaned or maintained by children, unless this is done under supervision.

• Children should be supervised that they do not play with the appliance.

• Do not climb or sit on the appliance.

• The appliance is made in compliance with all relevant safety standards.

OPERATION AND MAINTENANCE

Do not use detergents that contain solvents as this could lead to release of poisonous gases, damage to the appliance, and risk of re and explosion.

• Only use the appliance for washing laundry as described in the instrucon manual. The machine is not intended for dry cleaning.

• Only use agents for machine washing and care of laundry. Tomado will not be responsible for any damages or discolouraon of gaskets and plasc parts resulng from incorrect use of bleaching or colouring agents. EN - 32• In case of a defect, only use approved spare parts by authorized manufacturers.

• Make sure that all pockets are emped. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.

• Remove all objects from pockets such as lighters and matches before use the appliance.

• Fabric soeners or similar products should be used as recommended in their instrucons.

• Never try to open the door forcefully. The door will unlock shortly aer the end of a cycle.

• Please do not close the door with excessive force. If it is found dicult to close the door, please check if the clothes are properly inserted and distributed.

• In case of incorrect appliance connecon, incorrect use, or servicing by an unauthorized person, the user shall bear the cost of any damage as such damage shall not be covered by warranty.

• When cleaning the appliance, only use non-corrosive descaling agents. Follow the manufacturer’s instrucons of the cleaning agent. Finish the descaling process with several rinse cycles in order to remove any residual acid (e.g. vinegar etc.).

• The warranty does not cover consumables, minor deviaons in colour, increased noise that results from appliance age and which does not aect the funconality of the appliance, and aesthec defects on components, which do not aect the funconality and safety of the appliance.

TRANSPORT/TRANSPORT AFTER INSTALLATION

• If you intend to move the appliance aer it has been installed, then it should be blocked by inserng at least one transport bolt. Before inserng the transport bolt, disconnect the appliance from the power mains.

• Accumulated water must be drained out of the appliance.

• The appliance is heavy. Transport with care. Never hold any protruding part of the appliance when liing. The door of the appliance cannot be used as a handle.

• The appliance is intended solely for household use. If the appliance is used for professional, for-prot purpose or purpose exceeding normal use in a household, or if the appliance is used by a person who is not a consumer, the warranty period shall be equal to the shortest warranty period required by relevant legislaon.

• This appliance is intended to be used in household and similar applicaons such as: - sta kitchen areas in shops, oces or residenal type environments; - farm houses; - by clients in hotels, motels and other residental type environments; - bed & breakfast type environments; - areas for communal use in blocks of ats or in launderees.

• The appliance is not intended for use by persons (including children) with physical or mental impairments, or persons with lacking experience and knowledge. These persons should be instructed about the use of the appliance by a person responsible for their safety. OLD APPLIANCE

• Remove the door or deacvate the lock when disposing of the appliance. Children are known to have goen themselves locked in old appliances. To forestall such a situaon, break your appliance’s door lock and tear o the electrical cables. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collecon systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

3. Power supply cord

10. Water supply hose

4 x cover caps 1 x user manual1 x supply hose for cold waterEN - 36

• Stability is important to prevent the product from sliding across the installaon site! Make sure to level the appliance and install it on a stable base in longitudinal and traverse direcon by rotang the adjustable feet.

• Make sure the appliance doesn’t stand onto the power cord.

• Make sure to observe the minimum required clearances from the walls as indicated in the gure.

The room in which the appliance is placed must meet the following requirements:

1. Dry, level and stable solide base

2. Avoid direct sunlight

4. Room temperature is above 0°C

5. Keep far away from heat sources such as coal, gas or wood burning appliances.

UNPACKING THE APPLIANCE

• Move the appliance with at least two people and wear protecve clothing, such as sturdy gloves.

• Packaging material (e.g. lms, styrofoam) can be dangerous for children.

• There is a risk of suocaon! Keep all packaging away from children.

1. Remove the cardboard box and the styrofoam packing.

2. Li the washing machine and remove the base packaging. Make sure the small triangle foam [A]

is removed with the boom packaging together. If not, lay the appliance down on one side and carefully remove it manually.

3. Remove the tape securing the power supply cord and water discharge hose.

4. Take the water supply hose out of the drum.

REMOVING THE TRANSPORT BOLTS

WARNING! Before the rst use of the appliance, the transport bolts must be removed from the back of the appliance. A blocked appliance may be damaged when it is switched on for the rst me. The warranty does not apply in cases of such damage! Loosen the 4 transport bolts with a spanner. Remove the bolts including the rubber parts and keep them for future use Close the holes using the cover caps W ≥ 20 mm AEN - 37

LEVELLING THE APPLIANCE

• The lock nuts on all four feet must be screwed ghtly against the housing to ensure the appliance stands steady on its feet. Use a level and a spanner to level the appliance.

1. Loosen the lock nut with a spanner.

2. Turn the foot unl it reaches the oor.

3. Level the appliance in longitudinal and traverse direcon by rotang the adjustable feet.

4. Aer adjusng the feet, rmly ghten the lock nuts with a spanner against the housing.

CONNECTING THE WATER SUPPLY HOSE

WARNING! To prevent leakage or water damage, follow the instrucons in this chapter.

• Make sure not to kink, crush or modify the water supply hose.

Tighten the water supply hose by hand, rmly enough for the hose to have a good seal. Aer connecng the hose, the seal must be checked for any leaks. Do not use pliers or similar tools when connecng the water supply hose as this could damage the nut thread.

1. Connect the water supply hose to the water inlet valve on the back of

2. Connect the other end of the water supply hose with the aqua stop to

a water tap with cold water.

• Make sure not to kink or protract the water discharge hose.

• Connect the water discharge hose properly, otherwise it could result in damage of water leakage. Feed the water discharge hose into a drain pipe, wash basin or oor drain. Be careful not to feed the water discharge hose to deep in the drain. Otherwise the waste water can not ow freely. The vercal distance from the oor to the end of the discharge hose may no more be than 100 cm and no less than 60 cm.

1. Put the water discharge hose in a oor drain. 2. Connect the water discharge hose to a drain pipe.

Max. 100 cm Min. 60 cm oor drain Max. 100 cm Max. 100 cm Min. 60 cmEN - 38 CONNECTING THE APPLIANCE TO THE POWER MAINS WARNING!• Before connecng the appliance to the power mains, wait for at least 2 hours unl it reaches room temperature. • Connect the appliance to a grounded power outlet. Aer installaon, the wall outlet must be freely accesible.The outlet must be ed with an earth contact (in compliance with the relevant regulaons). • Informaon on your appliance is indicated on the rang plate. WARNING!• Using an over-voltage protecon to protect the appliance in case of a lighng strike, is recommended. WARNING!• Do not connect the appliance to the power mains using an extension cord.

• Do not connect the appliance to an electrical outlet intended for an electric shaver or hair dryer.• Any repair and maintenance pertaining to safety or performance must be done by trained experts. • A damaged power cord may only be replaced by a person authorized by the manufacturer. OPERATION

CAUTION!• Before washing, please make sure the appliance is properly installed.

• Your appliance was thoroughly checked before it le the factory. To remove any residual water and to neutralize potenal odors, it’s recommended to clean your appliance before the rst use. To do so, please run the Coon programme at 90°C without laundry and detergent. See the chapter WASHING.

CALIBRATING THE APPLIANCE! It’s recommended to calibrate the appliance before using it, so that it provides the best performance. The appliance is able to detect the amount of laundry that is loaded in the drum. This funcon will opmize the appliance’s performance by minimizing energy and water consumpon, saving you money and me.Therefore it’s recommended to calibrate the appliance for the best use. 1. Remove all accessories from the drum and close the door. 2. Insert the mains plug to the power outlet. 3. Switch on the appliance to any programme and press TPM and START DELAY simultaneously for 3 seconds unl [t19] is displayed.4. Press to start the appliance. The drum will spin in order to calibrate it. 5. Wait ll the drum stops spinning and a [ random number ] is displayed.BEFORE EACH WASHING

• The ambient temperature of the appliance should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the appliance is installed under freezing condions, it should be transferred to a normal ambient temperature environment to ensure the water supply hose and the water discharge hose can unfreeze before use.
• Before each washing, sort your laundry by reading the wash labels and the detergent use instrucons. Use non-foaming or less-foaming detergent suitable for machine washing.

Check the care label Sort the laundry according to color and texle typeTurn the pockets inside out, making sure there are no items le insideTie any ribbons or belts and close buons and zippersPut small items and delicate clothing into a special laundry bagTurn easy-pilling and long-pile fabric inside out WARNING!• Do not wash clothes that have been cleaned, washed, soaked in or dabbed with combusble or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene or other ammable materials. • Washing single items may easily create big eccentricity and cause vibraons and noise due to unbalance.Therefore it is suggested to add one or two more laundry items to the wash so that spinning can be done smoothly.

NOTE!• Addional detergent needs to be added in compartment I if the pre-wash funcon is selected.

Select a programme Press Start/Pause to start the programSelect sengs and/or addional funcons

AFTER WASHING When the program is nished and the appliance is ready, a buzzer will sound and on the display [ End ] appears for a few seconds before the display goes out. DISPENSER TRAY Pre-wash Main washSoener

CAUTION!• Addional detergent needs to be added in compartment I if the pre-wash funcon is selected.• It is not necessary to add detergent for all programmes. Check the table below for more informaon. Programme I II

• Before adding hardened lumps of powder detergent or a thick stringy liquid detergent or addive into the dispenser tray, it can be diluted in some water before pouring it in, as this may clog the piping in the appliance and cause a water overow.
• Choose a suitable type of detergent, ng to the selected washing temperature and fabric, to get the maximum washing performance and a minimum of water and energy consumpon.• Add powder or liquid detergents according to the manufacturer’s instrucons, considering the washing temperature, washing program, how soiled the laundry is, and water hardness.Programme I II 40° Fine wash

TPM Spinning rate When needed, the spinning rate can be adjusted by pressing the SPEED buon. There are 7 sengs: 0 - 400 - 600 - 800 - 1000 - 1200 - 1400 [ --- - 400 - 600 - 800 - 10- - 12- - 14- ].

Temp °C 3 sec. Temperature When needed, the washing temperature can be adjusted by pressing the temperature buon. There are 6 sengs: Cold - 20°C - 30°C - 40°C - 60°C - 90°C [ -- -20°C-30°C-40°C-60°C-90°C ].

Startuitstel Start delay Use this funcon to start the washing cycle aer a certain amount of me has elapsed.

Was toevoegen3 sec. Start/pause buon Press the buon to start or pause the washing cycle. Adding wash 3 sec. Hold the buon for 3 seconds to add or remove wash. See the paragraph Adding Laundry for more informaon.

Hygiene Pro When this indicator is lit, the washing cycle includes Hygien Pro.

Pre Wash When this indicator light is lit, the pre wash funcon is added. Extra rinse When this indicator light is lit, the extra rinse funcon is added. Extra wash When this indicator light is lit, the extra wash funcon is added.

Child lock When this indicator light is lit, the child lock is acvated. Door lock When this indicator light is lit, the door of the appliance is locked and cannot be opened. Start delay When this indicator light is lit, the start delay funcon is acvated.

Display The display shows the sengs, esmated me remaining, opons and status messages for your appliance. The display will remain on during the cycle.

To turn the appliance o, turn the programme selector knob to the OFF posion.

Spinning rate When needed, the spinning rate can be adjusted by pressing the TPM buon. There are 7 sengs: 0 - 400 - 600 - 800 - 1000 - 1200 - 1400 [ --- - 400 - 600 - 800 - 10- - 12- - 14- ]. Temperature When needed, the washing temperature can be adjusted by pressing the temperature buon. There are 6 sengs: Cold - 20°C - 30°C - 40°C - 60°C - 90°C [ -- -20°C-30°C-40°C-60°C-90°C ]. Startuitstel Start delay Use this funcon to start the washing cycle aer a certain amount of me has elapsed. Proceed as follows:

1. Select a programme

2. Press the START DELAY buon to choose the delaying me. Set the hours by repeatedly pressing or holding

the START DELAY buon. It can be set from 0 up to 24 hours.

3. Press START /PAUSE buon to start the delay.

• When using the START DELAY, preferably use a washing powder instead of a liquid detergent. Canceling start delay To cancel the START DELAY funcon, press the START DELAY buon, before the washing programme is started, unl the display shows 0 H. Functie OTHER FUNCTIONS Child lock This funcon is a safety feature and prevents children from misusing the control panel. To acvate the child lock, proceed as follows:

• Press the START DELAY and FUNCTION buon simultaneously for 3 seconds unl the buzzer beeps. The child lock indicator switches on, the display will alternately show [ CL ] and the remaining me, when the appliance is running a washing programme. Deacvang the child lock

• Press the START DELAY and FUNCTION buon simultaneously for 3 seconds unl the buzzer beeps. The child lock indicator switches o.

CAUTION! When the CHILD LOCK is acvated, the display will alternately show [ CL ] and the remaining me, when the appliance is running a washing programme. Pressing any buon will cause the CHILD LOCK indicator to ash for 3 seconds. When the programme ends, [ CL ] and [ END ] will alternate on the display for 10 seconds, then the indicator will ash for 3 seconds. The Child lock deacvates the funcon of all buons except the on/o knob and the child lock buon combinaon! Only the simultaneous pressing of the two buons START DELAY and FUNCTION can deacvate the child lock. Please deacvate the child lock before selecng a new programme! Pre-wash Before the main washing cycle starts, the laundry will be extra washed to increase the washing performance. Parcularly suitable for heavily soiled laundry with stubborn supercial stains. Note: Don’t forget to also add detergent to compartment I. Extra rinse The laundry will undergo an extra rinse aer selecng this funcon. Extra wash The washing me and intensity are increased for a beer cleaning eect of heavily soiled laundry. Temp °C 3 sec. EN - 42Hygiene Pro Hygiene Pro is not an addional funcon you can choose. It is automacally added to some programmes and the indicator will light up if one of the programmes is selected which include Hygiene Pro. Hygiene Pro cleans your drum and the glass of the inner door with cold water at the end of the washing cycle. This self-clean funcon keeps your appliance and laundry clean and will be automacally acvated during the washing cycle. Check the chapter SELECTING ADDITIONAL FUNCTIONS to see which programmes include the Hygiene Pro funcon. Was toevoegen 3 sec. Adding laundry It is possible to add or remove laundry during a washing cycle. Aer a certain period of me, the appliance door can be opened if the water level and temperature are below a predened threshold. If the condions below are met, then the electronic door lock is released and the appliance door can be opened:

• water temperature in the drum has to be suitable;

• water level in the drum has to be below a certain value.

CAUTION! When the drum is sll rolling and there is a large amount of water with high temperature in the drum, the state is unsafe and the door cannot be opened forcefully.

• Don’t use the ADDING LAUNDRY funcon when the water level is over the edge of the inner drum or when the water temperature is high. In order to add or remove laundry from the drum during a washing cycle, proceed as follows:

1. Press the START PAUSE buon for 3 seconds.

2. Wait unl the drums stops rotang.

3. The door will unlock.

4. Open the door and add or remove the laundry.

5. Close the door and press the START PAUSE buon. The washing cycle will resume.

• If a considerable amount of laundry is added during the washing cycle, the laundry could be washed less eecvely, since the appliance inially sensed a lower weight of the laundry load and added a smaller amount of water. Insucient amount of water relave to the amount of laundry could also cause damage to the laundry (rubbing of dry laundry), and the washing me can be longer.

• The washing me will resume from the point at which the washing programme was interrupted. Temp °C 3 sec. Mung the buzzer The sound of the buzzer can be muted. Proceed as follows to mute the buzzer:

1. Choose any programme.

2. Press the TEMPERATURE buon for 3 seconds. The buzzer is mute.

2. Press the TEMPERATURE buon for 3 seconds. The buzzer is acvated again.

• Aer mung the buzzer funcon, be aware that there are no sounds acvated anymore. Display The display shows the sengs, esmated me remaining, spinning rate, temperature, start delay, opons and status messages for your appliance. The display will remain on during the cycle. Wash me Start delay End Spinning rate Temperature Error

Programme Max. load Programme descripon 40° Coon 8,0 kg Washing programme for normally or heavily soiled laundry, white or coloured. The temperature can be set separately; therfore, observe the instrucons indicated on the clothing. Spinning rate and temperature can be set to your preference. 40° Synthec 4,0 kg Washing programme for synthec clothes, for example: shirts, coats or blending. While washing knied texles, reduce the detergent quanty, as it will easily form bubbles due to its loose thread construcon. Spinning rate and temperature can be set to your preference. 40° Mix 8,0 kg Washing programme for clothing made of mixed bres or viscose and coon. Spinning rate and temperature can be set to your preference. 20° Delicate 4,0 kg 20°C is the default temperature. Cold water is also an opon. Can be used for washing silk or garments that require manual washing. Spinning rate can be set to your preference. 40° Sportswear 4,0 kg Washing programme for slightly soiled sportswear made of coon, microbres and synthec bres, at lower spinning rates. Spinning rate and temperature can be set to your preference. 60° Allergy 8,0 kg Washing programme used to wash normal to heavily soiled clothes that require special care, such as clothes for people with highly sensive skin or skin allergies. It is recommended to turn the clothing inside out, as this will thoroughly wash out skin or other residues. Spinning rate and temperature can be set to your preference. 60° Jeans 8,0 kg Special programme for jeans. Spinning rate and temperature can be set to your preference. 40° Fine wash 2,0 kg Washing programme for delicate clothing made of mixed bres or viscose and coon which should be washed with care. Spinning rate and temperature can be set to your preference. 15 Min. Short 15° 2,0 kg Extra short washing programme suitable for a small amount of lightly soiled clothes. Spinning rate can not be changed. 40° Intensive 8,0 kg To increase the washing eects, the washing me will be increased. Spinning rate and temperature can be set to your preference. ECO 40-60 2,0 kg Washing programme, which is able to clean normally soiled coon laundry which can be washed at 40°C or 60°C, according to the care label. Spinning rate and temperature can not be changed. 40° Wool 2,0 kg Gentle washing programme for washing wool. Spinning rate and temperature can be set to your preference. 40° Bed linen 8,0 kg Washing programma specially designed for washing duvets. Spinning rate and temperature can be set to your preference. Spin & drain 8,0 kg Extra spin cycle with selected spinning rate. Spinning rate can be set to your preference. Rinse & spin 8,0 kg For an extra rinse cycle and spin. Spinning rate can be set to your preference . 1. The ECO 40-60 programme is able to clean normally soiled coon laundry declared to be washable at 40°C or 60°C, together in the same cycle. This programme is used to assess the compliance with the regulaon (EU) 2019/2023.

2. The most ecient programmes in terms of energy consumpon are generally those that perform at lowe temperatures and

3. Loading the household washing machine up to the capacity indicated for the respecve programmes will contribute to

energy and water savings. 4. Noise and remaining moisture content are inuenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

• If there is a power failure in the power supply while the appliance is operang, a special memory stores the selected programme. The appliance will connue the programme when the power supply is re-established. EN - 44EN - 45

SELECTING ADDITIONAL FUNCTIONS

An addional funcon can be added to the main washing programme before pressing the Start buon. Select a programme and then press the funcon buon to add one or more desired addional funcon(s). Defautlt temperature and programme Default spinning rate in rpm Delay Pre-wash Extra rinse Extra Wash 40° Coon 1400

• For the maximum spinning rate, programme me, and other details of the ECO 40-60 programme, and other details of the ECO 40-60 programme, please refer to the content on the Product Fiche page.

• The table shows which cycle oers which opons for adjustment.

• Adding an addional funcon will prolong the programme me.

• Keep pressing the funcon buon to make the desired selecon of addional funcons. Manual interrupon To stop and cancel a washing programme, press the START PAUSE buon and hold it for 3 seconds. Select the programme SPIN & DRAIN and press the START PAUSE buon. The appliance will run the programme and at the end of the programme, the appliance pumps the water out of the drum. When the water is pumped out, the door will be unlocked. PAUSE buon The washing programme can always be stopped by pressing the START PAUSE buon. The washing programme is temporarily paused when the me remaining unl programme compleon is ashing on the display unit. If there is no water in the drum and water temperature is not too high, then the door will unlock aer a certain period of me, and they can be opened. To resume the washing program, rst close the door and then press the START PAUSE buon. ERRORS In case of an error or fault, the programme will be interrupted. An acousc signal will warn about such occurrence and the error will be ashing on the display [ E:XX ]. See the TROUBLESHOOTING TABLE for more informaon. Power supply failure The washing programme can always be stopped by pressing the START PAUSE buon. The washing programme is temporarily paused when the me remaining unl programme compleon is ashing on the display unit. If there is no water in the drum and water temperature is not too high, then the door will unlock aer a certain period of me, and they can be opened. To resume the washing program, rst close the door and then press the START PAUSE buon.• PROGRAMME DURATION / TEMPERATURE / SPINNING RATE TABLE Programme Max. load Default

• CLEANING AND CARE WARNING!• Always unplug the appliance and close the water tap before cleaning and maintenance. CLEANING THE EXTERIOR OF THE APPLIANCEProper maintenance on the appliance can extend its useful life. Clean the appliances exterior and control panel using a so damp cloth and water. If necessary, a diluted non-abrasive neutral cleaning agent can be used to clean the appliance.

CAUTION!• Do not use abrasive or causc agents, formic acids or its diluted solvents or similar substances,like alcohol or chemical products that could damage the appliance. Please observe the recommendaons and warnings provided by the cleaning agent manufacturer.• If there is any water overow, use a cloth to wipe it o immediately. • Do not clean the appliance with a jet of water.• Do not use a sharp item to clean the appliance.CLEANING THE DRUMAny rust stains le inside the drum by metal arcles must be removed immediately using chlorine-free detergents. Do not use steel wool for cleaning the drum!

NOTE!• Keep laundry not near the appliance while cleaning the drum. • When you oen wash at 40°C or lower temperatures, or when you haven’t used the appliance for a longer period of me, clean the drum. Run the Coon programme at 90°C without laundry. Preferably use a powder detergent.CLEANING THE RUBBER DOOR GASKET AND THE GLASSWipe the glass and rubber door gasket aer each wash to remove lint and stains and to extend its useful life. If lint builds up, it can cause leakages. Check the rubber door gasket to remove any coins, buons or other objects aer each wash.Clean the rubber door gasket and the glass once a month to ensure normal operaon of the appliance.CLEANING THE INLET FILTER

NOTE!• A diminishing water ow is a sign that the inlet lter needs to be cleaned.• Cleaning the inlet lter every 3 months ensures normal operaon of the appliance. Cleaning the inlet lter in the water tap1. Close the water tap and remove the water supply hose.2. Clean the inlet lter with a brush under running water.3. Reconnect the water supply hose to the water tap. 1 2Cleaning the inlet lter at the back of the appliance

1. Close the water tap.

2. Unscrew the water supply hose from the back of the appliance.

3. Pull out the lter with a long nose plier and clean the lter using a brush

under running water.

4. Reinstall the lter to the water inlet and reconnect the water supply hose.

5. Open the water tap.

CLEANING THE DISPENSER TRAY

1. Open the dispenser tray and press down the release [ ] on the cover of

the soener compartment and pull the dispenser tray out of the recess.

2. Li the cover of the soener compartment of the dispenser tray. Wash

both items, the cover and the complete dispenser tray under running water. Make sure not to forget to clean the drain hole of the soener compartment and the openings at the boom of the dispenser tray.

3. Clean the inside of the recess with a brush.

4. Reinstall the cover of the soener compartment and push the dispenser tray

• Do not use abrasive or causc agents to clean plasc parts.

• Cleaning the dispenser tray every 3 months ensures normal operaon of the appliance.

CLEANING THE DRAIN PUMP FILTER

The pump lter can lter the yarns and small foreign maers from the washing. Especially aer washing eecy, woolly or very old laundry. WARNING!

• Unplug the appliance to avoid electrical shock before cleaning.

• Be careful of hot water!

• Allow detergent soluon to cool down.

• During cleaning, some water may be spilled. It is recommended to place an absorbent cloth on the oor.

Open the pump lter cap. Turn 90°, pull out the emergy discharge hose and remove the cap. When there’s no more water coming out, put the emergy discharge hose back. Open the pump lter by turning it counter clockwise. Clean the pump lter under running water. Remove any objects and impuries from the lter housing. Place the pump lter back and turn it clockwise to lock it. Close the pump lter cap.

• Never remove the pump lter cap during a washing cycle. Always wait unl the appliance has nished the cycle, and is empty.

• When the appliance is in use and depending on the selected programme, there can be hot water in the pump.

• When replacing the pump lter cap, ensure it is securely snapped in place. OPENING THE DOOR MANUALLY IN CASE OF A POWER OUTAGE - IN CASE OF A PROGRAMME PAUSE In case of a power outage during a washing cycle, the programme will resume aer the power is restored in most cases. If not, you can manually open the door and remove the laundry. WARNING!

• If there is sll water in the appliance aer a power outage, make sure not to open the door before you manually drain the water from the appliance via the pump lter (see the paragraph CLEANING THE DRAIN PUMP FILTER).

1. When the programme is paused or interrupted, open the pump lter cap.

2. The door of the appliance can only be opened by simultaneously pulling the special lever - next to the lter -

and the door handle.

3. Open the door manually by pulling the handle towards you.

• TROUBLE SHOOTING The appliance will automacally control the operaon of parcular funcons during the washing cycle. If any irregularity occurs, this will be idened by reporng (E:XX) on the display. The appliance will report the error unl it is switched o. Disturbances from the environment (e.g. the power grid) may result in various error reports. In such case:

• Switch o the appliance and wait for a few seconds.

• Switch the appliance on and repeat the washing programme.

• Most errors during operaon can be solved by the user.

• If the error persists, call the customer care service.

• Repairs may only be carried out by an adequately trained person.

• Repair or any warranty claim resulng from incorrect connecon or use of the appliance shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.

• The warranty does not cover the errors of failures resulng from disturbances from the environment (lighng strike, power grid failures, natural disasters etc. ).

TROUBLE SHOOTING TABLE

Descripon Possible cause What to do? The appliance does not start The door is not closed properly. Clothes are stuck. Close the door properly and restart. Check the laundry. The door can’t be opened The safety protecon is acvated. Disconnect the power and restart. The appliance does not ll with water. The water tap is not open. A shut-o system in the aquastop is acvated. The internal tube or the water supply hose is damaged. Open the water tap completely. When the aquastop is acitvated, it cuts the water supply o. The control glass on the aquastop will be red. Replace the water supply hose. Water leakage The connecons are not ght enough. Check and fasten the water supply hose. Check and clean the water discharge hose. Detergent residues in the dispenser tray The detergent is damp and/or cloed. Clean and wipe the dispenser tray dry. Indicator or display does not work PC board is not connected or harness has connecon problems. Switch o the power and check if the mains plug is connected properly. EN - 49Descripon Possible cause What to do? Abnormal noise The transport bolts are sll in place. The oor is not solid or level Check if the transport bolts have been removed. Make sure the appliance is installed on a solid and level oor.

Descripon Possible cause What to do? Water injecng problem during the wash cycle Check if the water pressure is high enough. Straighten the water supply hose. Clean the inlet lter. Water overow Restart the appliance. Overme water draining Check the water discharge hose for blockage. The door is not closed properly Close the door properly and restart. Others Restart the appliance. If the problem persists, please contact the customer service.

• CUSTOMER SERVICE Spare parts for your appliance are available for a minimum of 10 years. In case of quesons, please contact the customer service. WARNING! Risk of electric shock

• Never try to repair an appliance which is defecve or presumed to be defecve. You may put your own and future users’ lives in danger. Only authorised specialists are allowed to carry out this repair work.

• Improper repair will void the warranty and subsequent damages can’t be recognized! TRANSPORT

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water tap.

• Check, if the door and the dispenser tray are closed properly.

• Remove the water supply hose and the water discharge hose from the house installaons.

• Let the water drain completely from the appliance.

• IMPORTANT: Re-install the 4 transport bolts in the back of the appliance.

• The appliance is heavy. Transport with care. Never hold any protruding part of the appliance when liing. The door of the appliance cannot be used as a handle.

Fijne was 40° [Feinwäsche 40°] 800

Go to www.tomado.com/support to purchase accessories or spare parts. ORDERING ACCESSORIES A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instrucons and for the purpose for which it was made. Also the original proof of purchase must be submied, stang the date of purchase, the name of the retailer and the item number of the product. For extensive warranty informaon you are referred to our website: www.tomado.com/support WARRANTY CONDITIONS
