USER MANUAL DRR30980LAP Dacor

6. Attaching insulators on the side of the freezer or fridge 34

15. Preparing the Panel for Adjustment 46

18. Connecting the Water Line 52

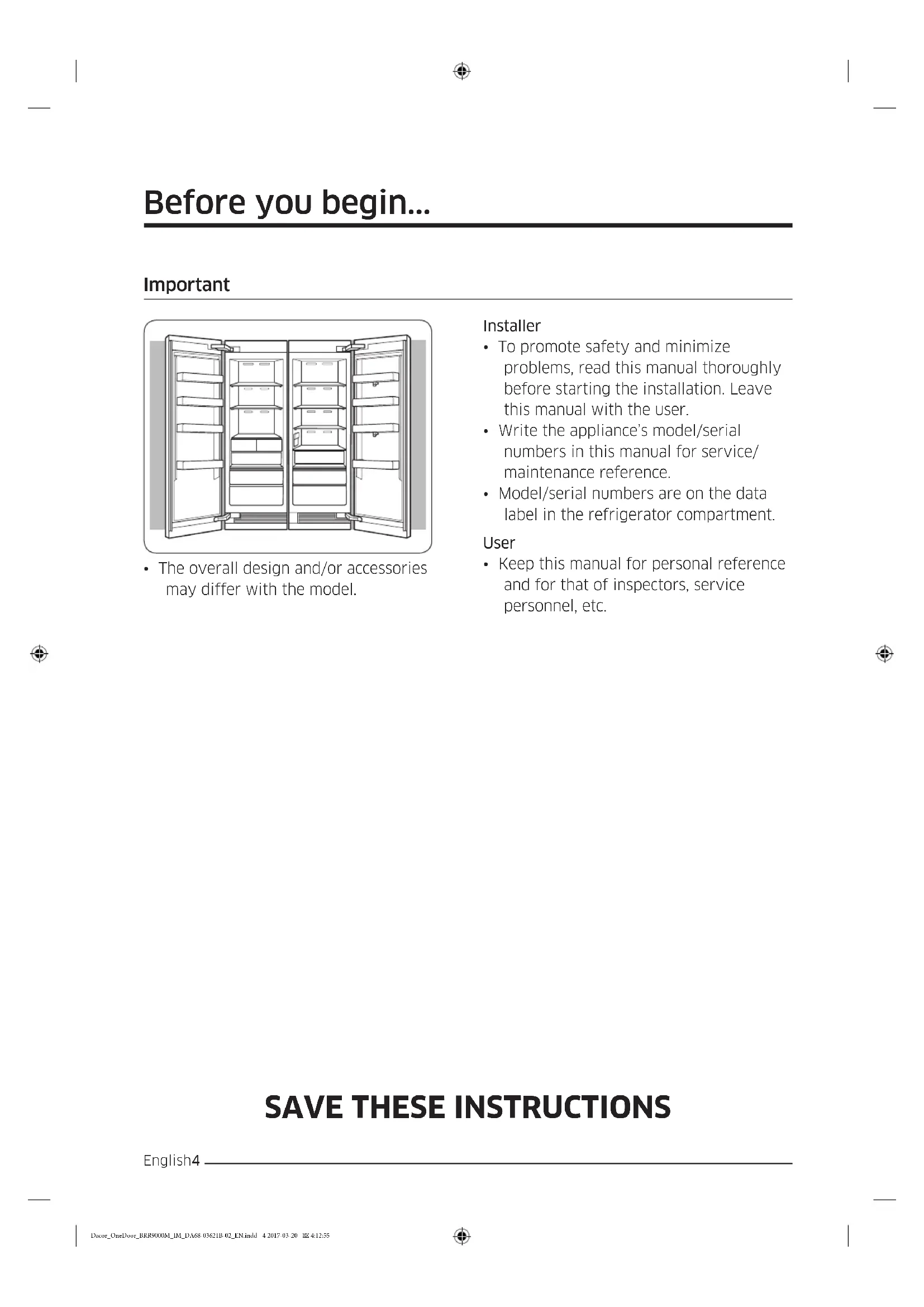

• The overall design and/or accessories may differ with the model. Installer

• To promote safety and minimize problems, read this manual thoroughly before starting the installation. Leave this manual with the user.

• Write the appliance’s model/serial numbers in this manual for service/ maintenance reference.

• Model/serial numbers are on the data label in the refrigerator compartment. User

• Keep this manual for personal reference and for that of inspectors, service personnel, etc. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 4 2017-03-20 4:12:55SAVE THESE INSTRUCTIONS English 5 Customer-Service Information If You Need Help... If you have questions or problems with installation, contact your Dacor® dealer or the Dacor Customer-Service team. If your Dacor appliance is under warranty, call Dacor Distinctive Service. Have the appliance’s model/serial numbers available when you call. (These numbers are on the data label on the right-hand door jamb inside the refrigerator.) Dacor Distinctive Service (repairs under warranty only) Phone: [phone] ex. 2822 (U.S.A. and Canada) Monday — Friday 6:00 a.m. to 4:00 p.m. Pacific Time Dacor Customer Service Phone: [phone] ex. 2813 (U.S.A. and Canada) Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time Web site: www.dacor.com All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications. © 2017 Dacor, all rights reserved. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 5 2017-03-20 4:12:55SAVE THESE INSTRUCTIONS English6 Important Safety Instructions The Important safety instructions and warnings in these instructions are not meant to cover all possible problems and conditions that can occur.Use common sense and caution when installing, maintaining, or operating this or any other appliance.Always contact the Dacor Customer Service Team about problems and conditions that you don’t understand. See Customer-Service Information. Safety symbols and labels These alerts are meant to bring attention to important areas in the manual.Whenever you see these symbols or labels, read the message carefully before continuing. DANGER Immediate hazards that WILL result in severe personal injury or death. WARNING Hazards or unsafe practices that COULD result in severe personal injury or death. CAUTION Hazards or unsafe practices that MIGHT result in minor personal injury or property damage. State of California Proposition 65 Warning (US only) WARNING : This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 6 2017-03-20 4:12:55SAVE THESE INSTRUCTIONS English 7 WARNING - R600a Refrigerant This appliance contains isobutane refrigerant, R600a, a natural gas with high environmental Compatibility. However it is also flammable. Please adhere to the warnings below :

• When handling, installing and operating the appliance, care should be taken to avoid damage to the refrigerant tubing.

• Servicing shall be performed by manufacture-authorized service personnel and component parts shall be replaced with manufacturer-authorized replacement components.

• Refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal.

• Keep ventilation openings in the appliance enclosures or in the built-in structure clear of obstruction.

• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft³ in size for every 8 g of R-600a refrigerant inside the appliance.

• The installation location should not be exposed to direct sunlight and not placed near any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc.

• If you use two products side by side, for safety reason, be sure to use certified products in explosive gas atmospheres.

• Do not use mechanical devices or other means to accelerate the defrosting process.

• Do not damage refrigerant circuit.

• Do not use electrical appliances inside the food storage compartment of the appliance. General Safety Precautions DANGER IMPORTANT: To prevent child entrapment and suffocation when discarding an old appliance:

• Take off the door(s).

• Leave the racks in place so children cannot easily climb inside.

• Cut the prongs off the power plug and discard them.

• Cut the power cable off and discard it separately from the old appliance. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 7 2017-03-20 4:12:56SAVE THESE INSTRUCTIONS Important safety instructions English8 To avoid the possibility of explosion or fire, do not store or use combustible, flammable or explosive vapors and liquids (such as gasoline) inside or in the vicinity of this or any other appliance. Also keep items that could explode, such as aerosol cans away from cooktop burners, ovens and range hoods. Do not store flammable or explosive materials in adjacent cabinets or areas. WARNING IMPORTANT: This appliance is equipped with a three-prong grounding electric plug for protection against possible electric shock hazards. It must be plugged into a dedicated, grounded, electrical outlet. If only a two-prong electrical outlet is available, it is the responsibility of the customer to have it replaced with a dedicated, properly grounded three-prong electrical outlet.

• Do not kink or pinch the power supply cord of the appliance.

• Never unplug the appliance by pulling on the power cord.

• Always grip the plug firmly and pull straight out from the electrical outlet.

• Disconnect this appliance when not in use.

• Do not install, repair, modify, or replace any part of the appliance unless specifically recommended in the literature accompanying it.

• A qualified service technician should perform all other service. DO NOT cut or remove the third (ground) prong from the power cord. DO NOT use an adapter plug. DO NOT use a power cord that is frayed or damaged. DO NOT connect the appliance to an extension cord. Keep the power cord away from heated surfaces. NOTE

• Use of an electrical outlet with a ground.

• Use of an electrical outlet with a ground fault interrupter (GFI) is not recommended. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 8 2017-03-20 4:12:56SAVE THESE INSTRUCTIONS English 9 WARNING To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precautions, including the following: If you receive a damaged product, immediately contact your dealer or builder. Do not install or use a damaged appliance. Make sure that this appliance has been properly installed according to these installation instructions. Make sure Install outlet locations according to electric supply location. Refrigeration equipment and refrigerants must be properly disposed of in a professional and appropriate way, in accordance with the current local regulations and laws which protect the environment. This applies to your old appliance and to your new unit once it has reached the end of its service life. DO NOT dispose of the appliance in a landfill or with urban waste. Contact local waste disposal centers for information on how to dispose of recyclable waste. Take care when handling, moving, using or disposing of the appliance to avoid damaging the refrigeration system. Do not install or use outdoors or in wet conditions. This appliance is not designed for installation in a recreational vehicle or boat. Keep packaging materials away from children. Plastic sheets and bags can cause suffocation. Connect this appliance to a 115 V, 15 A. circuit that is controlled by a circuit breaker or fuse. This appliance should have its own separate grounded circuit. Do not kink or pinch the power supply cord of the appliance. Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the electrical outlet. Disconnect this appliance when not in use. Do not install, repair, modify, or replace any part of the appliance unless specifically recommended in the literature accompanying it. A qualified service technician should perform all other service. Before performing any type of service, switch power off at the circuit breaker panel. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 9 2017-03-20 4:12:56SAVE THESE INSTRUCTIONS Important safety instructions English10 This appliance is not intended for use by persons (including children) with reduced physical, sensory abilities, or lack of experience and knowledge, unless they are properly supervised by a person responsible for their safety. Children must be supervised for their safety. Never allow anyone, including children to sit, stand or climb on any part of the appliance, including the door. Doing so may cause damage, serious injury or death. If the power cord is damaged, it must be replaced by the manufacturer or a qualified service technician in order to avoid a safety hazard. Do not tamper with the controls. Clean this appliance regularly as instructed in the Care and Cleaning section of the User manual. Clean the ice bucket or drawer regularly. When the freezer is functioning, do not touch the inner stainless steel surfaces with wet or damp hands, since skin may stick to the very cold surfaces. Do not use any type of electrical equipment inside the refrigerator or freezer compartments. Do not obstruct any of the vents or openings on the appliance. To avoid risk of the appliance tipping over it is mandatory to secure the appliance to the wall by means of the two supplied anti-tip brackets. Use this appliance only for its intended purpose: the storage of food and beverages . It is not intended for commercial or industrial use. Be careful when installing electrical component box is damaged or not by the shock departure. Open and hold the handle when opening and closing the door. When you open and close the door, be careful not to put your hands in the doorway. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 10 2017-03-20 4:12:56English 11 Safety and warning information Installation safety Location and installation safety WARNING

• Before installing the refrigerator, connect it to a power outlet and turn the refrigerator ON to make sure the refrigerator is working.

• Choose a location away from the heat of a heater, boiler, or direct sunlight.

• Install the unit where air flows freely and where the refrigerator is well ventilated.

• Install the unit so that air flows unobstructed through the front air grill. If the air circulation is not ensured, it may interfere with the normal functioning of the product.

• Outside animals (rodents) can chew on the power cord and cause a fire; therefore, install the unit where there is no access to animals.

• If the cabinet is made of soft material (ex: plaster, etc.), it can have a weak structure and be damaged. Therefore, use a cabinet made of sturdy, strong material.

• Install the refrigerator with a team of at least 2 people.

• Refer to the dimensions of the cabinet and prepare the cabinet with good air circulation.

• Use cabinet that will not warp from product heat emissions or humidity from the opening and closing of the refrigerator. NOTE This refrigerator is a “built-in” style refrigerator, meaning that the refrigerator requires installation inside a recess in existing kitchen cabinetry. Before moving the refrigerator, clear the route to the location where it will be installed. Check all product dimensions and the tipping radius with any doorways, hallways, stairs, corners, etc., to ensure a clear passageway. WARNING Tip Hazard This appliance is relatively heavy on the top and prone to tip over when not securely installed. Keep doors taped closed until refrigerator is in its final position and ready to be secured in place. Use two or more people to move and install refrigerator. Failure to do so can result in death or serious injury. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 11 2017-03-20 4:12:56Safety and warning information English12 DANGER Explosion Risk Keep flammable materials and vapors - such as gasoline - away from the refrigerator. Failure to do so can result in death, explosion, or fire. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 12 2017-03-20 4:12:56English 13 Installation Specifications WARNING Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information. WARNING Electrical and grounding connections must comply with the applicable portions of the national electrical code and/or other local electrical codes. This appliance comes with an electrical cord with a three-prong grounding plug for a 115 Vac, 15 Amp. power supply. Plug it into a 115 Vac, three-prong, grounding electrical outlet only. Unless a whole house filtration system is installed, the provided water filter cartridge, should be installed according to the User manual. Turn OFF the ice maker using the ICE key whenever the water supply valve is turned off. The ICE key is lit when the ice maker is on. The appliance features a lighting system with high intensity LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 13 2017-03-20 4:12:56English14 Installation options There are many different installation options. These are limited only by the design of the kitchen. Individual appliance OK OK X Side-by-Side (Pair) OK X XX Individual appliances with partition Minimum thickness of the partition 5/8” (16 mm)

43 7/8” (1114 mm) 49 11/16” (1261 mm) 55 5/16” (1404 mm) 61 5/16” (1556 mm) Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 15 2017-03-20 4:12:57Product Specifications English16 Custom Panel Specifications Do not exceed the max load that the custom panel can endure. Before crafting the panel, check the strength of the panel’s material and the load of attachments to the panel. 18” 24” 30” 36” Custom Panel Maximum Weight (included handle) 132 lb (60 kg) 110 lb (50 kg) 88 lb (40 kg) 66 lb (30 kg) NOTE

• Custom Panel Maximum Weight (included handle) = Limit load of Hinge (242 lb) – Weight of door and load.

• Custom panel thickness is ¾” (19mm). Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 16 2017-03-20 4:12:57English 17 Handle Specifications HandleCustom panelAppliance door/drawer Handle Installation for Units with Custom Door Panels (Top View) Countersunk screw Before installing the custom panels, you must first install the door/drawer handles. With custom panel models, you have the advantage of being able to select a handle style that meets your own personal taste. Handles are not provided with custom panel models. Selected handle kits are available through your Dacor dealer. Dacor does not advise the use of single pull knobs. Most handle kits do not include the necessary mounting screws because screw length varies with panel thickness. The panel craftsman needs to select and purchase the required fasteners for the installation. The screw heads must be countersunk into the panel to prevent interference during depth adjustment. Attach the Dacor-provided handle WARNING Follow these instructions to attach the Dacor-provided handle. Otherwise, the handle may be damaged or malfunction.

1. Put the reinforced handle support on the rear of the door panel, and then put the

handle on the front of the door panel.

2. As shown, tighten the 4 screws on each of the upper and the lower sides of the handle.

Do not tighten them excessively. Panel Handle (PW) M4x16 4 ea Reinf Handle Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 17 2017-03-20 4:12:58English18 Installation WARNING Do not install the appliance:

• in an environment with dripping water. Appliance is very heavy : Refrigerator 24” approx. 377 Ib/171 kg Refrigerator 30” approx. 472 Ib/214 kg Refrigerator 36” approx. 567 Ib/257 kg Freezer 18” approx. 289 Ib/131 kg Freezer 24” approx. 386 Ib/175 kg Freezer 30” approx. 483 Ib/219 kg Freezer 36” approx. 580 Ib/263 kg Installation room The appliance should be installed in a dry, ventilated room. Secure installation The appliance is very heavy and has a tendency to tilt forwards when the appliance door is opened. Do not open the door until there is no possibility of the appliance tipping over. The most secure way to install the appliance is to use the supplied anti-tipping devices. Floor The subsurface must be level and even in order to ensure that the appliance is securely installed and works correctly. The subsurface must be made from a hard, non-flexible material to cover the weight of appliance. Aligning the appliance To ensure that the appliance functions correctly, it must be levelled properly. If the appliance is not level, water may flow out of the ice maker, ice cubes may be irregular or the doors may not close properly. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 18 2017-03-20 4:12:58English 19 Installation requirements Installation preparation Cabinet installation parts Using the table on next page, verify that all installation parts are present as you unpack the appliance.

A1 A2-1 A2-2 Check the installation parts when unpacking.

Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 19 2017-03-20 4:12:58Installation requirements English20 Door installation parts Using the table below, verify that all door-installation parts are present as you unpack the appliance.

Check the installation parts when unpacking.

Electric Screwdriver

Flat/Slot Head Screwdriver

Phillips Head Screwdriver

Combination Wrench 3/8” (10 mm), 1/2” (13 mm) 3/8” (10 mm), 1/2” (13 mm) Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 21 2017-03-20 4:13:01Installation requirements English22 Grounding the refrigerator CAUTION Electrical and grounding connections must comply with the applicable portions of the national electrical code and/or other local electrical codes. This appliance comes with an electrical cord with a three-prong grounding plug for a 115 Vac, 15 Amp. power supply. Plug it into a 115 Vac, three-prong, grounding electrical outlet only. DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE POWER CORD. DO NOT USE AN ADAPTER PLUG TO

CONNECT THE REFRIGERATOR TO A

2-PRONG OUTLET. DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE. WARNING Electric Shock Hazard Plug into a grounded, dedicated 3-prong outlet. Do not remove the ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electric shock. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 22 2017-03-20 4:13:01English 23 Water-pressure requirements A cold water supply with water pressure from 30 to 120 psi (207 to 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber. Water supply Water supply Reverse osmosis system 30-120 psi 30-120 psi40-60 psi Refrigerator Refrigerator Reverse osmosis system in the water supply IMPORTANT: The pressure of the water supply leaving a reverse osmosis system going to the refrigerator’s water inlet valve must be from 30 to 120 psi (207 to 827 kPa). The water pressure from the cold water supply to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa). Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 23 2017-03-20 4:13:01Installation requirements English24 Connecting to the main water supply Before connecting the refrigerator’s water line to the house’s main water supply, you need to familiarize yourself with the house’s plumbing layout.

1. Decide how best to use the plumbing layout. Then

2. Tap into the main water line while following these requirements:

- The installer must provide the 1/4-in (6.5 mm) water line and all fittings. - The water line must be long enough to provide slack to allow the refrigerator to be moved for floor cleaning and servicing, without the need to first disconnect the water line. - All new installations must meet local plumbing code requirements. - The water shutoff should be placed in the base cabinet on either side of the refrigerator or in some other easily accessible area. - If the water shut-off valve is placed in the back wall behind the refrigerator, it must be at an angle so that the water line is not kinked when the refrigerator is pushed into its final position. - Make sure the water supply pipe is within the range shown in the 1” illustrations. - The water hose is positioned within 1/2” from the back wall, and is withdrawn to the front along the gray-colored area in the figure above. The water hose must be taped on the floor. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 24 2017-03-20 4:13:01English 25 Cabinet special requirements

Electric supply location

• B : Includes the standard door panel thickness with 3/4”.

• Installation inside a cabinet of this width allows the refrigerator trim to be attached directly to the surrounding cabinets. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 25 2017-03-20 4:13:01English26 Installation instructions

1. Uncrating the Refrigerator

Check the appliance for transit damage. Do not install the appliance if it is visibly damaged. If in doubt, contact your dealer.

1. Remove the PP-banding, cardboard crate, EPS, and Pe-bag.

2. Remove the brackets from the pallet by unscrewing the bolts (five per bracket).

Unscrew the bolts10 eaM6x10 CAUTION Use caution not to damage the appliance when unloading it from the pallet.

3. As shown, insert the hand truck between the appliance and the wooden packing. While

tilting the appliance up to the rear, unload it from the wooden packing. Appliance BottomWooden PackingDacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 26 2017-03-20 4:13:02English 27

2. Moving the Refrigerator

WARNING The appliance is very heavy. When moving the refrigerator, all personnel must take care not to injure themselves or the appliance.

1. Secure the refrigerator to a suitable means of transport (preferably an appliance dolly),

and move the refrigerator near its installation cabinet.

2. Move and install with a minimum of two persons.

3. Be very careful to avoid floor damage. Delicate flooring should be protected with

plywood, hard cardboard, or similar material

4. Before moving the refrigerator, verify that it will fit through all door openings,

stairwells, and overhead obstructions.

• TIPPING HAZARD: The refrigerator is large, heavy, and tips easily when not secured. Always move the refrigerator in an upright position if possible. If not, move the refrigerator on its back. Secure the doors shut during transport. WARNING Be careful that electrical component box is not damaged when installing. OK (Recommended)

3. Installation preparation

Unpack installation materials and accessories. See the Installation preparation section on Installation Requirement chapter.

4. Attaching the anti-tip-bracket

WARNING To keep the unit from tipping forward, an anti-tip bracket must be installed. Before attaching the bracket, ensure that no electrical wiring or plumbing is in the area where the screws will penetrate. One such bracket per appliance is required. CAUTION Always wear safety glasses and other necessary protective devices or apparel when installing or working with anchors. Dacor does not recommend that you anchor the anti-tip bracket in light-weight masonry (e.g., block, brick) or in new, uncured concrete. Make sure the wall or the cabinet that the brackets are studded in has enough strength to withstand the safety load. M4x35 Wooden Wall Concrete Wall M4x35 ø6x30

1. Bracket height is measured from the

floor and depends on the cabinet height.

2. Attach the anti-tip brackets. Ensure the

screws hold the bracket tightly. The anti-tip brackets must extend at least 2” (50 mm) over the appliance to secure the appliance. If this minimum length cannot be observed for structural conditions it is possible to do this by fastening a spacer (wood) behind the anti-tip angle. For 36” models, place 2 anti-tip brackets at intervals and fix them with 3 screws per bracket on a wooden wall, or with 3 screws and 3 holder-locks per bracket on a concrete wall. For the other models, you can use one anti-tip bracket for the intended purpose. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 28 2017-03-20 4:13:02English 29 Appliance Cabinet Height For 36” models, use 2 anti-tip brackets. 2” (50)

2. Screws: Tighten all 3 screws on the

3. Push the product up against the rear

wall of the cabinet.

4. Spacer: If using the spacer, you must

follow the positioning specifications of the bracket (see the table above). CAUTION

• The height of the spacer must be calculated based on the depth of the cabinet.

• The spacer must be fixed separately from the cabinet. When installing the product into the cabinet Tape or Fixer Before positioning the product in the cabinet, plug in the power cord. Then, attach the power cord near the front of the cabinet opening using tape or fixer such as clip, pin, etc. After positioning the product inside the cabinet, make sure the power cord is positioned on the top of the product (as shown in the in the figure). Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 30 2017-03-20 4:13:03English 31

• Upper Door Cover: Loosen the screws, and remove the cover.

1. Remove the 4 screws fixing the Cap

inside of the Cap door. Wi-Fi A20

3. Disconnect housing connectors to

separate Upper Door Cover. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 32 2017-03-20 4:13:03English 33

• Kickplate : For side-by-side installation, remove the grill cover. This is not applicable for standalone installation.

1. Push open the water filter cover.

Remove the screws on side and remove grill cover. Kickplate

2. Remove the screws on both sides, and

remove the kickplate. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 33 2017-03-20 4:13:04Installation instructions English34

6. Attaching insulators on the side of the freezer or fridge

Attach 2 insulators each on both sides of the freezer or fridge as shown. Attach the insulators with covering the screws on the side chassis. insulator chassis Top View Side View Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 34 2017-03-20 4:13:04English 35

7. Side-by-side (Pair) Installation

Repositioning the Center Chassis Spacers

1. Remove the set’s center chassis spacer.

2. Re-attach the spacers 7/16 in. (10 mm) back from their original position (see graphic

below). Refrigerator Chassis Center Chassis Spacers 7/16” (10 mm) Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 35 2017-03-20 4:13:04Installation instructions English36 Attaching an insulator Attach an insulator on either one of the contacting surfaces. If a fridge and freezer are paired side-by-side, attach the insulator on the fridge.

1. Attach an big size insulator on either one of the contacting surfaces.

If a fridge and freezer are paired side-by-side, attach the insulator on the freezer with covering the screws on the side chassis.

2. Attach small insulators each on side of the freezer and fridge as shown with covering

the screws on the side chassis.

3. Align the insulator with the end of the center chassis spacer.

insulator chassis Freezer Freezer Top View Side View Fridge Fridge Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 36 2017-03-20 4:13:04English 37 Connecting the Two Chassis

1. Making the upper connection.

- Attach the rectangular bracket to the protruding tabs on the top of each chassis (see the graphic). - Attach the lever to connect the two chassis.

2. Making the lower connection.

- Insert the bracket in the groove at the bottom of the two chassis. - Attach the lever to connect the two chassis. Bracket Bracket Lever Lever Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 37 2017-03-20 4:13:04Installation instructions English38

8. Attaching the Refrigerator’s Top Cover

Light intensity sensor is attached to the top cover. Before attaching the top cover, first connect the light intensity sensor connector. Product top viewWire connectorsTop cover

1. Connect the light intensity sensor

connector. Connect the wires for electric parts from around the Auto Door Open kit, and then insert the wires in the rectangular pipe. CAUTION Be careful not to damage the wires.

2. To attach the top cover, fix the hooks in

the order of the numbers as shown in the figure. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 38 2017-03-20 4:13:04English 39

9. Moving the Refrigerator Into Its Enclosure

• According to the type of cabinet, a jig (positioning aid) can be used to align the refrigerator’s custom door panel with cabinet by marking vertical line on the cabinet. Jig (positioning aid) Overlay Frameless

• Position the cabinet side chassis to align with your vertical line. Overlay Type Frameless Type 1 1/2” (40 mm) Panel ready Top view Product Cabinet side chassis Cabinet side chassis 1 1/2” (40 mm) Panel ready Top view Product Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 39 2017-03-20 4:13:05Installation instructions English40 CAUTION As you push the refrigerator into its enclosure, take care not to damage the water line and power cord. The water hose must be fixed to the ground before pulled out to the front. Also, arrange the power cord behind the appliance to ensure that it is not stepped on or over. WARNING While moving the refrigerator, take care not to harm assisting personnel or the refrigerator itself.

1. Before moving the refrigerator, connect the power cord.

2. Place packaging cardboard or plywood in the refrigerator’s path to protect the flooring

while moving the appliance.

3. Carefully push the refrigerator into its enclosure.

4. Align the forward edge of the chassis spacer with the vertical line you marked on the

1. Using your drill and the bit shown

below, engage each of the refrigerator’s adjuster shafts in turn, and level the refrigerator. (CW , CCW )

2. Adjust the gap between the furniture

and Refrigerator top cover to 1/8 in. (3 mm). CAUTION The front and rear leveling legs have a maximum height adjustment of 3/4 in. (20 mm). If greater height is required, the installer may raise the refrigerator on a sheet of plywood or runners. Raising the refrigerator above 3/4 in. (20 mm) will damage the front and rear leveling components. Adjustable shaft (3/8”, 10 mm) Front Rear Jack type (height adjustment) Max 20 mm Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 41 2017-03-20 4:13:05Installation instructions English42

11. Securing the Refrigerator

Secure the refrigerator to its enclosure with (TH) M4x16 screws (6 screws per side, as shown in the graphic). Fixed location Panel ready Cabi (TH) M4x16 12 ea Cabinet side chassis Cabinet side chassis Top View Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 42 2017-03-20 4:13:05English 43

12. Attaching the Front-Panel Insulation

• Attach the insulation to the front of refrigerator door. (Ensure the mounting position is correct.)

1. Center the door panel and the insulation as shown in the graphic below.

2. Attach the insulation 4 in. (102 mm) from top of the door. (See the graphic.)

Attach the panel brackets to the top and bottom of the panel. Custom Panel: STS Drive 10 screws each to the top and bottom brackets as shown in the graphic. (The other holes on each side of the bracket are for a different application.) Screw Hole UPP : 10 ea / LOW : 10 ea (FH) M4x14 20 ea Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 43 2017-03-20 4:13:05Installation instructions English44 Custom Panel: Wood, Other

• The template informs you the position of the bracket and holes.

• Mark hole positions on every corner of the panel according to the template and drive the screws into the holes. Panel Template

LOW UPP : 10 ea / LOW : 10 ea (FH) M4x14 20 ea Custom Panel: Recessed Back, Other If, by the nature of its design, the panel cannot be attached at the center of the bracket, use the whichever suitable screw holes on the sides of the bracket to attach the panel. Screw Hole Front Back Screw 1/4” 3/4” Bracket UPP : 10 ea / LOW : 10 ea (FH) M4x14 20 ea Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 44 2017-03-20 4:13:06English 45

14. Hanging a Custom Panel

WARNING If you install a custom panel before fixing the appliance to the cabinet, the custom panel can tip over. To prevent this, you must follow the installation instructions.

• Hang the panel bracket on the height adjustment screw. (See the graphic.) Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 45 2017-03-20 4:13:06Installation instructions English46

15. Preparing the Panel for Adjustment

1. Fix the custom panel temporarily onto

the side of the door by tightening the screw in the center of the panel.

2. Loosen—but do not remove—the six screws on the side of the door so you can adjust

the custom panel vertically. Top View Panel Ready (PW) M4x16 12 ea Custom Panel Side Bracket Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 46 2017-03-20 4:13:06English 47

16. Aligning the Panel

There are two panel-adjustment mechanisms at the top and two at the bottom of the door. Adjust the panel so it aligns with the surrounding cabinetry. The gap between the cabinet and the panel must be:

• 1/8” (3 mm) on the side for single installation

• 3/16” (4 mm) on the side for pair installation 1/8” 1/8” 1/8” 1/8” 3/16” 3/16” 3/16” Top of the Door

1. Use the double-threaded bolts to align the door panel.

2. Engage a side screw (see the graphic) to shift the panel side to side.

3. Engage Screw 1 (see the graphic) to shift the panel forward/backward; engage Screw 2

to set the panel in place. Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 47 2017-03-20 4:13:06Installation instructions English48 Bottom of the Door

1. Engage a side screw (see the graphic) to shift the panel side to side.

2. Engage Screw 1 (see the graphic) to shift the panel forward/backward; engage Screw 2

to set the panel in place. M6x12 12 ea Screw 2 Screw 1 Side screw Panel-adjustment mechanisms Panel-Adjustment Mechanism Double-threaded bolt Each 12 screws per Door Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 48 2017-03-20 4:13:06English 49 Top of Door Up/Low Left/Right Front/Rear Bottom of Door Left/Right Front/Rear Attaching the Panel to the Door

1. Screw nuts snugly onto the double-threaded bolts.

1. See the figures below, and mount the housing onto the door.

2. Close the Wi-Fi module cover inside the upper door cover.

3. Drive the screws from the top (4 screws per set).

M5x16 4 ea Upper door coverUpper door cover

1. Attach the air guide to the lower door cover (2 screws per set).

2. Attach the lower door cover by driving the screws from the front (2 screws per set).

3. Attach the caps over the screw holes.

(FH) M4x14 2 ea Lower Door Cover Caps Lower Door Cover Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 51 2017-03-20 4:13:08Installation instructions English52

18. Connecting the Water Line

To prevent leaks and water damage, be careful not to kink the water line. After connecting the water hose on the floor, open the water valve in the rear of the appliance and check the connection of the water supply line and make sure there is no leak. There are several items you must purchase to complete this connection. You may find these items sold as a kit at your local hardware store. Copper Tubing

/4" plastic tubing Molded end (Bulb)

1. Remove the cap from the appliance connection.

2. Bend the water line according to the location of the connection on the appliance.

3. Slide the union nut and seal onto the water line.

4. With the open-end wrench, tighten the union nut, being careful not overtighten.

5. Open the shut-off valve and main water tap.

6. Check the connection on the shut-off valve and on the appliance for leaks.

7. Push the water line into the guard tube as far as possible.

• Drive the screws on both sides to attach the kickplate. M4x8 2 ea Kickplate Kickplate Attaching Toe kickplate

• The height of the product can be adjusted between 83 3/8” ~ 84 3/8”.

• If you want to use the provided Dacor toe kickplate (4”), note that it was designed for a product height of 83 7/8” and cabinet height of 84”.

• If you want to use a toe kickplate not provided by Dacor, adjust the height of the toe kickplate accordingly. Toe kickplate Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 53 2017-03-20 4:13:08Installation instructions English54

20. Attaching the Refrigerator Trim

1. Cabinet-side trim: Attach the trim between the refrigerator and the cabinet.

Top View Chassis spacer Cabinet- side trim

2. Door-side trim: Attach trim to the door’s side bracket.

Door-side trim Custom Panel

3. (Side-by-side installation only) Center trim: Attach the trim between the refrigerator

Attach the Trim Top Cover on the bottom of the Top Cover.

• For pair installation, cut to fit the Trim Top Cover width and attach.

22. Removing the Interior Packaging

Unpack EPS and tape.

23. Adjusting the door spring

Adjust the tension of the door spring according to the product size. With a star-head screwdriver, turn the adjusting screw. I = maximum spring tension 0 = no spring tension Dacor_OneDoor_BRR9000M_IM_DA68-03621B-02_EN.indd 55 2017-03-20 4:13:08Installation instructions English56

24. Adjusting the door Opening Angle

By factory default, the door opens by 115 degrees. You can use the limiter pin to adjust the opening angle down to 90 degrees, depending on the installation conditions. Limiter pin 115° 90°

Ensure the refrigerator functions properly and that the custom door panel aligns with the surrounding cabinetry. WARNING

• The following checklist should be completed by the installer to ensure that the refrigerator is safely and correctly installed, functions properly, and that no part of the installation has been overlooked.
