USER MANUAL DRW24980RAP Dacor

Installation Instructions Built-In Wine Cellar

1. Uncrating the Wine Cellar 26

6. Attaching Insulators on the Side of the Wine Cellar

- Single Installation 34

7. Attaching insulators on the side of the freezer or fridge or Wine Cellar

- Side-by-side (Pair) Installation 35

8. Connecting the Two Chassis 38

9. Adjusting the door Opening Angle 39

10. Moving the Wine Cellar Into Its Enclosure 40

18. Preparing the Panel for Adjustment 51

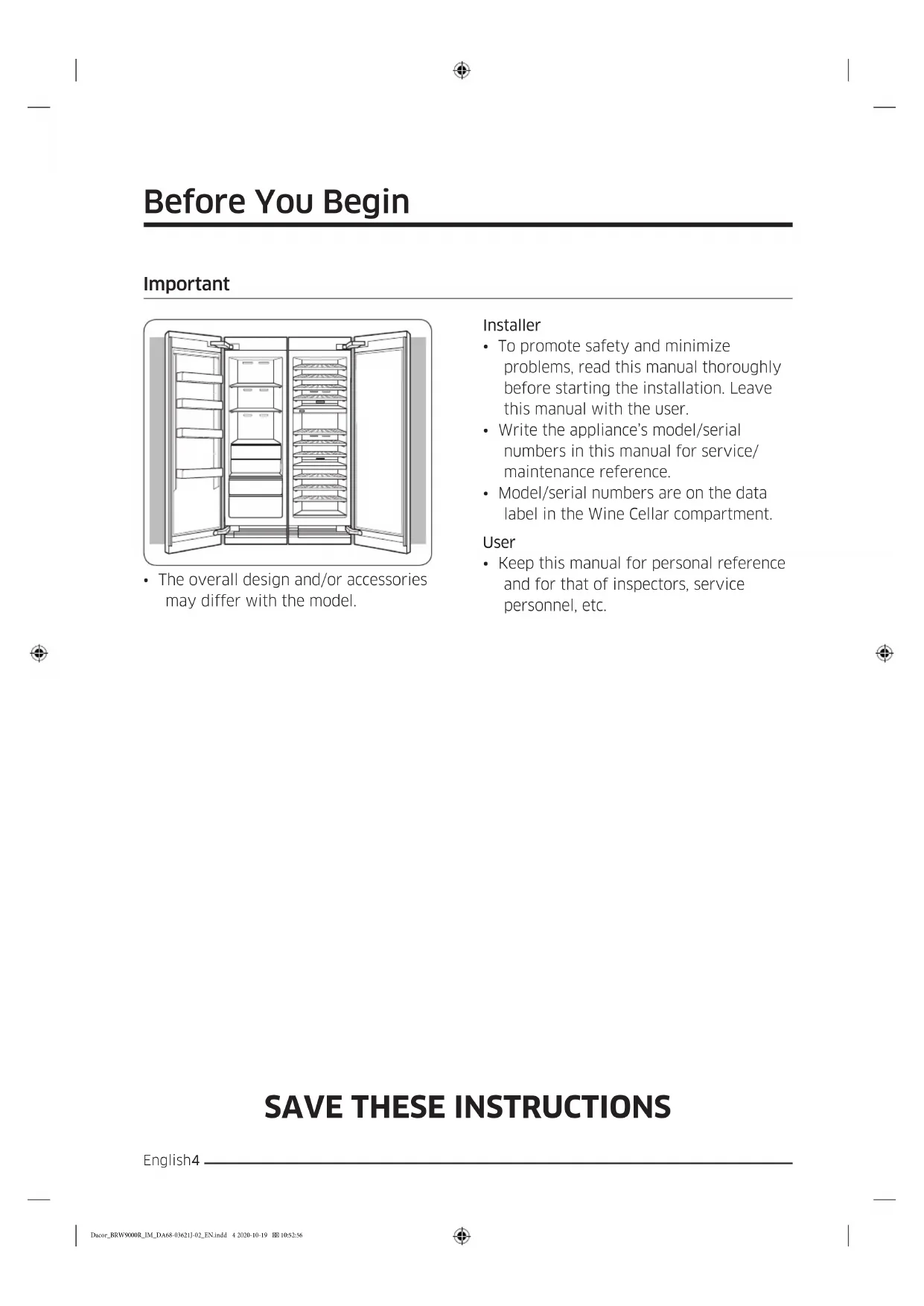

• The overall design and/or accessories may differ with the model. Installer

• To promote safety and minimize problems, read this manual thoroughly before starting the installation. Leave this manual with the user.

• Write the appliance’s model/serial numbers in this manual for service/ maintenance reference.

• Model/serial numbers are on the data label in the Wine Cellar compartment. User

• Keep this manual for personal reference and for that of inspectors, service personnel, etc. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 4 2020-10-19 10:52:56SAVE THESE INSTRUCTIONS English 5 Customer-Service Information If You Need Help If you have questions or problems with installation, contact your Dacor® dealer or the Dacor Customer Assurance Team. If your Dacor appliance is under warranty, call Dacor Distinctive Service. Have the appliance’s model/serial numbers available when you call. (These numbers are on the data label on the right-hand door jamb inside the refrigerator.) Dacor Customer Assurance Phone: 833-35-ELITE (833-353-5483) USA, Canada Mon – Fri 5:00 a.m. to 5:00 p.m. Pacific Time Website: www.dacor.com/customer-care/contact-us insert here: Product Information: knowledgebase.dacor.com All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications. © 2017 Dacor, all rights reserved. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 5 2020-10-19 10:52:56SAVE THESE INSTRUCTIONS English6 Important Safety Instructions The Important safety instructions and warnings in these instructions are not meant to cover all possible problems and conditions that can occur.Use common sense and caution when installing, maintaining, or operating this or any other appliance.Always contact the Dacor Customer Assurance Team about problems and conditions that you don’t understand. See Customer-Service Information. Safety symbols and labels These alerts are meant to bring attention to important areas in the manual.Whenever you see these symbols or labels, read the message carefully before continuing. DANGER Immediate hazards that WILL cause severe personal injury or death. WARNING Hazards or unsafe practices that MAY cause in severe personal injury or death. CAUTION Hazards or unsafe practices that MAY cause in minor personal injury or property damage. State of California Proposition 65 Warning (US only) WARNING : This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 6 2020-10-19 10:52:56SAVE THESE INSTRUCTIONS English 7 WARNING - R600a Refrigerant This appliance contains isobutane refrigerant, R600a, a natural gas with high environmental compatibility; however, it is also flammable. Please adhere to the warnings below

• When handling, installing and operating the appliance, care should be taken to avoid damage to the refrigerant tubing.

• Servicing shall be performed by manufacture-authorized service personnel and component parts shall be replaced with manufacturer-authorized replacement components.

• Refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal.

• Keep ventilation openings in the appliance enclosures or in the built-in structure clear of obstruction.

• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft³ in size for every 8 g of R-600a refrigerant inside the appliance.

• The installation location should not be exposed to direct sunlight and avoid placing near any electric appliances or heat source, e.g. stove, cooktop, oven, or radiator, etc.

• If you use two products side by side, for safety reason, be sure to use certified products in explosive gas atmospheres.

• Do not use mechanical devices or other means to accelerate the defrosting process.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartment of the appliance. General Safety Precautions DANGER IMPORTANT: To prevent child entrapment and suffocation when discarding an old appliance:

• Take off the door(s).

• Leave the racks in place so children cannot easily climb inside.

• Cut the prongs off the power plug and discard them.

• Cut the power cable off and discard it separately from the old appliance. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 7 2020-10-19 10:52:56SAVE THESE INSTRUCTIONS Important Safety Instructions English8 To avoid the possibility of explosion or fire, do not store or use combustible, flammable or explosive vapors and liquids (such as gasoline) inside or in the vicinity of this or any other appliance. Also keep items that could explode, such as aerosol cans away from cooktop burners, ovens and range hoods. Do not store flammable or explosive materials in adjacent cabinets or areas. WARNING IMPORTANT: This appliance is equipped with a three-prong grounding electric plug for protection against possible electric shock hazards. It must be plugged into a dedicated, grounded, electrical outlet. If only a two-prong electrical outlet is available, it is the responsibility of the customer to have it replaced with a dedicated, properly grounded three-prong electrical outlet.

• Do not kink or pinch the power supply cord of the appliance.

• Never unplug the appliance by pulling on the power cord.

• Always grip the plug firmly and pull straight out from the electrical outlet.

• Disconnect this appliance when not in use.

• Do not install, repair, modify, or replace any part of the appliance unless specifically recommended in the literature accompanying it.

• A qualified service technician should perform all other services. DO NOT cut or remove the third (ground) prong from the power cord. DO NOT use an adapter plug. DO NOT use a power cord that is frayed or damaged. DO NOT connect the appliance to an extension cord. Keep the power cord away from heated surfaces. NOTE

• Use of an electrical outlet with a ground.

• Use of an electrical outlet with a ground fault interrupter (GFI) is not recommended. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 8 2020-10-19 10:52:56SAVE THESE INSTRUCTIONS English 9 WARNING

• To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precautions, including the following:

• If you receive a damaged product, immediately contact your dealer or builder. Do not install or use a damaged appliance.

• Make sure that this appliance has been properly installed according to these installation instructions.

• Make sure to install in outlet locations according to electric supply location.

• Refrigeration equipment and refrigerants must be properly disposed of in a professional and appropriate way, in accordance with the current local regulations and laws which protect the environment. This applies to your old appliance and to your new unit once it has reached the end of its service life. DO NOT dispose of the appliance in a landfill or with urban waste. Contact local waste disposal centers for information on how to dispose of recyclable waste.

• Take care when handling, moving, using or disposing of the appliance to avoid damaging the refrigeration system.

• Do not install or use outdoors or in wet conditions. This appliance is not designed for installation in a recreational vehicle or boat.

• Keep packaging materials away from children. Plastic sheets and bags can cause suffocation.

• Connect this appliance to a 115 V, 15 A. circuit that is controlled by a circuit breaker or fuse. This appliance should have its own separate grounded circuit.

• Do not kink or pinch the power supply cord of the appliance. Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the electrical outlet.

• Disconnect this appliance when not in use.

• Do not install, repair, modify, or replace any part of the appliance unless specifically recommended in the literature accompanying it. A qualified service technician should perform all other services.

• Before performing any type of service, switch power off at the circuit breaker panel.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory abilities, or lack of experience and knowledge, unless they are properly supervised by a person responsible for their safety. Children must be supervised for their safety.

• Never allow anyone, including children to sit, stand or climb on any part of the appliance, including the door. Doing so may cause damage, serious injury or death. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 9 2020-10-19 10:52:57SAVE THESE INSTRUCTIONS Important Safety Instructions English10

• If the power cord is damaged, it must be replaced by the manufacturer or a qualified service technician in order to avoid a safety hazard. Do not tamper with the controls.

• Clean this appliance regularly as instructed in the Care and Cleaning section of the User manual. Clean the ice bucket or drawer regularly.

• When the freezer is functioning, do not touch the inner stainless steel surfaces with wet or damp hands, since skin may stick to the very cold surfaces.

• Do not use any type of electrical equipment inside the wine cellar compartments.

• Do not obstruct any of the vents or openings on the appliance.

• To avoid risk of the appliance tipping over it is mandatory to secure the appliance to the wall by means of the two supplied anti-tip brackets.

• Use this appliance only for its intended purpose: the storage of food and beverages. It is not intended for commercial or industrial use.

• Be careful when installing electrical component box is damaged or not by the shock departure.

• Hold the handle when opening and closing the door.

• When you open and close the door, be careful not to put your hands in the doorway. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 10 2020-10-19 10:52:57English 11 Safety and Warning Information Installation Safety WARNING

• Before installing the wine cellar, connect it to a power outlet and turn the wine cellar ON to make sure the wine cellar is working.

• Choose a location away from a heater, boiler, or direct sunlight.

• Install the unit where air flows freely and where the wine cellar is well ventilated.

• Install the unit so that air flows unobstructed through the front air grill. If the air circulation is not ensured, it may interfere with the normal functioning of the product.

• Outside animals (rodents) can chew on the power cord and cause a fire; therefore, install the unit where there is no access to animals.

• If the cabinet is made of soft material (ex: plaster, etc.), it can have a weak structure and be damaged. Therefore, use a cabinet made of sturdy, strong material.

• Install the wine cellar with a team of at least 2 people.

• Refer to the dimensions of the cabinet and prepare the cabinet with good air circulation.

• Use cabinet that will not warp from product heat emissions or humidity from the opening and closing of the wine cellar. NOTE This wine cellar is a “built-in” style wine cellar, meaning that the wine cellar requires installation inside a recess in existing kitchen cabinetry. Before moving the wine cellar, clear the route to the location where it will be installed. Check all product dimensions and the tipping radius with any doorways, hallways, stairs, corners, etc., to ensure a clear passageway. WARNING Tip Hazard This appliance is relatively heavy on the top and prone to tip over when not securely installed. Keep doors taped closed until wine cellar is in its final position and ready to be secured in place. Use two or more people to move and install wine cellar. Failure to do so can result in death or serious injury. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 11 2020-10-19 10:52:57Safety and Warning Information English12 DANGER Explosion Risk Keep flammable materials and vapors - such as gasoline - away from the wine cellar. Failure to do so can result in death, explosion, or fire. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 12 2020-10-19 10:52:57English 13 Installation Specifications WARNING Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information. WARNING Electrical and grounding connections must comply with the applicable portions of the national electrical code and/or other local electrical codes. This appliance comes with an electrical cord with a three-prong grounding plug for a 115 Vac, 15 Amp. power supply. Plug it into a 115 Vac, three-prong, grounding electrical outlet only. The appliance features a lighting system with high intensity LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 13 2020-10-19 10:52:57English14 Installation Options There are many different installation options. These are limited only by the design of the kitchen. Individual appliance OK OK X Side-by-Side (Pair) OK X XX Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 14 2020-10-19 10:52:57English 15 Individual appliances with partition NOTE

• The minimum thickness of the partition is 1 1/4” (32 mm).

• At 1 1/4” (32 mm), the door swings must open towards as case 1.

• At more than 1 9/16” (40 mm), the door swing can open same direction and door open angle is 90 degree as case 2. At more than 7 7/8” (200 mm), the door swing can open toward each other and door open angle is 90 degree as case 3. For this installation option it is recommend to install the 90 degree door stop. In order to minimize the partition thickness. If a 115 degree door opening angle is desired, Distance of “F” (16 page) for a partition thickness is recommended.

• Partition thickness is dependent on handle depth. Dimension above is acceptable for Dacor handles.

Case 1 Case 2 Case 3 All doors swings are recommended to be on the same side. The door swing of the individual column must open the same way as the door swing of the side-by-side. OKOK 1 1/4” (32 mm) 1 9/16” (40 mm) 1 9/16” (40 mm) 1 9/16” (40 mm) 7 7/8” (200 mm) 1 9/16” (40 mm) OK OK OK Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 15 2020-10-19 10:52:58English16 Product Specifications

9 3/8” (238.5 mm) Panel Thickness 3/4” (19 mm) Max Weight

Do not exceed the max load that the custom panel can endure. Before crafting the panel, check the strength of the panel’s material and the load of attachments to the panel. 24” Custom Panel Maximum Weight

• Standard Custom panel thickness is 3/4” (19 mm). Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 17 2020-10-19 10:52:58Product Specifications English18 Handle Specifications HandleCustom panelAppliance door/drawer Handle Installation for Units with Custom Door Panels (Top View) Countersunk screw Before installing the custom panels, you must first install the door/drawer handles. With custom panel models, you have the advantage of being able to select a handle style that meets your own personal taste. Handles are not provided with custom panel models. Selected handle kits are available through your Dacor dealer. Dacor does not advise the use of single pull knobs. The panel craftsman needs to select and purchase the required fasteners for the installation. The screw heads must be countersunk into the panel to prevent interference during depth adjustment. CAUTION We recommend installing a handle for a custom panel. Without the handle, you may catch your fingers in the door when opening or closing the door. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 18 2020-10-19 10:52:58English 19 Attach the Dacor Handle WARNING Follow these instructions to attach the Dacor handle. Otherwise, the handle may be damaged or malfunction.

1. Put the reinforced handle support on the rear of the door panel, and then put the

handle on the front of the door panel.

2. As shown, tighten the 4 screws on each of the upper and the lower sides of the handle.

Do not tighten them excessively. Panel Handle (PW) M4x16 4 ea Reinf Handle Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 19 2020-10-19 10:52:58English20 Installation WARNING Do not install the appliance:

• in an environment with dripping water. Appliance is very heavy : Wine Cellar 24” approx. 397 lb / 180 kg Installation room The appliance should be installed in a dry, ventilated room. Secure installation The appliance is very heavy and has a tendency to tilt forwards when the appliance door is opened. Do not open the door until there is no possibility of the appliance tipping over. The most secure way to install the appliance is to use the supplied anti-tipping devices. Floor The subsurface must be level and even in order to ensure that the appliance is securely installed and works correctly. The subsurface must be made from a hard, non-flexible material to cover the weight of appliance. Aligning the appliance To ensure that the appliance functions correctly, it must be levelled properly. Glass door When moving or installing the appliance, be careful not to damage the glass door. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 20 2020-10-19 10:52:58English 21 Installation Requirements Installation Preparation Cabinet installation parts Using the table on next page, verify that all installation parts are present as you unpack the appliance.

A2-1 A2-2 Check the installation parts when unpacking.

G Wine Rack 10 20 Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 21 2020-10-19 10:52:59Installation Requirements English22 Door installation parts Using the table below, verify that all door-installation parts are present as you unpack the appliance.

Check the installation parts when unpacking.

Electric Screwdriver

Flat/Slot Head Screwdriver

Phillips Head Screwdriver

Star Head Screwdriver

Combination Wrench 3/8” (10 mm), 1/2” (13 mm) 3/8” (10 mm), 1/2” (13 mm) Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 23 2020-10-19 10:53:02Installation Requirements English24 Grounding the Wine Cellar CAUTION Electrical and grounding connections must comply with the applicable portions of the national electrical code and/or other local electrical codes. This appliance comes with an electrical cord with a three-prong grounding plug for a 115 Vac, 15 Amp. power supply. Plug it into a 115 Vac, three-prong, grounding electrical outlet only. DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE POWER CORD. DO NOT USE AN ADAPTER PLUG TO

CONNECT THE WINE CELLAR TO A

2-PRONG OUTLET. DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE. WARNING Electric Shock Hazard Plug into a grounded, dedicated 3-prong outlet. Do not remove the ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electric shock. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 24 2020-10-19 10:53:02English 25 Cabinet Special Requirements

Electric supply location

• B : Includes the standard door panel thickness with 3/4”.

• Installation inside a cabinet of this width allows the wine cellar trim to be attached directly to the surrounding cabinets. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 25 2020-10-19 10:53:02English26 Installation Instructions

1. Uncrating the Wine Cellar

Check the appliance for transit damage. Do not install the appliance if it is visibly damaged. If in doubt, contact your dealer.

1. Remove the PP-banding, cardboard crate, EPS, and Pe-bag.

2. Remove the brackets from the pallet by unscrewing the bolts (five per bracket).

Unscrew the bolts10 eaM6x10 CAUTION Use caution not to damage the appliance when unloading it from the pallet.

3. As shown, insert the hand truck between the appliance and the wooden packing. While

tilting the appliance up to the rear, unload it from the wooden packing. Appliance BottomWooden PackingDacor_BRW9000R_IM_DA68-03621J-02_EN.indd 26 2020-10-19 10:53:03English 27

2. Moving the Wine Cellar

WARNING The appliance is very heavy. When moving the refrigerator, all personnel must take care not to injure themselves or the appliance.

1. Secure the refrigerator to a suitable means of transport (preferably an appliance dolly),

and move the refrigerator near its installation cabinet.

2. Move and install with a minimum of two persons.

3. Be very careful to avoid floor damage. Delicate flooring should be protected with

plywood, hard cardboard, or similar material.

4. Before moving the refrigerator, verify that it will fit through all door openings,

stairwells, and overhead obstructions.

• TIPPING HAZARD: The refrigerator is large, heavy, and tips easily when not secured. Always move the refrigerator in an upright position if possible. If not, move the refrigerator on its back. Secure the doors shut during transport. WARNING Be careful that electrical component box is not damaged when installing. OK (Recommended)

Unpack installation materials and accessories. See the Installation preparation section on Installation Requirement chapter.

4. Attaching the Anti-tip-Bracket

WARNING To keep the unit from tipping forward, an anti-tip bracket must be installed. Before attaching the bracket, ensure that no electrical wiring or plumbing is in the area where the screws will penetrate. One such bracket per appliance is required. CAUTION Always wear safety glasses and other necessary protective devices or apparel when installing or working with anchors. Dacor does not recommend that you anchor the anti-tip bracket in light-weight masonry (e.g., block, brick) or in new, uncured concrete. Make sure the wall or the cabinet that the brackets are studded in has enough strength to withstand the safety load. M4x35 Wooden Wall Concrete Wall M4x35 ø6x30

1. Bracket height is measured from the

floor and depends on the cabinet height. NOTE Bracket height = Cabinet height – 4 3/32” (104 mm)

2. Attach the anti-tip brackets. Ensure the

screws hold the bracket tightly. The anti-tip brackets must extend at least 2” (50 mm) over the appliance to secure the appliance. If this minimum length cannot be observed for structural conditions it is possible to do this by fastening a spacer (wood) behind the anti-tip angle. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 28 2020-10-19 10:53:04English 29 Appliance Cabinet Height For 36” models, use 2 anti-tip brackets. 2” (50)

2. Screws: Tighten all 3 screws on the

3. Push the product up against the rear

wall of the cabinet.

4. Spacer: If using the spacer, you must

follow the positioning specifications of the bracket (see the table above). CAUTION

• The height of the spacer must be calculated based on the depth of the cabinet.

• The spacer must be fixed separately from the cabinet. When installing the product into the cabinet Tape or Fixer Before positioning the product in the cabinet, plug in the power cord. Then, attach the power cord near the front of the cabinet opening using tape or fixer such as clip, pin, etc. After positioning the product inside the cabinet, make sure the power cord is positioned on the top of the product (as shown in the in the figure). Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 30 2020-10-19 10:53:05English 31

1. Remove the inner cover on the inner

part of the upper door cover.

3. Remove the 2 screws fixing the upper

door cover. Upper door cover FIXER

4. Remove the upper door cover from the

fixers. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 32 2020-10-19 10:53:06English 33

• Kickplate : For side-by-side installation, remove the grill cover. This is not applicable for standard one installation.

1. Push open the cover.Remove the

screws on side and remove grill cover. WARNING Do not use impact drill. Can cause damage. Kickplate

2. Remove the screws on both sides, and

remove the kickplate. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 33 2020-10-19 10:53:06Installation Instructions English34

6. Attaching Insulators on the Side of the Wine Cellar

- Single Installation Attach 2 insulators on any one side of the freezer or the fridge. Make sure that 36” models have two different-sized insulators. Check your model first, and then attach the insulators by referring to the figures below. Attach the insulators to cover the screws on the chassis spacers. Align the insulators with the end of the center chassis spacer. Rear Top View insulator chassis spacers Rear Rear Front Front Front 1/8” (3 mm)

18”/24”/30” 36” See the figures below for the layout after the insulator is attached. Side View Side View Side View

7. Attaching insulators on the side of the freezer or fridge or Wine Cellar

- Side-by-side (Pair) Installation Attach 2 insulators on any one side of the freezer or the fridge. The insulators are different in size according to the type. Check your model first, and then attach the insulators by referring to the figures below. Make sure a larger insulator is attached on the contact point. Attach the insulators to cover the screws on the chassis spacers. Align the insulators with the end of the center chassis spacer. When pairing is complete, the insulators may be visible. Product placement

1. When a freezer is on the left-hand side

See the figures below for the layout after the insulator is attached. Rear Top View 18”/24”/30”/36” 24”/30” 18”/24”/30”/36” 36” Front Fridge or Wine cellar Freezer Freezer Fridge or Wine cellar 1/4” (6 mm) 1/8” (3 mm) Side View Freezer Freezer Fridge or Wine cellar Fridge or Wine cellar Side View Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 35 2020-10-19 10:53:07Installation Instructions English36

2. When a freezer is on the right-hand side

See the figures below for the layout after the insulator is attached. Rear Top View 24”/30” 18”/24”/30”/36” 36” 18”/24”/30”/36” Front Freezer Fridge or Wine cellar Fridge or Wine cellar Freezer 1/4” (6 mm) 1/8” (3 mm) Side View Fridge or Wine cellar Fridge or Wine cellar Freezer Freezer Side View Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 36 2020-10-19 10:53:07English 37 Repositioning the Center Chassis Spacers

1. Remove the set’s center chassis spacer.

2. Re-attach the spacers 7/16 in. (10 mm) back from their original position (see graphic

below). Refrigerator Chassis Center Chassis Spacers 7/16” (10 mm) Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 37 2020-10-19 10:53:07Installation Instructions English38

8. Connecting the Two Chassis

1. Making the upper connection.

- Attach the rectangular bracket to the protruding tabs on the top of each chassis (see the graphic). - Attach the lever to connect the two chassis.

2. Making the lower connection.

- Insert the bracket in the groove at the bottom of the two chassis. - Attach the lever to connect the two chassis. Bracket Bracket Bracket Lever Lever Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 38 2020-10-19 10:53:08English 39

9. Adjusting the door Opening Angle

By factory default, the door opens by 115 degrees. You can use the limiter pin to adjust the opening angle down to 90 degrees, depending on the installation conditions.

• Open the door to less than 90 degrees, and then completely insert the limiter pin through the top and bottom holes of the top hinge as shown in illustrations (1) and (2).

• Close the door and make sure the limiter pin does not interfere with the hinge cover. CAUTION

• Insert the limiter pin before putting the refrigerator into the cabinet.

• If the limiter pin is not inserted completely, the hinge and the hinge cover may get damaged. Limiter pin Insert Completely 115° 90° 2/32” (2 mm) Factory default 115° With limiter pin 90° Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 39 2020-10-19 10:53:08Installation Instructions English40

10. Moving the Wine Cellar Into Its Enclosure

• According to the type of cabinet, a jig (positioning aid) can be used to align the refrigerator’s custom door panel with cabinet by marking vertical line on the cabinet. Jig (positioning aid)OverlayFrameless CAUTION Make sure to position the front of chassis spacer so that it is aligned with the vertical line. Otherwise, the installed refrigerator will tilt and its door may not close fully. In addition, auto door open system may not work normally. Overlay Type Frameless Type 1 1/2” (40 mm)Panel ready Top view Productchassis spacerschassis spacers1 1/2” (40 mm)Panel ready Top view ProductDacor_BRW9000R_IM_DA68-03621J-02_EN.indd 40 2020-10-19 10:53:08English 41 CAUTION As you push the wine cellar into its enclosure, take care not to damage the power cord. The water hose must be fixed to the ground before pulled out to the front. Also, arrange the power cord behind the appliance to ensure that it is not stepped on or over. WARNING While moving the wine cellar, take care not to harm assisting personnel or the refrigerator itself.

1. Before moving the wine cellar, connect the power cord.

2. Place packaging cardboard or plywood in the refrigerator’s path to protect the flooring

while moving the appliance.

3. Carefully push the wine cellar into its enclosure.

4. Align the forward edge of the chassis spacer with the vertical line you marked on the

• To facilitate leveling on the wine cellar, remove the top and bottom levers to unpair the chassis.

• To disassemble lower lever, use a screwdriver by force. Bracket Bracket Lever Lever Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 42 2020-10-19 10:53:09English 43

1. Using your drill and the bit shown

below, engage each of the refrigerator’s adjuster shafts in turn, and level the refrigerator. (CW , CCW )

2. Adjust the gap between the furniture

and Refrigerator top cover to 1/8 in. (3 mm). WARNING Do not use impact drill. Can cause damage. CAUTION

• The front and rear leveling legs have a maximum height adjustment of 3/4” (20 mm).

• To further raise the refrigerator, put the refrigerator on top of a sheet of plywood or runners.

• Raising the refrigerator above 3/4” (20 mm) will damage the front and rear leveling components.

• When pairing is complete, make sure to level both appliances simultaneously. Do not level them sequentially one after the other. Otherwise, the jack may not operate properly. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 43 2020-10-19 10:53:09Installation Instructions English44 Adjustable shaft (10 mm) Front Rear Jack type (height adjustment) Max 3/4”, 20 mm Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 44 2020-10-19 10:53:09English 45

14. Attaching the Wine Cellar’s Top Cover

The light intensity sensor is attached to the top cover. The wine cellar does not use the light intensity sensor, therefore do not connect the sensor connector. Product top viewWire connectorsTop cover

1. Connect the wires for electric parts

from around the Auto Door Open kit, and then insert the wires in the rectangular pipe. CAUTION Be careful not to damage the wires.

2. To attach the top cover, fix the hooks in

the order of the numbers as shown in the figure. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 46 2020-10-19 10:53:10English 47

15. Securing the Wine Cellar

Secure the refrigerator to its enclosure with (TH) M4x16 screws (6 screws per side, as shown in the graphic). CAUTION Make sure the appliance is level. If the appliance is not level, the wine rack may slide in or out. Fixed location Panel ready Cabi (TH) M4x16 12 ea chassis spacers chassis spacers Top View Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 47 2020-10-19 10:53:10Installation Instructions English48

16. Attaching the Custom-Door-Panel Brackets

Attach the panel brackets to the top and bottom of the panel. Custom Panel: STS Drive 10 screws each to the top and bottom brackets as shown in the graphic. (The other holes on each side of the bracket are for a different application.) Screw HoleUPP : 10 ea / LOW : 10 ea(FH) M4x14 20 ea Custom Panel: Wood, Other

• The template informs you the position of the bracket and holes.

• Mark hole positions on every corner of the panel according to the template and drive the screws into the holes. PanelTemplate

LOW UPP : 10 ea / LOW : 10 ea(FH) M4x14 20 eaDacor_BRW9000R_IM_DA68-03621J-02_EN.indd 48 2020-10-19 10:53:10English 49 Custom Panel: Recessed Back, Other If, by the nature of its design, the panel cannot be attached at the center of the bracket, use the whichever suitable screw holes on the sides of the bracket to attach the panel. Screw Hole Front Back Screw 1/4” 3/4” Bracket UPP : 10 ea / LOW : 10 ea (FH) M4x14 20 ea Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 49 2020-10-19 10:53:10Installation Instructions English50

17. Hanging a Custom Panel

WARNING If you install a custom panel before fixing the appliance to the cabinet, the custom panel can tip over. To prevent this, you must follow the installation instructions.

• Hang the panel bracket on the height adjustment screw. (See the graphic.) Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 50 2020-10-19 10:53:11English 51

18. Preparing the Panel for Adjustment

1. Fix the custom panel temporarily onto

the side of the door by tightening the screw in the center of the panel.

2. Loosen—but do not remove—the six screws on the side of the door so you can adjust

the custom panel vertically. Top View Panel Ready (PW) M4x16 12 ea Custom Panel Side Bracket Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 51 2020-10-19 10:53:11Installation Instructions English52

19. Aligning the Panel

NOTE Each custom panel comes with 12 dedicated screws for fine-tuning. Use a minimum number of screws to fine-tune the custom panel with the cabinet. Once fine-tuning is complete, fix the custom panel with the top nut. There are two panel-adjustment mechanisms at the top and two at the bottom of the door. Adjust the panel so it aligns with the surrounding cabinetry. The gap between the cabinet and the panel must be:

• 1/8” (3 mm) on the side for single installation

• 5/32” (4 mm) on the side for pair installation 1/8” 1/8” 1/8” 1/8” 5/32” 5/32” 5/32” Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 52 2020-10-19 10:53:11English 53 Glass Door Panel A B The gap between the glass door and the panel must be same on all sides (top, bottom, left, and right) or the difference should be no more than 2/32" (2 mm). (For example, if A is 2 mm, B should not exceed 4 mm.) Top of the Door

1. Use the double-threaded bolts to align the door panel.

2. Engage a side screw (see the graphic) to shift the panel side to side.

3. Engage Screw 1 (see the graphic) to shift the panel forward/backward; engage Screw 2

to set the panel in place. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 53 2020-10-19 10:53:11Installation Instructions English54

1. Engage Double Threaded Bolt (see the graphic) to shift the panel up and down.

2. Engage a side screw (see the graphic) to shift the panel side to side.

CAUTION Be careful not to damage the wires when fastening the side screw.

3. Engage Screw (backward) (see the graphic) to shift the panel forward/backward;

engage Screw (forward) to set the panel in place. M6x12 12 ea Screw (forward) Screw (backward) Side screw Panel-adjustment mechanisms Panel-Adjustment Mechanism Double-threaded bolt Each 12 screws per Door Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 54 2020-10-19 10:53:11English 55 Top of Door Up/Low Left/Right Front/Rear Bottom of Door Left/Right Front/Rear Attaching the Panel to the Door

1. Screw nuts snugly onto the double-threaded bolts.

2. Fasten the screws to assemble the panel and the door as shown in the figure.

1. Connect the humidity sensor connector,

and then arrange the wires as shown in the figure.

2. Assemble the inner cover.

Upper door coverFIXER

3. Insert both side rings of the door cap of

the upper door cover into the fixer. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 56 2020-10-19 10:53:13English 57 Upper door cover M5x16 2 ea Upper door cover

4. Fasten the 2 screws to fix the upper

door cover. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 57 2020-10-19 10:53:13Installation Instructions English58 Lower Door Cover

1. Attach the air guide to the lower door cover (2 screws per set).

2. Attach the lower door cover by driving the screws from the front (2 screws per set).

3. Attach the caps over the screw holes.

• Drive the screws tightly on both sides to attach the grill. Otherwise, the door may not close fully. Attaching kickplate

• Drive the screws on both sides to attach the kickplate. M4x8 2 ea Kickplate Kickplate Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 59 2020-10-19 10:53:13Installation Instructions English60 Attaching Toe kickplate

• The height of the product can be adjusted between 83 3/8” ~ 84 3/8”.

• If you want to use the provided Dacor toe kickplate (4”), note that it was designed for a product height of 83 7/8” and cabinet height of 84”.

• If you want to use a toe kickplate not provided by Dacor, adjust the height of the toe kickplate accordingly.

• You can extend the bracket to move the kickplate by a max of 32 mm to the front. Toe kickplate Grill cover Kickplate Grill cover BRACKET Kickplate Factory default 32 mm to the front Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 60 2020-10-19 10:53:13English 61

22. Attaching the Wine Cellar Trim

1. Cabinet-side trim: Attach the trim between the refrigerator and the cabinet.

WARNING Please check again if there is any problem after installation. Top View Chassis spacer Cabinet- side trim

2. Door-side trim: Attach trim to the door’s side bracket.

• Refer to figure 1- and secure the door side trim to the bracket. Make sure the trim is properly seated.

• Refer to figure 2- and secure the door side trim to the door cover rib. Make sure the trim is properly secured without any gap in between on both the top (figure 2-) and the bottom (figure 2-). WARNING Please check again if there is any problem after installation.

Bracket Bracket Door Side Trim Door Side Trim Door Cover Rib Upper door cover Lower door cover Door Side Trim Upper Lower Door Side Trim Figure 1 Figure 2 Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 61 2020-10-19 10:53:14Installation Instructions English62

3. (Side-by-side installation only) Center trim: Attach the trim between the refrigerator

chassis. WARNING Please check again if there is any problem after installation. Center trim

23. Attaching Trim Top Cover

Attach the Trim Top Cover on the bottom of the Top Cover.

• For pair installation, cut to fit the Trim Top Cover width and attach. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 62 2020-10-19 10:53:14English 63

24. Assembling the Wine Rack

1. Remove the packaging of the bottom

wine shelf, and then place it on the bottom of the wine cellar.

2. Remove the rail fixer.

Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 63 2020-10-19 10:53:14Installation Instructions English64

3. Hold the front part of the wine rack and

the rail, and then push the wine rack so that the hook on the back of the rail is inserted into the hole on the back of the wine rack as shown in the figure. NOTE Make sure the hooks on the both rails are properly inserted into the rack.

4. Fix the front part of the wine rack by

placing the rack on the front of the rail so that two pins on the top and side of the rack is inserted into the holes on the front part of the rack as shown in the figure. NOTE Make sure the pins on the both rails are properly inserted into the holes on the rack. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 64 2020-10-19 10:53:15English 65 Bottle Presenter 3 ea

5. Place 3 Bottle Presenter on the wine

rack of the Presentation Zone.

6. Slide in the wine rack until you hear a

clicking sound. Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 65 2020-10-19 10:53:15Installation Instructions English66 WARNING

• Make sure the appliance is level. If the appliance is not level, the wine rack may slide in or out.

• Make sure the wine rack is firmly fixed.

25. Disassembling the Wine Rack

1. Pull the wine rack.

2. Gently spread the racks and lift the

front part to release from the pins.

3. Pull the wine rack to remove.

Adjust the tension of the door spring according to the product size. With a star-head screwdriver, turn the adjusting screw. I = maximum spring tension 0 = no spring tension

Ensure the wine rack functions properly and that the custom door panel aligns with the surrounding cabinetry. WARNING

• The following checklist should be completed by the installer to ensure that the wine rack is safely and correctly installed, functions properly, and that no part of the installation has been overlooked.

• Proper installation is the responsibility of the homeowner. The importance of proper installation of your Dacor appliance cannot be overemphasized. Installation Checklist Has the unit been inspected for cosmetic damage? Is the unit properly aligned with the adjacent cabinets? Do all doors, drawers and shelves operate smoothly, without interference? Has all packaging, tape, and literature been removed from inside and outside of the appliance? Is the power cable connected to a three-prong grounded electrical outlet that meets the electrical specifications? Has the unit been properly leveled? Is the gap between the glass door and the panel appropriate? (Please refer to page 53.) Has the anti-tip bracket been properly installed? Has the auto door open system been function properly? Do all refrigerator components function properly? Has the warranty been activated on-line or the warranty card filled out and mailed? Is the appliance level? Is the wine rack firmly fixed? Have you demonstrated to the user how to assemble and disassemble the wine rack according to the user manual? Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 68 2020-10-19 10:53:16Memo Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 69 2020-10-19 10:53:16Memo Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 70 2020-10-19 10:53:16Memo Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 71 2020-10-19 10:53:16Dacor ∙ 14425 Clark Avenue, City of Industry, CA 91745 ∙ Phone: [phone] ∙ Fax: [phone] ∙ www.dacor.com DA68-03621J-02 Dacor_BRW9000R_IM_DA68-03621J-02_EN.indd 72 2020-10-19 10:53:16Instrucciones de instalación Cava incorporada
