Product type	Mini PTC heater
Brand	Korona
Model	60001
Rated power	1500 W
Minimum power	1000 W
Supply voltage	220-240 V ~ 50/60 Hz
Protection class	II
Operating modes	Fan only, low heat (I), high heat (II), high heat + oscillation
Temperature setting	Rotary thermostat
Oscillation	Yes (high heat + oscillation mode)
Tip-over safety	Yes, automatic shut-off if tipped over
Overheat safety	Yes, automatic cut-off in case of overheating
Temperature control type	Mechanical thermostat
Intended use	Domestic, indoor only
Safety distance to combustible materials	At least 1 m
Cleaning	Soft damp cloth, do not immerse
Storage	Clean and dry place, out of reach of children
Warranty	2 years
Customer service	[phone], [e-mail]
Weight	Not specified, approx. 1.5 kg (estimation for mini heater)
Dimensions	Not specified, approx. 20 x 15 x 25 cm (estimation)

Frequently Asked Questions - 60001 KORONA

How do I turn the Korona 60001 heater on and off?

Turn the function selector to the desired position: I for low heat, II for high heat, or the oscillation symbol for high heat with oscillation. To turn off, set the selector to O (Off) and unplug the appliance.

What are the available operating modes?

The appliance offers four modes: fan only (no heat), low heat (I), high heat (II), and high heat with oscillation (oscillation symbol). Use the function selector to choose.

How do I set the desired temperature?

Turn the thermostat knob (located on top or side) clockwise to increase temperature, counterclockwise to decrease. The thermostat adjusts heating based on room temperature.

What should I do if the appliance turns off by itself?

This may be due to tip-over safety (if the appliance was tipped over) or overheat safety. Right the appliance or let it cool down, then unplug and plug it back in after a few minutes.

Can I use this heater in a bathroom?

No, the appliance is designed for dry indoor use only. Do not use it near water (bathtub, shower, pool) to avoid the risk of electric shock.

How do I clean the mini PTC heater?

Turn off and unplug the appliance. Use a soft damp cloth to wipe the exterior. Never immerse the appliance in water and do not use abrasive or flammable products.

Can the appliance be used with an extension cord?

It is not recommended to use an extension cord. Plug the appliance directly into a properly installed wall outlet. If an extension cord is necessary, ensure it is suitable for the power (1500 W) and fully unwound.

What should I do if the power cord is damaged?

Do not use the appliance. Contact Korona customer service ([e-mail] or [phone]) for repair by a qualified person. Do not attempt to repair it yourself.

What is the warranty on the Korona 60001 heater?

The warranty is 2 years against defects in materials and workmanship. It does not cover damage from improper use or normal wear. Keep your receipt as proof of purchase.

How do I contact Korona after-sales service?

You can reach customer service by phone at [phone] or by email at [e-mail]. The website is www.korona-electric.de.

USER MANUAL 60001 KORONA

Close-up of a Korona electric heater with hexagonal grille and two control knobs (no visible text or symbols)

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Bedienungsanleitung

White ceramic power heater with hexagonal grid pattern and two control knobs, connected to a black electrical outlet (no visible text or symbols)

2

Close-up of a black industrial control panel with two rotary dials labeled 0 and 1, showing mechanical components (no readable text or symbols beyond labels)

2

- O : AUS

: Ventilator (Kaltluft)

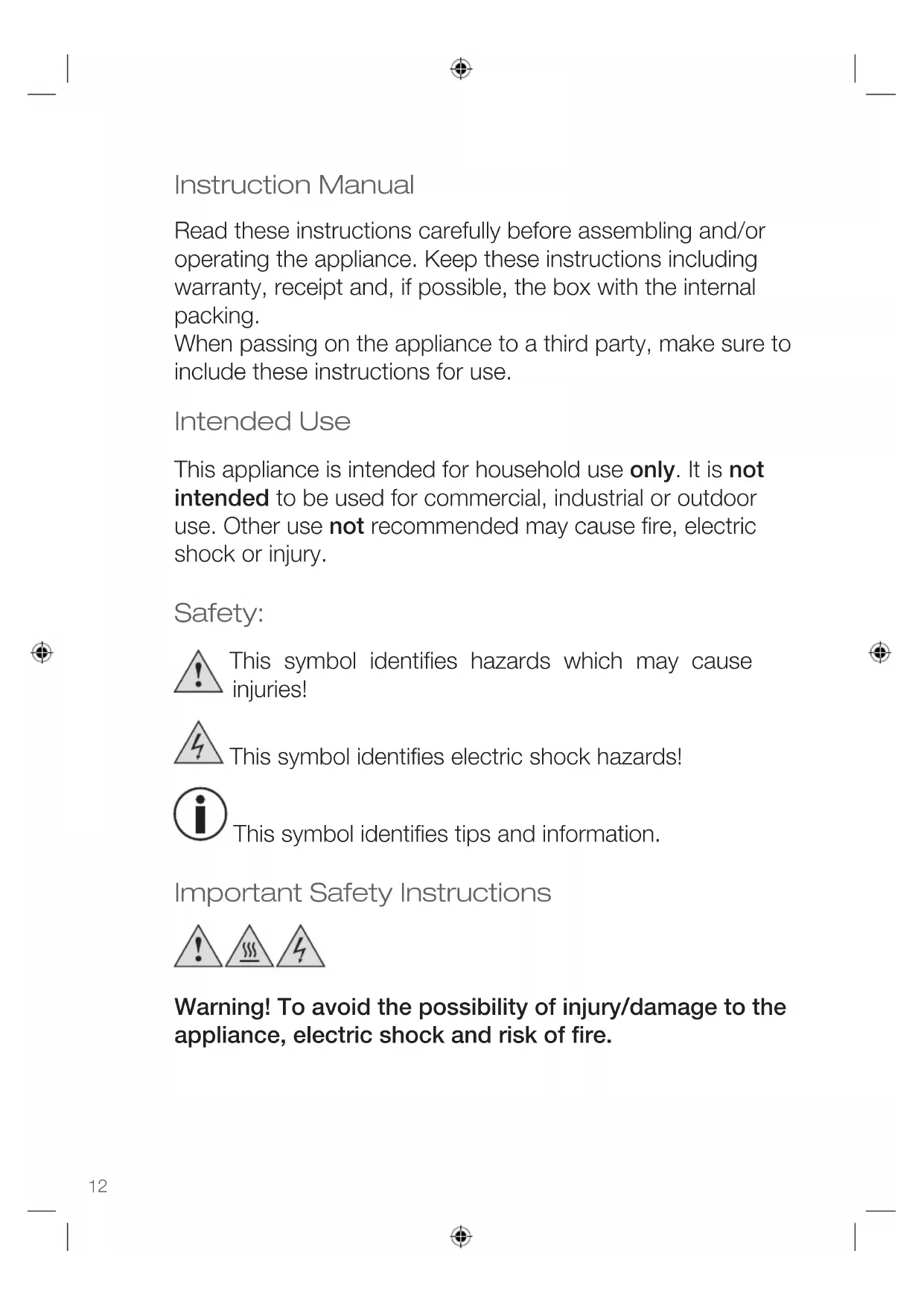

Read these instructions carefully before assembling and/or operating the appliance. Keep these instructions including warranty, receipt and, if possible, the box with the internal packing.

When passing on the appliance to a third party, make sure to include these instructions for use.

Intended Use

This appliance is intended for household use only. It is not intended to be used for commercial, industrial or outdoor use. Other use not recommended may cause fire, electric shock or injury.

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

This symbol identifies tips and information.

Important Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of fire.

Danger of injury and damage to the appliance!

• Only use the appliance for its intended purpose and as described in this manual, indoor use only.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.
• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Do not insert fingers or allow foreign objects to enter the grill / air outlet.

Do not cover the air outlets of the appliance.

- Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and / or immediately after operation. Danger of serious burns! Particular attention has to be given where children and vulnerable people are present.

• Do not use the appliance in areas where petrol, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.
• Do not place the appliance directly underneath a power socket.
• Do not move the appliance during operation.
• Position the unit at least 1m away from highly combustible materials such as furniture, trees, leaves, dry grass and bushes.
• Make sure the appliance is not placed near drapes, curtains, or any objects that may be drawn (including hair and clothes) into the appliance.

- Never place or operate the unit where it could be subject to:

• Uneven surfaces, to avoid the tipping of the appliance during use.
• Mechanical vibration or shock.
• Directly above or below an electrical socket.
• Excessive dust.
• Direct sunlight.
• Lack of ventilation

• Always turn OFF and unplug the appliance when not in use and / or when moving it from one location to another.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink, wash basin, hot tub, swimming pool and other similar locations where it could fall into water or get wet.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.
• Do not place the appliance close to an open window. Rain splashing on the heater could cause an electric shock hazard.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play

with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  • Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Do not run cord under carpeting. Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use.
• Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
- Only use accessories evaluated for use with this appliance.
- Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

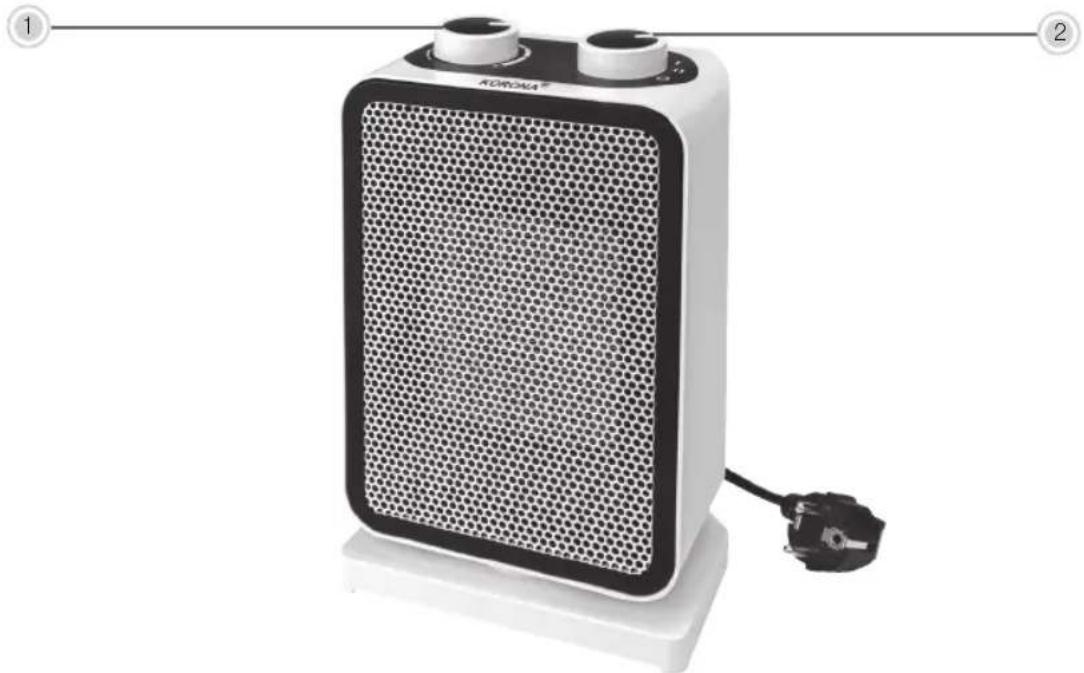

Product Description

1. Thermostat switch

- Rotate to adjust the heating temperature.

White portable electric heater with hexagonal grille and two control knobs, connected to a power outlet (no visible text or symbols)

2. Function switch

① ②

- O : Off

: Fan only

-1: Low heat
- II : High heat
- : High heat + Oscillation

Before first use

• Remove all packaging material and check whether the appliance is complete and that all accessories are included.
  • Fully unwind the power cord.
• Clean the appliance as described under Cleaning and Care.

If any items are damaged or missing, contact your dealer or customer service.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid

suffocation.

Operation

This appliance is only designed for indoor use. Make sure that it is not used over an extensive

period of time.

1. Place the heater on an even, dry and stable surface and plug it into a proper power socket.

Make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Adhere to a safety distance to walls and other objects.

1. Ensure the heater is set to 0 (OFF) before plugging it into a properly installed power socket.
2. Choose your desired function setting by turning the function switch to the respective symbol.

: Fan only

-1: Low heat
- II : High heat

: High heat + Oscillation

1. Choose your desired temperature setting by turning the thermostat switch direction.
2. After use, switch off (0-Position) the the appliance and unplug it.

into the respective

The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation.

Anti-tilt-switch

The heater is provided with an anti-tilt-switch which will switch off the heater if it is overturned, and will be switched on again automatically when it is restored to its upright position.

Never leave the appliance unattended during use.

Thermal safety cut-out

The appliance has a thermal safety device. In case of thermostat failure (overheating), the electrical circuit has an automatic cut-out, thus preventing overheating. If this should happen, disconnect the appliance from the mains.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains.

Never immerse the appliance in water. Danger! Electric Shock!

• Clean the appliance using a a soft damp cloth.
• Never spray the appliance with liquids or submerge it in water or other liquid.

After the cleaning process is finished make sure that all parts are dry.

Never use alcohol, gasoline, andwie/or any other aggressive cleaning agents/hard objects.

Cleaning and user maintenance shall not be made by children without supervision.

Storage

Keep the appliance away from children and store it in a clean and dry place, best in its original box or cover it to protect it from dust.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Mini PTC Heater 60001 is packed in a retail box. Such boxes are recyclable waste, i.e.

they are reusable or recyclable.

Technical Data

Voltage: 220 - 240 V \~ 50 - 60 Hz

Power: 1500 W

Protection class: II

Technical data subject to change!

NOTE: As a result of continual improvements, the design and specifications of the product within may differ slightly to the unit illustrated on the packaging.

Model identifier(s):
Item Symbol Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output Pnom 1.50 kW Manual heat charge control, with integrated thermostat
Minimum heat output (indicative)	Pmin 1.00 kW Manual heat charge control with room and/or outdoor temperature feedback
Maximum continuous heat output	Pmax,c 1.50 kW Electronic heat charge control with room and/or outdoor temperature feedback
Auxiliary electricity consumption				Fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A kW Single stage	heat output and no room temperature control		No
In standby mode	eISB	0	kW	Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	Yes
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	No
				With distance control option No
				With adaptive start control	No
				With working time limitation	No
				With black bulb sensor	No
Contact details			Korona electric GmbHHauptstrasse 16959846 Sundern

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a customer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Handleiding

White portable electric heater with hexagonal grille and two side handles, connected to a power outlet (no visible text or symbols)

White portable electric heater with hexagonal grille and two top ports, connected to a power outlet (no visible text or symbols)

White portable electric heater with hexagonal grille and two ports, connected to a power outlet (no visible text or symbols)

White portable electric heater with hexagonal grille and two ports, connected to a power outlet (no visible text or symbols)

White portable electric heater with hexagonal grille and two ports, connected to a power outlet (no visible text or symbols)

White portable electric heater with hexagonal grille and two ports, connected to a power outlet (no visible text or symbols)

White portable electric heater with hexagonal grille and two top ports, connected to a power outlet (no visible text or symbols)

2. Přepínač funkcí

① ②

• O : Vypnuto
• : Pouze ventilátor
• 1 : Nízké teplo
• II : Vysoké teplo
• : Vysoké teplo + oscilace

Abstract graphic with a QR code inside a curved gray arc and a crosshair symbol at the bottom right (no text or symbols)

Ref:60001/2022.3
