Product type	Electronic safe
Brand	Olymp
Model	GOsafe 5700
Main opening method	Numeric code (3 to 8 digits), emergency key
External dimensions (HxWxD)	700 x 500 x 490 mm
Internal dimensions (HxWxD)	560 x 360 x 330 mm
Weight	106 kg
Power supply	4 AA LR6 batteries (1.5 V)
Backup power supply	External battery compartment (included)
Number of emergency keys provided	3
Default code	159
Hidden code function	Yes (press CLEAR before entry)
Vibration alarm	Yes (activate by pressing 0 in standby)
Key tone deactivation	Yes (press CLEAR in standby)
Lockout after errors	5 failed attempts → alarm 30 s + lockout 210 s
Factory reset	Press reset button for 3-4 s (door open)
Cleaning	Soft, dry, lint-free cloth
Warranty	Return to point of sale with packaging and receipt
Manufacturer	GO Europe GmbH, Zum Kraftwerk 1, D-45527 Hattingen, Germany

Frequently Asked Questions - GOsafe 5700 Olymp

How to open the safe for the first time?

For first opening, use the emergency key: remove the cover, insert the key and turn it clockwise. Then turn the handle counterclockwise to open the door. The default code is 159.

How to change the user code?

Open the door, press the reset button once (you hear a beep). The keypad flashes. Enter a new 3 to 8-digit code, then press LOCK to confirm. Keep the door open until the test is complete.

What to do if the screen shows 'LO-BATTE'?

This means the batteries are low. Immediately replace the 4 AA LR6 batteries, respecting polarity. Use an external battery compartment if needed to open the door.

How to activate the vibration alarm?

In standby mode (screen off), press the 0 key. The alarm triggers on shock. To stop it, enter a code or use an emergency key.

What to do if I forgot the code?

Use the emergency key to open the door. Once inside, press the reset button for 3 to 4 seconds to restore factory settings. The code becomes 159 again.

How to disable key tones?

In standby mode (screen off), press the CLEAR key. The screen shows 'SOUND ON' or 'SOUND OFF' to confirm.

How many attempts before lockout?

After 5 consecutive incorrect code entries, an audible alarm sounds for 30 seconds and the keypad is locked for 210 seconds.

Can I use rechargeable batteries?

The safe requires 4 non-rechargeable AA LR6 batteries. Do not attempt to recharge non-rechargeable batteries. Use only the specified battery type.

How to clean the safe?

Use a soft, dry, lint-free cloth. Do not use cleaning products or solvents.

Where to find item numbers and model dimensions?

Refer to the technical data table in the manual. For the GOsafe 5700, the item number is 7132, external dimensions 700x500x490 mm and internal 560x360x330 mm.

USER MANUAL GOsafe 5700 Olymp

EN Operating instructions....9

Technical diagram of a fire safety cabinet with labeled components and internal compartments

Three circular icons showing different types of objects: a bag, a knife, and a finger (no text or symbols)

I. Correct

Diagram showing five-step illustration of a hand holding a knife, with circular arrows indicating steps from rectangular to rectangular shapes.

II. Incorrect

EN Operating instructions

The operating manual represents a component part of the device. It contains important information regarding safety, use and disposal. Familiarize yourself with all the operating and safety information before starting to use the device. Only use the device as described and for the purpose for which it is intended. Hand over all the documents with the device if it is transferred to third parties.

Overview

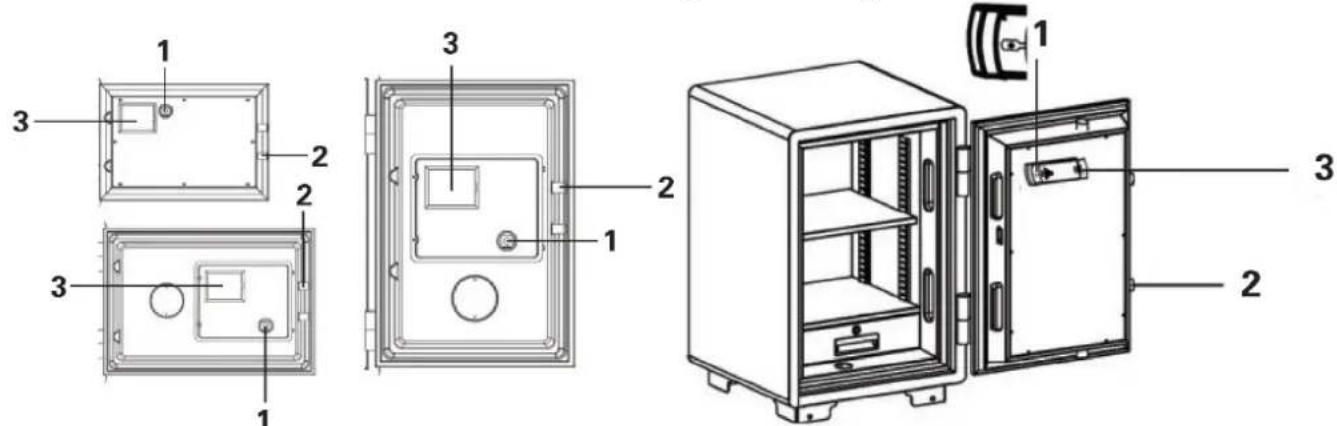

Schematic drawing of the housing

Technical diagram of a three-tiered storage unit with labeled components and internal compartments

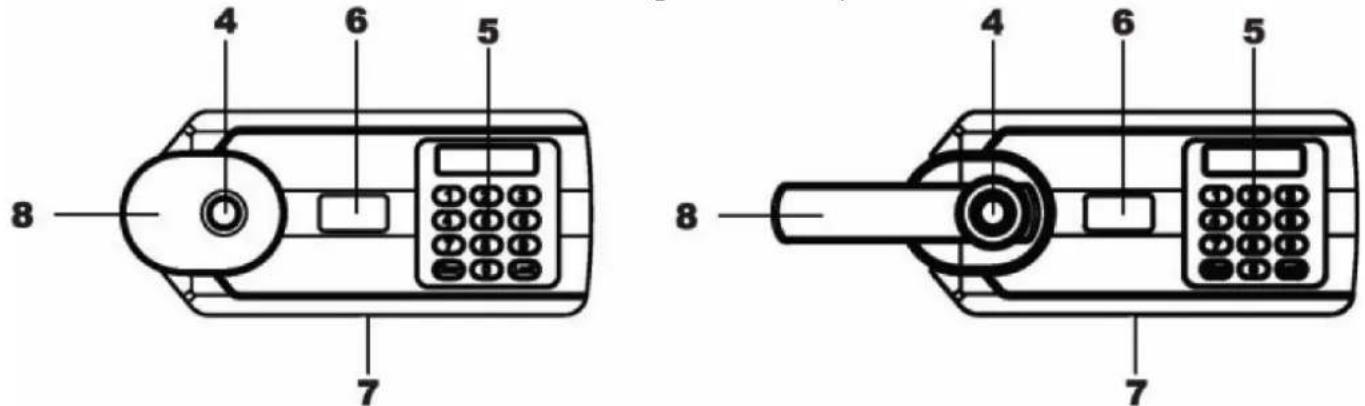

Schematic drawing of the control panel

4 6 5 8 7 4 6 5 8 7

1. Reset button
2. Bolts

3. Battery compartment

4. Fingerprint sensor (only for 5300FP series)

5. Keypad

6. Emergency lock cover

7. Connection for external
   battery box

8. Handle

Safety information regarding handling batteries

Warning! Risk of suffocation through batteries.

• Keep batteries out of reach of children.
• Seek medical attention immediately if one is swallowed.

Caution! There are different risks involved when dealing with batteries.

- Never attempt to recharge standard batteries, never short circuit batteries and/or open batteries. Doing so leads to a potential risk of overheating, fire or explosion.

- Improper handling of batteries/rechargeable batteries can endanger your health and the environment. Batteries/rechargeable batteries may contain toxic and environmentally harmful heavy metals (Cd = cadmium, Hg = mercury, Pb = lead). Therefore, hand in used batteries at a municipal collection point. Therefore, separate disposal and recycling of spent batteries is essential for the environment and health.

• Ensure the connection terminals are not short-circuited.
• Never throw batteries into a fire or water.

• Never expose batteries to any mechanical loads.

• Leaking batteries could cause damage to the device. If a battery should start to leak, remove it from the device immediately to prevent any further damage. Take the utmost care when handling damaged or leaking batteries and always wear protective gloves.

• Avoid any contact with the skin, eyes and mucous membranes. Rinse any parts of the body which have come into contact with battery acid with plenty of clean water and contact a doctor immediately. Avoid extreme conditions and temperatures which could affect the batteries, e.g. by placing them on radiators or exposing them to direct sunlight.
• Only use batteries of the type specified.
• Never use batteries of different types or new and old batteries together.
• Ensure batteries are inserted with the correct polarity.
  • If the device will not be used for a longer period, switch the device off and remove the batteries.
• Remove empty batteries from the device and dispose of them according to the applicable directives.
  • The batteries must be removed from the device before its disposal.
• You are legally obliged to dispose of batteries at your dealer or at the collection points provided by the responsible waste disposal authority.

Package Contents

Check the package contents of the safe before you actually use the safe. If anything is missing or damaged, contact our Service Department.

- 1x Safe

• 1x Emergency power supply

• 1x Instruction manual

- 3x Emergency keys

- 4x AA LR6 batteries

Setup

Open the safe for the first time / Open the safe with the emergency key:

Variant 1:

• Opening by external power supply
• Insert the batteries into the external battery box.
• Connect the external battery box to the safe interface (see "Schematic diagram of the control panel").
• Open safe with user code/fingerprint (only for 5300FP series)

Variant 2:

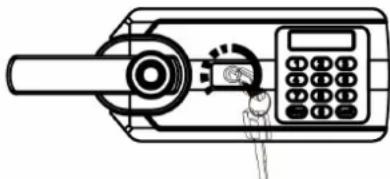

• Opening with emergency key
• Remove the cover of the emergency key.
• Insert the emergency key and turn the key clockwise.

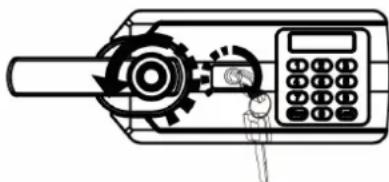

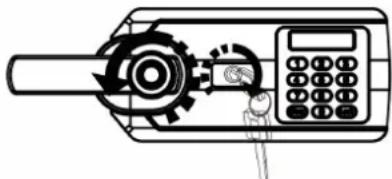

• Turn the handle anticlockwise to open the door.

Line drawing of a handheld device with a circular dial and a keypad (no text or symbols)

Line drawing of a hand holding a device next to a digital timer (no text or symbols)

Line drawing of a mechanical device with gears and a keypad (no text or symbols)

Line drawing of a hand holding a digital phone with keypad (no text or symbols)

Line drawing of a mechanical device with a rotary knob and control panel (no text or symbols)

Line drawing of a mechanical device with gears and a keypad (no text or symbols)

CAUTION: When finished, remove the emergency key and keep it in a safe place. !!!NOT IN THE SAFE!!!

Inserting the batteries

• Open the door and remove the battery cover.
• Insert 4 x AAL LR6 batteries into the battery compartment.
• Each time the batteries are inserted, the safe performs a self-test in which the display counts down from "9" to "0" and then shows "GOOD" at the end of the self-test, which means that the batteries are inserted correctly and the safe is working properly.

Low battery level

If the display shows "LO-BATTE", this means that the batteries have a low voltage and you should insert new batteries immediately.

Replace the batteries by arranging them as indicated by the "+" and "-" signs.

Removing the batteries

Follow the steps below to remove the batteries.

Remove the battery compartment cover.

Caution! Danger of short circuit.

- Remove batteries only with a non-conductive object, e.g. a wooden or plastic spatula.

Remove the batteries.

Replace the battery compartment cover.

Closing the door

When you close the door, the handle is automatically turned to the horizontal position. The safe is closed and locked.

ATTENTION: for GOsafe 5300 & 5300FP, GOsafe 5350 & 5350FP, GOsafe 5500 & 5500FP the handle must be turned clockwise (upwards) manually to close the door.

Open door with user code or master code

• Press the "LOCK" button to activate the safe.
• Enter the registered user code (3 to 8 digits).
• OPEN" appears on the display.
• Turn the handle counterclockwise (downwards) to open the door.

ATTENTION: The preset user code is "159".

Opening the door with fingerprint (only for 5300FP series)

• Press the fingerprint sensor on the control panel with the registered finger.
• OPEN" appears on the display.
• Turn the handle counterclockwise (downwards) to open the door.

ATTENTION: In factory setting mode, the door cannot be opened with a fingerprint!

Setting the user code

• Open the door and press the reset button once.
• You will hear a short beep.
  • You will see the display and the fingerprint scanner (only for 5300FP series) flash.
• Then enter a new user code (3 to 8 digits).
• Press "LOCK" to confirm.

ATTENTION: Please leave the door open until the test of the new code has been successfully completed!

Opening the door with a hidden user code

• Press "Lock" once to activate the safe.
• Then press "Clear" once before entering the code.
• As you enter the code, it disappears from the LCD display.

Setting the fingerprint (only for 5300FP series)

• Open the door and press the reset button once.
• You will hear a short beep.
  • You will see the display and the fingerprint scanner flashing.
• Place your finger on the fingerprint scanner and remove it.
• You will hear 1 beep.
• Repeat the fingerprint scanning process two more times.
  • Finally, you will hear 2 beeps and see the fingerprint scanner flash twice.
  • The new fingerprint has been successfully registered!

ATTENTION: A maximum of 100 fingerprints are supported!

Please use the same finger when registering fingerprints!

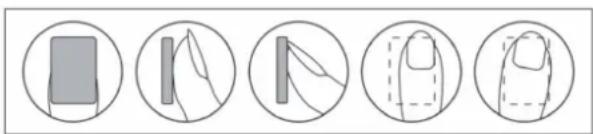

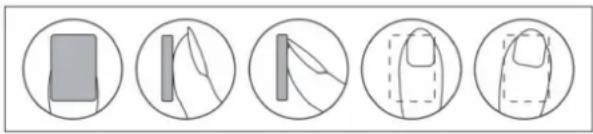

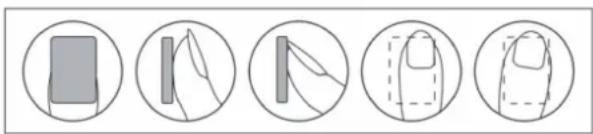

To improve the rate of correct finger identification, you can follow the advice below:

We recommend that each user register 2-3 fingerprints.

We recommend women and children to register with thumb and middle finger.

Try to press with even force.

In very dry weather, we recommend breathing on the fingers until they are a little wet.

Three circular icons showing different types of objects: a bag, a knife, and a bag (no text or symbols)

I. Correct

Diagram showing five-step illustration of a hand holding a rectangular object, with each step labeled by a different shape and line.

II. Incorrect

Alarm - Wrong code

If 5 consecutive incorrect code entries or 5 consecutive incorrect fingerprint (only for 5300FP series) entries are made, a warning tone sounds for 30 seconds. In the meantime, both the keypad and the fingerprint scanner (only for 5300FP series) are locked for 210 seconds.

Alarm - Shake alarm

• Press "0" while the unit is in sleep mode.
• Then the vibration alarm system is activated.
• You can stop the alarm by entering a password or fingerprint (only for 5300FP series).

Restoring the factory settings

• Open the safe.
• Press the reset button for 3-4 seconds.
• You will hear two beeps.
• The safe is reset to the factory settings.

In the factory settings, the user code is "1234" and the master code is "123456" and each fingerprint (only for 5300FP series) allows the safe to be opened.

ATTENTION: In the factory settings. The user code is "159" and no fingerprint (only for 5300FP series) allows the safe to be opened!

Turning the sound off/on

The key tone can be switched off and on by pressing the "CLEAR" key while the safe is in sleep mode (the display is off). The display shows "SOUND ON" or "SOUND OF".

Technical data

Name	Colour	Article no.	External dimensions (H x W x D mm)		Dimensions inside (H x W x D mm)		Weight in kg	Lock variant Batteries
GOsafe 5300FP	black 7120	300x420	0x350	182x303	3x215	33	Fingerprint,numeric code,emergency key		4 × AA LR6(Mignon)
GOsafe 5350FP	black 7121	354x496	6x390	224x366	6x250	45	Fingerprint,numeric code,emergency key		4 × AA LR6(Mignon)
GOsafe 5500FP	black 7122	496x355	5x390	366x224	4x250	45	Fingerprint,numeric code,emergency key		4 × AA LR6(Mignon)
GOsafe 5530FP	black 7123	530x460	0x470	390x320	0x310	73	Fingerprint,numeric code,emergency key		4 × AA LR6(Mignon)
GOsafe 5600FP	black 7124	600x480	0x470	460x340	0x310	90	Fingerprint,numeric code,emergency key		4 × AA LR6(Mignon)
GOsafe 5700FP	black 7125	700x500	0x490	560x360	0x330	106	Fingerprint,numeric code,emergency key		4 × AA LR6(Mignon)
GOsafe 5920FP	black 7126	920x600	0x570	780x455	5x410	186	Fingerprint,numeric code,emergency key		4 × AA LR6(Mignon)
GOsafe 5300 black	black 7127	300x420x3	350	182x303x2	15	33	Numeric	code,emergency key	4 × AA LR6(Mignon)
GOsafe 5350 black	black 7128	354x496x3	390	224x366x2	250	45	Numeric	code,emergency key	4 × AA LR6(Mignon)
GOsafe 5500 black	black 7129	496x355x3	390	366x224x2	250	45	Numeric	code,emergency key	4 × AA LR6(Mignon)
GOsafe 5530 black	black 7130	530x460x4	470	390x320x3	10	73	Numeric	code,emergency key	4 × AA LR6(Mignon)
GOsafe 5600 black	black 7131	600x480x4	470	460x340x3	10	90	Numeric	code,emergency key	4 × AA LR6(Mignon)
GOsafe 5700 black	black 7132	700x500x4	490	560x360x3	30	106	Numeric	code,emergency key	4 × AA LR6(Mignon)
GOsafe 5920 black	black 7133	920x600x5	70	780x455x4	10	186	Numeric	code,emergency key	4 × AA LR6(Mignon)

Warranty

Dear customer,

We are delighted that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Cleaning

Clean the surface of the housing with a soft, dry, lint-free cloth. Do not use any solvents or cleaning agents.

Disposal

	Packaging materials must be disposed of according to local regulations.
	The device and packaging materials can be recycled; sort them for disposal to simplify waste management. The Triman logo is only relevant for France.
	The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration offices.
	The adjacent symbol indicates laws dictate that electrical and electronic apparatus no longer required must be disposed of separate from domestic waste. Dispose of your device at a collection point provided by your local public waste authority. Packaging materials must be disposed of according to local regulations.
	Defective or empty batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and the device via the collection points provided.
	Observe the identification on the packaging materials during the waste sorting process; they are identified by abbreviations (b) and numbers (a) which have the following significance: 1–7: plastic/20–22: paper and cardboard/80–98: composite materials.
lo Riciclo!Seguile regole del tuo comune	The device and the packaging material can be recycled, so sort them prior to disposal for better waste management. Contact your local authorities for information on the various options available to ensure correct disposal. Observe the following identifications of the packaging materials: (a) numbers, (b) abbreviations and (c) materials which have the following significance: 1–7: plastics / 20–22: paper and cardboard / 80–98: composite materials and (d) type of packaging. The logo is only applicable to Italy.
	Find out about the possibilities of taking back old appliances and used batteries free of charge from your dealer.

Conformity

Manufacturer

GO Europe GmbH

Zum Kraftwerk 1

D-45527 Hattingen

Germany

FR Mode d'emploi

Technical diagram of an open safety cabinet with labeled components and internal compartments

Line drawing of a handheld device with a circular dial, control panel, and directional arrow (no text or symbols)

Line drawing of a handheld electronic device with a hand holding a small object, no text or symbols present

Line drawing of a mechanical device with gears and a keypad (no text or symbols)

Line drawing of a handheld electronic device with a keypad and handle (no text or symbols)

Line drawing of a hand holding a digital phone with a small human icon (no text or symbols)

Line drawing of a mechanical device with gears and a calculator (no text or symbols)

Three circular icons showing different hand tools or objects: a bag, a pen, and a finger (no text or symbols)

I. Correct

Diagram showing five-step illustration of a hand holding a pen, with each step labeled by a gray rectangle and a pencil.

II. Incorrect

Alarme - code erroné

Technical diagram of an open safety cabinet with labeled components and internal compartments

Line drawing of a handheld device with a circular dial and control panel (no text or symbols)

Line drawing of a handheld electronic device with a keypad and a hand pointing to it (no text or symbols)

Line drawing of a mechanical device with gears and a keypad (no text or symbols)

Line drawing of a hand holding a digital device with keypad and scroll (no text or symbols)

Line drawing of a handheld device with a rotary knob and control panel (no text or symbols)

Diagram of a mechanical device with gears and a keypad (no text or symbols)

Three simple line drawings of hand tools: a bag, a pen, and a finger, all enclosed in circles (no text or symbols)

I. Correct

Diagram showing five-step illustration of a hand holding a rectangular object, with each step labeled by a hand gesture and dashed outline.

II. Incorrect

Technical diagram of an open safety cabinet with labeled components and internal compartments

Three circular icons showing different types of objects: a bag, a knife, and a finger (no text or symbols)

I. Correct

Five-step diagram showing a hand holding a rectangular object, with each step labeled by a line drawing style (no text or symbols)

II. Incorrect

Technical diagram of a fire extinguisher with labeled components including doors, casing, and housing

Three simple line drawings of hand tools: a bag, a pen, and a finger, all enclosed in circles (no text or symbols)

I. Correct

Diagram showing five-step illustration of a hand holding a rectangular object, with each step labeled by a hand gesture and dashed line indicating a specific point.

II. Incorrect

Alart - pogrešan kod

Kod pet uzastopnih pogrešnih unosa koda ili pet uzastopnih pogrešnih otisaka prsta (samo kod 5300FP serije) oglasava se ton upozorenja na 30 sekundi. U međuvremenu se i taster i skener otisaka prsta (samo kod 5300FP serije) blokira na 210 sekundi.

Alarm - alarm potresa

• Pritisnite "0", dok se uređaj nalazi u režimu spavanja.
  • Tada se aktivira sistem alarma za potresanje.
• Možete okončati alarm unosom lozinke ili otiska prsta (samo kod 5300FP serije).
