04818 - Food Processor Gourmetmaxx - Free user manual and instructions

Product type	Food processor
Brand	Gourmetmaxx
Model	04818
Power supply	220-240 V~ 50/60 Hz
Power consumption	250 W
Bowl capacity (max filling volume)	1.5 L
Total bowl capacity	3 L
Number of speeds	6 (0-6)
Functions	Mix, beat, knead
Accessories included	2 dough hooks, 2 beaters, 1 mixing bowl
Maximum ingredient temperature	50°C
Safety	Overload protection, automatic shut-off
Accessory eject button	Yes
Mixing arm lock	Yes
Protection class	II
Cleaning of accessories	Dishwasher-safe or wash with soapy water
Cleaning of the appliance body	Soft, slightly damp cloth
Available colors	Vanilla (model 04818), purple, mint green, lime green, metallic red, red, white, copper

Frequently Asked Questions - 04818 Gourmetmaxx

How to use the food processor to knead dough?

Make sure the mixing arm is lowered and locked. Insert the dough hooks into the receptacles (marked L and R). Pour the ingredients into the bowl (max 1.5 L). Plug in the appliance, set the speed between 1 and 3 for slow kneading. Use the lever to rotate the bowl if necessary. Stop the appliance before raising the arm.

What to do if the appliance suddenly stops during use?

This is probably due to an overload. The appliance is equipped with overload protection. Unplug the appliance and let it cool down for about 10 minutes. It will then be ready to operate again. Avoid overfilling the bowl.

How to clean the food processor after use?

Unplug the appliance. Remove the bowl and accessories. Wash the accessories and bowl in warm soapy water or in the dishwasher. Clean the body with a soft, slightly damp cloth, then dry. Never immerse the body in water.

Can I put hot ingredients in the mixing bowl?

No, the temperature of the ingredients must not exceed 50°C. Pouring boiling ingredients may cause splashing and damage the appliance. Let hot foods cool down before mixing.

How to change the accessories (hooks/beaters)?

First unplug the appliance. Press the release button and raise the mixing arm. To remove the accessory, press the eject button located on the arm. Insert the new accessory by aligning the L and R markings, turn until you hear a click.

Is the appliance suitable for people with reduced mobility or elderly people?

Yes, provided there is supervision or prior instruction. The appliance must not be used by children. Keep the cord out of reach to avoid tripping hazards.

What is the maximum filling capacity of the bowl?

The maximum filling volume is 1.5 liters. Do not exceed this limit to avoid motor overheating. The total bowl capacity is 3 liters.

How to use the turntable mobilization lever?

During operation, you can operate the lever located on the front of the appliance body to manually rotate the bowl. This allows more even mixing of ingredients. Use it carefully while the appliance is running.

What to do if the house fuse blows during use?

This may be due to electrical circuit overload. Unplug the appliance and reduce the number of devices plugged into the same circuit. Reset the fuse. If the problem persists, contact customer service.

How to store the food processor after use?

After cleaning, let all parts cool and dry completely. Store the appliance in a dry and clean place, out of reach of children. Do not place heavy objects on the appliance.

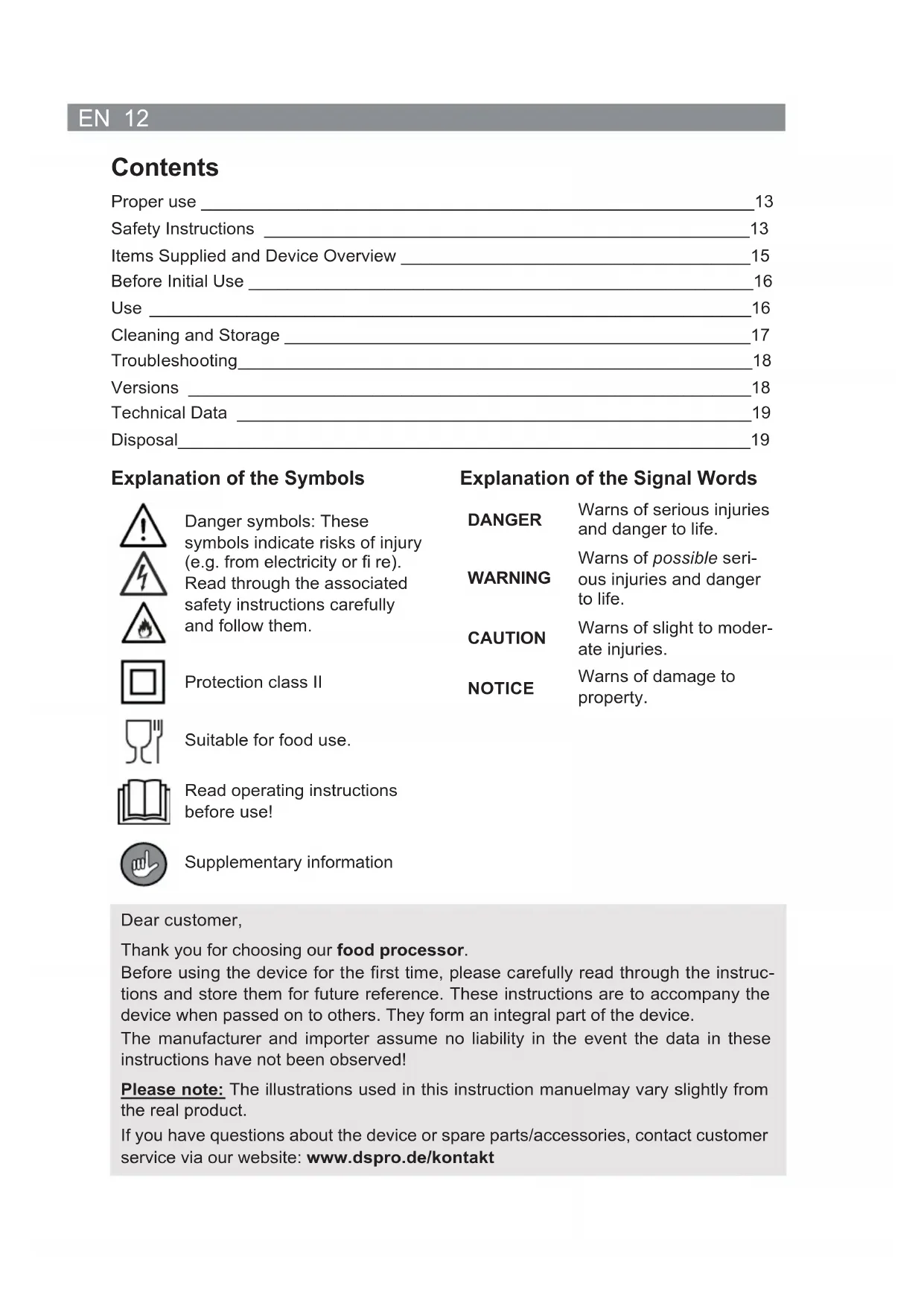

USER MANUAL 04818 Gourmetmaxx

Proper use 13
Safety Instructions 13
Items Supplied and Device Overview 15
Before Initial Use 16
Use 16
Cleaning and Storage 17
Troubleshooting 18
Versions 18
Technical Data 19
Disposal 19

Explanation of the Symbols

Danger symbols: These symbols indicate risks of injury (e.g. from electricity or fire). Read through the associated safety instructions carefully and follow them.

Protection class II

Suitable for food use.

Read operating instructions before use!

Supplementary information

Explanation of the Signal Words

DANGER

Warns of serious injuries and danger to life.

WARNING

Wards of possible serious injuries and danger to life.

CAUTION

Wards of slight to moderate injuries.

NOTICE

Warns of damage to property.

Dear customer,

Thank you for choosing our food processor.

Before using the device for the first time, please carefully read through the instructions and store them for future reference. These instructions are to accompany the device when passed on to others. They form an integral part of the device.

The manufacturer and importer assume no liability in the event the data in these instructions have not been observed!

Please note: The illustrations used in this instruction manuel may vary slightly from the real product.

If you have questions about the device or spare parts/accessories, contact customer service via our website: www.dspro.de/kontakt

Proper use

• This device is suitable for mixing, whisking and kneading food.
• This appliance is intended for personal household use and not for commercial use.
• Only use the appliance as described in the manual. Any other use is considered to be improper use.
• All defects caused by improper use, damage, calcification or repair attempts are excluded from the warranty. This also applies to wear and tear.

Safety Instructions

WARNING: Read all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and/or injuries.

This device may be used by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from this.
This device must not be used by children. Children and animals must be kept away from the device and the mains cable!
The device is not a toy!
The device is not designed to be operated with an external timer or a separate remote control system.
- Never immerse the device, mains cable or mains plug in water or other liquids and ensure that they cannot fall into water or become wet.
The device must always be disconnected from the mains power when it is left unattended, when it is being assembled or disassembled, and before cleaning.
- Do not make any modifications to the device. You may not replace the mains cable yourself. If the device, the mains cable or the mains plug of the device is damaged, it must be replaced by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.
It is essential to follow the instructions in the "Cleaning and Care" chapter.

DANGER - Danger of Electric Shock

• Never immerse the motor unit, mains cable or mains plug in water or other liquids and ensure that they cannot fall into water or become wet.
  Should the device fall into water, switch off the power supply immediately. Do not attempt to pull the device out of the water while it is still connected to the mains power!
• Never touch the device, mains cable or mains plug with wet hands when these components are connected to the mains power.

WARNING - Danger of Injury

Warning of suffocation! Keep children and animals away from the packaging material.
Danger of strangulation!Make sure that the mains cable is always kept out of the reach of small children and animals.
Danger of injuries caused by rotating parts of the device! Keep clothing, jewellery, hair, hands and other body parts away from the device so that nothing can get caught in rotating device parts.
Danger of scalding! Do not use any hot food in the device as it could spurt out during use.
Danger of tripping! Make sure that the connected mains cable does not present a trip hazard. The mains cable must not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.
Do not move the device during operation. Ensure sufficient stability.

WARNING - Danger of Fire

• Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
• Do not operate the device in the vicinity of combustible material. Do not place any combustible materials (e.g. cardboard, paper or plastic) on or in the device.

Do not cover the device during operation.

• Do not place any objects into the ventilation slots of the device and make sure that no objects block the ventilation slots.
  In the event of a fire: Do not extinguish with water! Smother the flames with a fireproof blanket or a suitable fire extinguisher.

NOTICE - Risk of Damage to Material and Property

• Only connect the device to a properly installed plug socket. The socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the rating plate of the device. Only use suitable extension cables whose technical data is the same as that of the device.
  Always place the device on a dry, level and solid surface with adequate space on all sides.
  The device should only be used if it has been correctly assembled!

15 EN

Make sure that the mains cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces.
The mains cable must not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.
- Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.
- When the mains plug is removed from the plug socket, always pull on the mains plug and never the mains cable.
Do not pull or carry the device by the mains cable.
- Do not operate the device without food. This might result in the device overheating or damage to the motor.
Use only original spare parts from the manufacturer. If accessory parts which are not authorised by the manufacturer are used, all warranty and guarantee claims are void.
Never place heavy objects on the device.
- Protect the device from other heat sources, naked flames, sub-zero temperatures, persistent moisture, wet conditions, direct sunlight and impacts.

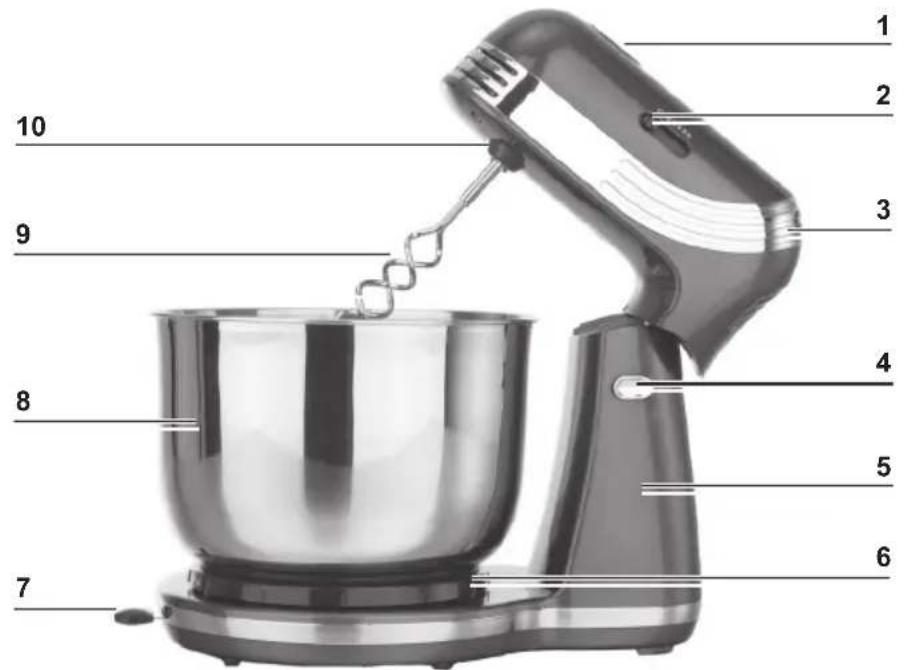

Items Supplied and Device Overview

1 Eject button
2 Switch for the speed settings
3 Mixer head (foldable)
4 Release button for the mixer head
5 Basic device
6 Turntable

7 Lever for moving the turntable
8 Mixing bowl
9 Dough hooks
10 Socket for receiving the inserts

Not shown: Stirrers

Accessories

Stirrers

The stirrers are suitable for mixing, stirring and whisking food or liquids.

Dough Hooks

The dough hooks are suitable for stirring and kneading bread doughs and cake mixtures.

Mixing Bowl

The mixing bowl is used for receiving the food during the preparation of cake mixtures and bread doughs, for example, and for mixing together eggs and whipped cream, for example.

Before Initial Use

PLEASE NOTE!

Never remove the rating plate and any possible warnings!

1. Check the items supplied for completeness (see the "Items Supplied and Device Overview" chapter) and possible transport damage. If you find any damage to the components, do not use them (!), but contact our customer service department.
2. Remove any protective films and stickers that may be present from the device.
3. Clean the accessories before you first use them as they may have possible production residues on them. To do this, follow the instructions in "Cleaning and Storage".

Use

PLEASE NOTE!

Make sure that the switch for adjusting the speed settings is in the 0 position before the device is connected to the mains power.
- Do not overfill the mixing bowl. This might result in the device overheating or damage to the motor.
Never switch on the device if the tilting mixer head has not been flipped down!
- Never flip up the tilting mixer head during use. The device must be switched off when the tilting mixer head is being flipped up or down.
- Never fill the device with hot food or liquids! The contents must not be hotter than 50^ . Allow hot food to cool down before processing it any further with the device.
Remove the mains plug from the plug socket before each exchange of the inserts.
Make sure that the inserts are not mixed up for use. Only either the dough hooks or the stirrers may be used at any one time.

The device is equipped with overload protection that deactivates the device when it overloads. If this occurs, immediately disconnect the plug from the socket and

let the device cool off for approximately 10 minutes. Afterwards, the device is ready for use again.

1. Place the device on a dry, even and firm surface with sufficient clearance around it.
2. Place the ingredients in the mixing bowl in accordance with your recipe.
3. Press the release button and attach the mixer head.
4. Insert the mixing bowl into the basic device. Rotate the mixing bowl clockwise towards the closed lock symbol (on the basic device). Hold the turntable firmly as you do so.
5. Choose the inserts you want (see the "Accessories" chapter).
6. Slide the inserts into the receiving socket on the mixer head. Note the markings (L and R) on the inserts and the receiving socket. The insert with the marking R goes in the receiving socket with the marking R. The same applies to the insert and receiving socket with the marking L.
7. Turn the insert to the right until the locking lug fits in the recess provided in the receiving socket. The insert must be heard to engage in place.
8. Press the release button and flip down the mixer head until it clicks into the motor unit.
9. Make sure that the switch for adjusting the speed settings is in the 0 position before you connect the device to the mains power in order not to switch the device on accidentally.
10. Set a suitable speed setting using the switch for adjusting the speed settings:

0 Off

1-3 Slow mixing, stirring and kneading
4-6 Fast mixing, stirring and kneading

1. To get even mixing, stirring and kneading, the bowl can be turned by hand and be moved back and forth with the aid of the lever (on the front of the basic device).
2. To switch off the device, move the switch for the speed settings to the 0 position.

Danger of injury due to rotating device parts! Always wait until the inserts have come to a complete standstill before putting up the mixer head.

1. Remove the mains plug from the plug socket.
2. Press the release button and attach the mixer head.
3. Remove the inserts by pressing the eject button on the top of the mixer head.
4. Rotate the mixing bowl anticlockwise towards the open lock symbol (on the basic device). Hold the turntable firmly as you do so. You can now remove the mixing bowl.

Cleaning and Storage

PLEASE NOTE!

Clean the device immediately after every use to prevent the formation of germs.
- Do not use any caustic or abrasive cleaning agents for cleaning. These could damage the surfaces.

1. Ensure that the appliance has been disconnected from the mains.

2. Remove the mixing bowl and the stirrers from the base unit.

3. Clean all used accessories and the mixing bowl with warm, clean water and some detergent. Rinse all parts under running water or in the dishwasher.
4. Clean the base unit with a moist, soft cloth and dry with a soft cloth.
5. Allow to dry completely before assembling the appliance again and/or storing it in a dry, clean place which is inaccessible for children.

Troubleshooting

If the device does not work properly, first check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact the customer service department.

Do not attempt to repair a electrical device yourself!

Problem Possible cause Fix
The device does not work.	The mains plug is not inserted correctly in the socket.	Correct the fi t of the mains plug.
	The socket is defective. Try another socket.
	No mains voltage is present.	Check the fuse of the mains connection.
The fuse in the fuse box is triggered.	Too many devices connected to the same circuit.	Reduce the number of devices in the circuit.
	No error can be identifi ed.	Contact our customer service department.
The device automatically deactivates.	The device is overloaded. The device is equipped with overload protection that deactivates the device when it overloads.	Immediately disconnect the plug from the socket and let the device cool off for approximately 10 minutes. Afterwards, the device is ready for use again.

Versions

Product number: 03076 (purple)

Product number: 04818 (vanilla)

Product number: 04821 (mint)

Product number: 05291 (limegreen)

Product number: 05292 (red metallic)

Product number: 05313 (red)

Product number: 08842 (white)

Product number: 09272 (copper)

Technical Data

Model: XJ-13406

Power supply: 220-240 V ~ 50 / 60 Hz

Power: 250 W

Protection class: II

Max. fi lling quantity: 1,5l

Capacity: 31

Manual ID: Z 03076_04818_04821_05291_05292_05313_08842_09272 M DS V5 1018

Disposal

Dispose of the packaging material in an environmentally friendly manner and take it to a recycling centre.

This article is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

Customer Service / Importer:

DS Produkte GmbH

Am Heisterbusch 1, 19258 Gallin, Germany

Tel.: [phone]

(Calls to German landlines are subject to charges. The cost varies depending on the service provider.)

All rights reserved.
