USER MANUAL 03550 Gourmetmaxx

Operating instructions starting on page 13

• Anruf in das deutsche Festnetz zum Tarif Ihres Anbieters. Alle Rechte vorbehalten.13 EN Contents Intended Use ______________________________________________________ 14 Safety Instructions __________________________________________________ 14 Items Supplied _____________________________________________________ 16 Device Overview ___________________________________________________ 17 Attaching / Detaching Accessories _____________________________________ 18 Use _____________________________________________________________ 19 Cleaning and Storage _______________________________________________ 20 Troubleshooting ____________________________________________________ 20 Technical Data _____________________________________________________ 21 Disposal __________________________________________________________ 21 Symbols Danger symbols: These symbols indicate risks of injury (e. g. from electricity or re). Read through the associated safety instructions carefully and follow them. Protection class II Suitable for food use. Read operating instructions before use! Supplementary information Signal Words DANGER high risk, results in serious injury or death WARNING medium risk, may result in serious injury or death CAUTION low risk, may result in minor or moderate injury NOTICE may result in risk of dam- age to materialEN 14 Intended Use ■ This device is suitable for mixing, whisking and kneading food. ■ The device is only suitable for private use, not for commercial use or use similar to home, e.g. in hotels, bed and breakfasts, o󰀩 ces, sta󰀨 kitchens or similar. ■ Use the device only for the specied purpose and as described in the operating in- structions. Any other use is deemed to be improper. ■ The warranty does not cover faults caused by incorrect handling, damage, calcica- tion or attempted repairs. The same applies to normal wear and tear. Safety Instructions

Warning: Note all safety notices, instructions, illustra-

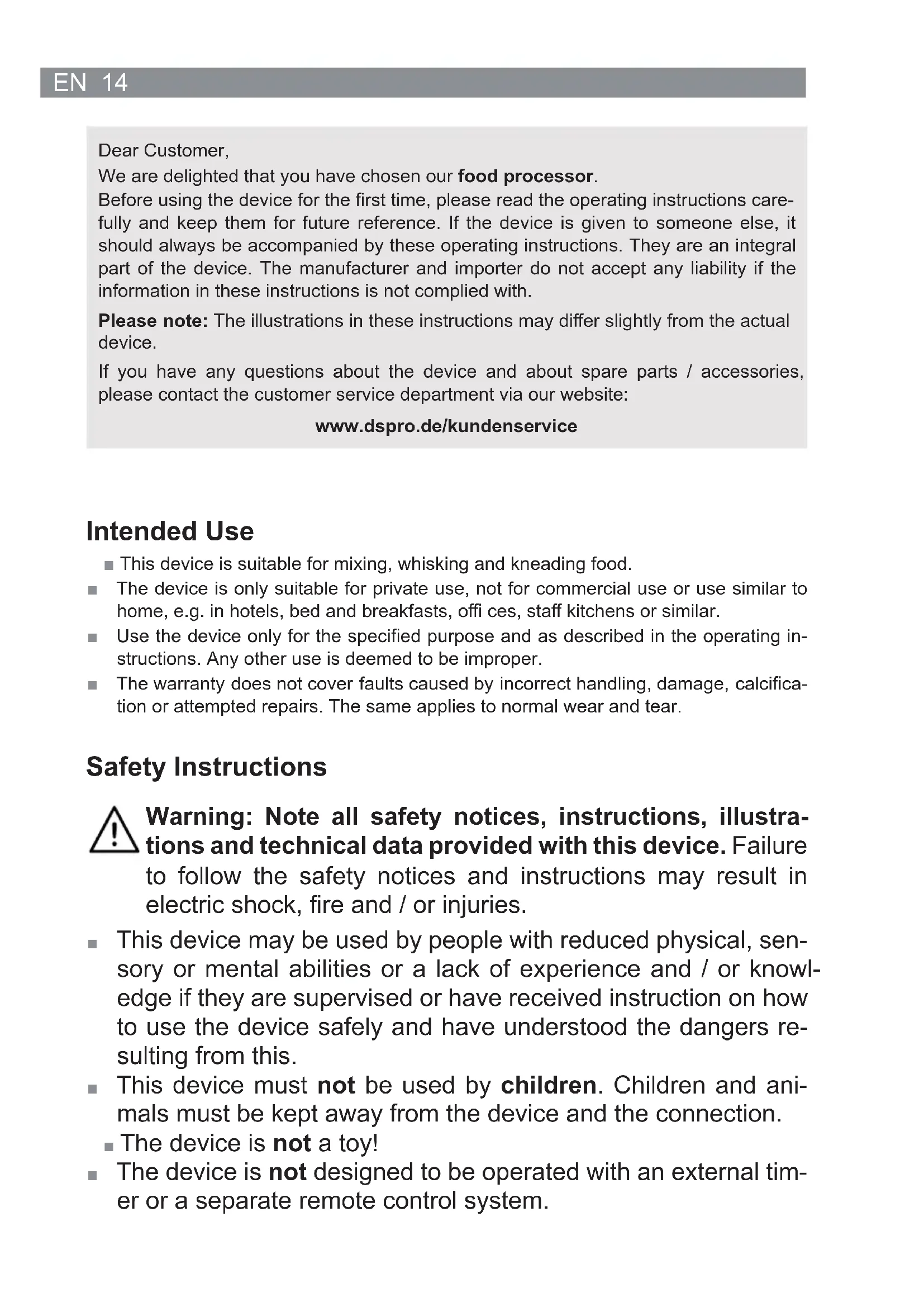

tions and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, re and / or injuries. ■ This device may be used by people with reduced physical, sen- sory or mental abilities or a lack of experience and / or knowl- edge if they are supervised or have received instruction on how to use the device safely and have understood the dangers re- sulting from this. ■ This device must not be used by children. Children and ani- mals must be kept away from the device and the connection. ■ The device is not a toy! ■ The device is not designed to be operated with an external tim- er or a separate remote control system. Dear Customer, We are delighted that you have chosen our food processor. Before using the device for the rst time, please read the operating instructions care- fully and keep them for future reference. If the device is given to someone else, it should always be accompanied by these operating instructions. They are an integral part of the device. The manufacturer and importer do not accept any liability if the information in these instructions is not complied with. Please note: The illustrations in these instructions may di󰀨er slightly from the actual device. If you have any questions about the device and about spare parts / accessories, please contact the customer service department via our website: www.dspro.de/kundenservice15 EN ■ The device must always be disconnected from the mains power when it is left unattended, when it is being assembled or disas- sembled, and before cleaning. ■ Do not make any modications to the device. Do not replace the connection yourself. If the device or the connection are dam- aged, they must be replaced by the manufacturer, customer service department or a similarly qualied person (e. g. special- ist workshop) in order to avoid any hazards. ■ It is essential to follow the instructions in the “Cleaning and Stor- age” chapter. DANGER – Risk of Electric Shock ■ Use and store the device only in enclosed areas. ■ Do not operate the device in rooms with high humidity. ■ Never immerse the main device and the connection in water or other liquids and en- sure that they cannot fall into water or become wet. ■ Should the device fall into water, switch o󰀨 the power supply immediately. Do not at- tempt to pull the device out of the water while it is still connected to the mains power! ■ Never touch the device and the connection with wet hands when it is connected to the mains power. WARNING – Danger of Injury ■ Keep children and animals away from the packaging material. There is a danger of su󰀨ocation. ■ Make sure that the connection is always kept out of the reach of small children and animals. There is a danger of strangulation. ■ Make sure that the connected connection does not present a trip hazard. ■ Keep clothing, jewellery, hair, hands and other body parts away from the device so that nothing can get caught in rotating device parts. There is a danger of injury due to rotating device parts. ■ Do not use any hot food in the device as it could spurt out during use. There is a danger of scalding. ■ Do not move the device during operation. Ensure su󰀩cient stability. WARNING – Danger of Fire ■ Do not operate the device in the vicinity of combustible material. Do not place any combustible materials (e. g. cardboard, paper or plastic) on or in the device. ■ Do not cover the device during operation. ■ Do not place any objects into the ventilation slots of the device and make sure that no objects block the ventilation slots.EN 16 NOTICE – Risk of Damage to Material and Property ■ The device should only be connected to a properly installed plug socket. The plug sock- et must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the rating plate of the device. ■ The device should only be used if it has been correctly assembled! ■ Do not operate the device without food. This might result in the device overheating or damage to the motor. ■ Unwind the connecting cable fully before connecting up the device. ■ Remove the mains plug if a fault occurs during operation. Otherwise always switch o󰀨 the device rst before the mains plug is pulled out of the plug socket. ■ Always pull the mains plug and never the connecting cable when disconnecting the device from the mains power. Do not pull or carry the device by the connecting cable. ■ Always check the device for damage before putting it into operation. The device should only be used when it is undamaged, and in working order! Do not use the device if it has malfunctioned, fallen or been dropped in water. Have it checked in a specialist workshop before using it again. ■ Always place the device on a dry, even, rm and heat-resistant surface. Never place the device on a soft surface. The ventilation slots on the bottom of the device must not be covered. Otherwise it could overheat and be damaged. ■ Do not place the device on or next to heat sources such as hobs or ovens. Keep naked ames, e.g. burning candles, away from the device and the connection. ■ Do not expose the device to extreme temperatures, persistent moisture, direct sunlight or impacts. ■ Never place objects on the device or the connection. ■ Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage. Items Supplied

• Stirring attachment (1 x)

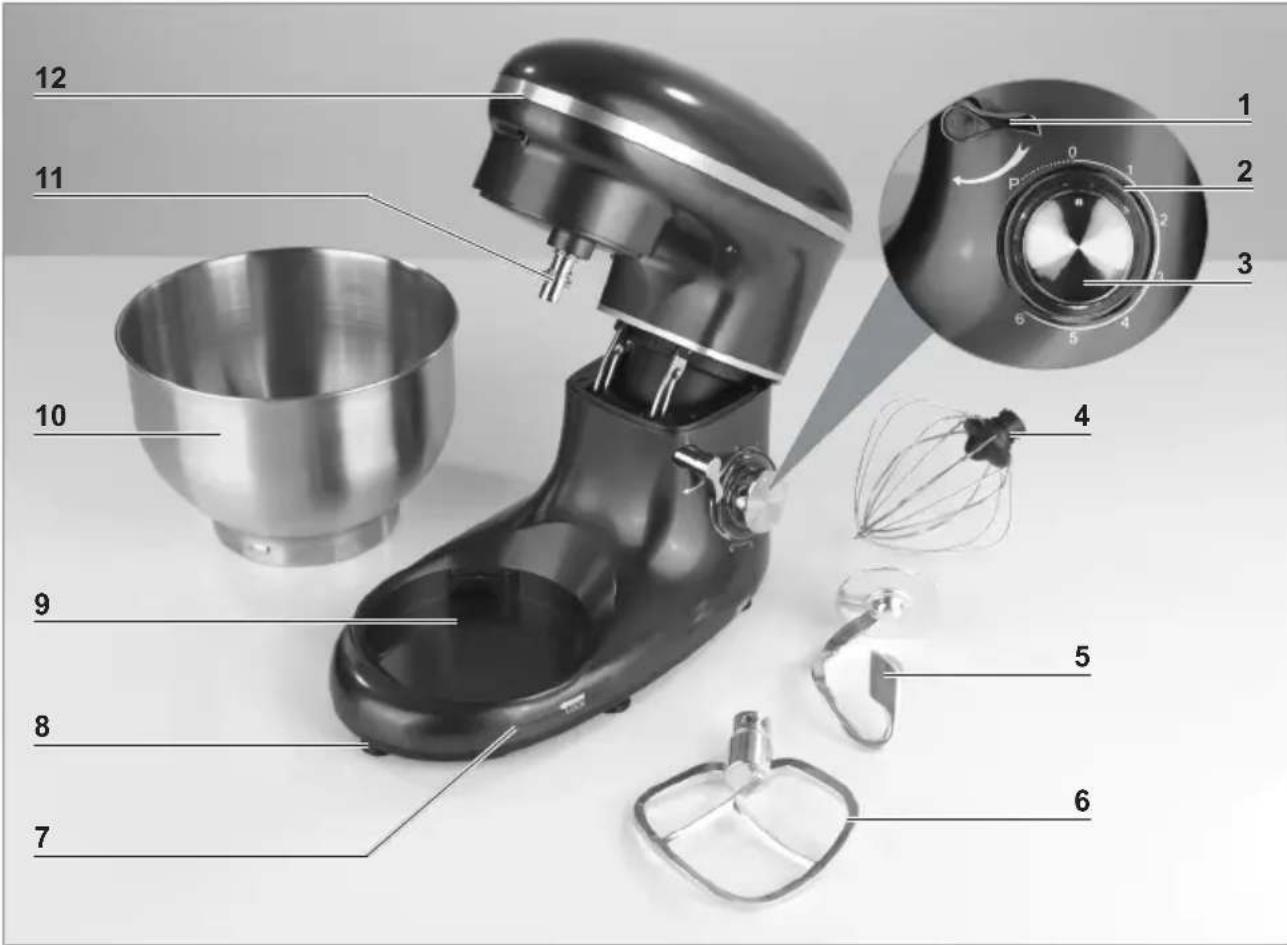

• Operating instructions (1 x) Check the items supplied for completeness and the components for transport damage. If you nd any damage, do not use the device but contact our customer service depart- ment. Remove any possible lms, stickers or transport protection from the device. Never re- move the rating plate and any possible warnings!17 EN Device Overview 1 Release lever for the mixer head 2 LED ring 3 Rotary switch for setting the speed levels 4 Whisk 5 Dough hook 6 Stirring attachment 7 Main device 8 Suction pad 9 Mount for the mixing bowl 10 Mixing bowl 11 Mount for attachment (rotating) 12 Mixer head (foldable)

Accessories Attachments Attachment Speed settings Ingredient quantities / mixing ratio Intended use Dough hook (5) 1 – 3 max. 1000 g of our and 500 ml of water Stirring and kneading heavy doughs, for example bread and yeast doughsEN 18 Stirring attachment (6) 2 – 4 max. 600 g of our and 800 ml of water Mixing and stirring medium foodstu󰀨s or liquids, for example sponge mixtures, pancake mixture Whisk (4) 5 – 6 min. 3 egg whites Mixing and whisking light foodstu󰀨s or liquids, for example eggs, egg white, cream Mixing Bowl The mixing bowl (10) is used for receiving the food during the preparation of cake mix- tures and bread doughs, for example, and for mixing together liquids such as eggs and whipped cream. Attaching / Detaching Accessories PLEASE NOTE! ■ Clean the accessories before you rst use them as they may have possible produc- tion residues on them. To do this, follow the instructions in “Cleaning and Storage”. ■ The device must be switched o󰀨 when the tilting mixer head is being ipped up or down. ■ Switch o󰀨 the device and pull the mains plug out of the plug socket before changing any attachments.

1. Hold the mixer head (12) rmly with one hand and at the same time use your other

hand to move the release lever (1) in the direction of the arrow into the vertical position. The mixer head is released and ips up automatically. You should also guide it with your hand to prevent it ipping up abruptly.

2. Insert the mixing bowl (10) into the corresponding mount (9) and turn it in the direction

of the arrow (LOCK) to secure it in place. When you insert it, make sure that the locking lugs on the mixing bowl sit in the recesses which are provided for them. To take o󰀨 the mixing bowl, turn it counter to the direction of the arrow (LOCK) to release it.

3. Plug the attachment you want onto the mount (11) and press the spring on the

mount upwards until the attachment can be turned anticlockwise and xed in place. You must feel it engage. When you plug it on, make sure that the pin on the mount ts in the recess on the attachment. To take o󰀨 the attachment, press the spring upwards until the attachment can be turned clockwise and released.

4. Flip down the mixer head and hold it in this position.

5. Move the release lever counter to the direction of the arrow into the horizontal position

and thus x the mixer head in place. To take o󰀨 the mixing bowl, turn it opposite to the direction of the arrow (LOCK) to release it.19 EN Use PLEASE NOTE! ■ Do not place any objects or hands in the mixing bowl when the device is in operation. ■ Make sure that the rotary switch is in the 0 position before the device is connected to the mains power. ■ Do not overll the mixing bowl (max. 1.5 kg). This might result in the device over- heating or damage to the motor. ■ Never switch on the device if the tilting mixer head has not been ipped down! ■ Never ip up the tilting mixer head during use. ■ Never ll the device with hot food or liquids! The contents must not be hotter than 50°C. Allow hot food to cool down before processing it any further with the device. ■ Use the device for no more than 3 minutes without interruption to prevent over- heating. Allow the device to cool down before using it again. The device is equipped with overload protection; the device switches o󰀨 if it is overloaded. In this case, pull the mains plug out of the plug socket and allow the device to cool down for approx. 10 minutes. The device is then ready to be used again.

1. Place the device with su󰀩cient clear space above it and on all sides on a dry, at and

solid surface. Be aware that there must be su󰀩cient clear space above to allow the mixer head (12) to be ipped up.

2. Make sure that the suction cups (8) stick to the surface correctly.

3. Place the ingredients you want into the mixing bowl (10).

4. Insert the mixing bowl into the main device (7) and attach the attachment you want

(see “Attaching / Detaching Accessories”).

5. The mains plug should be connected to a plug socket that has been properly installed.

The LED ring (2) ashes. The device is in standby mode.

6. Use the rotary switch (3) to set an appropriate speed level:

0 O󰀨 1 – 3 Slow mixing, stirring and kneading 4 – 6 Fast mixing, stirring and kneading P Pulse (short mode at top speed) To activate pulse mode, the rotary switch must be held in the P position for the length of time you want. The mount (11) moves in a circular motion in the mixing bowl and the attachment rotates around its own axis. The LED ring is lit up constantly while the device is switched on.

7. To switch o󰀨 the device, move the rotary switch to the 0 position. The LED ring

ashes. The device is in standby mode.

8. Remove the mains plug from the plug socket. The LED ring goes out.

CAUTION – Danger of injury due to rotating device parts! Always wait until the attachment has come to a complete standstill before ipping up the mixer head.

9. Remove and clean the used attachment and the mixing bowl (see “Cleaning and

Storage”).EN 20 Cleaning and Storage PLEASE NOTE! ■ The main device, the stirring attachment and the dough hook are not suitable for cleaning in the dishwasher! ■ Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the de- vice. These may damage the surfaces.

• Wipe down the main device (7) with a damp cloth if necessary.

• Clean the stirring attachment (6) and the dough hook (5) with warm water and deter- gent.

• Clean the mixing bowl (10) and the whisk (4) with warm water and detergent or in the dishwasher.

• Allow all parts to dry completely or dry them with a tea towel before storing them away.

• Store the device in a cool and dry place protected from dust and direct sunlight out of the reach of children and animals. Troubleshooting If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department. Do not attempt to repair an electrical device yourself! Problem Possible cause Fix The device does not work. The mains plug is not in- serted correctly in the plug socket. Correct the t of the mains plug. The plug socket is defective. Try another plug socket. No mains voltage is present. Check the fuse of the mains connection. The rotary switch (3) is in position 0. Move the rotary switch to a position between 1 and 6 or hold it in the P position. The device is overloaded / has overheated. The device is equipped with overload and overheating protection; the device switches o󰀨 if it is overloaded or overheats. Switch o󰀨 the device, pull the mains plug out of the plug socket and allow the device to cool down for approx. 10 minutes. The device is then ready to be used again.21 EN Problem Possible cause Fix The fuse in the fuse box is triggered. Too many devices connected to the same circuit. Reduce the number of devices in the circuit. The device switches itself o󰀨 automatically. The device is overloaded / has overheated. The device is equipped with overload and overheating protection; the device switches o󰀨 if it is overloaded or overheats. Switch o󰀨 the device, pull the mains plug out of the plug socket and allow the device to cool down for approx. 10 minutes. The device is then ready to be used again. Technical Data Article number: 03440 (red) 03550 (black) 03770 (mint green) Model number: SM-1504 Power supply: 220 – 240 V ~ 50 / 60 Hz Power: 1500 W Protection class: II Max. ll level (useful volume): 1.5 kg Capacity (nominal volume): 3 kg ID of operating instructions: Z 03440_03550_03770 M DS V3 1120 md Disposal Dispose of the packaging material in an environmentally friendly manner so that it can be recycled. This device is governed by the European Directive 2012/19/EU on waste electri- cal and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an o󰀩cially approved waste disposal company. Customer Service / Importer: DS Produkte GmbH, Am Heisterbusch 1, 19258 Gallin, Germany Tel.: [phone]*
