MUSGW6BL01 - Mouse GMB Gaming - Free user manual and instructions

Product Type	Wired gaming mouse
Brand	GMB Gaming
Model	MUSGW6BL01
Dimensions (L x W x H)	125 x 70 x 40 mm
Weight	100 g
Connection type	Wired USB
Cable length	1.8 m
Number of buttons	6 programmable buttons
Resolution (DPI)	800 / 1200 / 1600 / 2400 / 3200 adjustable DPI
Lighting	Customizable RGB
Compatible operating systems	Windows 7/8/10/11, macOS
Power supply	Powered via USB (5 V, 100 mA)
Material	ABS plastic, non-slip surface
Main functions	Programmable buttons, DPI adjustment, RGB backlighting, rapid scrolling
Care and cleaning	Clean with a soft, slightly damp cloth. Do not use solvents.
Safety	Use on a flat, stable surface. Avoid liquids.
Spare parts and repairability	Not user-repairable. No spare parts available.
General information	Warranty: 2 years. Ergonomic gaming mouse for right-handed users.

Frequently Asked Questions - MUSGW6BL01 GMB Gaming

How to change the mouse sensitivity (DPI)?

Press the dedicated DPI switch button (usually located under the scroll wheel) to cycle through preset levels: 800, 1200, 1600, 2400, and 3200 DPI. The backlight color may indicate the current level.

How to clean the mouse?

Unplug the mouse, then clean the exterior with a soft, slightly damp cloth (clean water). Avoid any liquid entering openings. Do not use chemicals.

What is the warranty period?

The warranty is 2 years from the date of purchase, according to Gembird Europe B.V. general terms. Keep your receipt for any claims.

Is the mouse compatible with macOS?

Yes, it works on Windows 7/8/10/11 and macOS. Programmable buttons may require additional software on Mac.

How to program the additional buttons?

Download the official software from the GMB Gaming website. Connect the mouse, then configure each button for actions, macros, or shortcuts.

What to do if the mouse stops working?

Check the USB connection, test on another port. Restart the computer. If the problem persists, contact Gembird Europe B.V. customer service at www.gembird.nl/service.

Can I use the mouse on a glass surface?

It is not recommended to use the mouse on glass or reflective surfaces, as this may interfere with the optical sensor. Use a mouse pad.

How to reset the mouse?

Unplug the mouse, press and hold left + right buttons + scroll wheel for 5 seconds, then reconnect. Settings will revert to factory defaults.

Does the mouse have adjustable RGB backlighting?

Yes, it has customizable RGB lighting via software. You can choose from multiple colors and effects (static, breathing, rainbow, etc.).

What are the serial numbers and where to find them?

The serial number is on the label under the mouse. It is required for support and warranty requests.

USER MANUAL MUSGW6BL01 GMB Gaming

• 6-button wireless optical gaming mouse with USB Nano-receiver

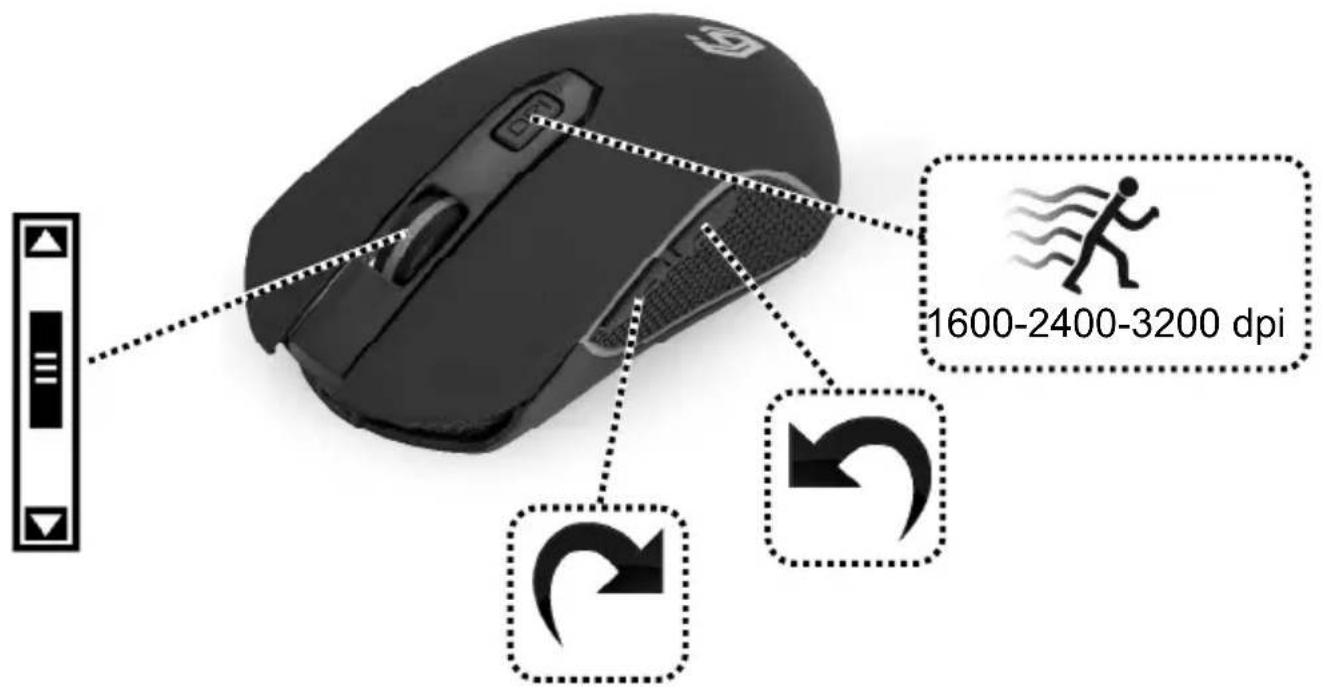

• CPI button for quick resolution changes (1600-2400-3200 DPI)
• Multicolor RGB LED backlight
  Automatic sleep mode to save energy when mouse is not in use.
  Built-in rechargeable li-ion battery

Specifications

• Wireless technology: 2.4 GHz
• Operating distance: up to 10m
  Power class: RF power 3 dBm (max. EIRP)
• Internal antenna type; antenna gain in dBi (typical): 2 dBi ±1 dBi
• Optical resolution: 1600-2400-3200 selectable by the button
• Power supply: built-in Li-Ion battery, 400 mAh, 3.7V V DC, up to 20 mA
• Nano receiver: USB 1.1 compatible, weight 2g,6× 14× 18mm
• Mouse: dimensions 129 × 67 × 42 mm ,net weight 97 g

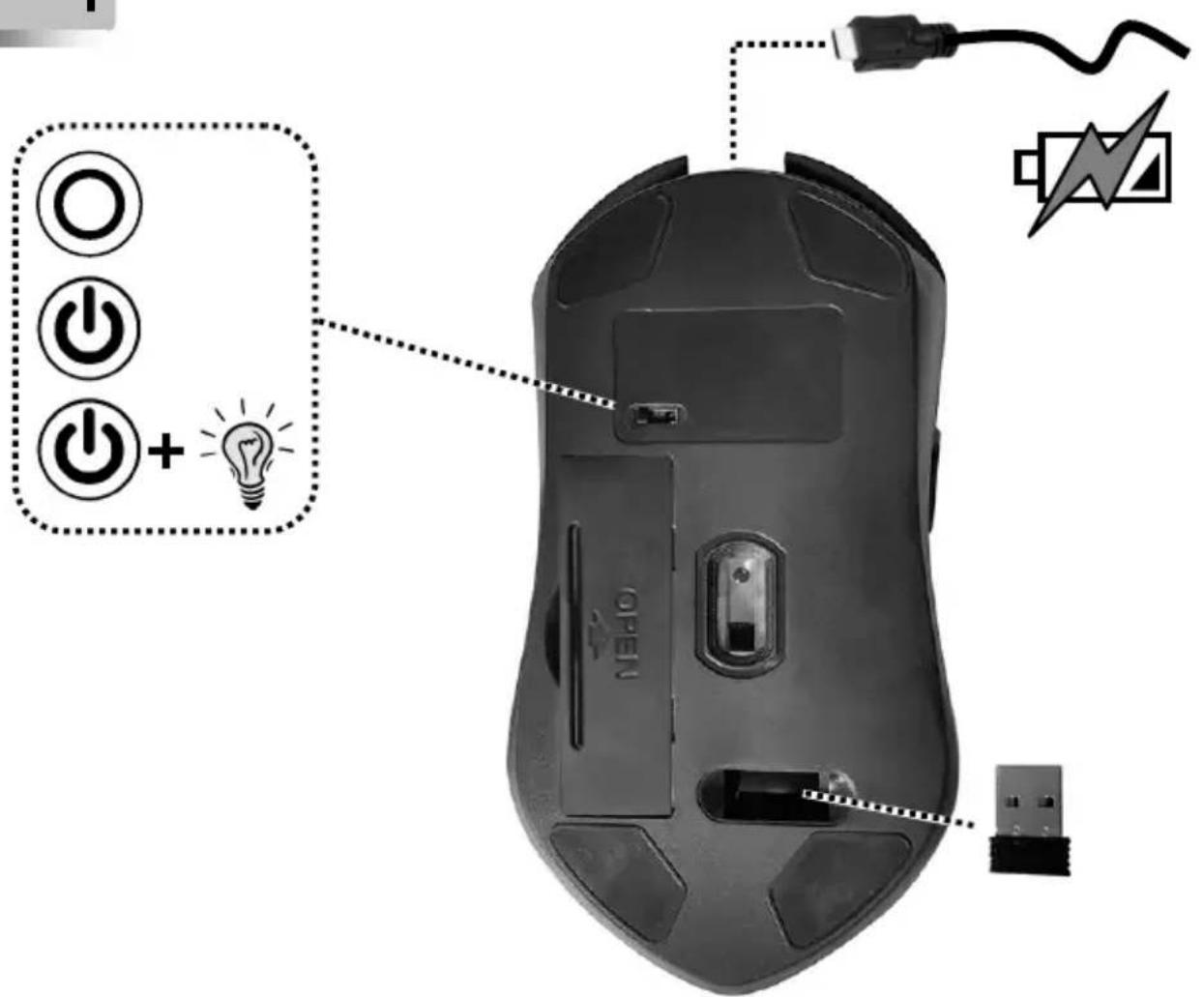

  3-position switch: OFF - ON - ON with RGB backlight
• 2 side buttons: BACK and FORWARD for Web-browser

1

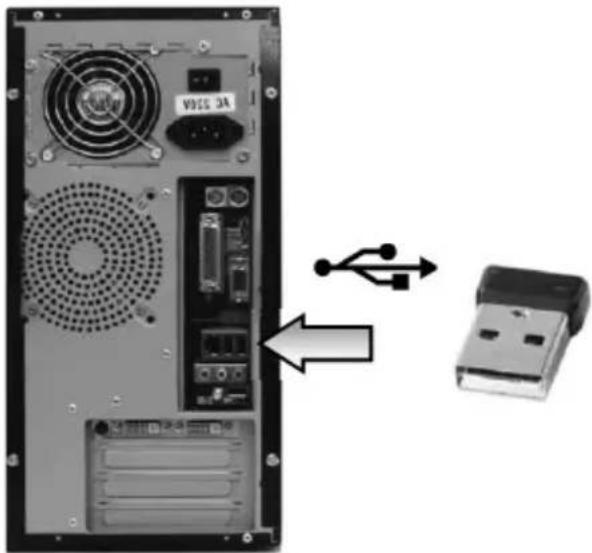

Installing device driver software

Click here for status.

(ENG) Declaration of conformity This product is tested and complies with the essential requirements of the laws of member states concerning RED (2014/53/EU), RoHS (2011/65/EU). The CE declaration can be found under www.gembird.eu

(DE) Konformitätserklung Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie RED (2014/53/EU), RoHS (2011/65/EU) überein. Die Konformitätserklung kann auf unserer Websites www.gembird.eu, heruntergeladen werden.

(ES) Declaración de conformidad Este produit está probado y cumple con los requisitos esencias de las leyes de los Estados miembrlos con Respecto a RED (2014/53/EU), RoHS (2011/65/EU). Ladeclaración CE se pueda encontrar en www.gembird.eu

(CZ) Prohlášeni o shodé Tento produit je testován a splnjuje základní požadavyků právnich predpisú Členských stavú týkajćich se RED (2014/53/EU), RoHS (2011/65/EU). Prohlášeni CE nacezne na www.gembird.eu

(FR/BE) Déclaration de conformité Le produit est contrôle et rempli les exigences des directives nationales et de la directive RED (2014/53/EU), RoHS (2011/65/EU). La conformité CE a été démontré et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu

(HR) Izjava o sukladnosti Ovaj je proizvod testiran i udovoljava osnovim zahtjevima zakona država Članica u vezi RED (2014/53/EU), RoHS (2011/65/EU). Izjava CE se moze nači pod www.gembird.eu

(IT) Dichiarazione di conformità Questo prodotto è testato ed è conforme ai requisiti essenziali delle leggi degli stati membrì in materia di RED (2014/53/EU), RoHS (2011/65/EU). La dichiarazione CE è disponibile all'indirizzo www.gembird.eu

(PT) Declariação de conformidade Este produits fosto testado e está em conformidade com os requisitos essenciais das leis dos estados membrìs sobre RED (2014/53/EU), RoHS (2011/65/EU). A declariação CE pode ser encontrar em www.gembird.eu

(PL) Deklaracja zgodnosci Ten produkt zostroi przytestowany i jest zgodny z zasadniczymi wymaganiami prawnymi pi发展战略cznychmi RED (2014/53/EU), RoHS (2011/65/EU). Deklaracja CE znejduje sie na stronie www.gembird.eu

(RO) Declaratie de conformitate Acest produs este testat.si respecţă cerintele esentjale ale legislatór stateor membre privind RED (2014/53/EU), RoHS (2011/65/EU). Declarația CE se găsește pe www.gembird.eu

(SK) Vyhlasenie o zhode Tento produit je testovaný a splnna základné požiadavyků právnych predispisov Členských stavótov týkajćich sa RED (2014/53/EU), RoHS (2011/65/EU). Vyhlasenie CE najdete na strânke www.gembird.eu

(SL) Izjava o skladnosti Ta izdelek je preizkuşen in ustreza bistvenim zahtevam zakonov držav Članic o RED (2014/53/EU), RoHS (2011/65/EU). Izjava CE je na voljo pod www.gembird.eu

(GR) Δŋλωση συμμόρφωσης Autó to προίν ἐχει ἐλεγχθεί και συμμορρώνται με τις βασικείς απαπήσεις των νομοθεσιών των κρατών μελών ὀσου φαφρά την Eupωταίκη Μδηγία g RED (2014/53/EU), RoHS (2011/65/EU). H δŋλωση CE μπορείνα βρεθεί Θην δεύθυνηwww.gembird.eu

(ENG) Waste disposal:Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

(DE) Entsorgungshinweise:Werfen Sie ces des gesättes Gerät nicht in den Hausmull. Unsachgemäß Entsorgung kann sowohl der Umwelt als auch der menschlichen Gesundheit schaden.Informationen zu Sammelstellen für Altgeräte erhalten Sie bei ihrer Stadtverwaltung oder einer autorisierten Stelle für die Entsorgung von Elektro-und Elektronikgeräten.

(ES) Deposito de basura:No deposite este equipo con la basura domestica. La eliminación inadequada pode dafiar tanto el medio ambiente como la salute humana. Para obtener información sobre las instalaciones de recolección de desechos para dispositivos electricos y electrónicos usados, comúniquese con su ayuntimiento o una Empresa autorizada para la eliminación de equipos electricos y electrónicos.

(CZ) Nakladánis odpady:Toto zañifení nevkládeje do domovnúo opadu. Nesoprávná likvidace mezo poskodit zivotni prosthédi i lidské zdravl. Informace o zañifení pro sbér odpadu použitych elektrických a elektronických zzañifení ziskáte u městké rady nebo autorizované společnosti o likvidacić elektrických a elektronických zzañifení.

(FR/BE) Traitement des déchets:Ne jetez pas cet apparéil dans les déchets domestiques. Untraitement inapproprié peut être dommageable à l'environnement et à la santé humain. Vous trouvez des informations sur les centres de rassemblment des apparéils viennent chez l'administration municipale ou chez un centre autorisé pour le traitement des apparéils électriques ou électroniques.

(HR) Odlaganje smeca:Ovu opremu ne odlàzite zajedno s kućnim opdatom. Neapravlno odlaganje moze našeteli okolišu i ludskom zdravlju. Za informacije o objektima za príkupljanje opada za rabljene elektrickne i elektronicke uredaje obrate se gradkom vijecu ili ovlaštenom društu za odlaganje elektrickne i elektronicke opreme.

(IT) Smaltimento dei rifiuti:Non depositare esta appreciatura con i rifiuti domestici. Lo smallimento impropero puó danneggiare sua l'ambiente che la salute umana. Per informazioni sulle strutture di raccolta dei rifiuti per i dispositivi elettrici ed elettronici usati, contattare il comune o una società autorizzata per lo smaltimento delle appreciatura electrliche ed elettroniche.

(PT) Deposito de lixo:Não deposite este equipoamento no lixo dométrico. O descarte inadequado pode prejudicar o meu ambiente e a saüde humana. Para obter informações sobre instalagoes de coleta de lixo para dispositivos electricos e eletrónicos usados, entre em contato com o conselho da cidad ou uma Empresa autorizada para o descarte de equipartimentos electricos e eletrónicos.

(PL) Utylizacja odpadów:Nie naleźwy deponować tego sprętenu bezoprasze do odpadami domowymi. NiewaSciwi utyizacja moze zaszkodzić zarowyno sądowisku, jak i zdrowiu ludzkiemu. Aby uzyskać informacja na temat urzadzen do zbierania zuzytych urzadzene elektrycznych i elektronicznych, naleźky skontatratóć są z radą miasta lub upowazniónafirmw celu usuniecia sprętenu elektrycznégo i elektronicznégo.

(RO) Eliminarea deseurilor:Nu depuneni acest echipament cu deseurile menajere. Eliminarea necorespunzātoare poate dàuna atăt mediuui, CATI si sānātāti umane. Pentru informazioni despree instalații de colectare a deseurilor pentru dispositivoelecricce silelectrione folosite, vā rugam sàcontactaconsiliul municipal sau o companie autoritàpentașncpuțu elemirinarealechipamentelor elecricce silelectrione.

(SK) Likvidacia odpadu:Toto zariadenie nevkladajte do domového odpadu. Nesoprávná likvidácia moze poskodit zivotné prostredie a fudské zdravie. Informácie o zariadeniach na zber použitêho odpadu z elektrických zariadeni ziskate od mestského zastupitestva alebo od autorizovanej spoločnosti o likvidáciielektrických a elektronických zariadieni.

(SL) Odlaganje odpadkov:Te opreme ne odlagajte skupaj z gospodinskimi odpadki. Nesapravná odstranjevanje lahko škoduje okolju in zdravju ljudi. Za informacije o napravah za zbiranje odpadnih elektrickhih odakrajne svet al pooblašćeno podjetje za odstranjevanje elektricne in elektronske opreme.

(GR) Δiaxερίση ατορριματων:Mύν καταθέτετε autόν τον εξοτλισόστα στα Μικιακά ατορριματα. H ακαταλληλη ατορριμη μτορείν αβλάψει τός τοῦ περιβάλλου σόσο και τήν ανθρωτινη ηεία. Γία πληρορορίες σχετικά με τός εγκατασταείς συλαγόνίς ατορριματων γία ρησημοτιομηνεύες ήλεκτρικός και ήλεκτρονικός συκεύες, ἀπικοινωνηθε τηκοινωνηθε τοῦ έμθικός συμβουliusύ μία εξουσιδόθιμενη οταρεία γία τήν διαθεση ήλεκτρικών και

(ENG) WARRANTY CONDITIONS

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products.

Gembird Europe B.V. Wittevrouwen 56, 1358CD Almere, The Netherlands

www.gembird.nl/service [e-mail]

(DE) GARANTIE BEDINGUNGEN
