MUSG07 - Mouse GMB Gaming - Free user manual and instructions

Product type	Wired gaming mouse
Brand	GMB Gaming
Model	MUSG07
Interface	USB 2.0
Sensor	High-precision optical (up to 6400 DPI)
Number of buttons	6 programmable buttons
Backlighting	Customizable RGB
Material	ABS plastic with non-slip coating
Weight	Approximately 120 g
Dimensions (L x W x H)	125 x 68 x 38 mm
Power supply	Via USB port (5V, 500mA)
Cable length	1.8 m with braided sleeve
Compatible operating systems	Windows 7/8/10/11, macOS
Main features	DPI adjustment, programmable buttons, RGB backlighting, 1000 Hz polling rate
Care and cleaning	Clean with a soft dry cloth. Do not use solvents or liquids.
Safety	Use only with a computer that complies with standards. Unplug during storms.
Spare parts and repairability	Not user-repairable. Contact customer service.
Warranty	2 years (according to manufacturer's conditions)
Package contents	Mouse, quick start guide

Frequently Asked Questions - MUSG07 GMB Gaming

How do I connect the MUSG07 mouse to my computer?

Simply plug the mouse's USB cable into an available USB port on your computer. The operating system will automatically detect the mouse and install generic drivers. For advanced features, download the customization software from the GMB Gaming website.

How do I adjust the sensitivity (DPI) of the mouse?

Use the DPI adjustment button located under the scroll wheel. Each press changes the DPI level. Available levels are 800, 1600, 3200, and 6400 DPI. The backlight color may indicate the current level.

How do I customize the buttons and backlighting?

Download the official GMB Gaming software from the website. Install it, then connect the mouse. You can then assign functions to each button, create macros, and customize RGB effects.

What should I do if the mouse stops responding?

Try unplugging and reconnecting the mouse. Restart your computer. Test on another USB port. If the problem persists, contact customer service.

Is the mouse compatible with macOS?

Yes, the mouse works on macOS with built-in drivers. However, the customization software is only available for Windows. Basic functions (click, scroll) are operational.

How do I clean the mouse?

Unplug the mouse. Use a soft dry cloth to wipe the surface. For hard-to-reach areas, a slightly damp (water) cotton swab can be used. Avoid any liquid inside the mouse.

What is the warranty period?

The warranty is 2 years from the date of purchase, covering manufacturing defects. Keep your receipt. Damage due to misuse is not covered.

Can I replace the USB cable?

The cable is fixed and not user-replaceable. If damaged, contact customer service for warranty repair or replacement.

Does the mouse work without software?

Yes, it works in plug-and-play mode with default settings (standard buttons, DPI adjustable by button). Software is only needed for advanced customization.

How do I fix double-click issues?

Accidental double-click may be due to dirt under the button. Gently clean around the button with compressed air. If the problem persists, it may be a hardware defect; contact customer service.

USER MANUAL MUSG07 GMB Gaming

Abstract geometric logo design with a stylized 'G' inside a hexagonal frame (no text or symbols)

GMB GAMING

MUSG-07

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

PROGRAMMABLE GAMING MOUSE

PROGRAMMIERBARE GAMING-MAUS

RGB GAMING MUIS

SOURIS POUR GAMER TYPE RGB

☐6-button 3200 DPI programmable gaming mouse
Quick DPI button (1200-1600-2400-3200 dpi)
☐7-color breathing RGB light effect
Comfortable ergonomic design
□Including easy to use software

Specifications

Interface: USB 2.0
☐Sensor: A704 gaming sensor
☐Optical resolutions: 1200, 1600, 2400, 3200 DPI
Report rate: 1000 Hz
Acceleration: 10G
☐Button life time: 10 million clicks
Power consumption: 5 V DC, max. 100 mA
Material: ABS
Cable length: 1.5 m
Dimensions: 132 x 73 x 42 mm
Net weight: 140 (±5) g

1

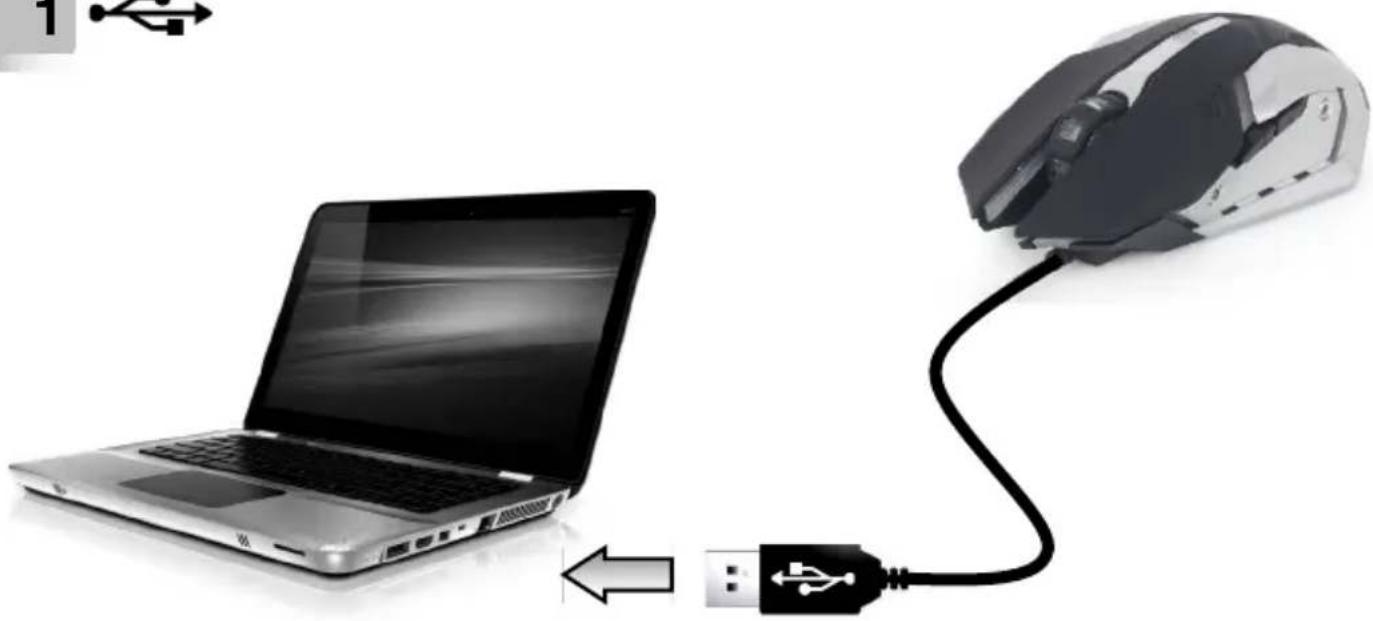

Illustration of a laptop connected to a computer mouse via USB cable (no text or symbols)

2

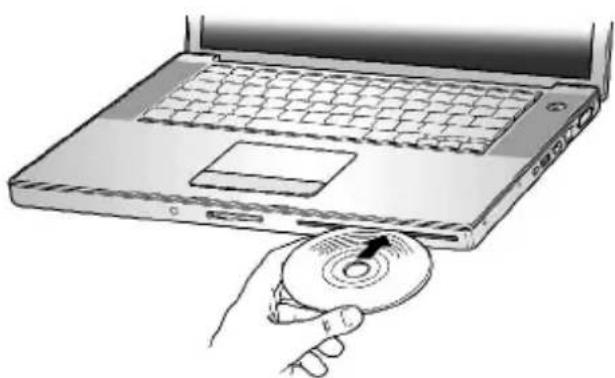

Line drawing of a hand holding a CD with a circular button on the front panel (no text or symbols)

3

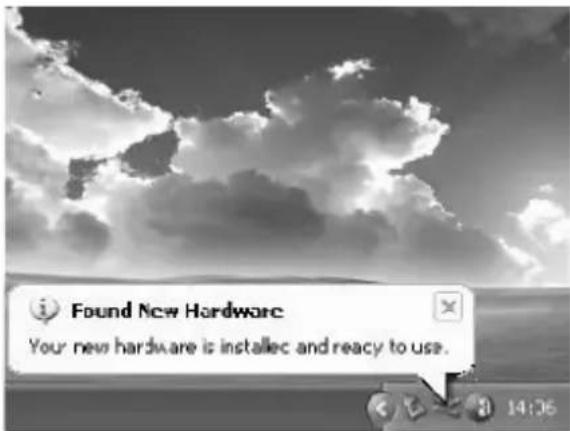

Found New Hardware Your new hardware is installed and ready to use.

4

[Non-Text]

1200...3200 dpi

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gmb.nl/certificates

(DE/A) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gmb.nl/certificatesheruntergeladen werden.

(NL) ConformiteitsverklaringDit product is getest en voldoet aan de essentiële vereisten van de wetten van de lidstaten met betrekking tot EMC(2014/30/EU), RoHS (2011/65/EU). De CE-verklaring vindt u opwww.gmb.nl/certificates

(ES) Declaración de conformidadEste producto está probado y cumple con los requisitos esenciales de las leyes de los estados miembros con respecto a EMC(2014/30/EU), RoHS (2011/65/EU). La declaración CE se puede encontrar enwww.gmb.nl/certificates

(CZ) Prohlášení o shoděTento produkt je testován a splňuje základní požadavky právních předpisů čenských států týkajících se EMC(2014/30/EU), RoHS (2011/65/EU). Prohlášení CE naleznete nawww.gmb.nl/certificates

(FR/BE) Declaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gmb.nl/certificates

(HR) Izjava o sukladnostiOvaj je proizvod testiran i udovoljava osnovnim zahtjevima zakona država članica u vezi EMC(2014/30/EU), RoHS (2011/65/EU). Izjava CE se može naći podwww.gmb.nl/certificates

(IT) Dichiarazione di conformitàQuesto prodotto è testato ed è conforme ai requisiti essenziali delle leggi degli stati membri in materia di EMC(2014/30/EU), RoHS (2011/65/EU). La dichiarazione CE è disponibile all'indirizzowww.gmb.nl/certificates

(PT) Declaração de conformidadeEste produto foi testado e está em conformidade com os requisitos essenciais das leis dos estados membros sobre EMC(2014/30/EU), RoHS (2011/65/EU). A declaração CE pode ser encontrada emwww.gmb.nl/certificates

(PL) Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami prawnymi państw członkowskich dotyczącymi EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znajduje się na stroniewww.gmb.nl/certificates

(RO) Declaratie de conformitateAcest produs este testat și respectă cerințele esențiale ale legislațiilor statelor membre privind EMC(2014/30/EU), RoHS (2011/65/EU). Declarația CE se găsește pewww.gmb.nl/certificates

(SK) Vyhlásenie o zhodeTento produkt je testovaný a spĺňa základné požiadavky právnych predpisov členských štátov týkajúcich sa EMC(2014/30/EU), RoHS (2011/65/EU).Vyhlásenie CE nájdete na stránkewww.gmb.nl/certificates

(SL) Izjava o skladnostiTa izdelek je preizkušen in ustreza bistvenim zahtevam zakonov držav članic o EMC(2014/30/EU), RoHS (2011/65/EU). Izjava CE je na voljo podwww.gmb.nl/certificates

(HR) Izjava o sukladnostiOvaj proizvod je testiran i u skladu je s bitnim zahtjevima zakona država članica koji se odnose na EMC(2014/30/EU), RoHS (2011/65/EU). CE deklaraciju možete pronaći nawww.gmb.nl/certificates

(HU) Megfelelősegi nyilatkozatEzt a terméket tesztelték, és megfelel a tagállamok EMC(2014/30/EU), RoHS (2011/65/EU) vonatkozó alapvető követelményeinek. A CE nyilatkozat megtalálható awww.gmb.nl/certificates oldalon

(BL) Декларация за съответствиеТози продукт е тестван и отговаря на основните изисквания на законите на държавите-членки относно EMC(2014/30/EU), RoHS (2011/65/EU). CE декларацията може да бъде намерена nawww.gmb.nl/certificates

(ENG) Waste disposal:Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

(DE) Entsorgungshinweise:Werfen Sie dieses Gerät nicht in den Hausmüll. Unsachgemäße Entsorgung kann sowohl der Umwelt als auch der menschlichen Gesundheit schaden. Informationen zu Sammelstellen für Altgeräte erhalten Sie bei Ihrer Stadtverwaltung oder einer autorisierten Stelle für die Entsorgung von Elektro-und Elektronikgeräten.

(NL) Afvalverwerking:Deponeer deze apparatuur niet bij het huisvuil. Onjuiste verwijdering kan zowel het milieu als de menselijke gezondheid schaden. Voor informatie over afvalinzamelingsvoorzieningen voor gebruikte elektrische en elektronische apparaten kunt u contact opnemen met uw gemeente of een erkend bedrijf voor de verwijdering van elektrische en elektronische apparatuur.

(ES) Deposito de basura:No deposite este equipo con la basura doméstica. La eliminación inadecuada puede dañar tanto el medio ambiente como la salud humana. Para obtener información sobre las instalaciones de recolección de desechos para dispositivos eléctricos y electrónicos usados, comuniquese con su ayuntamiento o una empresa autorizada para la eliminación de equipos eléctricos y electrónicos.

(CZ) Nakládání s odpady:Toto zařízení nevkládejte do domovního odpadu. Nesprávná likvidace může poškodit životní prostředí i lidské zdraví. Informace o zařízení pro sběr odpadu použitých elektrických a elektronických zařízení získáte u městské rady nebo autorizované společností o likvidaci elektrických a elektronických zařízení.

(FR/BE) Traitement des déchets:Ne jetez pas cet appareil dans les déchets domestiques. Un traitement inapproprié peut être dommageable à l'environnement et à la santé humain. Vous trouvez des informations sur les centres de rassemblement des appareils vieux chez l'administration municipale ou chez un centre autorisé pour le traitement des appareils eléctriques ou électroniques.

(HR) Odlaganje smeća:Ovu opremu ne odlažite zajedno s kućnim otpadom. Nepravilno odlaganje može naštetiti okolišu i ljudskom zdravlju. Za informacije o objektima za prikupljanje otpada za rabljene električne i elektronicke uređaje obratite se gradskom vijeću ili ovlaštenom društvu za odlaganje električne i elektronicke opreme.

(IT) Smaltimento dei rifiuti:Non depositare questa apparecchiatura con i rifiuti domestici. Lo smaltimento improprio può danneggiare sia l'ambiente che la salute umana. Per informazioni sulle strutture di raccolta dei rifiuti per i dispositivi elettrici ed elettronici usati, contattare il comune o una società autorizzata per lo smaltimento delle apparecchiature elettriche ed elettroniche.

(PT) Depósito de lixo:Não deposite este equipamento no lixo doméstico. O descarte inadequado pode prejudicar o meio ambiente e a saúde humana. Para obter informações sobre instalações de coleta de lixo para dispositivos elétricos e eletrônicos usados, entre em contato com o conselho da cidade ou uma empresa autorizada para o descarte de equipamentos elétricos e eletrônicos.

(PL) Utyilizacja odpadow:Nie należy deponować tego sprzętu razem z odpadami domowymi. Niewłaściwa utylizacija može zaszkodzić zarówno środowisku, jak i zdrowiu ludzkiemu. Aby uzyskać informacije na temat urządzeń do zbierania zużytych urządzeń elektrycznych i elektronicznych, należy skontaktować się z radą miasta lub upoważnioną firmą w celu usunięcia sprzętu elektrycznego i elektronicznego.

(RO) Eliminarea deșeurilor:Nu depuneti acest echipament cu deșeurile menajere. Eliminarea necorespunzătoare poate dăuna atât mediului, cât și sănătății umane. Pentru informații despre instalațiile de colectare a deșeurilor pentru dispositivee electrice și electronice folosite, vă rugăm să contactați consiliul municipal sau o companie autorizată pentru eliminarea echipamentelor electrice și electronice.

(SK) Likvidácia odpadu:Toto zariadenie nevkladajte do domového odpadu. Nesprávna likvidácia može poškodit životné prostredie a ľudské zdravie. Informácie o zariadeniach na zber použitého odpadu z elektrických a elektronických zariadení ziskate od mestského zastupiteľstva alebo od autorizowanej spoločnosti o likvidácii elektrických a elektronických zariadení.

(SL) Odlaganje odpadkov:Te opreme ne odlagajte skupaj z gospodinjskimi odpadki. Nepravilno odstranjevanje lahko škoduje okolju in zdravju ljudi. Za informacije o napravah za zbiranje odpadnih električnih in elektronskih naprav se obrnite na mestni svet ali pooblaščeno podjetje za odstranjevanje električne in elektronske opreme.

(HR) Zbrinjavanje otpada:Ovu opremu nemojte odlagati u kućni otpad. Nepravilno odlaganje može naštetiti i okolišu i ljudskom zdravlju. Za informacije o objektima za prikupljanje otpada od rabljenih električnih i elektroničkih uredaja, obratite se svom gradskom vijeću

(HU) Hulladékelhelyezés:Ezt a berendezést ne dobja a háztartási hulladékkal együtt. A nem megfelelő ártalmatlanítás károsíthatja a környezetet és az emberi egészséget is. A használt elektromos és elektronikus eszközök hulladékgyűjtő létesítményeivel kapcsolatos információkért forduljon a városi önkormányzathoz vagy az elektromos és elektronikus berendezések ártalmatlanításával foglalkozó felhatalmazott céghez.

(BL) Изхвърляне на отпадъци:Не изхвърляйте това оборудване с битовите отпадъци. Неправилното изхвърляне може да навреди както на околната среда, така и на човешкото здраве. За информация относно съоръженията за събиране на отпадъци от използвани електрически и електронни устройства, моля, свържете се с вашия градски съвет или оторизирана компания за изхвърляне на електрическо и електронно оборудване.

(ENG) WARRANTY CONDITIONS

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products.

Gembird Europe B.V. Wittevrouwen 56, 1358CD Almere, The Netherlands

www.gembird.nl/service, [e-mail]

(DE/A) GARANTIE BEDINGUNGEN

(PL) WARUNKI GWARANCJI
