MUSG05 - Mouse GMB Gaming - Free user manual and instructions

Product Type	Gaming mouse
Brand	GMB Gaming
Model	MUSG05
Connection Interface	Wired USB
Sensor	Optical
Number of Buttons	6 programmable buttons
Resolution (DPI)	800-3200 DPI adjustable
Lighting	RGB LED
Cable Length	1.8 m
Weight	150 g
Dimensions (L x W x H)	125 x 65 x 40 mm
Power Source	USB port powered
Compatible Operating Systems	Windows, macOS, Linux
Care and Cleaning	Clean with a soft, dry cloth. Do not use liquids.
Safety	Compliant with CE and RoHS directives
Warranty	2 years
Waste Disposal	Do not dispose of with household waste. Take to an approved collection point.
Package Contents	Mouse, user manual

Frequently Asked Questions - MUSG05 GMB Gaming

Is the MUSG05 mouse wireless?

No, it is a wired mouse with USB connection.

How to adjust the mouse DPI?

You can adjust the DPI by pressing the dedicated button located under the scroll wheel. The available levels are 800, 1600, 2400 and 3200 DPI.

Is the mouse compatible with macOS?

Yes, the MUSG05 mouse is compatible with Windows, macOS and Linux. No specific driver is required.

How to clean the mouse?

Use a soft, dry cloth to clean the surface. Avoid any liquid or chemical products.

What to do if the mouse is not working?

First check the USB connection. Try another port. If the problem persists, consult the user manual or contact support.

What are the programmable buttons?

The 6 buttons include left/right clicks, the scroll wheel, and two side buttons. They can be programmed via third-party software.

Does the mouse have RGB lighting?

Yes, it has a customizable RGB LED lighting.

What is the cable length?

The cable is 1.8 meters long, offering good freedom of movement.

How to activate the warranty?

Keep the purchase receipt and fill out the warranty card. The warranty covers manufacturing defects for 2 years.

Where to dispose of the mouse at end of life?

Do not throw it in the household trash. Take it to a collection point for electronic waste.

USER MANUAL MUSG05 GMB Gaming

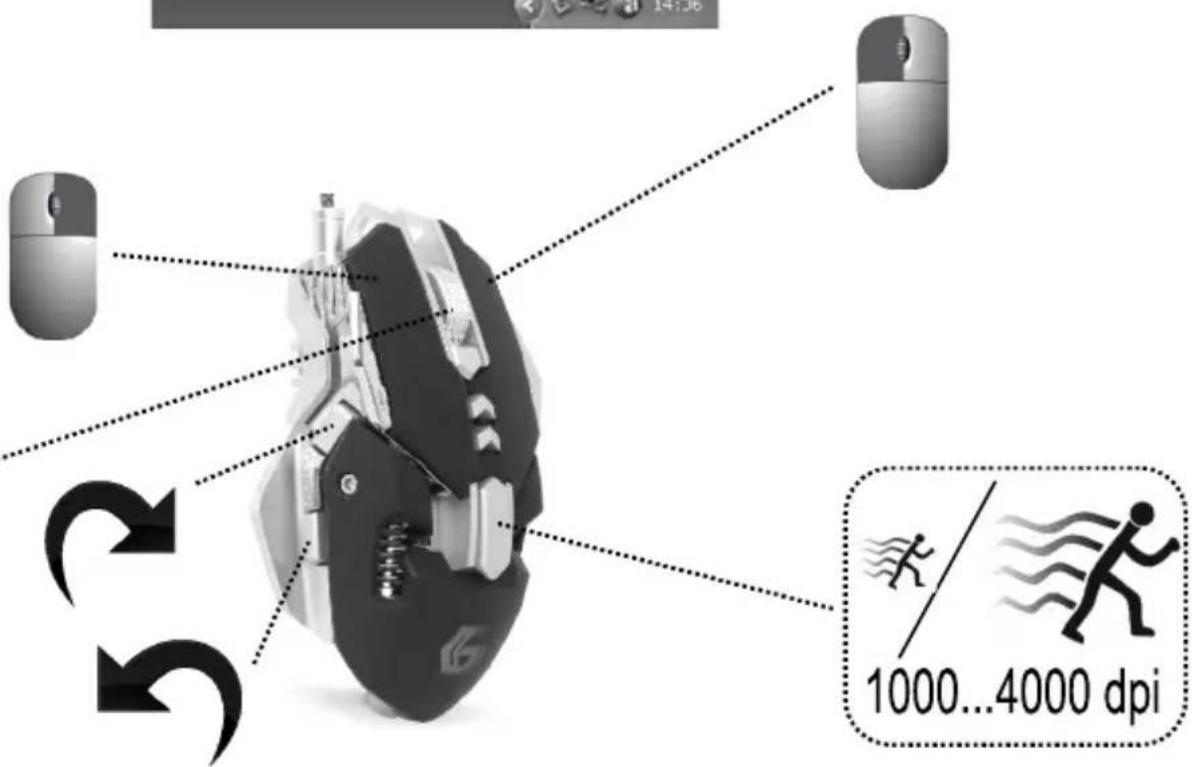

• 7-button 4000 DPI programmable gaming mouse
• Quick DPI button (1000-4000 dpi)
• Programmable macro buttons for advanced gaming experience
  7-color breathing RGB light effect
• Comfortable ergonomic design
• Including easy to use macro programming software

Specifications

• Interface: USB 2.0
• Sensor: Avago A3050 gaming sensor
  Optical resolutions: 1000, 1800, 2400, 4000 DPI
  Report rate: 1000 Hz
  Acceleration: 16G
• Button life time: 10 million clicks
  Power consumption: 5VDC max. 100mA
  Material: ABS + metal
• Cable length: 1.5 m
• Dimensions: 120 × 75 × 45 mm
  Net weight: 155 (±5) g

(1)
②

(ENG) Declaration of conformity

This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found under www.gembird.eu

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products

Gembird Europe B.V.
Wittevrouwen 56, 1358CD Almere, The Netherlands
www.gembird.nl/service
[e-mail]

GARANTIE BEDINGUNGEN

CONDITIONS DE GARANTIE

1358CD Almere, The Netherlands

www.gembird.nl/support

[e-mail]

[phone]

YMOBNI TAPAHINTINHOFO OBCJNYTOBYBAHH

1. GapaTtiHe 06cnyroBvBaHnHaHaetbCpnoTAROM TepMHy rapaTt, npn HaBBOCTI GapaTtiHoro TaHOy, 3aOBHeHOro HAnExHM MHHOM, Ta BINOBy B NOBHi KOMNJIeKtaii.
   2.「apantiHe 6cnyoByaHH He niTpmyeTbC B pa3i npuyenHn npabn EKcnyatau, 36epiranHn ao nepeBe3eHHBnpoby, 30 3a3naehi BInctpykui no eKcnnyatauBnpoby.
2. rapaHTiHHe o6cnyroByBaHHcCKaCOByeTbCay y BnauKax: -HaBHOCTI MExaHiHNx noUKoJKeHb a6o cJIiDIB CTOpOHbOrO BtpyAHH;
3. NOUKOJKeHHB NKIIKAnHi CTNXIINHM NIXOM a6o HeuacHMM BnnaKOM, BKJIouaOuH N 6NcKaBky, noTpanJaHHM y Bnpi6 CTOpOHHix PpeMetiB, piINH, KOMax, ToIO;
4. NOUKOJXEHH BKNKINKAHI 3acTocyBaHHM a6o NiDKIIOUeHHM HeCTaHapTHHX a6o HeCnpabHHx nepupeipHHx npucTroB, akcecyapIB;
5. rapaHTiHa NouHPOeTbCra Ha BnTpAHi MaTePiAn Ta DoJaTKOBI akcecyap;
   3 rapaHTiHmM yMOBaMn 3roJeH.

Пдпс поуц:

TAPAHNTIINHNI TAIOH N2

ToBap/MoDenb

CepiHn Homep

Tepmin rapahii

Дата п的对象

PpOdaBae(bHa3Ba,TeJeΦoH)

Peyatka Ta niDnnc npoDaBua

3 rapaHTiHnIX nITaHb 3BepTaITeCb Do cepBicHnx ceHtpiB Gembird. Ipo aIpecn Ta KOtAcTn Bn MoKeTe diHaTncb Ha caTi www.gembird.ua a6o no TelefoHy 044-4510213.
