USER MANUAL Mjøsa VCCH 9013.1 X Velge
B
C
INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS FOR COOKER HOOD MODEL VCCH 9013.1 X, 230-240 Vac - 50 Hz
Exhausting cooker hood. The equipment is constructed in accordance with European Standards and with the requirements included in the following Directives: EN60935-1 (Low Voltage Directive), EN55014-2 (Electromagnetic Compatibility).
This equipment can be used by children aged 8 or more, people with physical, mental and sensory disabilities or inexperienced users it they were instructed under proper supervision or trained on the safe use of the equipment and if they are fully aware of the related risks. Children shall not play with the equipment. The cleaning and maintenance are at user's expense and shall not be performed by unsupervised children.
- As soon as the equipment is delivered, remove the package immediately. Verify its overall aspect and, should any type of anomaly be found, notify it immediately to the sales point or the installer.
Its equipment is intended for domestic use. It shall not be employed for industrial or professional purposes nor for any other purpose than that for which it has been designed.
The supplier will not provide any warranty for the consequences and damages caused by an improper installation or a misuse of the equipment. - Do not attempt to modify the characteristics of this equipment, that would represent a hazard. Repairs shall be exclusively made by a specialized and authorized technician. To avoid risks, the manipulation of the equipment is strictly forbidden so is the replacement of the power cable.
If the fume hood is not supplied with a power cable and a pin or any other means for the disconnection of the mains power supply, with a separation of the contact between all poles that provides the total disconnection under conditions of overvoltage category III, shall be incorporated to disconnecting means to the fixed system, according to the installation rules (two-pole switch directly connected to power supply terminals which shall have a separation of the contact between poles so as to interrupt the supply of electricity in case of overvoltage category III).
- Once the equipment has been installed, the disconnection of the equipment from the power supply shall be allowed. Disconnection can be done by keeping the jack accessible or adding a switch to the electric system in accordance with the installation rules.
- If the power cord is damaged, it shall be replaced either by the producer, its customer service or qualified personnel in order to avoid risks.
It is of vital importance to place particular attention as to where the wall or ceiling will be perforated so as to verify the presence of hidden electrical cables, pipes or iron beams, etc. This may cause serious breakdowns, electrical derivations or the transmission of noises and vibrations.
- IMPORTANT: During the installation phase, before electrically connecting the equipment, always disconnect the power panel that will supply it (differential or thermal-magnetic of the general house switchboard).
- WARNINGS: Always disconnect the exhaust hood from the electrical outlet before proceeding to cleaning and maintenance operations by plugging off the electrical outlet, differential or thermal-magnetic of the general home switchboard. To clean the exhaust hood, never use steam or high-pressure devices (rules regarding electric safety).
It is forbidden to cook directly on the flame or operate the gas stoves with no container to cook on the same flame (aspirated flames may damage the equipment and the warranty will be cancelled accordingly). The use of the equipment on a fuel stove is not authorized (wood, coal,...).
Frying under the equipment shall be constantly monitored since oils and fats being subjected to high temperatures may ignite. Do not flame under
the exhaust hood.
- Precaution: burns of accessible parts are likely to occur as they can get hot when using cooking appliances.
- Follow the cleaning frequency and filter substitution. The accrual of fat deposits may provoke fires. Never use the exhaust hood without the anti-fat filter.
- The equipment shall abide by the existing rules on the ventilation of closed spaces. Technically, the air expelled shall not pass through the duct used for the discharge of smokes from appliances using gas or any other fuel (central heating systems, etc...).
- Ventilate the environment appropriately in case of a simultaneous operation of the exhaust hood and any other equipment supplied by an energy source other than electricity so that the exhaust hood will not draw gas compounds.
- Attention! During the simultaneous operation of a suction-filtration exhaust hood and a heating system independent of air (gas heaters, oil, coal, chimney, etc...), great attention has to be placed so as to avoid that the exhaust hood does not absorb part of the air intended for the combustion process since dangerous amounts of carbon monoxide may surge within the premises, that would represent a life-threatening danger. When installing an exhaust hood joined or connected to a fuel element such as a heater, chimney or local heating system, it is mandatory to contact the producer or installer of such elements to obtain an optimal and risk-free operation.
It is necessary to maintain a depressurized environment of maximum 0.04 mbar. Such conditions allow an excellent working of the exhaust hood. In order to achieve such environment a permanent air intake is necessary in order to avoid air stagnation (it is advised to use a ventilation grid for this purpose). Windows or doors shall not be used.
The electrical supply of the power network shall be stable and cope with the indicated electrical standards, 220/240V AC, 50Hz. Should it be not stable and receive voltage variations in the supply, intensity or frequency such as armonici, transistor, voltage dips, overloads, electrical storms, etc..., the hood may show malfunctions or even breakdowns, and the repair would not be covered by the warranty. In that case, the exhaust hood shall be disconnected and the company must contact an electrician or electrical company in order to solve the supply problem.
In the constant effort to improve our products, we reserve the right to make changes following their enhancement to their technical, functional and aesthetic characteristics.
NORMS AND INSTALLATION TIPS-
(The entire installation process is exclusively reserved for qualified workers, installers or authorized technical service).
Before proceeding with the installation, make sure that all components are in perfect conditions. Otherwise, contact the vendor and do not proceed with the installation.
Once installed, the likely imperfections of the equipment such as scratches, impacts, etc..., will not be covered by under warranty.
PLEASE NOTE
DO NOT REMOVE THE PROTECTIVE PLASTIC SHEET FROM THE HOOD UNTIL THE INSTALLATION IS NOT COMPLETELY FINALIZED.
SAFETY
A.Do not do flambé cooking under the hood
B. Constantly check while using the fryers because overheated oil can catch fire
C. Prior to any cleaning operation, disconnect the unit from electrical power by pulling the plug or operating the switch
D. If in the room the hood is simultaneously used with other appliances that give off fumes, not powered by electricity, the room should be
provided with ventilation
E. Avoid having free turned on stoves (not used)
F. Limit the use of the hood to its designed purpose: removal of cooking odours; do not use it for other purposes
G. It is recommended to start the hood shortly before performing any cooking operation and to let it run after cooking for at least 15 minutes and anyway until the odour has disappeared
H. This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been instructed with regard to the use of the device and are supervised by a person responsible for their safety. Children should be supervised in order to make sure they do not play with the appliance.
I. The room must have sufficient ventilation when the hood is used simultaneously with other appliances that use gas or other fuels
L.There is the possibility of fire if cleaning operations are not done according to the instructions
WARNING: accessible parts may become hot when using the hob.
M. Air should not be discharged into any duct used to discharge exhaust fumes produced by appliances burning gas or other fuels.
N. Follow the laws applicable for external air evacuation.
O. If the power cable is damaged, it must be replaced by the manufacturer or an authorized technical service center or by a qualified technician in order to avoid hazards.
TECNICAL SPECIFICATIONS
Always disconnect the hood from the mains before carrying out any maintenance or cleaning operation.
The technical data pertaining to the electric appliance The technical specifications of the appliance are shown on the rating plates located inside the range hood.

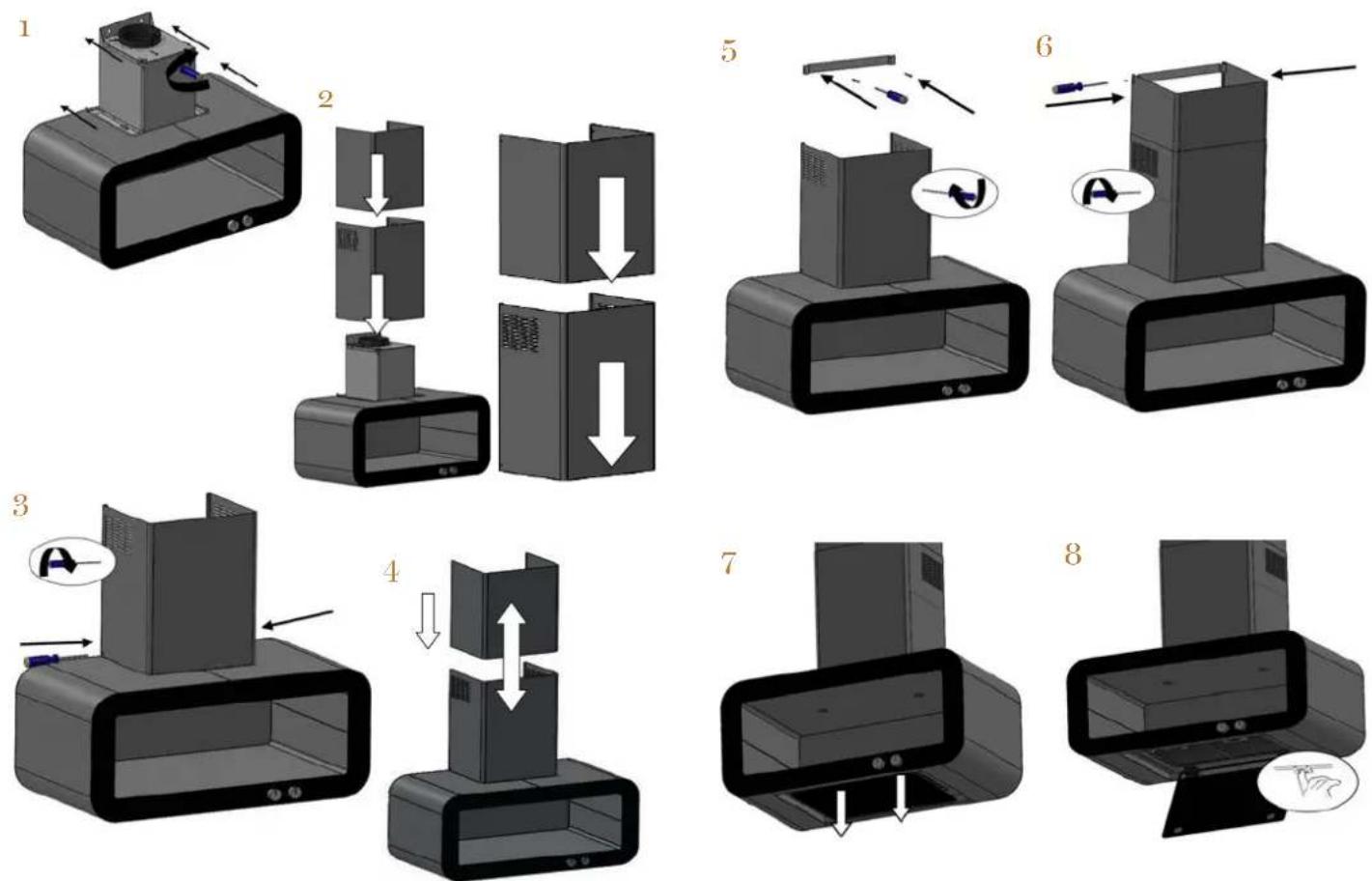

INSTALLATION INSTRUCTIONS-
This hood has been arranged to be installed above a cook top.
ASPIRATING TYPES: External exhaust
FILTERING TYPES: Internal re-cycling
We suggest to have installation carried out by qualified personnel, in compliance with all the current regulations and in particular with the ones concerning air exhaust. The manufacturer cannot be held liable for damages caused by improper installation or if it has not been carried out according to the state of the art.
SAFETY
Do not connect the appliance discharge to exhaust ducts of smokes produced by combustion that is not supplied by electrical power.
The minimum safety distance between the cooking counter and the hood is 65 cm.
In the case in which both the hood and apparatuses emit fumes, do not operate electrical energy. A sufficient aeration of the setting needs to be created.
CLEANING
Use only a damp doth with neutral liquid detergent.
Do not use wet sponges or cloths, water jets, thinners, solvents, hydrochloric acid, bleach, alcohol or abrasive substances.
MAINTENACE
Unplug the appliance or switch off the circuit breaker before carrying out maintenance operations.
FILTERS.
METALLIC ANTI-GREASE FILTERS
The filters must be washed at least one a month with hot water and detergent.
-It can also be washed in the dishwasher.
Open by means of the handle.

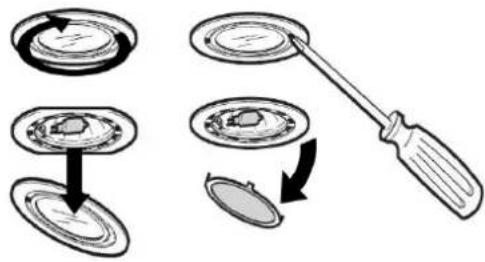

ACTIVATED CARBON FILTERS (Only filtering types)
A
B
D
