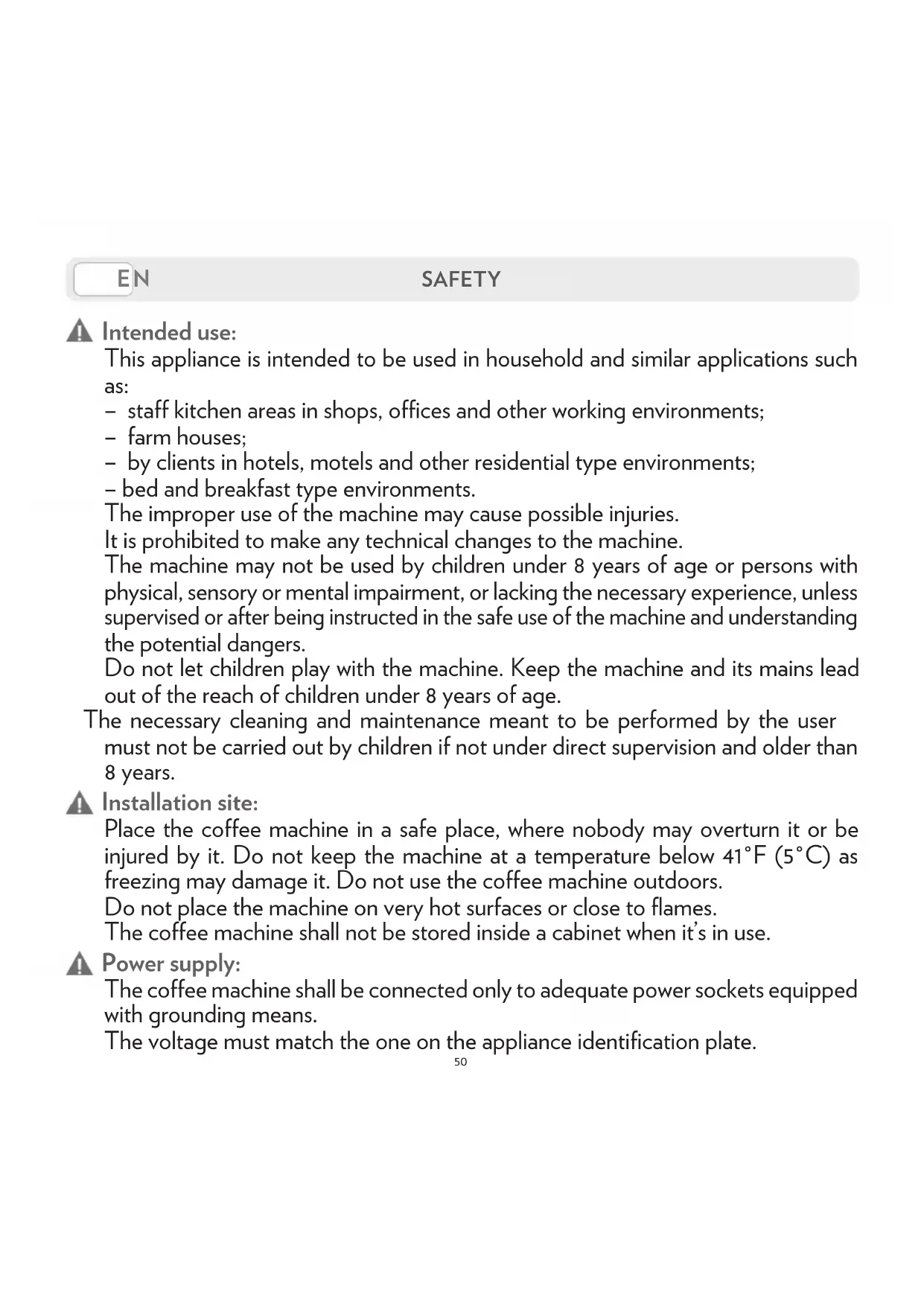

Do not operate the coffee machine if the power cord is damaged. If the power cord is damaged, it must be replaced by the manufacturer (or the latter’s technical service staff), in order to prevent any risk. Do not pass the power cable for angles and sharp edges, over very hot objects, and protect it from oil. Do not carry or pull the coffee machine holding it by the power cord. Do not remove the plug by pulling the power cord, do not touch it with wet hands. Power cord should not hang loose from tables or shelves

Danger of electrocution: Live parts should never come into touch with water. Do not immerse the machine

Protect children under 8 years of age

Prevent children from playing with the machine. Children are not aware of the risks related to electric household appliances. Do not leave the machine packaging materials within the reach of children

Danger of burns: Do not touch the hot parts (cartridge holder group) of the machine immediately after use. While dispensing the drink, pay attention to any possible splashes of hot liquid. Cleaning: Before cleaning, unplug the machine and let it cool down. Do not immerse the machine in water! It is strictly forbidden to tamper with the internal parts of the machine. Change the water in the tank if not used for 3 days. To prevent damage to the appliance do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent. SAFETY52 ITEN SAFETY Storing the machine: If the machine remains inactive for a long time, unplug it and store it in a dry place out of reach of children. Keep it protected from dust and dirt. Servicing / Maintenance:

n case of failure, problems or a suspected fault resulting from falling of the machine, immediately unplug the machine. Do not attempt to operate a faulty machine. Only the authorized Lavazza Service Centres can carry out the necessary ope- rations and repairs. Lavazza will not be responsible for possible damage resulting from repairs and operations not carried out by them. Water tank: Fill the tank only with fresh, non-sparkling, drinking water. Do not operate the machine if the water is not at least above the minimum level indicated on the tank. Capsule compartment: Only Lavazza or compatible capsules must be introduced in the capsule-holder; do not put in your fingers or any other object. The capsules shall be used only once. Machine disposal at the end of its operational life: INFORMATION FOR THE USER: the symbol of the crossed-out wheeled bin on the appliance or its packaging indicates that the product must be disposed of separately from other waste at the end of its operational life. The user must therefore take the appliance to be disposed of to an appropriate separate collection centre for electrical and electronic equipment. Appropriate separate waste collection, in view of the decommissioned equip- ment’s recycling, processing and environment-friendly disposal, helps avoiding possible adverse effects both on the environment and the public health and, also, promotes the reuse and/or recycling of the materials the machine is made up of. Specific administrative sanctions provided for by current regulations will be applied for illicit disposal of the product by the user.53

• Welcome kit consisting of 9 assorted Lavazza capsules and a Lavazza leaflet (included only in some countries)

• Warranty sheet PACKAGE CONTENT * * The characteristics and the package content can vary according to the target market. Capsule loading lever Touch control interface Water tank cover Water tank Plate with cup support grid Power supply cable Used capsule drawers Drop collection tray Milk frothing jug Steam wand Beater54 ITEN CONTROLS

HOT / COLD WHIPPED MILK

= On  = Flashing  = Acoustic feedback57

We are not liable for any damages in case of:

• incorrect use and other uses than the intended purposes;

• repairs not carried out at Lavazza authorized service centers;

• use of spare parts and accessories which are not original;

• failure to decalcify;

• storage in rooms below 39°F (4°C);

• use in places with relative humidity above 95%;

• using non-compatible capsules. In any of these cases, the warranty is cancelled.

STARTING THE MACHINE

Place the coffee machine on a flat and stable surface, far from water and heat sources. Machine damages due to non-observance of these indications are not covered by warranty. Lift and remove the cover, then the water tank itself. Rinse the tank before using it. Fill the water tank up to the MAX level indicated, using only fresh drinking water. Fit the tank back into place, then close by using the cover. The cover can be lifted to fill the tank directly. Max Min MACHINE SETTING The water level should never exceed the MAX indi- cation. Only use non-carbonated fresh water. Hot water and other liquids can damage the tank and the machine. Do not operate the machine without water: make sure that there is enough water in the tank. Make sure that the hands, the machine, the cord and the support surface of the machine are not wet.58 ITEN Fit the supply plug into the power outlet. Press the button to switch the machine on. The machine will emit an acoustic signal . All buttons will come on to a steady white light, whereas the alarm warning lamps will come on to a steady orange light over an instant. The coffee machine starts the heating cycle. The button will start blinking to a light white. MACHINE SETTING The machine will be ready when the stops blinking and the supply button lights are steadily. When the milk whipping jug is not inserted, the machine will only turn on the coffee supply buttons and the temperature selection button. The milk beverage warning lights will be OFF and the buttons will not work. By pressing one of the supply buttons during the heating cycle, you can reserve the beverage that will be supplied at the end of the heating cycle. Upon the first machine start-up, you shall supply 16.9fl oz (0.5 litres) of water, with no capsule inserted and keeping the lever lowered.59

Place a cup under the supplying spout. Press the FREE DOSE button and wait for the supply to end. Open and close the lever before removing and emptying the cup. Empty the cup and supply one more time, by pressing the FREE DOSE button again

When a supply is selected, the machine will activate the electric water pump over 7 seconds. If water is found inside the hydraulic circuit, the ma- chine will normally supply. If no water is found inside the hydraulic circuit, the machine will stop supplying over 5 seconds and will try to supply again up to a maximum of 5 time. After 5 attempts have been made, the machine will cause the “No water” warning lamp to come on to a steady orange light, to inform that water is missing, and will also emit an acoustic signal. MACHINE SETTING

ACOUSTIC SIGNAL ACTIVATION /

DEACTIVATION Switch off the machine, and then hold down both the ESPRESSO /LONG COFFEE buttons for min- imum 5 seconds. The machine will emit a prolonged acoustic signal

notify the acoustic signal deactivation, and two brief acous- tic signals to notify the activation. Once the procedure has been completed, the ma- chine will go back to the OFF MODE

To guarantee energy saving, the machine switches off automatically after 9 minutes of non-operation. You can switch off the machine manually within 9 minutes by holding the button, the machine will emit an acoustic signal . In the OFF MODE, the buttons will be OFF, and the button will come on to a less intense light. The machine can be activated again by pressing the button. The power consumption of the machine when it is switched-off is 0.4 W.60 ITEN MACHINE SETTING

PREPARATION FOR COFFEE BREWING

The coffee machine features two positions for preparing the coffee: espresso cup/mug. To use an espresso coffee cup, remove the cup support plate. Fit the cup support plate into the slot available at the top. Place the cup onto the plate. To use a big cup, place the cup (or glass) directly onto the plate at the bottom.61

Open the milk whipping jug and fill it with fresh, non-carbonated drinking water up to the MILK MAC- CHIATO/ WHIPPED MILK level sign - . Close the milk whipping jug with the cover and pay at- tention to the correct position and direction of the cover.

PROVISION FOR PREPARING THE MILK-

BASED BEVERAGES When the milk whipping jug is inserted, the machine will only turn on the milk-based beverage supply but- tons, the temperature selection button and the foam control button. The Coffee beverage warning lights will be OFF and the buttons will not work. The milk whipping jug features three preparation levels: CAPPUCCINO CAPPUCCINO LARGE

MILK MACCHIATO WHIPPED MILK Always follow the levels indicated inside the milk whipping jug. When using for the first time, carry out a cleaning cy- cle on the milk frothing jug. MACHINE SETTING62 ITEN After cleaning remove the jug from the machine. Wash all the components with cold or warm water, then dry them up and fit them back into place correctly. Insert the milk whipping jug into the machine. The machine will emit an acoustic signal to indicate the correct insertion of the milk whipping jug. Press the MILK MACCHIATO button to start the cleaning cycle. MACHINE SETTING63

Never put fingers or objects in the capsule-holder Only Lavazza or compatible capsules must be introduced in the capsule-holder. Single-dose capsules are prepared to dispense one coffee/product. DO NOT use the capsules more than once. Inserting two or more capsules can cause the ma- chine to malfunction. Put a Lavazza capsule into the capsule fit- ting compartment.

ESPRESSO / LONG ESPRESSO DELIVERY

Make sure that the coffee supply buttons have come on to a steady white light. Place the mug/cup as shown (see PREPARATION FOR COFFEE BREWING). Lift the capsule loading lever until it locks into position to open the capsule fitting compartment.

PREPARING THE COFFEE64

ITEN Lower the capsule loading lever to close the capsule fitting compartment. If you wish a hotter coffee, you can increase the beverage temperature by pressing the “TEMPERATURE boost” button . The machine will, when the button is pressed, emit an acoustic signal and the button light will get brighter. If you wish to go back to the standard temperature, press the “TEMPERATURE boost” button again. The machine will, when the button is pressed, emit an acoustic signal and the button light will get dimmer. The temperature cannot be changed during the sup- ply phase.

To start supplying: press the ESPRESSO (1 fl oz /30 ml) or press the LONG ESPRESSO (1.5 fl oz/45 ml). The machine will stop delivery automatically when the programmed measure is reached. The supply button will light up to a blinking white light when the product is being supplied. You can stop supplying by pressing the supply button again.

PREPARING THE COFFEE

If, during the dispensing cycle power supply is inter- rupted proceed as follows: - Restore the power supply. - Press the button and wait for the button to light up to a steady white light. - Replace the capsule inside the capsule fitting com- partment with a new one. - Restart the coffee dispensing. If, during the dispensing cycle water is exhausted within the tank proceed as follows: - Fill the water tank up to the indicated MAX level. - Replace the capsule inside the capsule fitting com- partment with a new one. - Restart the coffee dispensing. Supplying without a capsule the doses may not re- spect the programmed quantity. Once supply is over, lift and then lower the capsule loading lever to unload the exhausted capsule. To supply again, wait until both the supply button and the button come on to a steady white light.66 ITEN

LONG COFFEE DELIVERY

Do steps: , , and in paragraph ESPRESSO DELIVERY. Press the LONG COFFEE (3 fl oz/90 ml) button to start delivery. The machine will stop delivery auto- matically when the programmed measure is reached. The supply button will light up to a blinking white light when the product is being supplied. You can stop supply- ing by pressing the supply button again. Once supply is over, lift and then lower the capsule load- ing lever to unload the exhausted capsule. To supply again, wait until both the supply button and the button come on to a steady white light.

Do steps: , , and in paragraph ESPRESSO DELIVERY. In case of soluble capsules, it is recommended that a brief plain (i.e. by using only water) supply should be dispensed before in- serting the capsule, so that you can best enjoy the product. Press the FREE DOSE BEVERAGE button to start delivery. Once the desired amount of brewed coffee is reached, press the button again to stop brewing. The supply button will light up to a blinking white light when the product is being supplied. You can stop supply- ing by pressing the supply button again. Once supply is over, lift and then lower the capsule load- ing lever to unload the exhausted capsule. To supply again, wait until both the supply button and the button come on to a steady white light.67

Press down the button of the icon you wish to program. The machine will start supplying and, after approximate- ly 3 seconds, the other coffee buttons will start blinking and the machine will beep , to indicate that the pro- gramming mode has been accessed. Keep the supply button depressed Once the desired amount of coffee has been obtained, stop supply by releasing the button. The machine will stop and the dose will be programmed If the programmed measure exceeds the maximum al- lowed the machine will automatically stop delivery, the de- livery button will blink and the last programmed measure will be saved in the memory. If there is a power failure during programming, the last programmed value remains in the memory. If during a dose programming, water lack is indicated, the machine stops the supply and the dose being pro- grammed won’t be saved. Once filled the water tank, re- peat the dose programming procedure. PROGRAMMING

COFFEE DOSE PROGRAMMING

Measures are always programmed using the same but- ton; any action by pressing other buttons will be ignored. The programmed amount of brewed coffee can be changed by repeating the programming. It is not possible to program the coffee dose in milk- based beverages. Press the button to switch the machine on. The machine will be ready when the button stops blinking and the supply button lights are steadily. Lift the pod loading lever until it locks into position to open the pod fitting compartment. Put a Lavazza capsule into the capsule fitting compartment. Lower the pod loading lever to close the pod fitting compartment. Place the cup onto the plate.68 ITEN

PREPARING THE MILK-BASED BEVERAGES

DELIVERING CAPPUCCINO When the milk whipping jug is inserted, the machine will only turn on the milk-based beverage supply but- tons, the temperature selection button and the foam control button. The coffee beverage warning lights will be OFF and the buttons will not work. Open the milk whipping jug and fill it with milk up to the CAPPUCCINO level sign. Pour the exact amount of milk indicated on the jug. Do not pour too much milk or too little milk. Otherwise, hot milk may in both cases spill out of the container. Always thoroughly wash the milk frothing jug and the whisk cover between preparations Use exclusively cold milk at fridge temperature (32 °F (4°C) indicatively). Do not use milk at room temperature. Using plant milk does not guarantee the best results. Make sure that the milk whipping jug has been cor- rectly put in place and, also, that the beverage supply buttons are ON with a steady white light. Do not use powder soluble products (such as CHOC- OLATE) as the best results of the preparation are not guaranteed and the beater might get blocked. Close the milk whipping jug and fit it into the machine. When the milk frothing jug is correctly positioned, the machine emits a beep .69

If you wish a hotter coffee, you can increase the beverage temperature by pressing the “TEMPERATURE boost” button . The machine will, when the button is pressed, emit an acoustic signal and the button light will get brighter. If you wish to go back to the standard temperature, press the “TEMPERATURE boost” button again . The machine will, when the button is pressed, emit an acoustic signal and the button light will get dimmer. The temperature cannot be changed during the supply phase. Put a Lavazza capsule into the capsule fitting compartment. Check that a capsule has been inserted. If there is no capsule, the machine will delivery water, not coffee

Lower the capsule loading lever to close the capsule fitting compartment.70 ITEN If you wish more foam in the beverage, you can increase the amount of the same by pressing the FOAM control button . The machine will emit an acoustic signal when the button is pressed. If you wish to go back to the normal foam amount, press the FOAM control button again . The machine will emit an acoustic signal when the button is pressed. The foam amount cannot be changed when the beverage is being supplied.

PREPARING THE MILK-BASED BEVERAGES

Press the CAPPUCCINO 2.8fl oz (80 ml) button to start the machine. After a few seconds the machine will start to warm and froth the milk. When ready, the machine delivers the measure of coffee in the jug and stops automatically. Do not use the milk frothing jug to conserve the beverages. Always clean the jug thoroughly after each use. The supply button will light up to a blinking white light when the product is being supplied. You can stop supply- ing by pressing the supply button again. Do not make more than 5 consecutive beverages. The machine will be ready to use again after about 10 minutes.71

Open the milk whipping jug and fill it with milk up to the CAPPUCCINO LARGE level sign. Do steps: , and in paragraph CAPPUCCINO DELIVERY. Press the CAPPUCCINO LARGE 4.5 fl oz (130 ml) button to start the machine. After a few seconds the machine will start to warm and froth the milk. When ready, the machine delivers the measure of coffee in the jug and stops automatically.

DELIVERING MILK MACCHIATO

Open the milk whipping jug and fill it with milk up to the MILK MACCHIATO level sign. Do steps: , and in paragraph CAPPUCCINO DELIVERY. Press the MILK MACCHIATO 6.1 fl oz (175 ml) button to start the machine. After a few seconds the machine will start to warm and froth the milk. When ready, the machine delivers the measure of coffee in the jug and stops automatically.72 ITEN

DELIVERING HOT WHIPPED MILK

Open the milk whipping jug and fill it with milk up to the

MILK MACCHIATO / WHIPPED MILK -

level sign. Close the milk whipping jug and fit it into the machine. Press the HOT WHIPPED MILK button 6.1 fl oz (175 ml) to start the preparation. After a few seconds, the machine will start warming and whipping the milk.

DELIVERING COLD WHIPPED MILK

Open the milk whipping jug and fill it with milk up to the

MILK MACCHIATO / WHIPPED MILK -

level sign. Pour the exact amount of milk indicated on the jug. Do not pour too much milk or too little milk. Otherwise, hot milk may in both cases spill out of the container. Use exclusively cold milk at fridge temperature (32 °F (4°C) indicatively). Do not use milk at room temperature. Using plant milk does not guarantee the best results.

Do not use the milk frothing jug to conserve the beverages. Always clean the jug thoroughly after each use. When the beverage is being supplied, the selected button will be ON with a blinking blue light. To supply again, wait until both the supply button and the button come on to a steady white light. Do not make more than 5 consecutive beverages. The machine will be ready to use again after about 10 minutes. Press the COLD WHIPPED MILK button 6.1 fl oz (175 ml) to start the preparation. After a few seconds, the machine will start whipping the milk. Close the milk whipping jug and fit it into the machine. When the milk frothing jug is correctly positioned, the ma- chine emits a beep . Make sure that the milk whipping jug has been cor- rectly put in place and, also, that the beverage supply buttons are ON with a steady white light. Keep the TEMPERATURE Boost button depressed over at least 3 seconds. The machine will emit a double acoustic signal to in- dicate the shift to the cold beverage preparation. Both the TEMPERATURE Boost button and the COLD WHIPPED MILK icon will turn blue and the machine will only enable the COLD WHIPPED MILK supply button .74 ITEN

TRAY The capsule collection tray warning lamp will come on when the used capsule tray is full and, therefore, has to be emptied and fitted back into place again. Remove the drop collection tray and the used capsule collection tray. The machine will emit an acoustic signal to inform that the capsule collection tray has been removed. If the drawer is removed for more than 5 seconds, the machine will zero the capsules inserted count.

MAINTENANCE AND CLEANING

CLEANING THE MACHINE

Never use solvents, alcohol or other aggressive substances or ovens for drying the coffee machine components. Wash machine components (electric components excluded) with cold/lukewarm water and non-abra- sive clothes/sponges. All removable components can be cleaned by using a dishwasher. Do not leave water in the tank and water circuit for more than 3 days. If this is the case, drain the tank and circuit, rinse it and refill it with fresh water, then carry out a delivery without capsule before making any coffee or other beverage.

Remove the drop collection tray and the capsule col- lection tray, then empty the used capsules and the flu- ids found in the drop collection tray

Wash all the components with cold or warm water, or in a dishwasher, then dry them up and fit them back into place correctly

Regularly check that the drop collection tray is not full, so as to prevent fluid leakage.

CLEANING MILK FROTHING JUG

Remove the cover from the milk frothing jug and separate the components. The milk frothing jug (1) is composed of the following components:

Disassemble the steam wand (6) from the milk frothing jug cover (1). Wash all components in cold or lukewarm water Separating the other parts of the beater cover is not nec- essary. - To prevent malfunctioning, avoid disassembling the beater shaft (4) and removing it from its original posi- tion. - The milk frothing jug (2), the beater cover (1) and the steam wand (6) can be washed in cold water or in the dishwasher at low temperature; wash the parts sepa- rately

MAINTENANCE AND CLEANING

MAINTENANCE AND CLEANING

Fit the cover onto the milk whipping jug. Close the milk whipping jug with its cover and pay attention to the correct position and direction of the cover. Reassemble the steam wand (6) in the milk frothing jug cover (1). Check correct positioning of the beater (5) in its seats in the beater shaft retainer. After washing, make sure that all parts are installed cor- rectly; the beater (5), in particular, should be firmly in- stalled and free to rotate. Seats in the beater shaft retainer

DESCALING AS REGARDS MACHINES WITH

FROM 2244S001120116 Carefully read the descaling instructions. Scan the QR code to watch the descaling tutorial: Limescale normally builds up with extended use of the appliance; the machine needs descaling every 2 months and/or whenever a reduction in water flow is noticed. The descaling cycle will be requested by the machine through the switching-on of the special warning lamp available . Do not switch the machine off when the descaling cycle is under way. The machine must be monitored during the descal- ing cycle. The cycle will have, once it has been start- ed, to be performed completely. Check there is no capsule inside the capsule contain- ing compartment. The milk frothing jug MUST be inserted during the descaling cycle.

MAINTENANCE AND CLEANING

Milk frothing jug Milk frothing jug cover Capsule tray and drop collection tray Prior to starting the machine, check the machine serial number that is printed under the Bar Code in the label un- derneath the machine and find the operating instructions in the dedicated section. Manuals and tutorial videos suitable to all machine serial numbers are available on our website. Items needed for descaling: Remove and empty the water tank and remove the milk whipping jug. Do not drink the descaling solution and products dispensed until the completion of the cycle. Never use vinegar as a descaling solution. To decalcify the machine, It Is recommended that the LAVAZZA DESCALING agent should be used. Fill the tank with the LAVAZZA DESCALING agent 8.7fl oz (250 ml) and water 8.7fl oz (250 ml). Fit the tank back into place on the machine

Put the tank back in place on the machine. Place the milk frothing jug (complete with its cover) into position on the machine. With the machine switched off, hold down both delivery buttons LONG ESPRESSO and FREE DOSE for minimum 3 seconds.

MAINTENANCE AND CLEANING

The machine will emit a prolonged acoustic signal *, then the button, LONG COFFEE button and the descaling warning lamp will all come on to a steady light

• The acoustic signals will not be emitted if they have been turned OFF. Press the LONG COFFEE button to start the descaling cycle.

If the LONG COFFEE button is not pressed within 9 minutes after the acoustic signal , the machine switches off automatically and you should repeat the step of the procedure to start the cycle. In case of power supply interruption, the machine will, upon the first power-on, resume the descaling procedure where it was interrupted: press the LONG COFFEE button to restart DESCALING.80 ITEN

MAINTENANCE AND CLEANING

The machine will automatically activate the descaling process, after the heating cycle is over. During the descaling cycle, the LONG COFFEE button will be ON and blinking and the descaling warning lamp will be ON to a steady light. During the descaling cycle, the machine will auto- matically perform intermittent supply cycles, to allow the container to be emptied. The descaling cycle can be temporarily interrupted by pressing either the LONG COFFEE or button. To start the cycle again, press the LONG COFFEE but- ton . The cycle will be temporarily interrupted when the fluid runs out in the machine tank. DO NOT top up the tank during this phase. You must allow the tank to empty completely. Empty the milk frothing jug used to collect the descaling solution. The button, LONG COFFEE button and “No water” warning lamp will be ON to a steady light. Descaling warning lamp will be ON and blinking. Remove the water tank, rinse and wash it accurately. Fill it with drinking fresh non-carbonated water up to the MAX. level.

In case of power supply interruption, the machine will, upon the first power-on, resume the rinse pro- cedure where it was interrupted: press the LONG COFFEE button to restart RINSING.81

MAINTENANCE AND CLEANING

Fit the tank with water. Place the milk frothing jug (complete with its cover) back into position on the machine. Press the LONG COFFEE button to start the rinsing cycle. At the end of the first rinse cycle, refill the water tank and start the second rinse cycle by pressing the LONG COFFEE button . To end the rinse cycle, a minimum amount of water of

67.62 fl oz (2 litres) (approximately 2 tanks) will have

to be supplied. In case of lack of water, the cycle will be temporarily inter- rupted, the machine will emit a prolonged acoustic signal (if enabled) and the “No water ” warning lamp will come on to a steady light. Top up the tank and press the LONG COFFEE button again to restart the rinse cycle At rinse end, the descaling warning lamp goes off, which confirms that the procedure has come to an end. Before using the machine, empty and thoroughly rinse the milk frothing jug and its cover, clean it using a soft moist cloth.82 ITEN

DESCALING AS REGARDS MACHINES WITH

The machine serial number is shown below the barcode on the label put under the machine. Carefully read the descaling instructions. Scan the QR code to watch the descaling tutorial: Limescale normally builds up with extended use of the appliance; the machine needs descaling every 2-3 months and/or whenever a reduction in water flow is noticed. The descaling cycle will be requested by the machine through the switching-on of the special warning lamp available . Do not switch the machine off when the descaling cycle is under way. The machine must be monitored during the descaling cycle. The cycle will have, once it has been started, to be performed completely. Check there is no capsule inside the capsule containing compartment. Remove and empty the water tank and remove the milk whipping jug. Do not drink the descaling solution and products dis- pensed. Never use vinegar as a descaling solution. To decalcify the machine, It Is recommended that the LAVAZZA DESCALING agent should be used. Fill the tank with the LAVAZZA DESCALING agent 8.7fl oz (250 ml) and water 8.7fl oz (250 ml).

Fit the tank back into place on the machine

Use a moist cloth to wipe off the squirts or drops, if any.

MAINTENANCE AND CLEANING

Place a container with a capacity of at least 16.9 fl oz (0.5 L) under the supplying device. With the machine switched off, hold down both deliv- ery buttons LONG ESPRESSO and FREE DOSE for minimum 3 seconds.

The machine will emit a prolonged acoustic signal *, then the button, LONG COFFEE button and the descaling warning lamp will all come on to a steady light . *The acoustic signals will not be emitted if they have been turned OFF. Press the LONG COFFEE button to start the des- caling cycle.

MAINTENANCE AND CLEANING

If the LONG COFFEE button is not pressed within 9 minutes after the acoustic signal, the ma- chine switches off automatically and you should re- peat the step procedure to start the cycle. In case of power supply interruption, the machine will, upon the first power-on, resume the descaling proce- dure where it was interrupted: press the LONG COF- FEE button to restart DESCALING. The machine will automatically activate the descaling process, after the heating cycle is over. During the descaling cycle, the LONG COFFEE button will be ON and blinking and the descaling warning lamp will be ON to a steady light. During the descaling cycle, the machine will auto- matically perform intermittent supply cycles, to allow the container to be emptied. The descaling cycle can be temporarily interrupted by pressing either the LONG COFFEE or button. To start the cycle again, press the LONG COFFEE but- ton . The cycle will be temporarily interrupted when the fluid runs out in the machine tank. DO NOT top up the tank during this phase. You must allow the tank to empty completely.84 ITEN

MAINTENANCE AND CLEANING

Fit the tank back into place on the machine

Place a container with a capacity of at least 16.9 fl oz (0.5 L) under the supplying device. Press the LONG COFFEE button to start he rins- ing cycle. To end the rinse cycle, a minimum amount of water of

33.81 fl oz (1 litre) (approximately 1 full tank) will have

n case of lack of water, the cycle will be temporarily inter- rupted, the machine will emit a prolonged acoustic signal (if enabled) and the “No water” warning lamp will come on to a steady light. Top up the tank and press the LONG COFFEE button

again to restart the rinse cycle. At rinse end, the descaling warning lamp goes off, which confirms that the procedure has come to an end. Before using the machine, empty and thoroughly rinse the milk frothing jug and its cover, clean it using a soft moist cloth. Empty the container used to collect the solution. The button, LONG COFFEE button and “No water” warning lamp will be ON to a steady light. Descaling warning lamp will be ON and blinking. Remove the water tank, rinse and wash it accurately. Fill it with drinking fresh non-carbonated water up to the MAX. level. In case of power supply interruption, the machine will, upon the first power-on, resume the rinse procedure where it was interrupted: press the LONG COFFEE button to restart RINSING.85

DESCALING AS REGARDS MACHINES WITH

SERIAL NUMBER UNTIL 1947S001034762

The machine serial number is shown below the barcode on the label put under the machine. Carefully read the descaling instructions. Scan the QR code to watch the descaling tutorial: Limescale normally builds up with extended use of the appliance; the machine needs descaling every 2-3 months and/or whenever a reduction in water flow is noticed. The descaling cycle will be requested by the machine through the switching-on of the special warning lamp available . Do not switch the machine off when the descaling cycle is under way. The machine must be monitored during the descal- ing cycle. The cycle will have, once it has been started, to be performed completely. Check there is no capsule inside the capsule contain- ing compartment.

MAINTENANCE AND CLEANING

Remove and empty the water tank and remove the milk whipping jug. Do not drink the descaling solution and products dis- pensed until the completion of the cycle. Never use vinegar as a descaling solution. To decalcify the machine, It Is recommended that the LAVAZZA DESCALING agent should be used. Fill the tank with the LAVAZZA DESCALING agent 8.7fl oz (250 ml) and water 8.7fl oz (250 ml). Fit the tank back into place on the machine. Use a moist cloth to wipe off the squirts or drops, if any. DESCALINGDECALCIFICANTE durgol The Swiss Originalagainst Limescale86 ITEN Place a container with a capacity of at least 16.9 fl oz (0.5 L) under the supplying device. With the machine switched off, hold down both delivery buttons ESPRESSO and LONG ESPRESSO for minimum 3 seconds.

The machine will emit a prolonged acoustic signal, then the button, FREE DOSE button and the descaling warning lamp will all come on to a steady light . *The acoustic signals will not be emitted if they have been turned OFF. Press the FREE DOSE button to start the descaling cycle.

MAINTENANCE AND CLEANING

If the FREE DOSE button button is not pressed within 9 minutes after the acoustic signal, the ma- chine switches off automatically and you should re- peat the step of the procedure to start the cycle. In case of power supply interruption, the machine will, upon the first power-on, resume the descaling procedure where it was interrupted: press the FREE DOSE button to restart DESCALING. The machine will automatically activate the descaling process, after the heating cycle is over. During the descaling cycle, the FREE DOSE button

will be ON and blinking and the descaling warning lamp will be ON to a steady light During the descaling cycle, the machine will auto- matically perform intermittent supply cycles, to allow the container to be emptied. The descaling cycle can be temporarily interrupted by pressing either the FREE DOSE or button. To start the cycle again, press the FREE DOSE button .87

MAINTENANCE AND CLEANING

Empty the container used to collect the solution. The button, FREE DOSE button and “No water” warning lamp will be ON to a steady light. Descaling warning lamp will be ON and blinking. Remove the water tank, rinse and wash it accurately. Fill it with drinking fresh non-carbonated water up to the MAX. level. In case of power supply interruption, the machine will, upon the first power-on, resume the rinse procedure where it was interrupted: press the FREE DOSE but- ton to restart RINSING. Fit the tank back into place on the machine

Place a con- tainer with a capacity of at least 16.9 fl oz (0.5 L) under the supplying device. Press the FREE DOSE button to start he rinsing cycle. To end the rinse cycle, a minimum amount of water of

33.81 fl oz (1 litre) (approximately 1 full tank) will have

n case of lack of water, the cycle will be temporarily interrupt- ed, the machine will emit a prolonged acoustic signal (if enabled) and the “No water” warning lamp will come on to a steady light. Top up the tank and press the FREE DOSE button again to restart the rinse cycle. At rinse end, the descaling warning lamp goes off, which confirms that the procedure has come to an end. Before using the machine, empty and thoroughly rinse the milk frothing jug and its cover, clean the machine using a soft moist cloth. Press the FREE DOSE button to start the descaling cycle. If the FREE DOSE button button is not pressed within 9 minutes after the acoustic signal, the ma- chine switches off automatically and you should re- peat the step of the procedure to start the cycle. In case of power supply interruption, the machine will, upon the first power-on, resume the descaling procedure where it was interrupted: press the FREE DOSE button to restart DESCALING. The machine will automatically activate the descaling process, after the heating cycle is over. During the descaling cycle, the FREE DOSE button

will be ON and blinking and the descaling warning lamp will be ON to a steady light During the descaling cycle, the machine will auto- matically perform intermittent supply cycles, to allow the container to be emptied. The descaling cycle can be temporarily interrupted by pressing either the FREE DOSE or button. To start the cycle again, press the FREE DOSE button

The cycle will be temporarily interrupted when the fluid runs out in the machine tank. DO NOT top up the tank during this phase. You must allow the tank to empty completely.88 ITEN TROUBLESHOOTING Problem encountered Possible causes Solution The machine will not switch on after the button is pressed. »   Machine is not connected to the power source. »   The machine is connect to power strip not working. »   Power supply not available in the electric/household mains. »   Touch interface fails to respond. »   Wrong simultaneous pressure of 2 buttons. »   Connected the machine to the power source. »   Connected the machine directly to the power source. »   Connect another device to check the power supply. »   Verify that the interface surface and the user’s hands are clean and dry. »   Wait a few seconds, then press the button only.

CUSTOMER SERVICE. Excessive heating time perceived (i.e. more than 40 seconds). »   Machine storage at low temperatures (e.g.: cellar/garage). »   Keep the machine in a suitable place over at least 1 hour. Then, plug the machine into the mains socket and try to switch it on.

TROUBLESHOOTING Problem encountered Possible causes Solution The machine is very noisy. »   Machine not is on a flat and stable surface. »   Power supply cable incorrectly positioned. »   Movable parts not fitted properly. »  No water in the tank. »  Capsule not present »   Check the surface. »   Check the correct position of the cable into the base of the machine. »  Fit the movable parts properly. »   Top up the tank with fresh drinking water. »   Insert Lavazza A MODO MIO capsule or compatible.

CUSTOMER SERVICE. Unit ready for use and failing to acknowledge the button press. »   Wrong button press/activation. »   Used capsule collection tray not fitted. » Water circuit clogged with scale deposits. »   Press one of the illuminated buttons with your fingertip, then check the availability of the acoustic signal (if activated) and the proper blinking of the selected icon. »   Check the correct insertion of the tray, with the resulting alarm warning lamp switch-off. Check for correct supplying.

CUSTOMER SERVICE. The lever remains closed after the supply. »   Used capsule tray full. »   Empty the tray and try to open the lever.

CUSTOMER SERVICE.90 ITEN TROUBLESHOOTING Problem encountered Possible causes Solution No supply (the machine is switched on, yet it supplies no coffee or water). »  No water in the tank. »   Tank not inserted correctly. »   Capsule loading lever lifted or not lowered correctly. »   No water flow in the hydraulic circuit (no activation). »   Capsule not compatible. »   Presence of limescale. »   Top the tank up with drinking fresh water, then check for correct supplying. »   Correctly fit the tank in, then check for correct supplying. »   Lower the capsule loading lever up to the stop, then check for correct supplying. »   Disconnect the power cord, wait 10 seconds, then connect the power cord again. Switch the machine on and wait for the heating cycle to be over. Check for correct supplying (the machine will automatically make attempts at filling the hydraulic circuit). »   Try again by using another capsule from a different package. »   Perform the descaling procedure by means of the Lavazza descaling agent.

CUSTOMER SERVICE. Water leaks in the coffee machine. »   Tank damaged. »   Spent capsule drawer filled. »   Capsule stuck. »   Capsule not compatible. »   Check for leaks in the tank keeping it separate from the machine. »   Empty the spent capsule drawer. »   Open and close the lever to drop the capsule. Remove and empty the capsule collection tray. »   Use suitable capsules (i.e. Lavazza capsules or any compatible capsule).

Problem encountered Possible causes Solution Button blinking red. »   Inadequate machine storing conditions / Temporary lock. »   Unplug the machine from the power socket and allow it to rest at room temperature enough time (max. 1 hour). Plug the machine in again, then press the switch-on button (make one attempt only).

CUSTOMER SERVICE. The loading lever does not reach the supply position or requires an excessive closing effort. »  Spent capsule drawer filled. »   Capsule stuck. »   Empty the tray and make an attempt at closing the lever. »   Open and close the lever to drop the capsule.

CUSTOMER SERVICE. Coffee is dispensed too fast and, therefore, it is not so creamy. »  A previously used capsule is used. »  Capsule not present. »  Capsule not compatible. »   Use a new capsule. »   Insert the capsule. »   Try again by using another capsule from a different package.

CUSTOMER SERVICE. The coffee is cold. »   Slow supplying, hydraulic circuit clogged with limescale. »   Perform the descaling procedure by means of the Lavazza descaling agent.

CUSTOMER SERVICE. TROUBLESHOOTING92 ITEN Problem encountered Possible causes Solution The machine emits no sound »   Acoustic signal OFF. »   Switch off the machine, and then hold down both the ESPRESSO and LONG COFFEE buttons depressed over at least 5 seconds. (refer to the “GETTING THE MACHINE READY” section)

SERVICE. Coffee flows out slowly drop by drop. »  Capsule not compatible. »   An inadequate pod has been used. »   Supplying device clogged. »   Hydraulic circuit clogged with limescale. »   Try again by using another capsule from a different package. »   Remove the used capsule and use a new capsule. »   Clean the coffee dispensing spout (see MAINTENANCE AND CLEANING). »   Perform the descaling procedure by means of the Lavazza descaling agent.

SERVICE. The milk-based beverage warning lights are OFF and the buttons won’t work. »   Milk jug missing or inserted wrongly. » Milk cover positioned with the nozzles facing the handle. » Insert the milk jug. The milk preparation warning lights will be turned on if the jug is inserted correctly » Turn the milk cover so that the nozzle will face the direction opposite the handle. The milk preparation warning lights will be turned on if the jug is inserted correctly.

Problem encountered Possible causes Solution Milk does not foam. » Milk unsuitable for use. » Too hot milk temperature. » Beater coil not fitted into place. » Water circuit clogged with scale deposits. » It is recommended that whole milk (pasteurized or UHT treated) and/ or cold skimmed milk from the fridge

39.2 °F (4 °C) should be used.

» Use milk at fridge temperature: 39.2°F (4°C) indicatively. » Make sure that the beater coil has been fitted into place correctly. » Perform the descaling procedure by means of the Lavazza descaling agent.

CUSTOMER SERVICE. The milk-based beverage temperature is too hot. » Insufficient amount of milk fed with respect to the selected / desired amount. » Use of hot milk or at ambient temperature. » Hot milk frothing jug and whisk cover. » Made more than 5 consecutive deliveries. » Add more milk by following the indications of the icons on the milk jug. » Use milk at fridge temperature: 39.2°F (4°C) indicatively. » Always wash the milk frothing jug and the whisk cover between preparations. » Wait 10 minutes for the components to cool down.

CUSTOMER SERVICE. The milk-based beverage temperature is too cold. » Excessive amount of milk fed with respect to the selected / desired amount. » Water circuit clogged with scale deposits. » Decrease the amount of milk by following the indications of the icons on the milk jug. » Perform the descaling procedure by means of the Lavazza descaling agent.

beverage. » Repeat the access procedure by keeping the “Temperature boost” button depressed until the icon turns BLUE (as shown in page 73 of the Manual).

CUSTOMER SERVICE. The cappuccino maker is noisy during milk preparation. » Milk frothing beater not correctly installed. » Beater cover components not installed in their correct positions. » Use of soluble products. » Dirt. » Position the milk frothing beater correctly as shown in the Manual (page 77). » Make sure that the beater shaft retainer is correctly positioned (see page 77). » Do not use powder soluble products (such as CHOCOLATE). » Clean all of the beater cover outer parts.

CUSTOMER SERVICE. The cappuccino maker is blocked » Milk frothing beater not correctly installed. » Beater cover components not installed in their correct positions. » Use of soluble products. » Dirt. » Position the milk frothing beater correctly as shown in the Manual (page 77). » Make sure that the beater shaft retainer is correctly positioned (see page 77). » Do not use powder soluble products (such as CHOCOLATE). » Clean all of the beater cover outer parts.

Problem encountered Possible causes Solution No coffee available for preparing the cappuccinos and the milk with coffee » Coffee capsule missing. » Previous coffee capsule not discharged. » Early removal of the milk jug. » Insert a coffee capsule and prepare the new desired beverage by eliminating the previous one. » Discharge the used capsule, insert a new one and prepare the new desired beverage by eliminating the previous one. » Wait for the acoustic signal

the end of preparing the selected beverage.

CUSTOMER SERVICE. Milk spilling out of the jug » Milk jug broken. » Excessive milk jug filling (above the upper notch / icon). » Insufficient milk jug filling (below the selected notch / icon). » Selection of the same beverage used for the previous preparation. » Check the integrity of the milk jug. In case of breakage, CONTACT THE LAVAZZA CUSTOMER SERVICE. » Fill with the correct amount, as shown by the icons on the jug. » Fill with the correct amount, as shown by the icons on the jug. » Prepare the new desired beverage by eliminating the previous one and by applying one cycle ONLY.

CUSTOMER SERVICE. TROUBLESHOOTING96 ITEN Contact Lavazza Customer Service for any problem or failure not included in the above list. TECHNICAL SPECIFICATIONS

• Power supply: 220-240V / 50-60Hz

• Nominal power: 1500W

• Dimensions: Height Width Depth 280 mm 145 mm 380 mm

11.02 in 5.70 in 14.96 in

• Housing materials: Thermoplastic

• Cable Length: 0,8 m (31.49 in) Problem encountered Possible causes Solution ON/STANDBY button red warning light with acoustic signal emitted when preparing a milk-based beverage. » Milk frothing beater not correctly installed. » Beater cover components not installed in their correct positions . » Use of soluble products. » Dirt. » Position the milk frothing beater correctly as shown in the Manual (page 77). » Make sure that the beater shaft retainer is correctly positioned (see page 77). » Do not use powder soluble products (such as CHOCOLATE). » Clean all of the beater cover outer parts.
