Product type	Ceramic hob
Brand	Airlux
Model	ATH63S
Number of burners	3 (front left, rear left, right)
Total power	6000 W
Power supply	230 V ~ 50/60 Hz (single-phase) or 400 V ~ 2P+N (two-phase)
Cut-out dimensions	490 x 560 mm
Weight	Approximately 10 kg
Main functions	Automatic cooking, timer, keep warm, zone extension, control panel lock
Burners and power	Front left Ø190 mm 1800 W, rear left Ø155 mm 1200 W, right Ø280 mm 1500 W (booster 2400 W)
Residual heat indicator	Yes, display [H]
Cleaning and maintenance	Water + dish soap, avoid abrasives, remove sugar immediately
Safety	Automatic shut-off, lock, overheat detection, child lock
Repairability	Contact after-sales service, do not open yourself

Frequently Asked Questions - ATH63S AIRLUX

What to do if the cooking zones do not activate?

Check that the appliance is properly connected to the electrical supply and that the fuse has not blown. Ensure the touch controls are clean and not covered with water or grease.

How to use the automatic cooking function?

Select the cooking zone, press [+] until the display shows a flashing [A] with the power level. Then adjust the level with [-]. The zone operates at full power first then reduces automatically.

What does the display [ER03] mean?

An object or liquid is covering the control panel keys. Clean the keys and remove the object. The symbol disappears once the keys are free.

How to lock the control panel for cleaning?

Press the on/off key [①], then within 5 seconds, simultaneously press [-] and the front left selection zone. The display [L] appears. To unlock, repeat the same operation.

What is the power of the right burner with booster?

The nominal power of the right burner is 1500 W, but the booster function allows reaching 2400 W for fast cooking.

How to set the timer?

Select the cooking zone, choose the power, then simultaneously press [-] and [+] to enter timer mode. Use [-] and [+] to adjust the time from 1 to 99 minutes. At the end, [00] flashes and a beep sounds.

What to do if the hob turns off by itself?

This is the automatic safety shut-off. This can happen if you forgot to turn off a zone or if keys are covered. Check and turn the appliance back on.

How to clean the ceramic glass without scratching it?

Use a damp cloth with a little dish soap or a special ceramic glass cleaner. Never use abrasive sponges, scouring powder, or metal objects.

What is the meaning of the display [ER21]?

The hob is overheating. Let it cool completely, then turn it back on. If the problem persists, contact after-sales service.

Can I use aluminum pans on this hob?

No, avoid aluminum or synthetic containers as they could melt on the still hot burners. Use induction-compatible pans (ferromagnetic base) for induction burners, but here it is a classic ceramic hob: all types of flat-bottomed pans are accepted except thin aluminum.

USER MANUAL ATH63S AIRLUX

instructions of use and maintenance

Chere cliente, cher client,

Thank you for having chosen our ceramic hob.

In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for later consulting.

SUMMARY

SAFETY 16

PRECAUTIONS BEFORE USING 16
USING THE APPLIANCE 16
PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 16
PRECAUTIONS IN CASE OF APPLIANCE FAILURE 17
OTHER PROTECTIONS 18

DESCRIPTION OF THE APPLIANCE 19

TECHNICAL CHARACTERISTICS 19
CONTROL PANEL 19

USE OF THE APPLIANCE 20

DISPLAY 20

STARTING UP THE APPLIANCE 20

BEFORE USING YOUR NEW HOB 20
SENSITIVE TOUCHES 20
STARTING-UP 20
RESIDUAL HEAT INDICATION 20
TIMER 21
AUTOMATIC COOKING 21
CONTROL PANEL LOCKING 22
EXTENSION ZONE 22

COOKING ADVICES 23

EXAMPLES OF POWER SETTING 23

MAINTENANCE AND CLEANING 23

WHAT TO DO IN CASE OF A PROBLEM 24
ENVIRONMENT PROTECTION 24
INSTALLATION INSTRUCTIONS 25
ELECTRICAL CONNECTION 26

Precautions before using

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by installation or connecting errors.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate cannot be used as freestanding or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance cannot be used above a dishwasher or a tumble-dryer: as steam may cause damage.
• The appliance is not intended to be operated by means of external timer or separate remote control system.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the hob whilst cooking using grease or oils that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.

• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.

• Do not place any metallic object on the hob except for pans or cooking utensils. In case of untimely engaging or residual heat, this one may heat, melt or even burn.

• Never cover the appliance with a cloth or a protection sheet. This could become very hot and catch fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
• WARNING: Danger of fire: do not store items on the cooking surface.
• Never place any hot container over the control panel.

• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the underside of the appliance is large enough (2cm). This is essential to guarantee correct ventilation.

• Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. All cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

• If a defect is noticed, switch off the appliance and turn off at the main electrical supply.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
• Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other protections

• Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
• For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information from the retailer or from the doctor.
• Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Technical characteristics

Type	ATH63S
Total power 6000 W
Energy consumption for the hob EChob* 180.7 Wh/kg
Front left heating zone	Ø 190 mm
Nominal power 1800 W
Standardised cookware category* C
Energy consumption ECcw* 183.9 Wh/kg
Rear left heating zone	Ø 155 mm
Nominal power 1200 W
Standardised cookware category* A
Energy consumption ECcw* 173.8 Wh/kg
Right heating zone	Ø 280 mm
Nominal power 1500 W
Booster power 2400 W
Standardised cookware category* D
Energy consumption ECcw* 171.3 Wh/kg

• calculated according to the method of measuring performance (EN 60350-2).

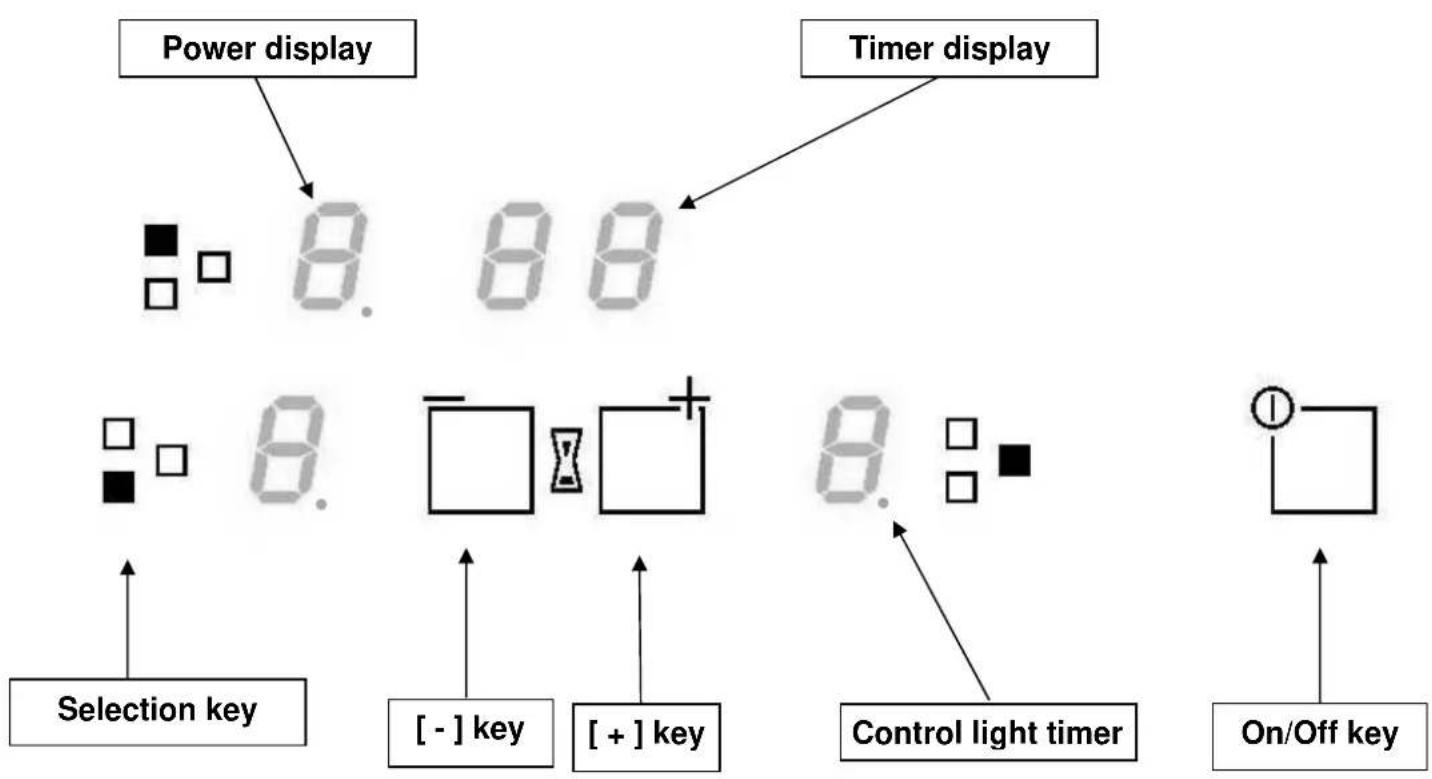

Control panel

Display

Display

Designation

Function

0 Zero The heating zone is activated

1...9 Power level Selection of the cooking level

A Heat accelerator Automatic cooking

E Error message Electronic failure

H Residual heat The heating zone is hot

L Locking Control panel locking.

STARTING UP THE APPLIANCE

Before using your new hob

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Sensitive touches

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger touches the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a "beep" sound.

Touch only one key on the same time.

Starting-up

• Start-up/ switch off the hob

Action	Control panel	Display
To start	press key [0/I]	[0]
To stop	press key [0/I]	nothing or [H]

• Start-up/ switch off a heating zone

Action	Control panel	Display
Zone selection	press selection key
Increase power	press key [+]	[1] to [9]
Decrease power	press key [-]	[9] to [1]
Stop	press key [-]

If no action is made within 20 second the electronics returns in waiting position.

Residual heat indication

After the switch-off of the hob, the heating zone is still hot and indicates [H] on the display.

The symbol [H] disappears when the heating zone may be touched safely.

When the residual heat indicator light is on, don't touch the heating zone and don't put any heat sensitive object on them. There are risks of burn and fire.

Timer

The timer is able to be used simultaneous with all heating zones and this with different time settings (from 1 to 99 minutes) for each heating zone

- Start timer

Action Control panel Display

Zone selection press selection key [0]

Increase power press key [+ ] [1] to [9]

To select « Timer » Press simultaneously [ - ] and [ + ] Timer [ 00 ] min

Decrease the time Press key [-] [00] wents to

30,29....

Increase the time Press key [ + ] time increase

The time is confirmed and the cooking starts until the time reaches [ 00 ].

- Stop timer

Action Control panel Display

Zone selection press selection key [0]

To select « Timer » Press simultaneously [ - ] and [ + ] The remaining time

To stop the « Timer » Press key [ - ] [ 00 ] then stops

Automatic stop at the end of the cooking time :

As soon as the selected cooking time is finished the timer displays blinking [00] and a sound rings.

To stop the sound and the blinking it is enough to press any key.

- Egg timer function :

Action Control panel Display

Activate the hob Press key [0/I] [0] or [H]

Select « Timer » Press simultaneously [ - ] and [ + ] Timer [ 00 ] min

Decrease the time Press key [-] [00] wents to

30,29....

Increase the time Press key [ + ] time increase

After a few seconds the control light stops with blinking.

As soon as the selected cooking time is finished the timer displays blinking [ 00 ] and a sound rings.

To stop the sound and the blinking it is enough to press any key.

Automatic cooking

All the cooking zones are equipped with an automatic "go and stop" cooking device. The cooking zone starts at full power during a certain time, then reduces automatically its power on the preselected level.

- Start-up:

Action Control panel Display

Zone selection press selection key [0]

Full power setting press key [+ ] [1] to [9]

Automatic cooking repress key [+ ]

Power level selection press key [-] [9] wents to [8][7]

(for example 7 [7] is blinking with [A]

- Switching off the automatic cooking:

Action Control panel Display

Zone selection press selection key [7] is blinking with [A]

(for example « 7 »)

Power level selection press key [-] or [+] Level selected

Control panel locking

To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning

the control panel can be locked (with exception to the On/Off key [ 0/I ]).

• Locking :

Action	Control panel	Display
Activate the hob	Press key [0/I]	[0] or [H]
Hob locking	Press key [-] and after the left selection key	[L]

• Unlocking :

Action	Control panel	Display
Activate the hob	Press key [0/I]	[L]

In the 5 seconds after start :

Unlocking the hob

Press key [ - ] and after the left selection key

[0] or [H]

Extension zone

Action	Control panel	Display		on
Switch on	Touch key right zone		Extension zone light is
Switch off	Touch key right zone		Extension zone light is	Off

"Keep warm" Function

This function allows the cooking zones to reach and automatically maintain a temperature of 70^ , this to avoid liquids flowing over and pans burning.

• Start-up:

Action	Control panel	Display
Zone selection	press selection key	[0]
Power level selection	press key one time [+]	[1]
Keep warm function	repress key [-]	[U]

• Switching off the Keep warm function:

Action	Control panel	Display
Zone selection	press selection key	[ U ]
Stop the keep warm function	press key [ - ] or [ + ]
		[ 0 ] to [ 9 ]

C

The hob or the cooking zone doesn't start-up :

• The hob is badly connected on the electrical network.
  The protection fuse cut-off.
• The locking function is activated.
• The sensitive keys are covered with grease or water.
  An object is put on a key.

The symbol [E] displays:

• Call the After-sales Service.

One or all cooking zone cut-off :

• The safety system functioned.
• You forgot to cut-off the cooking zone for a long time.
  One or more sensitive keys are covered.

The automatic cooking don't start :

• The cooking zone is still hot [H].
  The highest power level is set [9]

The control panel displays [L]:

Refer to the chapter control panel locking page.

The control panel displays [ Er03 ] :

• An object or liquid covers the control keys. The symbol disappear as soon as the key is released or cleaned.

The control panel displays [ER21]:

• The hob is overheated, let it cool and then turnit on again.

The control panel displays [U400], [Er25] or [U4]:

• The hob is not connected to the network. Check the connection and reconnect the hob.

If one of the symbols above persists, call the SAV.

ENVIRONMENT PROTECTION

• The packaging material is ecological and can be recycled.

• The worn appliances contain certain noble metals. Apply to the local government about the possibilities of recycling.

• Don't dispose of your appliance with general household waste

• Get in touch with the waste collection centre of your local council that control the recycling of household appliances.

The installation comes under the exclusive responsibility of specialists.

The installer is held to respect the legislation and the standards enforce in his home country.

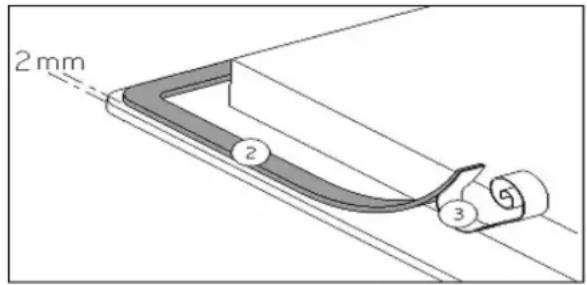

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.

His installation has to be done carefully, in conformity of the following drawing.

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

Fitting - installing:

The cut out sizes are:

Reference Cut-size
ATH63S 490 x 560	mm

• Ensure that there is a distance of 50mm between the hob and the wall or sides.
• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100^ .
• The mural rods of edge must be heat-resisting.
• Not to install the hob to the top of a not ventilated oven or a dishwasher.
• To guarantee under the bottom of the hob casing a space of 20mm to ensure a good air circulation of the electronic device.
• If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.
• Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.
• The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760~mm .
• The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.

• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• The installation of this appliance and the connection to the electrical system should be entrusted only to a qualified electrician.

• Protection against the parts under tension must be ensured after installation
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the mains must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3mm .
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 220 - 230 V~ 50/60 Hz

Always connect the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover, use a medium screwdriver. Place it in the slits and open the cover.

Mains	Connection	Cable diameter	Cable	Protection calibre
220 - 230V~ 50/60Hz	1 Phase + N 3 x 2,5 mm²	H 05 VV - F H 05 RR - F	25 A *
400V~ 50/60Hz 2 Phases + N 4 x 1.5 mm²		H 05 VV - F H 05 RR - F	16 A *

(^*) calculated with the simultaneous factor following standard EN 60 335-2-6

Connection of the hob

Setting up the configurations

For the various kinds of connection, use the brass bridges which are in the box next the terminal

Monophase 230V~1P+N

Put the link bar between terminal 1 and 2

Attach the earth to the terminal "earth", the neutral N to terminal 4, the Phase L to one of the terminals 1 or 2.

Biphas 400V\~2P+N

Attach the earth to the terminal "earth", the neutral N to terminal 4, the Phase L1 to the terminals 1 and the Phase L2 to the terminal 2.

Caution! Frequent loosening and screwing of the screws on the connection box risks damaging the efficiency of the tightness once screwed. It is therefore advisable to keep screwing and unscrewing to a minimum.

Ensure that the cables are correctly inserted and tightly screwed down.

We cannot be held responsible for any accident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection

Gentile Cliente,

PRECAUTIONS BEFORE USING 16
USING THE APPLIANCE 16
PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 16
PRECAUTIONS IN CASE OF APPLIANCE FAILURE 17
OTHER PROTECTIONS 18

DESCRIPTION OF THE APPLIANCE 19

TECHNICAL CHARACTERISTICS 19
CONTROL PANEL 19

USE OF THE APPLIANCE 20

DISPLAY 20

STARTING UP THE APPLIANCE 20

BEFORE USING YOUR NEW HOB 20
SENSITIVE TOUCHES 20
STARTING-UP 20
RESIDUAL HEAT INDICATION 20
TIMER 21
AUTOMATIC COOKING 21
CONTROL PANEL LOCKING 22
EXTENSION ZONE 22

COOKING ADVICES 23

EXAMPLES OF POWER SETTING 23

MAINTENANCE AND CLEANING 23

WHAT TO DO IN CASE OF A PROBLEM 24

ENVIRONMENT PROTECTION 24

INSTALLATION INSTRUCTIONS 25

ELECTRICAL CONNECTION 26
