Product type	Smartphone
Brand	Honor
Model	Magic 4 Lite 5G (ANY-NX1)
Dimensions	166.07 × 75.78 × 8.02 mm
Weight	189 g
Battery capacity	4800 mAh (typical)
Display	6.81 inches, LCD
Screen resolution	2388 × 1080 pixels
Processor	Qualcomm Snapdragon 695 5G
RAM	6 GB
Internal storage	128 GB
Main camera	48 MP (f/1.8) + 2 MP (macro) + 2 MP (depth)
Front camera	16 MP
Operating system	Android 11 / Magic UI 4.2
Network	5G SA/NSA, 4G LTE, 3G, 2G
5G bands	n1, n3, n7, n8, n20, n28, n38, n40, n41, n77, n78
Connectivity	Wi-Fi 5 (2.4 and 5 GHz), Bluetooth 5.1, NFC
Fingerprint sensor	Side-mounted (integrated into power button)
Headphone jack	Yes, 3.5mm jack
Charging port	USB Type-C
Head SAR	0.85 W/kg
Body SAR	1.29 W/kg
Limb SAR	2.98 W/kg
Operating temperature	0 °C to 35 °C
Storage temperature	-20 °C to 45 °C

Frequently Asked Questions - Magic 4 Lite 5G HONOR

How to insert the SIM card?

Use the provided ejection pin to open the tray. Insert the Nano SIM card into SIM 1 slot, with the notch facing inward. Refer to the Tips app for more details.

How to restart or force restart?

To restart, long press the power button, then tap Restart. To force restart, press and hold the power button for 10 seconds or more.

How to use the fingerprint sensor?

The fingerprint sensor is integrated into the power button. Register your fingerprints in Settings > Security & privacy > Fingerprint. You can unlock the screen by simply pressing the button.

How to enable 5G network?

Make sure your carrier supports 5G and you have a compatible plan. Go to Settings > Mobile network > SIM card > Preferred network type and select 5G/4G/3G/2G.

How to clean the device?

Use a soft, dry cloth. Do not use chemicals or abrasive materials. Avoid cleaning the device when it is powered on or plugged in.

How to update the software?

Go to Settings > System updates. If an update is available, follow the instructions to download and install it. Ensure you have sufficient battery and a stable Wi-Fi connection.

How to take a screenshot?

Press and hold the power button and volume down button simultaneously. The screenshot will be saved in the gallery. You can also use a three-finger swipe gesture if enabled in settings.

How to use two SIM cards?

Insert both SIM cards into the tray. Then go to Settings > Mobile network > SIM card management to choose the default card for calls, SMS, and data. You can also enable calls on both cards.

How to check the IMEI number?

Dial *#06# on the phone keypad. The IMEI number will be displayed on the screen. You can also find it in Settings > System > About phone.

How to reduce exposure to radiation?

Use a hands-free kit or speakerphone to keep the device away from your head and body. Limit call duration and prefer text messages. Refer to the user guide for SAR values and recommendations.

USER MANUAL Magic 4 Lite 5G HONOR

PbKOBOCTBO3a6bp3 cTapT

YnataTBO 3a 6p3 noyeTOK

Kratko uputstvo

Akilli Telefon Hizli Kullanim Kilavuzu

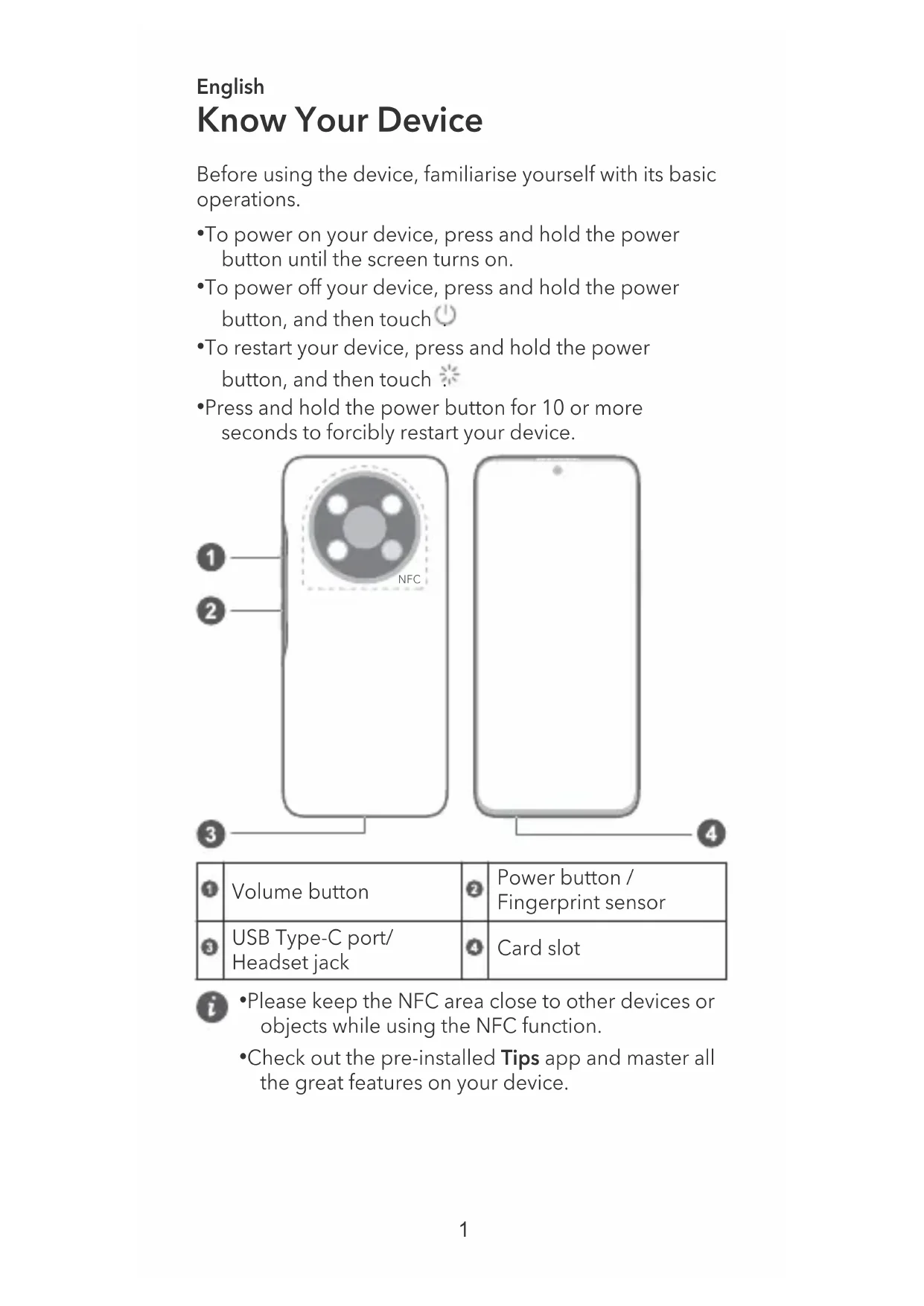

Before using the device, familiarise yourself with its basic operations.

• To power on your device, press and hold the power button until the screen turns on.
• To power off your device, press and hold the power button, and then touch
• To restart your device, press and hold the power button, and then touch
• Press and hold the power button for 10 or more seconds to forcibly restart your device.

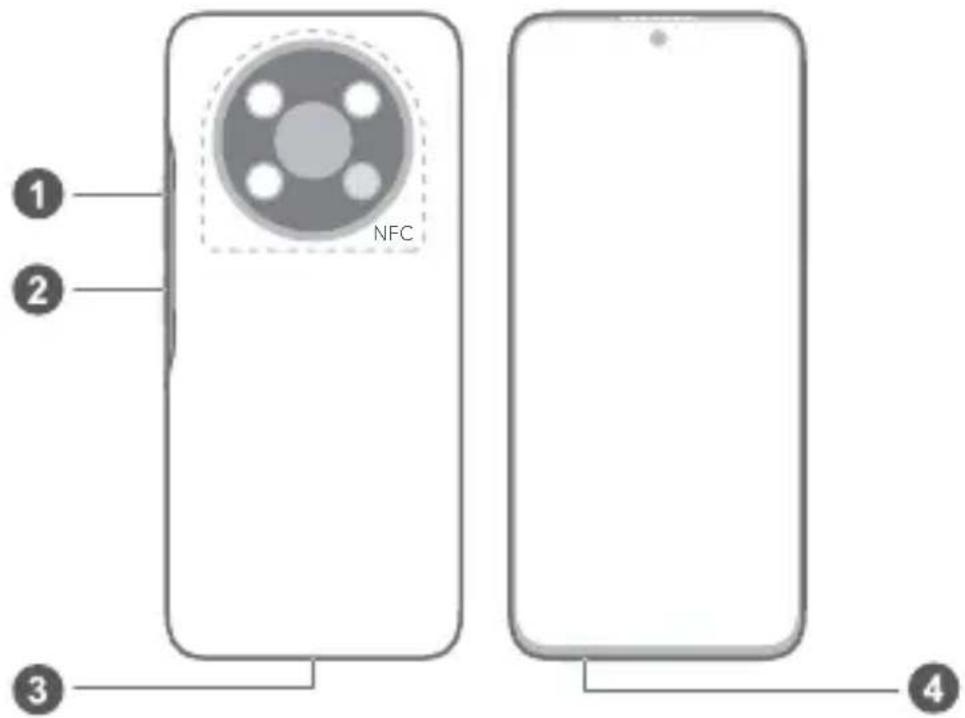

Volume button	Power button / Fingerprint sensor
USB Type-C port/ Headset jack	Card slot

• Please keep the NFC area close to other devices or objects while using the NFC function.

• Check out the pre-installed Tips app and master all the great features on your device.

Getting Started

• Be careful not to scratch your device or hurt yourself when using the eject pin.

• Store the eject pin out of the reach of children to prevent accidental swallowing or injury.

• Do not use cut or modified SIM cards with your device as these may not be recognised and could damage the card tray (slot).

If your SIM card does not match your device, please contact your carrier.

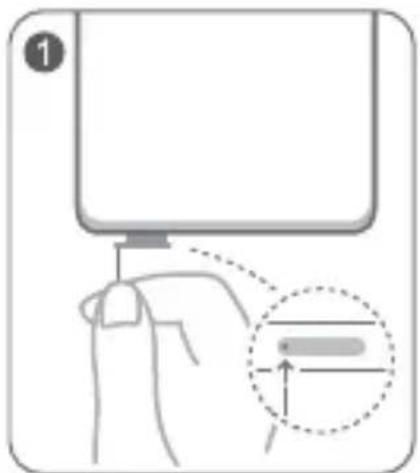

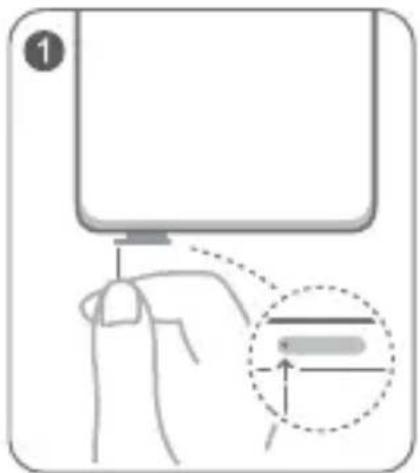

Follow the instructions in the following figures to set up your device. Please use the eject pin included.

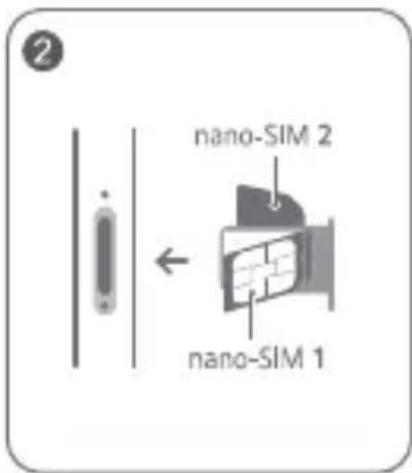

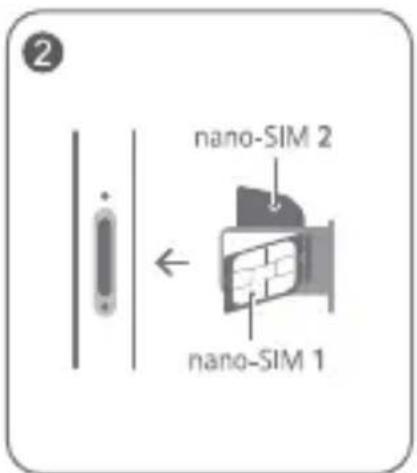

Ensure that the card is correctly aligned and its notch is first inserted into the card tray.

SIM Card Management

Select the default mobile data card and calling card as needed. For details, check out the pre-installed Tips app.

• 5G and 4G service depends on the support of your network carrier and its deployment of relevant services. Please contact your carrier to activate 5G or 4G service.

• 5G and 4G service may be unavailable in certain areas due to network interference.

• If this guide is inconsistent with the description on the official website, the latter prevails.

For More Information

If you encounter any problems while using your device, you can obtain help from the following resources:

• Visit https://www.hihonor.com to view device information and other information.
• Visit https://www.hihonor.com/global/support/ for the most up-to-date contact information for your country or region.
• Go to Settings and enter the following keywords in the search box to view the corresponding information. E.g. Legal information, Safety information, Authentication info, Regulatory information.
• Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can go to Settings and touch System & updates > Regulatory information to view FCC ID. If your device does not have an FCC ID, the device has not been authorized for sale in the U.S. or its territories and may only be brought to the U.S. for the owner's personal use.

Safety Information

Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly.

Operation and Safety

• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• Using an unapproved or incompatible power adapter, charger or battery may damage your device, shorten its lifespan or cause a fire, explosion or other hazards.
• Ideal operating temperatures are 0^ to 35^ . Ideal storage temperatures are -20^ to +45^ .
• Pacemaker manufacturers recommend maintaining a minimum distance of 15cm between a pacemaker and a wireless device to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.
• Keep the device and the battery away from fire, excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, water heaters, stoves or radiators.

Adhere to local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. If you must make or answer a call, stop your vehicle at a safe location first.

While flying in an aircraft or immediately before boarding, ensure that you use your device according to the instructions provided. Using a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operations or be illegal under law.

In order to avoid damaging the internal circuit of the device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field.

• When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible.

• Unplug the charger from the electric socket and from the device when not in use.

• Do not use, store or transport the device where flammables or explosives are stored (e.g. in a petrol station, oil depot or chemical plant). Using your device in these environments increases the risk of explosion or fire.

• Keep the battery away from fire, and do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode.

• Dispose of this device, the battery and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion or other hazards.

• Please consult your doctor and the device manufacturer to determine if operation of your device may interfere with the operation of your medical device.

Adhere to any rules or regulations set forth by hospitals and health care facilities.

• This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that

your device runs properly, you are strongly advised to contact an authorised service centre for a replacement.

Potentially Explosive Atmosphere

Power off your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not power on your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity.

Disposal and Recycling Information

The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment.

For more information, please contact your local authorities, retailer, or household waste disposal service or visit the website https://www.hihonor.com/.

Reduction of hazardous substances

This device and its electrical accessories comply with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH regulation, RoHS and

Batteries (where included) directive. For declarations of conformity about REACH and RoHS, please visit the website

https://www.hihonor.com/global/legal/certification/.

RF Exposure Information

The World Health Organisation has stated that exposure can be reduced by limiting your usage or simply using a hands-free kit to keep the device away from the head and body.

Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.

For the countries that adopted the SAR limit 2.0W / kg over 10 grams of tissue.

The device complies with RF specifications when used near your ear or at a distance of 0.50cm from your body. The highest reported SAR value: head SAR: 0.85 W/kg; body SAR: 1.29 W/kg.

For the countries that adopted the SAR limit 1.6W / kg over 1 gram of tissue.

The device complies with RF specifications when used near your ear or at a distance of 1.50cm from your body. The highest reported SAR value: head SAR: 1.07 W/kg; body SAR: 0.66 W/kg; hotspot SAR: 1.09 W/kg.

FCC statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: Any changes or modifications to this device not expressly approved by Honor Device Co., Ltd. for compliance could void the user's authority to operate the equipment.

EU Regulatory Compliance

Statement

Hereby, Honor Device Co., Ltd. declares that this device ANY-NX1 is in compliance with the following Directive: RED 2014/53/EU, RoHS 2011/65/EU, ErP 2009/125/EC.

The full text of the EU declaration of conformity, the detailed ErP information and most recent information about accessories & software are available at the following internet address:

https://www.hihonor.com/global/legal/certification/.

This device may be operated in all member states of the EU.

Observe national and local regulations where the device is used.

This device may be restricted for use, depending on the local network.

UK Regulatory Compliance

Hereby, Honor Device Co., Ltd. declares that this device ANY-NX1 is in compliance with the following Regulations:

Radio Equipment Regulations 2017, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012, The Ecodesign for Energy-Related Products Regulations 2010. The full text of the UK declaration of conformity, the detailed ErP information and most recent information about accessories & software are available at the following internet address:

https://www.hihonor.com/global/legal/certification/.

Restrictions in Norway

Use of this radio equipment is not allowed in the geographical area within a radius of 20km from the center of Ny-Alesund, Svalbard.

Restrictions in the 5 GHz band:

The 5150 to 5350 MHz frequency range is restricted to indoor use in: AT, BE, BG, CH, CY, CZ, DE, DK, EE, EL, ES, FI, FR, HR, HU, IE, IS, IT, LI, LT, LU, LV, MT, NL, NO, PL, PT, RO, SE, SI, SK, TR, UK(NI).

In accordance with the relevant statutory requirements in the UK, the 5150 to 5350MHz frequency range is restricted to indoor use in the United Kingdom.

Frequency Bands and Power

The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows:

ANY-NX1

GSM900: 35.5dBm, GSM1800: 32.5dBm, WCDMA900/2100: 25.7dBm, LTE Band 1/3/7/8/20/28/38/40: 25.7dBm, 5G NR SA Band: n1/n3/n7/n8/n20/n28/n38/n40/n41/ n77(3300-3800MHz): 26dBm, n78: 29dBm, 5G NR NSA Band: n1/n3/n7/n8/n20/n28/n38/n40/n41/ n77(3300-3800MHz)/n78: 26dBm, Bluetooth 2.4GHz: 20dBm, Wi-Fi 2.4GHz: 20dBm, Wi-Fi 5G: 5150-5250MHz: 23dBm, 5250-5350MHz: 23dBm, 5470-5725MHz: 23dBm, 5725-5850MHz: 14dBm, NFC 13.56MHz: 42 dBμA/m @ 10m

Legal Notice

Trademarks and Permissions

Android is a trademark of Google LLC.

LTE is a trademark of ETSI.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Honor Device Co., Ltd. is under licence. Wi-Fi®, the Wi-Fi CERTIFIED logo and the Wi-Fi logo are trademarks of Wi-Fi Alliance.

Copyright © Honor Device Co., Ltd. 2022. All rights reserved.

ALL PICTURES AND ILLUSTRATIONS IN THIS GUIDE, INCLUDING BUT NOT LIMITED TO THE DEVICE COLOUR, SIZE, AND DISPLAY CONTENT, ARE FOR YOUR REFERENCE ONLY. THE ACTUAL DEVICE MAY VARY. NOTHING IN THIS GUIDE CONSITUTES A WARRANTY OF ANY KIND, EXPRESS OR IMPLIED.

Privacy Policy

To better understand how we protect your personal information, please see the privacy policy at https://www.hihonor.com/privacy-policy/worldwide/.

Français

https://www.hihonor.com/privacy-policy/worldwide/.

Deutsch

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/privacy-policy/worldwide/.

Italiano

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/.

APPARAAT, ZIJN ALLEEN BEDOELD TER REFERENTIE.

HET WERKELIJKE APPARAAT KAN VARIEREN. NIETS IN

DEZE HANDLEIDING VORMT EEN GARANTIE VAN

WELKE AARD DAN OOK, HETZIJ EXPLICIET OF

IMPLICIET.

Privacybeleid

https://www.hihonor.com/privacy-policy/worldwide/.

Svenska

Lär känna encheten

Innan du anvanderen enhances bocr du bekanta dig med dess grundlaggande functiorer.

https://www.hihonor.com/global/legal/certification/.

Information om radiofrekvensexponering

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/privacy-policy/worldwide/.

Norsk

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/.

Copyright © Honor Device Co., Ltd. 2022.

https://www.hihonor.com/global/legal/certification/.

Šj prietajsa leidžiama naudoti visose Europos Sajungos (ES) valstybëse narëse.

https://www.hihonor.com/privacy-policy/worldwide/.

Eesti

Seadmega tutvumine

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/.

Informace k pusobeni radiosve frekvence

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/.

Ako Baata SIM KapTa He cbotBeTCTBa Ha yctpoNCTBOTO BN, CBpXeTe Ce C BaWNr onepaTop.

3a HactpoBbAe Ha BaWeTo yCTpoiCTBO CJIeDBAIte INHcTpyKcInTe OT fNrgPnte no-dOly. N3noJ3BaIte BKJIoueHn B KOMnKeTa UINOT 3a N3BaXdAHe.

YBepete ce, ye KapTaTa e noDpaBHeHa npaBnIHO nnpope3bT N Bn3a NpBn B NOCTaBkata 3a KapTN.

Ynpablenne ha SIM kapte

I36epete KapTaTaNo noDpa3bipaHe 3a MoBnHn DaHHn Ta3n 3a pa3roBOpn cnopeH hXknte cn. 3a NoDpo6HOCTN BHXTe PpeBapNTeJHo IHcTaJIpaHOT npInloXeHne CbBETn.

• Ycnyrnte 3a 5G n 4G 3abncT OT TOBa daHn ce noIbpxka ot mpeXOBnBn OepaTOp, KaKTo n daHn ca 6nHn pa3noJoxKeHn CbOTBeTHnTe ycLyr. CbpxkTe ce c onepaTopa cn 3a aKTINBnpaHe Ha ycnyrnte 3a 5G nnn 4G.
• Ycnyrnte 3a 5G n 4G morat da ca HeioctbHHn B onpeJeHn paOHn nopadm MpeXOBn cmUeHn.
  AkoToBa pBKOBOIDCTBOe HeCbBMecTIMO C OnHcHneTO Ha OΦuIaJIHHyE6 caHT, BaXn IocJeHOTO.

3a noBee nHΦopMaζη

Ako cpeuheTe HraKaBn npo6JIeMn, DOKaTO n3NoJ3BaTe yCTpOiCTBOTo CN, MoKeTe Da noJyUHTe NOMOUs OT CLeDHNTE N3TOUHNU:

• Nocete https://www.hihonor.com, за за п扼ледатунфорmaцята за устюctвOTO и друганфорmaця.
• Nocete https://www.hihonor.com/global/support/3a ha-aktyaJIHaTa INΦOpMaцЯ 3a KOHTaKT 3a BaIaTa DbpxkaBa nII peHNoH.
  OTnIeTe Ha HAcTpoKu N BbBeJeTe CLeHnTe KJIIOUOBu Dymu B IOneTo 3a TbpcHe, 3a Da npereJaTe CbOTBETHaTa NHOpMaun. HanpImep PpaBHa IHOpMaun, INOpMaun 3a 6e30nacHocT, INOpMaun 3a ydoCTOBepBaHe, PerylaTopHa IHOpMaun.

HΦopmaçn83a 6e3oNaCHocT

Mol, npedn da 3aOnuHete da n3noJ3BaTe yctpoIcTBOTO cn, BHIMATEHNO pOuyTeTe cJalata HOpMaun C ceJ 6e3oNaChpa6ota n npabInen hauHn Ha ynotpe6a, KaKTo n 3a da Ce 3aNo3HaTe C hauHnTe 3a npabNlHO n3XBpJIne Ha npOdykTa.

https://www.hihonor.com/global/legal/certification/.

Toba yctpoiCTBO MOKe Da pa6OTn BbB BCNUKn DbpKAbN-ueHKn Ha EC.

CnataBaiTe HaunohHnIe N MeCTHn pa3nopeDn TaM, KbTeO Ce n3NoJ3Ba yCTPOiCTBOTO.

ToBa yCtpoNCTBO MOKe Da 6bJe OrpaHnueHo 3a yNoTpe6a, B 3aBnCnMoCt OT MeCTHaTa MpeKa.

OrpaHnueHna 3a JeHtata 5 GHz:

YeCTOTIeB Dnana3OHa oT 5150do 5350MHz ca
OrpaHnueHn 3a n3noJ3BaHe Ha 3akpnto B:AT,BE,BG,
CH,CY,CZ,DE,DK,EE,EL,ES,FI,FR,HR,HU,IE,IS,IT,LI,
LT,LU,LV,MT,NL,NO,PL,PT,RO,SE,SI,SK,TR,UK(NI).

YeCTOTTHNJIeHTNIMMOUHOCT

HOMHaJIHnTe rpaHnI Ha yeCTOTnTe JeHTn I MOUHOCTTa Ha npedabaHe (n3JIbYeHa n/nnnpoBeJeHa), npJIOxIMN 3a TOBa paNoO6OpyDbaHe, ca cJeHNTe:

ANY-NX1

GSM900: 35.5dBm, GSM1800: 32.5dBm, WCDMA900/2100: 25.7dBm, LTE Band 1/3/7/8/20/28/38/40: 25.7dBm, 5G NR SA Band: n1/n3/n7/n8/n20/n28/n38/n40/n41/ n77(3300-3800MHz): 26dBm, n78: 29dBm, 5G NR NSA Band: n1/n3/n7/n8/n20/n28/n38/n40/n41/ n77(3300-3800MHz)/n78: 26dBm, Bluetooth 2.4GHz: 20dBm, Wi-Fi 2.4GHz: 20dBm, Wi-Fi 5G: 5150-5250MHz: 23dBm, 5250-5350MHz: 23dBm, 5470-5725MHz: 23dBm, 5725-5850MHz: 14dBm, NFC 13,56 MHz: 42 dBμA/m @ 10 m

PpaBHa nHΦopMaζη

TbproBcN mApKn npa3peWeHn

Android e TBproBcKa Mapka Ha Google LLC.

LTE e TbproBcka Mapka Ha ETSI.

O6o3haueHneTo Ha dymata n Iorata Bluetooth ca

pernctpupaHn TbproBCKn MapKn, npntexkaBaHn OT

Bluetooth SIG, Inc., IN BCSKO 13NOJ3BaHe Ha Te3n MapKn

ot Honor Device Co., Ltd. e no liuceH3.

Wi-Fi®, noroto ha Wi-Fi CERTIFIED and noroto ha Wi-Fi ca

TbproBcKn MapKn Ha Wi-Fi Alliance.

Abtopcko npabo © Honor Device Co., Ltd. 2022.

BcnuK npaba 3ana3eHn.

BCNUCHIMKINJIOCTPAUNBTOBA

PbKOBOJCTBO, BKJIIOUHTeJIHO, HO HE

OΓPAHnueHO IO LβETA IN PA3MEPA HA

YCTPOICTBOTO IN CbIbPjXAHNETO HA DnCnJIeJ,

CA CAMO 3A BALI E CBEDEHNE. Bb3MOXHO E

ДЕЙСТВИTEЛHOTO YICTPOИCTBO ДА СЕ PA3ЛИЧABA.

HINIOBTOBAPbKOBOCTBOHEIPEICTABJIYBA

KAKBATO IN DA E TAPAHU, PRAKA INI KOCBEHA.

https://www.hihonor.com/privacy-policy/worldwide/.

MaKeDoHckn

3an03hajTe ro ypeDoT

Ipei da ro kopnctnte ypeoT, 3ano3hajte ce co HeROBInTe OCHOBHN Oepaun.

3a da ro BKnyuTe ypeDoT, npntncHeTo ro n 3aApKeTe ro KOnyeTo 3a BKnyuBaHBe/NCKnyuBaHe DoNeKa He Ce BKnyu ekpaHot.
3a da ro ncknyuhte ypeodot, npntncheTe ro 3adpxte ro konyeTo 3a BknyyBaHe/ncknyyBaHbe, na donpete
3a da ro npectapTyBaTe ypeIoT, npntncHeTe ro n 3aipkxeTo ro konyeTo 3a BknyyBaHbe/ncknyyBaHbe, na donpete.
-Ппнсhte Ги 3аджete Г кончeto 3a Bклуваьe/ИСКлуваьe полго od 10 cekyндз a npHydno npeCTapTyBaьe Ha ypeIoT.

https://www.hihonor.com/global/legal/certification/.

HOpMaun 3a n3JoxeHoCT Ha paNopeKBeHcnn

CBeTcKaTa 3dpaBCTBeHa opraHn3aunja o6jabN deKa
n3IOxKeHocTa MoKe Da Ce HamaJI NpeKy OpraHnUyBaHbe
Ha BaWeTo KOpNCTeHe IJIe EJHOCTaBHO CO KOpNCTeHe
Ha KomPiET 3a KopNCTeHe Ha ypeOt 6e3 paue 3a da
6Ie ypeOTo POnaJIeKy OJ TlAbaTa n OJ TeNoTO.
BHNMaBajTe DOnoJIHnTeJHaTAt Onpema Ha ypeOTo, KaKO
WTo Ce KyTnJaTnΦyTpOJaTata, Da He e HAnpabEHa OD
MeTaNn DeJIOBn. DpxKete Ro ypeOT NoJaJIeKy OJ
TeNoTO 3a Da Ro INcNoHnTe BapABeTo 3a OJDaJeHocCT.

3a 3emjn wto ro npiaTne orpaHnuBaHeTo 3a SAR od 2,0 W/kg had 10 rpaMa TKBO.

YpeodTn HcnoJHyBa CneuNfKaunTe 3a RF Kora ce KopncTn BO 6JIn3Ha Ha yBOTO nHa paCtoJaHne oD 0,50 cm od TeIoto. HajBncoKa npjabaHa BpeHocT Ha SAR: SAR Ha rIabe: 0,85 W/kg; SAR Ha TeIoo: 1,29 W/kg.

YcorlaceHocT co npOnncTe Ha EY

V3jaba

Co oBoj DoKymeHT, Honor Device Co., Ltd. n3jabyBa deKa oBoj ypei ANY-NX1 e Bo coIacHocT co cJeHNBe DInpeKtBn: RED 2014/53/EY, RoHS 2011/65/EY, ErP 2009/125/E3.

TeKCT Ha JeKnapaunjata 3a ycorlaaceHocT 3a EY, Detalnnte HOpMaun 3a ErP n HajnoBnte HOpMaun 3a DoaTouN COtBep ce DoCTaHn Ha CneHaBa INTEpHeT-aDpeca:

https://www.hihonor.com/global/legal/certification/. Oboj ypeД може за се корист bo сиTe зemju-чileнки EY.

IountyBajTe rHaunohaHnTe n loKaHnTe npOnncn KaJe wTo ce KopnstuypeoT.

Oboj ypei moke da 6nde orpaHueh 3a ynoTpe6a, Bo 3aBnCHOCT OJ IOKaHaTa MpeXa.

OrpanuBybaBa Bo oncerot od 5 GHz:

Фразьг entno oncer od 5150do 5350MHz e orpaHueH na ynotpe6a BO 3aTbopeH npocstop BO cIeHNBE 3emjU: AT, BE, BG, CH, CY, CZ, DE, DK, EE, EL, ES, FI, FR, HR, HU, IE, IS, IT, LI, LT, LU, LV, MT, NL, NO, PL, PT, RO, SE, SI, SK, TR, UK(NI).

ΦpeKBeHcNcKn ONce3n MOKHOCT

HomHaHnHTe orpaHnUyBaHa ha 0peKBeHcNcKnte once3n n eHeprjata StTo ce npenecyBa (ce 3paun n/nJIi ne emtYba) npimEnJIuBn 3a OBaa paIIO onpema ce KaKO stTO cIeDiN:

ANY-NX1

GSM900: 35.5dBm, GSM1800: 32.5dBm, WCDMA900/2100: 25.7dBm, LTE Band 1/3/7/8/20/28/38/40: 25.7dBm, 5G NR SA Band: n1/n3/n7/n8/n20/n28/n38/n40/n41/ n77(3300-3800MHz): 26dBm, n78: 29dBm, 5G NR NSA Band: n1/n3/n7/n8/n20/n28/n38/n40/n41/ n77(3300-3800MHz)/n78: 26dBm, Bluetooth 2.4GHz: 20dBm, Wi-Fi 2.4GHz: 20dBm, Wi-Fi 5G: 5150-5250MHz: 23dBm, 5250-5350MHz: 23dBm, 5470-5725MHz: 23dBm, 5725-5850MHz: 14dBm, NFC 13,56 MHz: 42 dBμA/m @ 10 m

Правна наомена

TproBcN MapKn Ido3BOJI

Android e tproBcka Mapka Ha Google LLC.

LTE e TproBcka Mapka Ha ETSI.

360pOT-Mapka n Ioroata Bluetooth® ce pernctpnpaHn TproBckn MapKn BO CONCTBeHocT Ha Bluetooth SIG, Inc. n cekoja ynoTpe6a Ha TaKBIne MapKn Od CTpaHa Ha Honor Device Co., Ltd. e co liuence.

Wi-Fi®, iloroto Wi-Fi CERTIFIED и iloroto Wi-Fi ce TproBcKn Mapkn Ha Wi-Fi Alliance.

AВТОРСКИ ПаВа © Honor Device Co., Ltd. 2022.

CnTe npaba ce 3aApkaHn.

CITE CJINKI IN JLYCTPAUIN BO OBA YNATCTBO, BKJNUYBAJKI I, HO HE ORPAHNUYBAJKIN CE HA BOJATA N IOLEMNHATA HAYPEIOT, KAKO IN IPINKAKAHATA COIDPKUNHA HAEKPAHOT CE CAMO 3A INHOPMATNBHA HAMEHA. KOHKPETHNOT UPEIMOXE DA CE PA3NIKYBA. HINTO BO OBA YNATCTBO HE PPETCTABYBA KAKBA BINIO TAPAHUNJA, IN3PEUHA ININMMIIINPAHA.

https://www.hihonor.com/privacy-policy/worldwide/.

Srpski

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/web/sitesini ziyaret edin.

https://www.hihonor.com/global/legal/certification/.

AT/BE/BG/CH/CY/CZ/DE/DK/EE/EL/ES/FI/FR/HR/HU/IE/S/IT/LI/LT/LU/LV/MT/NL/NO/PL/PT/RO/SE/SI/SK/TR/UK(NI).

Frekans Bantlari ve Guc

https://www.hihonor.com/tr/support/
https://www.hihonor.com/tr/privacy-policy/
Yetkili Servisler:

FixSmart HONOR Yetkili Servis Merkezi Istanbul-Merter-1

Suite 3401, Unit A, Building 6, Shum Yip Sky

Park, No. 8089, Hongli West Road, Xiangmihu Street, Futian District,

Shenzhen, Guangdong 518040, People's Republic of

China

Tel: [phone]

Web: www.hihonor.com

Cin'de uretilmistir

Uyumluluk Beyani'ni (Declaration of Comformity)

goruntulemek icin

https://www.hihonor.com/global/legal/certification/

Web:https://www.hihonor.com/tr/

Enerji Tasarrufu

https://www.hihonor.com/global/legal/certification/.

Informacione o izlaganju zračenju radijskih frekvencija

https://www.hihonor.com/global/legal/certification/.

Ovaj se uredj moze upotreblavati u svim drzavama clanicama EU-a.

Pridrzavajte se nacionalnihi lokalnih zakonsikh propisa gdje se uredaj upotrebljava.

Ovaj uredaj moze imati ograničenu uporabu ovisno o lokalnoj mreži.

Ograničenja za pojas od 5 GHz:

Raspon frekvencije od 5150 do 5350 MHz ograničen je na uporabu u zatvorenim prostorima u: AT, BE, BG, CH, CY, CZ, DE, DK, EE, EL, ES, FI, FR, HR, HU, IE, IS, IT, LI, LT, LU, LV, MT, NL, NO, PL, PT, RO, SE, SI, SK, TR, UK(NI).

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/global/legal/certification/.

https://www.hihonor.com/privacy-policy/worldwide/.

Latviešu

lepazistiet savu icerici

https://www.hihonor.com/global/legal/certification/.

Informacija par RF iedarbibu

Pasaules Veselibas organizacija ir noradijusi, ka iedarbubu var samazinat, ierobežojot ierices lietojumu vai vienkarsi izmantojot brivroku sistemu, kas lauj ierici turetu atstatus no galvas un kermena.

Parliecinieties, ka icerces piederumos, piem eram, icerces vacina un icerces macina, nav metala dalu. Lai ieverotu lietosanas attaluma prasibas, netuviniet iceri kermenim.

https://www.hihonor.com/privacy-policy/worldwide/.
