F 850 GS (2022) - Motorcycle BMW - Free user manual and instructions

Product type	Trail motorcycle (Enduro)
Brand	BMW
Model	F 850 GS (2022)
Category	Motorcycle
Dimensions (L x W x H)	2305 x 922 x 1355 mm
Wheelbase	1593 mm
Seat height	860 mm
Ground clearance	220 mm
Dry weight (DIN)	229 kg
Maximum authorized weight	430 kg
Tank capacity	15 L (reserve 3.5 L)
Engine	Parallel twin, 853 cc, 4-stroke, liquid cooling
Power	70 kW (95 hp) at 8250 rpm
Torque	92 Nm at 6250 rpm
Fuel	Unleaded gasoline 95 RON (E15 max)
Electrical system	12 V battery, alternator
Main features	ABS Pro, DTC (traction control), D-ESA (electronic chassis adjustment), riding modes (Road, Rain, Dynamic, Enduro, Enduro Pro), cruise control, heated grips, intelligent emergency call, Keyless Ride key, 6.5" TFT display, gear shift assistant, tire pressure monitoring (RDC)
Maintenance and cleaning	Engine oil and filter change every 10,000 km; chain inspection every 1,000 km; annual service; wash with mild products; clean sensitive parts
Safety	ABS Pro (cornering), DTC, intelligent emergency call (eCall), anti-theft alarm (optional DWA), electronic immobilizer (EWS), circuit breaker, sidestand with safety
Spare parts and repairability	OBD diagnostic port, fuses accessible under the seat, onboard toolkit, tightening torque list; parts available at BMW Motorrad dealership
General information	User manual of 317 pages; EU homologation, certificates available at bmw-motorrad.com/certification; Technical data according to DIN standard

Frequently Asked Questions - F 850 GS (2022) BMW

How to start the engine of the BMW F 850 GS?

Make sure the key (Keyless Ride or traditional key) is detected. Turn on the ignition by turning the key or pressing the remote control. Set the circuit breaker to the run position. Pull the clutch lever, then press the starter button (right handlebar). The engine starts and the ABS and DTC self-diagnosis runs.

How to adjust the spring preload?

Use the adjustment knob located on the right side of the motorcycle (see overview). Turn the knob clockwise to increase preload (heavier load) and counterclockwise to decrease it. Adjustment is manual, no tool required. For precise adjustment, refer to the 'Adjustment' chapter in the manual.

What do the warning lights on the dashboard mean?

The lights are described in the 'Control and warning lights' chapter (pages 28-60). The main ones: engine warning light (yellow/red) for an engine fault; ABS (yellow) indicates a malfunction; DTC (yellow) for a traction control problem; tire pressure (yellow/red) for a deviation. A detailed message appears on the TFT screen.

How to activate the cruise control?

Cruise control is operated via the left handlebar switch. Press the Cruise control button (speedometer symbol) to activate. Once the desired speed is reached, press Set (rocker switch). You can increase or decrease the speed with the +/- buttons. To deactivate, brake or press the cancel button.

How to activate or deactivate the traction control (DTC)?

DTC is operated via the left handlebar switch. Press the DTC button (motorcycle with skidding symbol) to activate or deactivate. The corresponding light comes on. In Enduro or Enduro Pro modes, DTC can be partially deactivated to allow wheel spin off-road. Refer to the 'Operation' chapter.

What to do if the tire pressure warning light comes on?

If the tire pressure light comes on yellow, the pressure is in the limit zone. If red, it is out of tolerance. Stop as soon as possible, check the cold pressure and adjust according to the indicated values (front 2.2 bar solo, 2.5 bar with passenger; rear 2.5 bar solo, 2.9 bar with passenger). If the light flashes red, stop immediately and check the tire condition.

How to replace the battery of the Keyless Ride key?

Open the key fob by pressing the button (battery cover). Remove the old battery (type CR 2032) and insert a new one with the positive pole facing up. Close the cover. If the battery is too low, a message appears on the screen. Keep the key out of reach of children.

What is the recommended regular maintenance?

The maintenance schedule includes: running-in check between 500 and 1200 km, then oil and filter change every 10,000 km, valve check every 20,000 km, spark plug replacement every 20,000 km, brake fluid every 2 years, fork oil change every 40,000 km. An annual BMW service is recommended. The TFT screen displays due dates.

Can the F 850 GS be used off-road?

Yes, the F 850 GS is designed for off-road. The Enduro and Enduro Pro modes adapt the engine response, DTC, and ABS. In Enduro Pro, DTC can be deactivated and rear ABS deactivated to allow wheel spin. It is recommended to reduce tire pressure. Refer to the 'Off-road use' chapter (page 143).

How to use the intelligent emergency call (eCall)?

In an emergency, press the SOS button (right handlebar) to initiate a manual call. In case of a serious fall, the call is automatic. The BMW Call Center is contacted and your location is transmitted. You can cancel the call by holding the SOS button for 2 seconds. Make sure you have network coverage.

USER MANUAL F 850 GS (2022) BMW

CONTACT AVEC KEYLESS RIDE 65

ANTIDÉMARRAGE ÉLECTRONIQUE EWS 69

COUPE-CIRCUIT 70

APPEL D'URGENCE INTELLIGENT 70

ÉCLAIRAGE 73

ALARME ANTIVOL (DWA) 88

CONTACT AVEC KEYLESS RIDE

-avec Keyless Rite

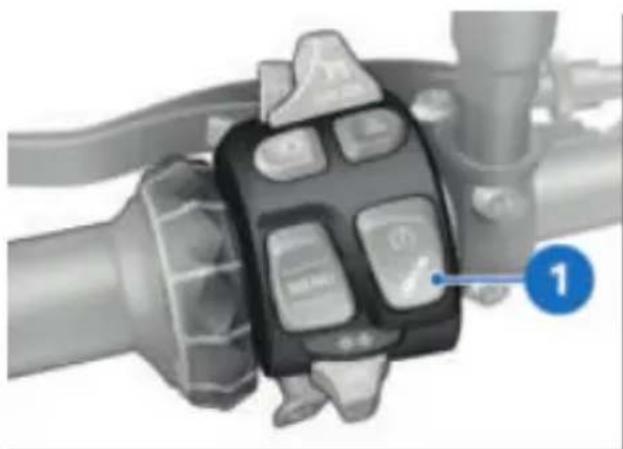

Clés du vehicule

-Metre le contact. (64)

-Metre le contact. (64)

SiMetre le contact. (64)

Adapter l'alarme antivol.

(91)

est allumé.

-Metre le contact. (64)

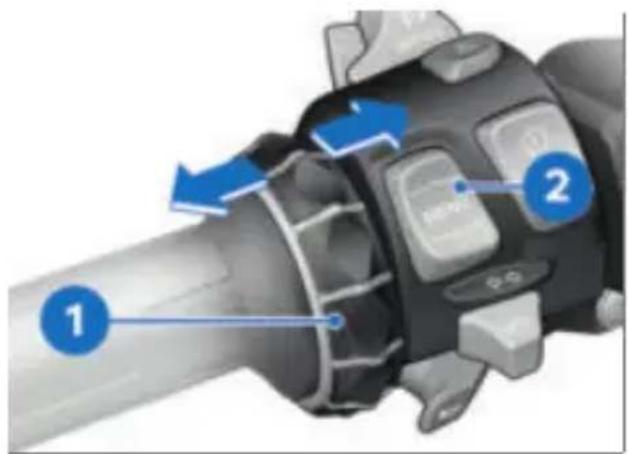

Commander la lecture audio

assistant assistant assistant assistant assistant assistant assistant assistant assistant assistant assistant assistant

Lubrifiant

Unirex N3

Lubrifiant

Unirex N3

nores restent actives.

DECLARATION OF CONFORMITY 289

CERTIFICAT POUR L'ANTIDÉMARRAGE ÉLECTRO

NIQUE 292

CERTIFICAT POUR LE KEYLESS RIDE 295

CERTIFICAT POUR LE CONTROLE DE LA PRESSION

DES PNEUS 299

CERTIFICAT POUR LE COMBINED INSTRUMENTS TFT 300

DECLARATION OF CONFORMITY

Manufacturer

Hereby, BMW AG declares that the radio equipment compl. listed below are in compliance with Directive 2014/53/EU and with Radio Equipment Regulations 2017 of the United Kingdom. The full text of the EU/UK declarations c conformity are available at the following internet address:

bmw-motorrad.com/certification

Simplified EU Declaration of Conformity according to EU (2014/53/EU).

290 ANNEXE

Technical information

Radio equipment	Com- ponent	Frequency band Output/	Transmis- sion Power
EWS4 EVS 134	kHz	50 dBμV/m
HUF5750	Keyless Ride	434,42 MHz 10 mW
HUF8465	Keyless Ride	134,45 kHz	42 dBμV/m
HUF5794	Keyless Ride	433,92 MHz 10 mW
HUF8485	Keyless Ride	134,45 kHz	42 dBμV/m
ZB001	Keyless Ride	134.5 kHz	allowed 66 dBμA/ m@ 10m
ZB002	Keyless Ride	433.92 MHz	max. 10 dBm e.r.p
TXBMWMR	DWA	433.05 MHz - 434.79	MHz 18,8 dBm
RDC3 RDC 433.92 MHz <13 mW
Wus Moto gen 3	RDC 433,05 MHz - 434,79 MHz		<10 mW e.r.p.
MC24- MA4	RDC
WCA Motorrad- Lades- taufach	Charging compa- ment	110 kHz - 115 kHz < 6 W
ICC6.5in	Instru- ment Cluster	Bluetooth: 2402 MHz - 2480 MHz WLAN: 2412 MHz - 2462 MHz	Bluetooth: < 4 dBm WLAN: < 20 dBm
Radio equipment	Component	Frequency band Output/	Transmission Power
ICC10in	Instrument Cluster	Bluetooth: 2402 MHz - 2480 MHz WLAN: 2402 MHz - 2472 MHz	Bluetooth: < +4 dBm WLAN: < +14 dBm
MRR e14FCR	ACC 76	- 77 GHz	Peak max. 32 dBm Nom max. 27 dBm
TL1P22	Intelligent emergency call	832 MHz - 862 MHz 880 MHz - 915 MHz 1710 MHz - 1785 MHz 1920 MHz - 1980 MHz 2500 MHz - 2570 MHz 2570 MHz - 2620 MHz GNSS: 1559 MHz- 1610 MHz	23 dBm 33 dBm 30 dBm 24 dBm 23 dBm 23 dBm
MCR001	Audio system

Declaration of Conformity

Radio equipment electronic immobiliser (EWS4)

For all countries without EU

Technical information

Frequency Band: 134 kHz (Transponder: TMS37145 / Type DST80, TMS3705 Transponder Base Station IC) Output Power: 50 dBμV/m

Manufacturer and Address

Australia/New Zealand

R-NZ

Brunei

AITI

TA No:DTA-007061

United Arab Emirates

Philippiens

NTC

Type Approved No.: ESD-RCE-2023298

South Africa

India

ETA-SD-20200905860

Belarus

Indonesia

72790/SDPPI/2021 13349

Complies with IMDA Standards N3504-20

Taiwan

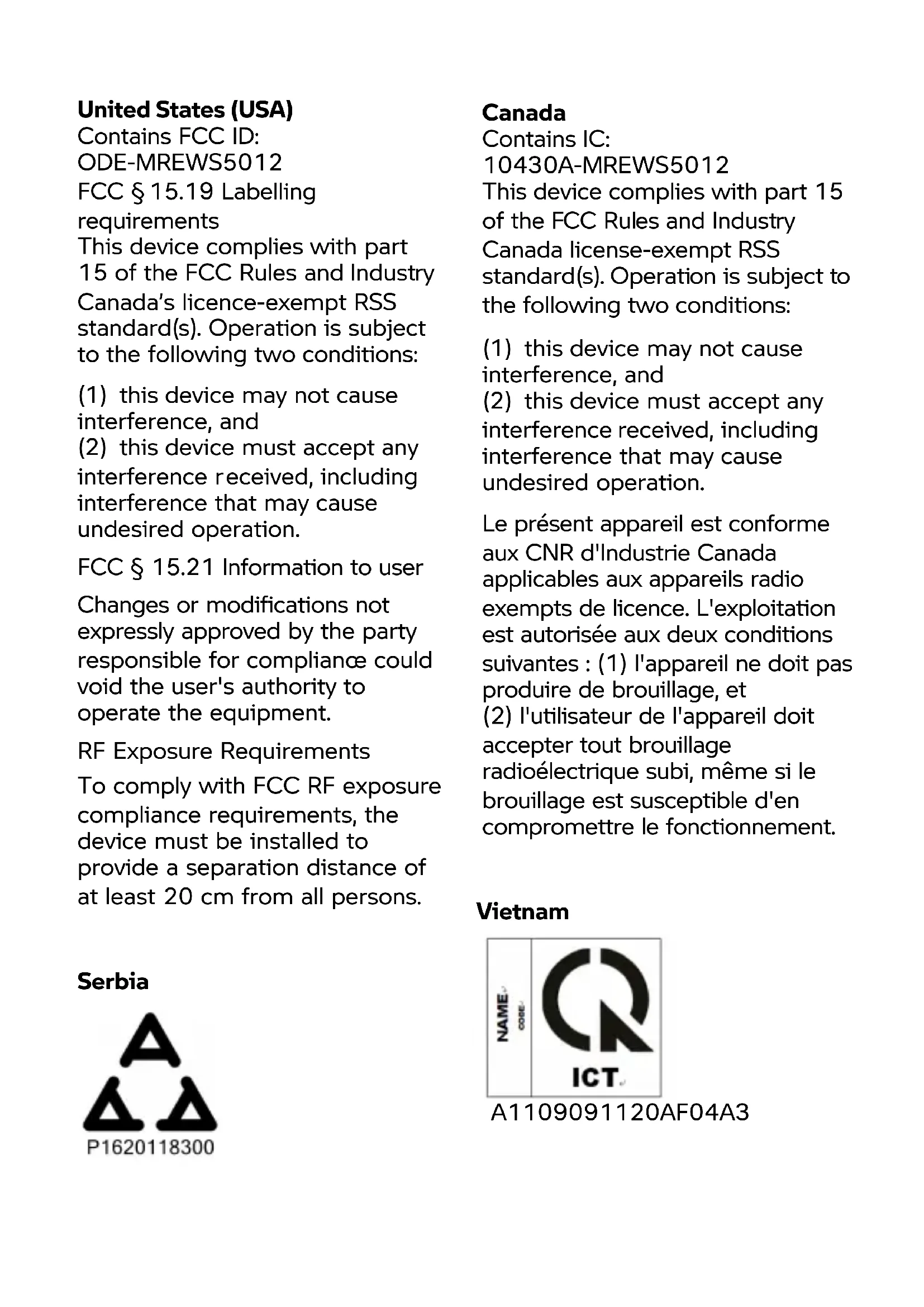

This device complies with part 15 of the FCC Rules and Industry Canada's licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

FCC § 15.21 Information to user

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Requirements

To comply with FCC RF exposure compliance requirements, the device must be installed to provide a separation distance of at least 20 cm from all persons.

Serbia

P1620118300

Canada

Contains IC:

10430A-MREWS5012

This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Product name: BMW Keyless Ride ID

Device FCC ID: YGOHUF5750

IC: 4008C-HUF5750

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

Canada:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

USA:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Argentina:

Declaration Of Conformity

We declare under our responsibility that the product

BMW Keyless Ride ID Device (Model: HUF5750)

complies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose. Applied Standards:

1. Health and safety requirements contained in article 3 (1) a)

EN 60950-1:2006+A11:2009+A1:2010+A12:2011; Information technology equipment-Safety

1. Protection requirements with respect to electromagnetic compatibility article 3 (1) b)

2. EN 301 489-1 (V1 .9.2, 09/2011), Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services;

Part 1: Common technical requirements

• EN 301 489-3 (V1.4.1, 08/2002) Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for short range devices (SRD) operating on frequencies between 9 kHz and 40 GHz

• Means of the efficient use of the radio frequency spectrum article 3 (2)

• EN 300 220-1 & -2 (V2.4.1, 05/2012), electromagnetic compatibility and radio spectrum matters (ERM); Short range devices (SRD); Radio equipment tobe used in the 25MHz to 1000MHz frequency range with power levels ranging up to 500mW ;

Part 1: Technical characteristics and test methods.

Part 2: Harmonized EN covering essential requirements under article 3.2 of the R&TIE directive

The product is labeted with the CE marking:

Velbert, October 15^th, 2013

Benjamin A. Muller

Product Development Systems Car Access and Immobilization - Electronics Huf Hülsbeck & Fürst GmbH & Co. KG

Steeger Straße 17, D-42551 Velbert

Certification Tire Pressure Control (TPC)

FCC ID: MRXBC54MA4
IC: 2546A-BC54MA4

FCC ID: MRXBC5A4
IC: 2546A-BC5A4

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

Declaration of Conformity

Radio equipment TFT instrument cluster

For all Countries without EU

Technical information

BT operating frq. Range:
2402 - 2480 MHz
BT version: 4.2 (no BTLE)
BT output power: < 4 dBm
WLAN operating frq. Range:
2412 - 2462 MHz
WLAN standards:
IEEE 802.11 b/g/n
WLAN output power: < 20 dBm

Manufacturer and Address

Manufacturer:
Robert Bosch GmbH
Address: Robert Bosch Str. 200, 31139 Hildesheim, Germany

Turkey

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

(This telecommunication equipments is in compliance with NTC requirements)

United States (USA)

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Repose-pieds, 18, 19

Réserve d'essence

Autonomie, 107

Keyless Ride, 39, 40

Mon vehicule, 113

Moteur, 46

RDC, 48, 49, 50, 51, 52

Récapitulatif, 28

Reserve d'essence, 58

Service, 59, 60
