K 1600 GT (2022) - Motorcycle BMW - Free user manual and instructions

Product type	Motorcycle
Brand	BMW
Model	K 1600 GT (2022)
Category	Grand touring
Dimensions (L x W x H)	2489 x 1000 x 1565 mm
Wheelbase	1680 mm
Seat height	810 mm
Dry weight (approx.)	344 kg
Fuel tank capacity	26.5 L
Fuel reserve	4 L
Engine	6-cylinder inline, 1649 cm³
Maximum power	118 kW (160 hp) at 7750 rpm
Maximum torque	175 Nm at 5250 rpm
Gearbox	6-speed
Drive	Shaft drive
Front brakes	Double disc 320 mm
Rear brakes	Disc 320 mm
ABS	BMW Motorrad ABS Pro (integral)
Traction control	DTC (Dynamic Traction Control)
Lighting	Adaptive LED with cornering lights
Front tire	120/70 ZR 17
Rear tire	190/55 ZR 17
Tire pressure	2.9 bar front and rear (cold)
Maximum gross weight	560 kg
Homologation	EU5

Frequently Asked Questions - K 1600 GT (2022) BMW

What type of fuel to use?

Use E5 Super unleaded (95 RON) or alternatively E10 (91 RON) with slight power restrictions.

How to adjust the seat height?

Under the seat there is a height adjustment (page 149 of the manual). Turn the knob to set the seat to the desired position.

How to reset the service light?

The reset must be carried out by a BMW Motorrad dealer or a specialized workshop using the diagnostic system. The light goes out after the service.

How to use the hill start assistant?

Firmly apply the brake, then release it. The system maintains brake pressure for about 2 seconds to allow you to start on a hill without rolling back.

What to do if tire pressure is too low?

A flashing red warning light and the message 'Tire pressure differs from set value' appear. Stop immediately, check the tires and adjust the pressure to 2.9 bar (front and rear cold).

How to pair a smartphone via Bluetooth?

From the TFT screen, go to Settings > Bluetooth and enable Bluetooth. On your phone, search for 'BMW K 1600 GT' and accept pairing. The PIN code may be displayed on the screen.

How to activate the cruise control?

Press the Cruise control button on the left handlebar (page 88). Ride at the desired speed and press 'Set' to memorize. Use the arrows to increase or decrease.

How does the intelligent emergency call work?

In the event of a serious accident, the system automatically sends GPS coordinates to the emergency center. You can also trigger the call manually using the SOS button on the right handlebar switch (page 74).

What engine oil to use and how to check the level?

Use a high-quality engine oil BMW Motorrad or equivalent (viscosity SAE 5W-40 or 10W-40). The level is checked electronically on the TFT screen in the 'My vehicle' menu, with the engine hot and the motorcycle upright.

How to unlock the fuel cap without remote control?

In case of remote control failure, use the spare key (page 72). Insert it into the manual lock located under the tank cover to unlock the cap.

USER MANUAL K 1600 GT (2022) BMW

Side profile of a black BMW 501 motorcycle with visible engine and wheel (no text or symbols)

Données de la moto

Modèle

Labeled diagram of a motorcycle front view with numbered parts for identification

Technical diagram of a car engine compartment with numbered parts labeled 1 to 5

Autodiagnos- tic DTC non ter- miné (→ 58)

est allumé.

Off!

DTC désactivé (→59)

ALARME ANTIVOL (DWA) 82

CONTRÔLE DYNAMIQUE DE LA TRACTION (DTC) 85

RÉGLAGE ÉLECTRONIQUE DU CHÂSSIS (D-ESA) 86

MODE DE CONDUITE 86

RÉGULATEUR DE VITESSE 88

ASSISTANT DE DÉMARRAGE EN CÔTE 91

ASSISTANCE DE MARCHE ARRIÈRE 93

VERROUILLAGE CENTRALISÉ 94

CHAUFFAGE 95

AILETTE DÉFLECTRICE 97

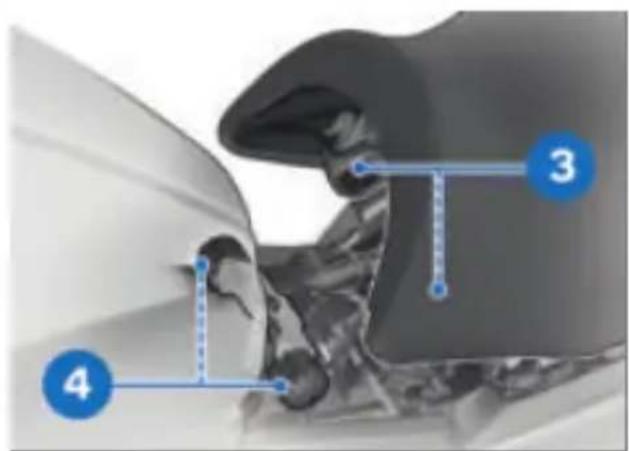

SELLE PILOTE

VALISE

BACS DE RANGEMENT

98

99

102

ALLUMAGE

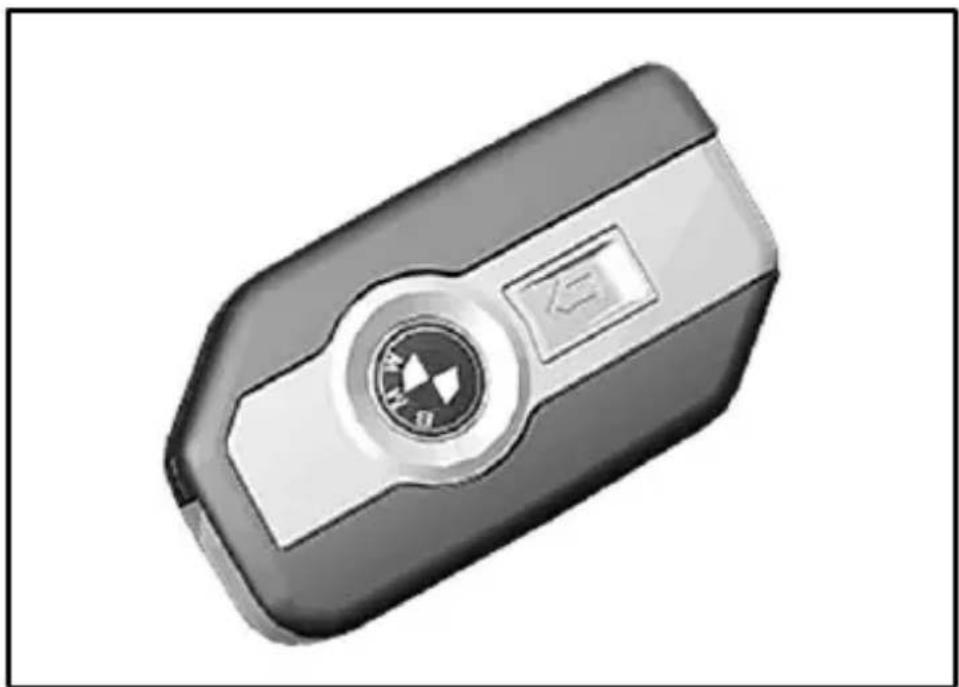

Clé radiocommandée

Technical diagram of a mechanical assembly with numbered annotations pointing to specific components

scale to 1 2

Close-up of a wristwatch with control buttons and a blue circular indicator labeled '1' (no readable text or symbols beyond the label)

1 Coupe-circuit

AVERTISSEMENT

Diagram of a mechanical device with numbered parts and an arrow indicating rotation or movement

Close-up of a hand holding a black-and-white digital camera control interface with buttons and a blue circular indicator labeled '1' (no text or symbols on the device itself)

Close-up of a black and white industrial control switch with buttons and a blue circular indicator labeled '1' (no text or symbols on the switch itself)

Close-up of a hand gripping a camera control interface with buttons and a blue circular marker labeled '1' (no readable text or symbols beyond the label)

Close-up of a black and white industrial control switch mechanism with buttons and a blue indicator line (no text or symbols visible)

ALARME ANTIVOL (DWA)

Close-up of a black rectangular electronic device with a circular button and a blue arrow pointing to its top-left corner (no text or symbols visible)

Close-up of a camera lens with a blue circular label pointing to the button (no text or symbols on the lens itself)

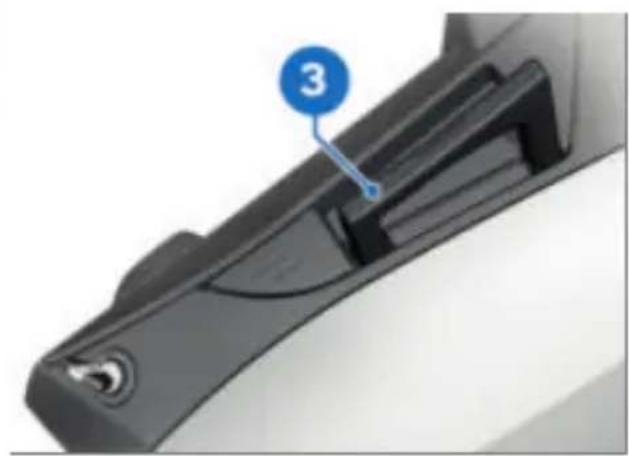

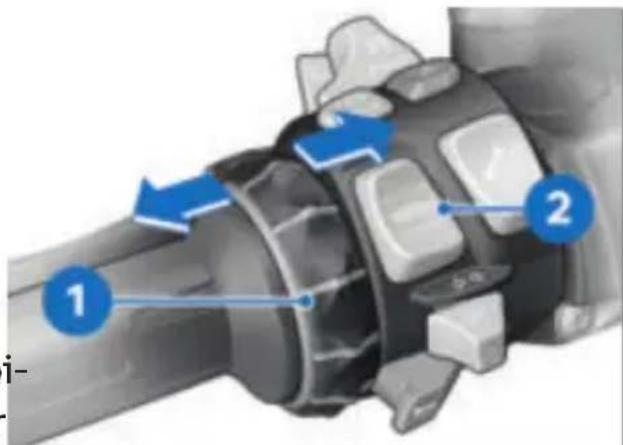

84 UTILISATION

3D model of a camera with labeled component (no text or symbols on body)

Close-up of a mechanical device with a blue circular marker labeled '1' pointing to a button (no readable text or symbols beyond the label)

Close-up of a mechanical device with a blue circular marker labeled '1' pointing to a button (no readable text or symbols beyond the label)

SET RES OFF/ON 1 2

1 SET RES OFF/ON

1 SET RES OFF/ON

1 SET RES OFF/ON

SET RES OFF/ON 1 2

Close-up of a mechanical lever handle with blue directional arrow indicating rotation (no text or symbols)

Lors du démarrage,

Diagram showing two labeled buttons (1 and 2) on a device interface, with blue arrows pointing to the buttons.

Close-up of a car interior showing steering wheel and dashboard (no visible text or symbols)

Close-up of a car's side panel with a blue circular marker labeled '1' pointing to the edge (no text or symbols beyond the number)

Two identical aircraft wing profiles labeled A and B, showing different blade shapes and directional arrows (no text or symbols beyond labels)

Close-up of a car seatbelt buckle with a blue indicator light and number 1 label (no text or symbols on the suit itself)

Close-up of a mechanical component with a blue circular marker labeled '2' pointing to a specific area (no readable text or symbols)

Diagram showing a mechanical or automotive component with numbered annotations (3, 4, 5) indicating specific parts or features.

Close-up of a mechanical component with a blue circular marker labeled '2' pointing to a detail (no readable text or symbols)

Close-up of a mechanical knob with a blue circular dial and arrow indicator (no readable text or symbols)

Diagram of a device handle with labeled parts, showing numbered annotations 1 and 2 pointing to specific features.

Close-up of a black mechanical component with a blue circular marker labeled '2' pointing to a specific area (no text or symbols beyond the number)

Close-up of a mechanical component with a blue circular marker labeled '3' pointing to a specific part (no text or symbols beyond the number)

Close-up of a mechanical component with a numbered label '3' pointing to a specific part (no text or symbols beyond the number)

Close-up of a mechanical component with blue annotation line and number 4, no readable text or symbols beyond annotations

Close-up of a mechanical component with a blue arrow indicating rotational motion (no text or symbols visible)

Diagram showing a device with labeled parts, including numbered annotations 1 and 2 pointing to components.

Close-up of a car interior showing a blue arrow pointing to a component, with no visible text or symbols.

Close-up of a car engine compartment with blue annotations pointing to internal components (no text or symbols visible)

Close-up of an electric vehicle charging plug with labeled parts (1 and 2), showing internal components without any text or symbols.

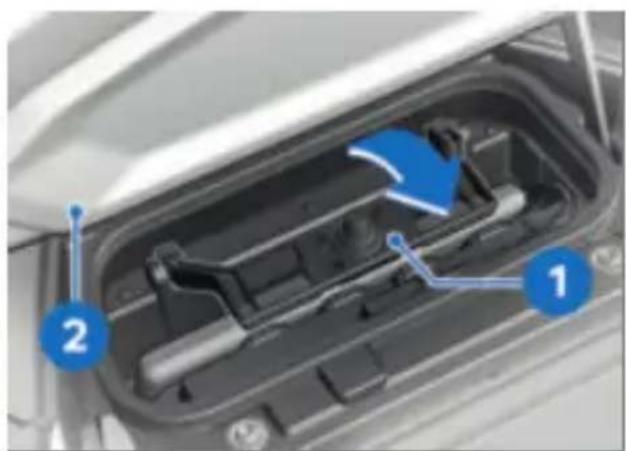

- Brancher le smartphone 2 surabattre l'étrier de fixation 1

Mechanical assembly diagram showing fluid flow paths with blue arrows and a numbered label (1), no readable text or symbols present.

Mechanical assembly diagram showing fluid flow paths with blue arrows and a numbered label (1), no readable text or symbols present.

Mechanical assembly diagram showing blue directional arrows interacting with a mechanical component (no text or symbols)

Mechanical component diagram showing fluid flow paths with blue arrows and a numbered label (1), no readable text or symbols present.

Mechanical component diagram showing fluid flow paths with blue arrows and numbered label (1), no readable text or symbols beyond annotations

Mechanical assembly diagram showing fluid flow paths with blue arrows and a numbered label (1), no readable text or symbols present.

Commander la lecture audio

Technical diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Mechanical assembly diagram showing fluid flow paths with blue arrows and a numbered label (1), no readable text or symbols present.

Close-up of a device's elevator control panel with numbered buttons 1 to 4

Activation de stations

Radio ID: XXXXXXXXXXXX For support, please contact SiriusXM Custo-

142 SYSTÈME AUDIO

mer Care at: 1-888-539-7474

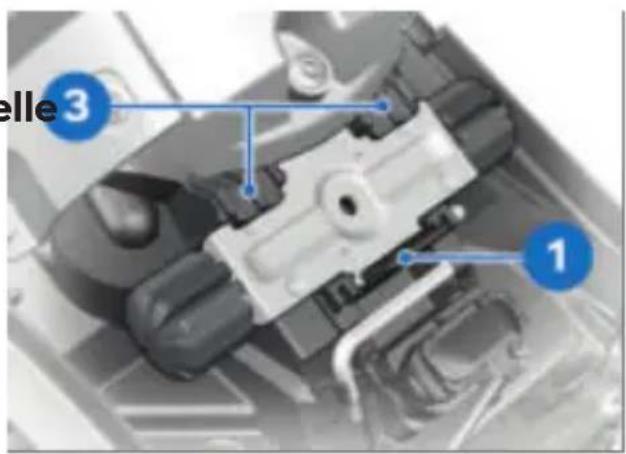

Intensité du signal

Close-up of a hand gripping a camera control interface with buttons and a blue circular indicator labeled '1' (no text or symbols on the device itself)

Close-up of a black square mirror with a curved handle, shown in profile view (no text or symbols)

Close-up of a hand holding a camera control interface with buttons and a blue indicator light (no text or symbols visible)

Mechanical assembly diagram showing a component with numbered annotations (1 and 2) pointing to specific parts, no readable text or symbols present.

Two mechanical connectors with black and gray parts, labeled L and H (no text or symbols on the connectors themselves)

elle3 1

Mechanical component with blue directional arrows indicating rotation or movement (no text or symbols)

AVERTISSEMENT

Close-up of a hand holding a camera with control buttons and a blue circular indicator labeled '1' (no readable text or symbols beyond the label)

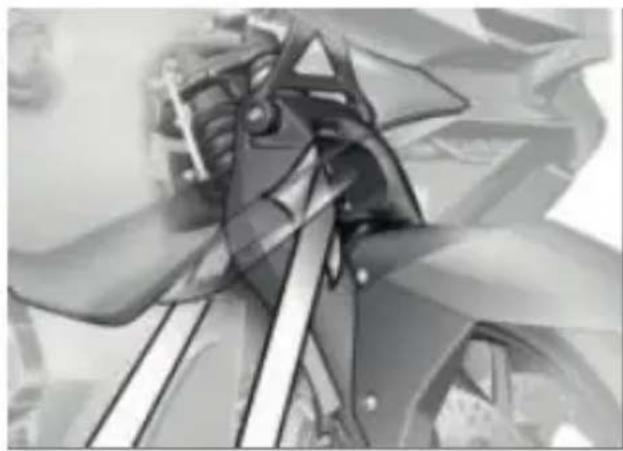

Ride-Ride-Check

Close-up of a mechanical component with a blue 'MAX' label pointing to it, no readable text or symbols beyond the label.

Diagram of a mechanical component with numbered parts labeled 1 and 2

Black-and-white photo of a car with exposed internal components and a roof-mounted hood (no visible text or symbols)

Close-up of a mechanical device with visible gears and shafts (no text or symbols)

ATTENTION

Close-up of a mechanical assembly with no visible text or symbols

ROAD. Haute performance

Diagram showing three labeled parts of a mechanical component: rod, cylindrical part, and bent pipe with blue circular annotations.

Tournevis réversible

Two white plastic guide railings with black wheels, no text or symbols visible

surface plane et stable.

Close-up of a mechanical component with a blue indicator light and numbered label (1), no readable text or symbols present.

Close-up of a mechanical brake assembly with labeled component (no readable text or symbols)

Pure mechanical diagram showing symmetrical blue arrows pointing inward through a central shaft (no text or symbols)

Close-up of a mechanical assembly with a blue circular marker labeled '1' pointing to a component (no readable text or symbols beyond the label)

Mechanical assembly diagram showing two blue arrows pointing to a central component (no text or symbols present)

MAX MIN MIN

e- MAX MAX MIN MIN

bmw-motorrad.com/service.

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Technical diagram of a motorcycle's front wheel and side rim with labeled parts 1 and 2

Close-up of a car wheel assembly with visible tire and brake system (no text or symbols)

ATTENTION

Mechanical component diagram showing two flanged parts with numbered annotations (1 and 2), no readable text or symbols present.

Close-up of a car wheel assembly with blue annotation lines pointing to specific components (no text or symbols present)

Technical diagram showing labeled components (1, 2) in a mechanical assembly with blue arrows pointing to specific parts.

Technical diagram of a mechanical component with numbered annotations pointing to parts 1 and 2.

ATTENTION

Technical diagram of a car engine bay with numbered annotations pointing to components

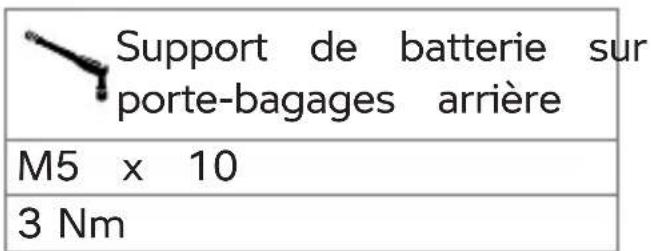

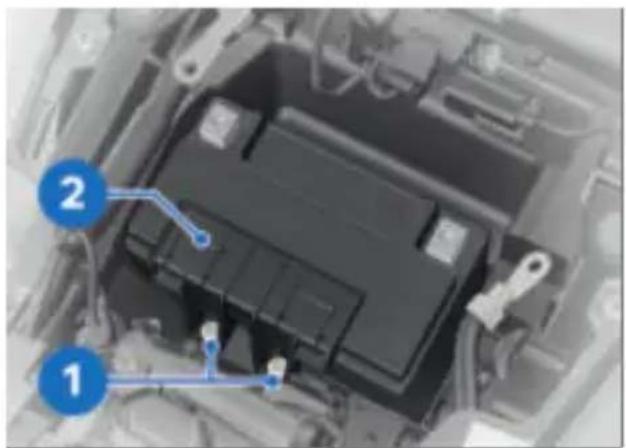

Déposer la batterie

Technical diagram of a mechanical component with numbered annotations pointing to features

Technical diagram of a battery pack with labeled components and numbered parts

pmw-motorrad.com/service

BMW Motorrad Service

DECLARATION OF CONFORMITY 273

CERTIFICAT POUR LE COMBINÉ D'INSTRUMENTS TFT 276

CERTIFICAT POUR LE SYSTÈME AUDIO 280

CERTIFICAT POUR L'ANTIDÉMARRAGE ÉLECTRO-

NIQUE 281

CERTIFICAT POUR LE KEYLESS RIDE 284

CERTIFICAT POUR LE CONTRÔLE DE LA PRESSION

DES PNEUS 288

DECLARATION OF CONFORMITY

Manufacturer

Hereby, BMW AG declares that the radio equipment compl listed below are in compliance with Directive 2014/53/EU and with Radio Equipment Regulations 2017 of the United Kingdom. The full text of the EU/UK declarations of conformity are available at the following internet address:

bmw-motorrad.com/certification

Simplified EU Declaration of Conformity according to EU (2014/53/EU).

274 ANNEXE

Technical information

Radio equipment	Com- ponent	Frequency band Output/	Transmis-sion Power
EWS4 EWS 134	kHz		50 dBμV/m
HUF5750	Keyless Ride	434,42 MHz 10 mW
HUF8465	Keyless Ride	134,45 kHz	42 dBμV/m
HUF5794	Keyless Ride	433,92 MHz 10 mW
HUF8485	Keyless Ride	134,45 kHz	42 dBμV/m
ZB001	Keyless Ride	134.5 kHz	allowed66 dBμA/m@ 10m
ZB002	Keyless Ride	433.92 MHz	max.10 dBme.r.p
TXBMWMR	DWA	433.05 MHz - 434.79	MHz 18,8 dBm
RDC3 RDC 433.92 MHz <13 mW
Wus Moto gen 3	RDC 433,05 MHz - 434,79 MHz		<10 mWe.r.p.
MC24-MA4	RDC
WCA Motorrad-Lades-taufach	Charging compartment	110 kHz - 115 kHz <	6 W
ICC6.5in	Instrument Cluster	Bluetooth: 2402 MHz -2480 MHzWLAN: 2412 MHz -2462 MHz	Bluetooth:< 4 dBmWLAN: <20 dBm
Radio equipment	Com-ponent	Frequency band Output/	Transmission Power
ICC10in	InstrumentCluster	Bluetooth: 2402 MHz - 2480 MHzWLAN: 2402 MHz - 2472 MHz	Bluetooth:< +4 dBmWLAN: < +14 dBm
MRR e14FCR	ACC 76	- 77 GHz	Peak max.32 dBmNom max.27 dBm
TL1P22	Intelli-gent emergency call	832 MHz - 862 MHz880 MHz - 915 MHz1710 MHz - 1785 MHz1920 MHz - 1980 MHz2500 MHz - 2570 MHz2570 MHz - 2620 MHzGNSS: 1559 MHz-1610 MHz	23 dBm33 dBm30 dBm24 dBm23 dBm23 dBm
MCR001	Audio system

Declaration of Conformity

Radio equipment TFT instrument cluster

For all Countries without EU

Model name: ICC10in

Technical information

The ICC10in can operate in one of two operating modes:

1. Normal mode, with
   Bluetooth and WLAN on, and
2. Radio off mode (only available during vehicle manufacturing).

BT operating frq. Range:

2402 - 2480 MHz

BT version: 4.2 (no BTLE)

BT output power:

< +4 dBm (internal antenna)

WLAN operating frq. Range:

2402 - 2472 MHz

WLAN standards:

IEEE 802.11 b/g/n

WLAN output power:

< +14 dBm (internal antenna)

Manufacturer and Address

Manufacturer:

Robert Bosch GmbH

Address:

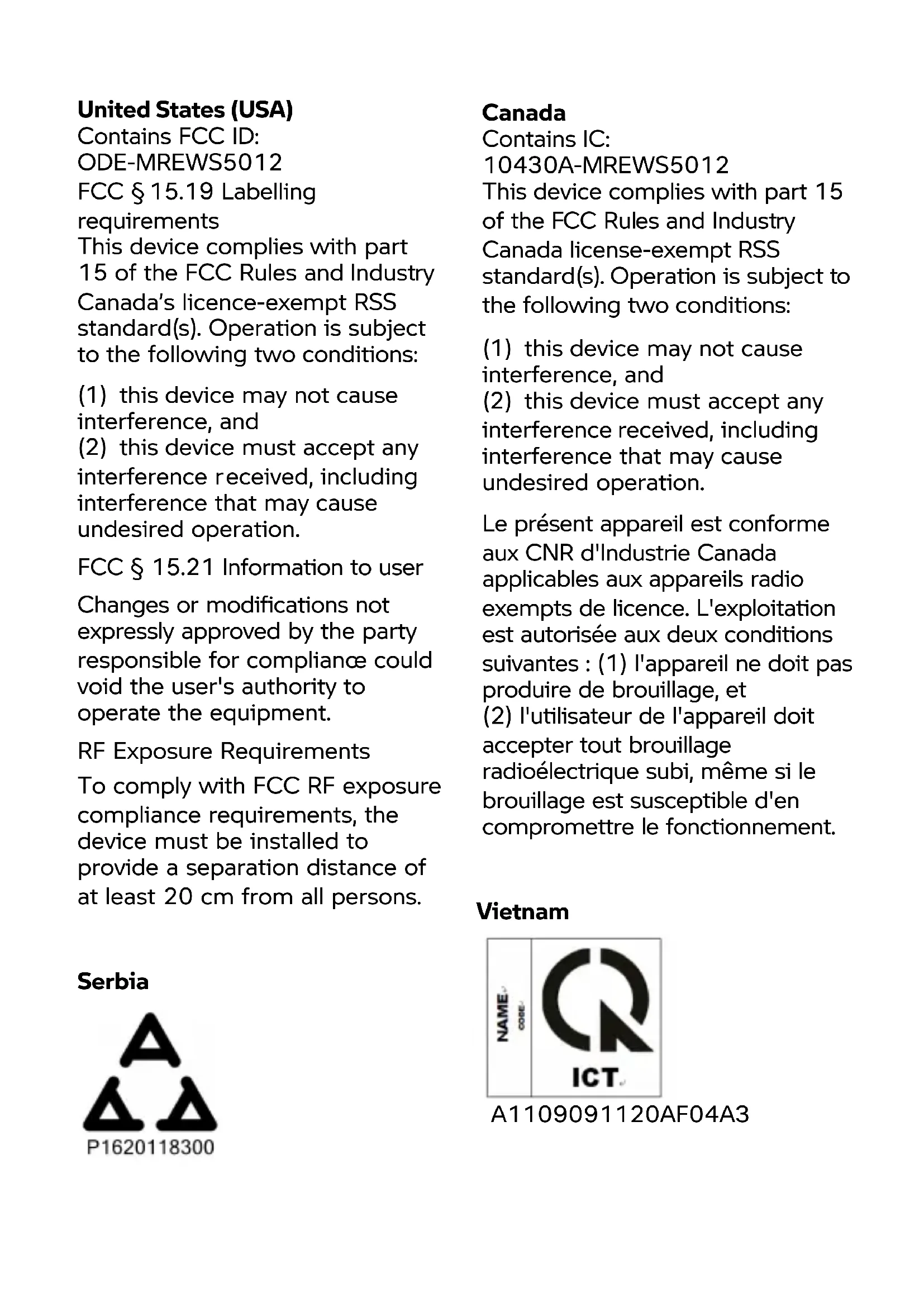

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Radiofrequency radiation exposure Information: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications made to this equipment not expressly approved by Robert Bosch GmbH may void the FCC authorization to operate this equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
  Radiofrequency radiation exposure Information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
  This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Japan

This device is granted pursuant to the Japanese Radio Law (電波法) and the Japanese

Telecommunications Business Law (電気通信事業法)

This device should not be modified (otherwise the granted designation number will become invalid)

本製品の改造は禁止されています。

(適合証明番号などが無効となります。)

R

201-200559

T

20 0138 201

Korea

Equipment Name: BMW A-Kombi

Basic model number: ICC10in

Manufacturer/Country of Origin:

Robert Bosch GmbH/포르투갈

Zertifikatsnummer:

R-R-BO2-ICC10in

Mexico

Declaration of Conformity

Radio equipment audio system

Model name: MCR001

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Declaration of Conformity

Radio equipment electronic immobiliser (EWS4)

For all countries without EU

Technical information

Frequency Band: 134 kHz (Transponder: TMS37145 / Type DST80, TMS3705 Transponder Base Station IC) Output Power: 50 dBμV/m

Manufacturer and Address

Australia/New Zealand

R-NZ

Brunei

AITI

TA No: DTA-007061

United Arab Emirates

TRA REGISTERED No: ER89926/20 DEALER No: DA96133I20

Philippiens

NTC

Type Approved No.: ESD-RCE-2023298

South Africa

ICASA

TA-2020/6131

APPROVED

India

ETA-SD-20200905860

Belarus

Indonesia

72790/SDPPI/2021

13349

Warning sign with exclamation mark inside a triangle, commonly used to indicate caution or hazard.

QR code image containing encoded data, no visible human-readable text

Simple geometric diagram with a semicircle and two overlapping rectangles (no text or symbols)

CONATEL

NR: 2020-11-I-0834

Singapore

Complies with IMDA Standards N3504-20

Taiwan

Geometric diagram of a triangle with an inscribed circle and the acronym MCMC below (no additional text or symbols)

RFCL/47A/0920/S(20-3358)

Israel

This device complies with part 15 of the FCC Rules and Industry Canada's licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

FCC § 15.21 Information to user

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Requirements

To comply with FCC RF exposure compliance requirements, the device must be installed to provide a separation distance of at least 20 cm from all persons.

Serbia

Three black triangles arranged in a triangular pattern (no text or symbols)

P1620118300

Canada

Contains IC:

10430A-MREWS5012

This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

NAME CORE ICT

A1109091120AF04A3

Certifications

BMW Keyless Ride ID Device

3D rendered image of a black and silver remote control device with a circular dial and control knob (no text or symbols visible)

USA, Canada:

Product name: BMW Keyless Ride ID

Device FCC ID: YGOHUF5750

IC: 4008C-HUF5750

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

Canada:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

USA:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Argentina:

Declaration Of Conformity

We declare under our responsibility that the product

BMW Keyless Ride ID Device (Model: HUF5750)

camplies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose. Applied Standards:

1. Health and safety requirements contained in article 3 (1) a)

- EN 60950-1:2006+A11:2009+A1:2010+A12:2011; Information technology equipment-Safety

1. Protection requirements with respect to electromagnetic compatibility article 3 (1) b)

- EN 301 489-1 (V1 .9.2, 09/2011 ), Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services;

Part 1: Common technical requirements

- EN 301 489-3 (V1.4.1, 08/2002) Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for short range devices (SRD) operating on frequencies between 9 kHz and 40 GHz

1. Means of the efficient use of the radio frequency spectrum article 3 (2)

- EN 300 220-1 & -2 (V2.4.1, 05/2012), electromagnetic compatibility and radio spectrum matters (ERM); Short range devices (SRD); Radio equipment to be used in the 25 MHz to 1000 MHz frequency range with power levels ranging up to 500 mW;

Part 1: Technical characteristics and test methods.

Part 2: Harmonized EN covering essential requirements under article 3.2 of the R&TIE directive

The product is labeled with the CE marking:

CE

Velbert, October 15 ^th , 2013

Dr. Aie

Benjamin A. Müller

Product Development Systems

Car Access and Immobilization -

Steeger Straße 17, D-42551

Velbert

Certification Tire Pressure Control (TPC)

FCC ID: MRXBC54MA4

IC: 2546A-BC54MA4

FCC ID: MRXBC5A4

IC: 2546A-BC5A4

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

290 INDEX ALPHABÉTIQUE

A

Couper le contact, 70

Keyless Ride, 41, 42

Mon véhicule, 123

Moteur, 49
