USER MANUAL SRSHELFKBD Tripp Lite

1U Rackmount Keyboard

Model: SRSHELFKBD

Español p. 5 Français p. 9

Package Contents

• 1U Rackmount Keyboard
• KVM Cable Kit (USB)

• Owner's Manual
• Mounting Brackets

Overview

• Full 88-key keyboard and touch pad in a 1U, heavy-duty steel housing
- Rackmountable in standard 19-inch racks (1U)
- Includes rackmount brackets
- Includes KVM cable kit for connection to a USB port on a computer or KVM
- Sliding design allows for convenient access and discreet storage

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation and operation of the product described in this manual. Read all instructions thoroughly before attempting to install or operate the rackmount keyboard unit. Failure to comply may void the warranty and could damage the rackmount keyboard unit or connected equipment.

WARNING:

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$50 value!

www.tripplite.com/warranty

1111 West 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2015 Tripp Lite. All rights reserved.

Introduction

Front View

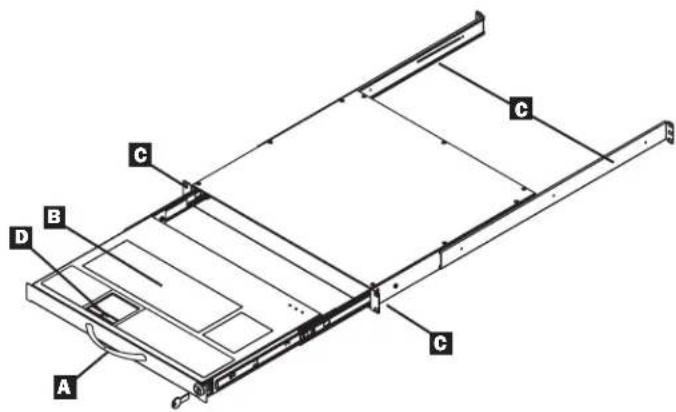

A Handle: Pull to slide the module out; push to slide the module in.
B Keyboard
C RackmountingBrackets: The brackets secure the chassis to a standard 19-inch rack or rack enclosure.
D2-ButtonTouchpad: Press the left button to left-click, press the right button to right-click. Scroll up and down the screen by running your finger up or down the far right side of the touchpad.

Rear View

E Console Port Section: Connects the unit to your server or KVM switch with the included KVM cable kit.

Rackmounting

Tripp Lite's 1U Rackmount Keyboard is designed for 2- or 4-post mounting in a 1U rack system.

4-Post Rackmounting

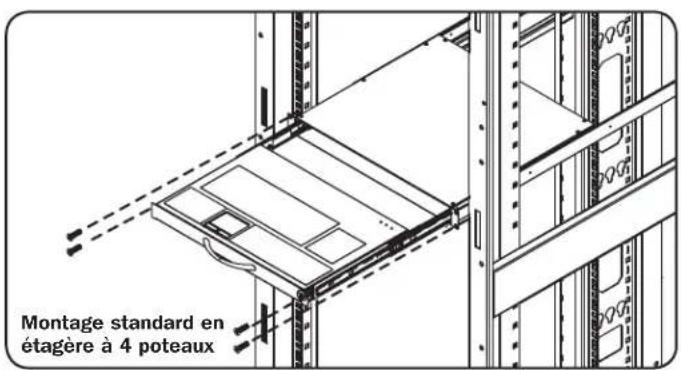

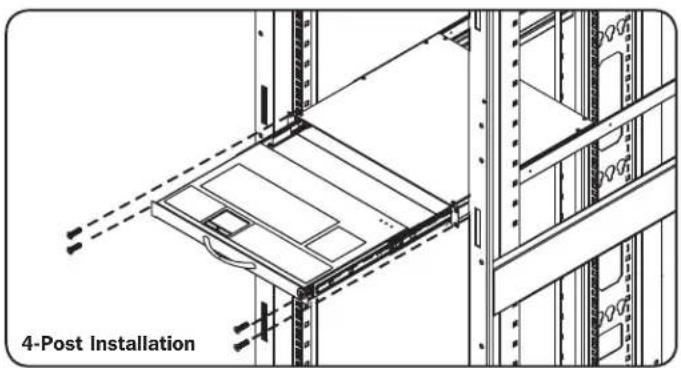

To install the unit in a 4-post rack, attach and secure the unit's mounting ears to the rack's front and rear vertical mounting rails with user-supplied hardware.

2-Post Rackmounting

The unit can also be mounted in a 2-post rack using the optional 2-Post Rackmount Kit (Tripp Lite model B019-000). The mounting hardware allows for the console to be opened with the drawer in any position. The kit provides added stability and prevents the unit's frame from twisting. See the B019-000 Owner's Manual for detailed mounting instructions.

Simple line drawing of a rectangular electronic component with mounting holes and a small labeled component (no text or symbols)

Installation

Refer to the installation diagrams below as you perform these steps.

Note: Make sure the power to the computer or KVM switch being connected to the unit is powered off before proceeding with the installation.

1 Plug the Black USB connector on the included cable kit into the USB port on the back of the unit.
2 Plug the Blue USB connector on the other side of the cable kit to the USB port on the back of your computer or KVM switch.

Note: Although KVM switches will contain two USB console ports for keyboard and mouse, you can plug the single USB connector on the adapter into either port.

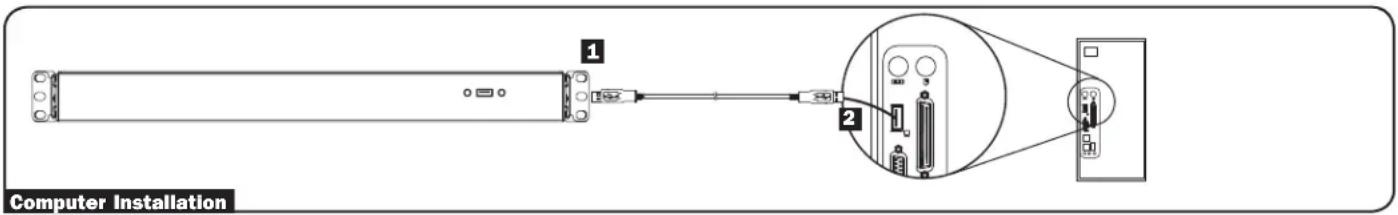

Computer Installation

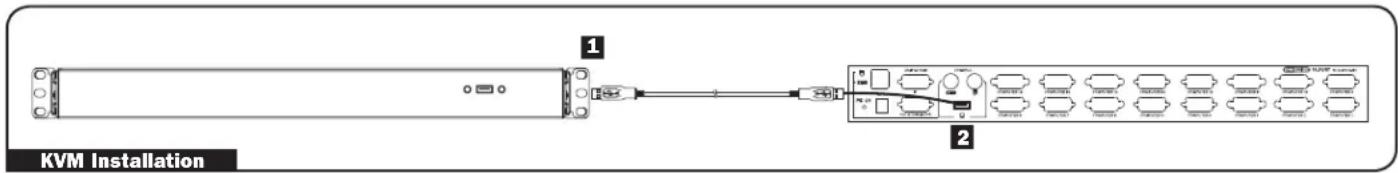

KVM Installation

Note: The diagram below shows connection to a B042-016 KVM switch. The console ports of different model KVM switches may be located elsewhere on the unit.

Specifications

Function Specification

Cable Kit USB-A (Male) to USB-A (Male)
Environment	Operating Temperature: 32° to 104°F (0° to 40°C)
	Storage Temperature: -4° to 140°F (-20° to 60°C)
	Humidity: 0 - 80% RH Non-Condensing
Housing Metal
Weight 19.6 lb. (9 kg)
Dimensions [L x W x H] 18.9 x 21.75 x 1.7 in. (480 x 552 x 43 mm)

Warranty and Product Registration

1-YEAR LIMITED WARRANTY

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Product Registration

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product! *

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

FCC Notice, Class A

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The user must use shielded cables and connectors with this equipment. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
